# Structural Correlations in the Italian Overnight Money Market: An Analysis Based on Network Configuration Models

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Structural Correlations and Configuration Models

#### 2.1. Undirected Networks

#### 2.1.1. General Notation

#### 2.1.2. Structural Correlations in Undirected Networks

#### Assortativity Analysis

#### The Average Degree and Strength of the Nearest Neighbors

#### Pearson Correlation Coefficient of the Node Degrees and of the Node Strengths

#### Clustering Coefficients

#### 2.2. Directed Networks

#### 2.2.1. General Definitions

#### 2.2.2. Structural Correlations in Directed Networks

#### Assortativity Analysis

#### Clustering Coefficients

#### 2.3. Configuration Models

#### Undirected Binary Configuration Model (UBCM)

#### Directed Binary Configuration Model (DBCM)

#### Undirected Weighted Configuration Model (UWCM)

#### Directed Weighted Configuration Model (DWCM)

#### Undirected Enhanced Configuration Model (UECM)

#### Directed Enhanced Configuration Model (DECM)

## 3. Data and Summary Statistics for the Italian Interbank Market e-MID

## 4. Findings for the Binary Network

#### 4.1. Structural Correlations in the Undirected Binary e-MID Network

#### 4.2. Structural Correlations in the Directed Binary e-MID Network

#### 4.3. Comparisons to the Configuration Models

#### 4.3.1. Undirected Binary Network

#### 4.3.2. Directed Binary Network

## 5. Findings for the Weighted Network

#### 5.1. Structural Correlations in the Undirected Weighted e-MID Network

#### 5.2. Structural Correlations in the Directed Weighted e-MID Network

#### 5.3. Comparisons to the Weighted Configuration Models

#### 5.3.1. Undirected Weighted Network

#### 5.3.2. Directed Weighted Network

#### 5.4. z-Scores Analysis Revealing Structural Changes in the Weighted System

## 6. Conclusions

## Author Contributions

## Conflicts of Interest

## Appendix A

#### Appendix A.1. Overall Assortativity

#### Appendix A.2. Local Assortativity

## Appendix B

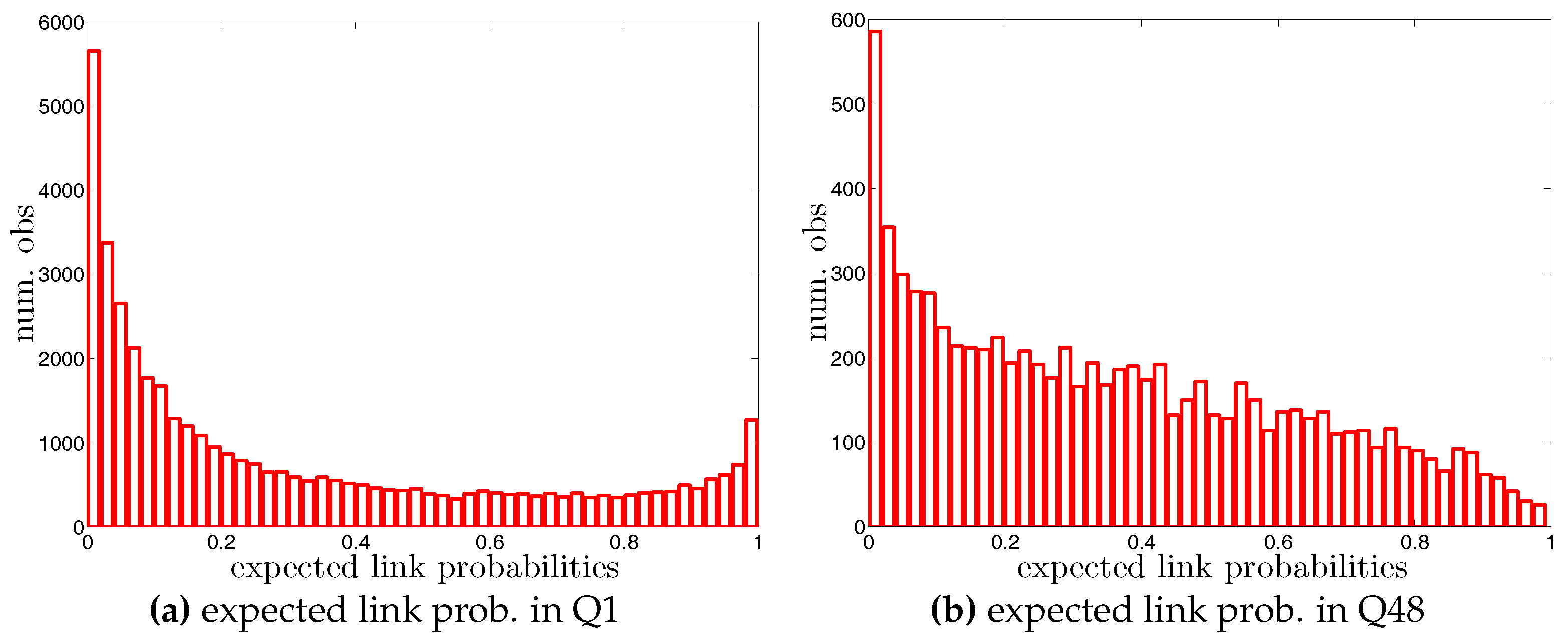

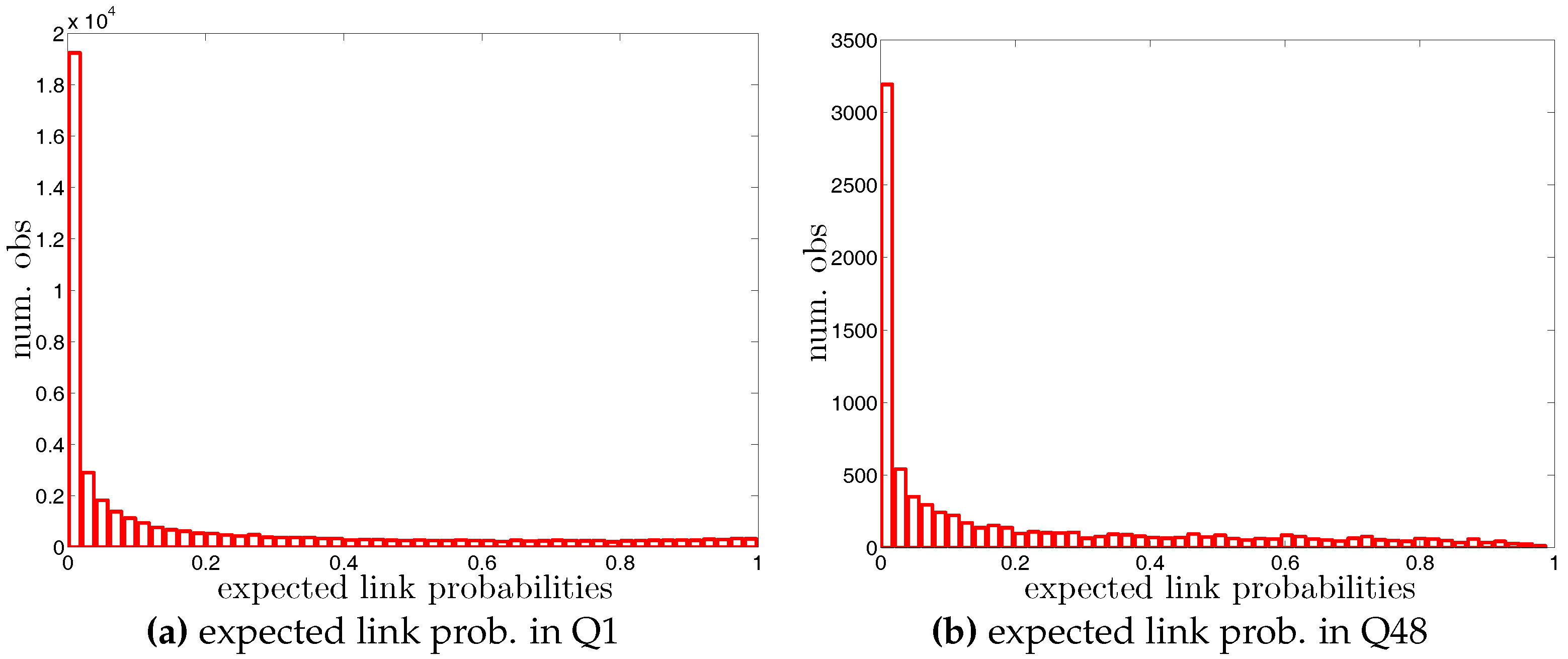

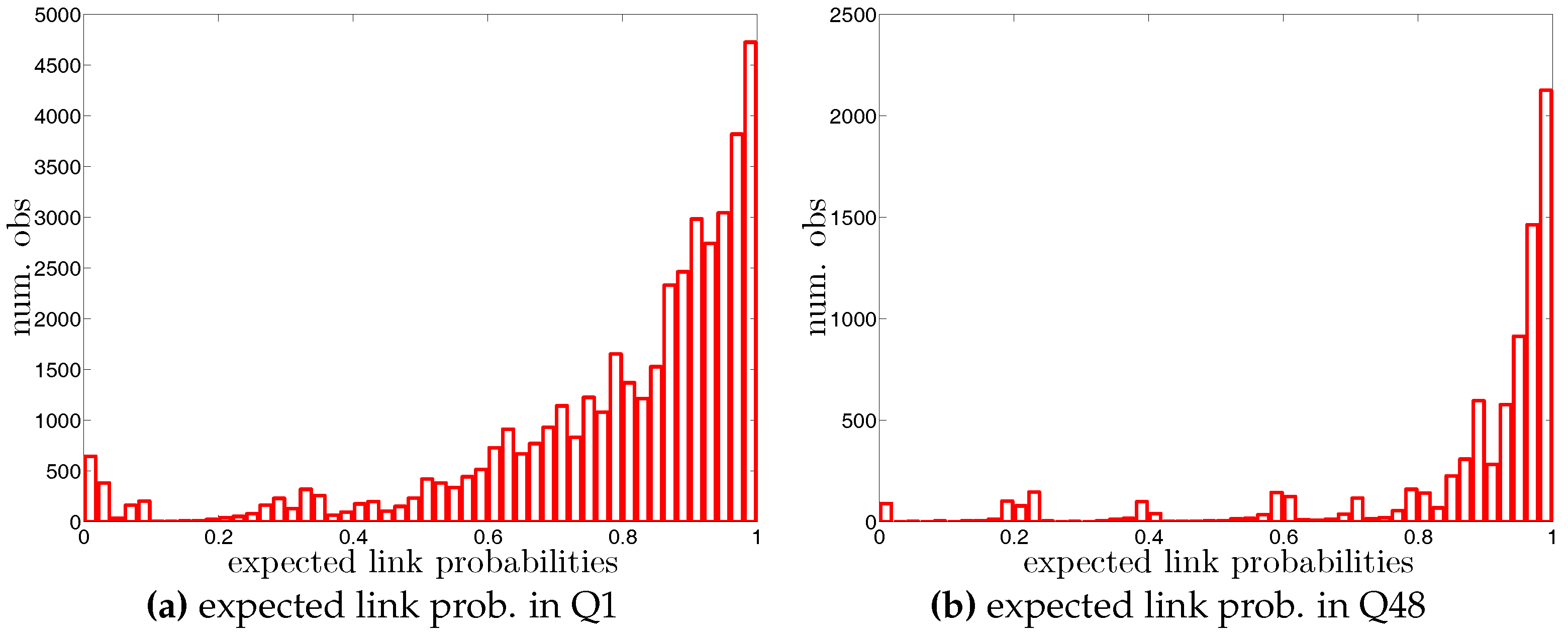

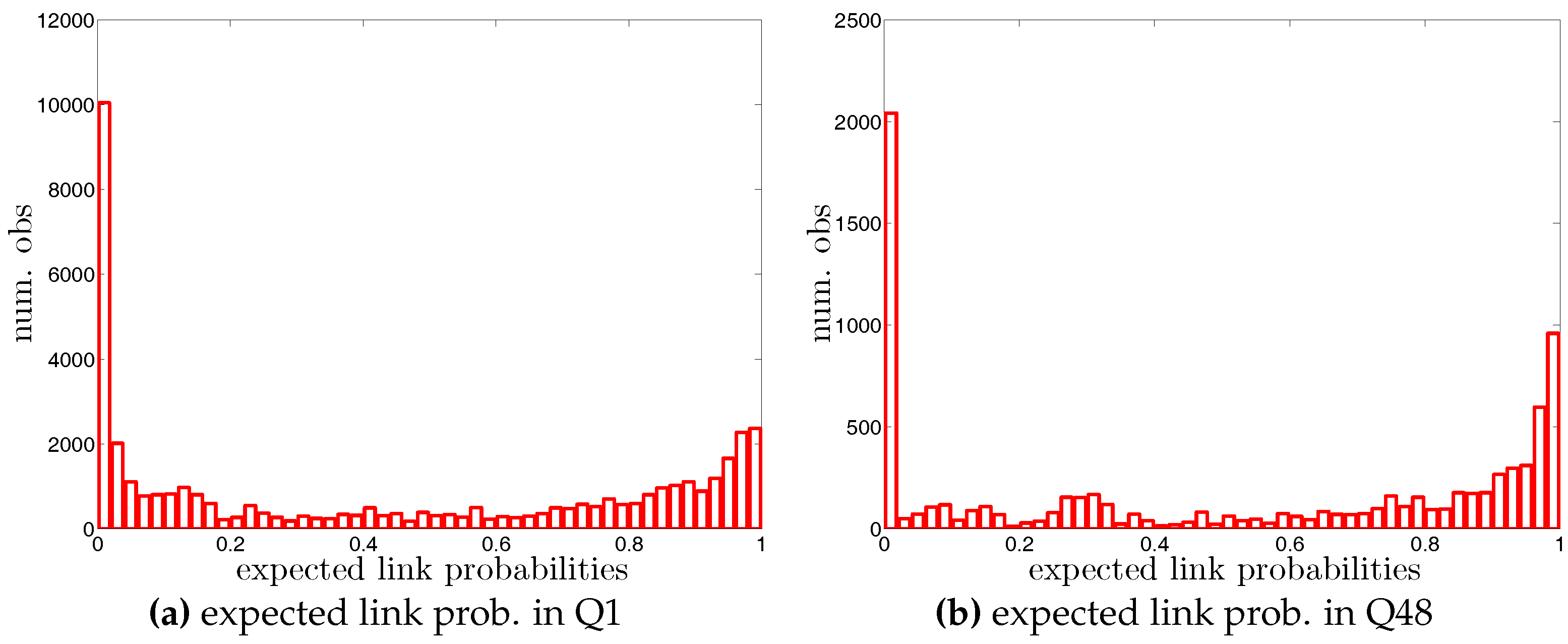

**Figure A2.**Histogram of expected undirected link probabilities, $\langle {a}_{ij}\rangle $, under the UBCM in Q1 and Q48.

**Figure A3.**Histogram of expected directed link probabilities, $\langle {a}_{ij}\rangle $, under the DBCM in Q1 and Q48.

**Figure A4.**Histogram of expected undirected link probabilities, $\langle {a}_{ij}\rangle $, under the UWCM in Q1 and Q48.

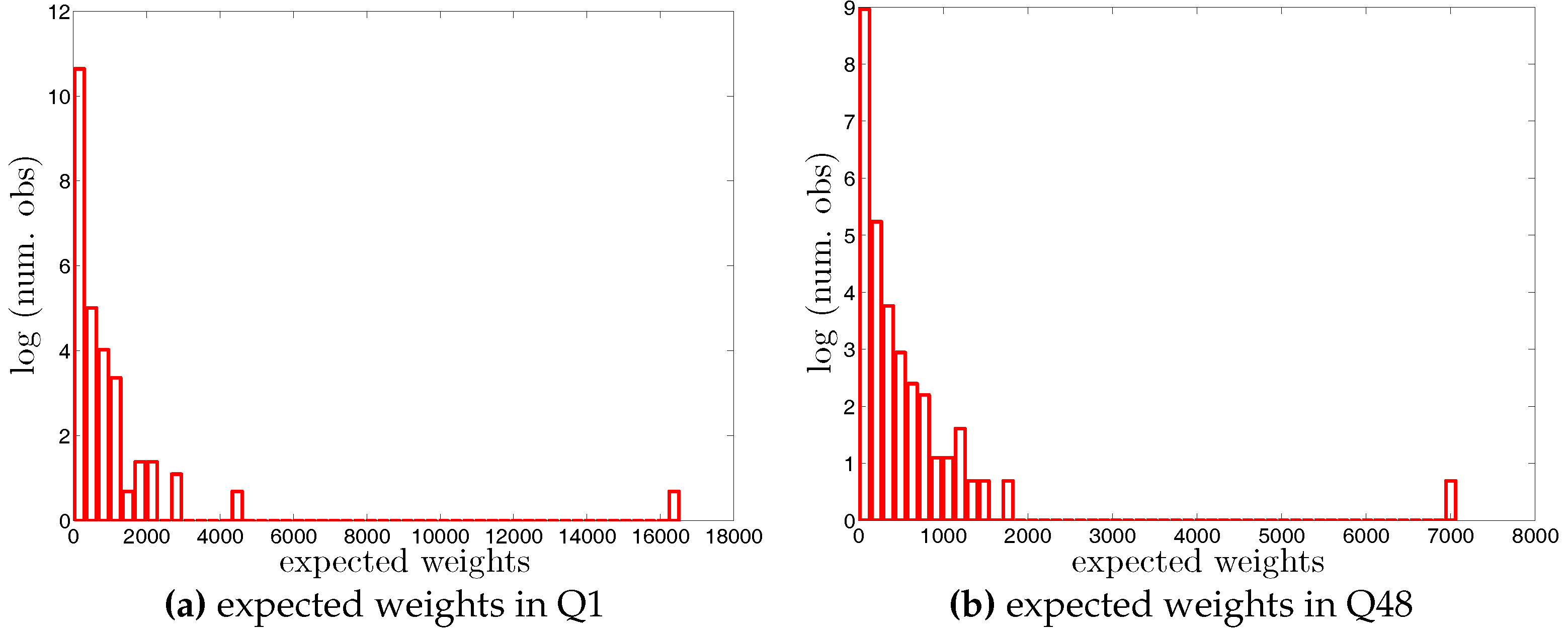

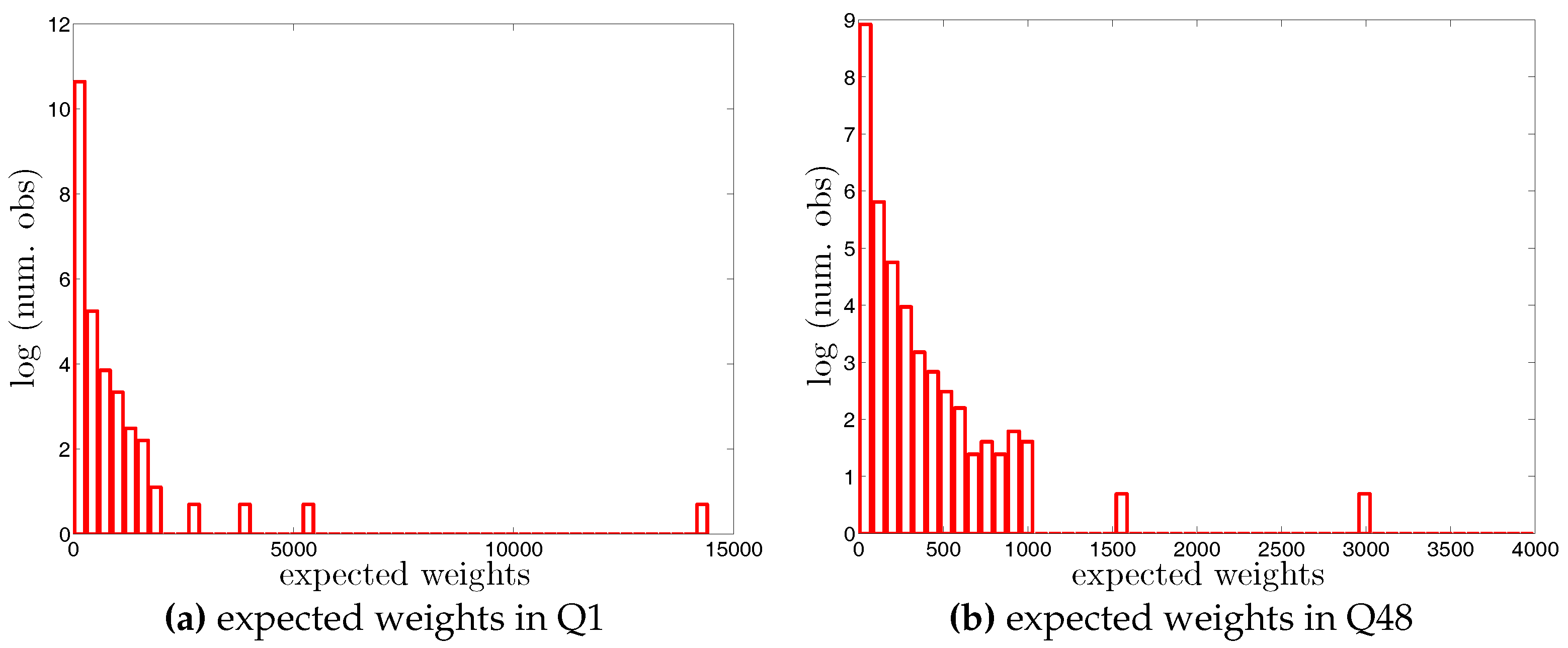

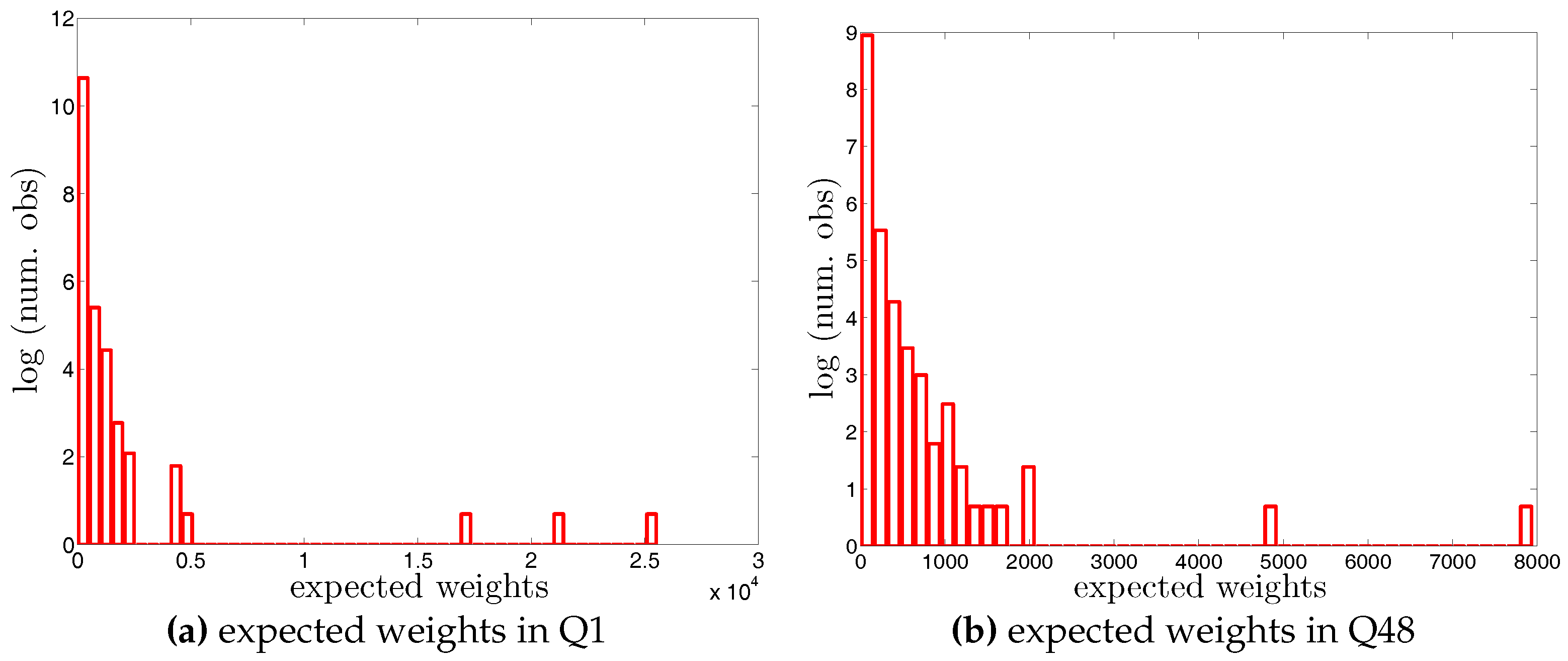

**Figure A5.**Histogram of expected undirected weights, $\langle {w}_{ij}\rangle $, under the UWCM in Q1 and Q48. Note that for the sake of readability, we plot the number of the observations in log scale.

**Figure A6.**Histogram of expected undirected link probabilities, $\langle {a}_{ij}\rangle $, under the UECM in Q1 and Q48.

**Figure A7.**Histogram of expected undirected weights, $\langle {w}_{ij}\rangle $, under the UECM in Q1 and Q48. Note that for the sake of readability, we plot the number of the observations in log scale.

**Figure A8.**Histogram of expected directed link probabilities, $\langle {a}_{ij}\rangle $, under the DWCM in Q1 and Q48.

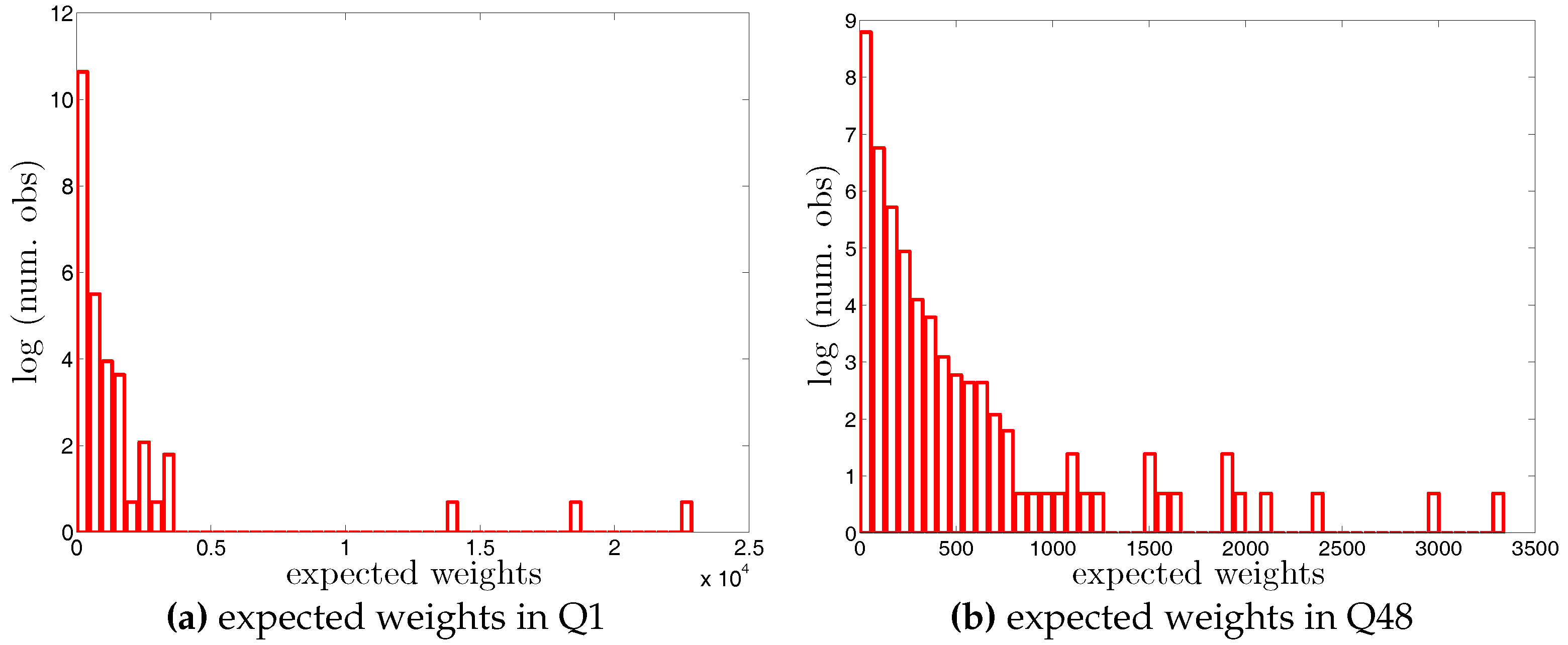

**Figure A9.**Histogram of expected directed weights, $\langle {w}_{ij}\rangle $, under the DWCM in Q1 and Q48. Note that for the sake of readability, we plot the number of the observations in log scale.

**Figure A10.**Histogram of expected directed link probabilities, $\langle {a}_{ij}\rangle $, under the DECM in Q1 and Q48.

**Figure A11.**Histogram of expected directed weights, $\langle {w}_{ij}\rangle $, under the DECM in Q1 and Q48. Note that for the sake of readability, we plot the number of the observations in log scale.

## References

- Allen, F.; Gale, D. Financial contagion. J. Political Econ.
**2000**, 108, 1–33. [Google Scholar] [CrossRef] - Haldane, A. Rethinking the Financial Network. Available online: http://www.bis.org/review/r090505e.pdf (accessed on 6 June 2017).
- Gai, P.; Haldane, A.; Kapadia, S. Complexity, concentration and contagion. J. Monet. Econ.
**2011**, 58, 453–470. [Google Scholar] [CrossRef] - Haldane, A.G.; May, R.M. Complexity, concentration and contagion. Nature
**2011**, 469, 351–355. [Google Scholar] [CrossRef] [PubMed] - Arinaminpathy, N.; Kapadia, S.; May, R.M. Size and complexity in model financial systems. Proc. Natl. Acad. Sci. USA
**2012**, 109, 18338–18343. [Google Scholar] [CrossRef] [PubMed] - Acemoglu, D.; Ozdaglar, A.; Tahbaz-Salehi, A. Systemic risk and stability in financial networks. Am. Econ. Rev.
**2015**, 105, 564–608. [Google Scholar] [CrossRef] - Battiston, S.; Caldarelli, G.; May, R.M.; Roukny, T.; Stiglitz, J.E. The price of complexity in financial networks. Proc. Natl. Acad. Sci. USA
**2016**, 113, 10031–10036. [Google Scholar] [CrossRef] [PubMed] - Bardoscia, M.; Battiston, S.; Caccioli, F.; Caldarelli, G. Pathways towards instability in financial networks. Nat. Commun.
**2017**, 8, 14416. [Google Scholar] [CrossRef] [PubMed] - Maslov, S.; Sneppen, K. Specificity and stability in topology of protein networks. Science
**2002**, 296, 910–913. [Google Scholar] [CrossRef] [PubMed] - Maslov, S.; Sneppen, K.; Zaliznyak, A. Detection of topological patterns in complex networks: Correlation profile of the internet. Physica A
**2004**, 333, 529–540. [Google Scholar] [CrossRef] - Zlatic, V.; Bianconi, G.; Díaz-Guilera, A.; Garlaschelli, D.; Rao, F.; Caldarelli, G. On the rich-club effect in dense and weighted networks. Eur. Phys. J. B
**2009**, 67, 271–275. [Google Scholar] [CrossRef] - Squartini, T.; Garlaschelli, D. Analytical maximum-likelihood method to detect patterns in real networks. New J. Phys.
**2011**, 13, 083001. [Google Scholar] [CrossRef] - Squartini, T.; Mastrandrea, R.; Garlaschelli, D. Unbiased sampling of network ensembles. New J. Phys.
**2015**, 17, 023052. [Google Scholar] [CrossRef] - Garlaschelli, D.; Loffredo, M.I. Maximum likelihood: Extracting unbiased information from complex networks. Phys. Rev. E
**2008**, 78, 015101. [Google Scholar] [CrossRef] [PubMed] - Squartini, T.; Fagiolo, G.; Garlaschelli, D. Randomizing world trade. I. A binary network analysis. Phys. Rev. E
**2011**, 84, 046117. [Google Scholar] [CrossRef] [PubMed] - Squartini, T.; Fagiolo, G.; Garlaschelli, D. Randomizing world trade. II. A weighted network analysis. Phys. Rev. E
**2011**, 84, 046118. [Google Scholar] [CrossRef] [PubMed] - Mastrandrea, R.; Squartini, T.; Fagiolo, G.; Garlaschelli, D. Enhanced reconstruction of weighted networks from strengths and degrees. New J. Phys.
**2014**, 16, 043022. [Google Scholar] [CrossRef] - De Masi, G.; Iori, G.; Caldarelli, G. Fitness model for the Italian interbank money market. Phys. Rev. E
**2006**, 74, 066112. [Google Scholar] [CrossRef] [PubMed] - Fricke, D. Trading strategies in the overnight money market: Correlations and clustering on the e-MID trading platform. Physica A
**2012**, 391, 6528–6542. [Google Scholar] [CrossRef] - Fricke, D.; Finger, K.; Lux, T. On Assortative and Disassortative Mixing Scale-Free Networks: The Case of Interbank Credit Networks; Kiel Working Papers; Kiel Institute for the World Economy: Kiel, Germany, 2013; Volume 1830. [Google Scholar]
- Finger, K.; Fricke, D.; Lux, T. Network analysis of the e-MID overnight money market: The informational value of different aggregation levels for intrinsic dynamic processes. Comput. Manag. Sci.
**2013**, 10, 187–211. [Google Scholar] [CrossRef] - Fricke, D.; Lux, T. On the distribution of links in the interbank network: Evidence from the e-MID overnight money market. Empir. Econ.
**2015**, 49, 1463–1495. [Google Scholar] [CrossRef] - Fricke, D.; Lux, T. Core-periphery structure in the overnight money market: Evidence from the e-MID trading platform. Comput. Econ.
**2015**, 45, 359–395. [Google Scholar] [CrossRef] - Cimini, G.; Squartini, T.; Garlaschelli, D.; Gabrielli, A. Estimating topological properties of weighted networks from limited information. Phys. Rev. E
**2015**, 92, 040802. [Google Scholar] [CrossRef] [PubMed] - Newman, M.E.J. Assortative mixing in networks. Phys. Rev. Lett.
**2002**, 89, 208701. [Google Scholar] [CrossRef] [PubMed] - Newman, M.E.J. Mixing patterns in networks. Phys. Rev. E
**2003**, 67, 026126. [Google Scholar] [CrossRef] [PubMed] - Barrat, A.; Barthélemy, M.; Pastor-Satorras, R.; Vespignani, A. The architecture of complex weighted networks. Proc. Natl. Acad. Sci. USA
**2004**, 101, 3747–3752. [Google Scholar] [CrossRef] [PubMed] - Onnela, J.P.; Soramäki, J.; Kertész, J.; Kaski, K. Intensity and coherence of motifs in weighted complex networks. Phys. Rev. E
**2005**, 71, 065103. [Google Scholar] [CrossRef] [PubMed] - Zhang, B.; Horvath, S. A general framework for weighted gene co-expression network analysis. Stat. Appl. Genet. Mol. Biol.
**2005**, 4, 1128. [Google Scholar] [CrossRef] [PubMed] - Holme, P.; Park, S.M.; Kim, B.J.; Edling, C.R. Korean university life in a network perspective: Dynamics of a large affiliation network. Physica A
**2007**, 373, 821–830. [Google Scholar] [CrossRef] - Soramäki, J.; Kivelä, M.; Onnela, J.; Kaski, K.; Kertész, J. Generalizations of the clustering coefficient to weighted complex networks. Phys. Rev. E
**2007**, 75, 027105. [Google Scholar] [CrossRef] [PubMed] - Foster, J.G.; Foster, D.V.; Grassberger, P.; Paczuski, M. Edge direction and the structure of networks. Proc. Natl. Acad. Sci. USA
**2010**, 107, 10815–10820. [Google Scholar] [CrossRef] [PubMed] - Piraveenan, M.; Prokopenko, M.; Zomaya, A. Assortative mixing in directed biological networks. IEEE/ACM Trans. Comput. Biol.
**2012**, 9, 66–78. [Google Scholar] [CrossRef] [PubMed] - Van der Hoorn, P.; Litvak, N. Degree-degree dependencies in directed networks with heavy-tailed degrees. Internet Math.
**2015**, 11, 155–179. [Google Scholar] [CrossRef] - Park, J.; Newman, M.E.J. Statistical mechanics of networks. Phys. Rev. E
**2004**, 70, 066117. [Google Scholar] [CrossRef] [PubMed] - Squartini, T.; van Lelyveld, I.; Garlaschelli, D. Early-warning signals of topological collapse in interbank networks. Sci. Rep.
**2013**, 3. [Google Scholar] [CrossRef] [PubMed] - European Central Bank. Euro Money Market Study 2006; European Central Bank: Frankfurt am Main, Germany, 2007. [Google Scholar]
- Piraveenan, M.; Prokopenko, M.; Zomaya, A.Y. Classifying complex networks using unbiased local assortativity. In Proceedings of the Artificial Life XII Conference, Odense, Denmark, 19–23 August 2010; pp. 329–336. [Google Scholar]
- Watts, D.J.; Strogatz, S.H. Collective dynamics of “small-world” networks. Nature
**1998**, 393, 440–442. [Google Scholar] [CrossRef] [PubMed] - Newman, M.E.J. The structure and function of complex networks. SIAM Rev.
**2003**, 45, 167–256. [Google Scholar] [CrossRef] - Finger, K.; Lux, T. Network formation in the interbank money market: An application of the actor-oriented model. Soc. Netw.
**2017**, 48, 237–249. [Google Scholar] [CrossRef] - Fagiolo, G. Clustering in complex directed networks. Phys. Rev. E
**2007**, 76, 026107. [Google Scholar] [CrossRef] [PubMed] - Cimini, G.; Squartini, T.; Garlaschelli, D.; Gabrielli, A. Systemic risk analysis on reconstructed economic and financial networks. Sci. Rep.
**2015**, 5, 15758. [Google Scholar] [CrossRef] [PubMed] - Garlaschelli, D.; Loffredo, M.I. Fitness-dependent topological properties of the world trade web. Phys. Rev. Lett.
**2004**, 93, 188701. [Google Scholar] [CrossRef] [PubMed] - Garlaschelli, D.; Di Matteo, T.; Aste, T.; Caldarelli, G.; Loffredo, M. Interplay between topology and dynamics in the world trade web. Eur. Phys. J. B
**2007**, 57, 159–164. [Google Scholar] [CrossRef] - Almog, A.; Squartini, T.; Garlaschelli, D. A GDP-driven model for the binary and weighted structure of the international trade network. New J. Phys.
**2015**, 17, 013009. [Google Scholar] [CrossRef] - Bianconi, G. Entropy of network ensembles. Phys. Rev. E
**2009**, 79, 036114. [Google Scholar] [CrossRef] [PubMed] - Park, J.; Newman, M.E.J. Origin of degree correlations in the Internet and other networks. Phys. Rev. E
**2003**, 68, 026112. [Google Scholar] [CrossRef] [PubMed]

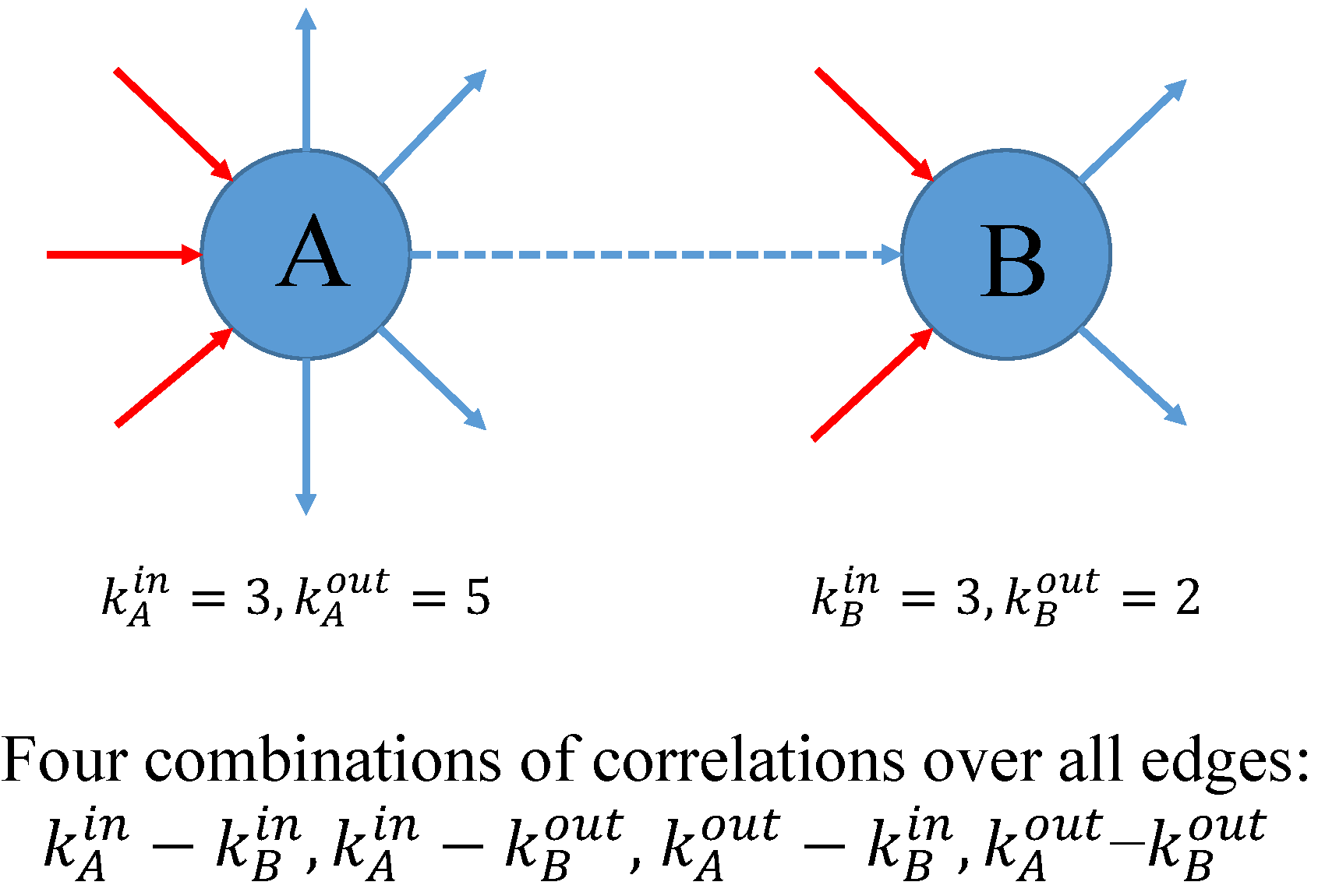

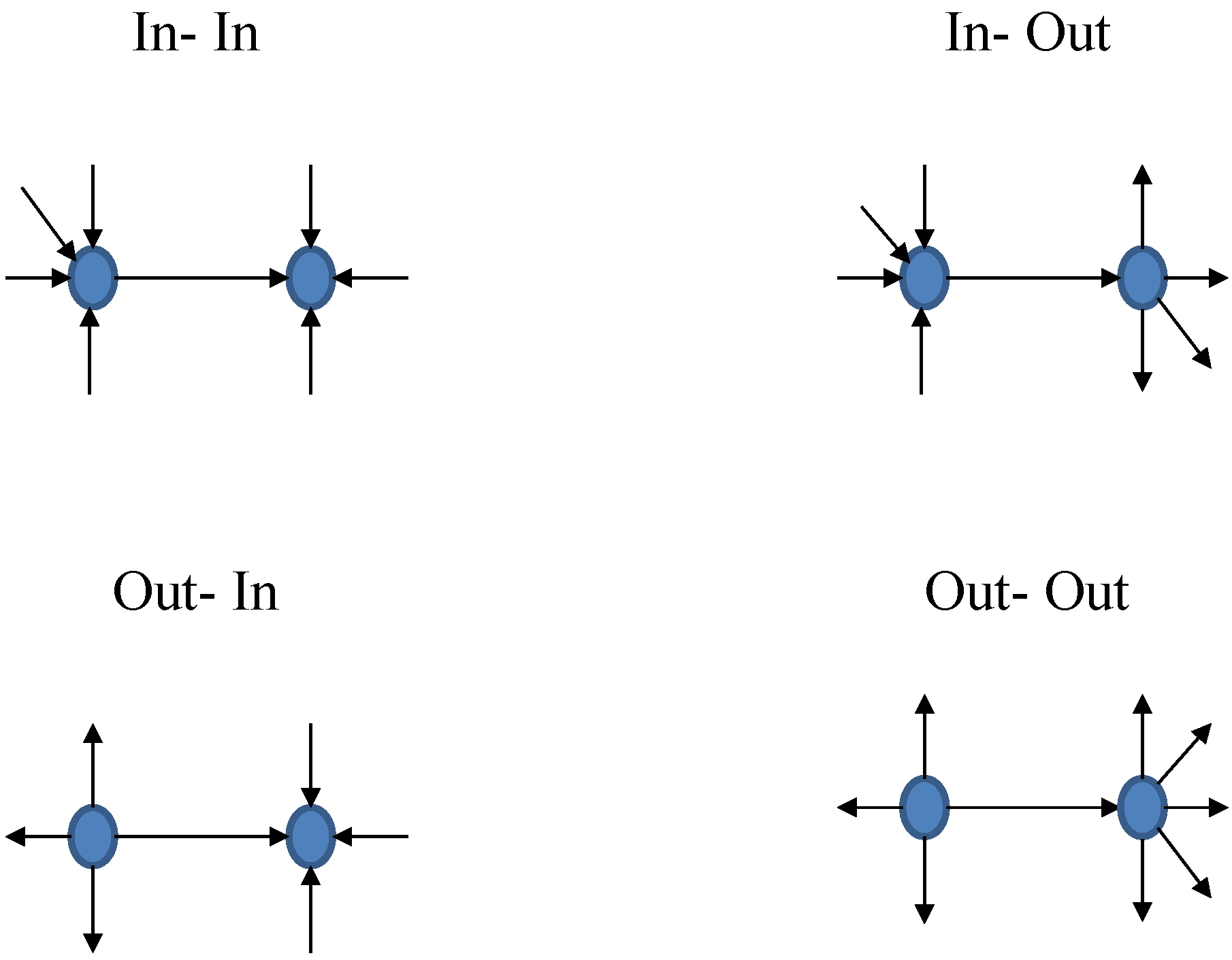

**Figure 1.**Degree-degree dependencies in the directed version.Degree-degree dependencies in the directed version.

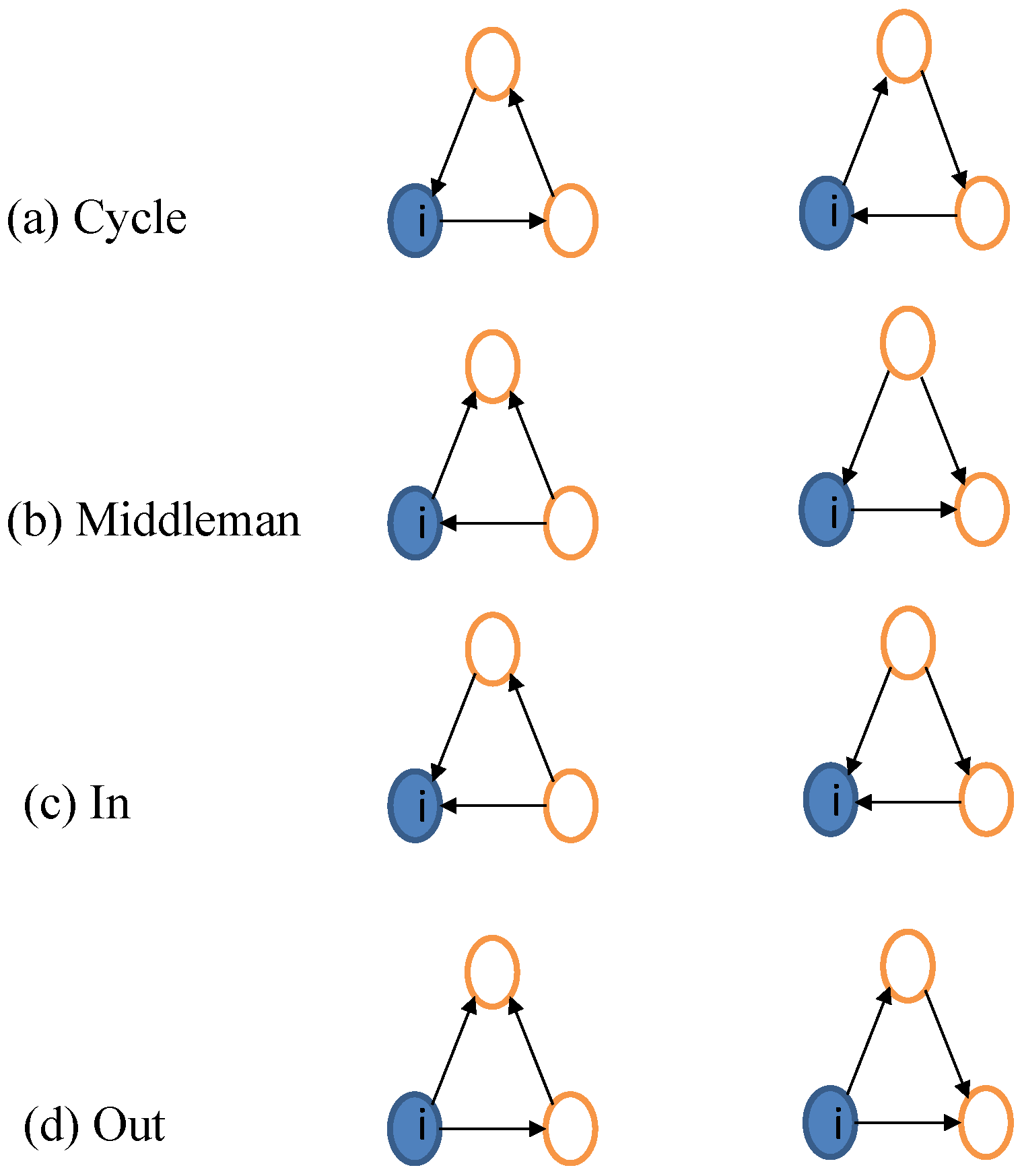

**Figure 2.**Directed triangles and the corresponding (binary) clusterings associated with a node i. (

**a**) Cycle clustering; (

**b**) Middleman clustering; (

**c**) In clustering; (

**d**) Out clustering.Directed triangles and the corresponding clusterings.

**Figure 3.**The evolution of the size and the density of the electronic market for interbank deposits (e-MID) network. The left y-axis shows the number of active banks (in blue) and the right y-axis shows density (in green).

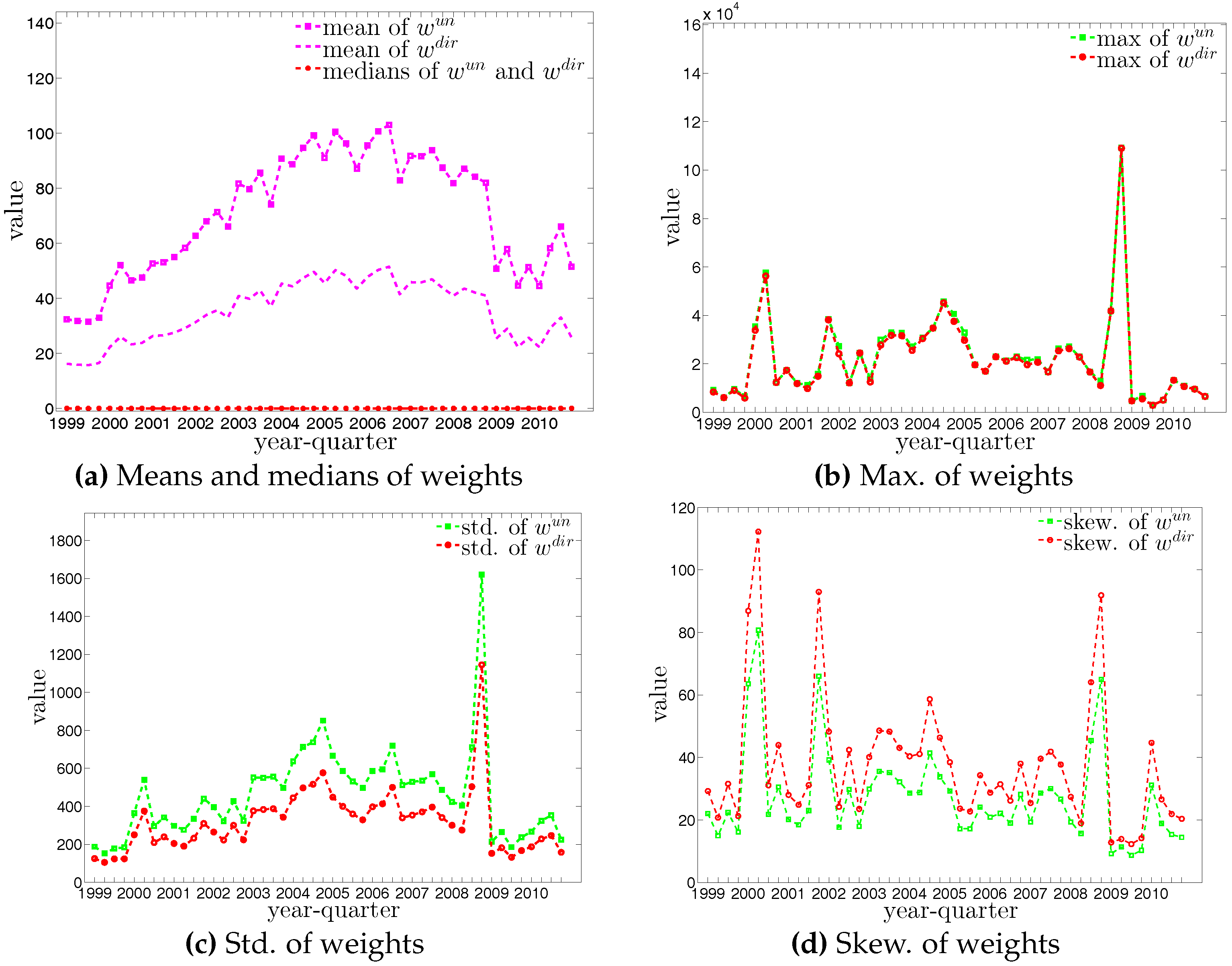

**Figure 4.**The evolution of the basic statistics of weights in the undirected version (${w}^{un}$) and in directed version (${w}^{dir}$).

**Figure 5.**Histograms of weights (i.e., ${w}_{ij}^{un}$ in the undirected version and ${w}_{ij}^{dir}$ in the directed version) in two example quarters, Q1 and Q48. Note that for the sake of readability, we plot the number of the observations in log scale.

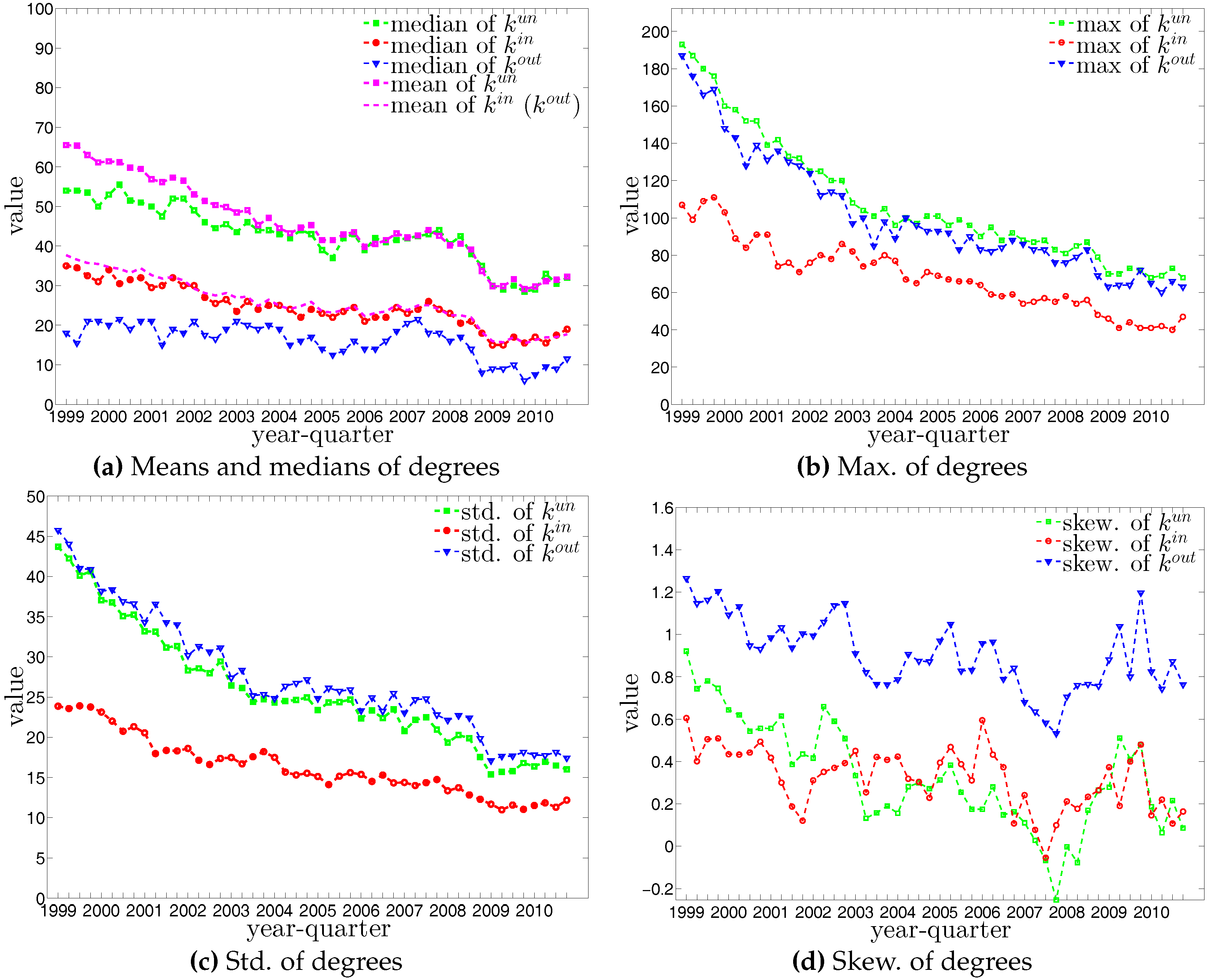

**Figure 6.**The evolution of the basic statistics of degrees. Note that, by definition, the mean values of ${k}^{in}$ and ${k}^{out}$ are identical.

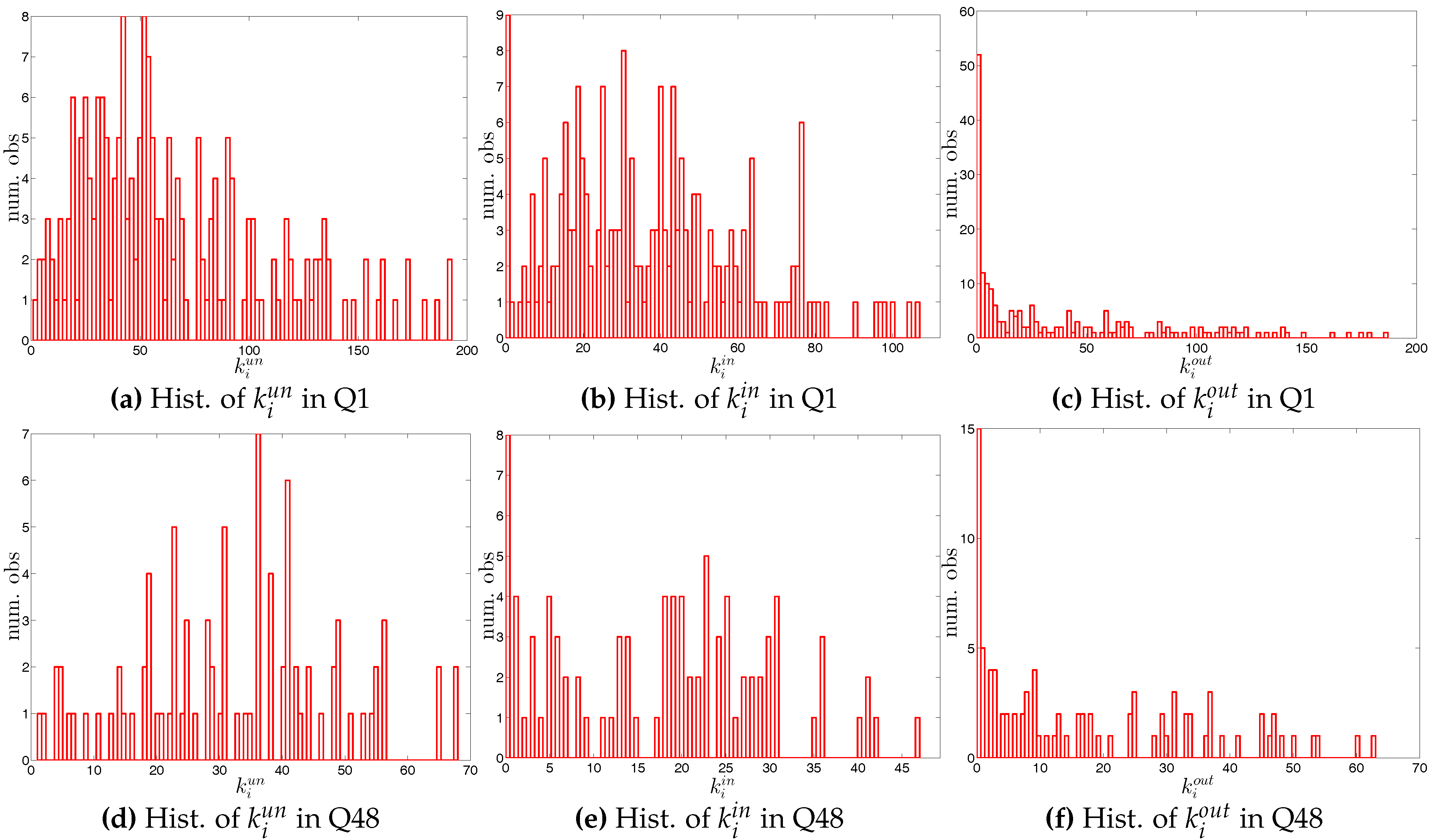

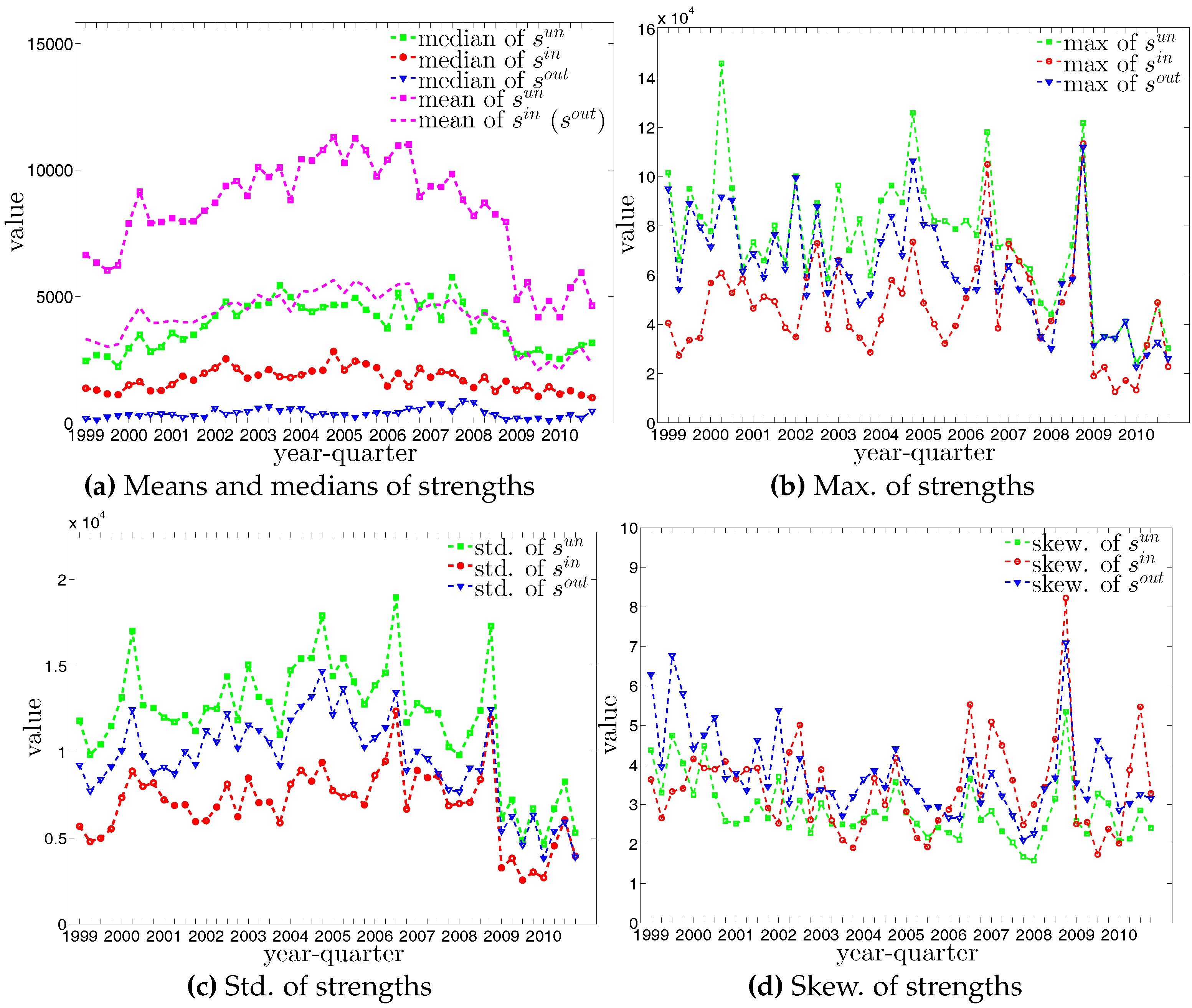

**Figure 8.**The evolution of the basic statistics of strengths. Note that, by definition, the mean values of ${s}^{in}$ and ${s}^{out}$ are identical.

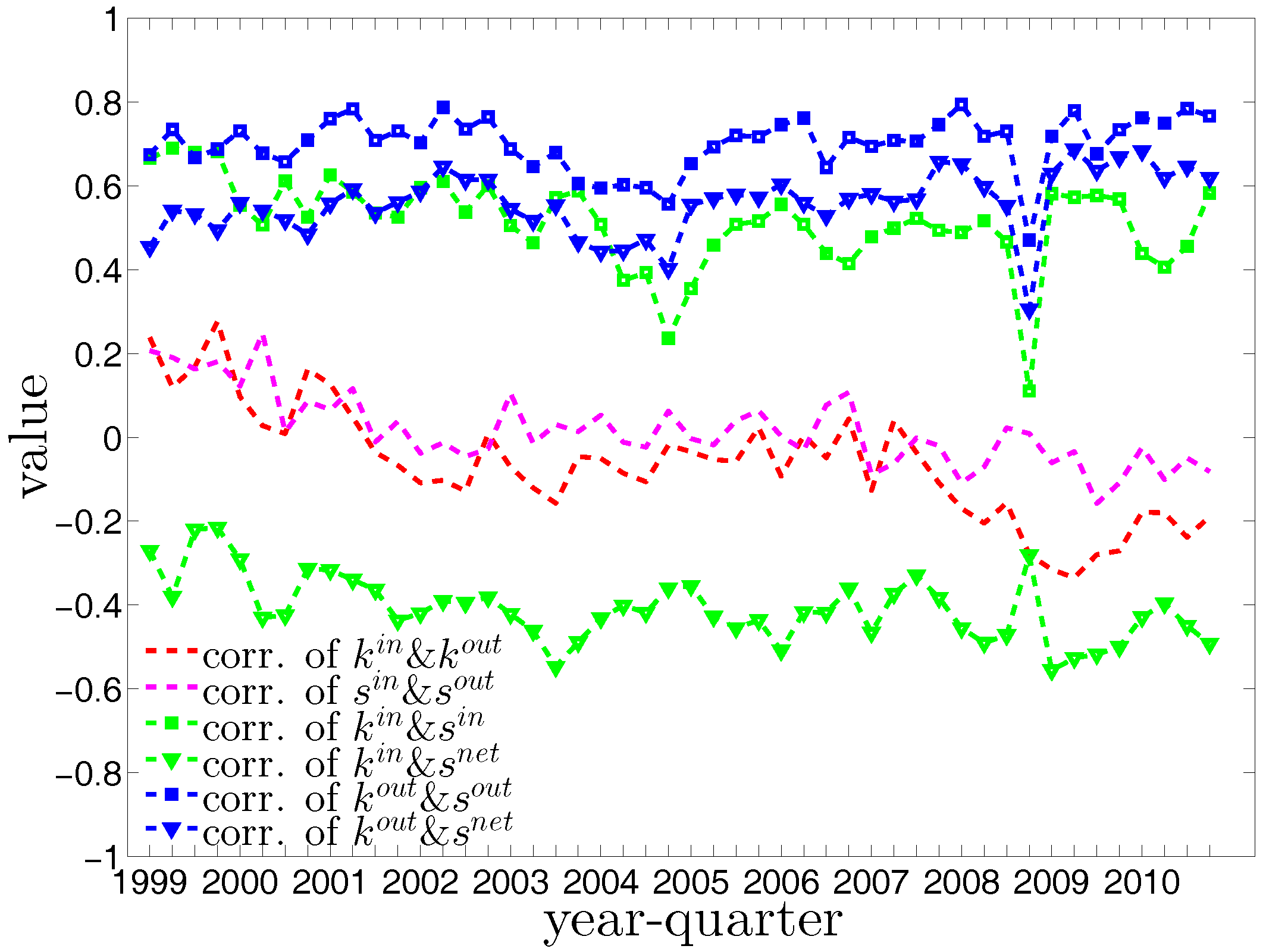

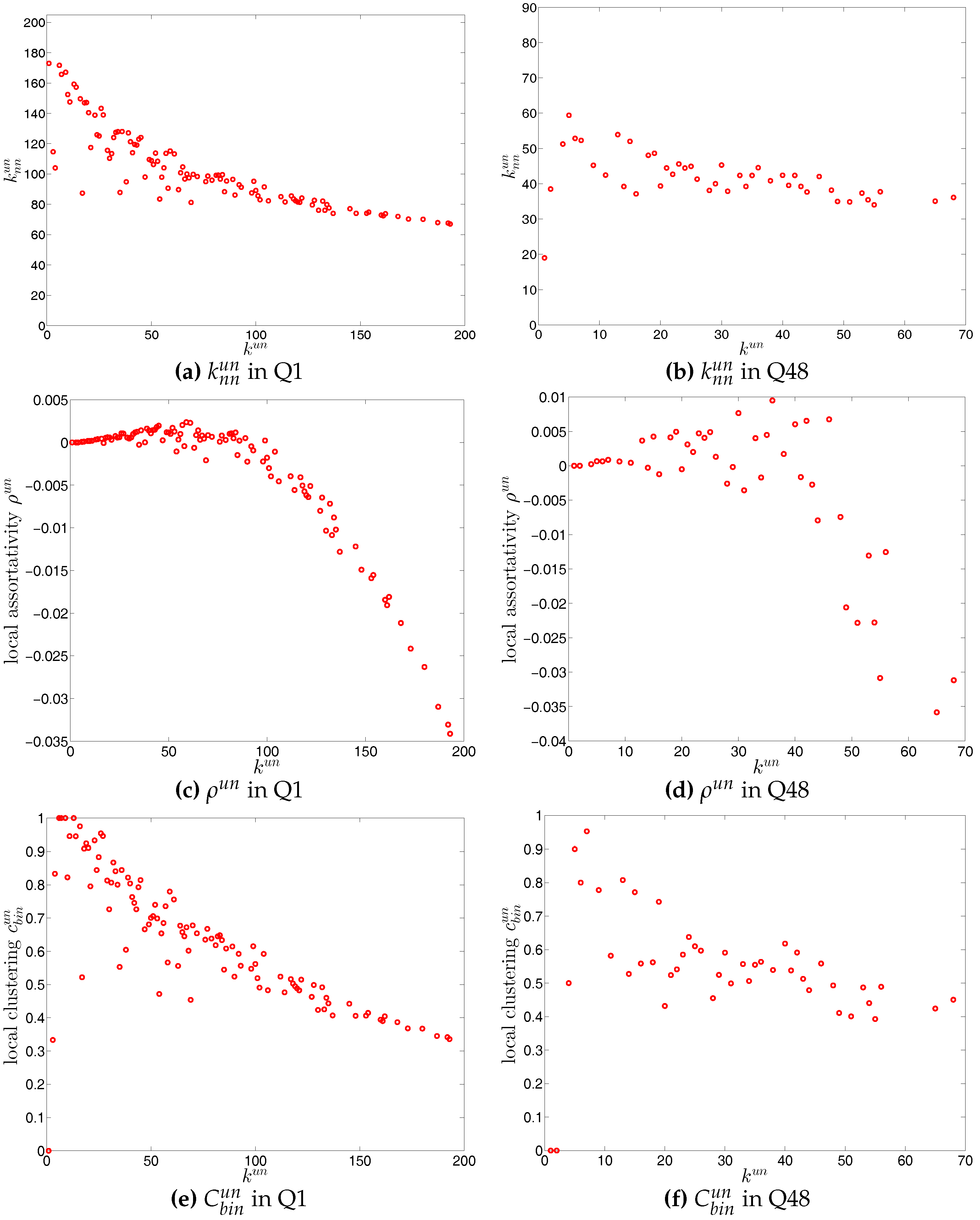

**Figure 11.**Average degree of the nearest neighbors (ANND) (

**a**,

**b**), local assortativity ${\rho}^{un}$ (

**c**,

**d**), and local clustering coefficients ${C}_{bin}^{un}$ (

**e**,

**f**) in the undirected binary e-MID network, in Q1 and Q48.Average degrees of nearest neighbors, local assortativity, and local clustering coefficients in the undirected binary e-MID network, in Q1 and Q48.

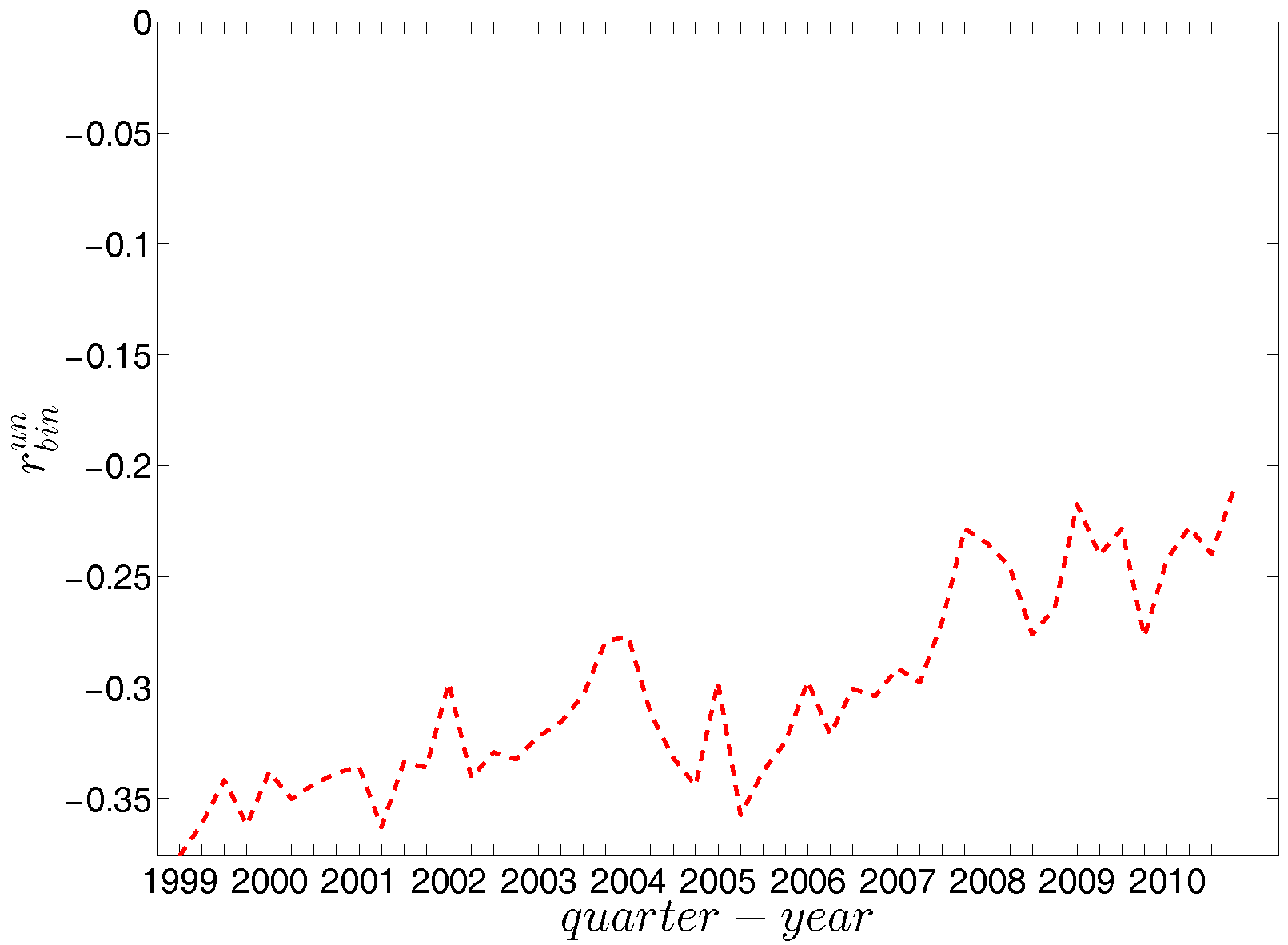

**Figure 12.**Evolution of the overall assortativity indicator ${r}_{bin}^{un}$ in the undirected binary e-MID network.

**Figure 13.**Evolution of the average of local clustering coefficients (i.e., ${\overline{C}}_{bin}^{un}$) in the undirected binary e-MID network.

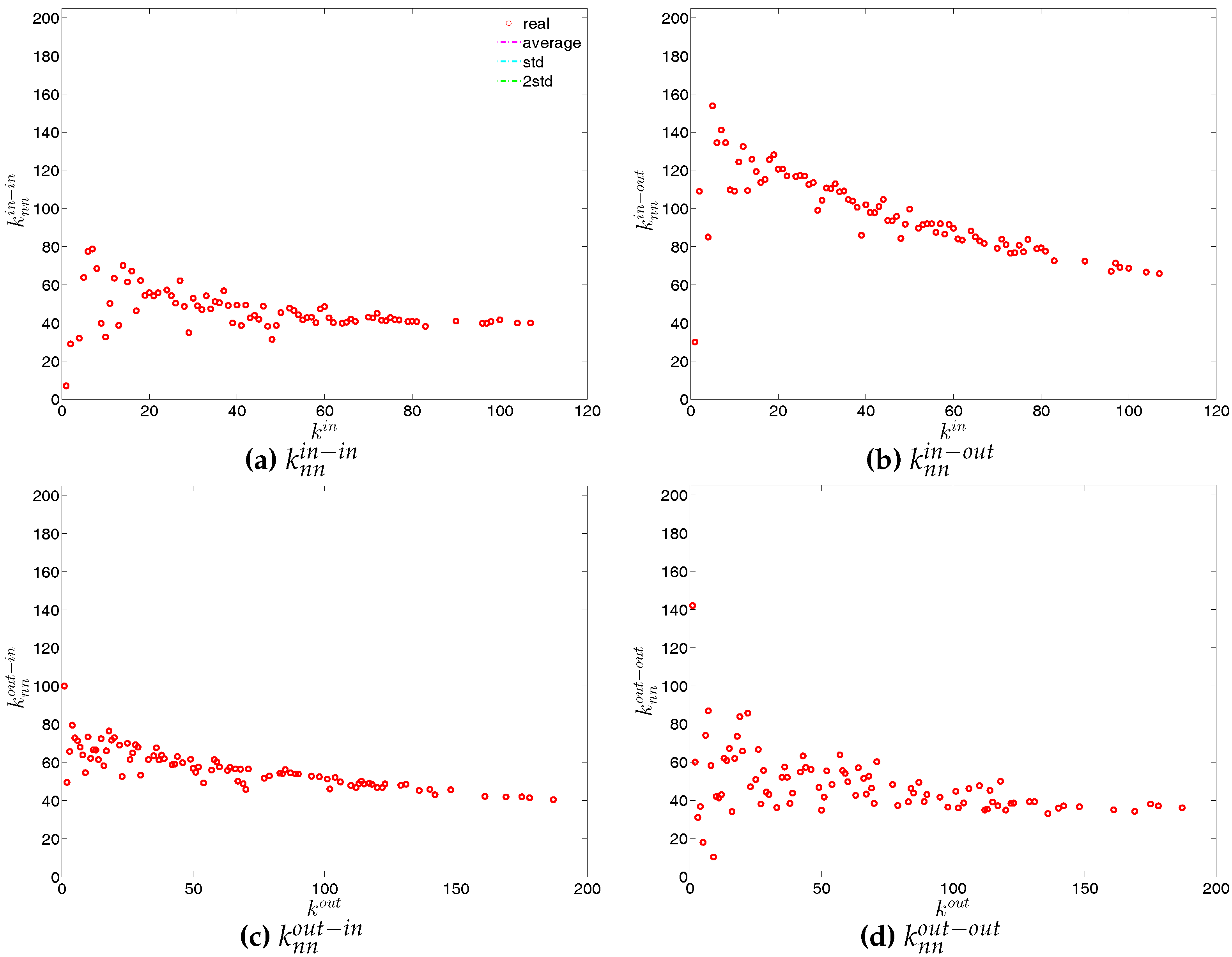

**Figure 14.**ANND in the directed binary e-MID network, in Q1. (

**a**) ${k}_{nn}^{in-in}$; (

**b**) ${k}_{nn}^{in-out}$; (

**c**) ${k}_{nn}^{out-in}$; (

**d**) ${k}_{nn}^{out-out}$.

**Figure 15.**ANND in the directed binary e-MID network, in Q48. (

**a**) ${k}_{nn}^{in-in}$; (

**b**) ${k}_{nn}^{in-out}$; (

**c**) ${k}_{nn}^{out-in}$; (

**d**) ${k}_{nn}^{out-out}$.

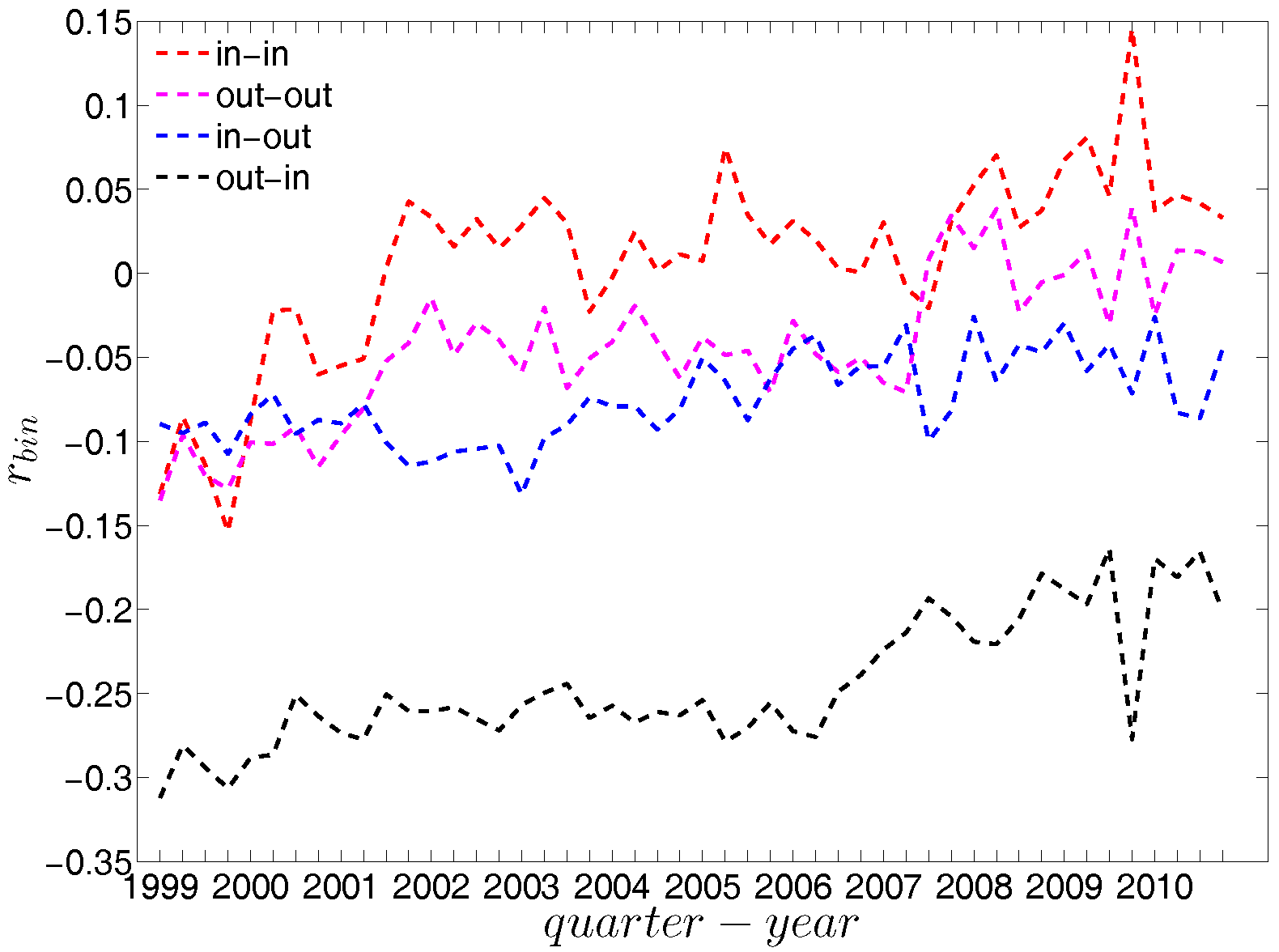

**Figure 16.**Evolution of the overall assortativity indicators in the directed binary e-MID network.Evolution of the overall assortativity indicators in the directed binary e-MID network.

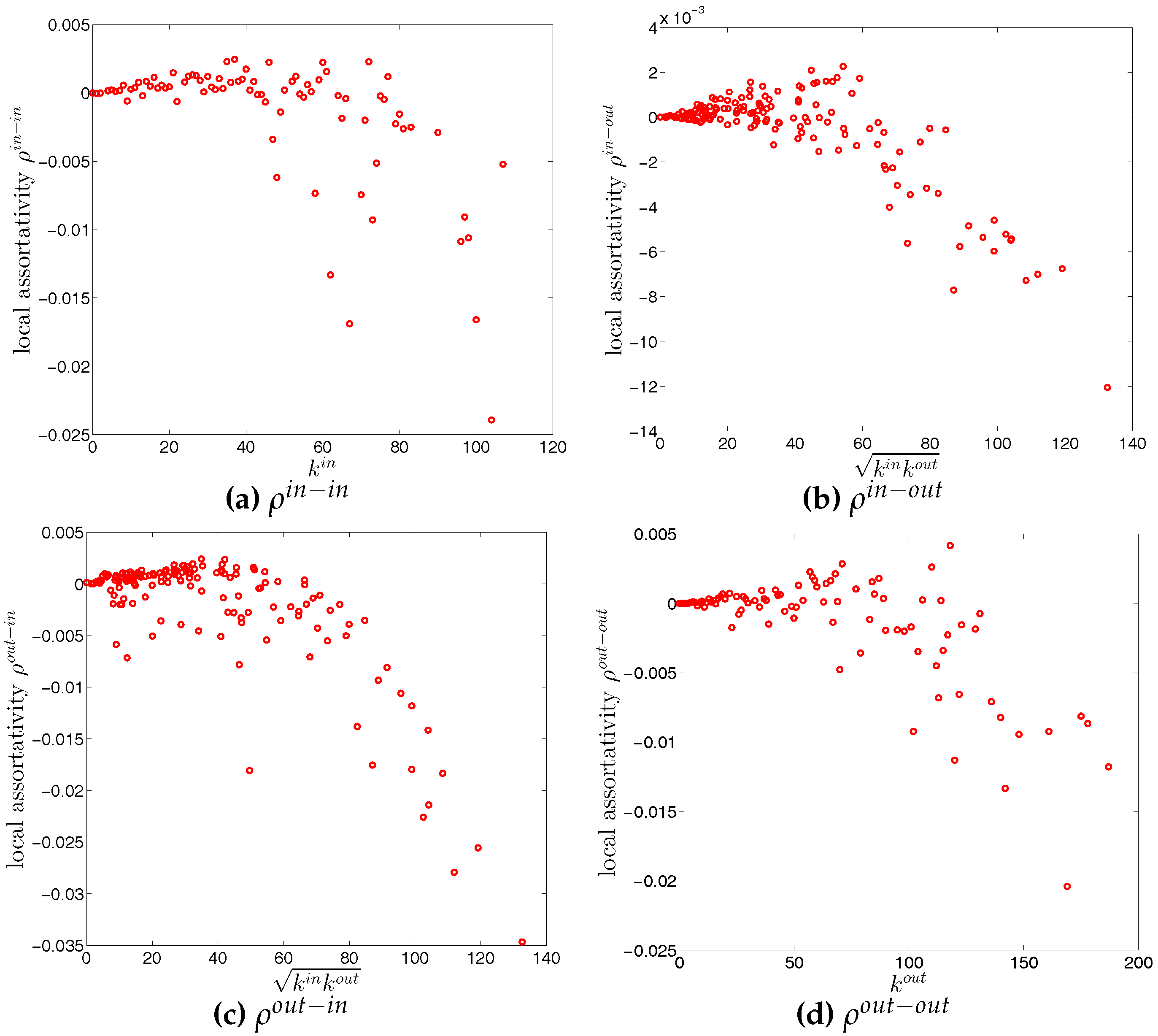

**Figure 17.**Local assortativity in the directed binary e-MID network, in Q1. (

**a**) ${\rho}^{in-in}$; (

**b**) ${\rho}^{in-out}$; (

**c**) ${\rho}^{out-in}$; (

**d**) ${\rho}^{out-out}$.

**Figure 18.**Local assortativity in the directed binary e-MID network, in Q48. (

**a**) ${\rho}^{in-in}$; (

**b**) ${\rho}^{in-out}$; (

**c**) ${\rho}^{out-in}$; (

**d**) ${\rho}^{out-out}$.

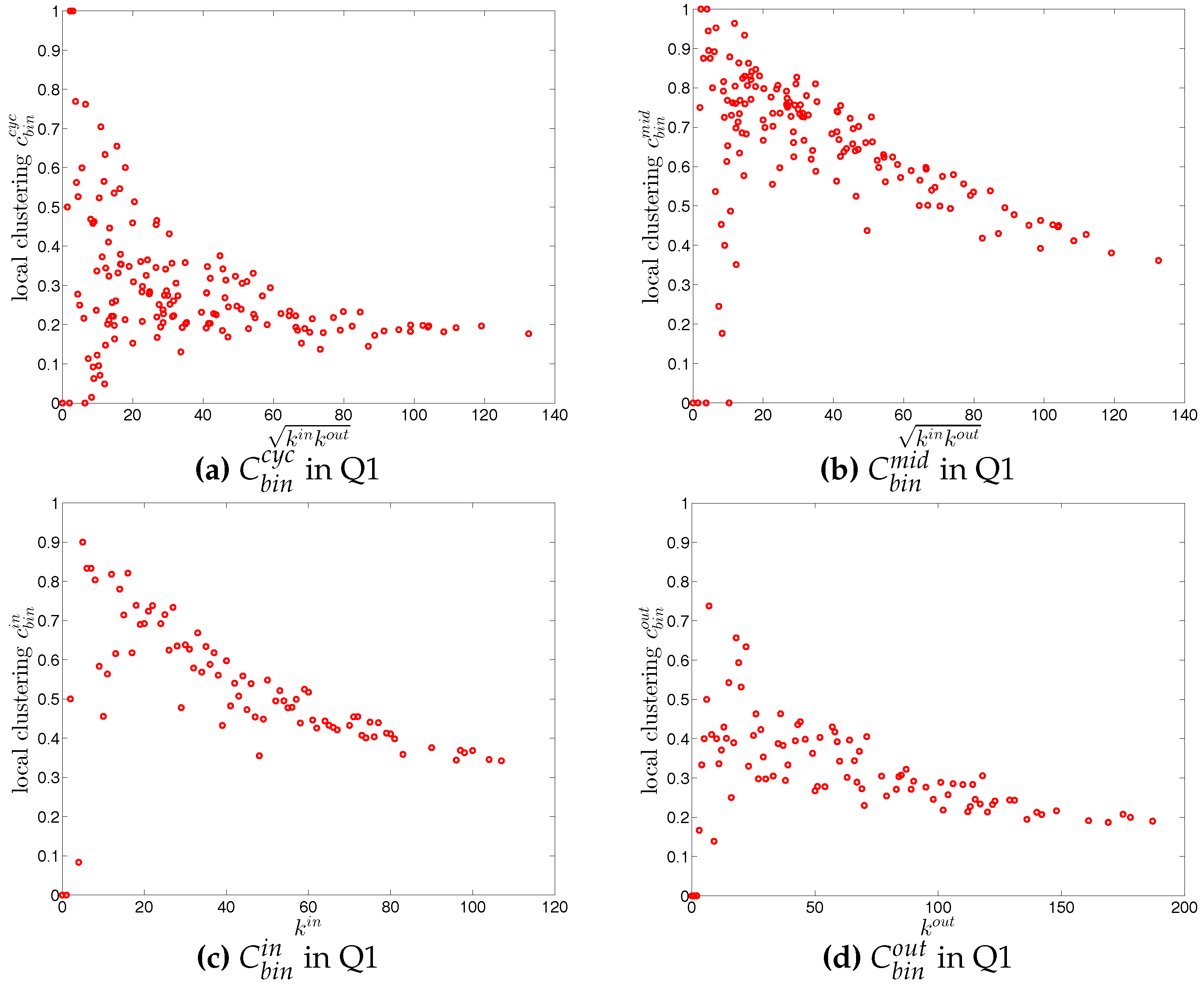

**Figure 19.**Local clustering coefficients (

**a**) ${C}_{bin}^{cyc}$; (

**b**) ${C}_{bin}^{mid}$; (

**c**) ${C}_{bin}^{in}$; (

**d**) ${C}_{bin}^{out}$ in the directed binary e-MID network, in Q1.

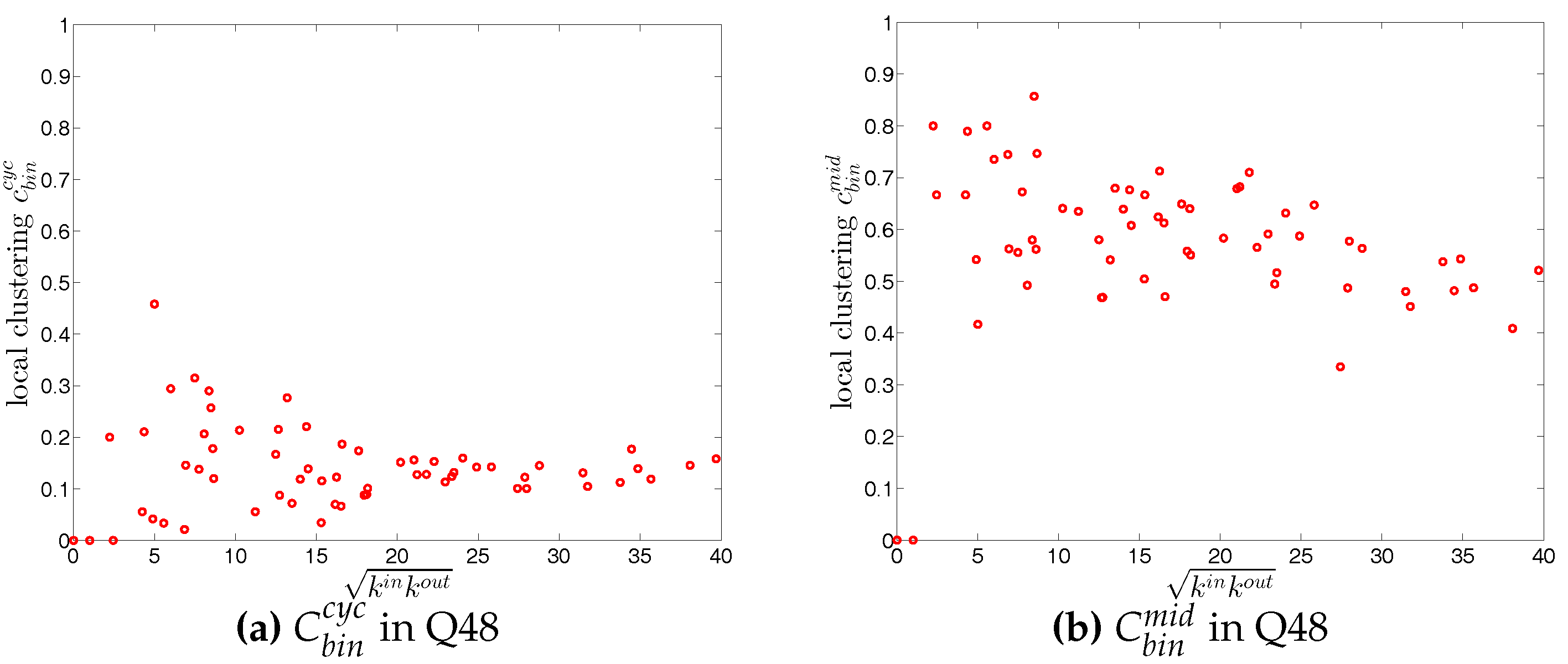

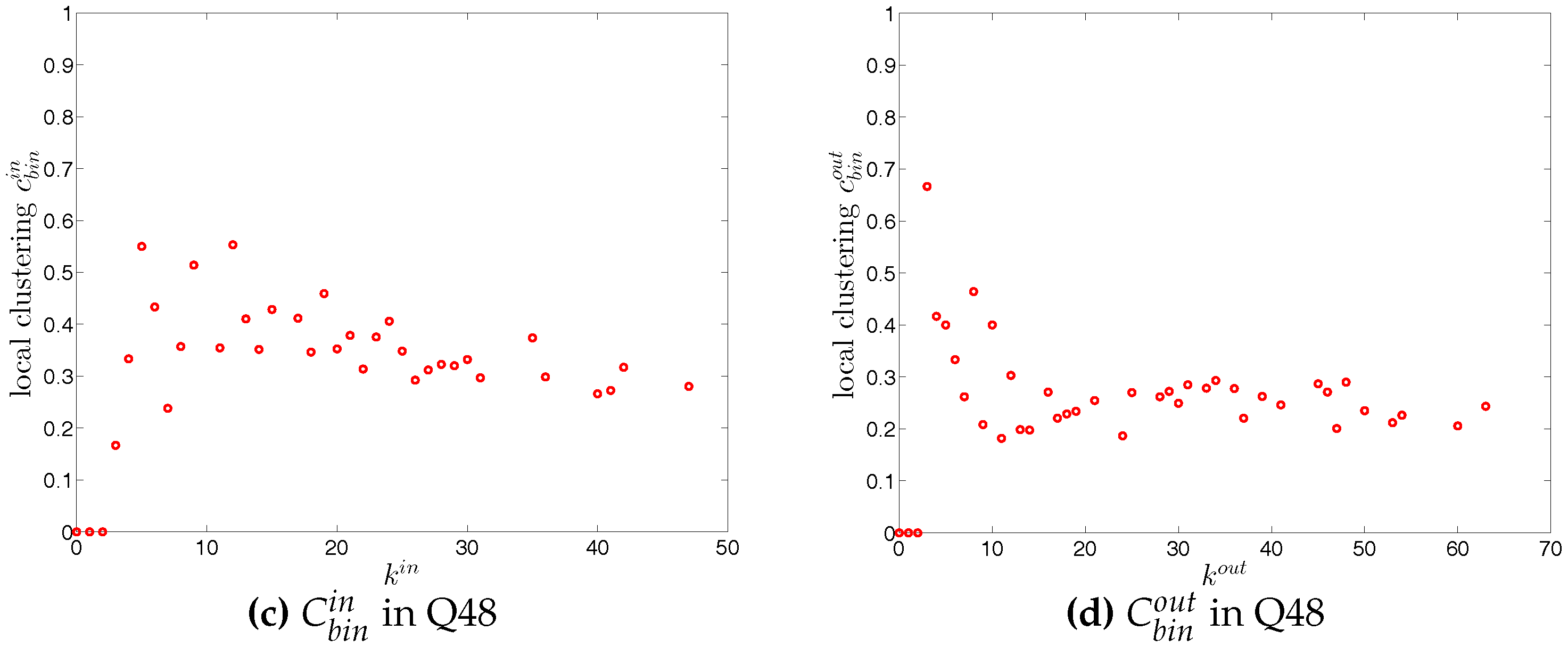

**Figure 20.**Local clustering coefficients (

**a**) ${C}_{bin}^{cyc}$; (

**b**) ${C}_{bin}^{mid}$; (

**c**) ${C}_{bin}^{in}$; (

**d**) ${C}_{bin}^{out}$ in the directed binary e-MID network, in Q48.

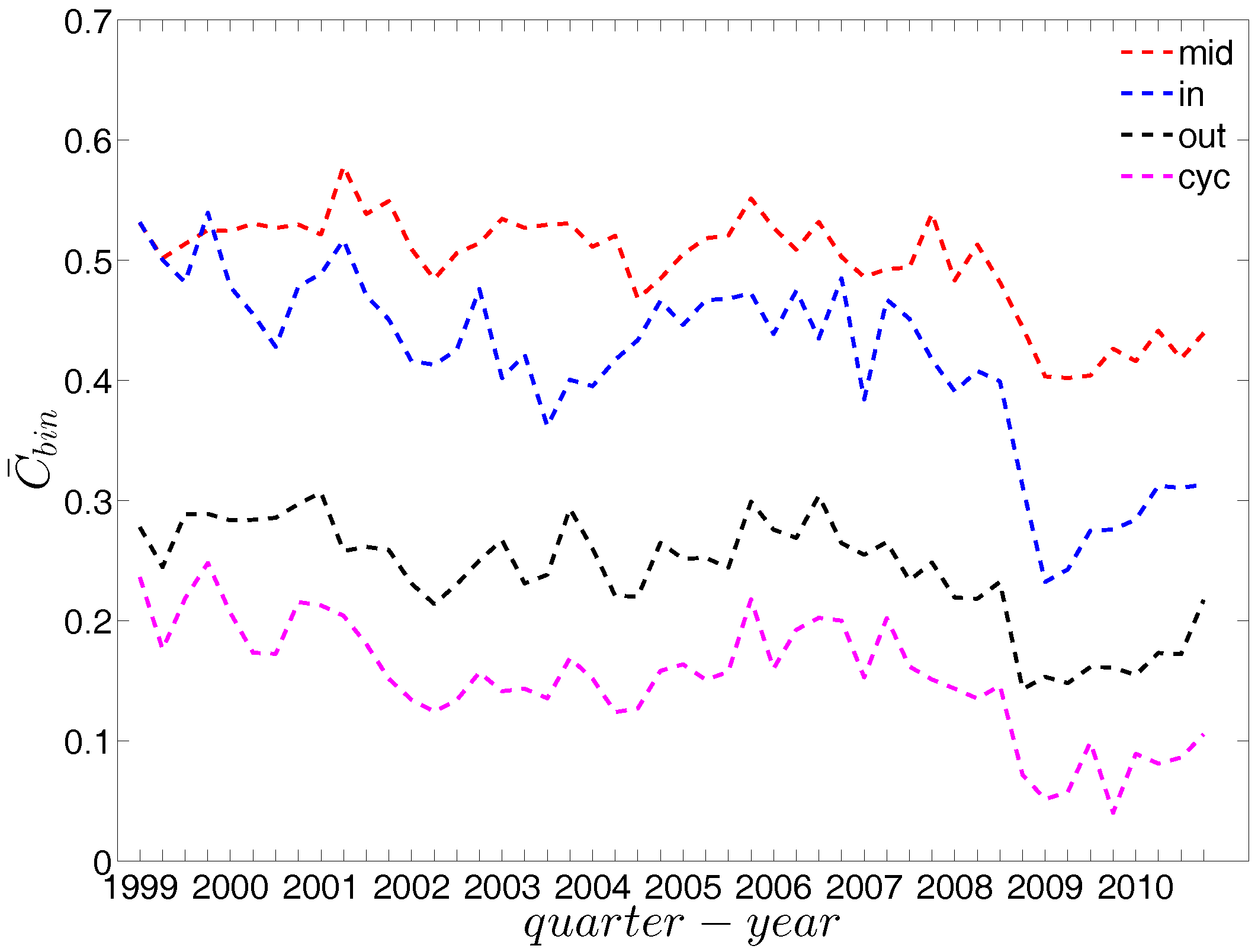

**Figure 21.**Evolution of the averages of local clustering coefficients (i.e., ${\overline{C}}^{mid}$, ${\overline{C}}^{in}$, ${\overline{C}}^{out}$, and ${\overline{C}}^{cyc}$) in the directed binary e-MID network.

**Figure 22.**(

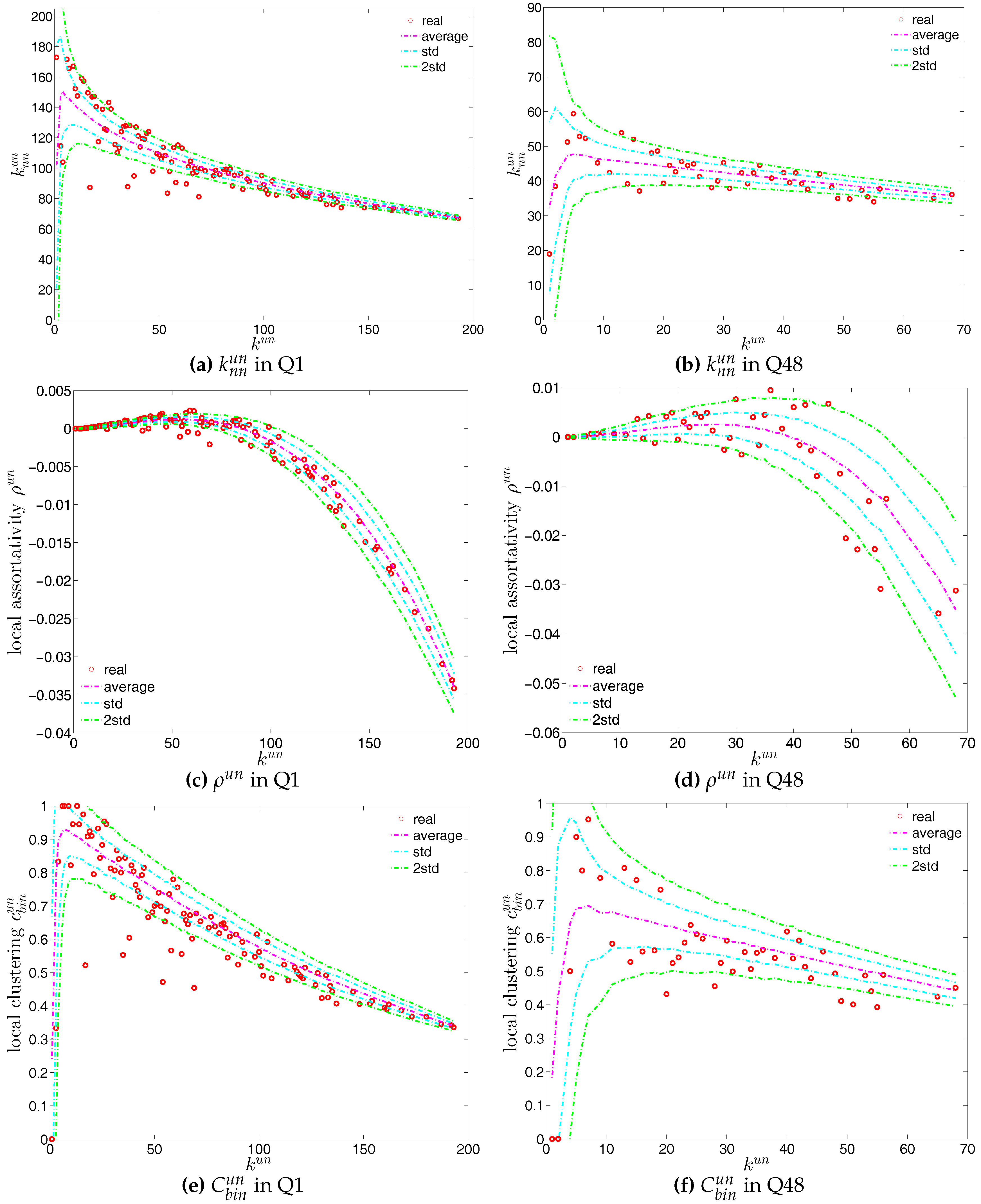

**a**,

**b**) ANND; (

**c**,

**d**) local assortativity ${\rho}^{un}$; (

**e**,

**f**) local clustering coefficients ${C}_{bin}^{un}$ in the observed e-MID network and in the UBCM, in Q1 and Q48.

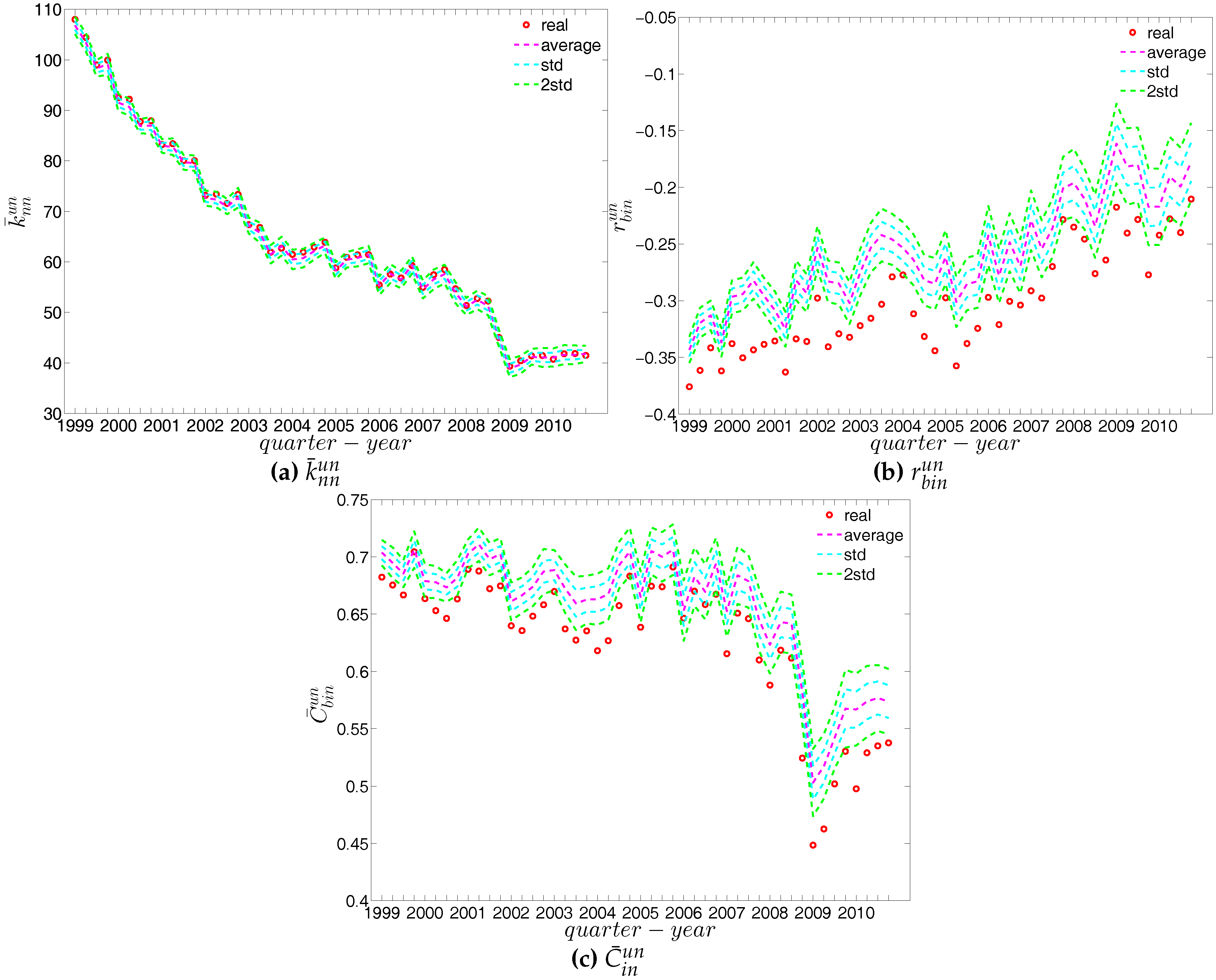

**Figure 23.**Evolution of (

**a**) ${\overline{k}}_{nn}^{un}$; (

**b**) ${r}_{bin}^{un}$; and (

**c**) ${\overline{C}}_{in}^{un}$ in the observed e-MID network and in the undirected binary configuration model (UBCM).

**Figure 24.**ANND in the observed e-MID network and in the DBCM, in Q1. (

**a**) ${k}_{nn}^{in-in}$; (

**b**) ${k}_{nn}^{in-out}$; (

**c**) ${k}_{nn}^{out-in}$; (

**d**) ${k}_{nn}^{out-out}$.

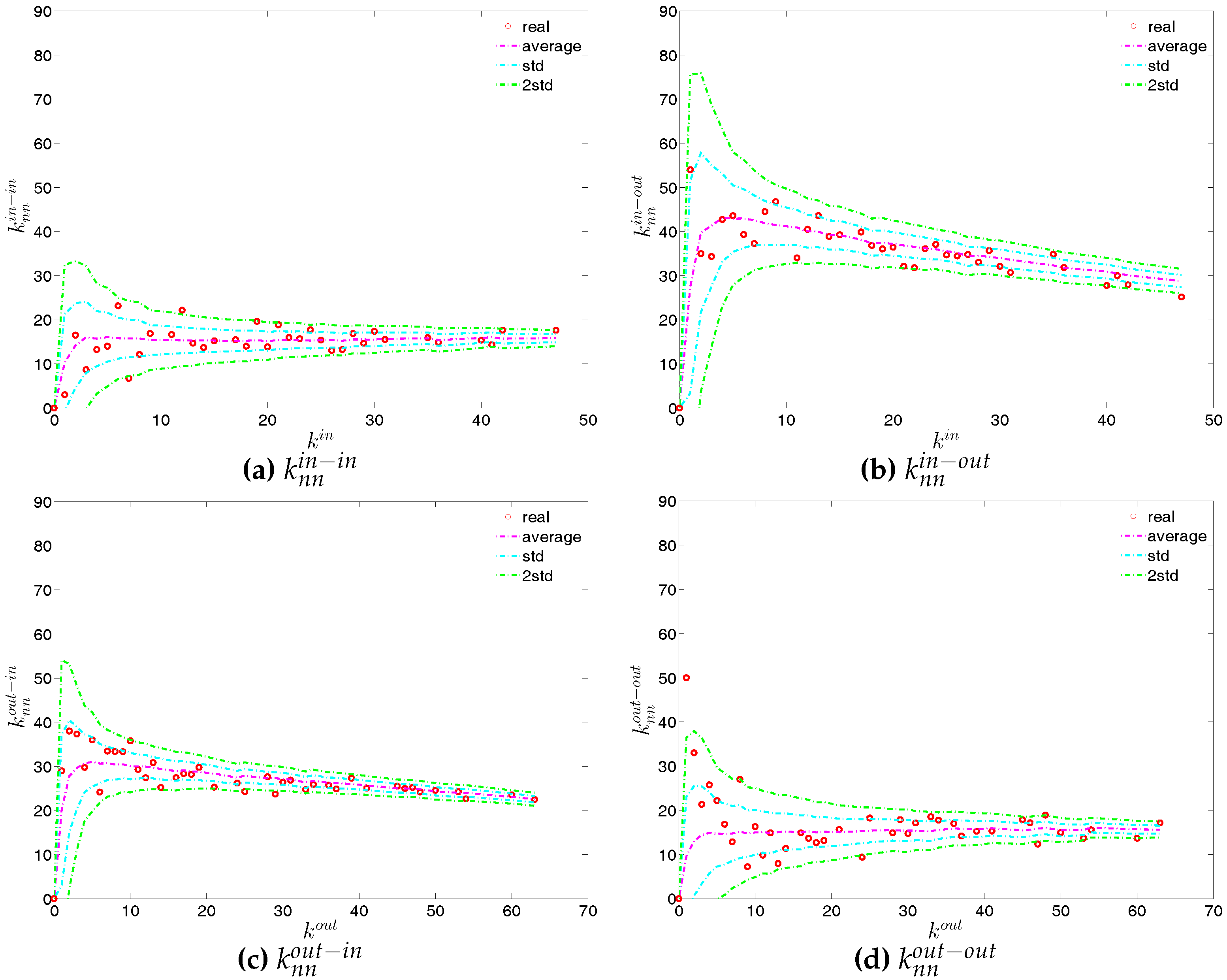

**Figure 25.**ANND in the observed e-MID network and in the DBCM, in Q48. (

**a**) ${k}_{nn}^{in-in}$; (

**b**) ${k}_{nn}^{in-out}$; (

**c**) ${k}_{nn}^{out-in}$; (

**d**) ${k}_{nn}^{out-out}$.

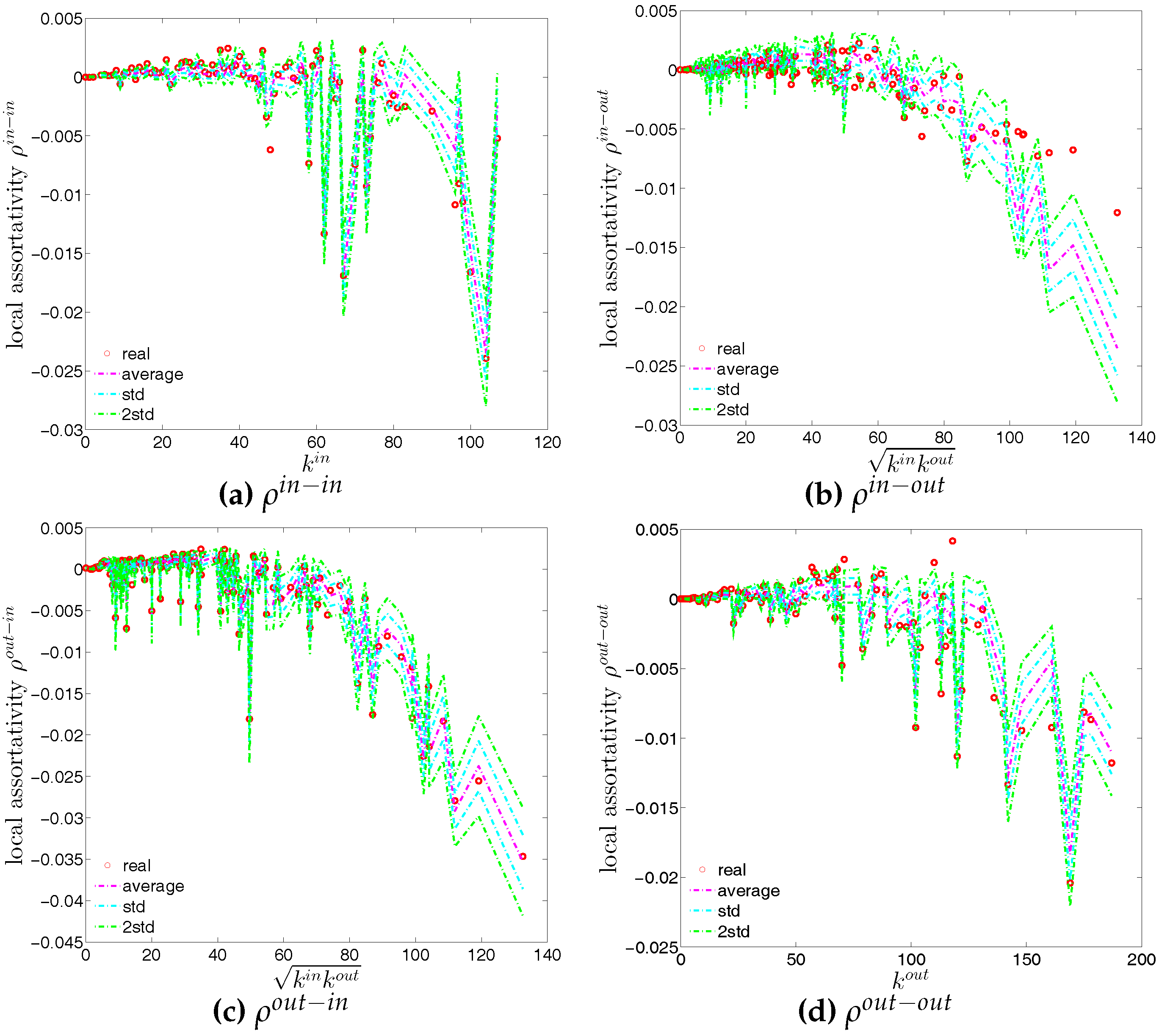

**Figure 26.**Local assortativity in the observed e-MID network and in the DBCM, in Q1. (

**a**) ${\rho}^{in-in}$; (

**b**) ${\rho}^{in-out}$; (

**c**) ${\rho}^{out-in}$; (

**d**) ${\rho}^{out-out}$.

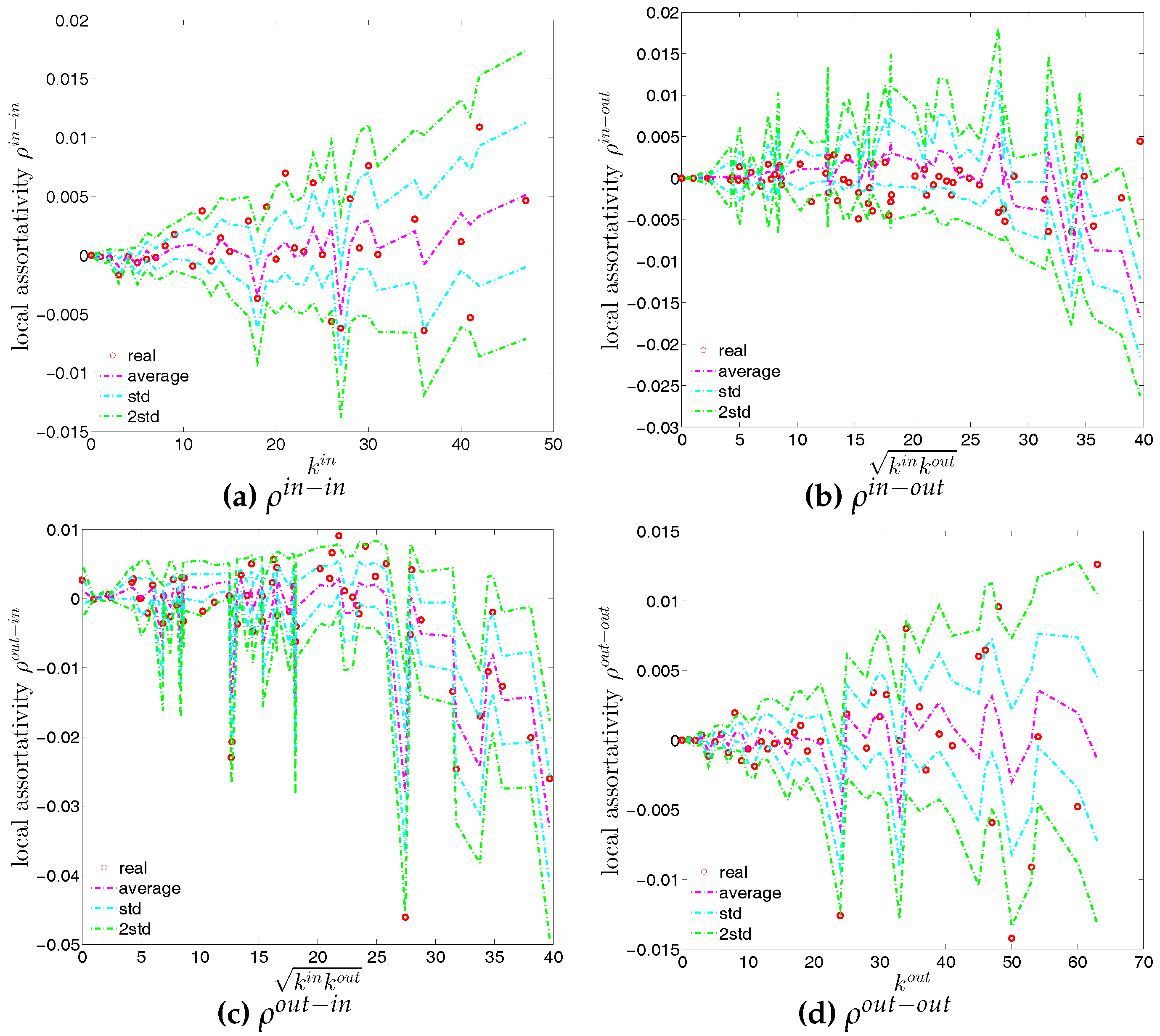

**Figure 27.**Local assortativity in the observed e-MID network and in the DBCM, in Q48. (

**a**) ${\rho}^{in-in}$; (

**b**) ${\rho}^{in-out}$; (

**c**) ${\rho}^{out-in}$; (

**d**) ${\rho}^{out-out}$.

**Figure 28.**Local clustering coefficients (

**a**) ${C}_{bin}^{cyc}$; (

**b**) ${C}_{bin}^{mid}$; (

**c**) ${C}_{bin}^{in}$; (

**d**) ${C}_{bin}^{out}$ in the observed e-MID network and in DBCM, in Q1.

**Figure 29.**Local clustering coefficients (

**a**) ${C}_{bin}^{cyc}$; (

**b**) ${C}_{bin}^{mid}$; (

**c**) ${C}_{bin}^{in}$; (

**d**) ${C}_{bin}^{out}$ in the observed e-MID network and in DBCM, in Q48.

**Figure 30.**Evolution of the averages of ANNDs in the observed e-MID network and in the DBCM. (

**a**) ${\overline{k}}_{nn}^{in-in}$; (

**b**) ${\overline{k}}_{nn}^{in-out}$; (

**c**) ${\overline{k}}_{nn}^{out-in}$; (

**d**) ${\overline{k}}_{nn}^{out-out}$.

**Figure 31.**Evolution of the global assortativity indicators in the observed e-MID network and in the DBCM. (

**a**) ${r}_{bin}^{in-in}$; (

**b**) ${r}_{bin}^{in-out}$; (

**c**) ${r}_{bin}^{out-in}$; (

**d**) ${r}_{bin}^{out-out}$.

**Figure 32.**Evolution of the averages of clustering coefficients in the observed e-MID network and in the DBCM. (

**a**) ${\overline{C}}_{bin}^{cyc}$; (

**b**) ${\overline{C}}_{bin}^{mid}$; (

**c**) ${\overline{C}}_{bin}^{in}$; (

**d**) ${\overline{C}}_{bin}^{out}$.

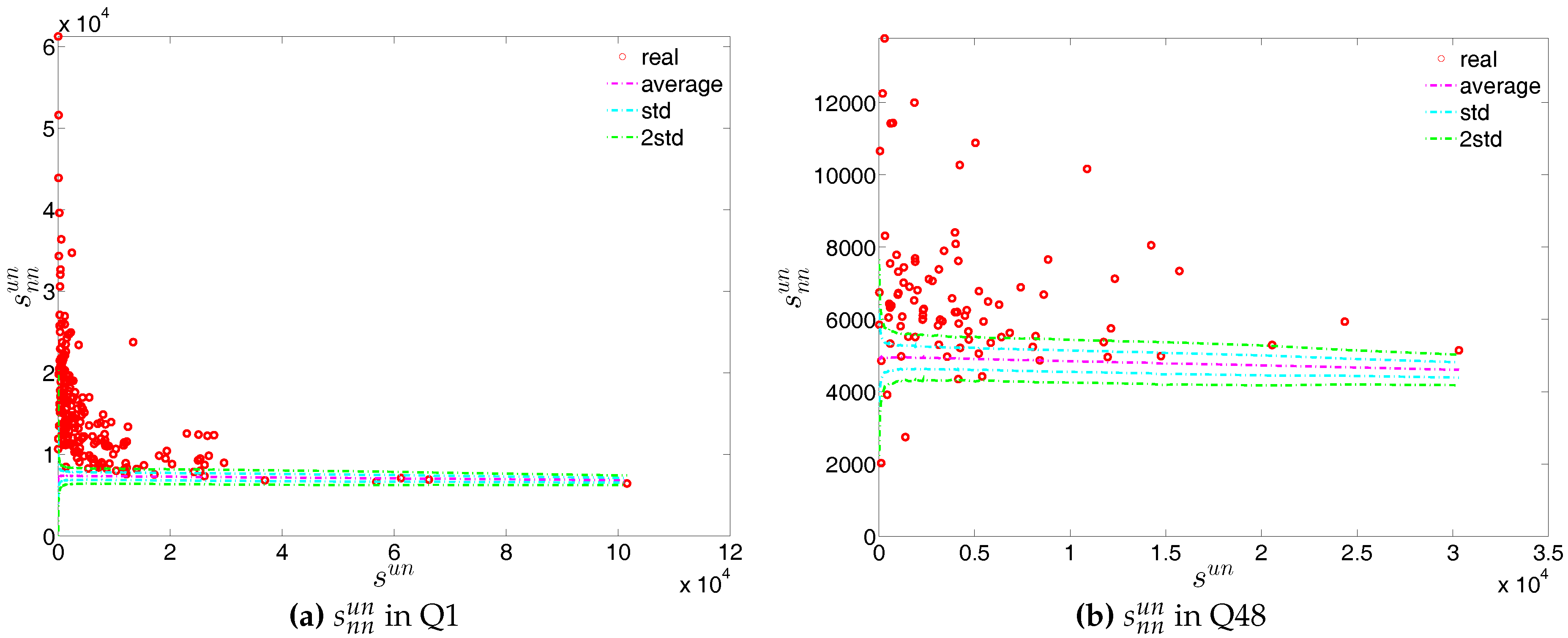

**Figure 33.**Average strength of the nearest neighbors (ANNS) in the undirected weighted e-MID network, in Q1 and Q48.

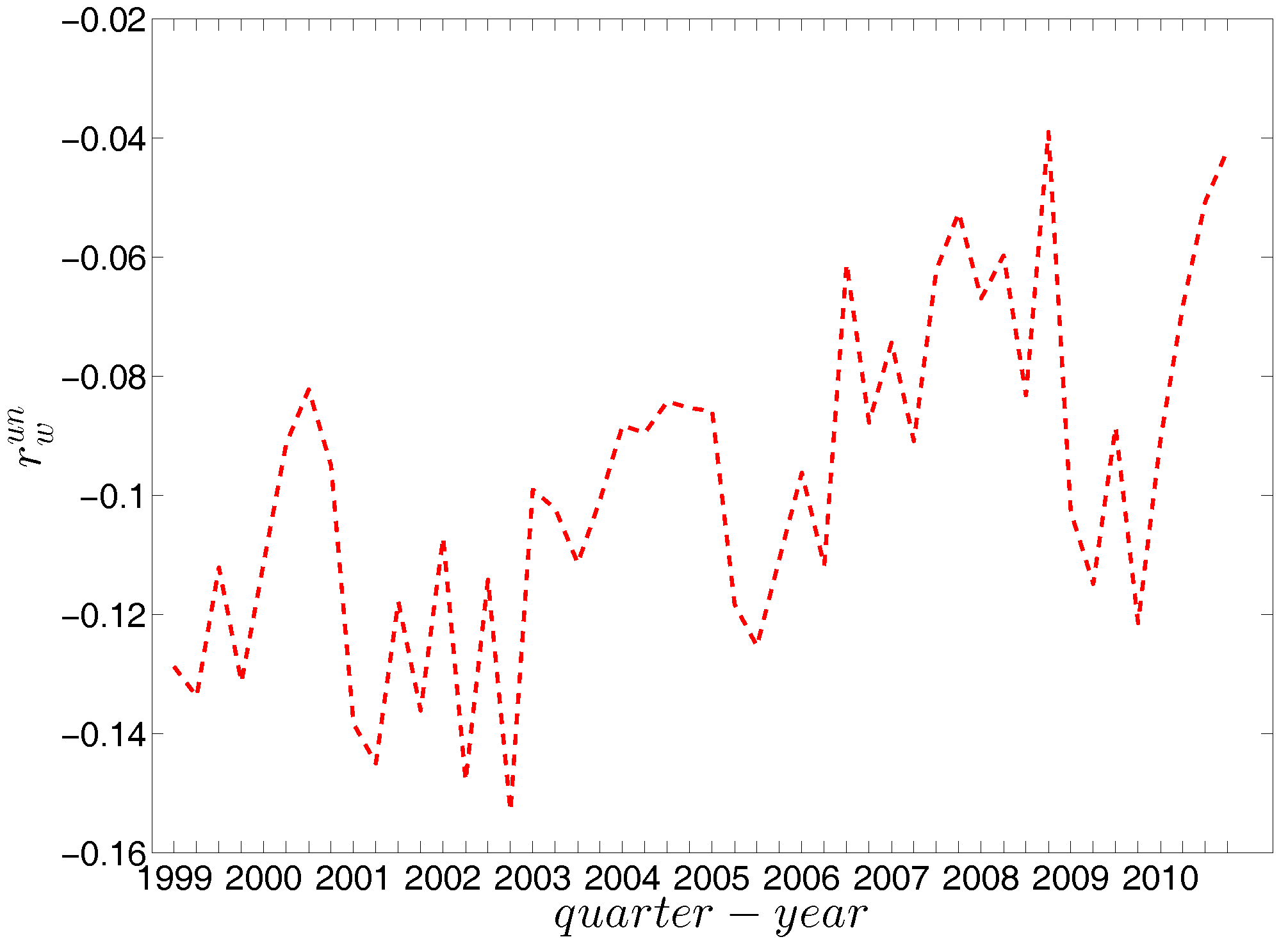

**Figure 34.**Evolution of global weighted assortativity ${r}_{w}^{un}$ in the undirected weighted e-MID network.

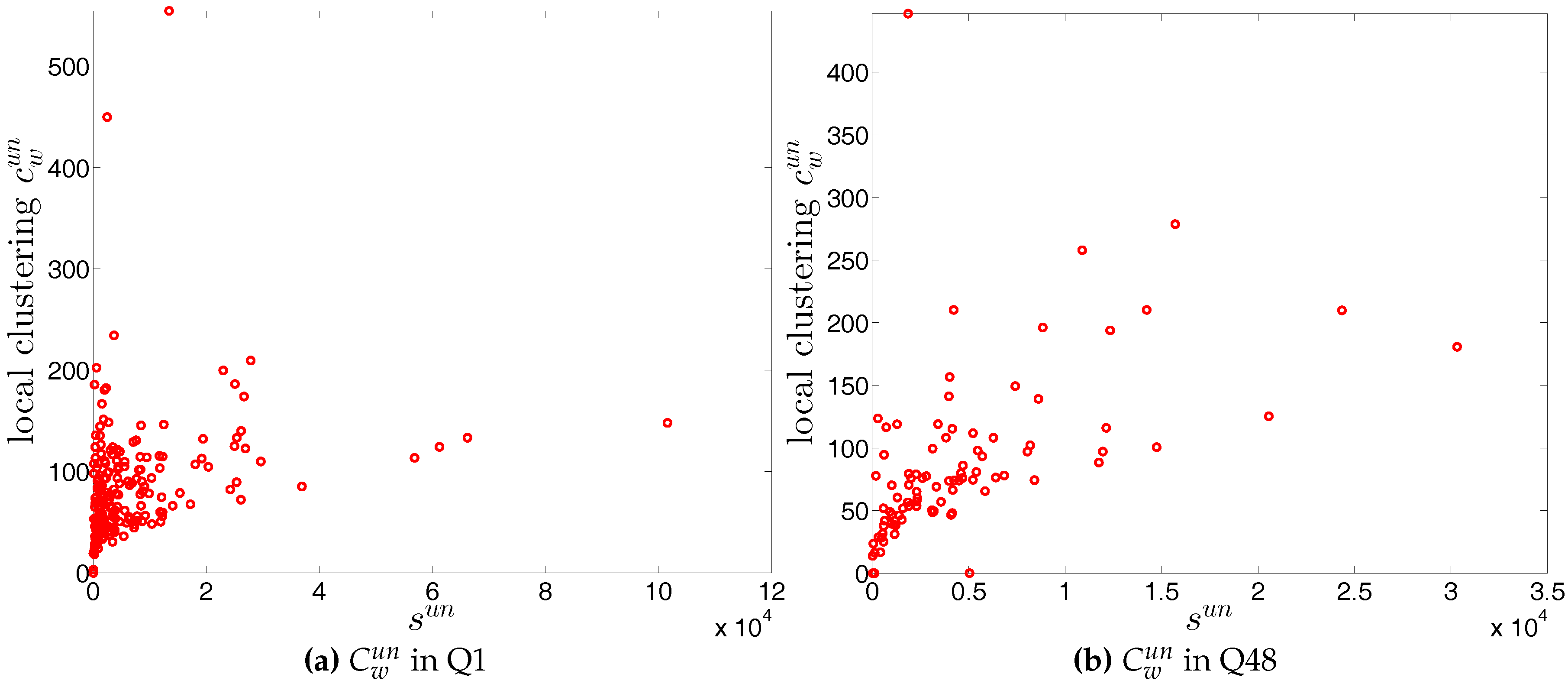

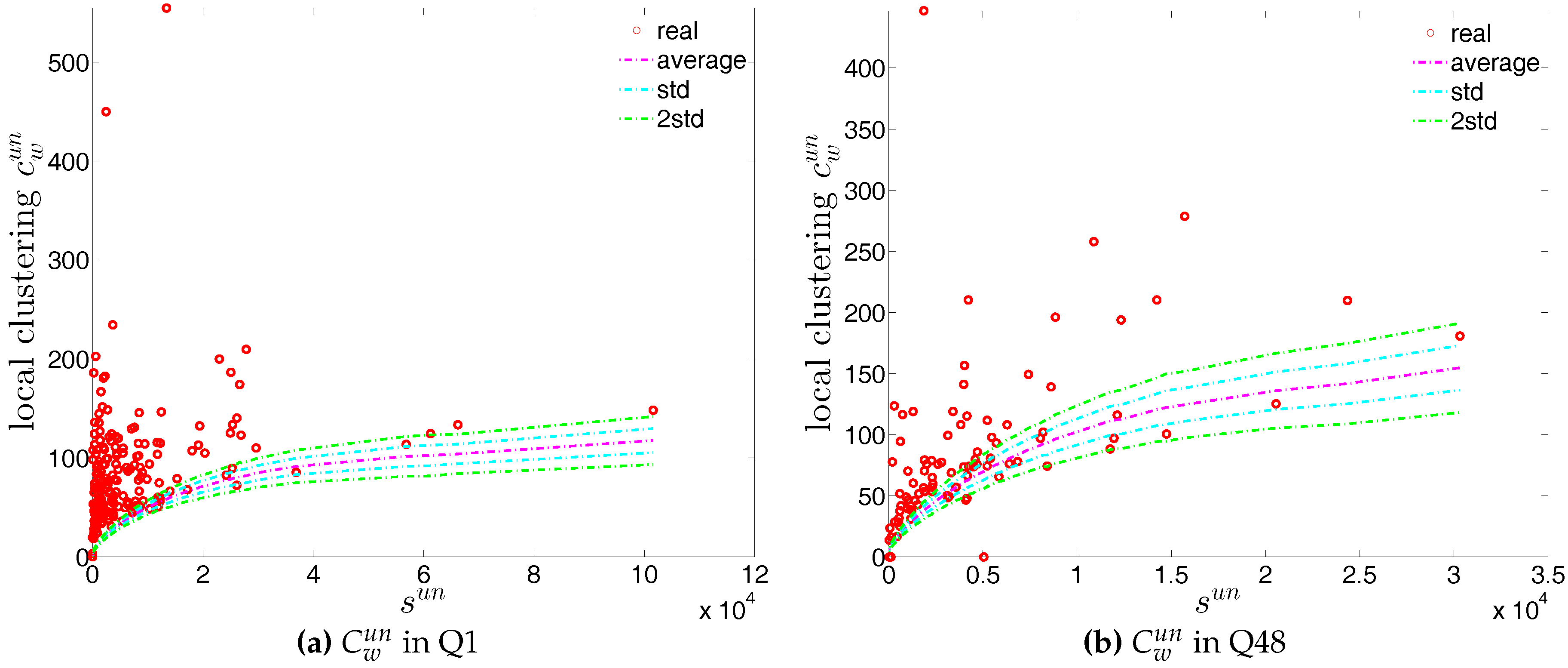

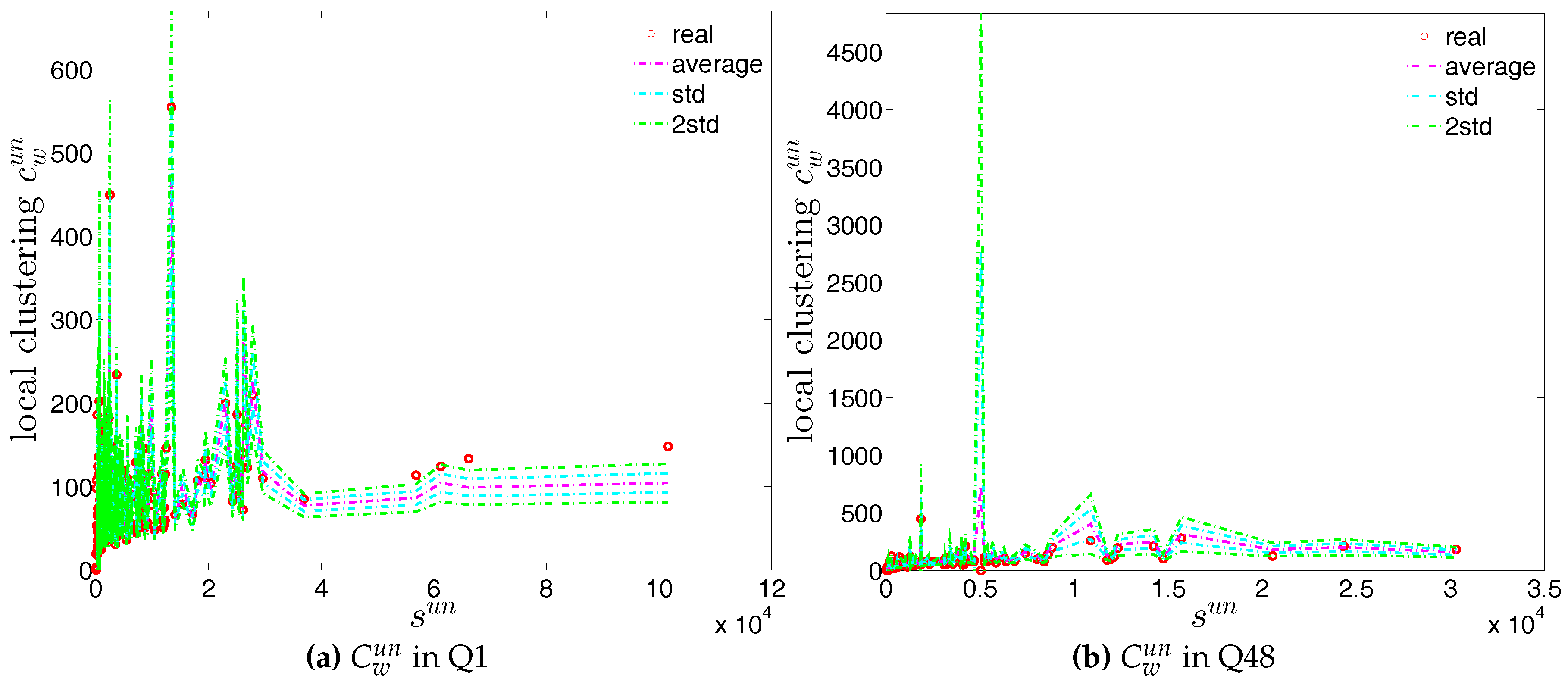

**Figure 35.**Local clustering coefficients ${C}_{w}^{un}$ in the undirected weighted e-MID network, in Q1 and Q48.

**Figure 36.**Evolution of the average of local weighted clustering coefficients (i.e., ${\overline{C}}_{w}^{un}$) in the undirected weighted e-MID network.

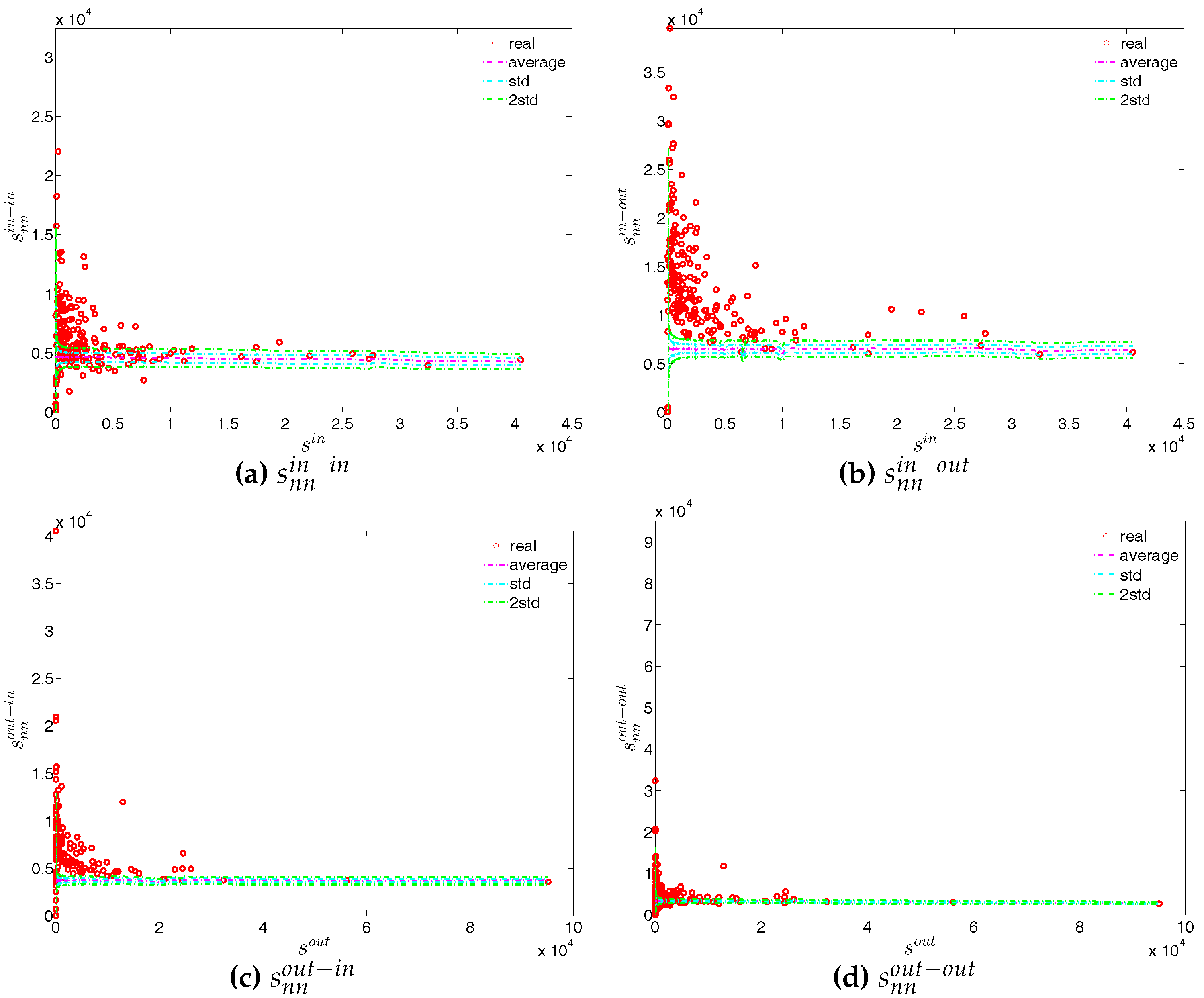

**Figure 37.**ANNSs in the directed weighted e-MID network, in Q1. (

**a**) ${s}_{nn}^{in-in}$; (

**b**) ${s}_{nn}^{in-out}$; (

**c**) ${s}_{nn}^{out-in}$; (

**d**) ${s}_{nn}^{out-out}$.

**Figure 38.**ANNSs in the directed weighted e-MID network, in Q48. (

**a**) ${s}_{nn}^{in-in}$; (

**b**) ${s}_{nn}^{in-out}$; (

**c**) ${s}_{nn}^{out-in}$; (

**d**) ${s}_{nn}^{out-out}$.

**Figure 39.**Evolution of the directed weighted assortativity indicators, i.e., ${r}_{w}^{in-in}$, ${r}_{w}^{in-out}$, ${r}_{w}^{out-in}$, and ${r}_{w}^{out-out}$ in the directed weighted e-MID network.

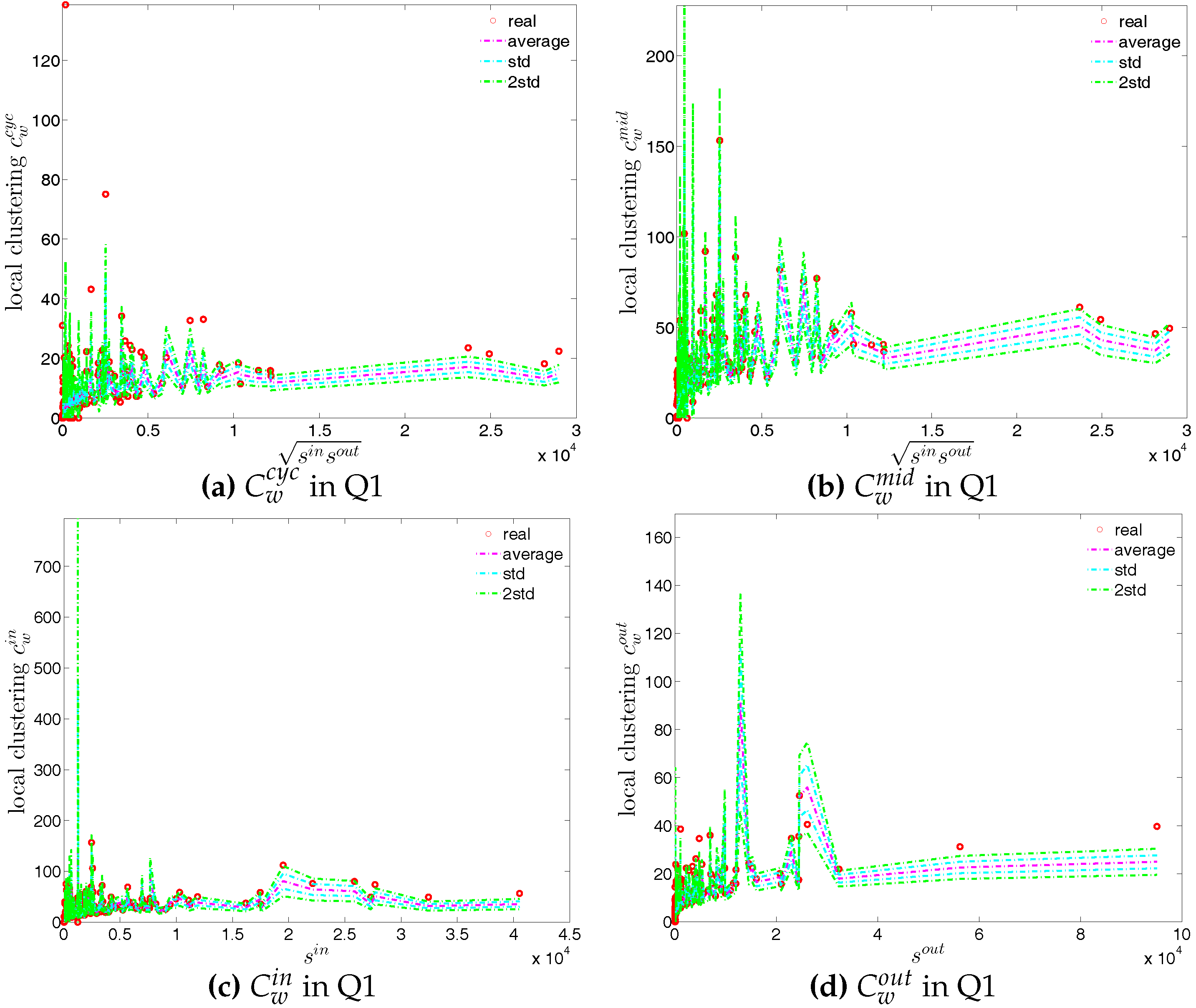

**Figure 40.**Local weighted clustering coefficients in the directed weighted e-MID network, in Q1. (

**a**) ${C}_{w}^{cyc}$; (

**b**) ${C}_{w}^{mid}$; (

**c**) ${C}_{w}^{in}$; (

**d**) ${C}_{w}^{out}$.

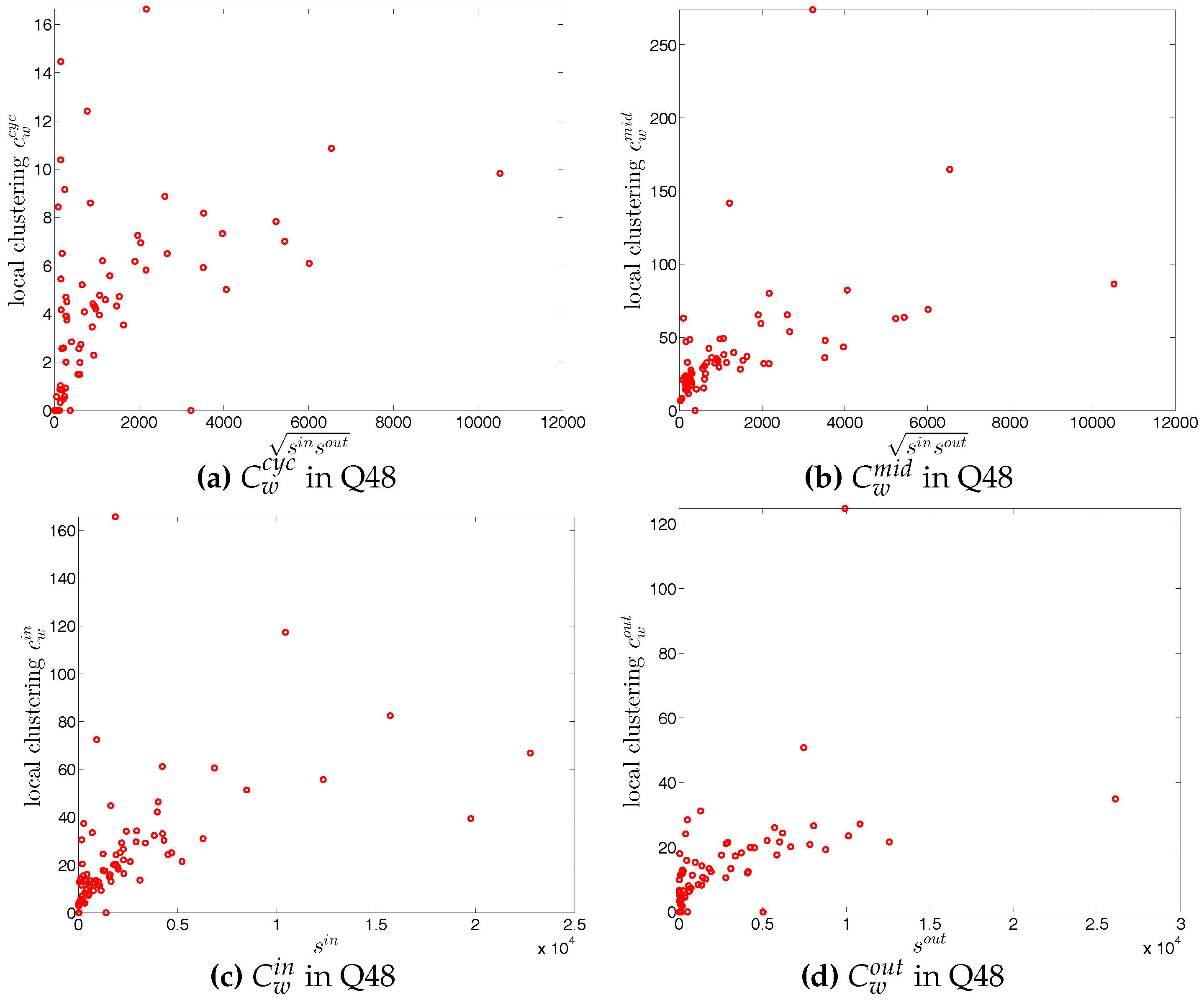

**Figure 41.**Local weighted clustering coefficients in the directed weighted e-MID network, in Q48. (

**a**) ${C}_{w}^{cyc}$; (

**b**) ${C}_{w}^{mid}$; (

**c**) ${C}_{w}^{in}$; (

**d**) ${C}_{w}^{out}$.

**Figure 42.**Evolution of the averages of local weighted clustering coefficients, i.e., ${\overline{C}}_{w}^{cyc}$, ${\overline{C}}_{w}^{mid}$, ${\overline{C}}_{w}^{in}$, and ${\overline{C}}_{w}^{out}$ in the directed weighted e-MID network.

**Figure 44.**Local weighted clustering coefficients ${C}_{w}^{un}$ in the observed e-MID network and in the UWCM, in Q1 and Q48.

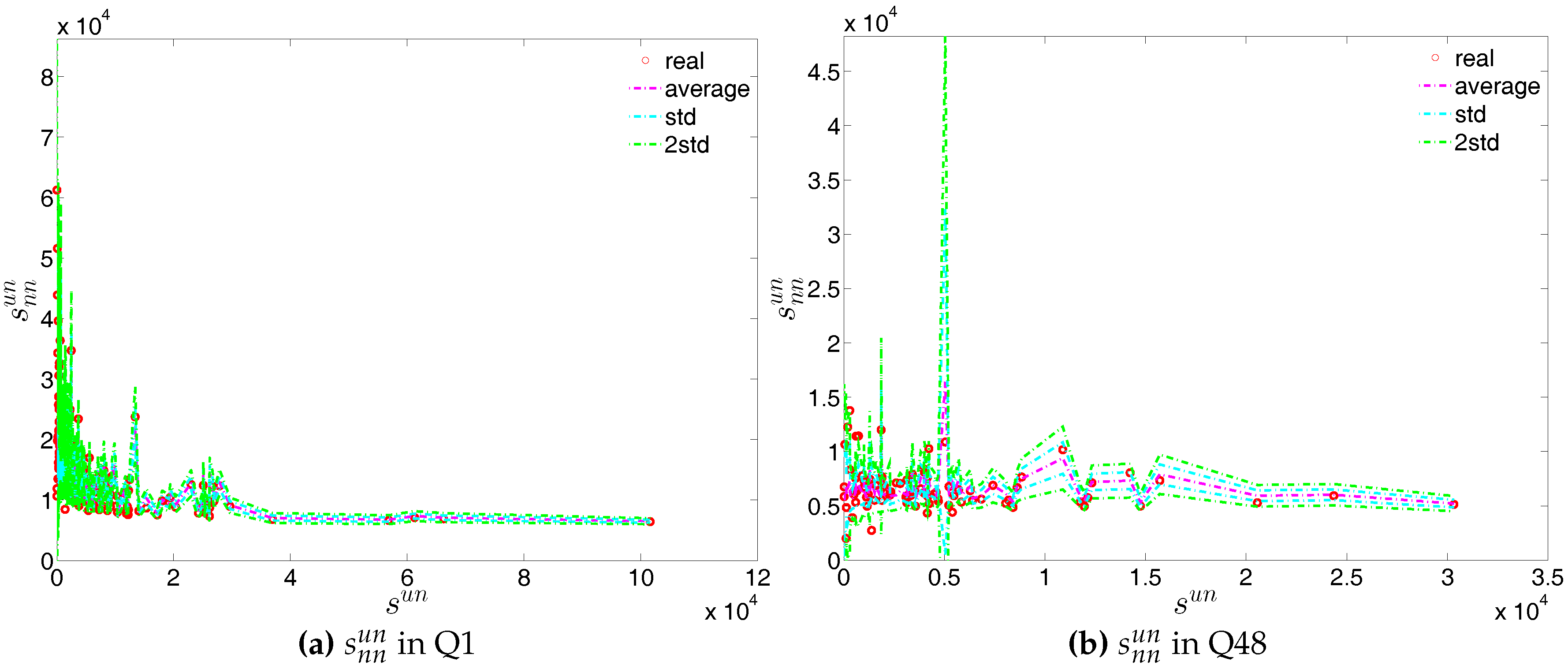

**Figure 46.**Local weighted clustering coefficients ${C}_{w}^{un}$ in the observed e-MID network and in the UECM, in Q1 and Q48.

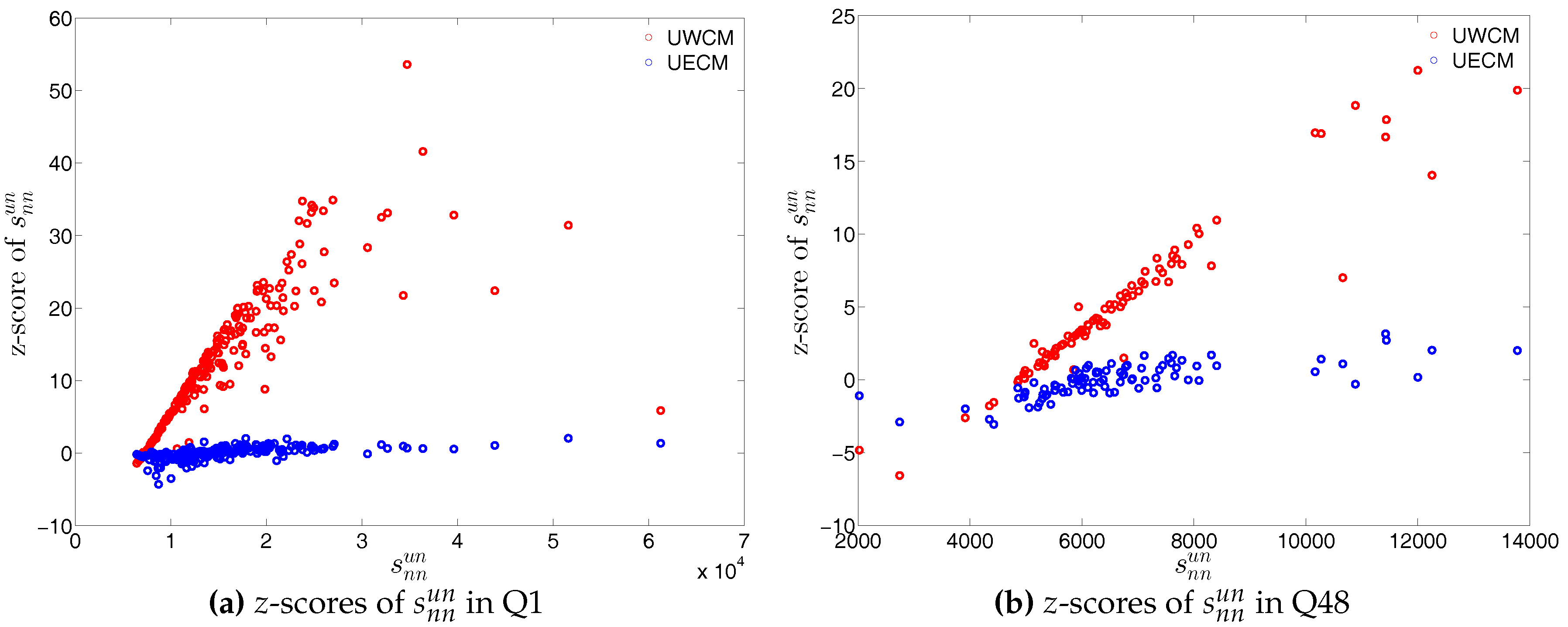

**Figure 47.**z-scores of ${s}_{nn}^{un}$ vs. ${s}_{nn}^{un}$ in the UWCM and the UECM, in Q1 and in Q48. Panel (

**a**) for z-scores of ${s}_{nn}^{un}$ in Q1; panel (

**b**) for z-scores of ${s}_{nn}^{un}$ in Q48.

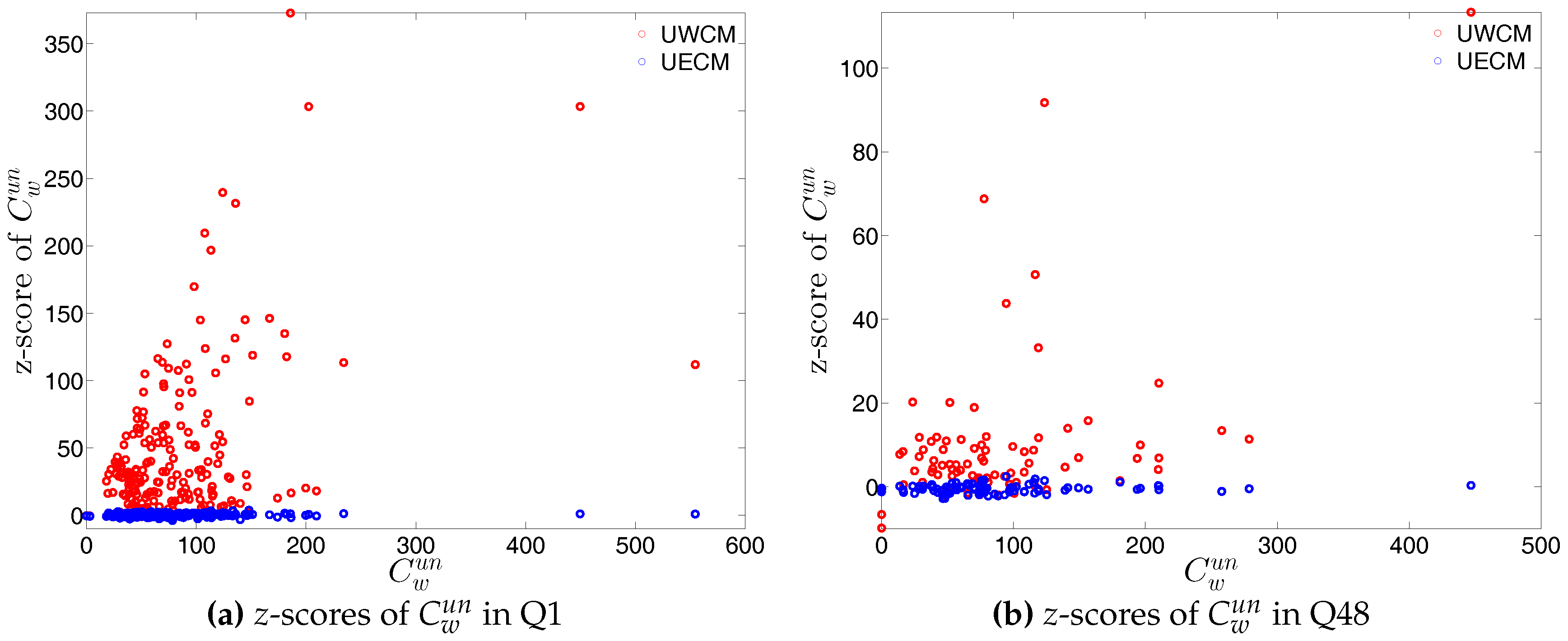

**Figure 48.**z-scores of ${C}_{w}^{un}$ vs. ${C}_{w}^{un}$ in the UWCM and the UECM. (

**a**) for z-scores of ${C}_{w}^{un}$ in Q1; (

**b**) for z-scores of ${C}_{w}^{un}$ in Q48.

**Figure 49.**Evolution of (

**a**) ${\overline{s}}_{nn}^{un}$; (

**b**) ${r}_{w}^{un}$; and (

**c**) ${\overline{C}}_{w}^{un}$ in the observed e-MID network and in the UWCM.

**Figure 50.**Evolution of (

**a**) ${\overline{s}}_{nn}^{un}$; (

**b**) ${r}_{w}^{un}$; and (

**c**) ${\overline{C}}_{w}^{un}$ in the observed e-MID network and in the UECM.

**Figure 51.**ANNSs in the observed e-MID network and in the DWCM, in Q1. (

**a**) ${s}_{nn}^{in-in}$; (

**b**) ${s}_{nn}^{in-out}$; (

**c**) ${s}_{nn}^{out-in}$; (

**d**) ${s}_{nn}^{out-out}$.

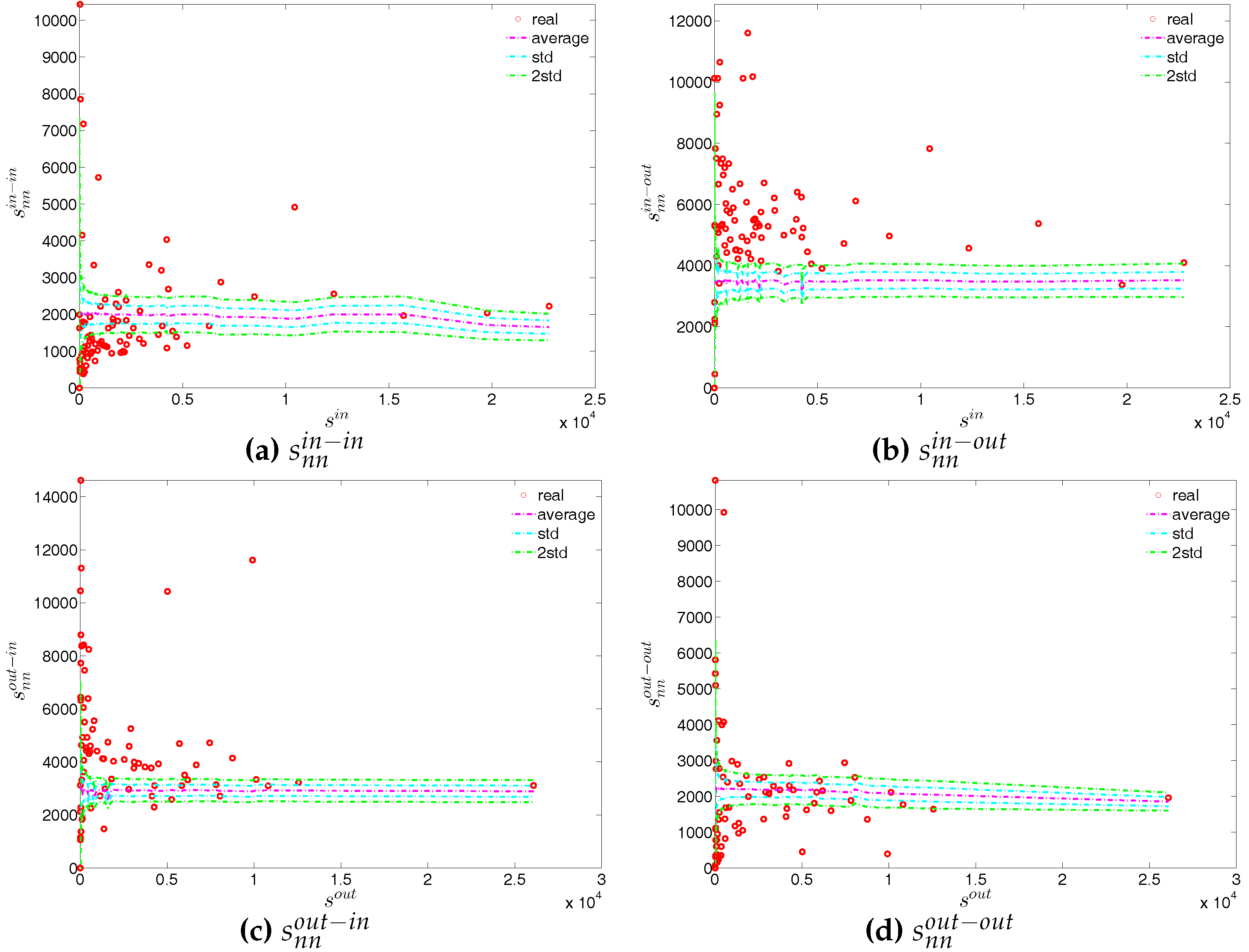

**Figure 52.**ANNSs in the observed e-MID network and in the DWCM, in Q48. (

**a**) ${s}_{nn}^{in-in}$; (

**b**) ${s}_{nn}^{in-out}$; (

**c**) ${s}_{nn}^{out-in}$; (

**d**) ${s}_{nn}^{out-out}$.

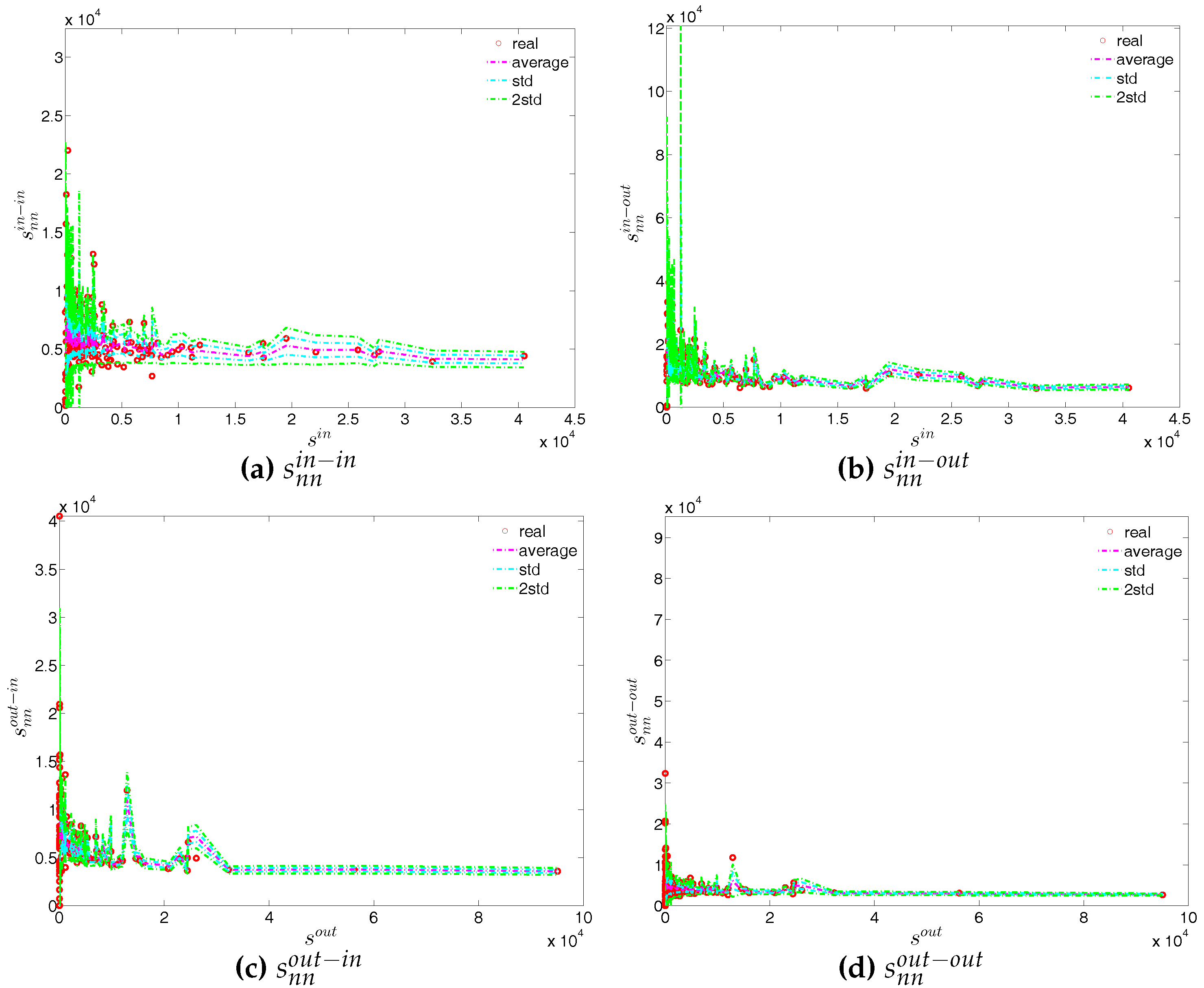

**Figure 53.**ANNSs in the observed e-MID network and in the DECM, in Q1. (

**a**) ${s}_{nn}^{in-in}$; (

**b**) ${s}_{nn}^{in-out}$; (

**c**) ${s}_{nn}^{out-in}$; (

**d**) ${s}_{nn}^{out-out}$.

**Figure 54.**ANNSs in the observed e-MID network and in the DECM, in Q48. (

**a**) ${s}_{nn}^{in-in}$; (

**b**) ${s}_{nn}^{in-out}$; (

**c**) ${s}_{nn}^{out-in}$; (

**d**) ${s}_{nn}^{out-out}$.

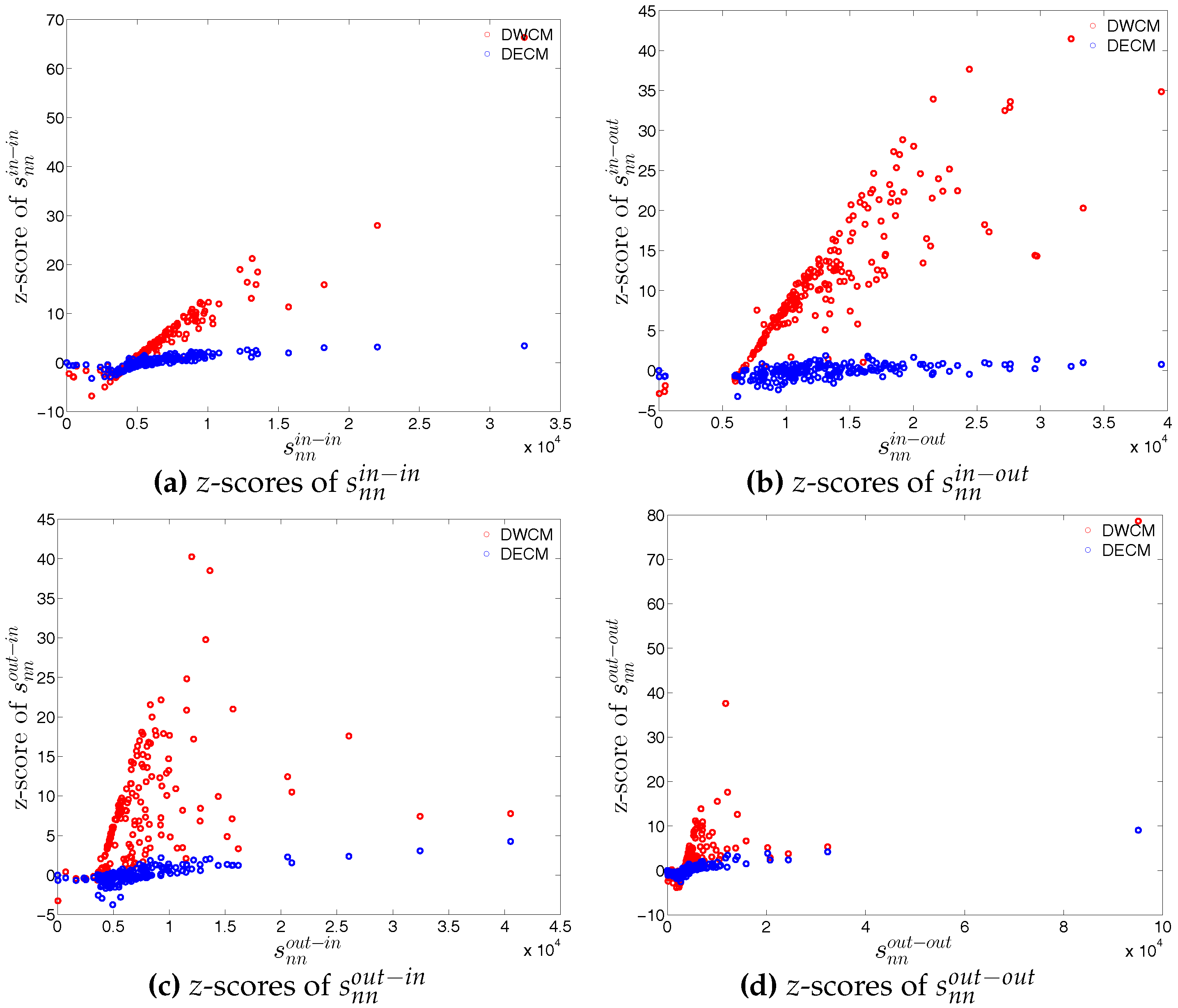

**Figure 55.**z-scores of ANNSs vs. ANNSs, in the DWCM and DECM models, in Q1. (

**a**) for ${s}_{nn}^{in-in}$; (

**b**) for ${s}_{nn}^{in-out}$; (

**c**) for ${s}_{nn}^{out-in}$; (

**d**) for ${s}_{nn}^{out-out}$.

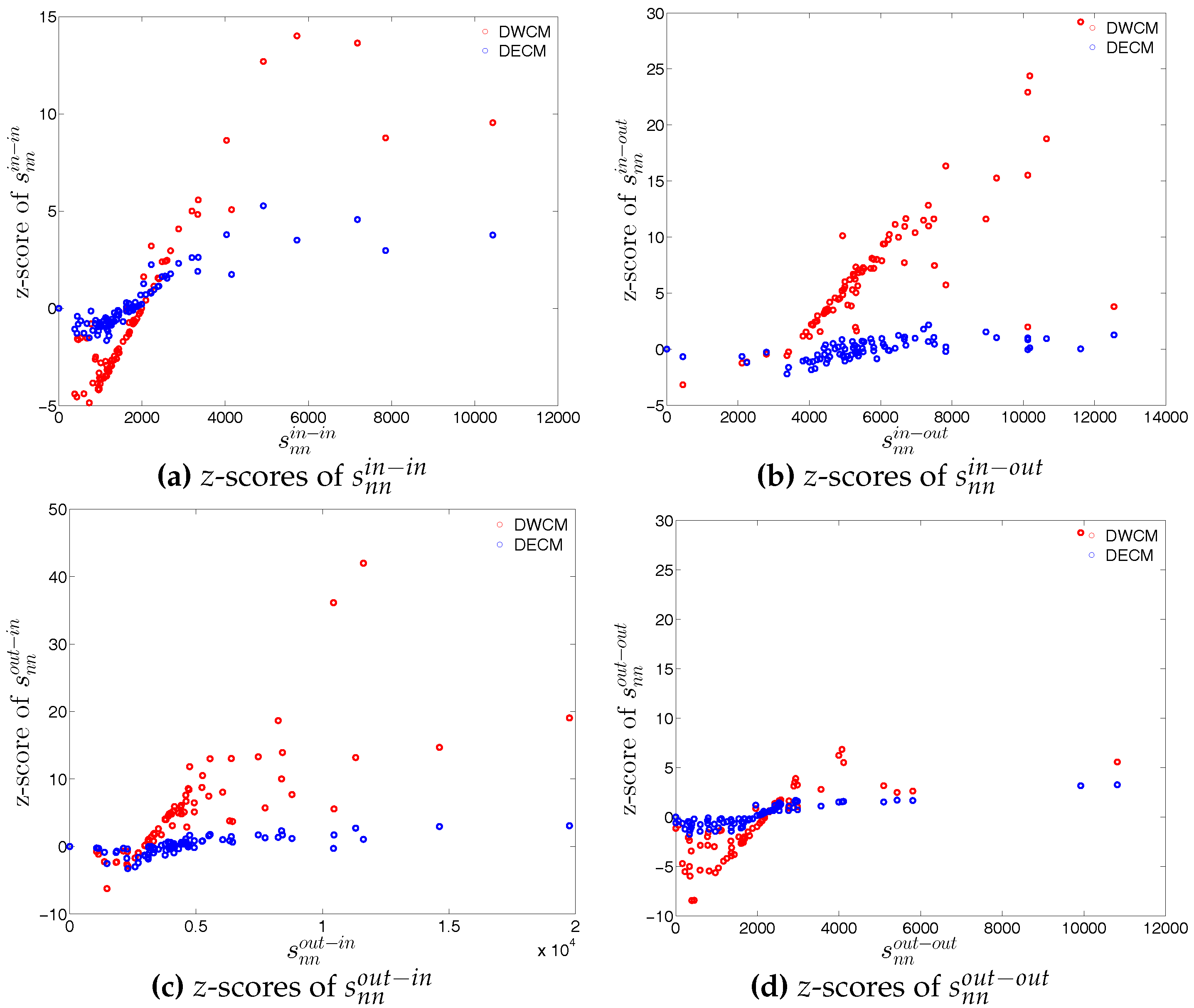

**Figure 56.**z-scores of ANNSs vs. ANNSs, in the DWCM and DECM models, in Q48. (

**a**) for ${s}_{nn}^{in-in}$; (

**b**) for ${s}_{nn}^{in-out}$; (

**c**) for ${s}_{nn}^{out-in}$; (

**d**) for ${s}_{nn}^{out-out}$.

**Figure 57.**Local weighted clustering coefficients in the observed e-MID network and in the DWCM, in Q1. (

**a**) ${C}_{w}^{cyc}$; (

**b**) ${C}_{w}^{mid}$; (

**c**) ${C}_{w}^{in}$; (

**d**) ${C}_{w}^{out}$.

**Figure 58.**Local weighted clustering coefficients in the observed e-MID network and in the DWCM, in Q48. (

**a**) ${C}_{w}^{cyc}$; (

**b**) ${C}_{w}^{mid}$; (

**c**) ${C}_{w}^{in}$; (

**d**) ${C}_{w}^{out}$.

**Figure 59.**Local weighted clustering coefficients in the observed e-MID network and in the DECM, in Q1. (

**a**) ${C}_{w}^{cyc}$; (

**b**) ${C}_{w}^{mid}$; (

**c**) ${C}_{w}^{in}$; (

**d**) ${C}_{w}^{out}$.

**Figure 60.**Local weighted clustering coefficients in the observed e-MID network and in the DECM, in Q48. (

**a**) ${C}_{w}^{cyc}$; (

**b**) ${C}_{w}^{mid}$; (

**c**) ${C}_{w}^{in}$; (

**d**) ${C}_{w}^{out}$.

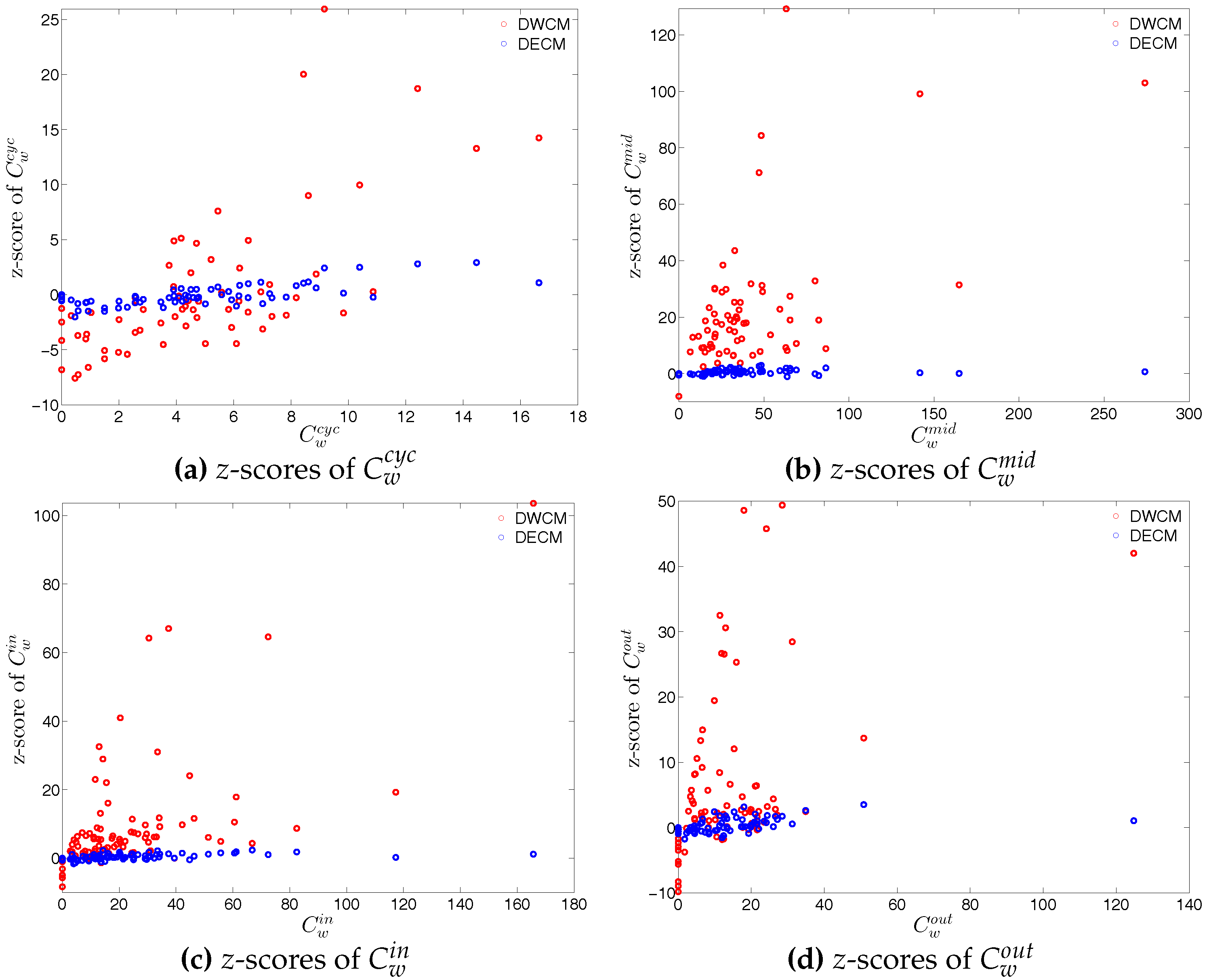

**Figure 61.**z-scores of ${C}_{w}$ vs. ${C}_{w}$, evaluated under the DWCM and DECM models, in Q1. (

**a**) for ${C}_{w}^{cyc}$; (

**b**) for ${C}_{w}^{mid}$; (

**c**) for ${C}_{w}^{in}$; (

**d**) for ${C}_{w}^{out}$.

**Figure 62.**z-scores of ${C}_{w}$ vs. ${C}_{w}$, evaluated under the DWCM and DECM models, in Q48. (

**a**) for ${C}_{w}^{cyc}$; (

**b**) for ${C}_{w}^{mid}$; (

**c**) for ${C}_{w}^{in}$; (

**d**) for ${C}_{w}^{out}$.

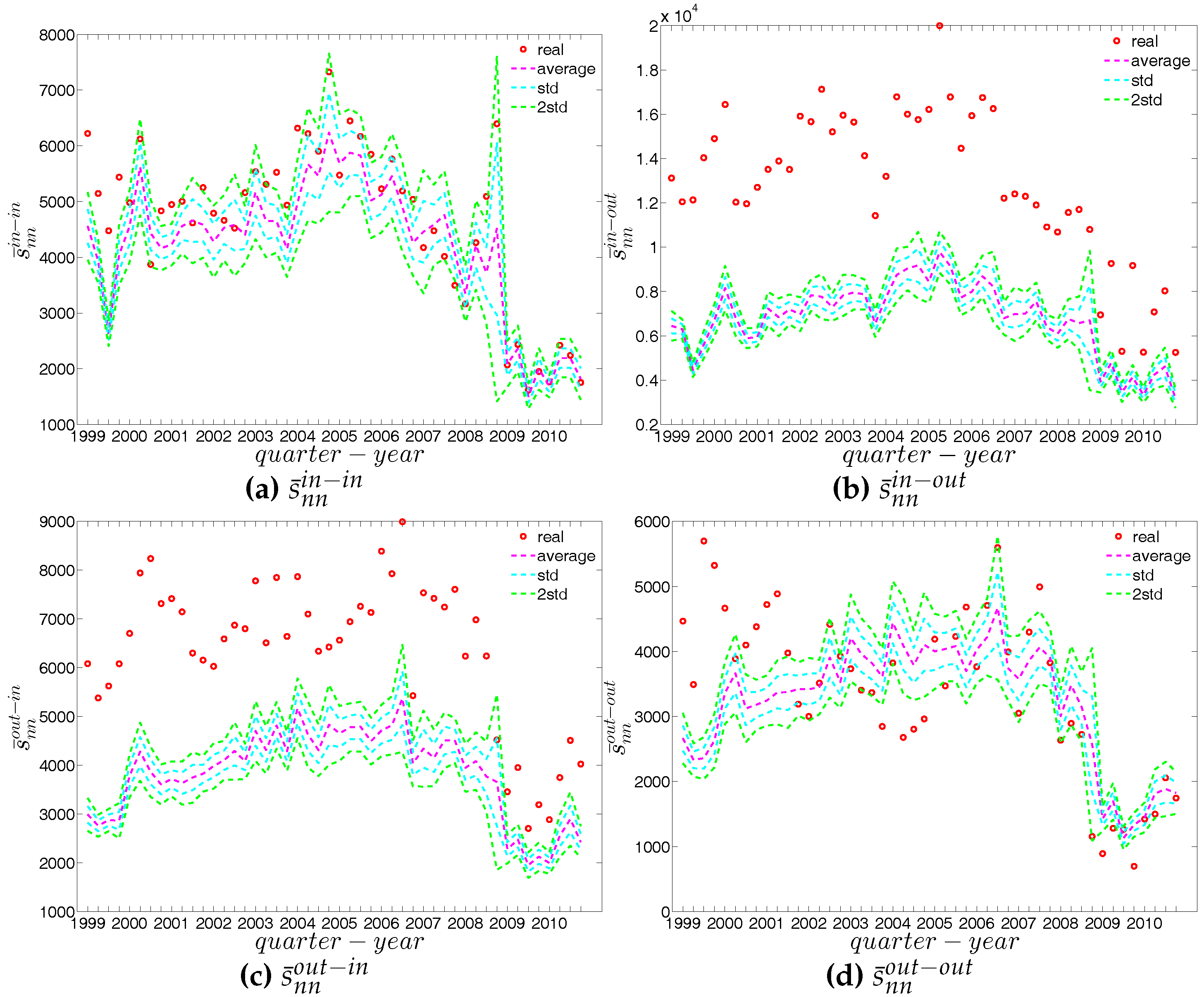

**Figure 63.**Evolution of the averages of ANNSs in the observed e-MID network and in the DWCM. (

**a**) ${\overline{s}}_{nn}^{in-in}$; (

**b**) ${\overline{s}}_{nn}^{in-out}$; (

**c**) ${\overline{s}}_{nn}^{out-in}$; (

**d**) ${\overline{s}}_{nn}^{out-out}$.

**Figure 64.**Evolution of the global weighted assortativity indicators in the observed e-MID network and in the DWCM. (

**a**) ${r}_{w}^{in-in}$; (

**b**) ${r}_{w}^{in-out}$; (

**c**) ${r}_{w}^{out-in}$; (

**d**) ${r}_{w}^{out-out}$.

**Figure 65.**Evolution of the averages of local weighted clustering coefficients in the observed e-MID network and in the DWCM. (

**a**) ${\overline{C}}_{w}^{cyc}$; (

**b**) ${\overline{C}}_{w}^{mid}$; (

**c**) ${\overline{C}}_{w}^{in}$; (

**d**) ${\overline{C}}_{w}^{out}$.

**Figure 66.**Evolution of the averages of ANNSs in the observed e-MID network and in the DECM. (

**a**) ${\overline{s}}_{nn}^{in-in}$; (

**b**) ${\overline{s}}_{nn}^{in-out}$; (

**c**) ${\overline{s}}_{nn}^{out-in}$; (

**d**) ${\overline{s}}_{nn}^{out-out}$.

**Figure 67.**Evolution of the global weighted assortativity indicators in the observed e-MID network and in the DECM. (

**a**) ${r}_{w}^{in-in}$; (

**b**) ${r}_{w}^{in-out}$ (

**b**); (

**c**) ${r}_{w}^{out-in}$; (

**d**) ${r}_{w}^{out-out}$.

**Figure 68.**Evolution of the averages of local weighted clustering coefficients in the observed e-MID network and in the DECM. (

**a**) ${\overline{C}}_{w}^{cyc}$; (

**b**) ${\overline{C}}_{w}^{mid}$; (

**c**) ${\overline{C}}_{w}^{in}$; (

**d**) ${\overline{C}}_{w}^{out}$.

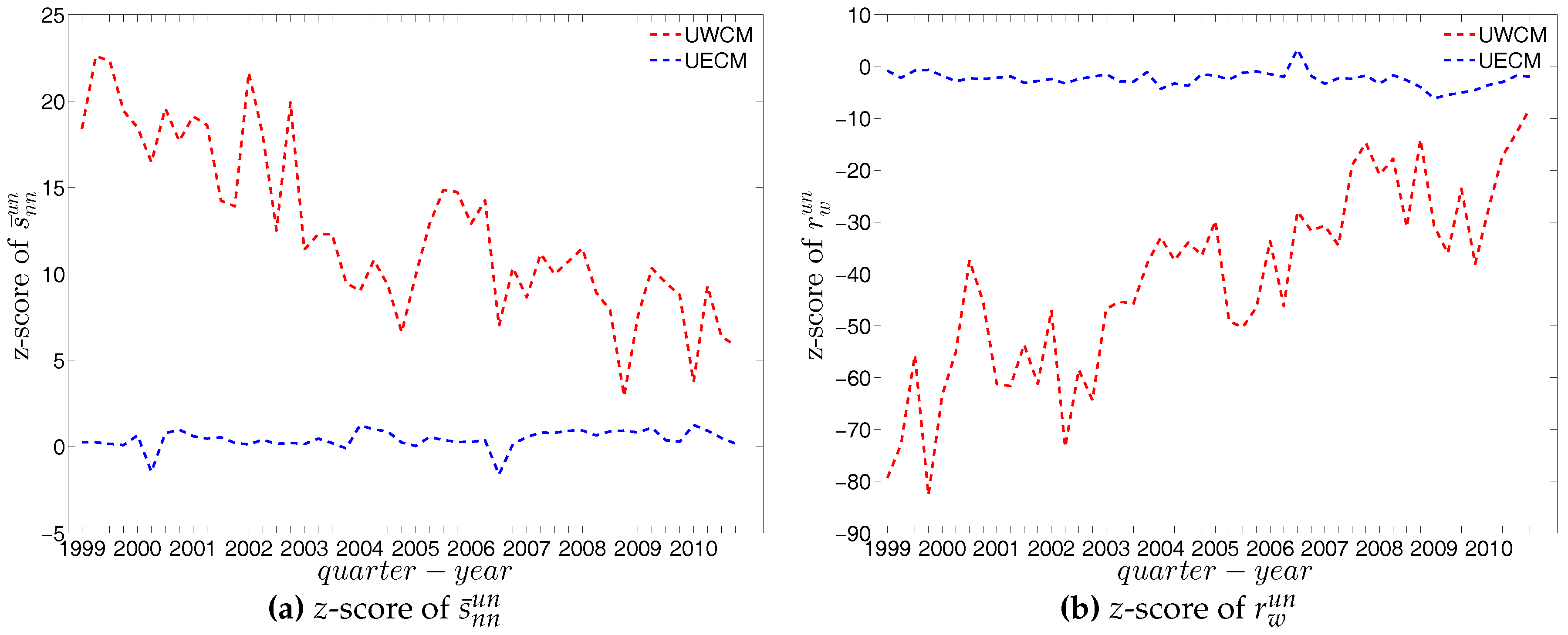

**Figure 69.**Evolution of the z-scores for (

**a**) ${\overline{s}}_{nn}^{un}$; (

**b**) ${r}_{w}^{un}$; and (

**c**) ${\overline{C}}_{w}^{un}$ evaluated under the UWCM (red dashed lines) and the UECM (blue dashed lines).

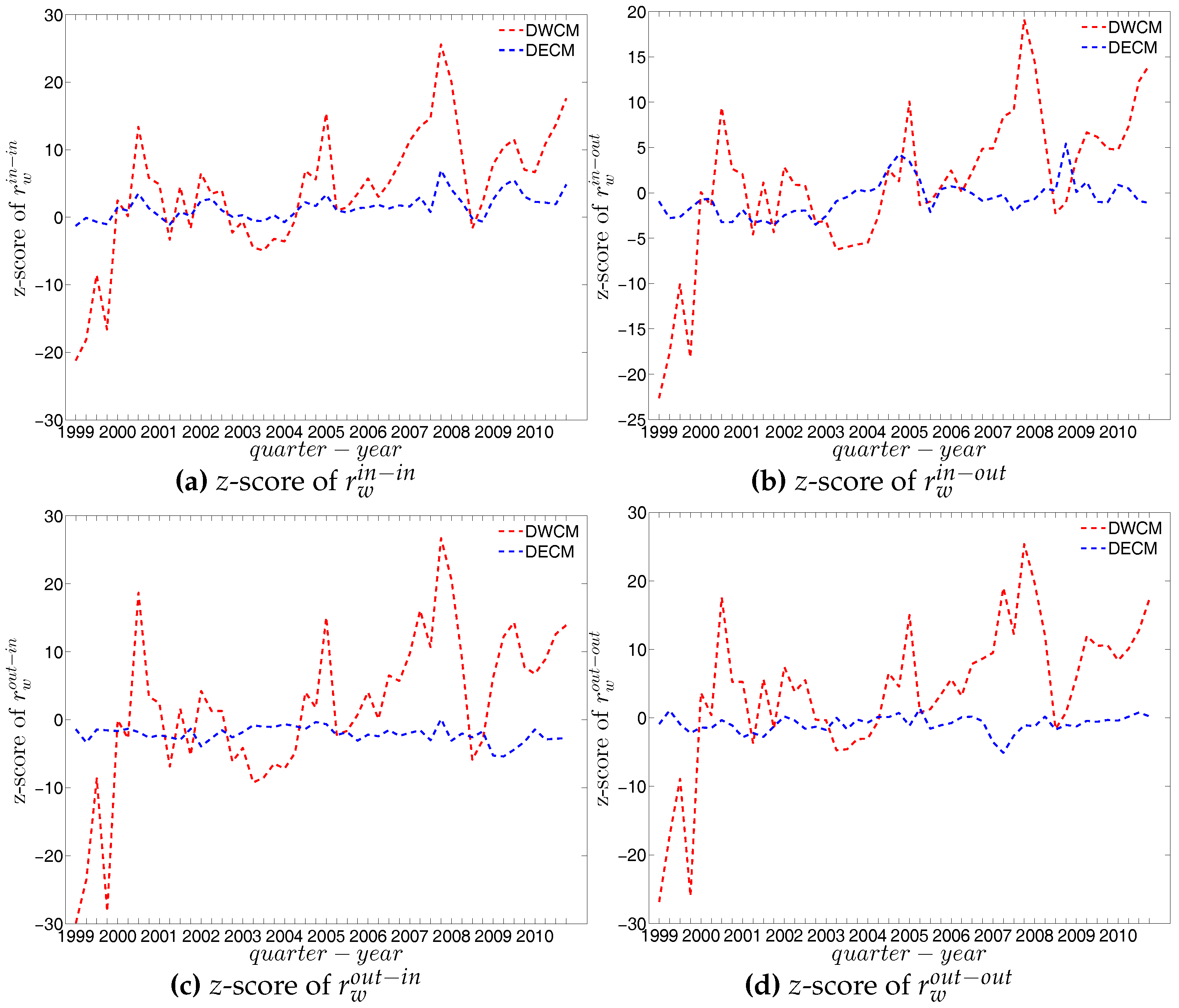

**Figure 70.**Evolution of the z-scores for (

**a**) ${r}_{w}^{in-in}$; (

**b**) ${r}_{w}^{in-out}$; (

**c**) ${r}_{w}^{out-in}$, and (

**d**) ${r}_{w}^{out-out}$ evaluated under the DWCM (red dashed lines) and the DECM (blue dashed lines).

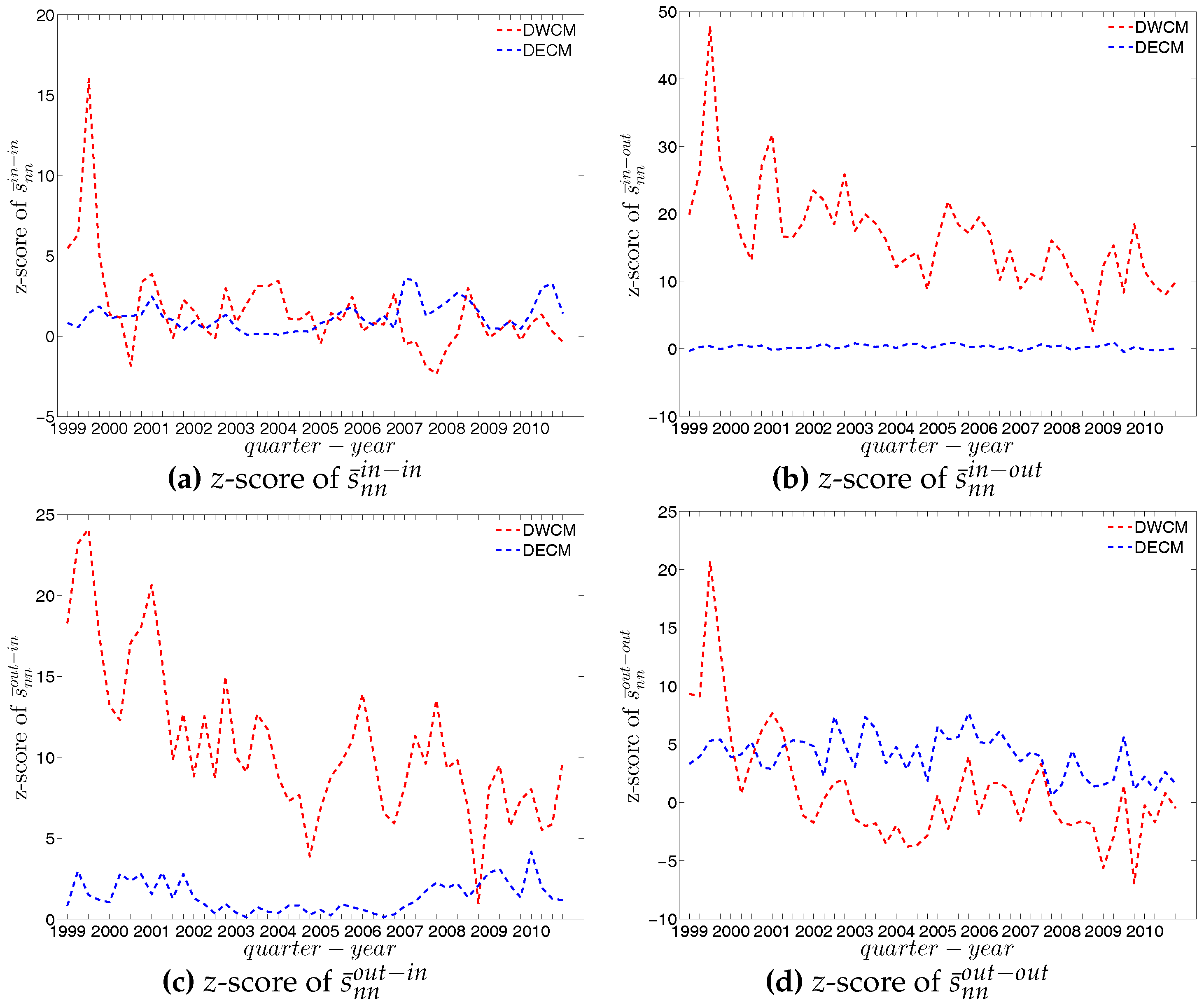

**Figure 71.**Evolution of the z-scores for (

**a**) ${\overline{s}}_{nn}^{in-in}$; (

**b**) ${\overline{s}}_{nn}^{in-out}$; (

**c**) ${\overline{s}}_{nn}^{out-in}$; and (

**d**) ${\overline{s}}_{nn}^{out-out}$ evaluated under the DWCM (red dashed lines) and the DECM (blue dashed lines).

**Figure 72.**Evolution of the z-scores for (

**a**) ${\overline{C}}_{w}^{cyc}$; (

**b**) ${\overline{C}}_{w}^{mid}$; (

**c**) ${\overline{C}}_{w}^{in}$; and (

**d**) ${\overline{C}}_{w}^{out}$ evaluated under the DWCM (red dashed lines) and the DECM (blue dashed lines).

© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Luu, D.T.; Lux, T.; Yanovski, B.
Structural Correlations in the Italian Overnight Money Market: An Analysis Based on Network Configuration Models. *Entropy* **2017**, *19*, 259.
https://doi.org/10.3390/e19060259

**AMA Style**

Luu DT, Lux T, Yanovski B.
Structural Correlations in the Italian Overnight Money Market: An Analysis Based on Network Configuration Models. *Entropy*. 2017; 19(6):259.
https://doi.org/10.3390/e19060259

**Chicago/Turabian Style**

Luu, Duc Thi, Thomas Lux, and Boyan Yanovski.
2017. "Structural Correlations in the Italian Overnight Money Market: An Analysis Based on Network Configuration Models" *Entropy* 19, no. 6: 259.
https://doi.org/10.3390/e19060259
