# Entropy of Entropy: Measurement of Dynamical Complexity for Biological Systems

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Method

#### 2.1. Entropy of Entropy (EoE) Method

#### 2.2. Data Description

#### 2.3. An Example in Analyzing Cardiac Interbeat Interval Time Series

## 3. Results

#### 3.1. Inverted U Curve

#### 3.2. Accuracy of EoE

## 4. Discussion

#### 4.1. Parameters $\tau $ and ${s}_{1}$ Setup

#### 4.2. Simulated 1/f Noise and Gaussian Distributed White Noise

#### 4.3. Comparison between MSE and EoE

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Mitchell, M. Complexity A Guided Tour; Oxford University Press: Oxford, UK, 2009. [Google Scholar]
- Costa, M.; Goldberger, A.L.; Peng, C.-K. Multiscale entropy analysis of complex physiologic time series. Phys. Rev. Lett.
**2002**, 89, 68102. [Google Scholar] [CrossRef] [PubMed] - Costa, M.; Goldberger, A.L.; Peng, C.-K. Multiscale entropy analysis of biological signals. Phys. Rev. E
**2005**, 71, 1–18. [Google Scholar] [CrossRef] [PubMed] - Peng, C.-K.; Costa, M.; Goldberger, A.L. Adaptive data analysis of complex fluctuations in physiologic time series. World Sci.
**2009**, 1, 61–70. [Google Scholar] [CrossRef] [PubMed] - Gell-Mann, M. What is complexity. Complexity
**1995**, 1, 16–19. [Google Scholar] [CrossRef] - Huberman, B.A.; Hogg, T. Complexity and Adaptation. Physica D
**1986**, 22, 376–384. [Google Scholar] [CrossRef] - Zhang, Y.-C. Complexity and 1/f noise. A phase space approach. J. Phys. I EDP Sci.
**1991**, 1, 971–977. [Google Scholar] [CrossRef] - Silva, L.E.V.; Cabella, B.C.T.; Neves, U.P.D.C.; Murta Junior, L.O. Multiscale entropy-based methods for heart rate variability complexity analysis. Physica A
**2015**, 422, 143–152. [Google Scholar] [CrossRef] - Beisbart, C.; Hartmann, S. Probabilities in Physics; Oxford University Press: Oxford, UK, 2011; p. 117. [Google Scholar]
- Shannon, C.E. Prediction and ntropy of printed english. Bell Syst. Tech. J.
**1951**, 30, 50–64. [Google Scholar] [CrossRef] - Shannon, C.E. A Mathematical Theory of Communication. Bell Syst. Tech. J.
**1948**, 27, 379–423. [Google Scholar] [CrossRef] - Pincus, S.M. Approximate entropy as a measure of system complexity. Mathematics
**1991**, 88, 2297–2301. [Google Scholar] [CrossRef] - Richman, J.; Moorman, J. Physiological time-series analysis using approximate entropy and sample entropy. Am. J. Physiol. Hear. Circ. Physiol.
**2000**, 278, H2039–H2049. [Google Scholar] - Chen, W.; Zhuang, J.; Yu, W.; Wang, Z. Measuring complexity using FuzzyEn, ApEn, and SampEn. Med. Eng. Phys.
**2009**, 31, 61–68. [Google Scholar] [CrossRef] [PubMed] - Bandt, C.; Pompe, B. Permutation Entropy: A Natural Complexity Measure for Time Series. Phys. Rev. Lett.
**2002**, 88, 174102. [Google Scholar] [CrossRef] [PubMed] - Porta, A.; Castiglioni, P.; Bari, V.; Bassani, T.; Marchi, A.; Cividjian, A.; Quintin, L.; DiRienzo, M. K-nearest-neighbor conditional entropy approach for the assessment of the short-term complexity of cardiovascular control. Physiol. Meas.
**2013**, 34, 17–33. [Google Scholar] [CrossRef] [PubMed] - Hou, F.-Z.; Wang, J.; Wu, X.-C.; Yan, F.-R. A dynamic marker of very short-term heartbeat under pathological states via network analysis. Europhys. Lett.
**2014**, 107, 58001. [Google Scholar] [CrossRef] - Bose, R.; Chouhan, S. Alternate measure of information useful for DNA sequences. Phys. Rev. E
**2011**, 83, 1–6. [Google Scholar] [CrossRef] [PubMed] - BIDMC Congestive Heart Failure Database, MIT-BIH Normal Sinus Rhythm Database, and Long Term AF Database. Available online: http://www.physionet.org/physiobank/database/#ecg (accessed on 5 December 2016).
- VonTscharner, V.; Zandiyeh, P. Multi-scale transitions of fuzzy sample entropy of RR-intervals and their phase-randomized surrogates: A possibility to diagnose congestive heart failure. Biomed. Signal Process. Control
**2017**, 31, 350–356. [Google Scholar] [CrossRef] - Liu, C.; Gao, R. Multiscale entropy analysis of the differential RR interval time series signal and its application in detecting congestive heart failure. Entropy
**2017**, 19, 3. [Google Scholar] [CrossRef] - Dao, Q.; Krishnaswamy, P.; Kazanegra, R.; Harrison, A.; Amirnovin, R.; Lenert, L.; Clopton, P.; Alberto, J.; Hlavin, P.; Maisel, A.S. Utility of b-type natriuretic peptide in the diagnosis of congestive heart failure in an urgent-care setting. J. Am. Coll. Cardiol.
**2001**, 37, 379–385. [Google Scholar] [CrossRef] - Lin, Y.H.; Huang, H.C.; Chang, Y.C.; Lin, C.; Lo, M.T.; Liu, L.Y.; Tsai, P.R.; Chen, Y.S.; Ko, W.J.; Ho, Y.L.; et al. Multi-scale symbolic entropy analysis provides prognostic prediction in patients receiving extracorporeal life support. Crit. Care
**2014**, 18, 548. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Costa, M.; Goldberger, A.L.; Peng, C.-K. Broken asymmetry of the human heartbeat: Loss of time irreversibility in aging and disease. Phys. Rev. Lett.
**2005**, 95. [Google Scholar] [CrossRef] [PubMed] - Takahashi, T.; Cho, R.Y.; Mizuno, T.; Kikuchi, M.; Murata, T.; Takahashi, K.; Wada, Y. Antipsychotics reverse abnormal EEG complexity in drug-naive schizophrenia: A multiscale entropy analysis. Neuroimage
**2010**, 51, 173–182. [Google Scholar] [CrossRef] [PubMed] - Garrett, D.D.; Samanez-Larkin, G.R.; MacDonald, S.W.S.; Lindenberger, U.; McIntosh, A.R.; Grady, C.L. Moment-to-moment brain signal variability: A next frontier in human brain mapping? Neurosci. Biobehav. Rev.
**2013**, 37, 610–624. [Google Scholar] [CrossRef] [PubMed] - Liang, W.; Lo, M.; Yang, A.C.; Peng, C.; Cheng, S.; Tseng, P.; Juan, C. NeuroImage Revealing the brains adaptability and the transcranial direct current stimulation facilitating effect in inhibitory control by multiscale entropy. Neuroimage
**2014**, 90, 218–234. [Google Scholar] [CrossRef] [PubMed] - Yang, A.C.; Huang, C.C.; Yeh, H.L.; Liu, M.E.; Hong, C.J.; Tu, P.C.; Chen, J.F.; Huang, N.E.; Peng, C.K.; Lin, C.P.; et al. Complexity of spontaneous BOLD activity in default mode network is correlated with cognitive function in normal male elderly: A multiscale entropy analysis. Neurobiol. Aging
**2013**, 34, 428–438. [Google Scholar] [CrossRef] [PubMed] - Nakagawa, T.T.; Jirsa, V.K.; Spiegler, A.; McIntosh, A.R.; Deco, G. Bottom up modeling of the connectome: Linking structure and function in the resting brain and their changes in aging. Neuroimage
**2013**, 80, 318–329. [Google Scholar] [CrossRef] [PubMed] - Bhattacharya, J.; Edwards, J.; Mamelak, A.N.; Schuman, E.M. Long-range temporal correlations in the spontaneous spiking of neurons in the hippocampal-amygdala complex of humans. Neuroscience
**2005**, 131, 547–555. [Google Scholar] [CrossRef] [PubMed] - Wei, Q.; Liu, D.H.; Wang, K.H.; Liu, Q.; Abbod, M.F.; Jiang, B.C.; Chen, K.P.; Wu, C.; Shieh, J.S. Multivariate multiscale entropy applied to center of pressure signals analysis: An effect of vibration stimulation of shoes. Entropy
**2012**, 14, 2157–2172. [Google Scholar] [CrossRef] - Kang, H.G.; Costa, M.D.; Priplata, A.A.; Starobinets, O.V.; Goldberger, A.L.; Peng, C.K.; Kiely, D.K.; Cupples, L.A.; Lipsitz, L.A. Frailty and the degradation of complex balance dynamics during a dual-task protocol. J. Gerontol.-Ser. A Biol. Sci. Med. Sci.
**2009**, 64, 1304–1311. [Google Scholar] [CrossRef] [PubMed] - Lu, C.-W.; Czosnyka, M.; Shieh, J.-S.; Smielewska, A.; Pickard, J.D.; Smielewski, P. Complexity of intracranial pressure correlates with outcome after traumatic brain injury. Brain
**2012**, aws155. [Google Scholar] [CrossRef] [PubMed]

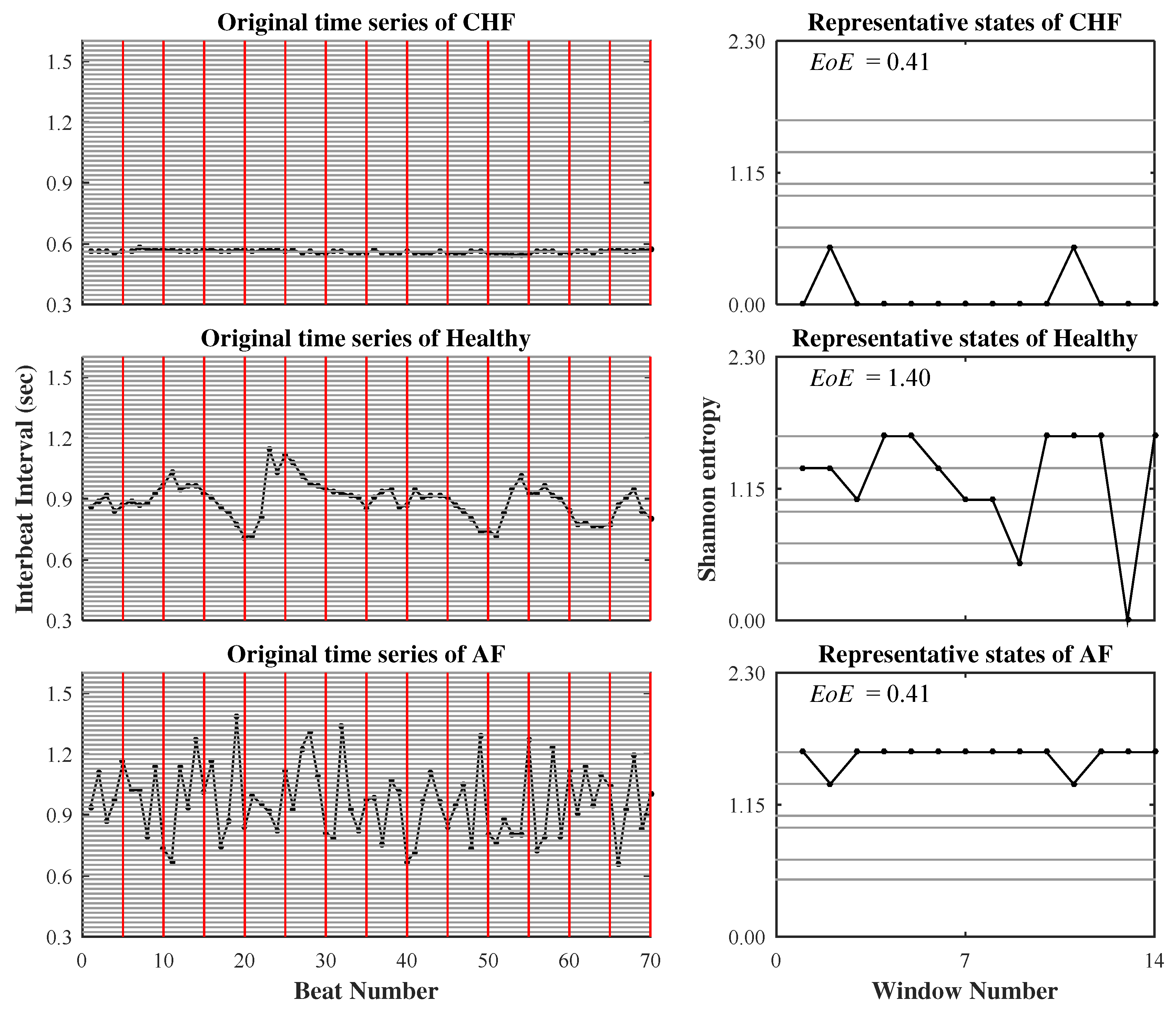

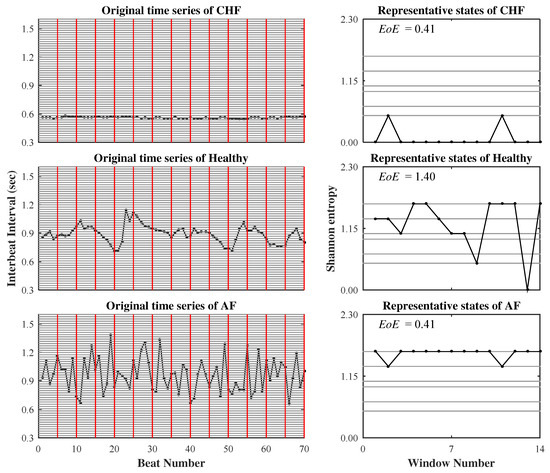

**Figure 1.**Illustration of the two-step-operation of the entropy of entropy (EoE) method. The left column shows the three original heartbeat intervals time series of a congestive heart failure (CHF), the healthy, and the atrial fibrillation (AF) subjects with each of $N=70$ data points. First, each original time series is equally divided into 14 (=N/$\tau $) windows of $\tau =5$ data points in red frames. The range of the interbeat intervals from ${x}_{min}=0.3$ to ${x}_{max}=1.6$, derived from the three databases on PhysioNet, is equally divided into ${s}_{1}=55$ slices. This results in three coarse-grained sequences of 14 representative states in terms of Shannon entropy values as shown in the right column. Second, as illustrated by the grey lines in the right column, there are ${s}_{2}(\tau =5)=7$ possible levels to accommodate all Shannon entropy values derived at $\tau =5$. As a result, the Shannon entropy values of the three sequences from the CHF, the healthy, and the AF subjects are 0.41, 1.40, and 0.41, respectively. They are the EoE values of the three original time series.

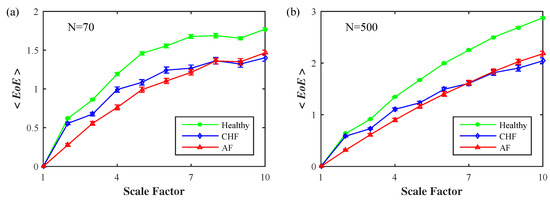

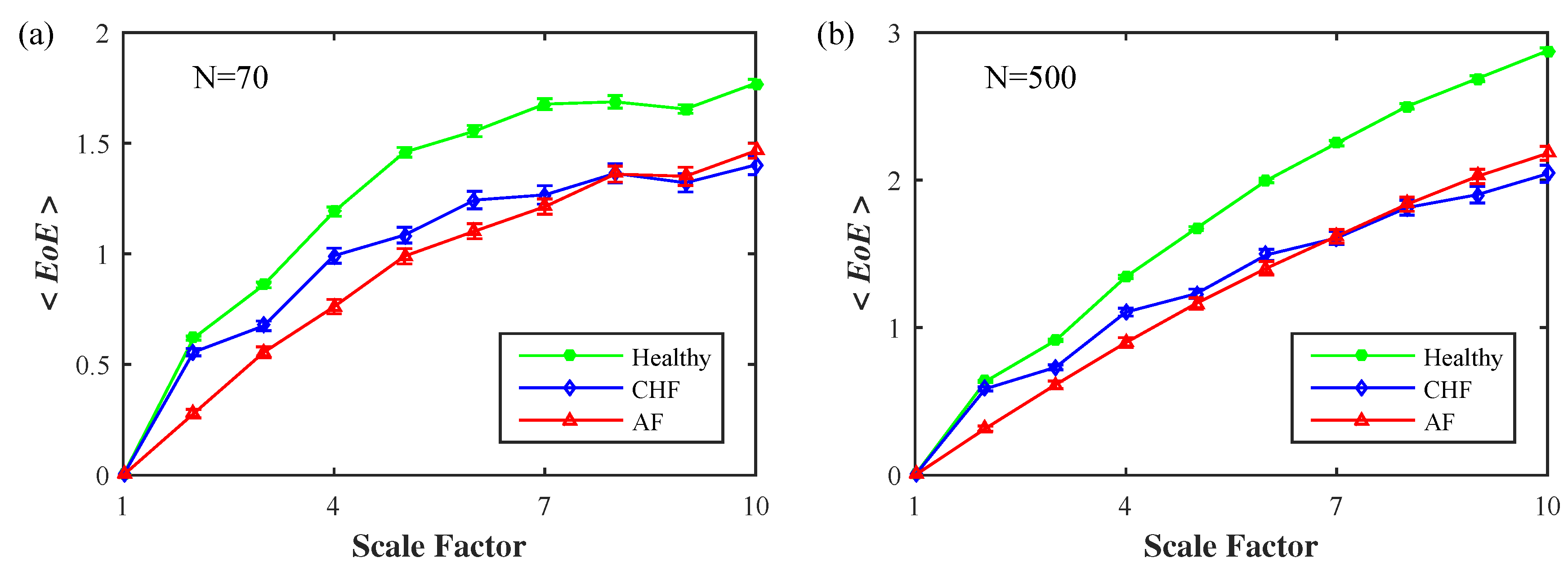

**Figure 2.**<EoE> vs. time scale $\tau $ at ${s}_{1}=55$ for the 90, 75, and 72 sets of short time series with each of (

**a**) 70 and (

**b**) 500 data points from the NSRDB, the CHFDB, and the LTAFDB. The separation of the healthy group from the two pathologic groups of CHF and AF is significant for $\tau $ ≥ 5. ($p<{10}^{-14}$ for the healthy and the pathologic group of CHF and AF; Student’s t-test). Symbols represent the mean values of <EoE> for each group and bars represent the standard error ($SE=SD/\sqrt{n}$, where n is the number of sets).

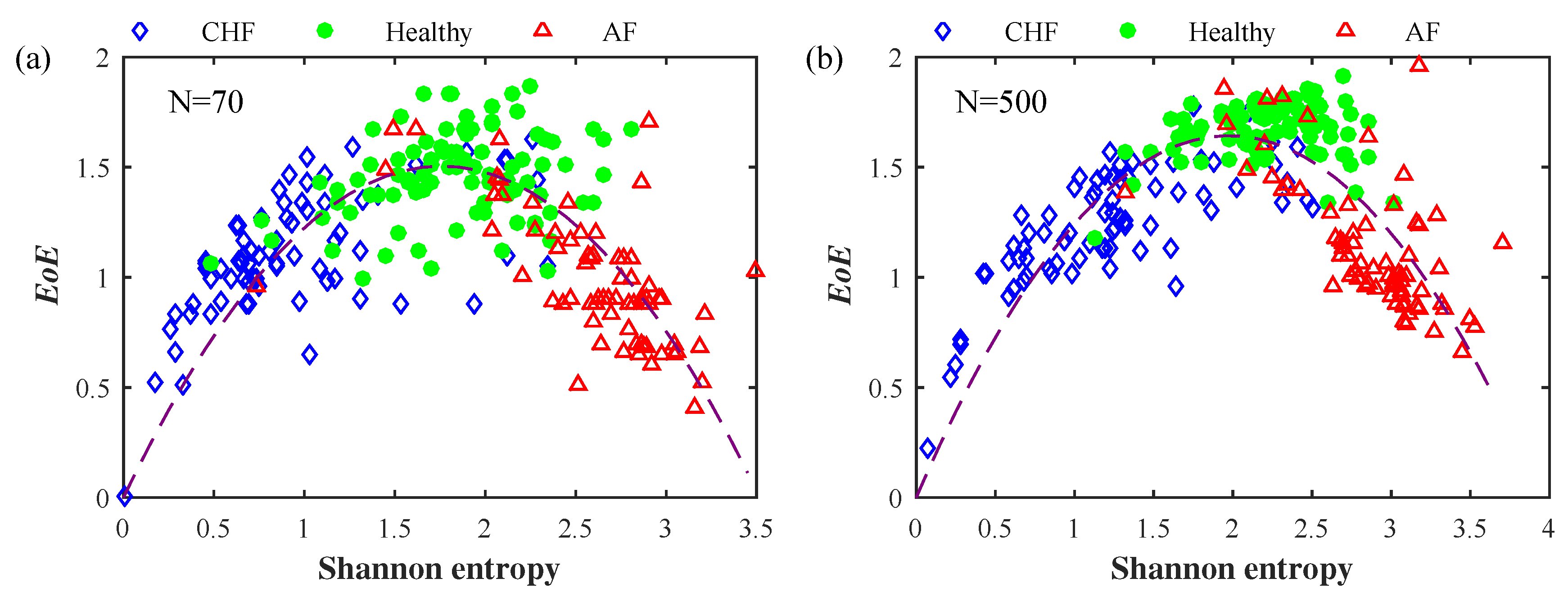

**Figure 3.**EoE vs. Shannon entropy for the same 237 sets of short time series with each of (

**a**) 70 and (

**b**) 500 data points. The 75 diamond, 90 circle, and the 72 triangle symbols are from 15 CHF, 18 healthy, and 72 AF subjects. The EoE and the Shannon entropy are computed at $\tau =5$ and ${s}_{1}=55$. In addition, the dashed line is a quadratic fitting.

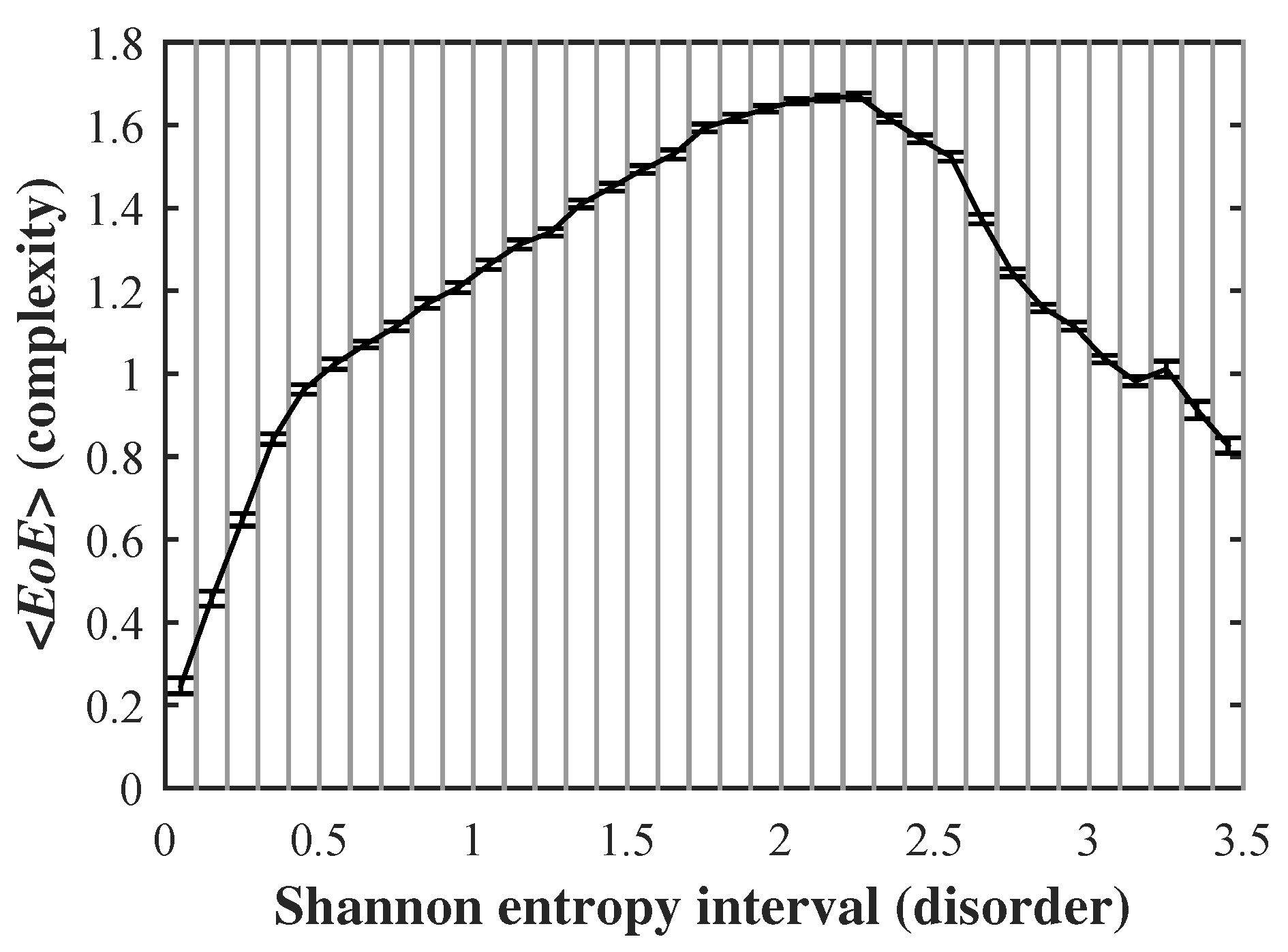

**Figure 4.**The inverted U relationship between (complexity) and Shannon entropy interval (disorder) associated with 11,600 sets of short time series from 116 subjects. The range of Shannon entropy from 0 to 3.5 is divided into 35 equal intervals. The mean and standard error of the EoEs distributed over each interval is computed. Note that the maximal EoE value appears in the middle of extreme order and disorder.

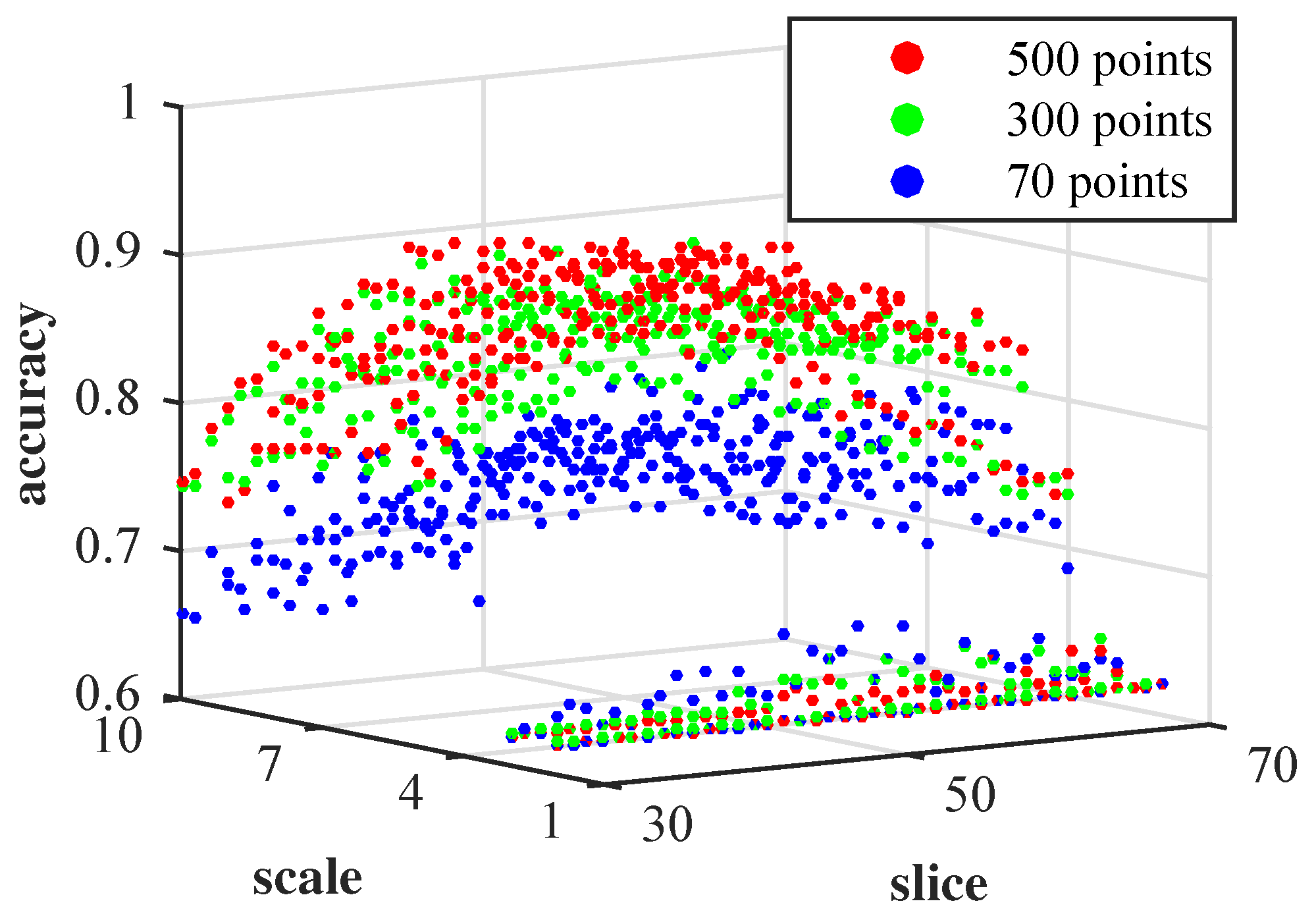

**Figure 5.**EoE accuracy as a function of $\tau $ and ${s}_{1}$ for the 237 sets of short time series with each of 70, 300, and 500 data points. There is a plateau in the central region of the graph.

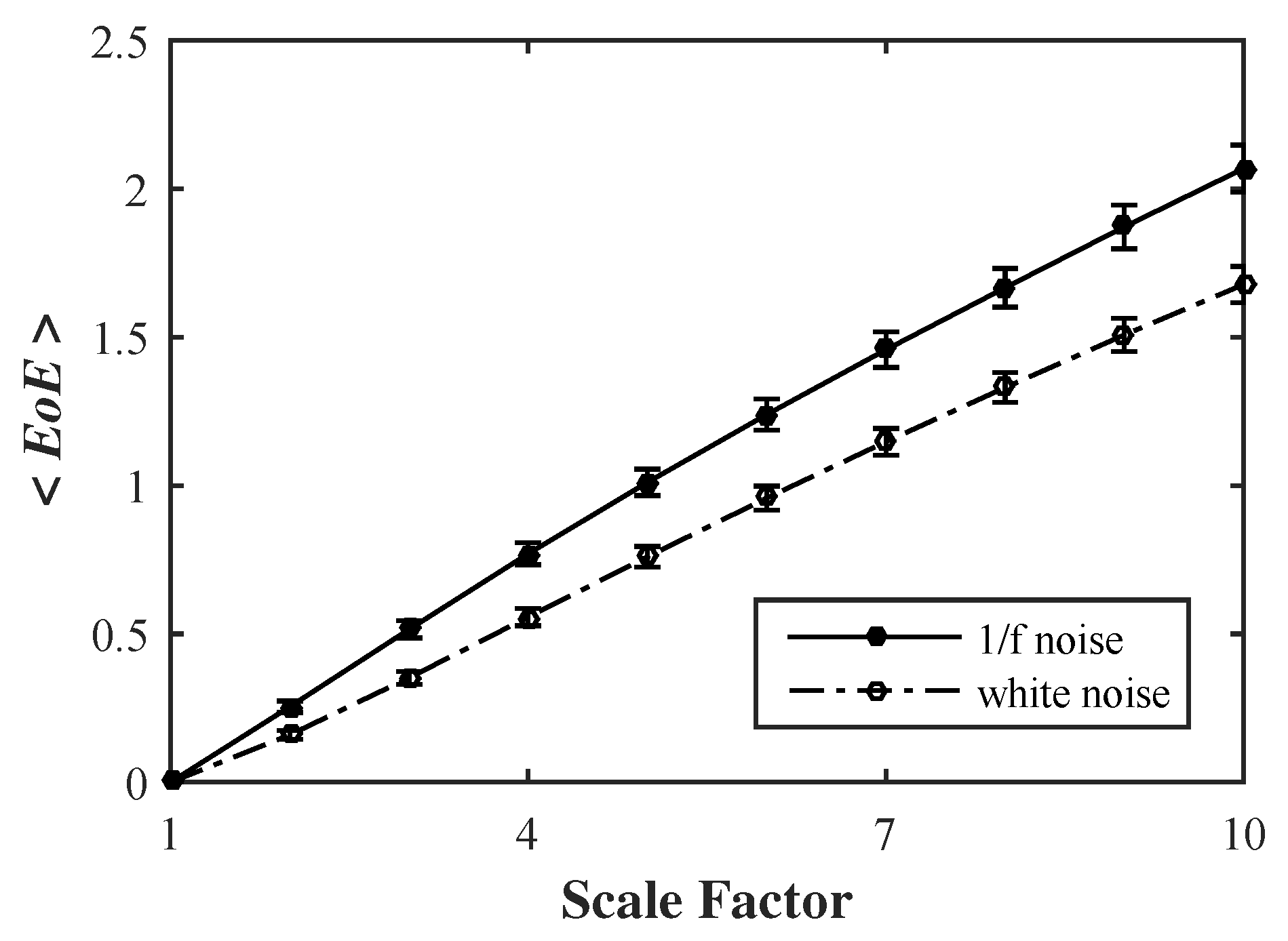

**Figure 6.**EoE analysis of 100 simulated Gaussian distributed white noise and 1/f noise time series, with each of 5000 data points. Symbols represent the mean values of EoE for the 100 time series and error bars the SD.

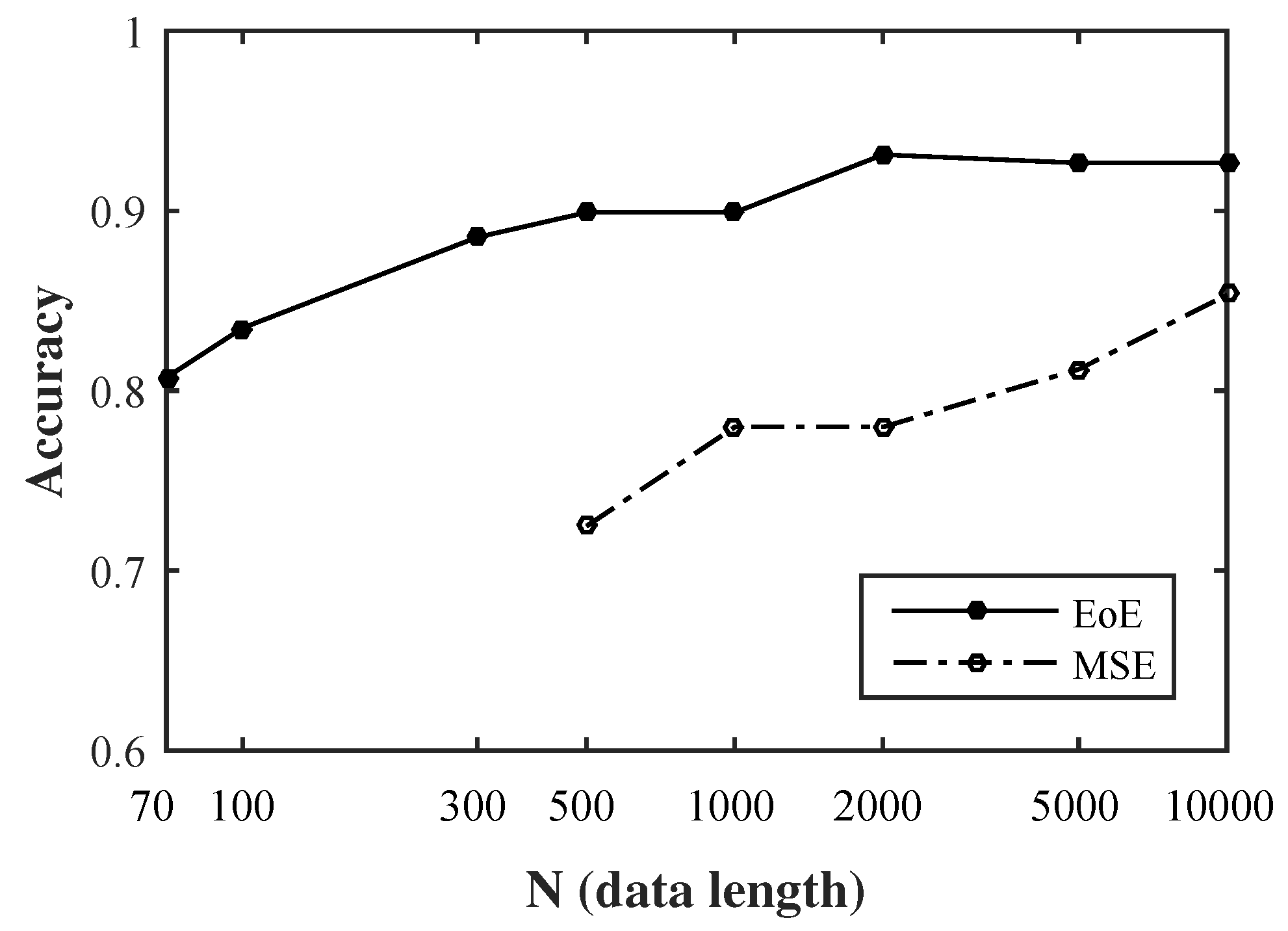

**Figure 7.**The relationship between the accuracies of multiscale entropy (MSE) and EoE methods on the 218 sets of short time series and the lengths of the time series that are extracted to range from 70 to 10,000.

Date Length | 70 Points | 300 Points | 500 Points | |
---|---|---|---|---|

Group | ||||

NSR (Specificity) | 0.86 | 0.93 | 0.91 | |

CHF ${}^{\mathrm{a}}$ (Sensitivity) | 0.72 | 0.81 | 0.92 | |

AF ${}^{\mathrm{b}}$ (Sensitivity) | 0.83 | 0.83 | 0.86 |

^{a}CHF: congestive heart failure group;

^{b}AF: atrial fibrillation group.
