# Coupled Thermoelectric Devices: Theory and Experiment

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Procedure

## 3. Mathematical Model

#### 3.1. Single Thermoelectric

#### 3.2. Coupled Thermoelectrics

## 4. Results and Discussion

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Appendix A. Thermal Figure of Merit

## References

- Figueroa, A.; Vázquez, F. Optimal performance and entropy generation transition from micro to nanoscaled thermoelectric layers. Int. J. Heat Mass Transf.
**2014**, 71, 724–731. [Google Scholar] [CrossRef] - Yang, B.; Liu, J.L.; Wang, K.L.; Chen, G. Simultaneous measurements of Seebeck coefficient and thermal conductivity across superlattice. Appl. Phys. Lett.
**2002**, 80, 1758–1760. [Google Scholar] [CrossRef] - Bian, Z.; Zhang, Y.; Schmidt, H.; Shakouri, A. Thin film ZT characterization using transient Harman technique. In Proceedings of the 2005 International Conference on Thermoelectrics, Clemson, SC, USA, 18–24 June 2005; Volume 76.
- Völklein, F.; Min, G.; Rowe, D.M. Modelling of a microelectromechanical thermoelectric cooler. Sens. Actuators
**2006**, 75, 95–101. [Google Scholar] [CrossRef] - Shin, W.; Ishikawa, M.; Nishibori, M.; Izu, N.; Itoh, T.; Matsubara, I. High-temperature thermoelectric measurement of B-doped SiGe and Si thin films. Mater. Trans.
**2009**, 50, 1596–1602. [Google Scholar] [CrossRef] - Ma, Y.; Ahlberg, E.; Sun, Y.; Iversen, B.B.; Palmqvist, A.E.C. Thermoelectric properties of thin films of bismuth telluride electrochemically deposited on stainless steel substrates. Electrochim. Acta
**2011**, 56, 4216–4223. [Google Scholar] [CrossRef] - Wojtas, N.; Grab, M.; Glatz, W.; Hierold, C. Stacked micro heat exchange system for optimized thermal coupling of microTEGs. J. Electr. Mater.
**2013**, 42, 2103–2109. [Google Scholar] [CrossRef] - Zhu, W.; Deng, Y.; Wang, Y.; Wang, A. Finite element analysis of miniature thermoelectric coolers with high cooling performance and short response time. Microelectr. J.
**2013**, 44, 860–868. [Google Scholar] [CrossRef] - Xuan, X.C.; Ng, K.C.; Yap, C.; Chua, H.T. A general model for studying effects of interface layers on thermoelectric devices performance. Int. J. Heat Mass Transf.
**2002**, 45, 5159–5170. [Google Scholar] [CrossRef] - Figueroa, A.; Vázquez, F. Spectral and finite difference solutions of the hyperbolic heat transport equation for thermoelectric thin films. Appl. Math.
**2013**, 4, 22–27. [Google Scholar] [CrossRef] - Rivera, I.; Figueroa, A.; Vázquez, F. Optimization of supercooling effect in nanoscaled thermoelectric layers. Commun. Appl. Ind. Math.
**2016**, 7, 98–110. [Google Scholar] - Zhou, Q.; Bian, Z.; Shakouri, A. Pulsed cooling of inhomogeneous thermoelectric materials. J. Phys. D Appl. Phys.
**2007**, 40, 4376–4381. [Google Scholar] [CrossRef] - Rowe, D.M. CRC Handbook of Thermoelectrics; CRC Press: Boca Raton, FL, USA, 1994. [Google Scholar]

**Figure 1.**Sketch of the experimental device, not drawn to scale. The coordinate system we use is shown. The thermoelectric modules are denoted by ${M}_{i}$. The thermoelectric devices are actioned by imposing electric currents ${I}_{i}$ with DC voltage power supplies ${V}_{i}$. The i denotes the first (1) and second (2) module. The rectangular plate is kept hot by circulating warm water in the reservoir. Temperature is measured in the top of module one (${M}_{1}$).

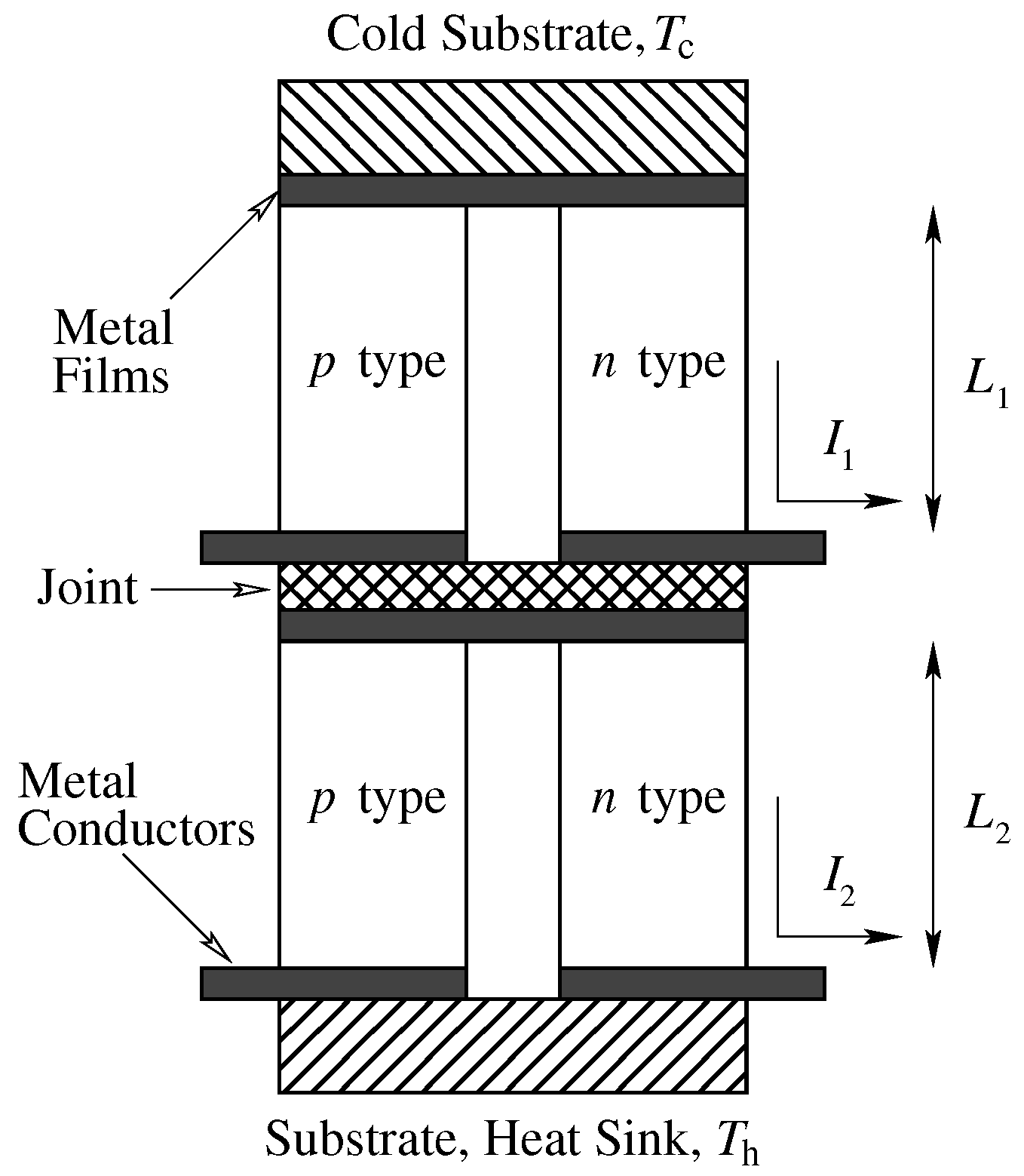

**Figure 2.**Scheme of two coupled thermoelectric devices. This study is devoted to the thermal analysis of the thermoelectric materials denoted by n type. The devices are actioned by injecting an electric current ${I}_{i}$. The thickness (width) is denoted by ${L}_{i}$. The i denotes the first (1) and second (2) device.

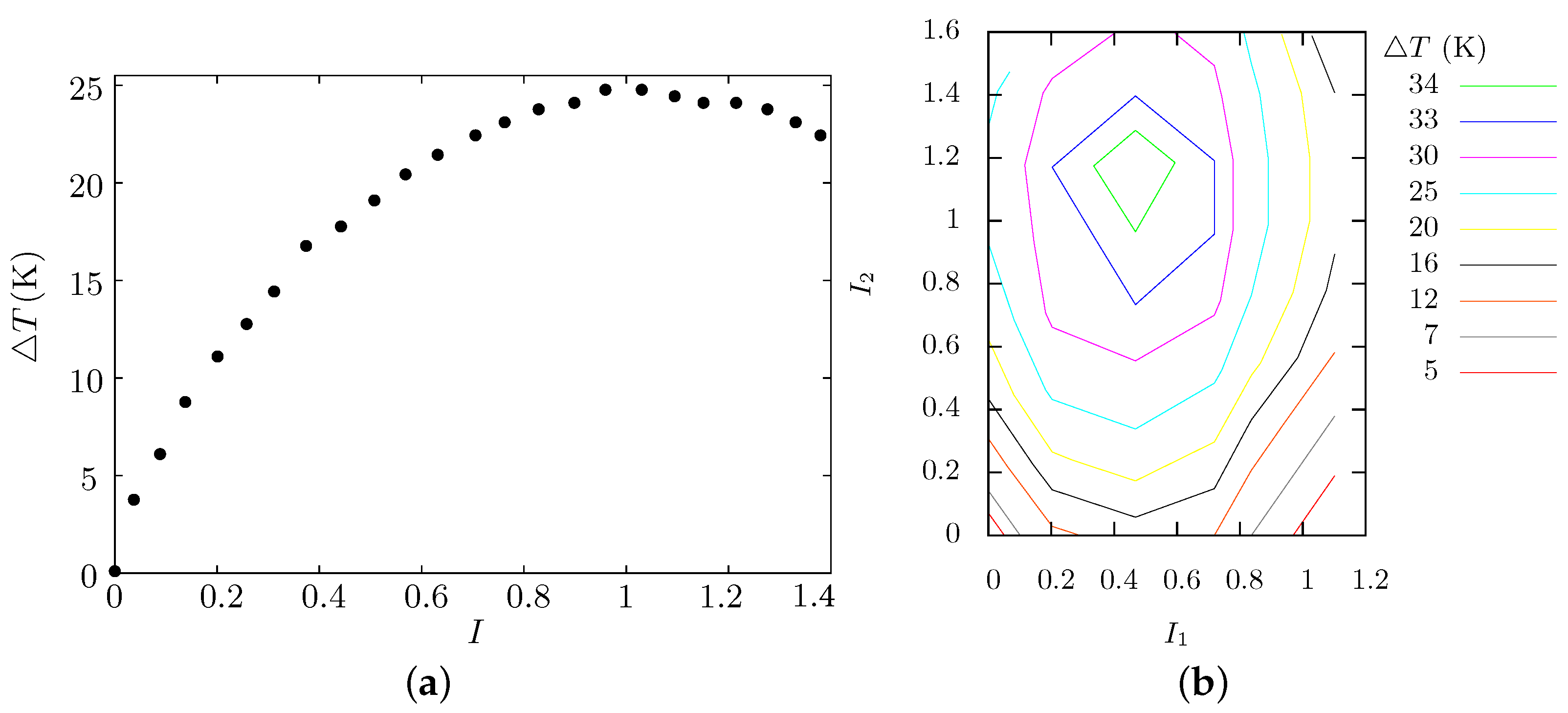

**Figure 3.**$\Delta T$ as function of the electric current. (

**a**) single device; (

**b**) coupled devices—experimental measurements.

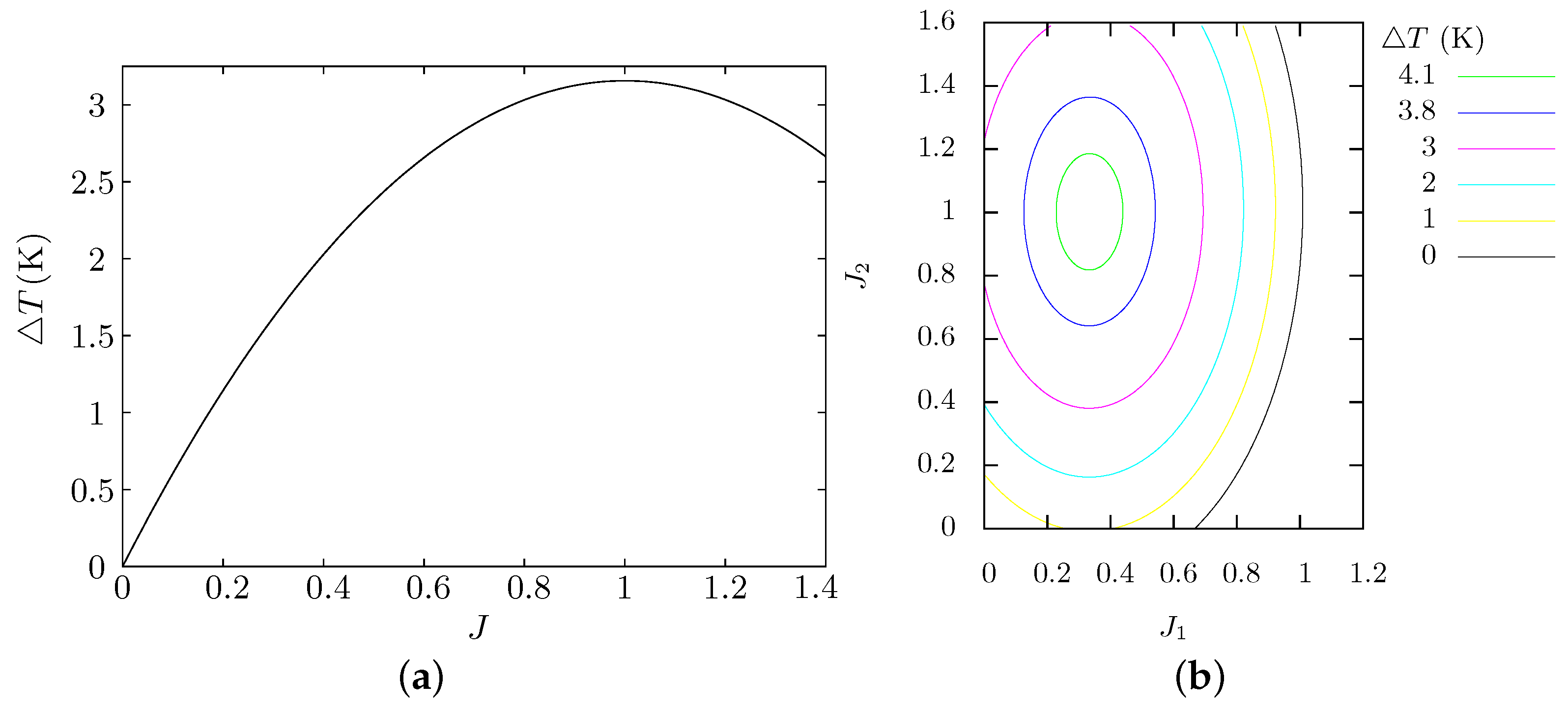

**Figure 4.**$\Delta T$ as function of the electric current. (

**a**) single device; (

**b**) coupled devices—theoretical predictions.

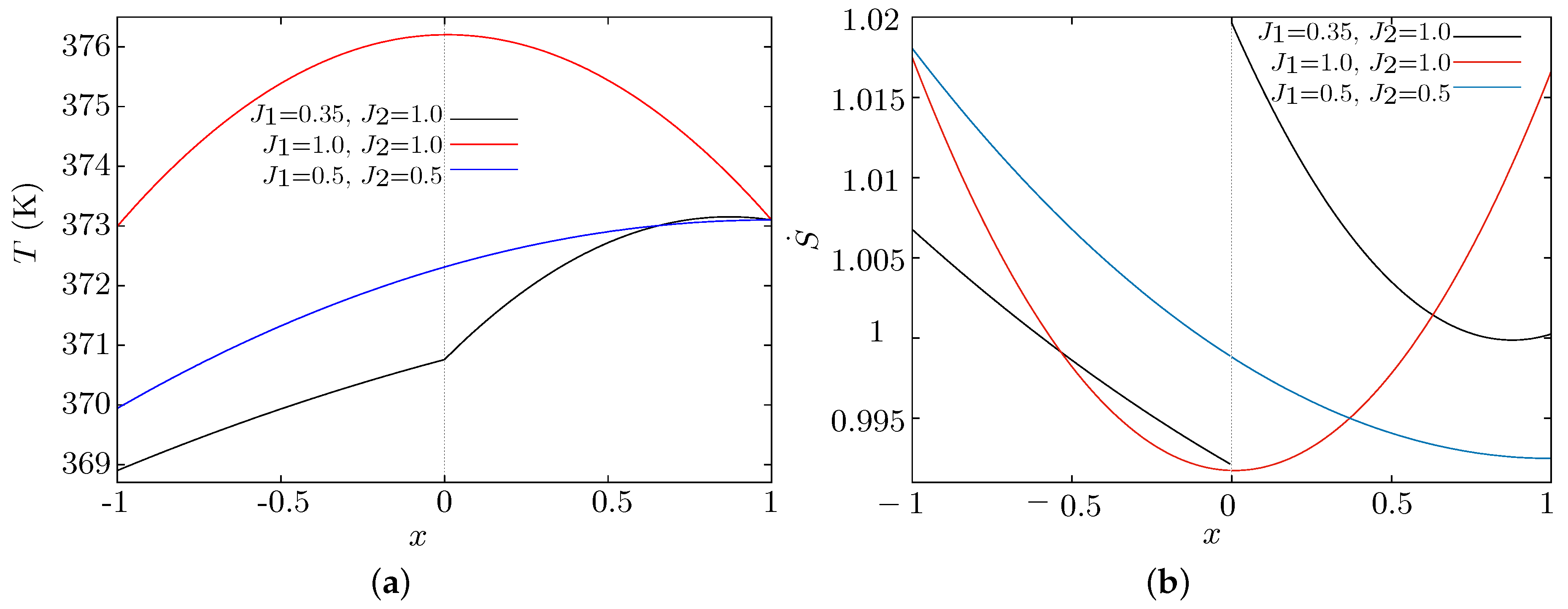

**Figure 5.**(

**a**) temperature distribution along coupled devices; (

**b**) entropy generation profile. For clarity in the $\dot{S}$ profile comparison, the blue line is multiplied by a factor of 3.98 and the left part of the black line ($-1<x<0$) is multiplied by 7.99—theoretical predictions.

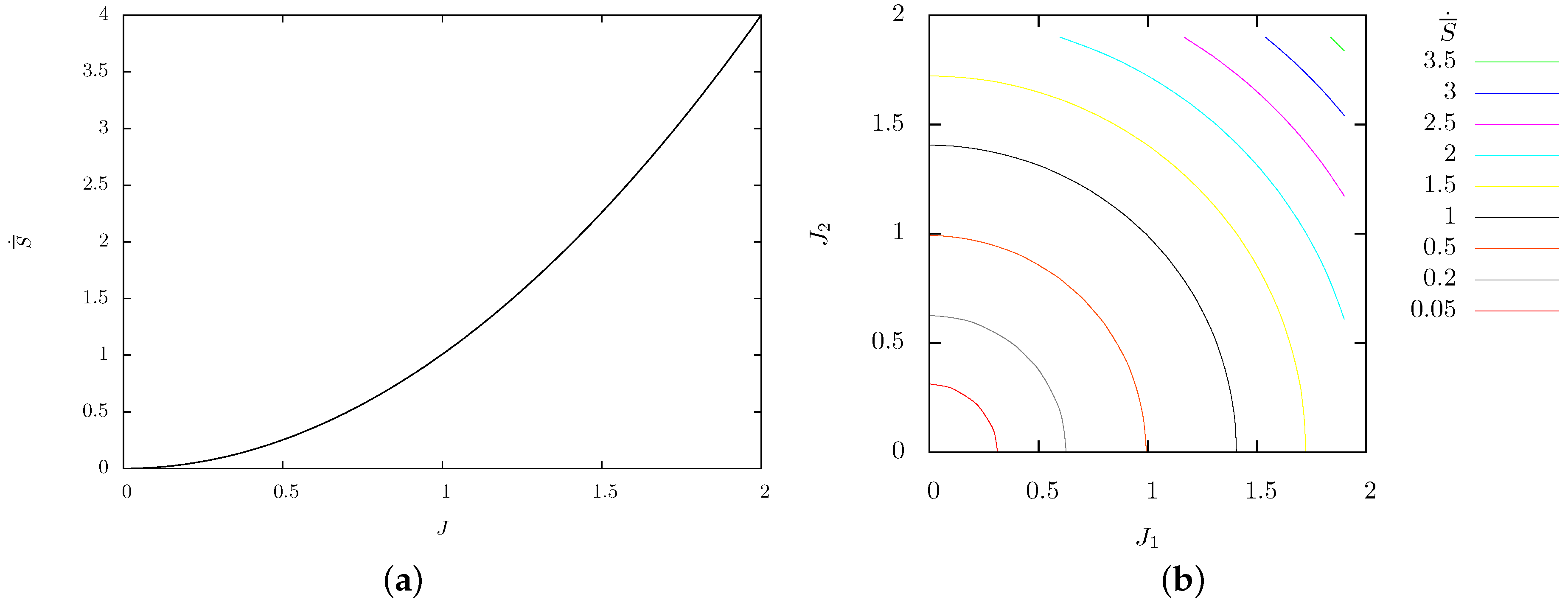

**Figure 6.**Total entropy generation $\dot{\overline{S}}$ as function of the applied electric current. (

**a**) single device; (

**b**) coupled devices—theoretical predictions.

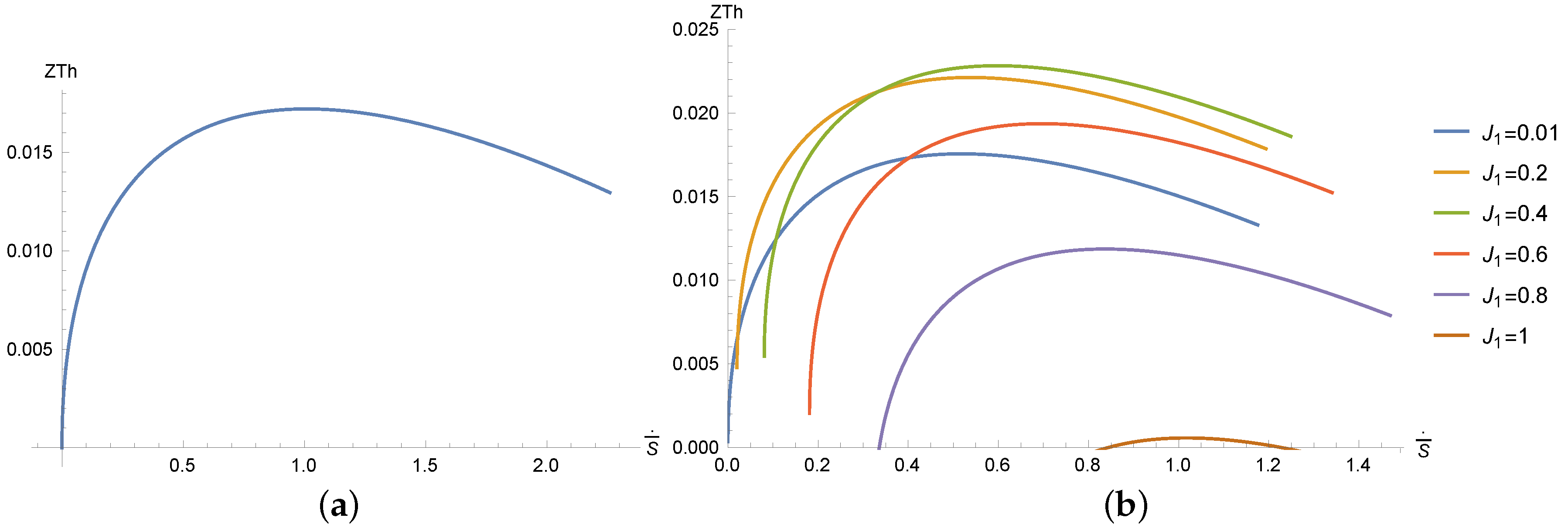

**Figure 7.**Thermal figure of merit $Z{T}_{h}$ as a function of the total entropy generation $\dot{\overline{S}}$. (

**a**) single device; (

**b**) coupled devices. In (b), each of the curves displayed is generated by varying ${J}_{2}$ from 0 to 1.6—theoretical predictions.
