# Hierarchical Sensor Placement Using Joint Entropy and the Effect of Modeling Error

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Sensor Placement Strategy

#### 2.1. Errors in Wind-Speed and Wind-Direction

_{s}, where n

_{s}is a predetermined number of possible locations. The width of the histogram intervals is computed such that the frequency count in each interval is the number of model predictions that lie within the error threshold if the measured value is at the midpoint of the interval. This is done by dividing the maximum range of prediction values, max{(Y

_{max,j}− y

_{min,j}): j = 1, ..., n

_{s}} of an output variable y into intervals i = 1, ..., N

_{I}(N

_{I}the maximum number of intervals at the j

^{th}location) of width W equal to the sum of measurement errors e

_{measur}and modeling errors e

_{mod}(Figure 2). The intervals create subsets of model predictions that are then used to compute probabilities and entropy. Each subset represents model predictions that, given a potential measurement, will not be possible to separate further.

#### 2.2. Hierarchical Sensor Placement

1: | Create a list locationList containing all possible locations. |

2: | Create a set sensorOptimum to store all possible sensors. The set is empty to start with. |

3: | Create a set modelSubsets to store subsets of models that cannot be separated using the current sensor configuration. To start with this set contains a single element, which is the initialModelSet. |

4: | Add the first sensor location that corresponds to maximum entropy to sensorOptimum. |

5: | Create a list of subsets of models that cannot be separated by the first sensor location and add these subsets to modelSubsets. Remove the initialModelSet from modelSubsets. |

6: | Repeat while locationList is not empty |

{ | |

7: | Select a sensor location from locationList, let it be currentLocation. |

8: | Repeat for each set in modelSubsets |

{ | |

9: | Divide and distribute models in the current set into intervals of the currentLocation. |

} | |

10: | Calculate the entropy of the distribution of the currentLocation. |

} | |

11: | Select the sensor location with maximum entropy. Add to sensorOptimum and remove from locationList. |

#### 2.3. Joint Entropy as a Design Criterion

_{j}is the entropy of a random variable y at a measurement location j, p(y

_{i})

_{j}is the probability of the i

^{th}interval of a variable’s distribution with i = 1, ..., N

_{I}and N

_{I}the maximum number of intervals at the j

^{th}location. In order to compute the entropy, the number of models that lie within each interval m

_{i}is calculated and the probability of the interval is calculated as (m

_{i}/N).

_{j,j}

_{+1}is defined as:

_{k}and N

_{k}the maximum number of intervals at the location (j + 1).

## 3. Results

^{5}and 10.4 × 10

^{5}mesh elements.

_{*}is the atmospheric-boundary-layer friction (or shear) velocity, z

_{0}the surface roughness and κ ≅ 0.41 the von Kármán constant:

_{μ}a model constant:

_{0}, which is modified using the equivalent sand-grain roughness, k

_{s,ABL}:

_{s}is the roughness constant, set to satisfy the constraint k

_{s,ABL}≤ z

_{p}, and z

_{p}is the grid resolution (the distance of the centroid of the wall-adjacent cell to the wall).

_{d}is the drag coefficient, varying from 0.1 to 0.5, and d

_{SA}is the local leaf-area density, with range 1 to 7 [39].

_{k,j}, y

_{k,j}are the ranks of the input parameters and output variables respectively at each location j ∈ {1, …, 63}, with k = 1, …, n the size of the sample and x̄

_{j}, ȳ

_{j}the mean values.

_{mod,speed}, and wind direction, e

_{mod,dir}, following [33]:

_{j}(z) is the wind speed at height z at possible sensor locations j ∈ {1, …, 63}. Wind direction with $\frac{{u}_{j}(z)}{U(z)}<0.33$ were not considered since modeling errors were high (around ±180 deg).

#### 3.1. Effect of Modeling Error

#### 3.2. Optimum Sensor Configurations

#### 3.3. Performance Evaluation

#### 3.3.1. Wind-Flow Predictions

#### 3.3.2. Sequential vs. Hierarchical Sensor Placement

## 4. Discussion

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- World Urbanization Prospects The 2011 Revision; Department of Economic and Social Affairs, Population Division, United Nations: New York, NY, USA, 2012.
- Mochida, A.; Lun, I.Y.F. Prediction of wind environment and thermal comfort at pedestrian level in urban area. J. Wind Eng. Ind. Aerodyn
**2008**, 96, 1498–1527. [Google Scholar] - Balczó, M.; Gromke, C.; Ruck, B. Numerical modeling of flow and pollutant dispersion in street canyons with tree planting. Meteorol. Z
**2009**, 18, 197–206. [Google Scholar] - Gousseau, P.; Blocken, B.; Stathopoulos, T.; van Heijst, G.J.F. Cfd simulation of near-field pollutant dispersion on a high-resolution grid: A case study by les and rans for a building group in downtown montreal. Atmos. Environ
**2011**, 45, 428–438. [Google Scholar] - Blocken, B.; Janssen, W.D.; van Hooff, T. Cfd simulation for pedestrian wind comfort and wind safety in urban areas: General decision framework and case study for the Eindhoven university campus. Environ. Model. Softw
**2012**, 30, 15–34. [Google Scholar] - Chen, Q. Ventilation performance prediction for buildings: A method overview and recent applications. Build. Environ
**2009**, 44, 848–858. [Google Scholar] - Britter, R.; Hanna, S. Flow and dispersion in urban areas. Annu. Rev. Fluid Mech
**2003**, 35, 469–496. [Google Scholar] - Schatzmann, M.; Leitl, B. Issues with validation of urban flow and dispersion cfd models. J. Wind Eng. Ind. Aerodyn
**2011**, 99, 169–186. [Google Scholar] - Can Theories be Refuted?: Essays on the Duhem-Quine Thesis, D. Reidel Publishing Company, Dordrecht, The Netherlands, 1976.
- Blocken, B.; Stathopoulos, T.; Carmeliet, J.; Hensen, J.L.M. Application of computational fluid dynamics in building performance simulation for the outdoor environment: An overview. J. Build. Perform. Simul
**2011**, 4, 157–184. [Google Scholar] - Franke, J. Best Practice Guideline for the cfd Simulation of Flows in the Urban Environment: Cost Action 732 Quality Assurance and Improvement of Microscale Meteorological Models; Meteorological Institute: Oslo, Norway, 2007. [Google Scholar]
- Tominaga, Y.; Mochida, A.; Yoshie, R.; Kataoka, H.; Nozu, T.; Yoshikawa, M.; Shirasawa, T. Aij guidelines for practical applications of cfd to pedestrian wind environment around buildings. J. Wind Eng. Ind. Aerodyn
**2008**, 96, 1749–1761. [Google Scholar] - Richards, P.; Hoxey, R. Appropriate boundary conditions for computational wind engineering models using the k-ε; turbulence model. J. Wind Eng. Ind. Aerodyn
**1993**, 46, 145–153. [Google Scholar] - Richards, P.; Norris, S. Appropriate boundary conditions for computational wind engineering models revisited. J. Wind Eng. Ind. Aerodyn
**2011**, 99, 257–266. [Google Scholar] - Jakeman, A.J.; Letcher, R.; Norton, J. Ten iterative steps in development and evaluation of environmental models. Environ. Model. Softw
**2006**, 21, 602–614. [Google Scholar] - Ljung, L. System Identification Toolbox: User’s Guide; MathWorks Incorporated: Natick, MA, USA, 1988. [Google Scholar]
- Oreskes, N.; Shrader-Frechette, K.; Belitz, K. Verification, validation, and confirmation of numerical models in the earth sciences. Science
**1994**, 263, 641–646. [Google Scholar] - Raphael, B.; Smith, I.F.C. Finding the right model for bridge diagnosis. Artif. Intell. Struct. Eng
**1998**, 145, 308–319. [Google Scholar] - Raphael, B.; Smith, I.F.C. Fundamentals of Computer-Aided Engineering; Wiley: New York, NY, USA, 2003. [Google Scholar]
- Goulet, J.A.; Coutu, S.; Smith, I.F.C. Model falsification diagnosis and sensor placement for leak detection in pressurized pipe networks. Adv. Eng. Inf
**2013**, 27, 261–269. [Google Scholar] - Kripakaran, P.; Smith, I.F.C. Configuring and enhancing measurement systems for damage identification. Adv. Eng. Inf
**2009**, 23, 424–432. [Google Scholar] [Green Version] - Robert-Nicoud, Y.; Raphael, B.; Smith, I.F.C. Configuration of measurement systems using Shannon’s entropy function. Comput. Struct
**2005**, 83, 599–612. [Google Scholar] - Papadimitriou, C. Optimal sensor placement methodology for parametric identification of structural systems. J. Sound Vib
**2004**, 278, 923–947. [Google Scholar] - Goulet, J.A.; Smith, I.F.C. Performance-driven measurement system design for structural identification. J. Comput. Civ. Eng
**2012**, 27, 427–436. [Google Scholar] - Papadimitriou, C.; Lombaert, G. The effect of prediction error correlation on optimal sensor placement in structural dynamics. Mech. Syst. Signal Proc
**2012**, 28, 105–127. [Google Scholar] - Tamura, T. Towards practical use of LES in wind engineering. J. Wind Eng. Ind. Aerodyn
**2008**, 96, 1451–1471. [Google Scholar] - Pavageau, M.; Schatzmann, M. Wind tunnel measurements of concentration fluctuations in an urban street canyon. Atmos. Environ
**1999**, 33, 3961–3971. [Google Scholar] - Van Hooff, T.; Blocken, B. Full-scale measurements of indoor environmental conditions and natural ventilation in a large semi-enclosed stadium: Possibilities and limitations for cfd validation. J. Wind Eng. Ind. Aerodyn
**2012**, 104, 330–341. [Google Scholar] - Hamel, D.; Chwastek, M.; Farouk, B.; Dandekar, K.; Kam, M. A Computational Fluid Dynamics Approach for Optimization of a Sensor Network. Proceedings of the 2006 IEEE International Workshop on Measurement Systems for Homeland Security, Contraband Detection and Personal Safety, Alexandria, VA, USA, 18–19 October 2006; pp. 38–42.
- Mokhasi, P.; Rempfer, D. Optimized sensor placement for urban flow measurement. Phys. Fluids
**2004**, 16, 1758–1764. [Google Scholar] - Du, W.; Xing, Z.; Li, M.; He, B.; Chua, L.H.C.; Miao, H. Optimal sensor placement and measurement of wind for water quality studies in urban reservoirs. Proceedings of the 13th international symposium on Information processing in sensor networks, Berlin, Germany, 15–17 April 2014; pp. 167–178.
- Papadopoulou, M.; Raphael, B.; Smith, I.F.C.; Sekhar, C. Optimal sensor placement for time-dependent systems: Application to wind studies around buildings. J. Comput. Civ. Eng
**2014**. submitted. [Google Scholar] - Vernay, D.G.; Raphael, B.; Smith, I.F. Augmenting simulations of airflow around buildings using field measurements. Adv. Eng. Inf
**2014**, in press. [Google Scholar] - Cover, T.M.; Thomas, J. Elements of Information Theory; Wiley: New York, NY, USA, 1991. [Google Scholar]
- ANSYS Fluent User's Guide; Ansys Inc: Canonsburg, PA, USA, 2011.
- Wieringa, J. Updating the davenport roughness classification. J. Wind Eng. Ind. Aerodyn
**1992**, 41, 357–368. [Google Scholar] - Shih, T.-H.; Liou, W.W.; Shabbir, A.; Yang, Z.; Zhu, J. A new k-ε; eddy viscosity model for high reynolds number turbulent flows. Comput. Fluids
**1995**, 24, 227–238. [Google Scholar] - Guo, L.; Maghirang, R.G. Numerical simulation of airflow and particle collection by vegetative barriers. Eng. Appl. Comput. Fluid Mech
**2012**, 6, 110–122. [Google Scholar] - Tiwary, A.; Morvan, H.P.; Colls, J.J. Modelling the size-dependent collection efficiency of hedgerows for ambient aerosols. J. Aerosol Sci
**2006**, 37, 990–1015. [Google Scholar] - Design Exploration User Guide; Ansys Inc: Canonsburg, PA, USA, 2011.
- Box, G.E.; Hunter, J.S. Multi-factor experimental designs for exploring response surfaces. Ann. Math. Stat
**1957**, 28, 195–241. [Google Scholar]

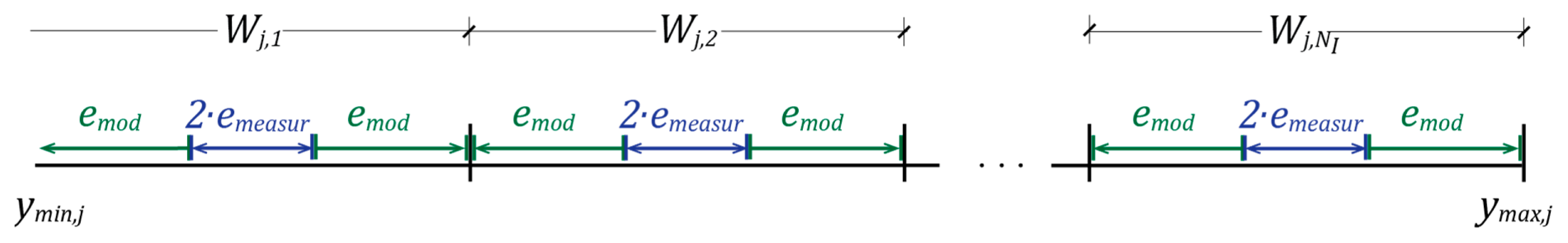

**Figure 2.**Constructing subsets of model predictions of width W for measurement location j using modeling and measurement errors.

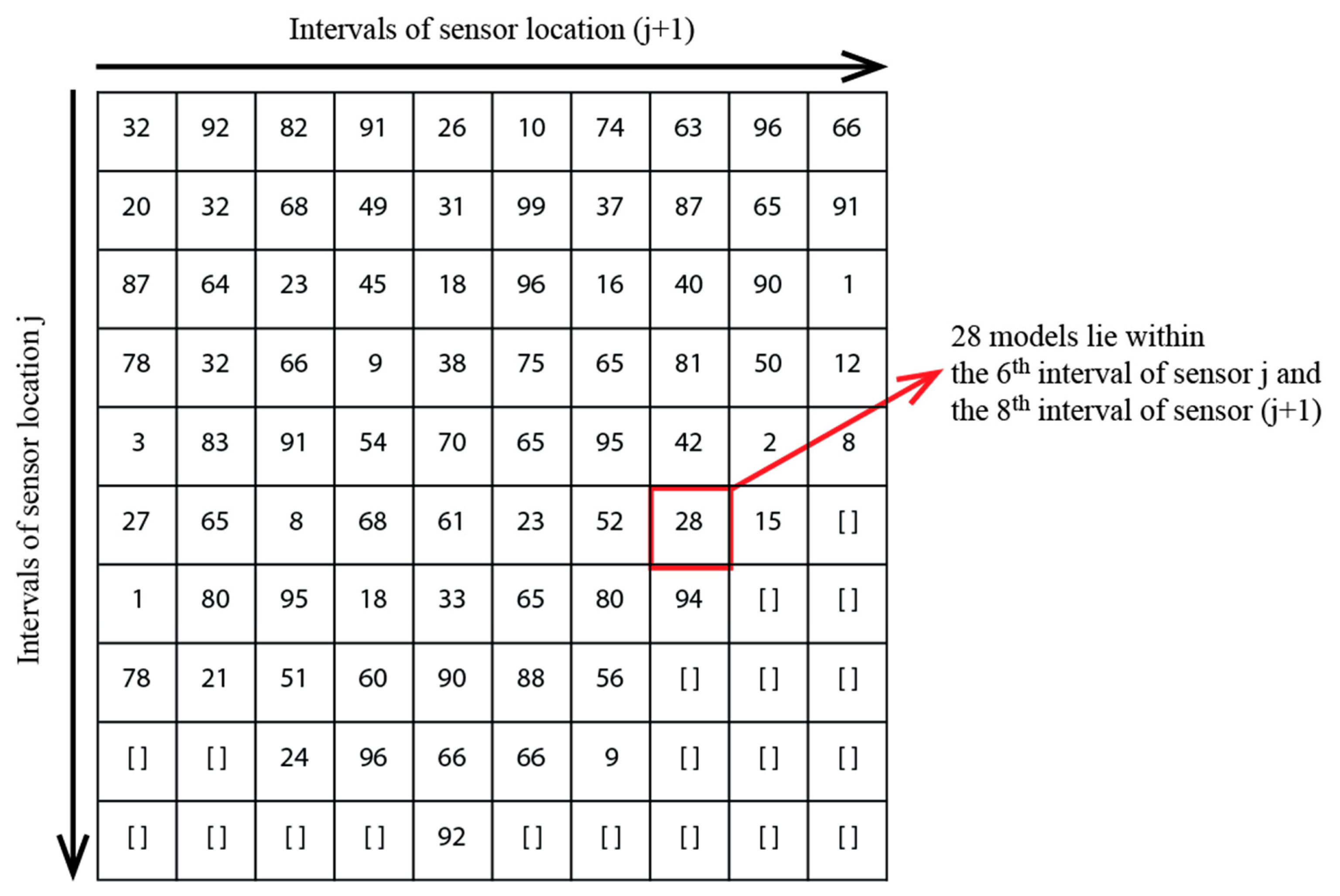

**Figure 4.**Example of a two-dimensional regular grid created using the intervals of two sensor locations j and (j + 1).

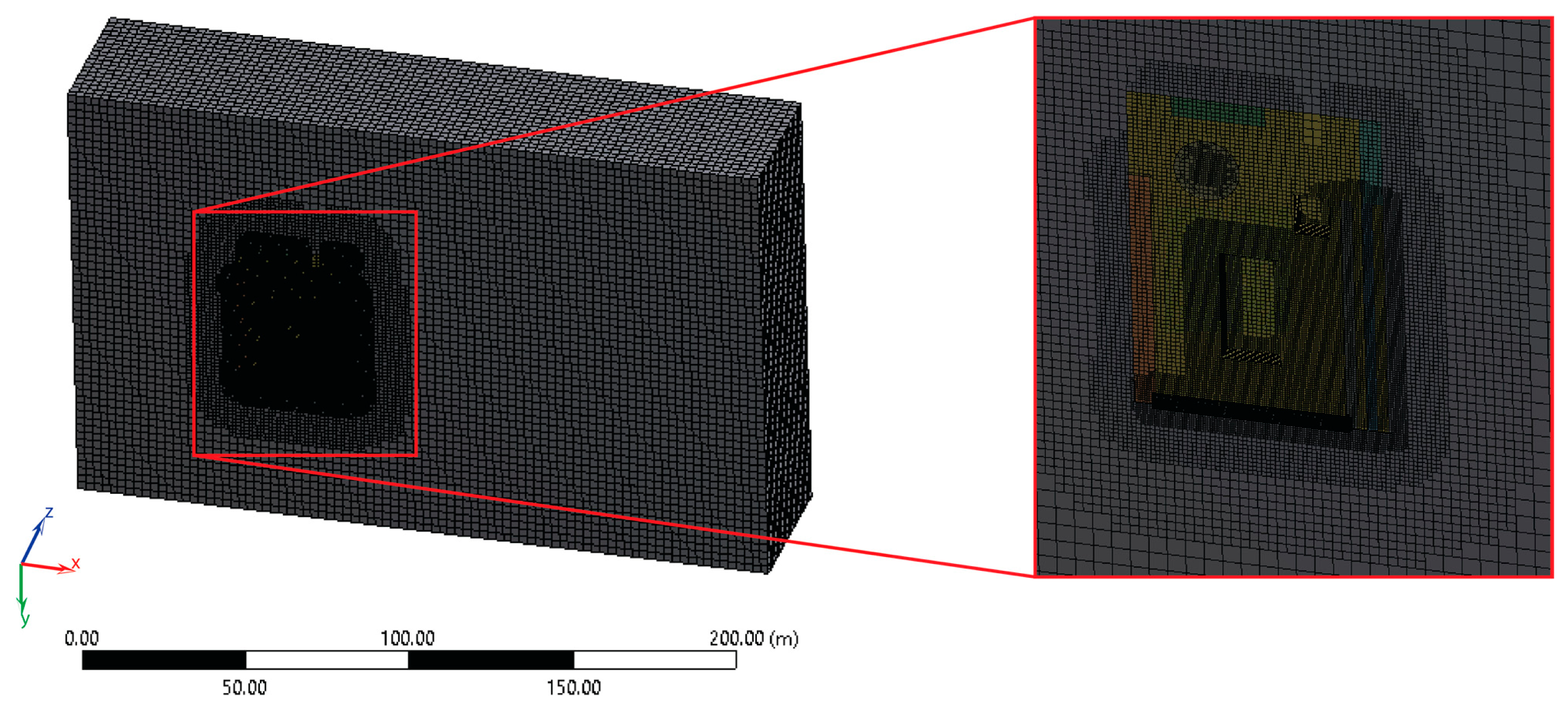

**Figure 6.**CutCell Cartesian meshing for the computational domain; bottom view (left) and the domain of interest magnified (right).

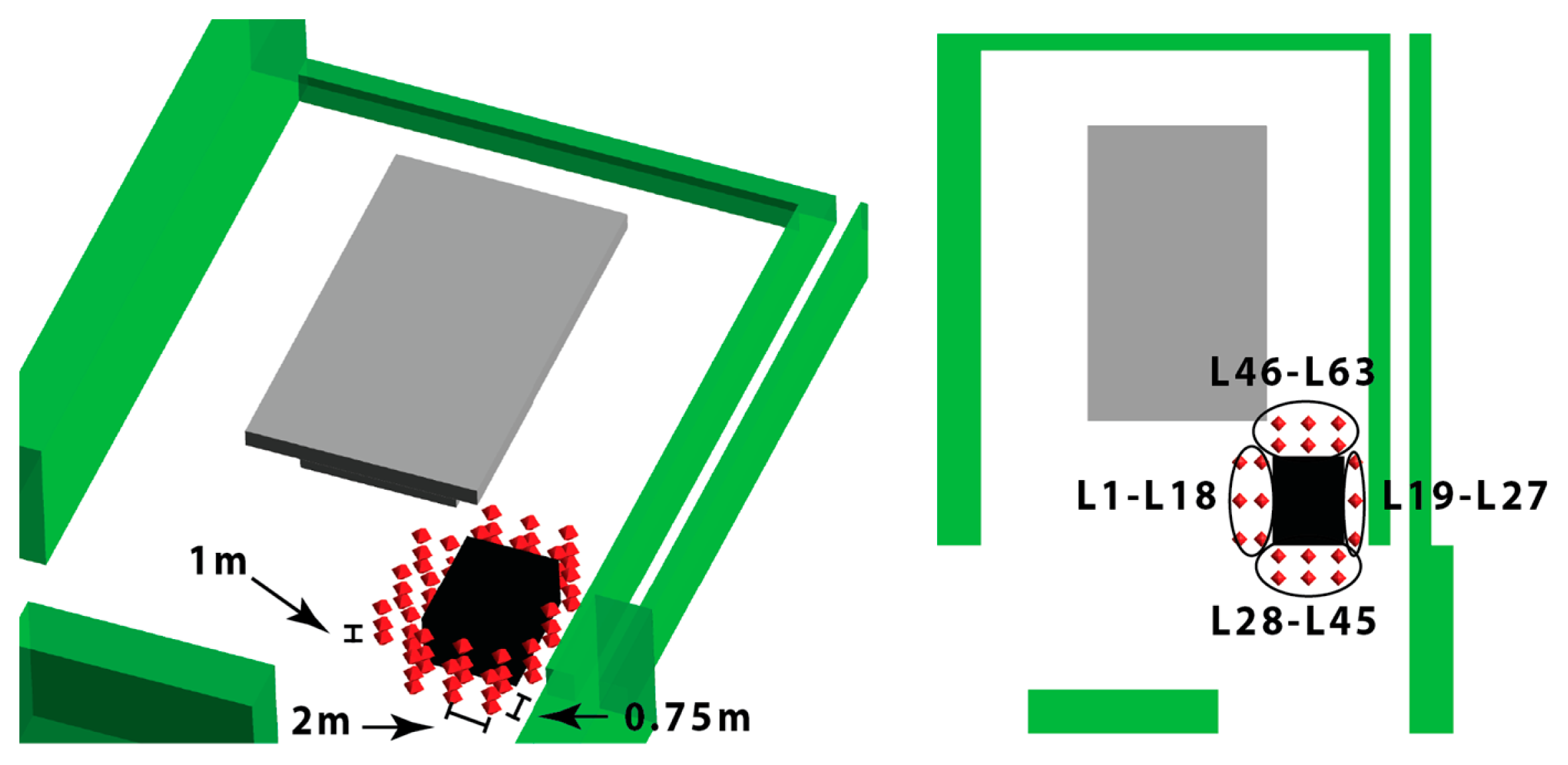

**Figure 7.**Possible measurement locations displayed in the simulation environment: 3D view on the left and plan view on the right.

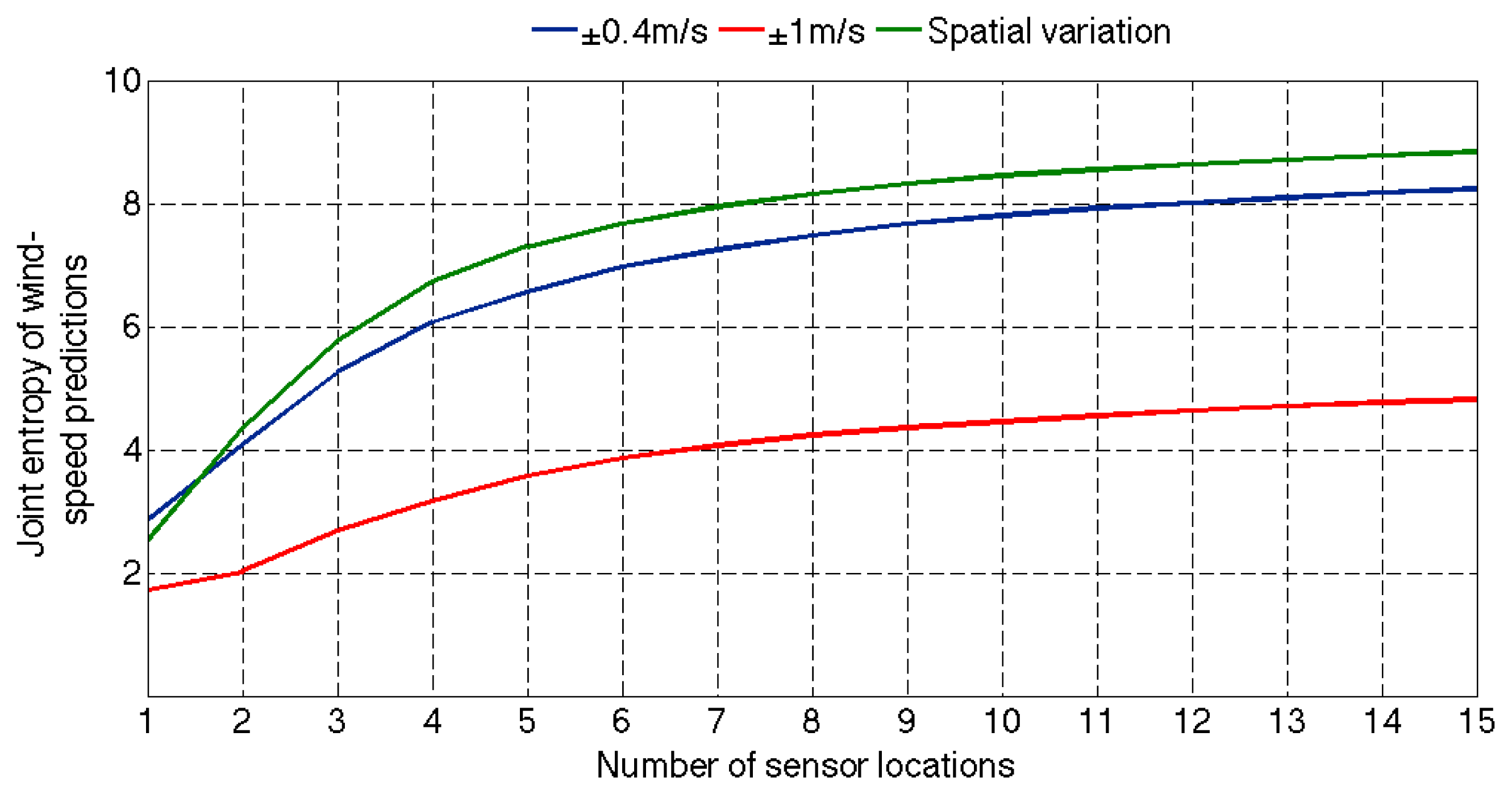

**Figure 8.**Comparison of the joint entropy in wind-speed predictions calculated during sensor placement; errors in predictions were considered either spatially uniform (±0.4 and ±1 m/s) or varying (only the first 15 optimum locations are displayed in the graph).

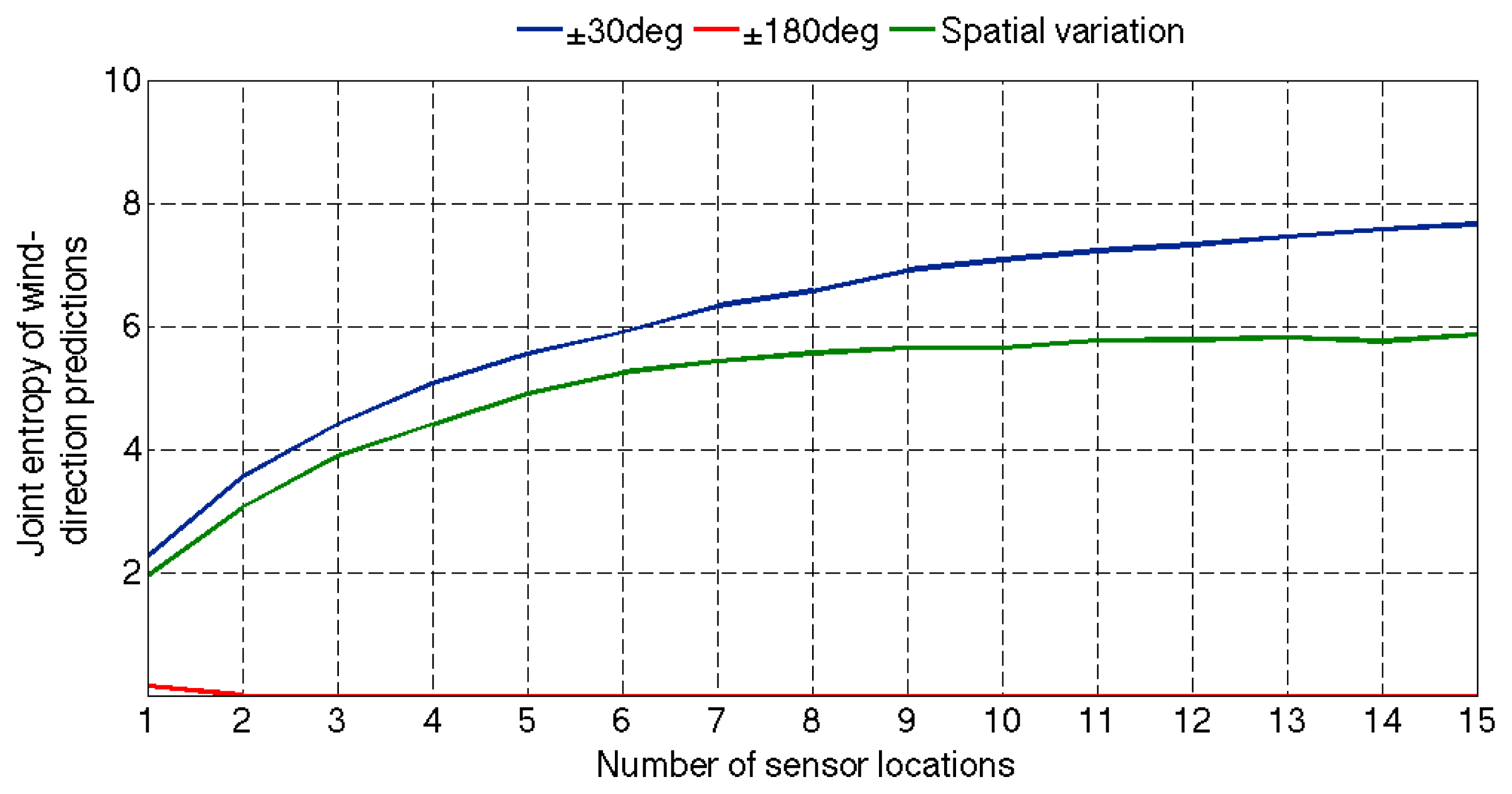

**Figure 9.**Comparison of the joint entropy in wind-direction predictions calculated during sensor placement; errors in predictions are taken to be either spatially uniform (±30 and ±180 deg) or varying (only the first 15 optimum locations are displayed in the graph).

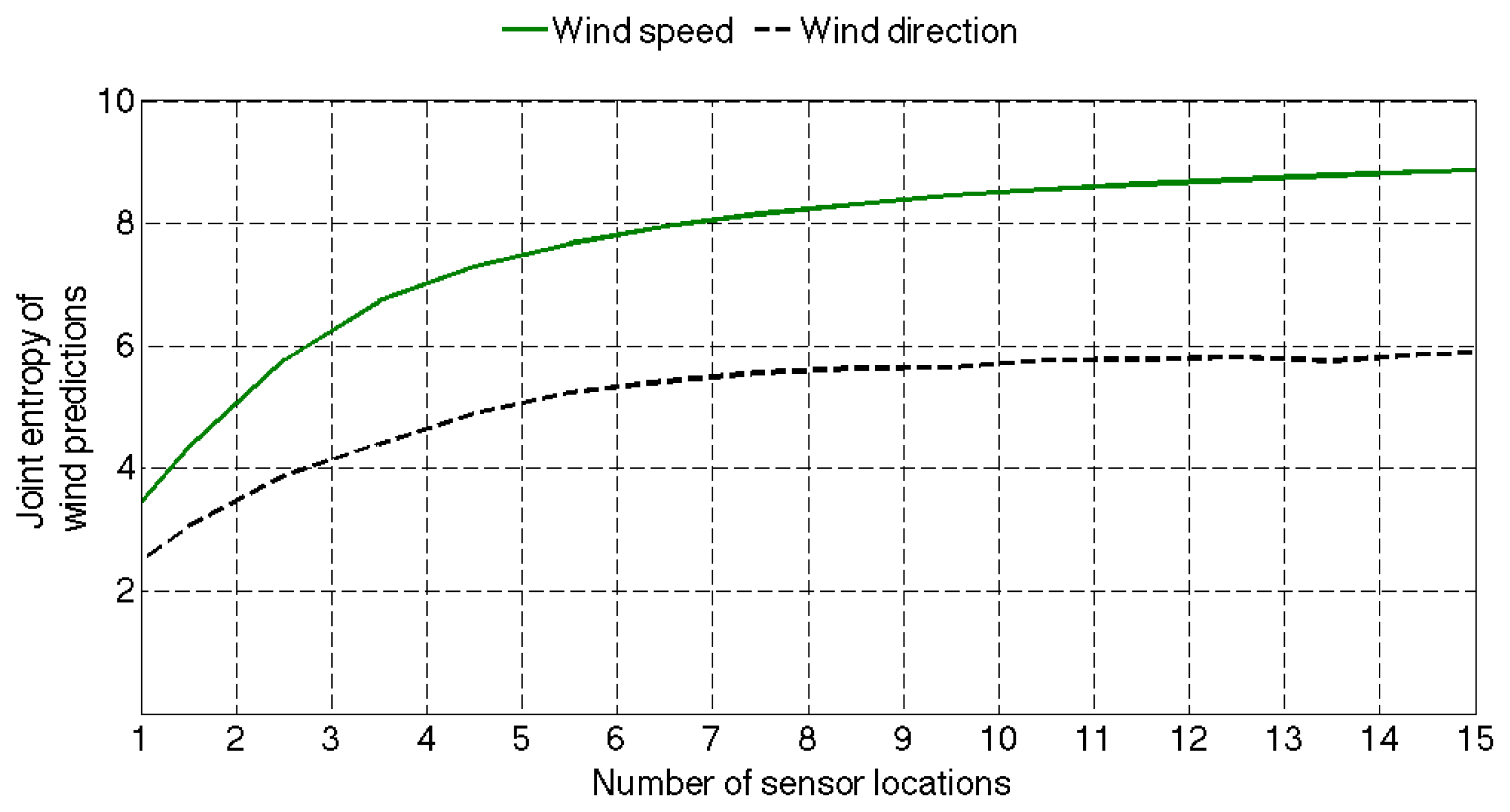

**Figure 10.**A comparison of the joint entropy in wind-speed and wind-direction predictions calculated during sensor placement; errors in predictions vary spatially (only the first 15 optimum locations are displayed in the graph).

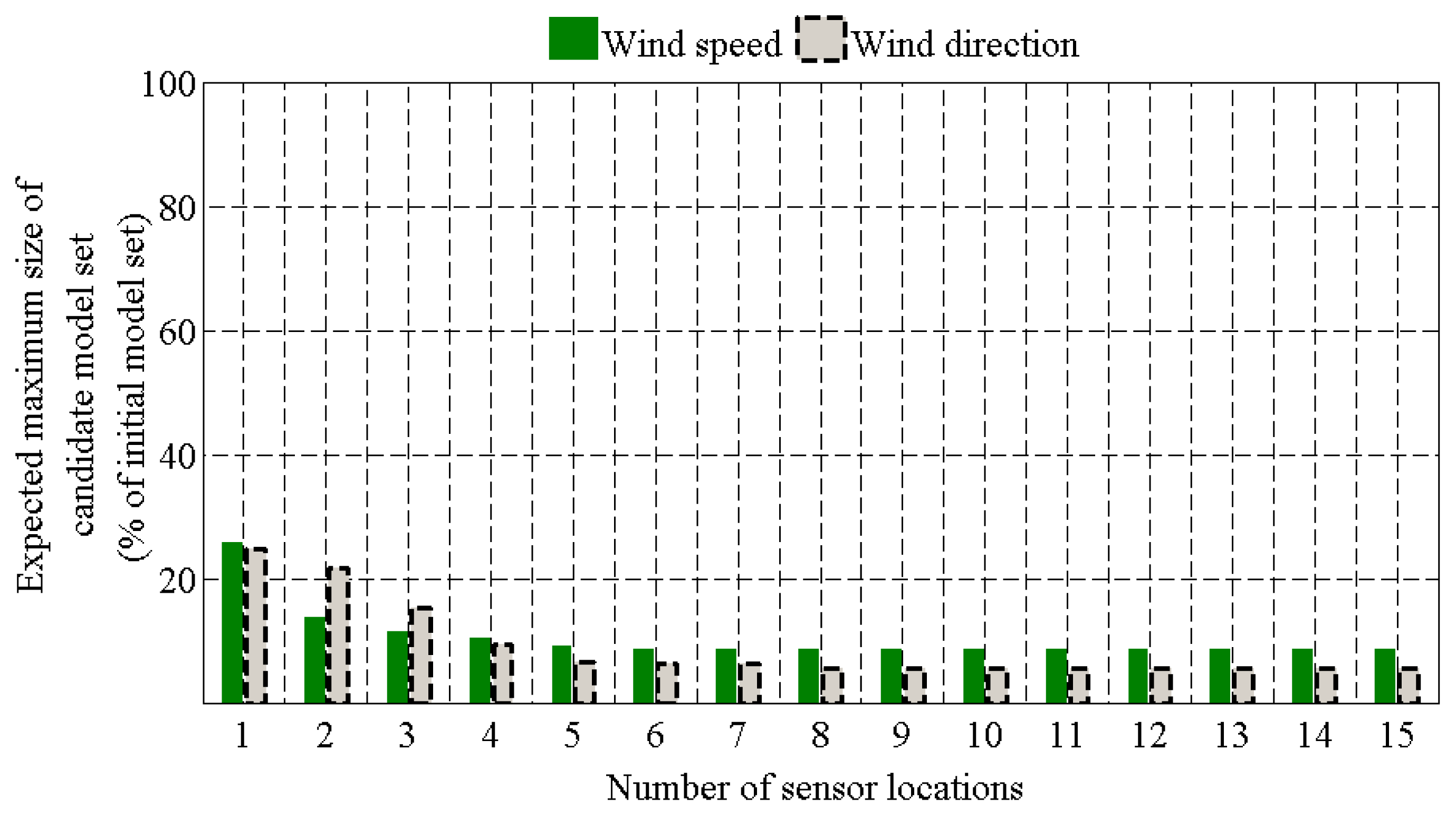

**Figure 11.**A comparison of the maximum number of candidate models of wind-speed and wind-direction that is expected during sensor placement; errors in predictions vary spatially (only the first 15 optimum locations are displayed in the graph).

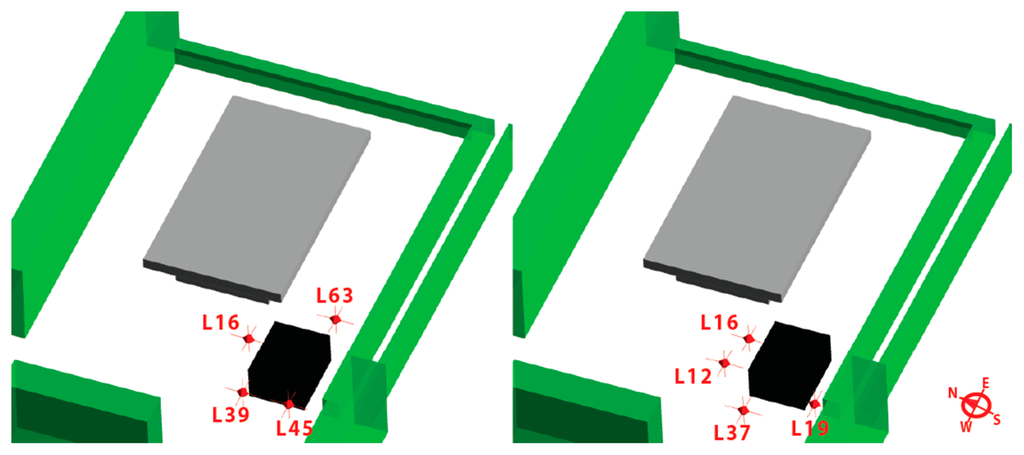

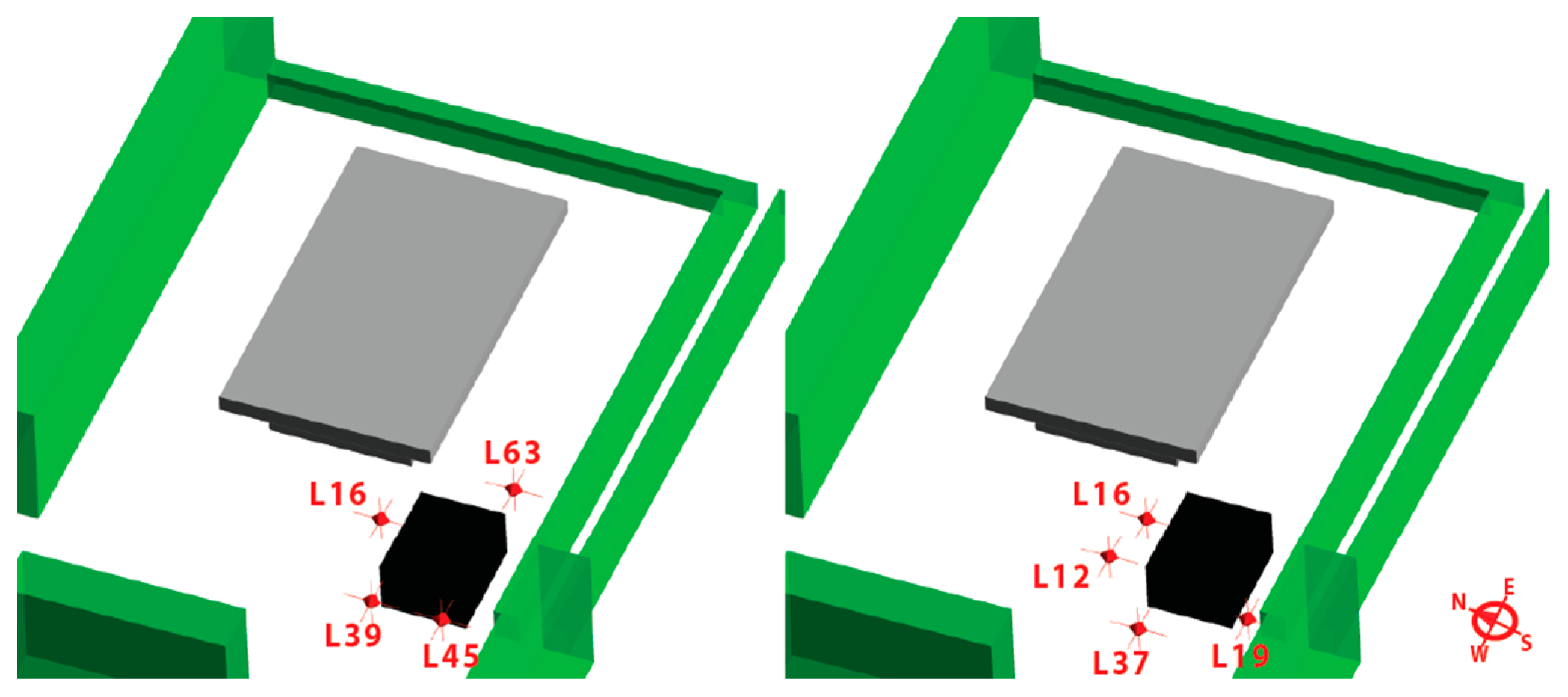

**Figure 12.**The optimum configurations of four sensors for wind speed (left) and wind direction (right) displayed in the simulation environment; the markers represent the selected sensor locations.

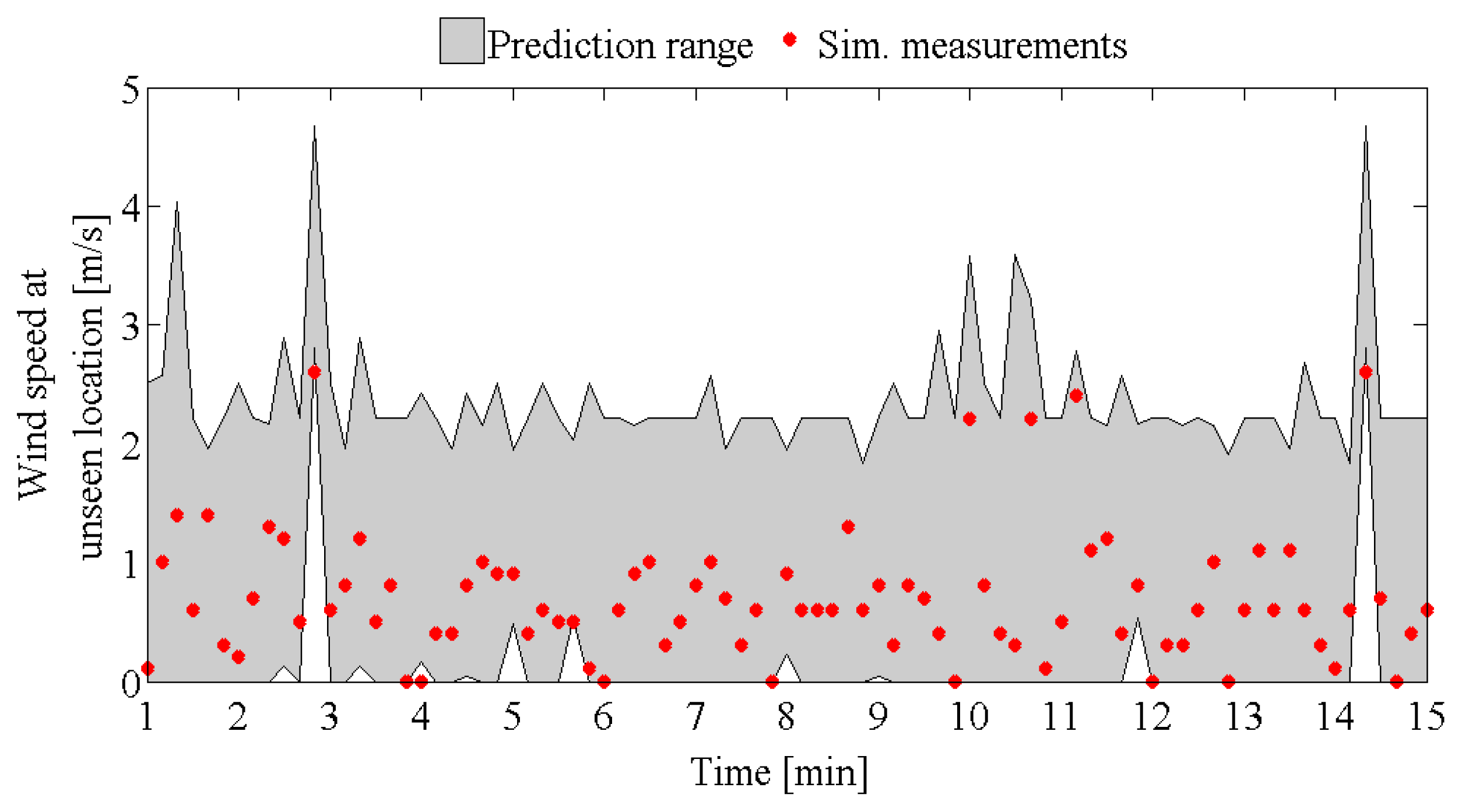

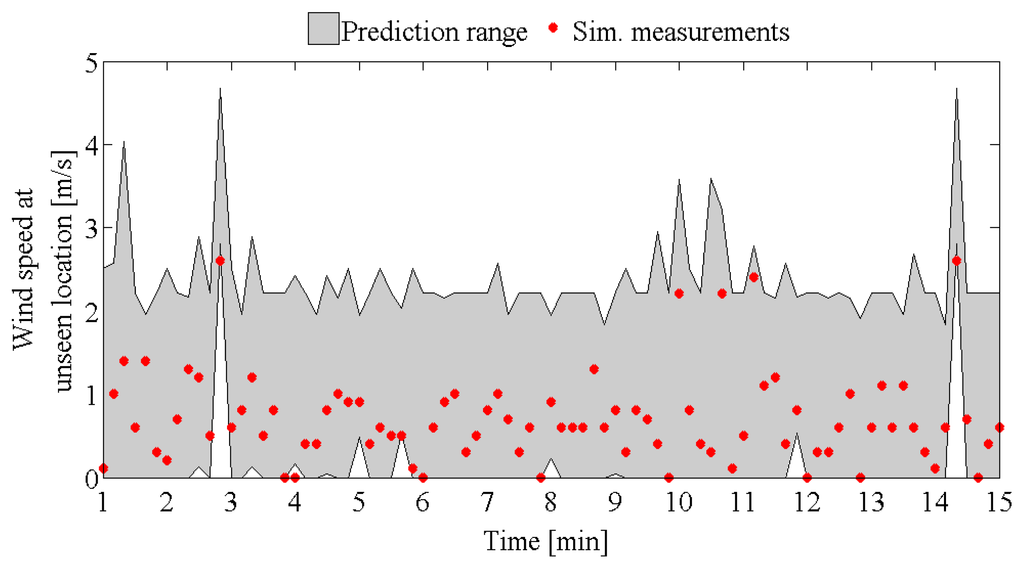

**Figure 13.**Comparison of the wind-speed prediction ranges at an unseen location obtained with the optimum configuration of four sensors and the simulated measurements at this location; 15 min are taken from the 2 h measurement period.

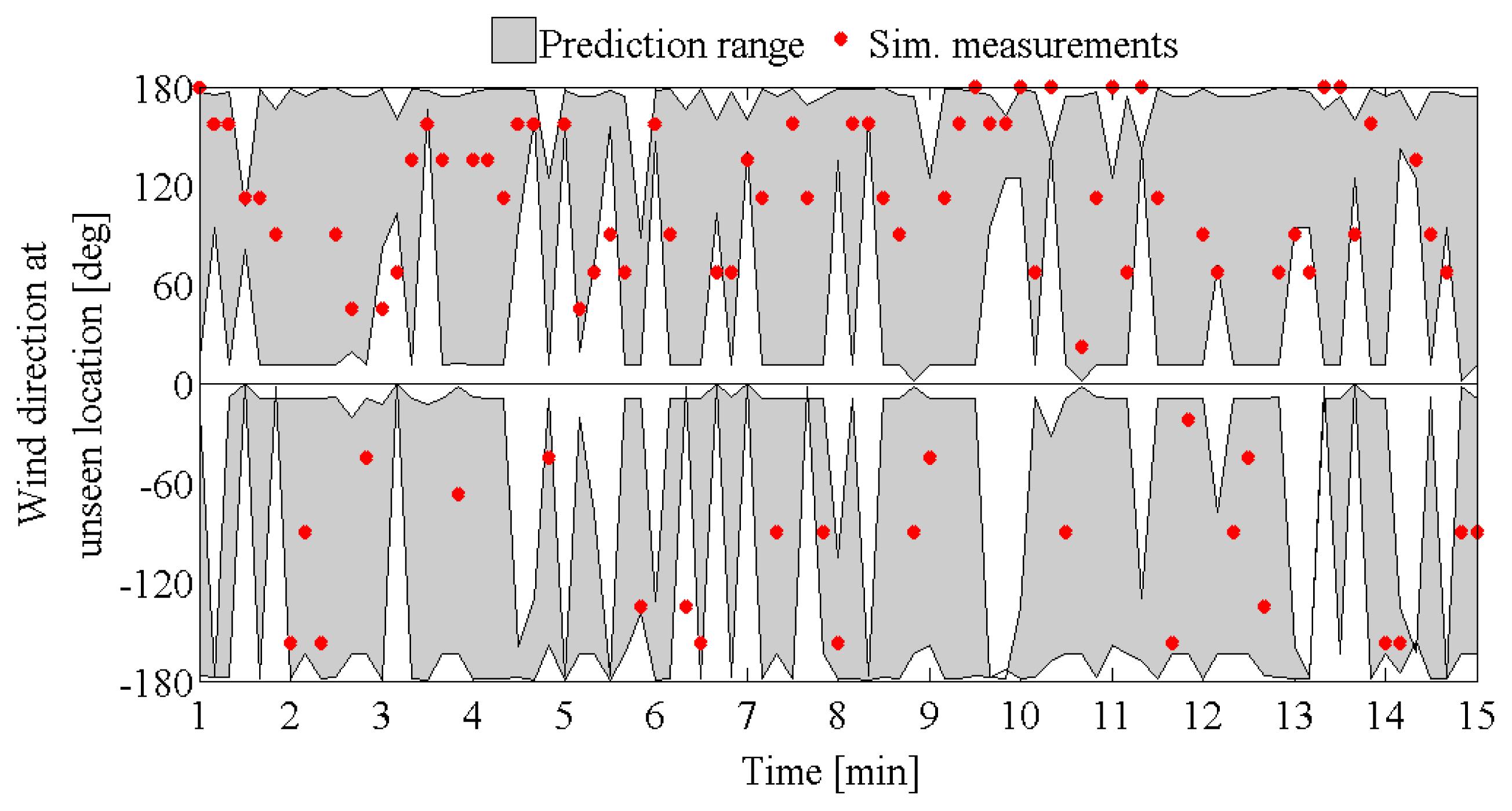

**Figure 14.**Comparison of the wind-direction prediction ranges at an unseen location obtained with the optimum configuration of four sensors and the simulated measurements at this location; 15 min are taken from the 2 h measurement period.

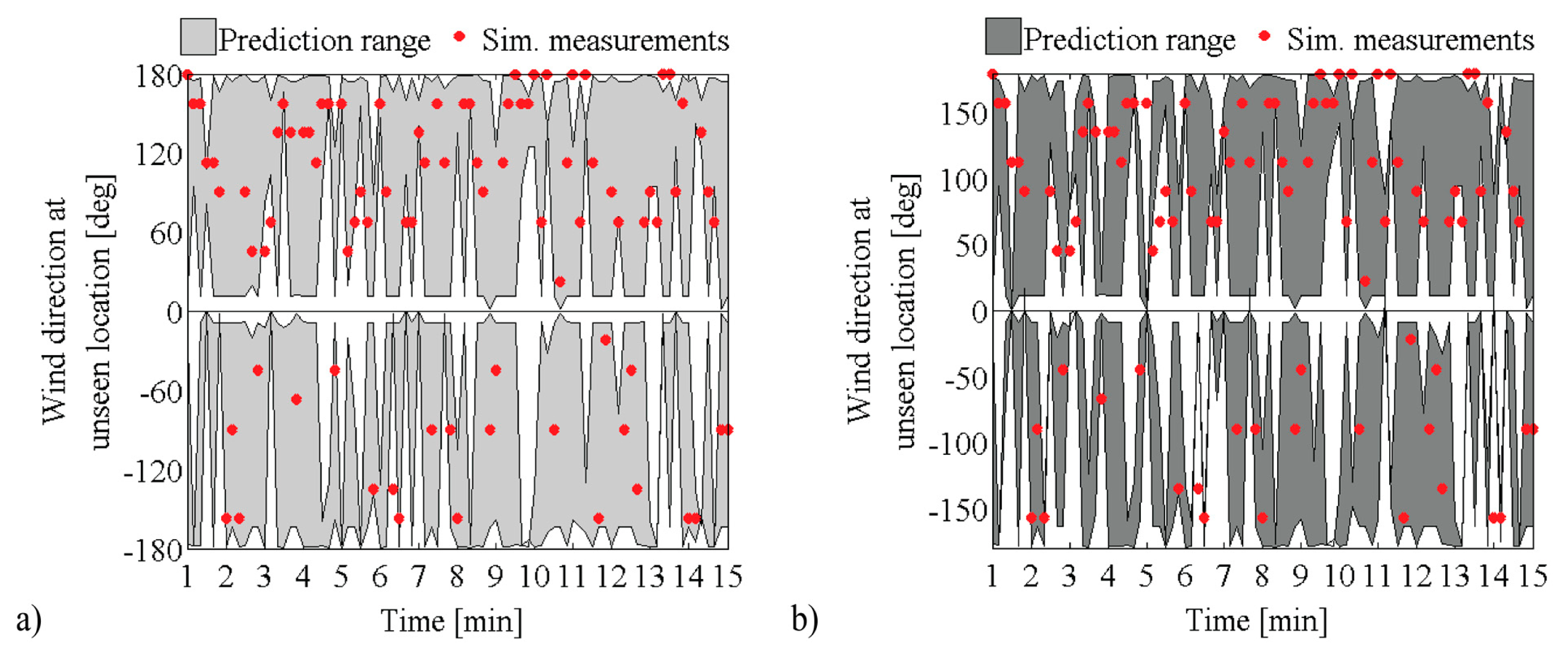

**Figure 15.**Comparison of the wind-direction prediction ranges at an unseen location obtained using the optimum configuration of (

**a**) four sensors and (

**b**) six sensors and the simulated measurements at this location; 15 min are taken from the 2 h measurement period.

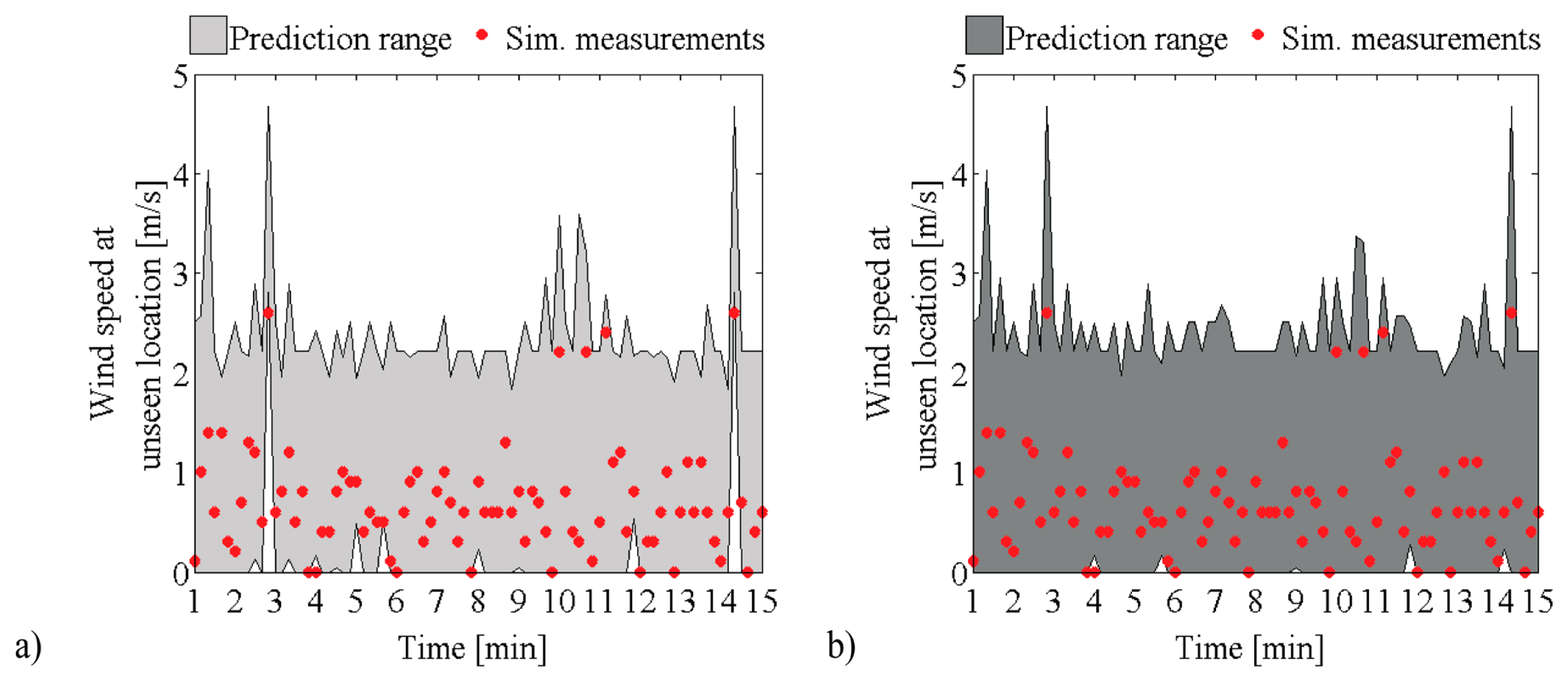

**Figure 16.**Comparison of the wind-speed prediction ranges at an unseen location obtained using (

**a**) hierarchical and (

**b**) sequential optimum configurations of four sensors and the simulated measurements at this location; 15 min are taken from the 2 h measurement period.

Parameter in CFD simulations | Lower bound | Upper bound | Comments |
---|---|---|---|

Height of computational domain [m] | 40 | 88 | The lower and upper bounds were set according to ([11,12,35]) |

Diagonal distance 1 from inlet boundary [m] | 83 | 117 | |

Diagonal distance 2 from inlet boundary [m] | 83 | 117 | |

Mesh growth rate | 1.05 | 1.1 | |

Terrain roughness of computational domain [m] | 0.5 | 1 | The lower and upper bounds were set according to ([36]), for suburbs (lower bound) to regularly-build large towns (upper bound). |

Terrain roughness of area of interest [m] | 3 × 10^{−3} | 0.3 | The lower and upper bounds were set according to ([36]), for concrete surfaces (lower bound) to long grass (upper bound). |

Surface roughness of BubbleZERO [m] | 0.03 | 1 | A double and inflatable membrane from PTFE was installed on the outside of the BubbleZERO. The lower bound corresponded to the typical PTFE value and the upper bound to the height of the inflated PTFE. |

BubbleZERO doors [m] | 2 × 10^{−5} | 0.16 | The lower and upper bounds were typical thickness of glazing and wooden frames. |

Inertial resistance of trees | 0.1 | 3.5 | The lower and upper bounds were set according to ([30]) |

Inertial resistance of bushes | 0.1 | 5.2 | |

Wind direction at inlet boundary [deg] | 1 | 360 | The wind direction varied from 1 to 360 degrees in order to account for possible direction values. |

Wind speed at inlet boundary [m/s] | 0 | 7.2 | The lower and upper bounds were set according to meteorological data obtained from the weather station Changi WMO in Singapore. |

TKE at inlet boundary [J/kg] | 0 | 7.2 | The lower and upper bounds were set according to ([11,12]). |

TDE at inlet boundary [m^{2}/s^{3}] | 0 | 1.3 |

**Table 2.**The selection order of the optimum configurations of four sensors for predicting wind speed and wind direction.

Selection order | Sensor location | |
---|---|---|

Wind speed | Wind direction | |

1st | L45 | L12 |

2nd | L16 | L16 |

3rd | L63 | L19 |

4th | L39 | L37 |
