Analysis of Entropy Generation Rate in an Unsteady Porous Channel Flow with Navier Slip and Convective Cooling

^{1}

Center for Research in Computational and Applied Mechanics, University of Cape Town, Rondebosch 7701, South Africa

^{2}

Institute for Advanced Research in Mathematical Modelling and Computations, Cape Peninsula University of Technology, P. O. Box 1906, Bellville 7535, South Africa

^{*}

Author to whom correspondence should be addressed.

Received: 3 April 2013; in revised form: 6 May 2013 / Accepted: 21 May 2013 / Published: 28 May 2013

## Abstract

**:**

This study deals with the combined effects of Navier Slip, Convective cooling, variable viscosity, and suction/injection on the entropy generation rate in an unsteady flow of an incompressible viscous fluid flowing through a channel with permeable walls. The model equations for momentum and energy balance are solved numerically using semi-discretization finite difference techniques. Both the velocity and temperature profiles are obtained and utilized to compute the entropy generation number. The effects of key parameters on the fluid velocity, temperature, entropy generation rate and Bejan number are depicted graphically and analyzed in detail.

Keywords:

permeable channel wall; convective cooling; variable viscosity; Navier slip; entropy generation; Bejan number## 1. Introduction

The cornerstone in the field of heat transfer and thermal design is the second law analysis and its design-related concept of entropy generation minimization. The foundation of knowledge of entropy production goes back to Clausius and Kelvin’s studies on the irreversible aspects of the Second Law of Thermodynamics [1,2,3,4]. Since then the theories based on these foundations have rapidly developed. However, the entropy production resulting from combined effects of velocity and temperature gradients has remained untreated by classical thermodynamics, which has motivated many researchers to conduct analyses of fundamental and applied engineering problems based on second law analyses. Entropy generation is associated with thermodynamic irreversibility, which is common in all types of heat transfer processes, namely conduction, convection and radiation. In thermodynamical analysis, the fundamental principle remains the improvement of the relevant thermal systems to mitigate against energy losses and hence fully optimize the energy resources. Since the pioneering work of Bejan [1,2,3,4], widespread research has been conducted on entropy generation analysis [5,6,7].

The work of Chinyoka [8] introduced uniform suction/injection at the walls as a means of mitigating the thermal effects of highly exothermic, reactive viscoelastic fluids. Our current work demonstrates that such an intervention also works in reducing heat generation in unsteady porous channel flows with Navier slip and convective cooling. Similarly, the work of Ikenna and Chinyoka [9] investigated the effects of wall slip at the channel walls on the heat transfer characteristics in reactive viscoelastic flows. It was shown in [9] that presence of wall slip enhanced heat build-up within the channel flow; our current results lead to similar conclusions.

The pioneering works of Aziz [10], Makinde and Aziz [11], and the references therein introduced the idea of using the convective boundary conditions in boundary layer flows. We adopt such boundary conditions in the current work. Makinde [12,13] investigated the thermal effects of reactive viscous flows through channels filled with porous media under isothermal wall conditions. As noted, several studies involving heat and mass transfer in Newtonian and non-Newtonian fluids [14,15,16] have been conducted but most lack a systematic and rational treatment of the thermodynamics of the problem with respect to the combined effects of porous walls, wall slip, unsteadiness, variable viscosity and asymmetric convective boundary conditions on the flow system.

The objective of the present work is to study the unsteady flow of a reactive variable viscosity fluid between two parallel porous plates acted upon by nonconstant pressure. Both the lower and upper walls of the channel are subjected to asymmetric convective heat exchange with the ambient and allow for uniform suction/injection in the transverse direction. The mathematical formulation of the problem is established in Section 2. In Section 3 the semi-implicit finite difference technique is implemented for the solution process of the coupled nonlinear problem. Graphical results are presented and discussed qualitatively and quantitatively with respect to various parameters embedded in the system in Section 4.

## 2. Mathematical Model

We consider unsteady flow of an incompressible viscous fluid through a channel with permeable walls, see Figure 1. It is assumed that the fluid is injected uniformly at a constant rate into the channel at the lower wall and fluid suction occurs at the upper wall at the same rate.

Under these assumptions, the governing equations for the momentum and energy balance in one dimension can be written as follows:
and

$$\begin{array}{c}\hfill \rho \left(\frac{\partial u}{\partial \overline{t}}+V\frac{\partial u}{\partial \overline{y}}\right)=-\frac{\partial \overline{P}}{\partial \overline{x}}+\frac{\partial}{\partial \overline{y}}\left(\overline{\mu}\left(T\right)\frac{\partial u}{\partial \overline{y}}\right)\end{array}$$

$$\begin{array}{c}\hfill \rho \phantom{\rule{0.166667em}{0ex}}{c}_{p}\left(\frac{\partial T}{\partial \overline{t}}+V\frac{\partial T}{\partial \overline{y}}\right)=k\frac{{\partial}^{2}T}{\partial {\overline{y}}^{2}}+\overline{\mu}\left(T\right)\phantom{\rule{0.166667em}{0ex}}{\left(\frac{\partial u}{\partial \overline{y}}\right)}^{2}\end{array}$$

The appropriate initial and boundary conditions are:
where h is the channel width, u is the velocity of the fluid, P is the fluid pressure, V is the uniform suction/injection velocity at the channel walls, k is the thermal conductivity coefficient, ρ is the fluid density, ${c}_{p}$ is the specific heat at constant pressure, ${\gamma}_{1}$ is the lower wall heat transfer coefficient, ${\gamma}_{2}$ is the upper wall heat transfer coefficient, ${\beta}_{1}$ is the lower wall slip parameter, ${\beta}_{2}$ is the upper wall slip parameter, T is the temperature and ${T}_{a}$ is the ambient temperature. The temperature dependant viscosity ($\overline{\mu}$) can be expressed as
where b is a viscosity variation parameter and ${\mu}_{0}$ is the initial fluid dynamic viscosity at temperature ${T}_{0}$. We introducing the following non-dimensional quantities:

$$\begin{array}{ccc}& & u(\overline{y},0)=0,\phantom{\rule{1.em}{0ex}}T(\overline{y},0)={T}_{0}\hfill \end{array}$$

$$\begin{array}{ccc}& & {\beta}_{1}\phantom{\rule{0.166667em}{0ex}}u(0,\overline{t})=\overline{\mu}\left(T\right)\phantom{\rule{0.166667em}{0ex}}\frac{\partial u}{\partial \overline{y}}(0,\overline{t}),\phantom{\rule{1.em}{0ex}}-k\frac{\partial T}{\partial \overline{y}}(0,\overline{t})={\gamma}_{1}[{T}_{a}-T(0,\overline{t})]\hfill \end{array}$$

$$\begin{array}{ccc}& & {\beta}_{2}\phantom{\rule{0.166667em}{0ex}}u(h,\overline{t})=\overline{\mu}\left(T\right)\phantom{\rule{0.166667em}{0ex}}\frac{\partial u}{\partial \overline{y}}(h,\overline{t}),\phantom{\rule{1.em}{0ex}}-k\frac{\partial T}{\partial \overline{y}}(0,\overline{t})={\gamma}_{2}[T(h,\overline{t})-{T}_{a}]\hfill \end{array}$$

$$\overline{\mu}\left(T\right)={\mu}_{0}{e}^{-b(T-{T}_{0})}$$

$$\begin{array}{ccc}& & \eta =\frac{\overline{y}}{h},\phantom{\rule{3.33333pt}{0ex}}t=\frac{V\phantom{\rule{0.166667em}{0ex}}\overline{t}}{h},\phantom{\rule{3.33333pt}{0ex}}X=\frac{\overline{x}}{a},\phantom{\rule{3.33333pt}{0ex}}W=\frac{u}{V},\phantom{\rule{3.33333pt}{0ex}}\theta =\frac{T-{T}_{0}}{{T}_{a}-{T}_{0}},\phantom{\rule{3.33333pt}{0ex}}P=\frac{\overline{P}\phantom{\rule{0.166667em}{0ex}}h}{{\mu}_{0}\phantom{\rule{0.166667em}{0ex}}V}\phantom{\rule{3.33333pt}{0ex}}\hfill \end{array}$$

$$\begin{array}{ccc}& & \mathrm{Re}=\frac{\rho \phantom{\rule{0.166667em}{0ex}}h\phantom{\rule{0.166667em}{0ex}}V}{{\mu}_{0}},\phantom{\rule{3.33333pt}{0ex}}\mathrm{Pr}=\frac{{\mu}_{0}{c}_{p}}{k},\phantom{\rule{3.33333pt}{0ex}}{\mathrm{Bi}}_{1}=\frac{{\gamma}_{1}h}{k},\phantom{\rule{3.33333pt}{0ex}}{\mathrm{Bi}}_{2}=\frac{{\gamma}_{2}h}{k},\phantom{\rule{3.33333pt}{0ex}}G=-\frac{\partial P}{\partial X}\phantom{\rule{3.33333pt}{0ex}}\hfill \end{array}$$

$$\begin{array}{ccc}& & \mu =\frac{\overline{\mu}}{{\mu}_{0}},\phantom{\rule{3.33333pt}{0ex}}m=b({T}_{a}-{T}_{0}),\phantom{\rule{3.33333pt}{0ex}}{\lambda}_{1}=\frac{{\mu}_{0}}{h\phantom{\rule{0.166667em}{0ex}}{\beta}_{1}},\phantom{\rule{3.33333pt}{0ex}}{\lambda}_{2}=\frac{{\mu}_{0}}{h\phantom{\rule{0.166667em}{0ex}}{\beta}_{2}},\phantom{\rule{3.33333pt}{0ex}}\mathrm{Ec}=\frac{{V}^{2}}{{c}_{p}({T}_{a}-{T}_{0})}\hfill \end{array}$$

Substituting Equation (8) into Equations (1)–(6), we obtain
with the initial and boundary conditions given as
where m is the viscosity variation parameter, ${\lambda}_{1}$ is the lower wall slip parameter, ${\lambda}_{2}$ is the upper wall slip parameter, G is the pressure gradient parameter, $\mathrm{Re}$ is the Reynolds number, $\mathrm{Pr}$ is the Prandtl number, $\mathrm{Ec}$ is the Eckert number, ${\mathrm{Bi}}_{1}$ is the lower wall Biot number, and ${\mathrm{Bi}}_{2}$ is the upper wall Biot number.

$$\begin{array}{ccc}& & \mathrm{Re}\phantom{\rule{0.166667em}{0ex}}\left(\frac{\partial W}{\partial t}+\frac{\partial W}{\partial \eta}\right)=G+{e}^{-m\theta}\frac{{\partial}^{2}W}{\partial {\eta}^{2}}-m{e}^{-m\theta}\frac{\partial \theta}{\partial \eta}\frac{\partial W}{\partial \eta}\hfill \end{array}$$

$$\begin{array}{ccc}& & \mathrm{Re}\phantom{\rule{0.166667em}{0ex}}\mathrm{Pr}\phantom{\rule{0.166667em}{0ex}}\left(\frac{\partial \theta}{\partial t}+\frac{\partial \theta}{\partial \eta}\right)=\frac{{\partial}^{2}\theta}{\partial {\eta}^{2}}+\mathrm{Ec}\phantom{\rule{0.166667em}{0ex}}\mathrm{Pr}\phantom{\rule{0.166667em}{0ex}}{\left(\frac{\partial W}{\partial \eta}\right)}^{2}\hfill \end{array}$$

$$\begin{array}{ccc}& & W(\eta ,0)=0,\phantom{\rule{1.em}{0ex}}\theta (\eta ,0)=0\hfill \end{array}$$

$$\begin{array}{ccc}& & W(0,t)={\lambda}_{1}\phantom{\rule{0.166667em}{0ex}}{e}^{-m\theta (0,t)}\phantom{\rule{0.166667em}{0ex}}\frac{\partial W}{\partial \eta}(0,t),\phantom{\rule{1.em}{0ex}}\frac{\partial \theta}{\partial \eta}(0,t)={\mathrm{Bi}}_{1}\phantom{\rule{0.166667em}{0ex}}[\theta (0,t)-1]\hfill \end{array}$$

$$\begin{array}{ccc}& & W(1,t)={\lambda}_{2}\phantom{\rule{0.166667em}{0ex}}{e}^{-m\theta (1,t)}\phantom{\rule{0.166667em}{0ex}}\frac{\partial W}{\partial \eta}(1,t),\phantom{\rule{1.em}{0ex}}\frac{\partial \theta}{\partial \eta}(1,t)={\mathrm{Bi}}_{2}\phantom{\rule{0.166667em}{0ex}}[1-\theta (1,t)]\hfill \end{array}$$

## 3. Entropy Analysis

Following Bejan [1], Mahmud and Fraser [7], the local entropy generation rate for a viscous incompressible fluid is given as

$${E}_{G}=\frac{k}{{T}_{0}^{2}}\left(\frac{\partial T}{\partial \overline{y}}\right)+\frac{\overline{\mu}}{{T}_{0}}{\left(\frac{\partial \overline{u}}{\partial \overline{y}}\right)}^{2}$$

The first term in Equation (13) is the irreversibility due to heat transfer and the second term is the entropy generation due to viscous dissipation and third term is due to magnetic field. In dimensionless form, Equation (13) becomes,
where $\Omega =({T}_{a}-{T}_{0})/{T}_{0}$ is the temperature difference parameter and $\mathrm{Br}=\mathrm{Ec}\phantom{\rule{0.166667em}{0ex}}\mathrm{Pr}$ is the Brinkmann number. Let

$$\mathrm{Ns}=\frac{{h}^{2}\phantom{\rule{0.166667em}{0ex}}{T}_{0}^{2}\phantom{\rule{0.166667em}{0ex}}{E}_{G}}{k{({T}_{a}-{T}_{0})}^{2}}={\left(\frac{\partial \theta}{\partial \eta}\right)}^{2}+\frac{\mathrm{Br}\phantom{\rule{0.166667em}{0ex}}{e}^{-m\phantom{\rule{0.166667em}{0ex}}\theta}}{\Omega}\phantom{\rule{0.166667em}{0ex}}{\left(\frac{\partial W}{\partial \eta}\right)}^{2}$$

$${N}_{1}={\left(\frac{\partial \theta}{\partial r}\right)}^{2},\phantom{\rule{1.em}{0ex}}{N}_{2}=\frac{\mathrm{Br}\phantom{\rule{0.166667em}{0ex}}{e}^{-m\phantom{\rule{0.166667em}{0ex}}\theta}}{\Omega}\phantom{\rule{0.166667em}{0ex}}{\left(\frac{\partial u}{\partial r}\right)}^{2},\phantom{\rule{1.em}{0ex}}\Phi =\frac{{N}_{2}}{{N}_{1}}$$

We then define the Bejan number as
where Φ is the irreversibility ratio. Bejan number ranges from 0 to 1. The limit of fluid friction irreversibility dominant effects is given by $\mathrm{Be}=0$, while $\mathrm{Be}=1$ is the limit where the irreversibility due to heat transfer dominates the flow system.

$$\mathrm{Be}=\frac{{N}_{1}}{{N}_{s}}=\frac{1}{1+\Phi}$$

## 4. Numerical Solution

Our numerical algorithm is based on the semi-implicit finite difference scheme [8,9,17,18,19,20]. Implicit terms are taken at the intermediate time level $(N+\xi )$ where $0\le \xi \le 1$.

The discretization of the governing equations is based on a linear Cartesian mesh and uniform grid on which finite-differences are taken. We approximate both the second and first spatial derivatives with second-order central differences.

The equations corresponding to the first and last grid points are modified to incorporate the boundary conditions. The semi-implicit scheme for the velocity component reads:

$$\begin{array}{c}\hfill \phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\phantom{\rule{-0.166667em}{0ex}}\mathrm{Re}\phantom{\rule{0.166667em}{0ex}}\left(\frac{\partial W}{\partial t}+\frac{\partial}{\partial \eta}{W}^{\left(N\right)}\right)=G+{e}^{-m{\theta}^{\left(N\right)}}\frac{{\partial}^{2}}{\partial {\eta}^{2}}\phantom{\rule{0.166667em}{0ex}}{W}^{(N+\xi )}+{\left[m{e}^{-m\theta}\frac{\partial \theta}{\partial \eta}\frac{\partial W}{\partial \eta}\right]}^{\left(N\right)}\end{array}$$

In Equation (17) it is understood that $\partial \#/\partial t:=({\#}^{(N+1)}-{\#}^{\left(N\right)})/\Delta t$. The equation for ${W}^{(N+1)}$ then becomes:
where

$$-{r}_{1}\phantom{\rule{0.166667em}{0ex}}{W}_{j-1}^{(N+1)}+(\mathrm{Re}+2{r}_{1})\phantom{\rule{0.166667em}{0ex}}{W}_{j}^{(N+1)}-{r}_{1}\phantom{\rule{0.166667em}{0ex}}{W}_{j+1}^{(N+1)}=\mathrm{explicit}\phantom{\rule{3.33333pt}{0ex}}\mathrm{terms}$$

$${r}_{1}=\xi \phantom{\rule{0.166667em}{0ex}}\frac{\Delta t}{\Delta {\eta}^{2}}\phantom{\rule{0.166667em}{0ex}}exp(-m\theta )$$

The solution procedure for ${W}^{(N+1)}$ thus reduces to inversion of tri-diagonal matrices, which is an advantage over a full implicit scheme. The semi-implicit integration scheme for the temperature equation is similar to that for the velocity component. Unmixed second partial derivatives of the temperature are treated implicitly:

$$\begin{array}{c}\hfill \mathrm{Re}\phantom{\rule{0.166667em}{0ex}}\mathrm{Pr}\phantom{\rule{0.166667em}{0ex}}\left(\frac{\partial \theta}{\partial t}+\frac{\partial}{\partial \eta}{\theta}^{\left(N\right)}\right)=\frac{{\partial}^{2}}{\partial {\eta}^{2}}{\theta}^{(N+\xi )}+\mathrm{Ec}\phantom{\rule{0.166667em}{0ex}}\mathrm{Pr}\phantom{\rule{0.166667em}{0ex}}{\left(\frac{\partial}{\partial \eta}{W}^{\left(N\right)}\right)}^{2}\end{array}$$

The equation for ${\theta}^{(N+1)}$ thus becomes:
where $r=\xi \phantom{\rule{0.166667em}{0ex}}\Delta t/\Delta {\eta}^{2}$. The solution procedure again reduces to inversion of tri-diagonal matrices. The schemes (18 and 20) were checked for consistency. For $\xi =1$, these are first-order accurate in time but second order in space. The schemes in Chinyoka [19] have $\xi =1/2$, which improves the accuracy in time to second order. As in Chinyoka [8,9,20] we, however, use $\xi =1$ here so that we are free to choose larger time steps and still converge to the steady solutions.

$$-r\phantom{\rule{0.166667em}{0ex}}{\theta}_{j-1}^{(N+1)}+(\mathrm{Re}\phantom{\rule{0.166667em}{0ex}}\mathrm{Pr}+2r)\phantom{\rule{0.166667em}{0ex}}{\theta}_{j}^{(N+1)}-r\phantom{\rule{0.166667em}{0ex}}{\theta}_{j+1}^{(N+1)}=\mathrm{explicit}\phantom{\rule{3.33333pt}{0ex}}\mathrm{terms}$$

## 5. Results and Discussion

Unless otherwise stated, we employ the parameter values:

$G=1,\phantom{\rule{4pt}{0ex}}\mathrm{Pr}=0.71,$ ${\lambda}_{1}=0.1,\phantom{\rule{4pt}{0ex}}{\lambda}_{2}=0.1,\phantom{\rule{4pt}{0ex}}{\mathrm{Bi}}_{1}=0.1,\phantom{\rule{4pt}{0ex}}{\mathrm{Bi}}_{2}=0.1\phantom{\rule{4pt}{0ex}}m=0.1,\phantom{\rule{4pt}{0ex}}\Omega =0.1,$ $\Delta \eta =0.01$, $\Delta t=0.01$, $\mathrm{Re}=0.1$, $t=50$.

These will be the default values in this work. In the succeeding graphics, if any of these parameter values is not explicitly mentioned, it will be understood that such parameters take on the default values.

#### 5.1. Transient and Steady Flow Profiles

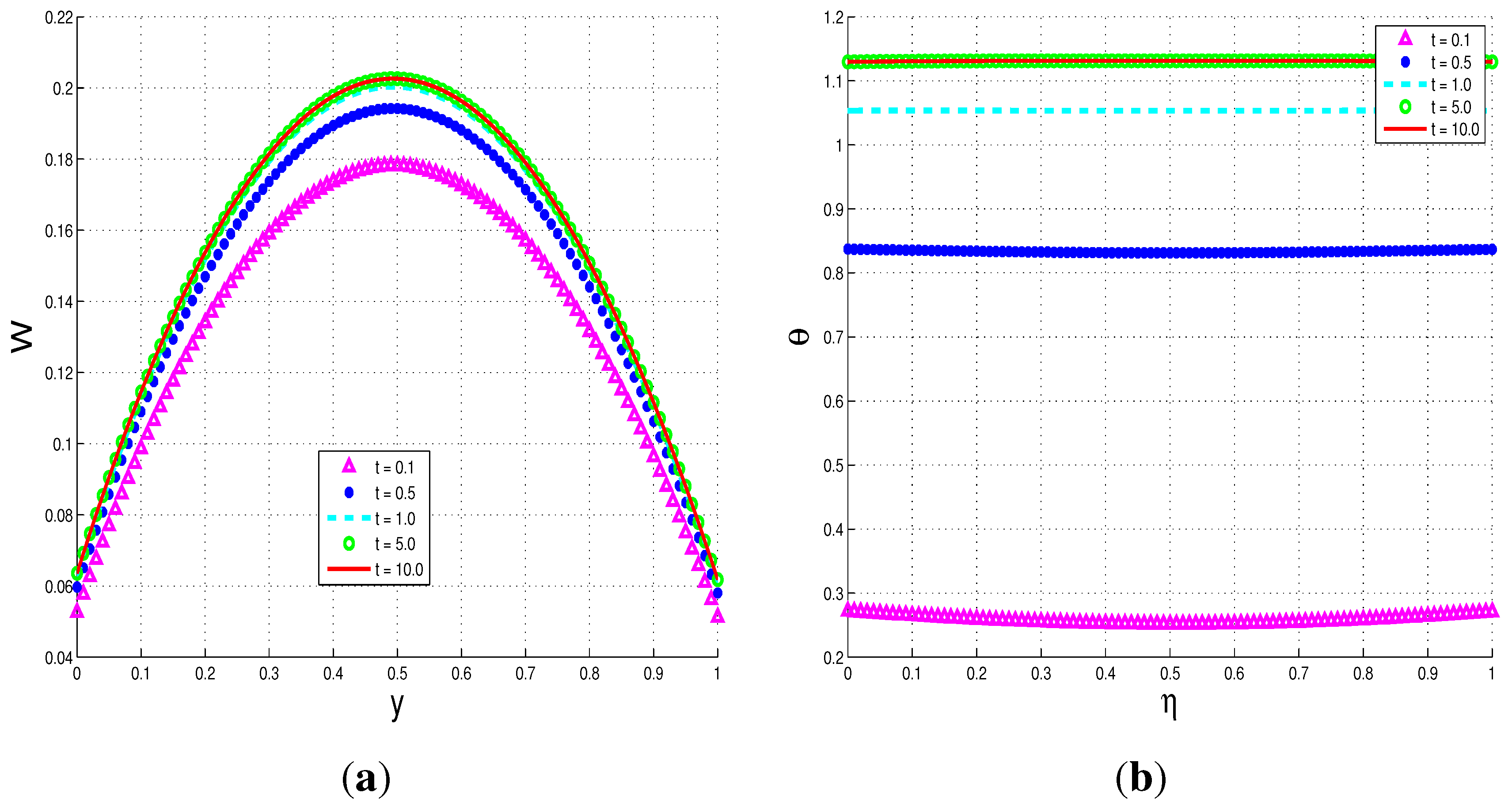

We display the transient solutions in Figure 2. The figures show a transient increase in both fluid velocity, Figure 2a, and temperature, Figure 2b, until a steady state is reached.

#### 5.2. Code Validation

The steady flow case with $m=0$ is readily amenable to analytical treatment. We demonstrate in this section that our numerical scheme accurately reproduces this analytic solution. The steady equation for the velocity subject to $m=0$ is given by

$$\begin{array}{c}\hfill \mathrm{Re}\phantom{\rule{0.166667em}{0ex}}\frac{dW}{d\eta}=G+\frac{{d}^{2}W}{d{\eta}^{2}}\end{array}$$

with boundary conditions given as

$$\begin{array}{c}\hfill W\left(0\right)={\lambda}_{1}\phantom{\rule{0.166667em}{0ex}}\frac{dW}{d\eta}\left(0\right),\phantom{\rule{1.em}{0ex}}W\left(1\right)={\lambda}_{2}\phantom{\rule{0.166667em}{0ex}}\frac{dW}{d\eta}\left(1\right)\end{array}$$

The analytic solution reads:
where for example,

$$\begin{array}{c}\hfill W\left(\eta \right)={C}_{1}\phantom{\rule{0.166667em}{0ex}}exp\left(\mathrm{Re}\phantom{\rule{0.166667em}{0ex}}\eta \right)+\frac{G}{Re}\phantom{\rule{0.166667em}{0ex}}\eta +{C}_{0}\end{array}$$

$$\begin{array}{ccc}\hfill {C}_{1}& =& \frac{G(1+{\lambda}_{1}-{\lambda}_{2})}{\mathrm{Re}(1-exp\left(\mathrm{Re}\right)+{\lambda}_{2}\phantom{\rule{0.166667em}{0ex}}\mathrm{Re}\phantom{\rule{0.166667em}{0ex}}exp\left(\mathrm{Re}\right)-{\lambda}_{1}\phantom{\rule{0.166667em}{0ex}}\mathrm{Re})}\hfill \\ & & \\ \hfill {C}_{0}& =& {\lambda}_{1}({C}_{1}\phantom{\rule{0.166667em}{0ex}}\mathrm{Re}+G/\mathrm{Re})-{C}_{1}\hfill \end{array}$$

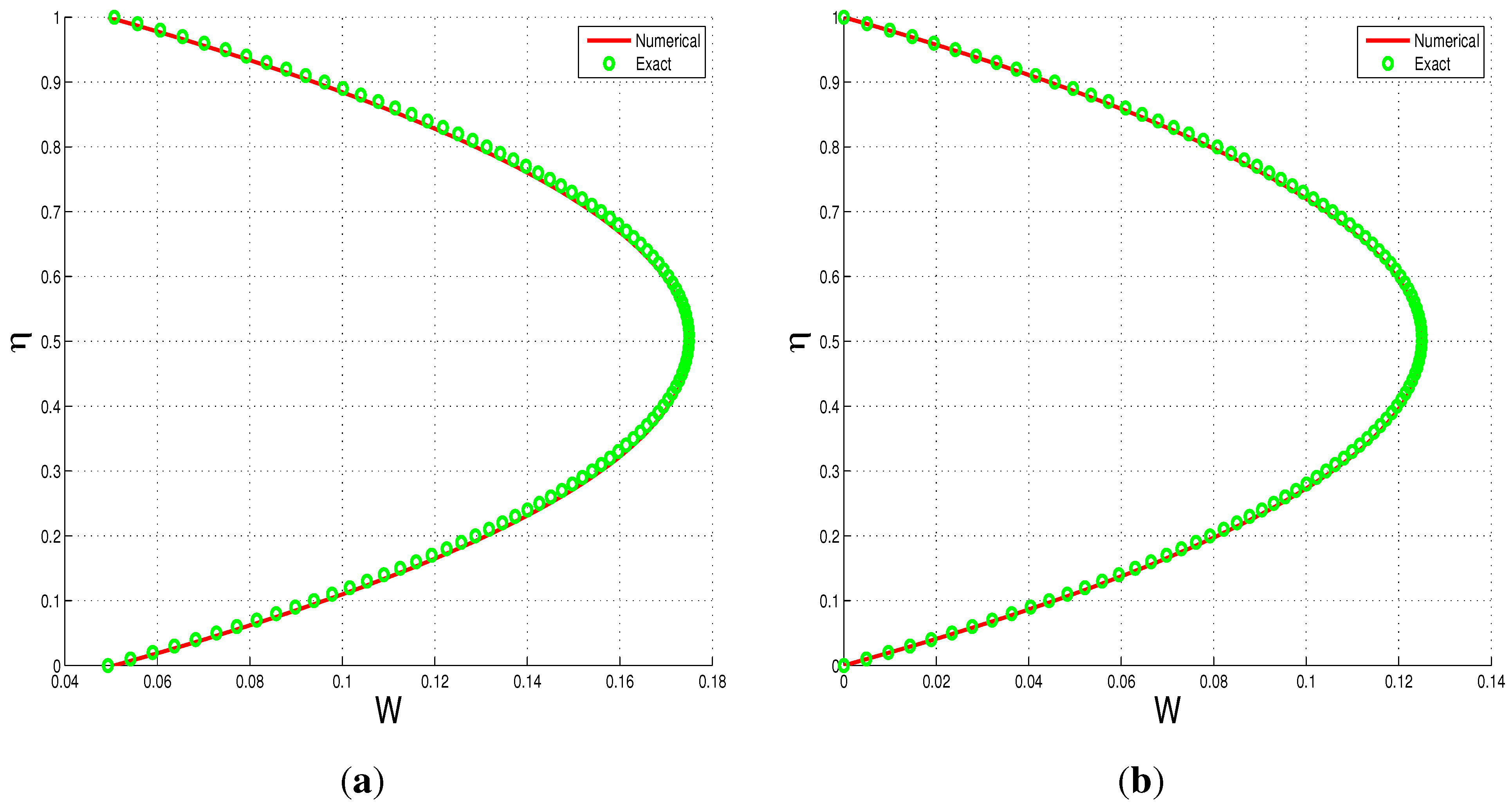

A comparison plot of the exact solution and the corresponding numerical solution (obtained at $t=10$) is given in Figure 3.

#### 5.2.1. Parameter Dependence of Solutions

The response of the velocity and temperature to varying values of the Prandtl number ($\mathrm{Pr}$) is illustrated in Figure 4.

Larger values of the Prandtl number correspondingly increase the strength of the heat sources in the temperature equation and hence in turn increases the overall fluid temperature as clearly illustrated in Figure 4b. The increased temperature leads to decreased fluid viscosity and hence to higher fluid velocities as illustrated in Figure 4a.

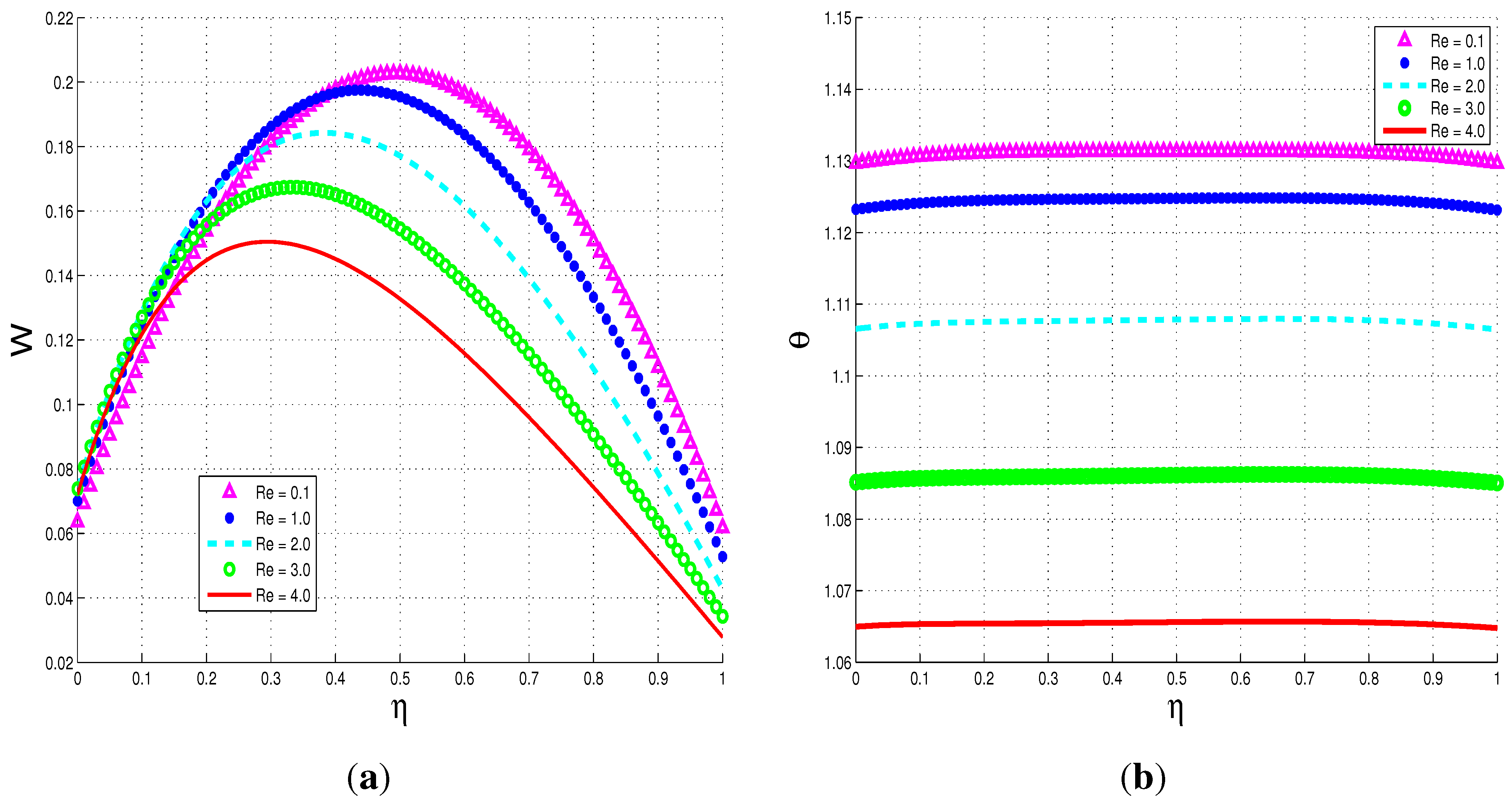

The response of the velocity and temperature to varying values of the Reynolds number ($\mathrm{Re}$) is illustrated in Figure 5.

Larger values of the Reynolds number correspond to higher suction/injection strength and hence clearly decreases the axial fluid velocity as illustrated in Figure 5a. The decreased velocity leads to decreased heat source strength and hence to lower fluid temperature as illustrated in Figure 5b. The trends shown in Figure 4 and Figure 5 in which the velocity and temperature either both increase or decrease together will be reproducible throughout our investigations and hence the explanations already given will not be repeated.

The response of the velocity and temperature to varying values of the viscosity parameter (m) is illustrated in Figure 6.

As expected, both velocity and temperature increase with increasing viscosity parameter (i.e., with decreasing fluid viscosity).

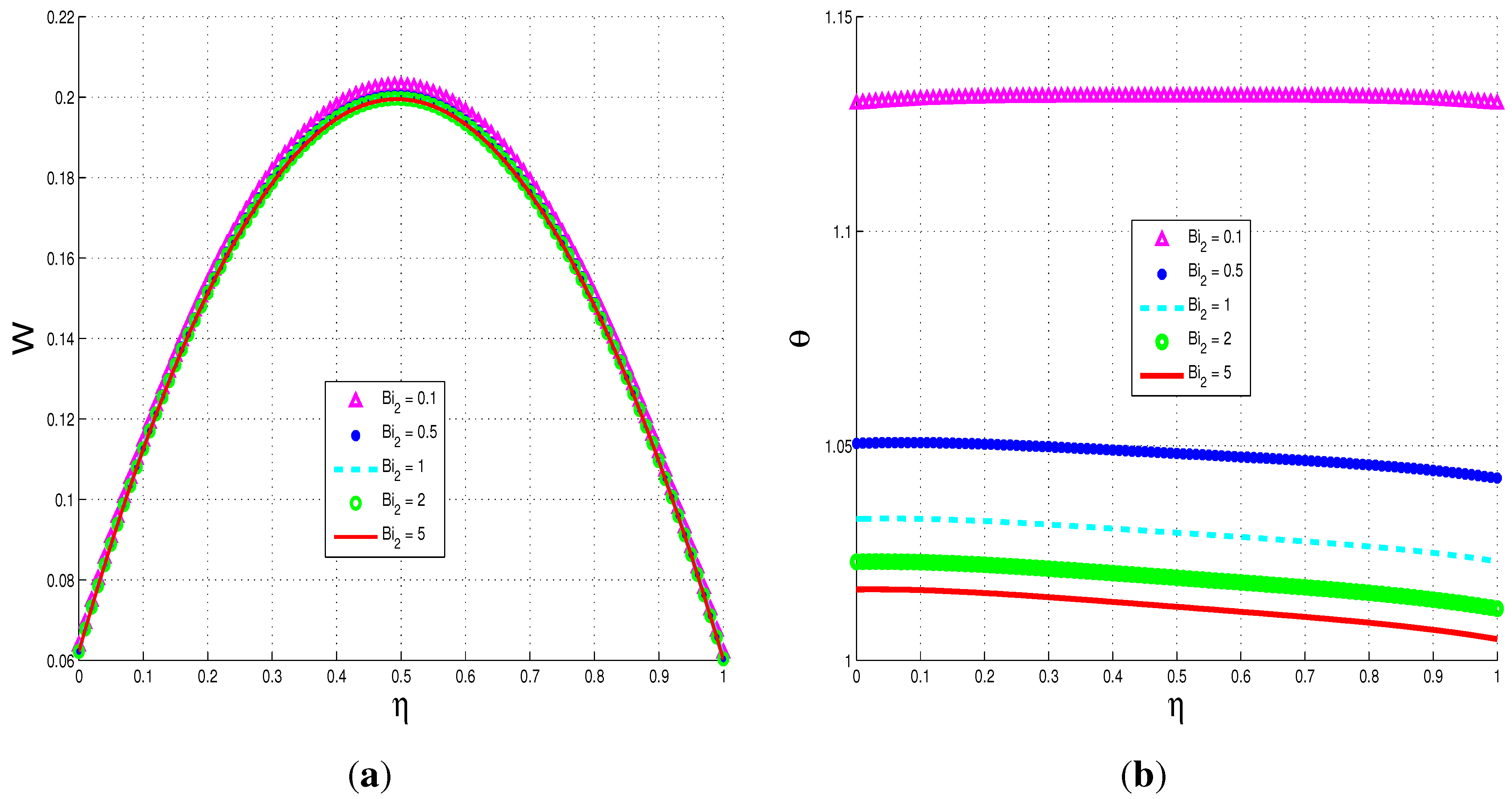

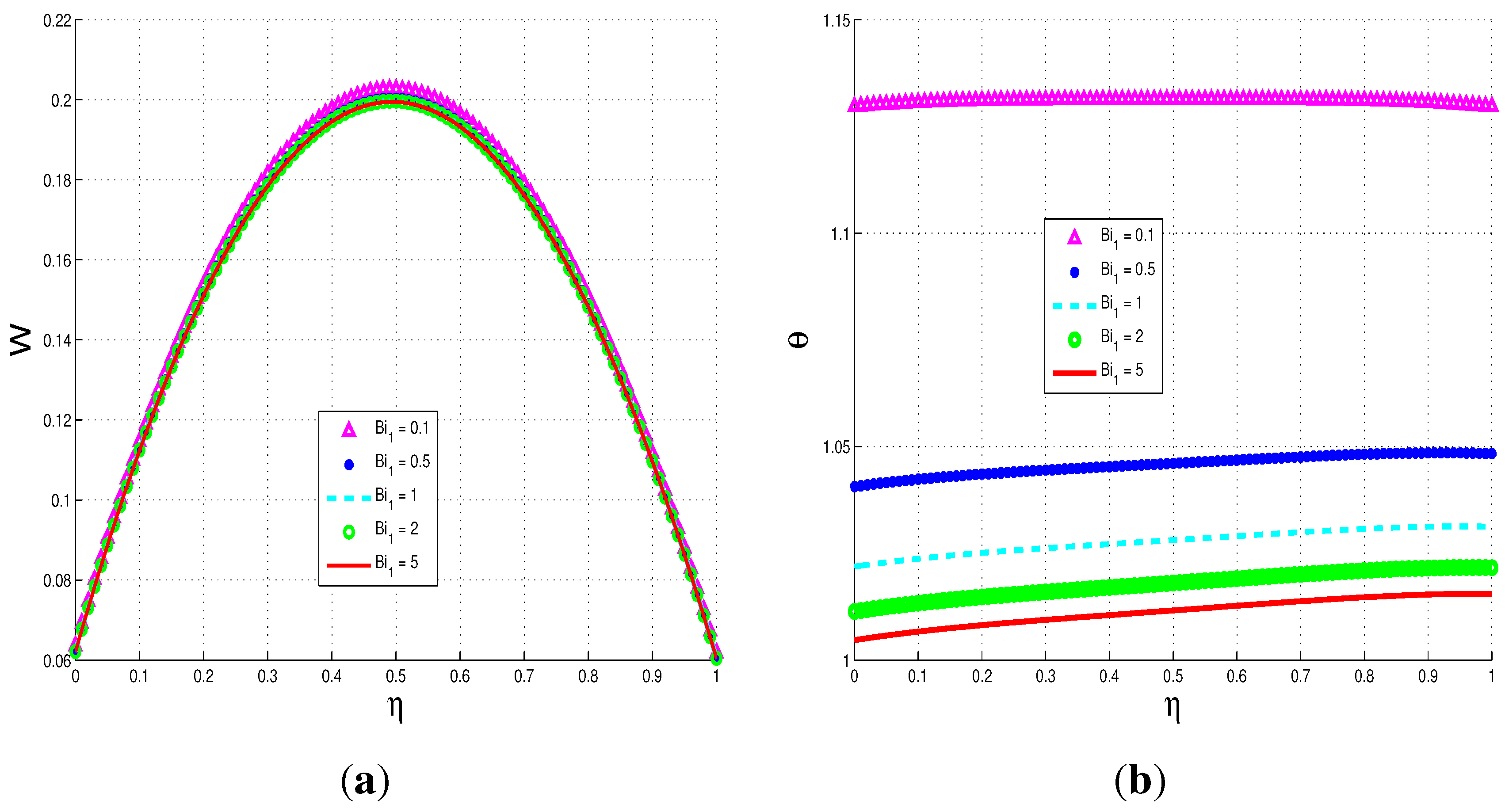

The effects of the wall Biot numbers on the velocity and temperature profiles is illustrated in Figure 7 and Figure 8.

As seen from the temperature boundary conditions (12), higher Biot numbers mean correspondingly higher degrees of convective cooling at the channel walls, thus leading to lower temperatures at the channel walls and hence also in the bulk fluid. The overall temperature profiles thus decrease with increasing Biot number as the bulk fluid continually adjusts to the lower wall temperatures.

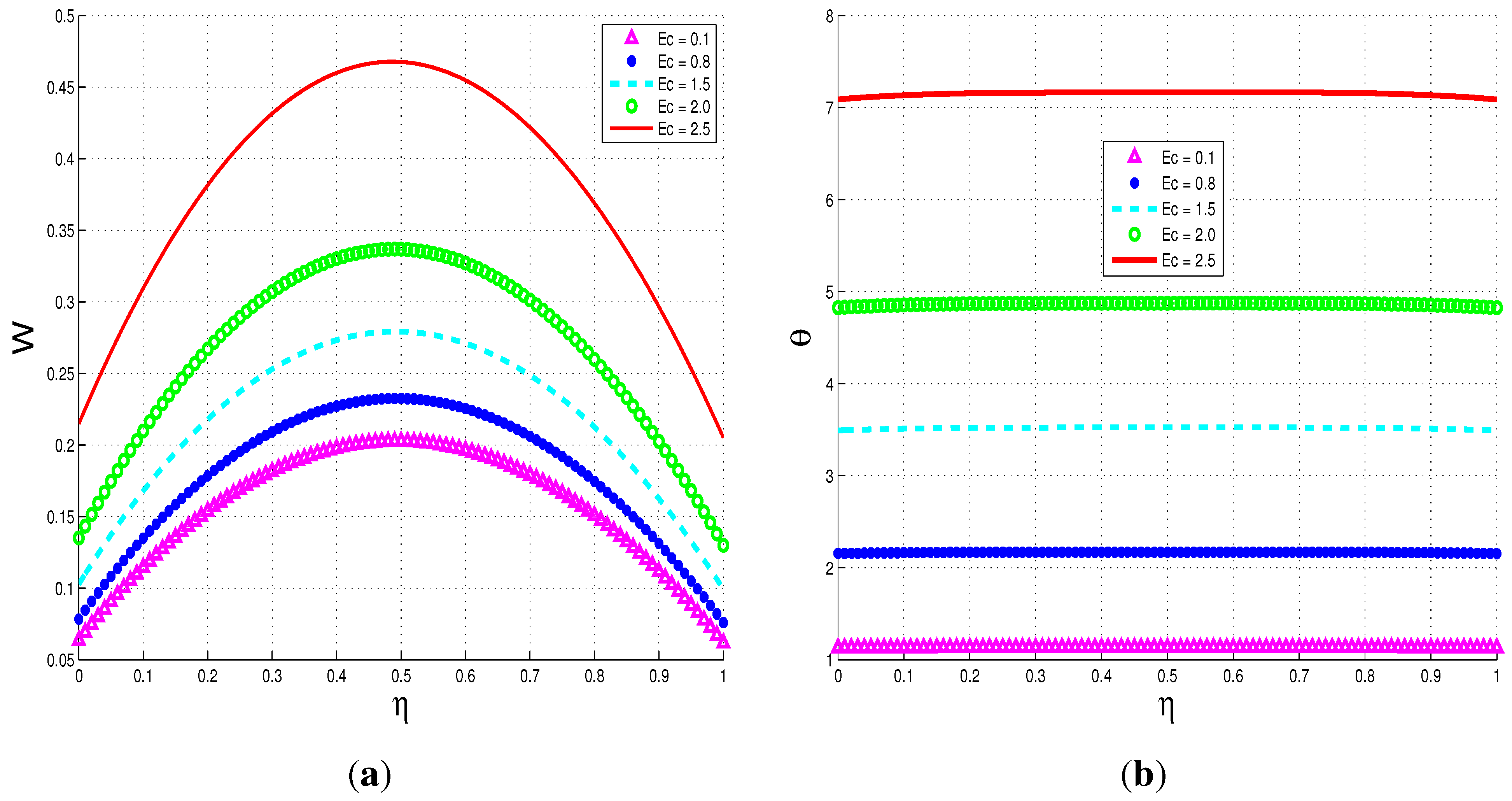

The response of the velocity and temperature to varying values of the Eckert number ($\mathrm{Ec}$) is illustrated in Figure 9.

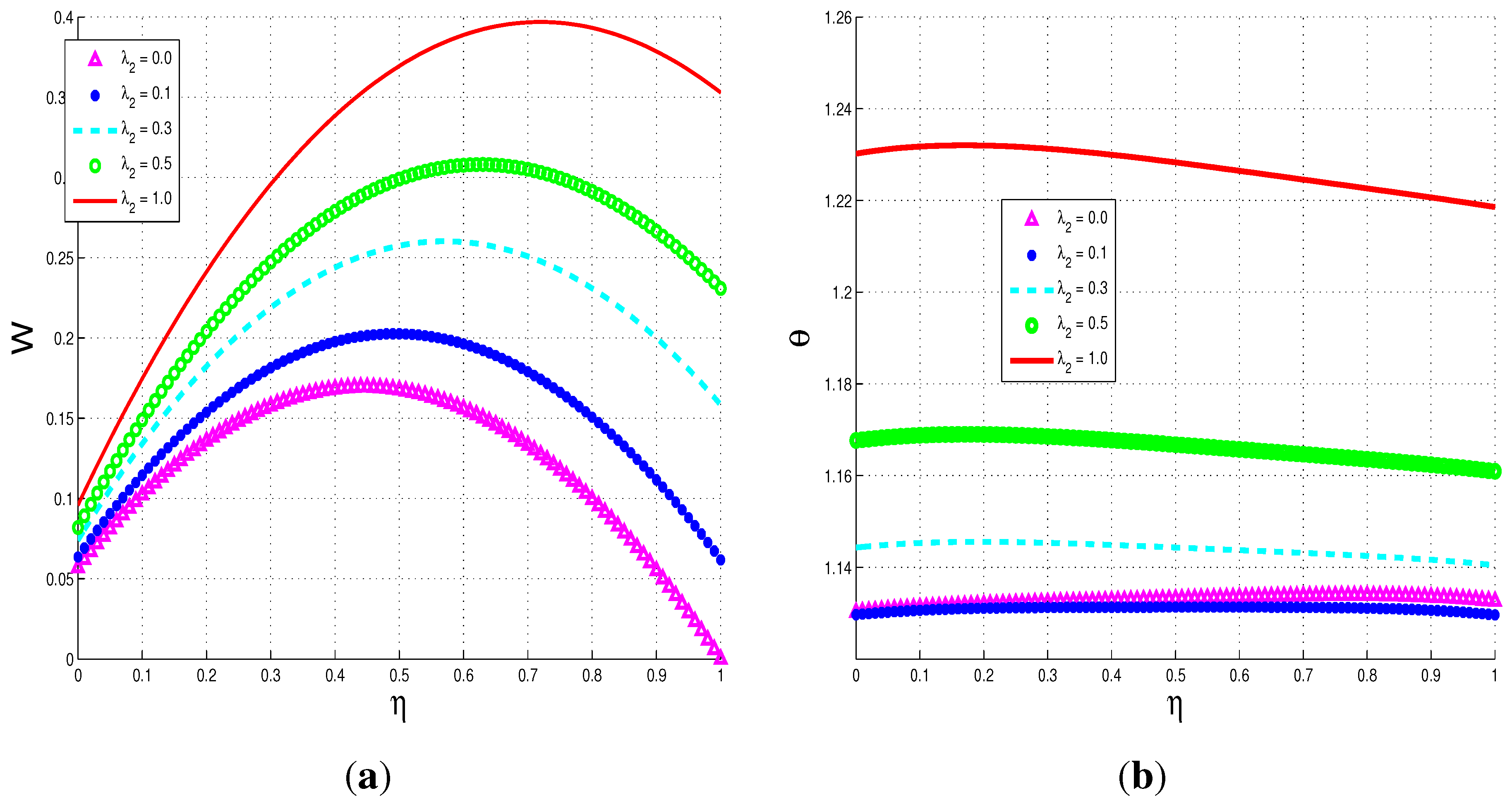

The effects of the Eckert number are similar to those for the Prandtl number. The effects of the wall slip parameters on the velocity and temperature profiles is illustrated in Figure 10 and Figure 11.

As expected, an increase in the slip parameters correspondingly increases the wall (and hence also the bulk) fluid velocity.

#### 5.3. Entropy Generation

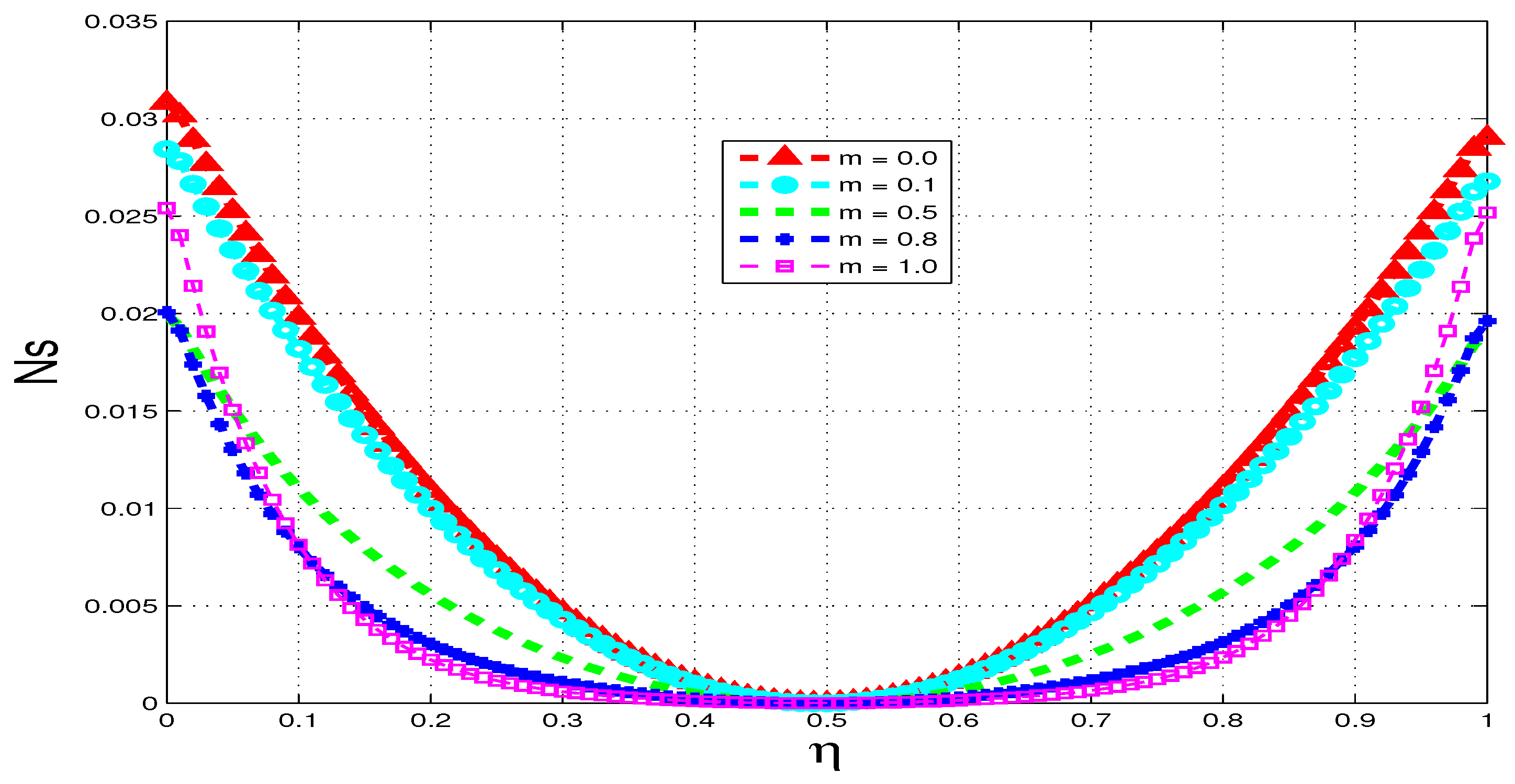

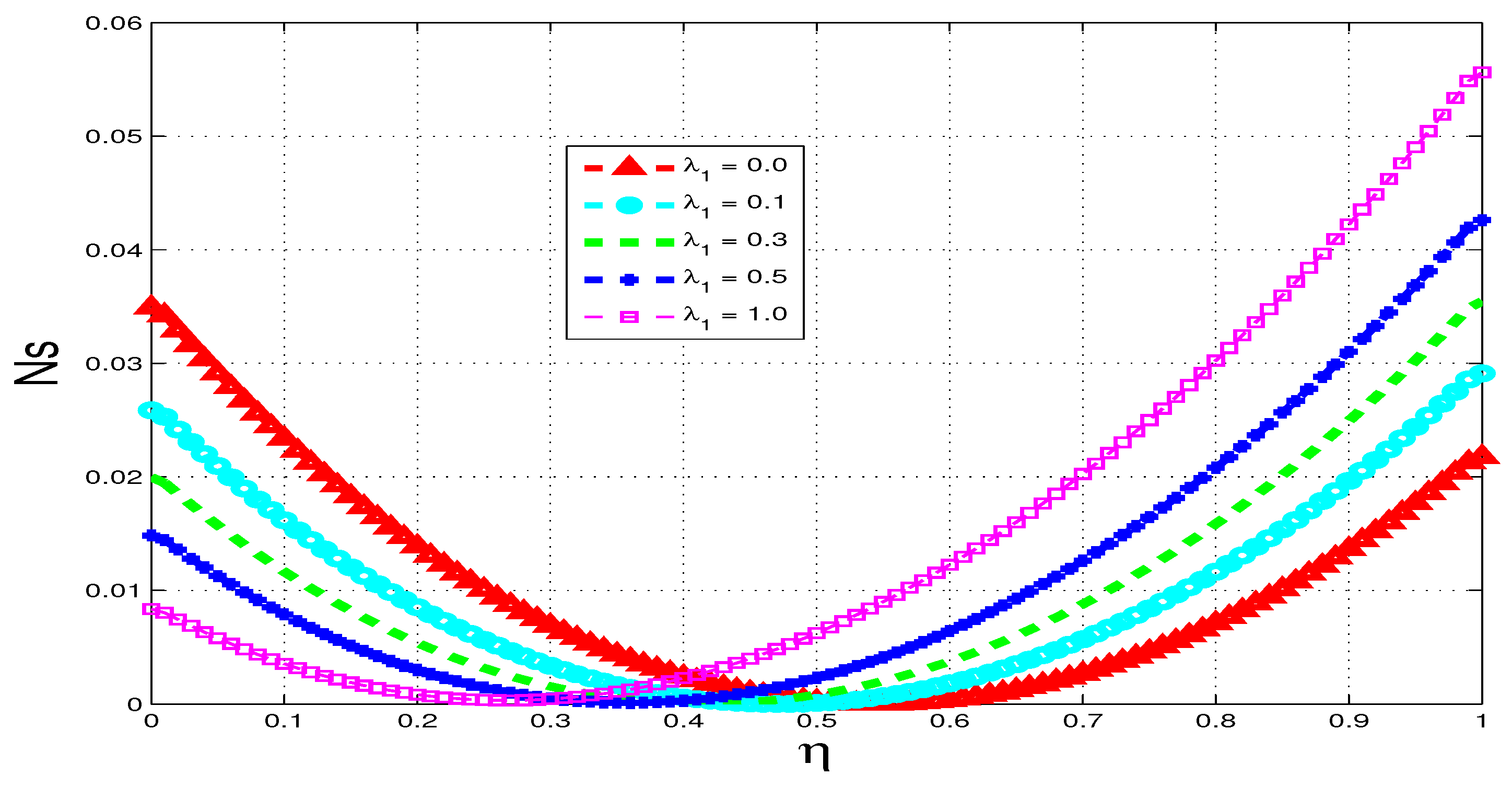

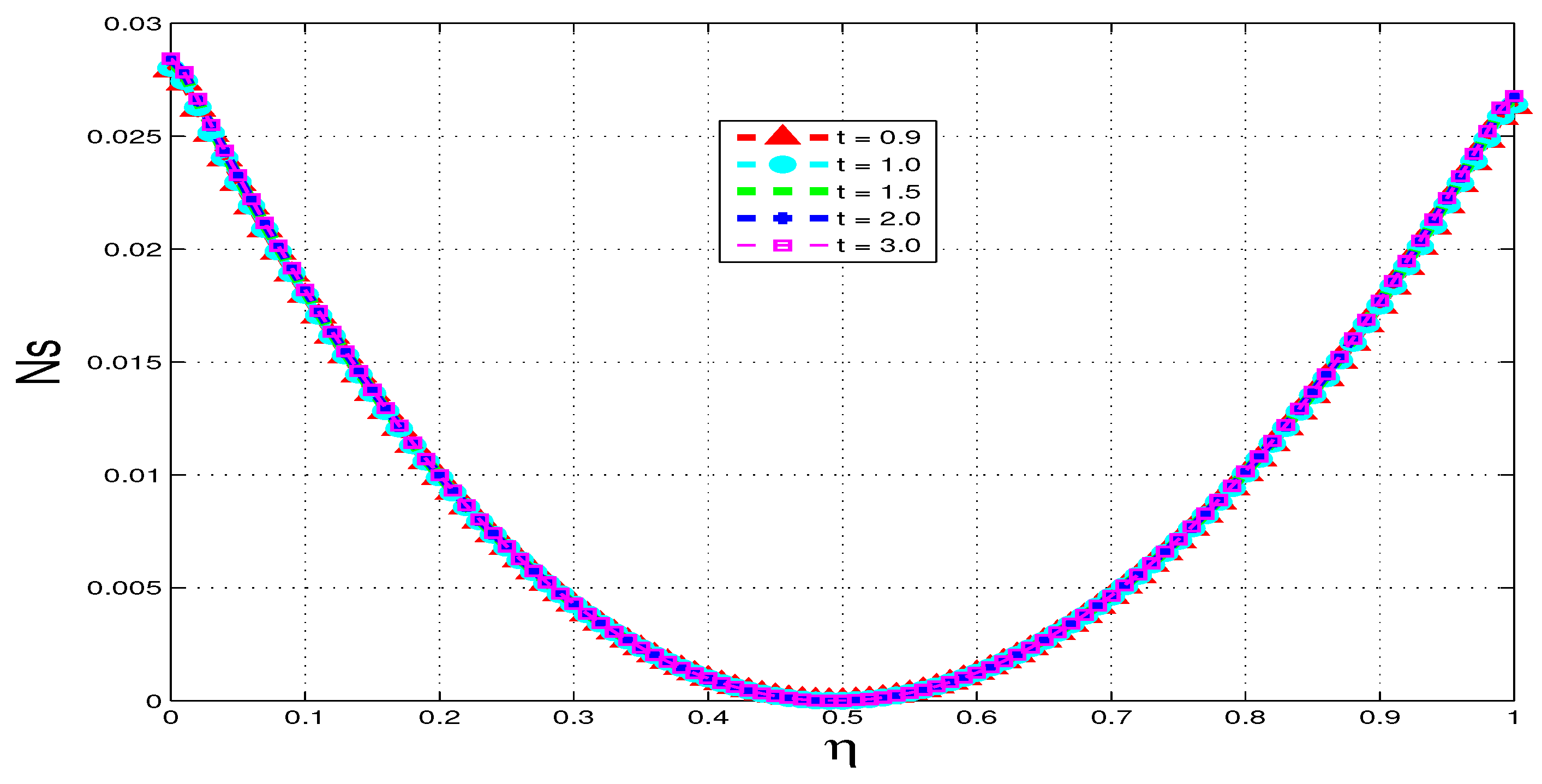

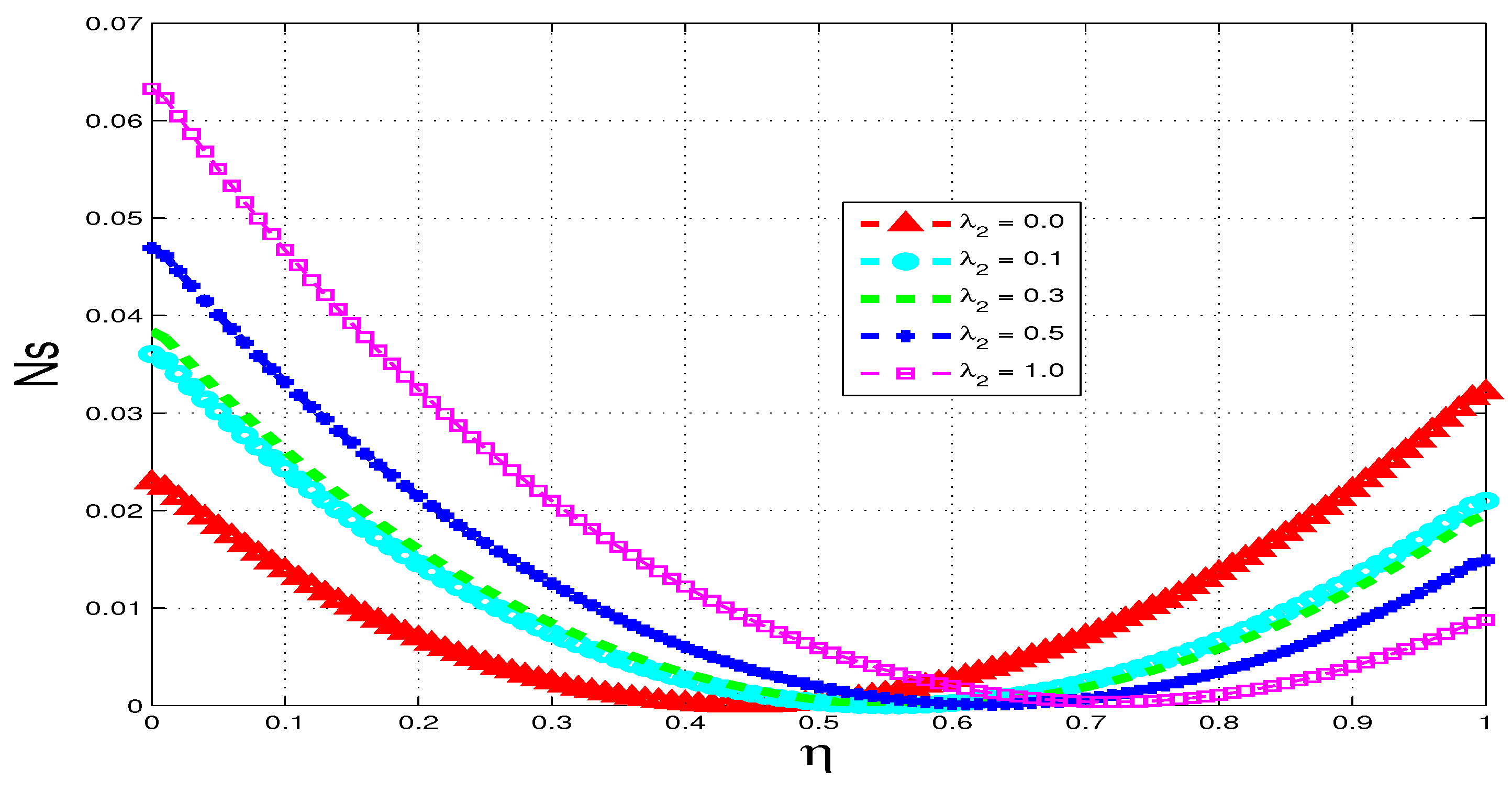

In this section, we plot the entropy generation rate $\left(\mathrm{Ns}\right)$ across the channel under varying parameter conditions. With the exception of the time evolution graphs shown in Figure 12 and Figure 13, all other graphs are drawn at the time $t=10$.

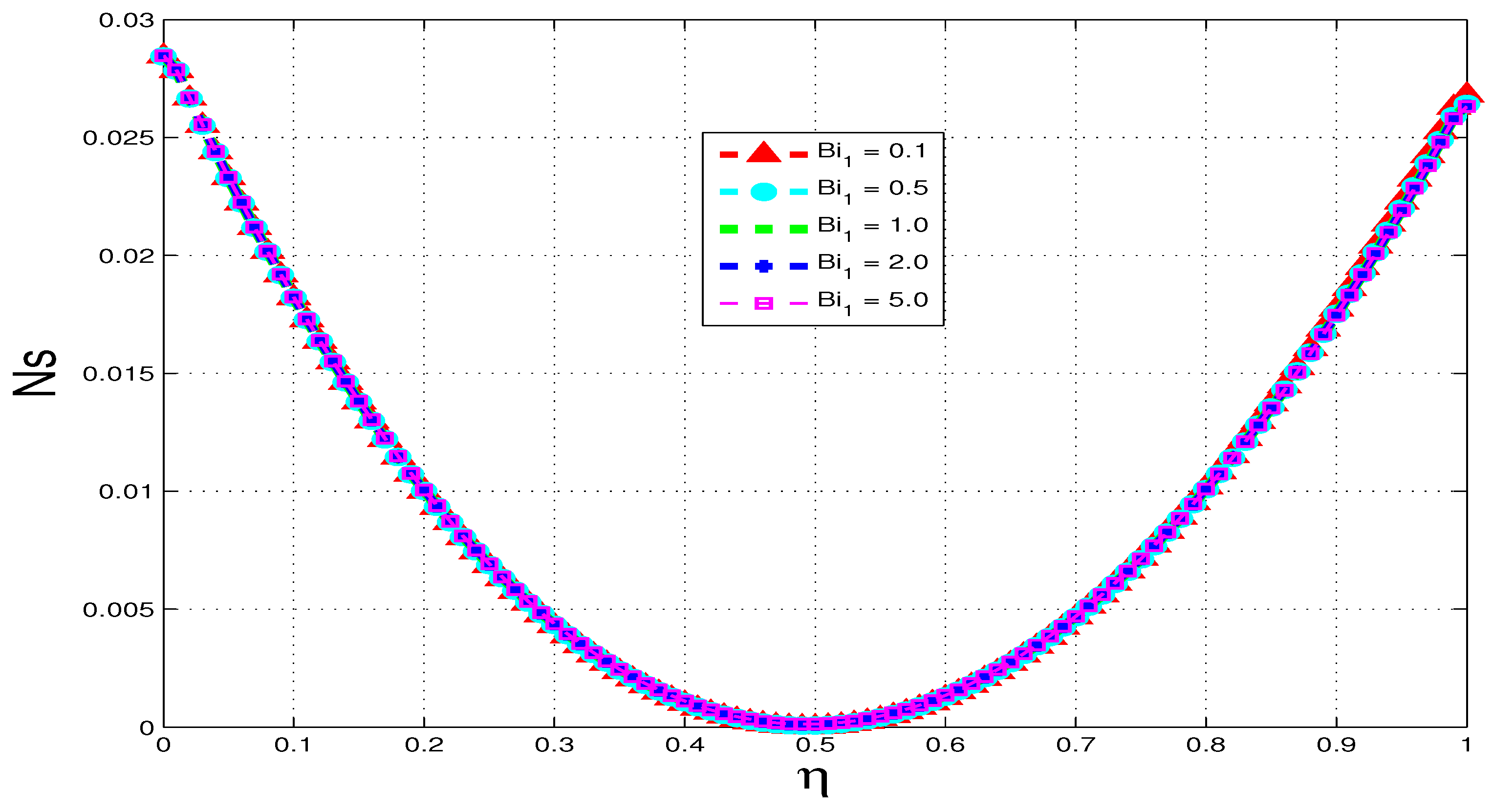

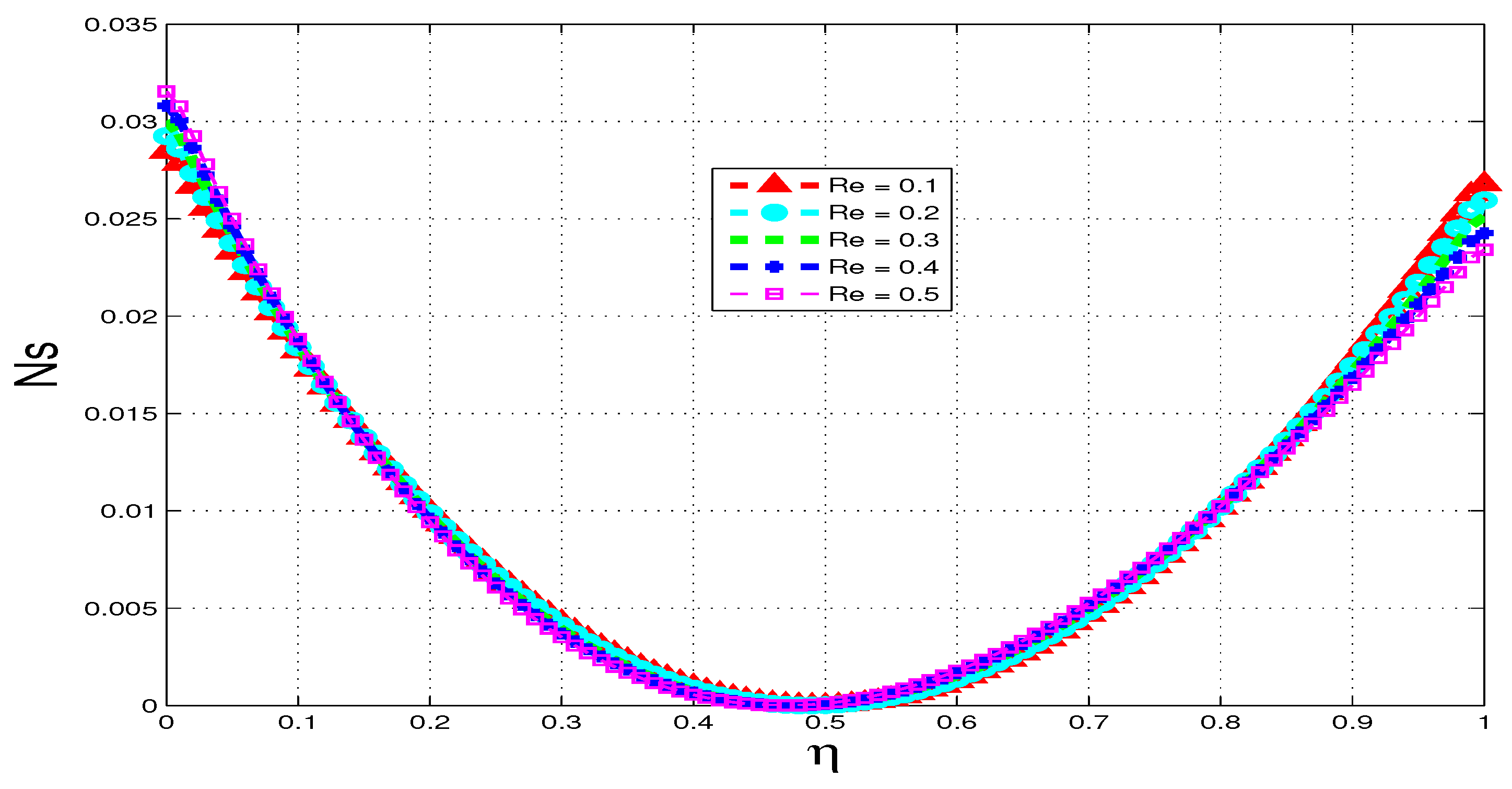

Figure 12, Figure 13, Figure 14, Figure 15, Figure 16, Figure 17, Figure 18, Figure 19, Figure 20 and Figure 21 show the expected results for $\mathrm{Ns}$. In particular, $\mathrm{Ns}$ clearly increases with $\mathrm{Br}\phantom{\rule{0.166667em}{0ex}}{\Omega}^{-1}$, and decreases with increasing m. Parameters that increase the velocity and temperature gradients also increase the entropy generation rate and vice versa. In Figure 12, Figure 13, Figure 14, Figure 15, Figure 16, Figure 17, Figure 18, Figure 19, Figure 20 and Figure 21, the entropy generation rate is expectedly maximum at the walls where velocity and temperature gradients as well as fluid viscosity are highest and minimum around the channel centerline where the maximum temperature and velocity and hence also zero temperature and velocity gradients are recorded.

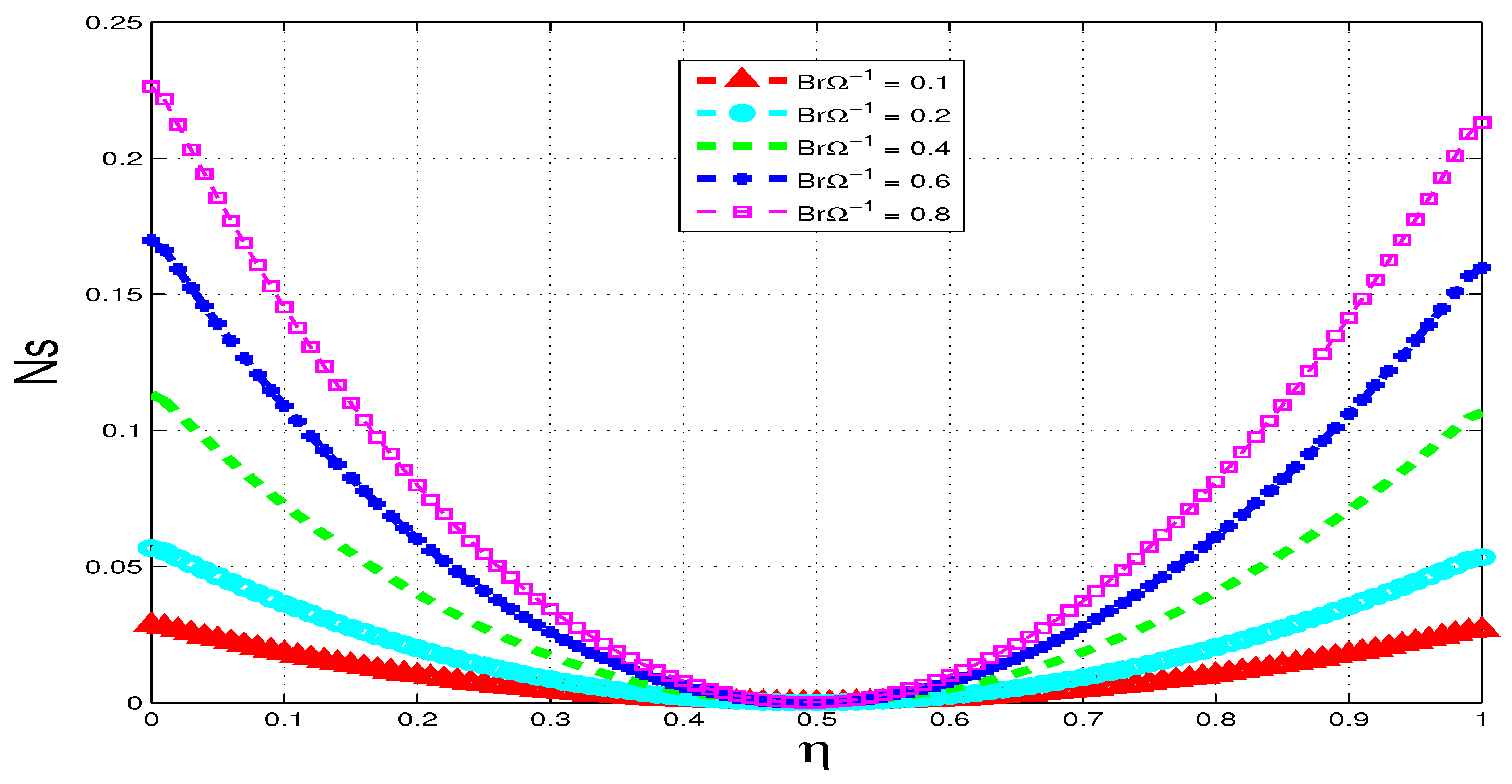

**Figure 17.**Variation of entropy generation rate with η and $\mathrm{Br}\phantom{\rule{0.166667em}{0ex}}{\Omega}^{-1}$.

#### 5.4. Bejan Number

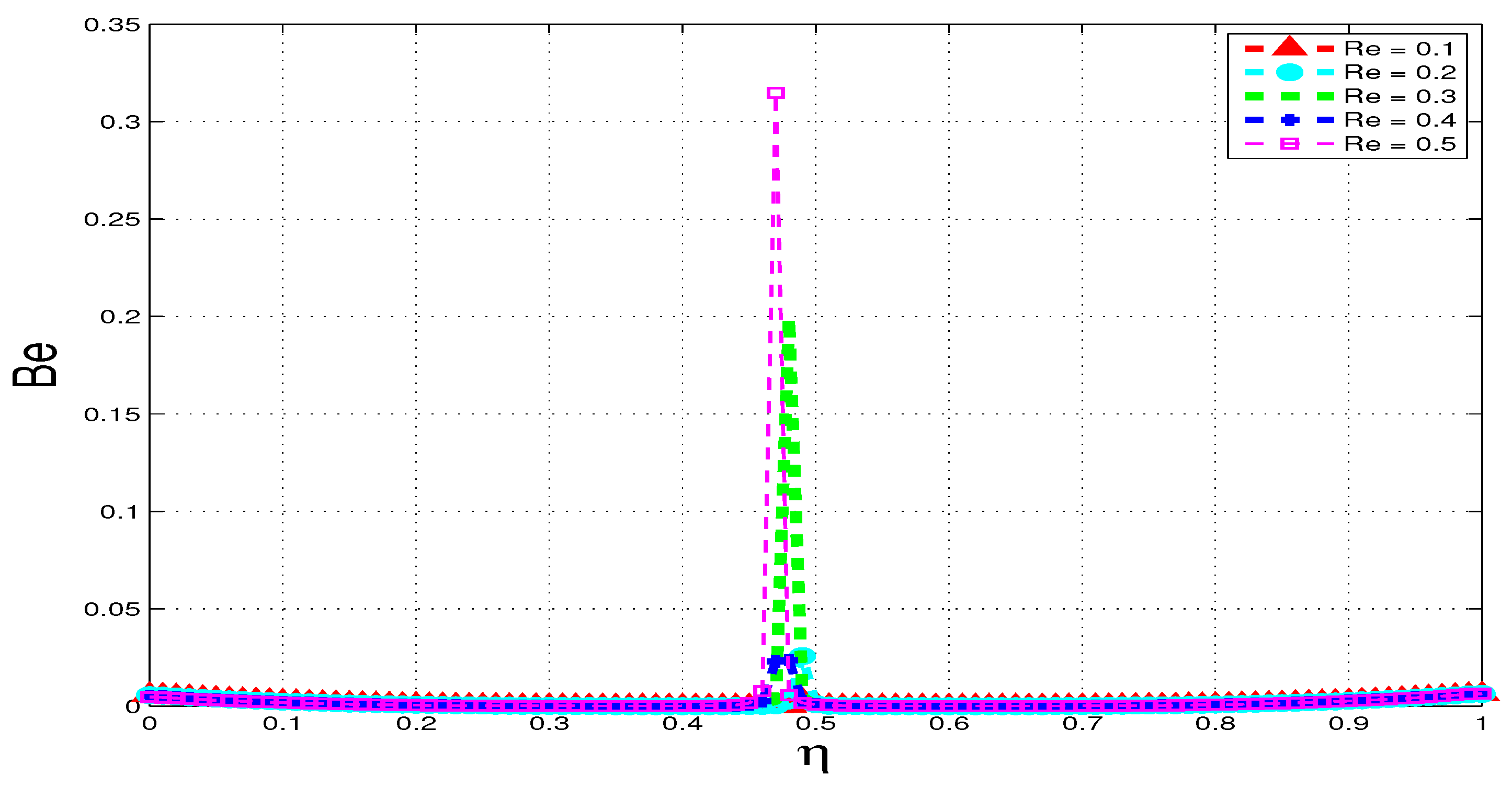

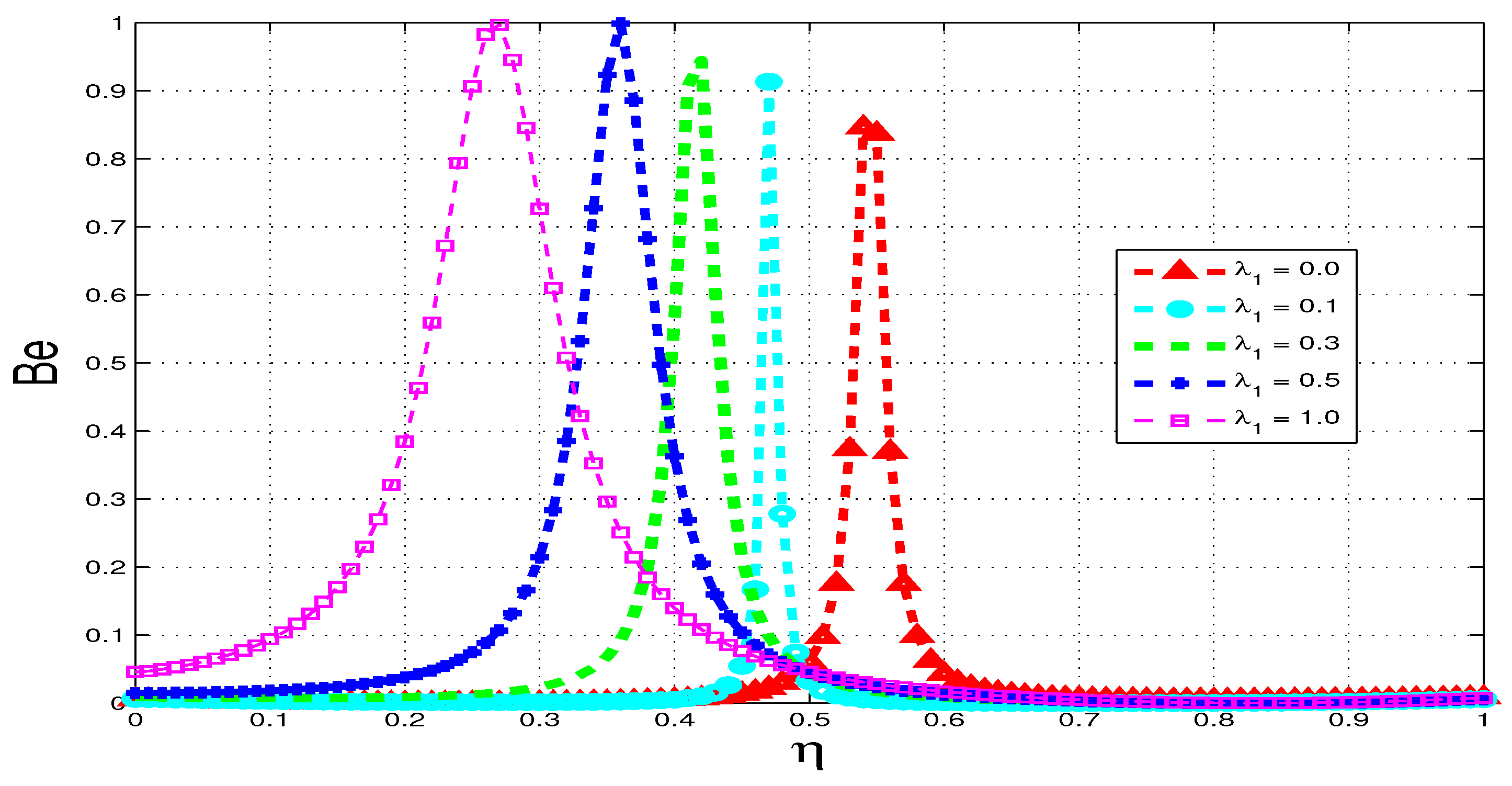

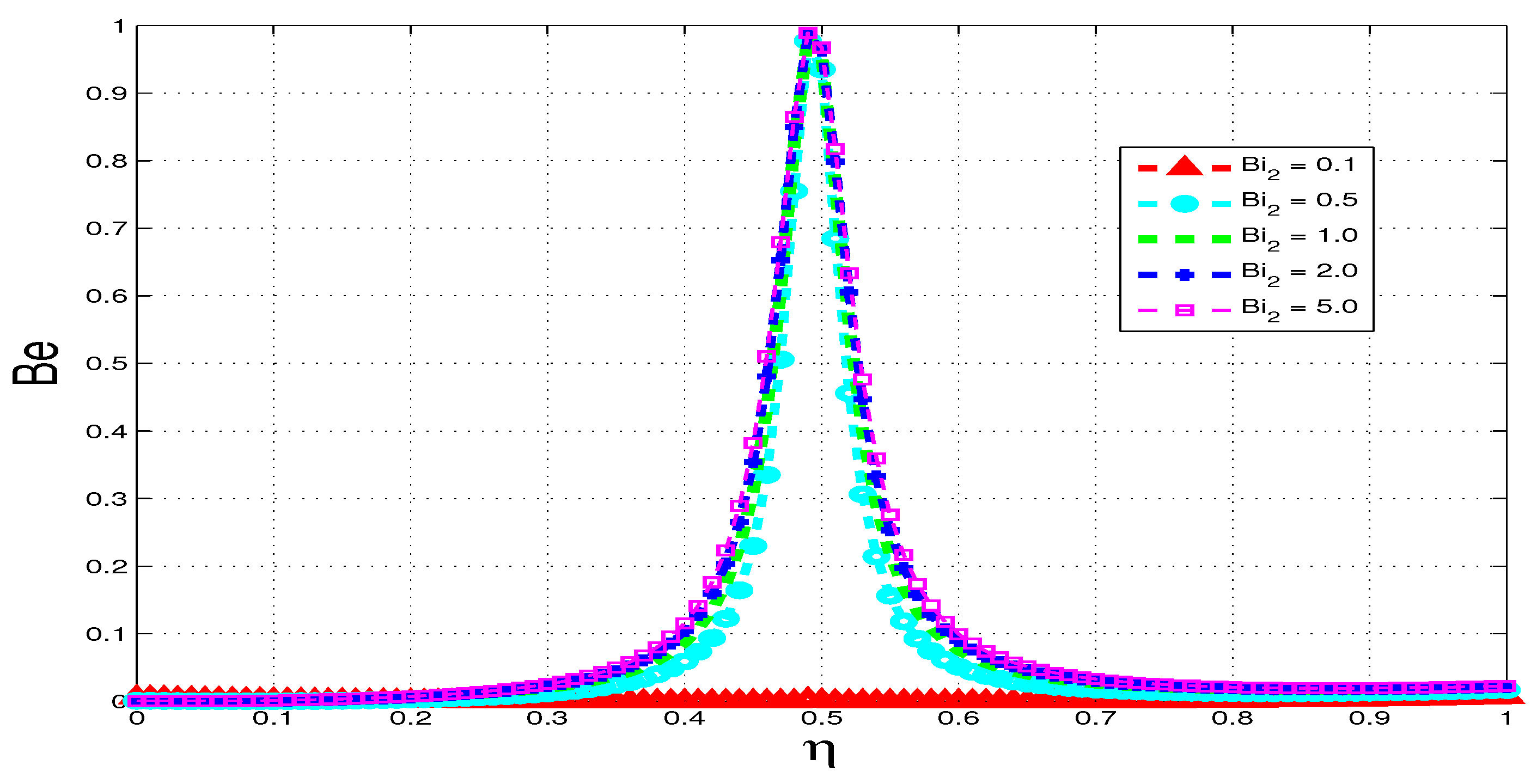

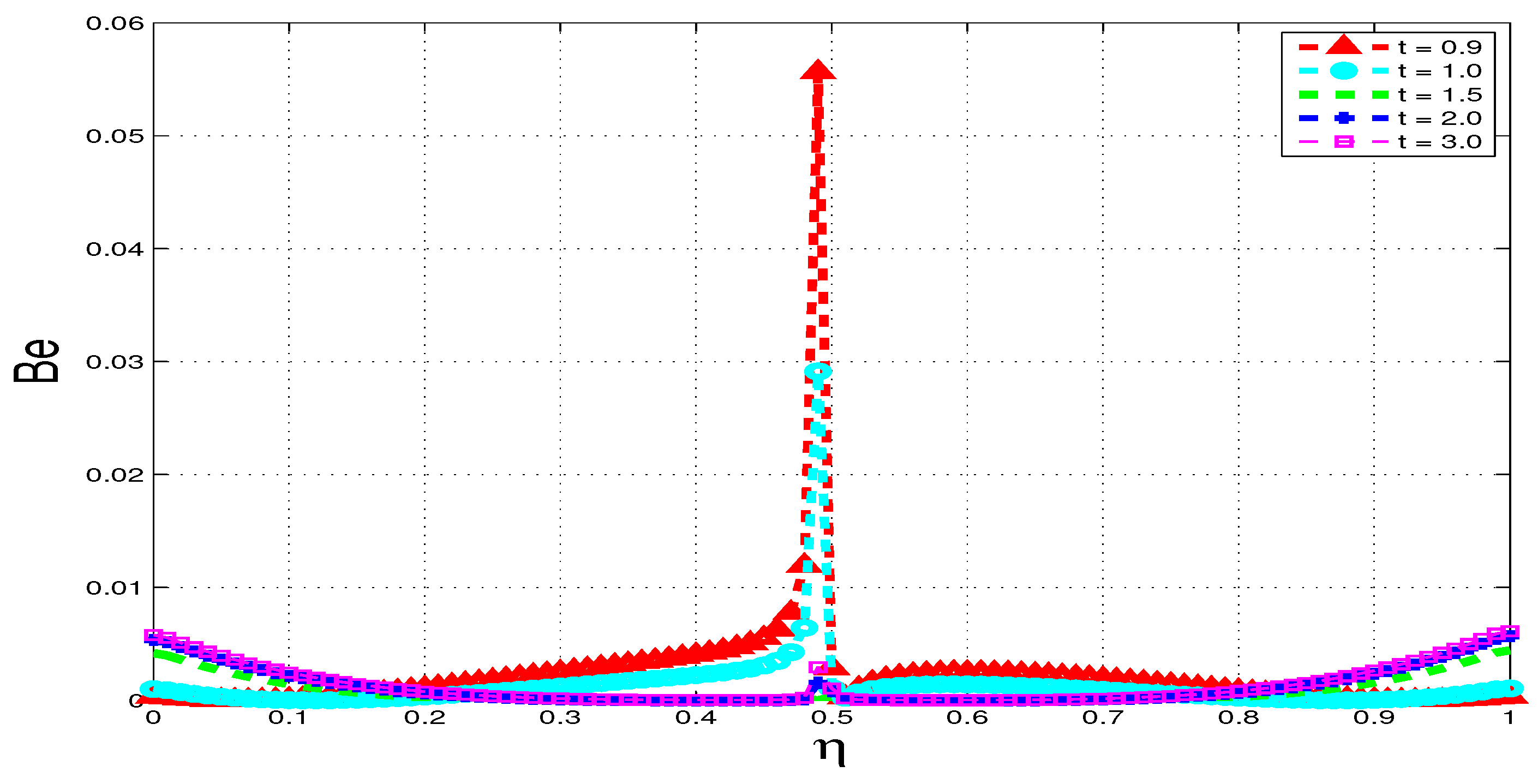

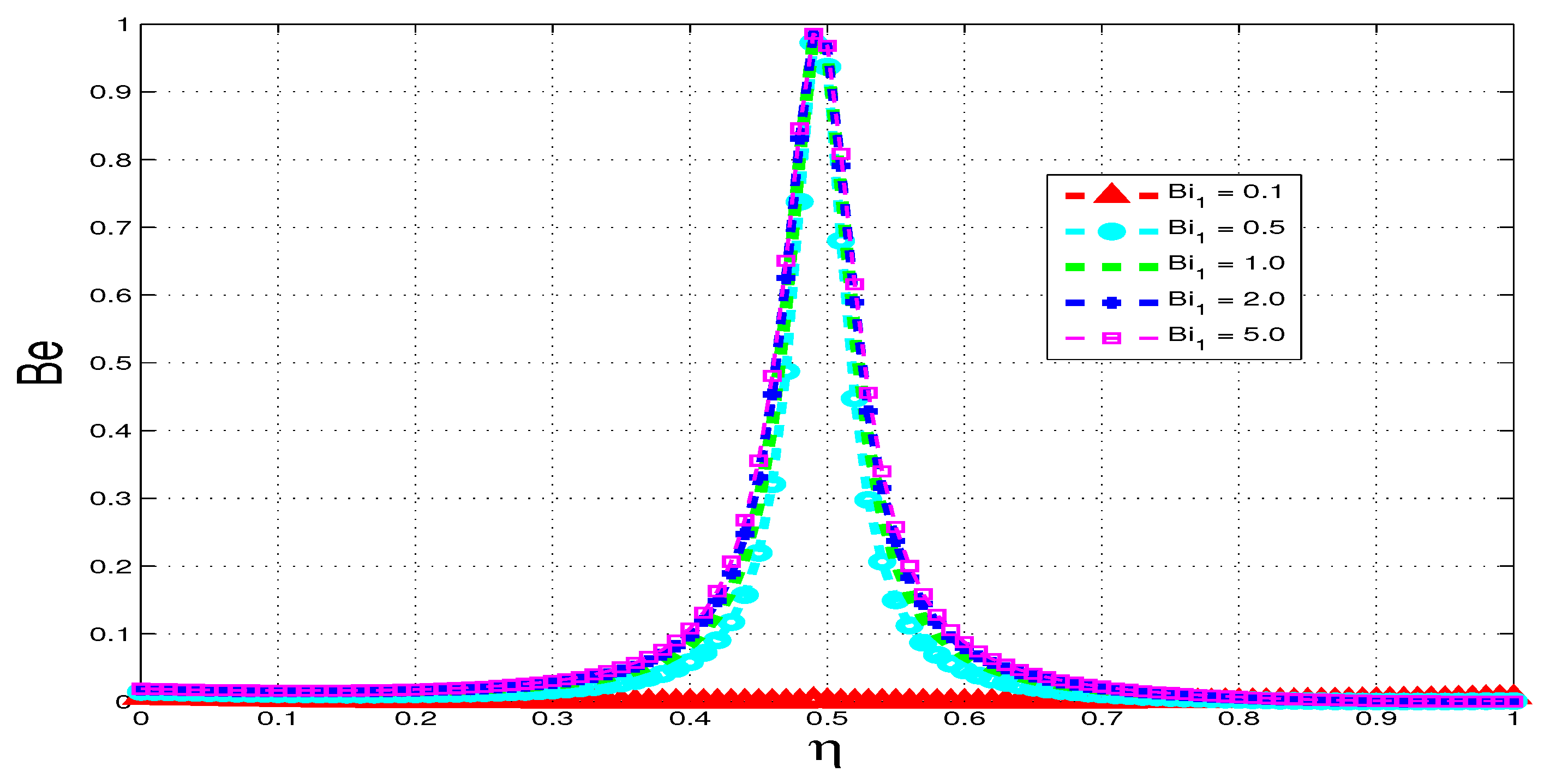

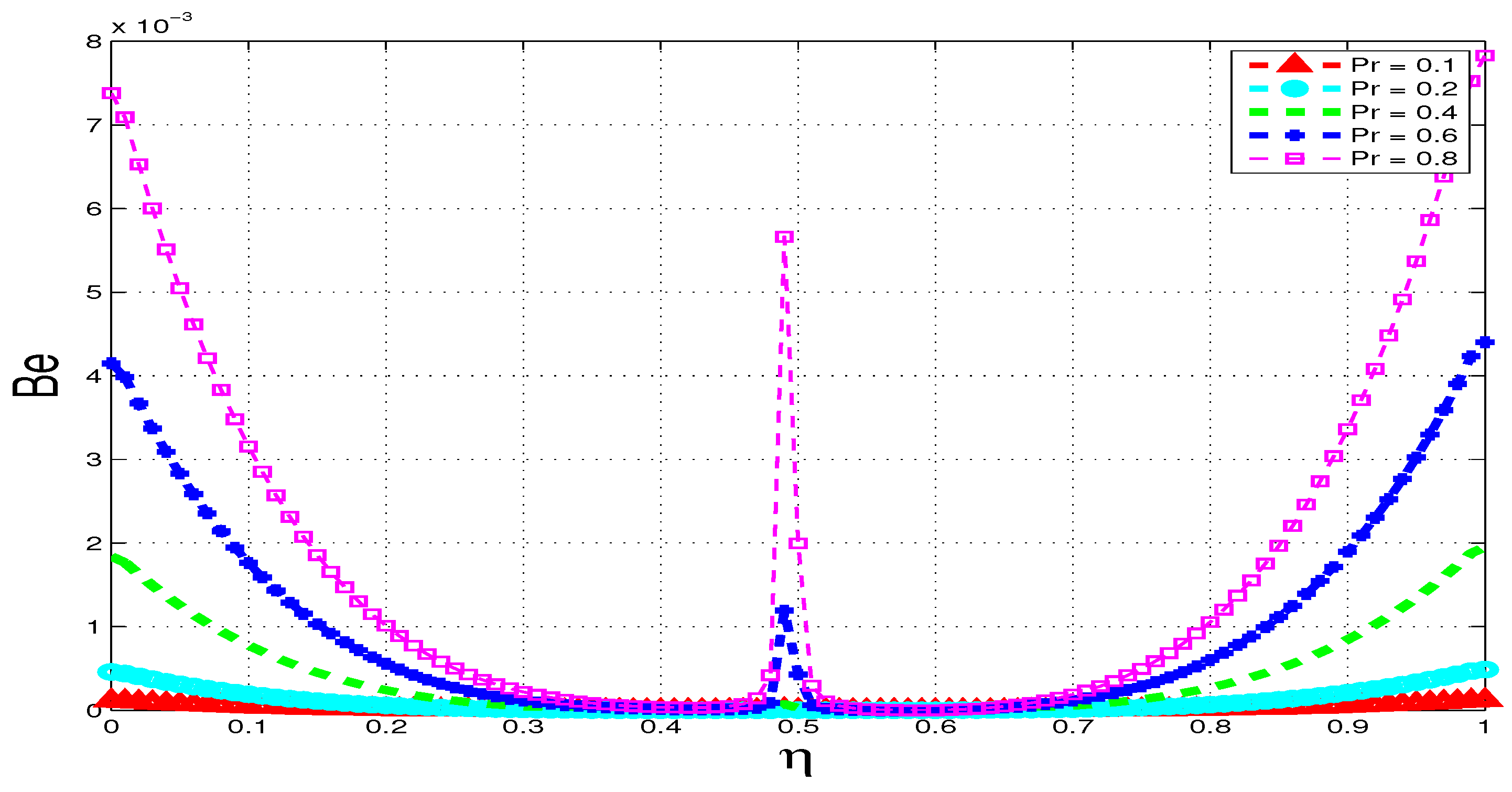

In this section, we plot the Bejan number $\left(\mathrm{Be}\right)$ across the channel under varying parameter conditions. The analysis in this section is similar to that for the previous section with $\mathrm{Ns}$ now replaced by $\mathrm{Be}$.

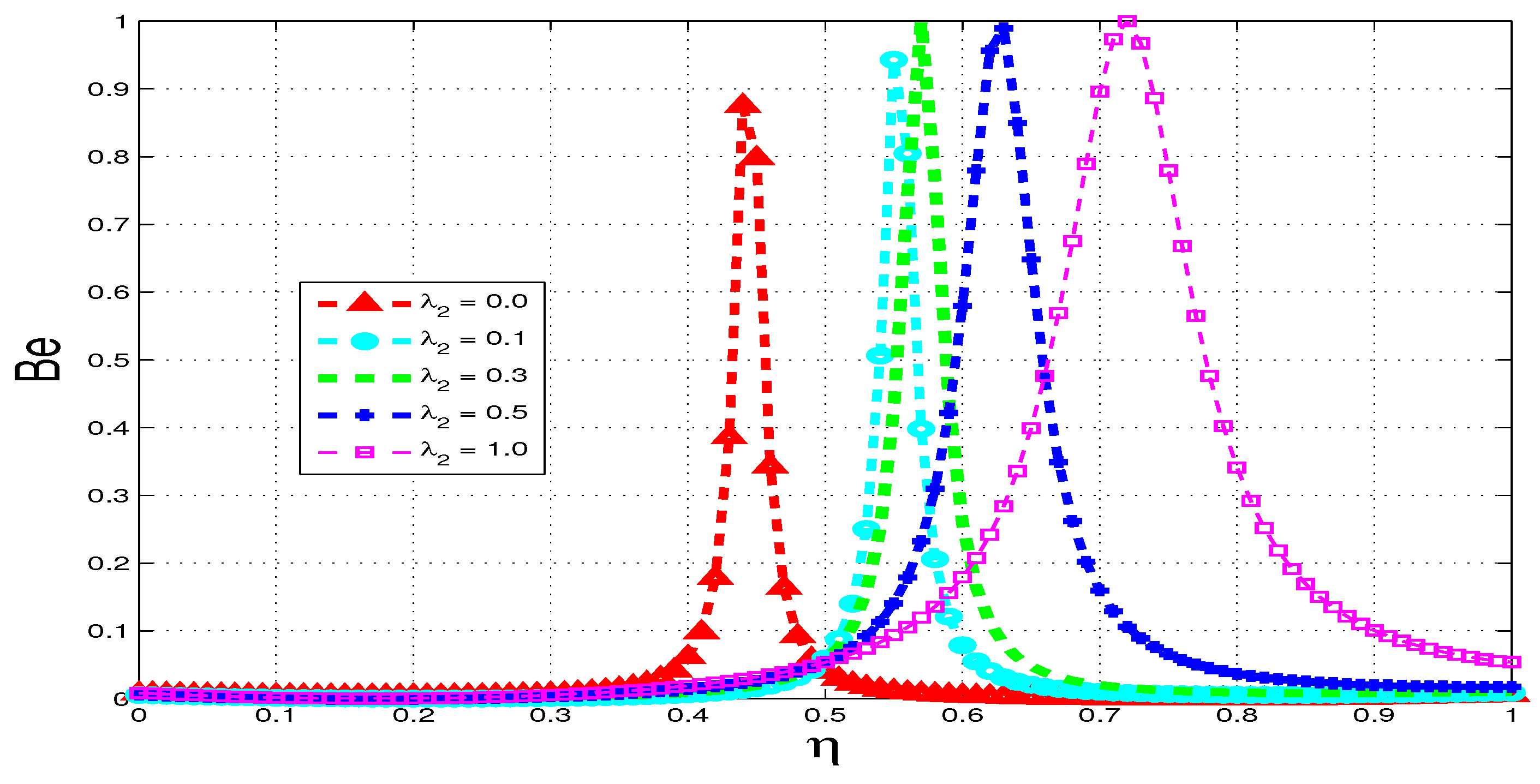

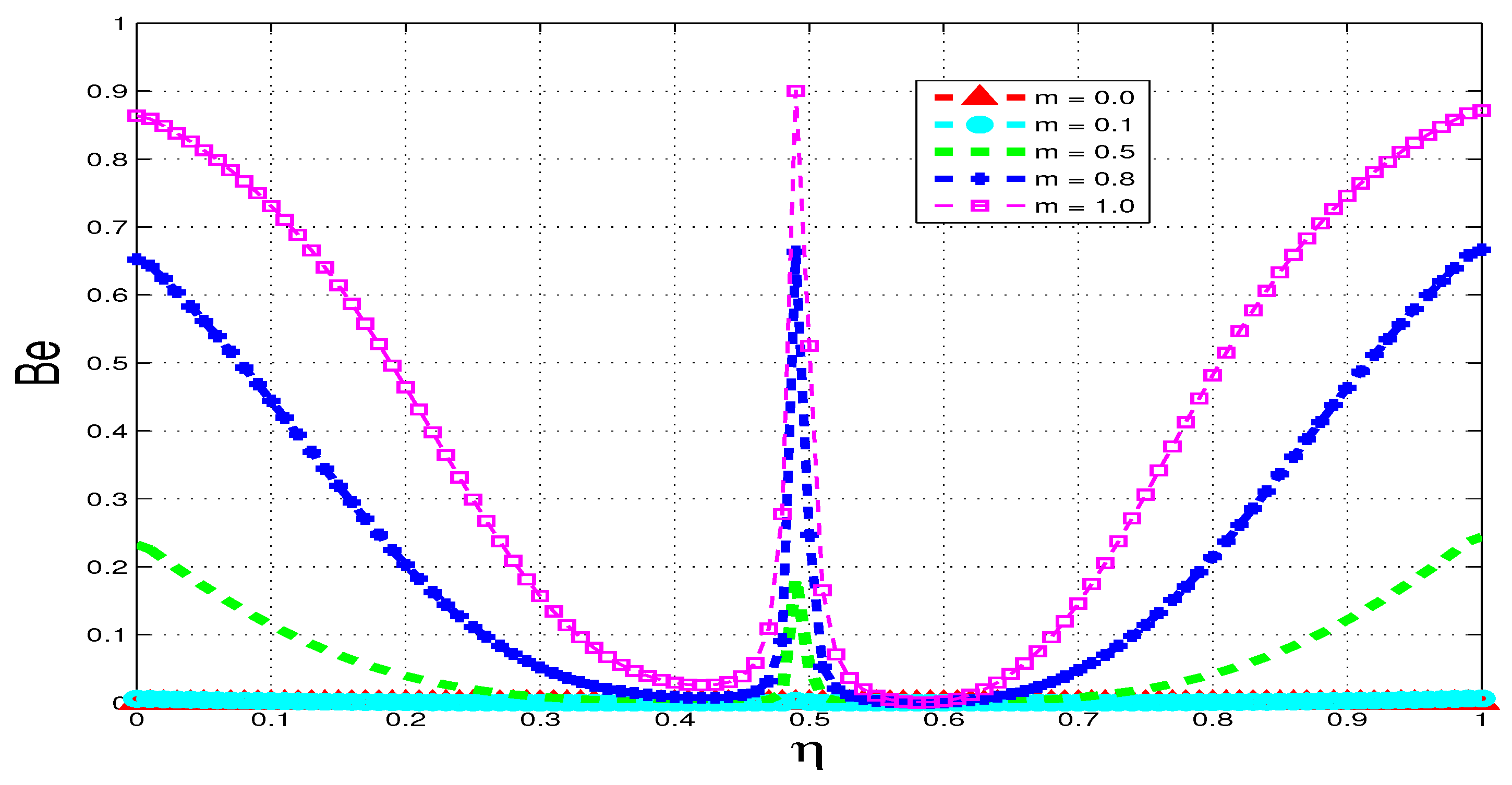

Figure 13, Figure 14, Figure 15, Figure 16, Figure 17, Figure 18, Figure 19, Figure 20, Figure 21, Figure 22, Figure 23, Figure 24, Figure 25, Figure 26, Figure 27, Figure 28 and Figure 29 show as expected that parameters that increase the entropy generation rate will correspondingly decrease the Bejan number and vice versa.

Away from the wall (i.e., inside the main flow), the fluid friction with magnetic field irreversibility strongly dominates over heat transfer irreversibility. In the vicinity of the wall, the strength of the fluid parameters will determine which mode of irreversibility dominates over the other.

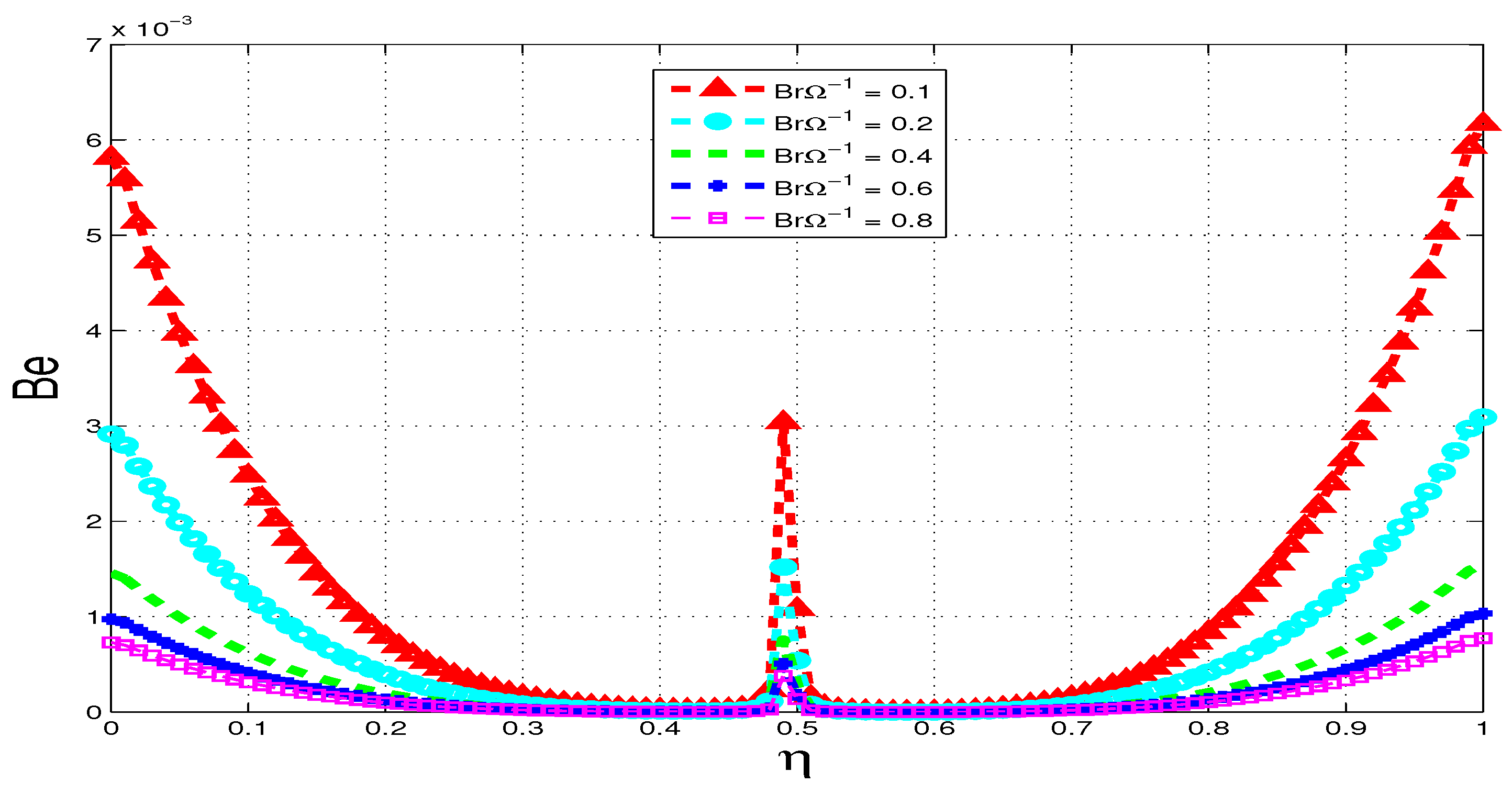

**Figure 25.**Variation of Bejan number with η and $\mathrm{Br}\phantom{\rule{0.166667em}{0ex}}{\Omega}^{-1}$.

## 6. Conclusions

We computationally investigate the combined entropy generation rate in an unsteady porous channel flow with Navier slip subjected to asymmetrical convective boundary conditions. A major observation in the current work is the reduction in heat generation due to the presence of uniform suction/injection. We also notice that due to the nature of the coupling of the source terms, the fluid velocity and temperature either both increase or both decrease together. We have also demonstrated computationally that parameters that increase the entropy generation rate will correspondingly decrease the Bejan number and vice versa. In particular wall subjected to higher slip (i.e., lower viscosity) will have lower viscosities but higher Bejan numbers and vice versa.
