# Moving Frames of Reference, Relativity and Invariance in Transfer Entropy and Information Dynamics

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

- (1)
- a space-time interpretation for the relevant variables in the system; and
- (2)
- some frame of reference for the observer, which can be moving in space-time in the system while the measures are computed.

## 2. Dynamics of Computation in Cellular Automata

- blinkers as the basis of information storage, since they periodically repeat at a fixed location;
- particles as the basis of information transfer, since they communicate information about the dynamics of one spatial part of the CA to another part; and
- collisions between these structures as information modification, since collision events combine and modify the local dynamical structures.

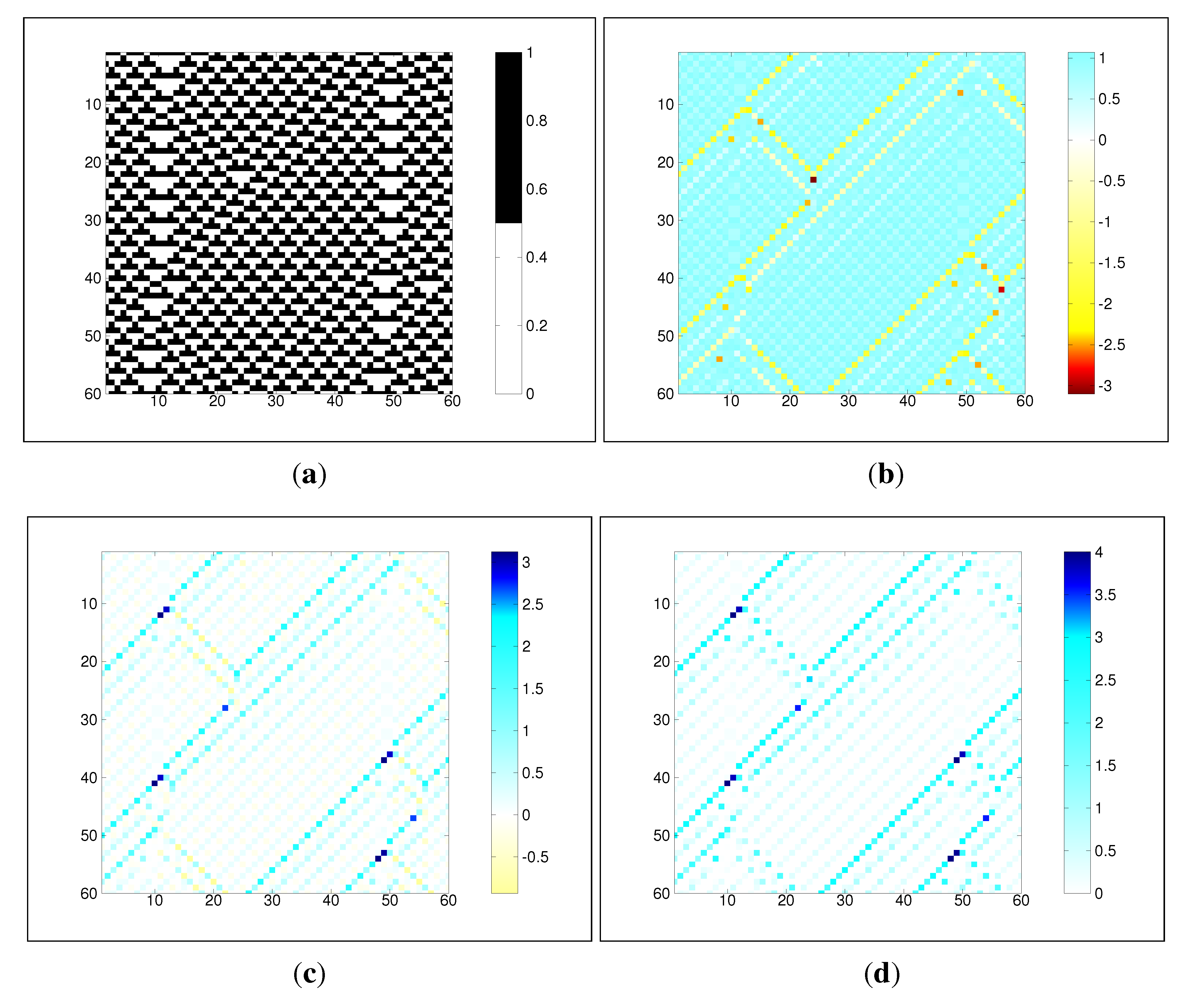

**Figure 1.**Measures of information dynamics applied to ECA Rule 54 with a stationary frame of reference (all units in (b)–(d) are in bits). Time increases down the page for all plots. (

**a**) Raw CA; (

**b**) Local active information storage $a(i,n,k=16)$; (

**c**) Local apparent transfer entropy $t(i,j=-1,n,k=16)$; (

**d**) Local complete transfer entropy ${t}^{c}(i,j=-1,n,k=16)$.

## 3. Information-theoretic Quantities

## 4. Framework for Information Dynamics

#### 4.1. Information Storage

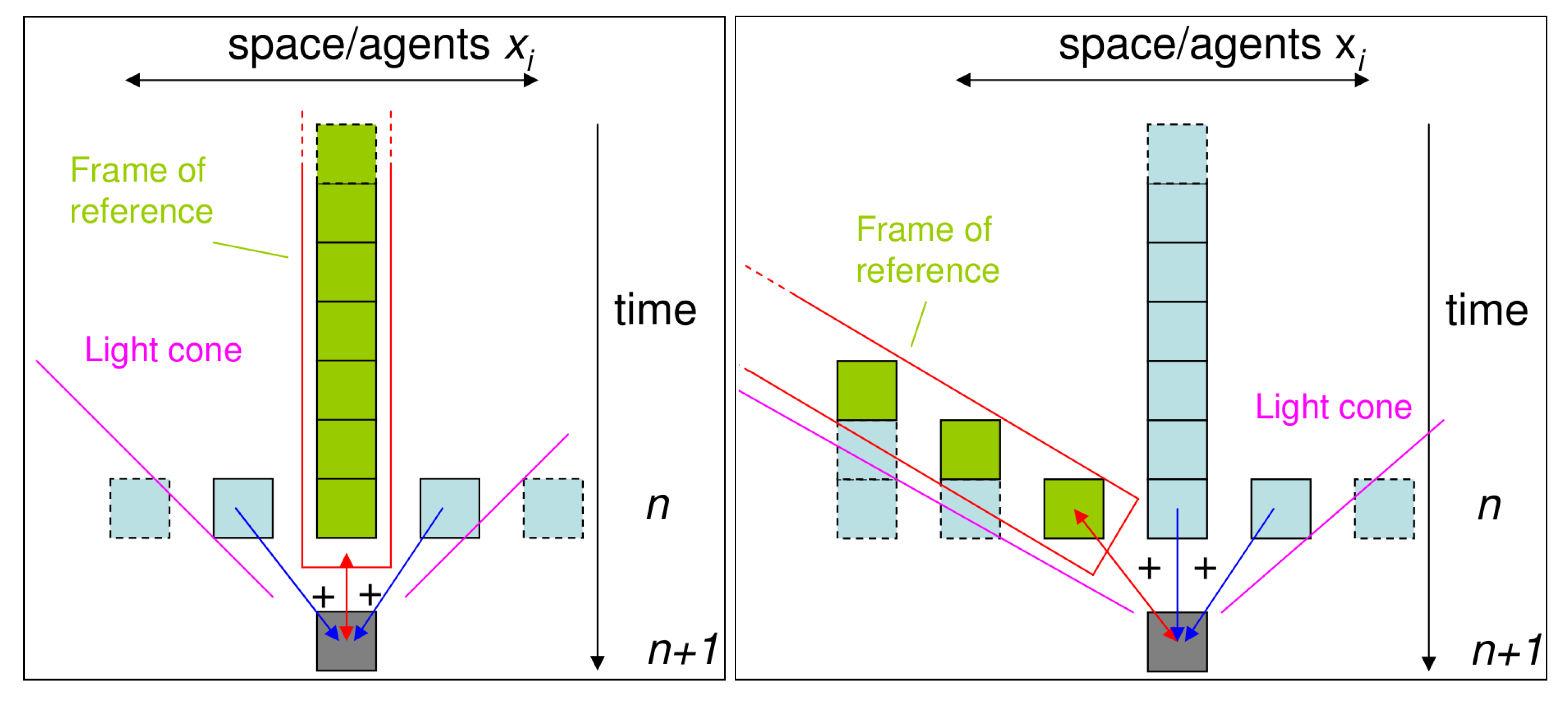

**Figure 2.**Local information dynamics for a lattice system with speed of light $c=1$ unit per time step: (

**a**) (left) with stationary frame of reference ($f=0$); (

**b**) (right) with moving frame of reference $f=1$ (i.e., at one cell to the right per unit time step). Red double-headed arrow represents active information storage $a(i,n+1,f)$ from the frame of reference; the blue single-headed arrow represent transfer entropy $t(i,j,n+1,f)$ from each source orthogonal to the frame of reference. Note that the frame of reference in the figures is the path of the moving observer through space-time.

#### 4.2. Information Transfer

## 5. Information Dynamics for a Moving Observer

#### 5.1. Meaning of the Use of the Past State

- (1)
- To separate information storage and transfer. As described above, we know that ${x}_{n}^{\left(k\right)}$ provides information storage for use in computation of the next value ${x}_{n+1}$. The conditioning on the past state in the transfer entropy ensures that none of that information storage is counted as information transfer (where the source and past hold some information redundantly) [5,6].
- (2)
- To capture the state transition of the destination variable. We note that Schreiber’s original description of the transfer entropy [9] can be rephrased as the information provided by the source about the state transition in the destination. That ${x}_{n}^{\left(k\right)}\to {x}_{n+1}$ (or including redundant information ${x}_{n}^{\left(k\right)}\to {x}_{n+1}^{\left(k\right)}$) is a state transition is underlined in that the ${x}_{n}^{\left(k\right)}$ are embedding vectors [35], which capture the underlying state of the process.
- (3)
- To examine the information composition of the next value ${x}_{n+1}$ of the destination in the context of the past state ${x}_{n}^{\left(k\right)}$ of the destination. With regard to the transfer entropy, we often describe the conditional mutual information as “conditioning out” the information contained in ${x}_{n}^{\left(k\right)}$, but this nomenclature can be slightly misleading. This is because, as pointed out in Section 4.2, a conditional mutual information can be larger or smaller than the corresponding unconditioned form, since the conditioning both removes information redundantly held by the source variable and the conditioned variable (e.g., if the source is a copy of the conditioned variable) and adds information synergistically provided by the source and conditioned variables together (e.g., if the destination is an XOR-operation of these variables). As such, it is perhaps more useful to describe the conditioned variable as providing context to the measure, rather than “conditioning out” information. Here then, we can consider the past state ${x}_{n}^{\left(k\right)}$ as providing context to our analysis of the information composition of the next value ${x}_{n+1}$.

#### 5.2. Information Dynamics with a Moving Frame of Reference

#### 5.3. Invariance

#### 5.4. Hypotheses and Expectations

- The two contexts or frames of reference in fact provide the same information redundantly about the next state (and in conjunction with the sources for transfer entropy measurements).
- Neither context provides any relevant information about the next state at all.

- Regular background domains appearing as information storage regardless of movement of the frame of reference, since their spatiotemporal structure renders them predictable in both moving and stationary frames. In this case, both the stationary and moving frames would retain the same information redundantly regarding how their spatiotemporal pattern evolves to give the next value of the destination in the domain;
- Gliders moving at the speed of the frame appearing as information storage in the frame, since the observer will find a large amount of information in their past observations that predict the next state observed. In this case, the shift of frame incorporates different information into the new frame of reference, making that added information appear as information storage;
- Gliders that were stationary in the stationary frame appearing as information transfer in the channel $j=0$ when viewed in moving frames, since the $j=0$ source will add a large amount of information for the observer regarding the next state they observe. In this case, the shift of frame of reference removes relevant information from the new frame of reference, allowing scope for the $j=0$ source to add information about the next observed state.

## 6. Results and Discussion

`movingFrame.m`in the

`demos/octave/CellularAutomata`example distributed with this toolkit.

**Figure 3.**Measures of local information dynamics applied to ECA rule 54, computed in frame of reference $f=1$, i.e., moving 1 cell to the right per unit time (all units in (b)–(f) are in bits). Note that raw states are the same as in Figure 1. (

**a**) Raw CA; (

**b**) Local active information storage $a(i,n,k=16,f=1)$; (

**c**) Local apparent transfer entropy $t(i,j=0,n,k=16,f=1)$; (

**d**) Local complete transfer entropy ${t}^{c}(i,j=0,n,k=16,f=1)$; (

**e**) Local apparent transfer entropy $t(i,j=-1,n,k=16,f=1)$; (

**f**) Local complete transfer entropy ${t}^{c}(i,j=-1,n,k=16,f=1)$.

## 7. Conclusions
