Search Results (6)

Improving surface bioactivity is crucial to acquiring zirconia implants with ideal osteoconductivity. In this work, we enhanced the surface properties of zirconia implants, specifically roughness, hydrophilicity, and osteoconductivity, using a “one-step” femtosecond laser (FSL) treatment in air, deionized water, and sodium hydroxide solution. Zirconia specimens were treated in these media, and their surface morphology, chemical composition, and osteoconductivity were evaluated through various assays. The results showed that FSL treatment successfully created micro/nanoporous structures and increased roughness across all specimens. The liquid media treatment facilitated the grafting of hydroxyl (-OH) groups, significantly improving hydrophilicity. The L-NaOH group exhibited a higher hydroxyl content (28%) compared to the L-Air group (10%), reducing the contact angle significantly. Enhanced osteoblast differentiation and mineralization, along with improved gene expression, were observed in the L-Water and L-NaOH groups. In conclusion, the one-step FSL treatment developed a dual-function bioactive zirconia surface, offering an effective method for the biomedical functionalization of zirconia implants. Full article

Femtosecond pulsed laser irradiation was performed to investigate the feasibility and fundamental characteristics of embedding silver nanoparticles onto zirconia ceramic surfaces. By irradiating laser, nanopores were fabricated on the surface of the yttria-stabilized zirconia (YSZ) substrate, and silver nanoparticles were infiltrated and immobilized into the pores using a commercial nano-silver dispersion solution. Numerous nanopores embedded with silver nanoparticles were successfully obtained on the YSZ surface while keeping the grains’ shapes unchanged by controlling laser parameters. Optimizing laser fluence and scanning speed near the ablation threshold made it possible to remove only the excess dispersant that remained on the surface while keeping silver in the pores and without causing machining of the surface of the YSZ substrate. In addition, about 60% embedding in the nanopores was achieved. It was found that the shorter pulse width was suitable to avoid evaporating both dispersant and silver. Cross-sectional observation revealed that the silver nanoparticles were agglomerated to form clumps and were embedded without a gap at the bottom of the pores at a depth of about 600 nm. After laser irradiation, no significant laser-induced phase change was observed in the YSZ substrate, indicating that there was no in-process thermal damage to the bulk. These findings demonstrated the possibility of adding a metal nanoparticle to the zirconia surface by using only a laser process without damaging the properties of the base material during the process. New applications of zirconia, such as the generation of functional surfaces with antibacterial properties, are expected. Full article

Anodization enables fabrication of controlled nanotopographies on Ti implants to offer tailorable bioactivity and local therapy. However, anodization of Zr implants to fabricate ZrO₂ nanostructures remains underexplored and are limited to the modification of easy-to-manage flat Zr foils, which do not represent the shape of clinically used implants. In this pioneering study, we report extensive optimization of various nanostructures on implant-relevant micro-rough Zr curved surfaces, bringing this technology closer to clinical translation. Further, we explore the use of sonication to remove the top nanoporous layer to reveal the underlying nanotubes. Nano-engineered Zr surfaces can be applied towards enhancing the bioactivity and therapeutic potential of conventional Zr-based implants. Full article

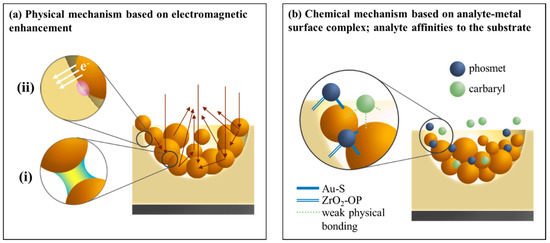

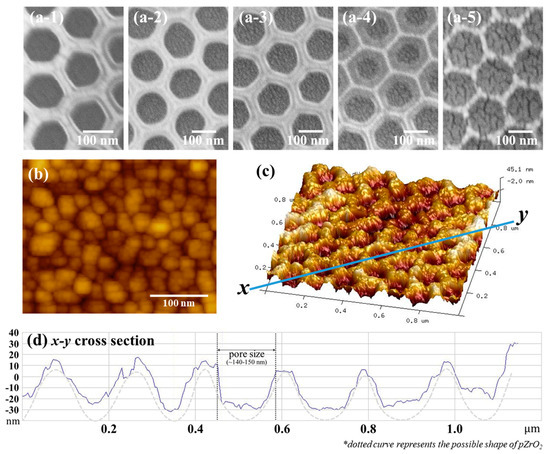

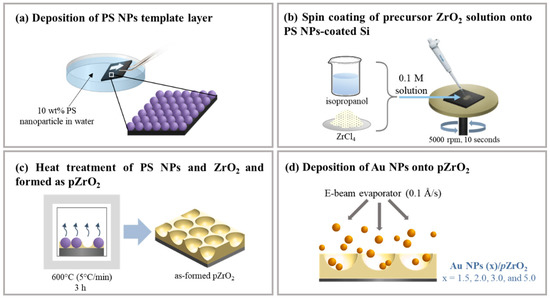

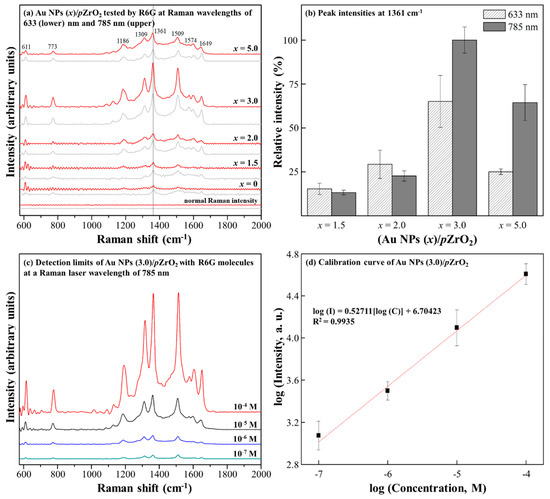

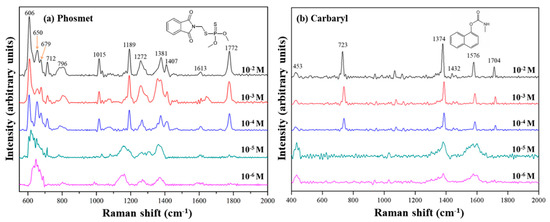

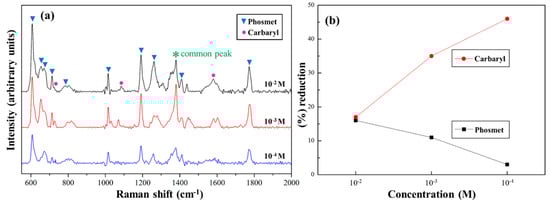

Health risks posed by the exposure to trace amounts of pesticide residue in agricultural products have gained a lot of concerns, due to their neurotoxic nature. The applications of surface-enhanced Raman Scattering (SERS) as a detection technique have consistently shown its potential as a rapid and sensitive means with minimal sample preparation. In this study, gold nanoparticles (Au NPs) in elliptical shapes were collected into a layer of ordered zirconia concave pores. The porous zirconia layer (pZrO₂) was then deposited with Au NPs, denoted as Au NPs (x)/pZrO₂, where x indicates the deposition thickness of Au NPs in nm. In the concave structure of pZrO₂, Au-ZrO₂ and Au-Au interactions provide a synergistic and physical mechanism of SERS, which is anticipated to collect and amplify SERS signals and thereafter improve the enhancement factor (EF) of Au NPs/pZrO₂. By taking Rhodamine 6G (R6G) as the test molecule, EF of Au NPs/pZrO₂ might reach to 7.0 × 10⁷. Au NPs (3.0)/pZrO₂ was then optimized and competent to detect pesticides, e.g., phosmet and carbaryl at very low concentrations, corresponding to the maximum residue limits of each, i.e., 0.3 ppm and 0.2 ppm, respectively. Au NPs (3.0)/pZrO₂ also showed the effectiveness of distinguishing between phosmet and carbaryl under mixed conditions. Due to the strong affinities of the phosphoric groups and sulfur in phosmet to the Au NPs (3.0)/pZrO₂, the substrate exhibited selective detection to this particular pesticide. In this study, Au NPs (3.0)/pZrO₂ has thus demonstrated trace detection of residual pesticides, due to the substrate design that intended to provide collective amplification of SERS. Full article

In this study we report on the development and operational data of a metal-supported solid oxide fuel cell with a thin film electrolyte under varying conditions. The metal-ceramic structure was developed for a mobile auxiliary power unit and offers power densities of 1 W/cm² at 800 °C, as well as robustness under mechanical, thermal and chemical stresses. A dense and thin yttria-doped zirconia layer was applied to a nanoporous nickel/zirconia anode using a scalable adapted gas-flow sputter process, which allowed the homogeneous coating of areas up to 100 cm². The cell performance is presented for single cells and for stack operation, both in lightweight and stationary stack designs. The results from short-term operation indicate that this cell technology may be a very suitable alternative for mobile applications. Full article

Valve metals such as titanium (Ti), zirconium (Zr), niobium (Nb) and tantalum (Ta) that confer a stable oxide layer on their surfaces are commonly used as implant materials or alloying elements for titanium-based implants, due to their exceptional high corrosion resistance and excellent biocompatibility. The aim of this study was to investigate the bioactivity of the nanostructures of tantala (Ta₂O₅), niobia (Nb₂O₅), zirconia (ZrO₂) and titania (TiO₂) in accordance to their roughness and wettability. Therefore, four kinds of metal oxide nanoporous and nanotubular Ta₂O₅, Nb₂O₅, ZrO₂ and TiO₂ were fabricated via anodization. The nanosize distribution, morphology and the physical and chemical properties of the nanolayers and their surface energies and bioactivities were investigated using SEM-EDS, X-ray diffraction (XRD) analysis and 3D profilometer. It was found that the nanoporous Ta₂O₅ exhibited an irregular porous structure, high roughness and high surface energy as compared to bare tantalum metal; and exhibited the most superior bioactivity after annealing among the four kinds of nanoporous structures. The nanoporous Nb₂O₅ showed a uniform porous structure and low roughness, but no bioactivity before annealing. Overall, the nanoporous and nanotubular layers of Ta₂O₅, Nb₂O₅, ZrO₂ and TiO₂ demonstrated promising potential for enhanced bioactivity to improve their biomedical application alone or to improve the usage in other biocompatible metal implants. Full article
