Search Results (4)

The increasing demand for ultra-high purity aluminum for technological applications has led to the improvement of refining methods in recent decades. To achieve ultra-purity levels (>5N), the common industrial way is to firstly purify aluminum from 2N8 up to 4N8 via three-layer electrolysis, followed by fractional crystallization (usually zone melting). Since both of these methods are very cost- and time-intensive, this paper aims at providing other alternatives of purification. For this purpose, here, the purification of some selected impurities through cooled-finger fractional crystallization method and vacuum distillation have been the focus of this investigation. Both processes are more environmentally friendly than three-layer electrolysis and require less time than zone melting. In this paper, both methods were explored for the aluminum purification. Moreover, the effect of process parameters on the purification efficiency of iron, zinc, and silicon has been investigated. At the end, the effectiveness of the two processes was compared and advantages and disadvantages were summarized. The results showed that the cooling finger process effectively removed iron and silicon impurities, but the removal efficiency of zinc was low. The vacuum distillation process successfully removes zinc in the first stage of distillation. Iron and silicon removal requires additional distillation stages to achieve lower impurity levels. Full article

Non-deformable inclusions are detrimental to the surface quality and mechanical properties of stainless-steel plates. Plant trials were conducted to investigate the effect of different ferrosilicon alloys and calcium treatment during argon oxygen decarburization (AOD) and ladle furnace (LF) refining on inclusions in Si-killed 304 stainless steel. The inclusions were examined by scanning electron microscope with energy dispersive spectrometer. The results show that both the contents of soluble aluminum in molten steel and Al₂O₃ in slag increase with the increase of aluminum content in FeSi alloy. The content of soluble aluminum in liquid steel could be limited to lower than 0.004% when using ultra-purity FeSi alloy. When the calcium wire addition is 2 m/t, inclusions are located in the low-melting-temperature region, and the inclusion rating of hot rolled plates is mainly C-class. Industrial application shows that, by decreasing the soluble aluminum content in liquid steel, decreasing the MgO and Al₂O₃ in slag in AOD, and applying low basicity refining slag as well as calcium treatment, the inclusions are low melting point silicates. The inclusion rating of hot rolled plates is mainly fine C-type with a small amount of class-A, and surface polishing qualification rate is increased from 17.8% to more than 88.7%. Full article

The best commercial high-voltage insulation material of today is (crosslinked) ultra-pure low-density polyethylene (LDPE). A 100-fold decrease in electrical conductivity can be achieved by adding 1–3 wt.% of well-dispersed inorganic nanoparticles to the LDPE. One hypothesis is that the nanoparticle surfaces attract ions and polar molecules, thereby cleaning the surrounding polymer, and thus reducing the conductivity. LDPE-based nanocomposites with 1–12 wt.% octyl-coated aluminum oxide nanoparticles were prepared and the sorption and desorption of one polar compound (acetophenone, a crosslinking by-product) and one non-polar compound of a similar size (limonene) were examined. Since the uptake of acetophenone increased linearly with increasing filler content, whereas the uptake of limonene decreased, the surface attraction hypothesis was strengthened. The analytical functions for predicting composite solubility as a function of particle size and filler fraction were derived using experimental solubility measurements and Monte Carlo simulations. Full article

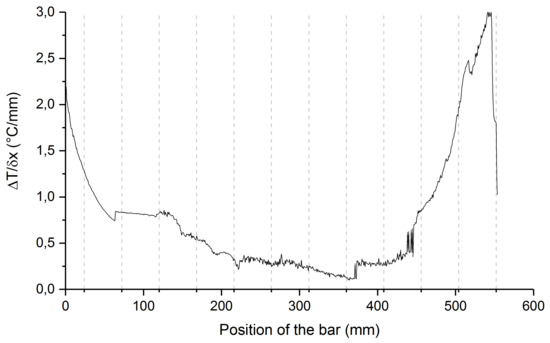

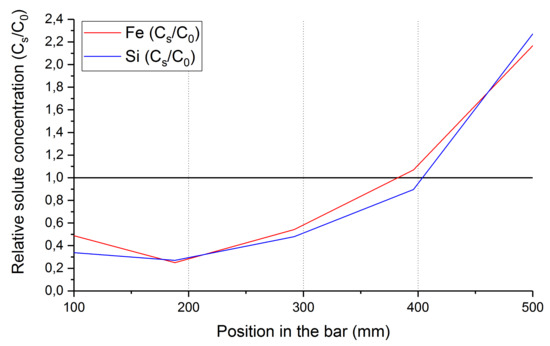

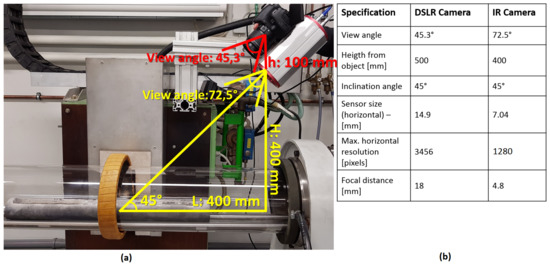

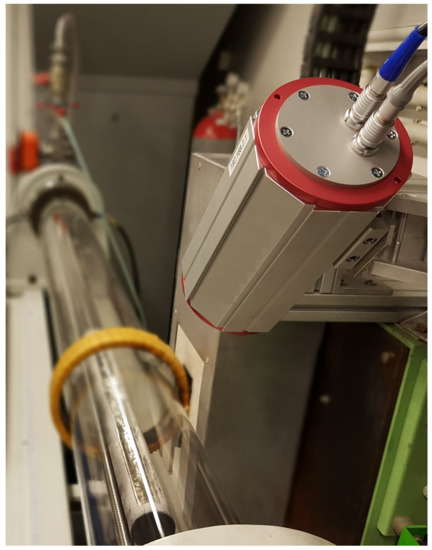

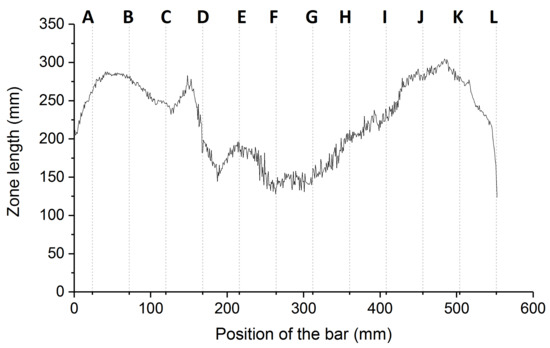

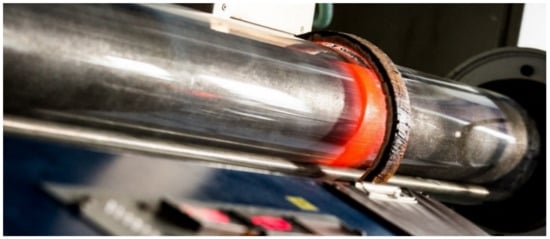

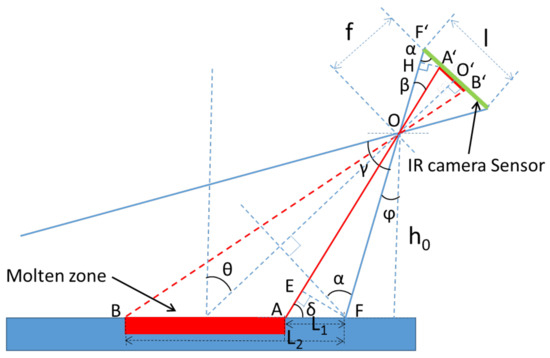

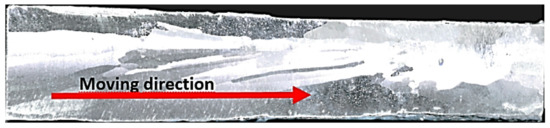

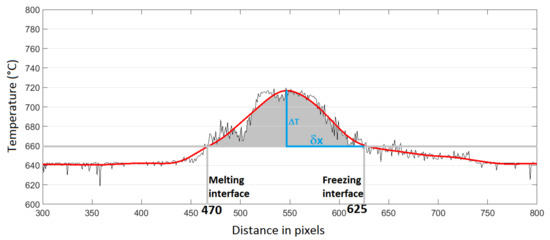

Zone refining, as the currently most common industrial process to attain ultrapure metals, is influenced by a variety of factors. One of these parameters, the so-called “zone length”, affects not only the ultimate concentration distribution of impurities, but also the rate at which this distribution is approached. This important parameter has however neither been investigated experimentally, nor ever varied for the purpose of optimization. This lack of detections may be due to the difficult temperature measurement of a moving molten area in a vacuum system, of which the zone refining methodology is comprised. Up to now, numerical simulation as a combination of complex mathematical calculations, as well as many assumptions has been the only way to reveal it. This paper aims to propose an experimental method to accurately measure the molten zone length and to extract helpful information on the thermal gradient, temperature profile and real growth rate in the zone refining of an exemplary metal, in this case aluminum. This thermographic method is based on the measurement of the molten surface temperature via an infrared camera, as well as further data analysis through the mathematical software MATLAB. The obtained results show great correlation with the visual observations of zone length and provide helpful information to determine the thermal gradient and real growth rate during the whole process. The investigations in this paper approved the application of an infrared camera for this purpose as a promising technique to automatically control the zone length during a zone refining process. Full article
