Search Results (3)

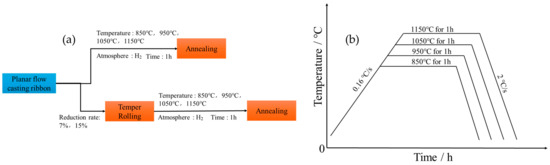

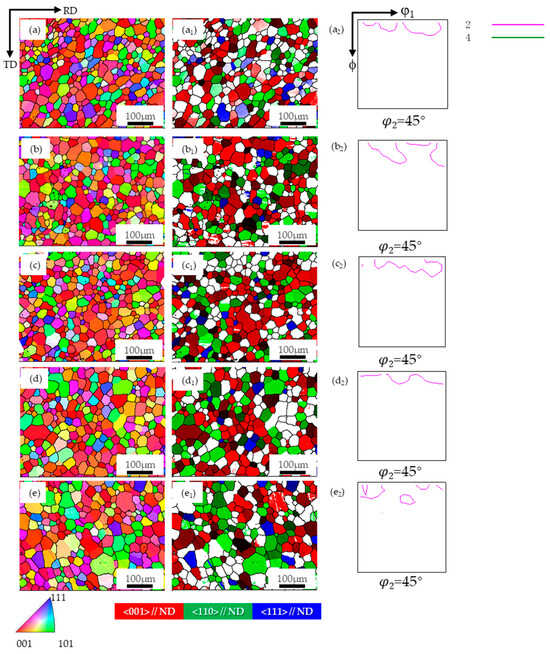

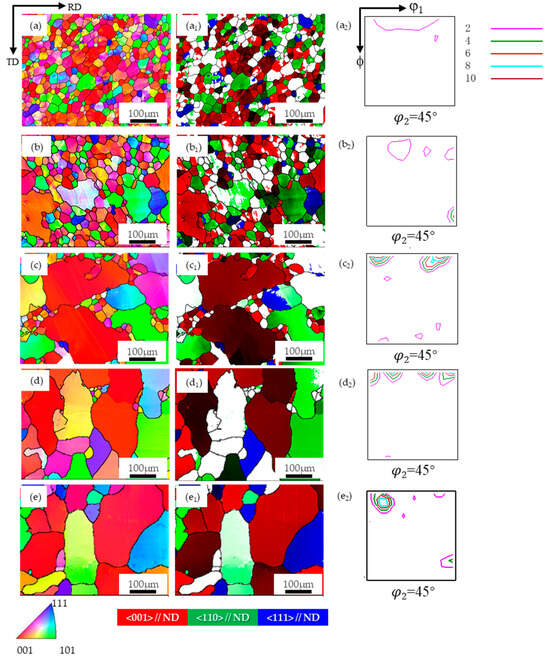

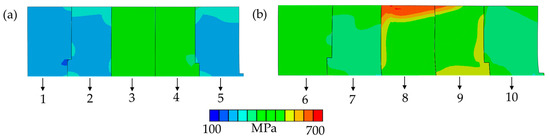

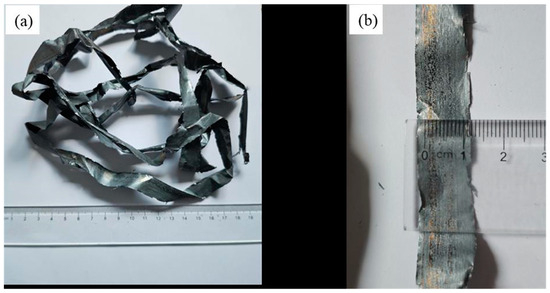

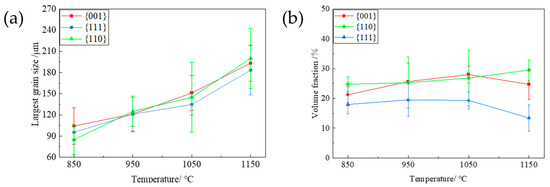

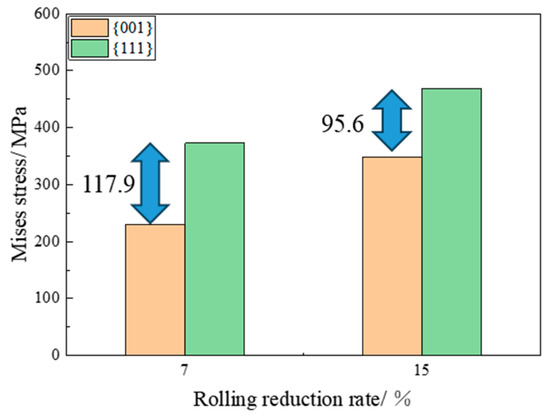

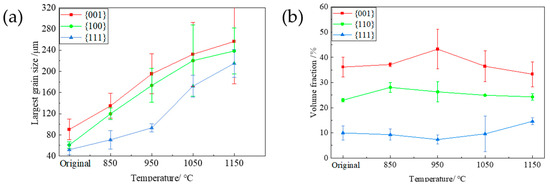

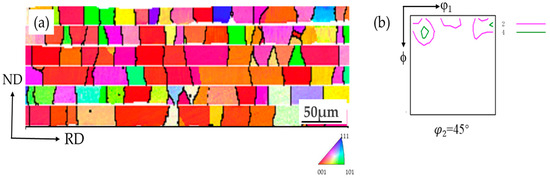

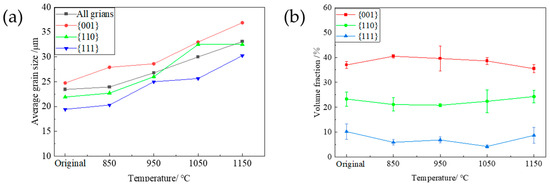

In this paper, Fe-3%Si ultra-thin ribbons prepared by the planar flow casting (PFC) technique were subjected to temper rolling and annealing treatments. The microstructure and texture evolution during this process were examined through experimental measurements coupled with crystal plasticity finite element (CPFE) simulation to assess the feasibility of preparing ultra-thin non-oriented silicon steel using PFC ribbons. The results indicate that the PFC ribbons exhibit a significant columnar crystal structure, and {001}-oriented grains comprise over 30%. After being annealed, the grains with different orientations grew uniformly, the texture components were basically unchanged, and the {001} texture was well preserved. When annealing was carried out after temper rolling with a reduction rate of 7%, uneven grain growth was observed, and the growth tendency of the {001} grains, especially, surpassed that of the {111} grains, with an elevated temperature which peaked at 950 °C, where the proportion of {001} grains was maximal. When being annealed after temper rolling to 15%, grains of other orientations showed significant growth at each temperature, while the {001} grains did not show an obvious growth advantage. Utilizing the CPFE, the deformation-stored energy distribution of each characteristic-oriented grain was simulated, and it was shown that compared to the 15% rolling reduction rate, the deformation-stored energy accumulation of {001}-oriented grains after being rolled to 7% reduction was significantly lower than that of {111}-oriented grains. It suggests that the larger stored energy difference makes {001} grains show a stronger growth advantage based on the SIBM mechanism during annealing, after being rolled with a reduction rate of 7%. Overall, for the synergistic optimization of microstructure and texture, rolling with a 7% reduction rate followed by annealing at 950 °C in a hydrogen atmosphere is most advantageous. Full article

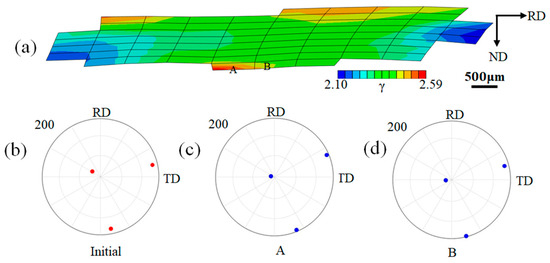

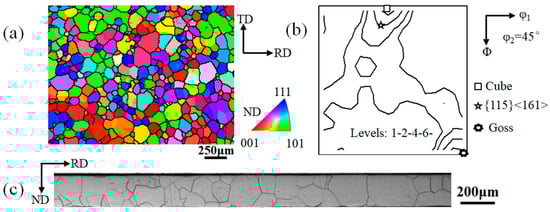

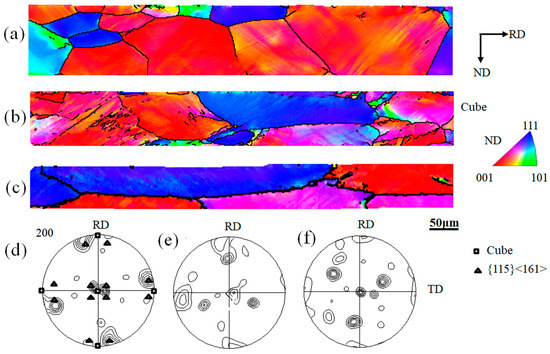

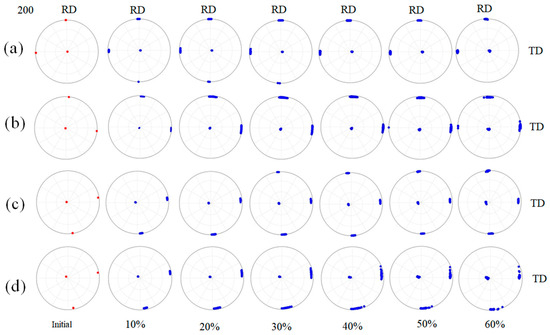

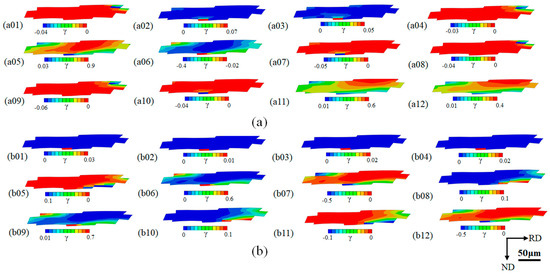

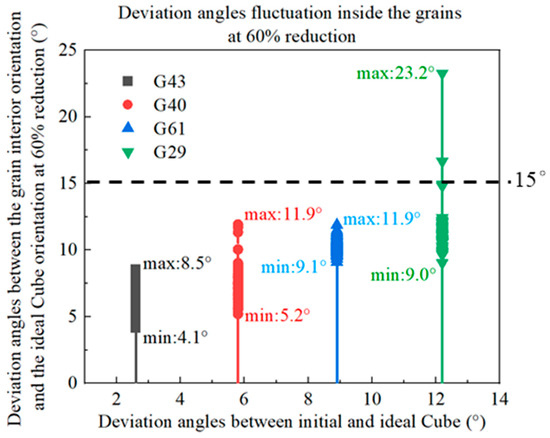

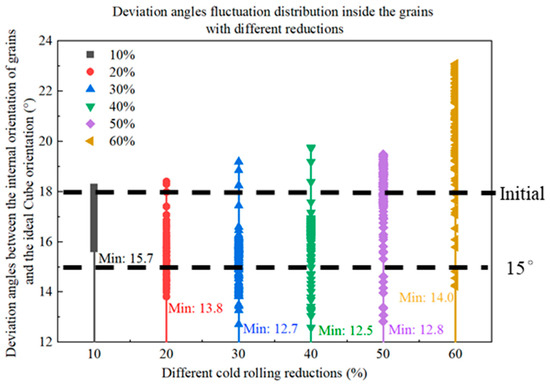

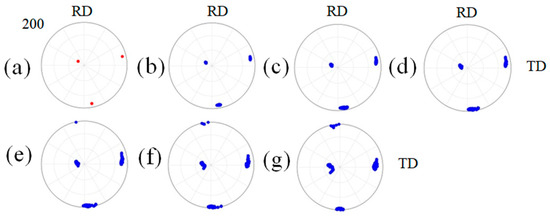

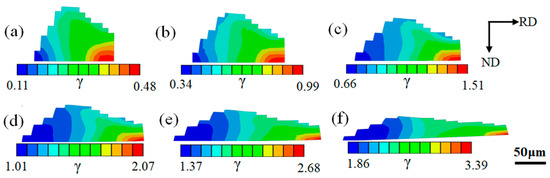

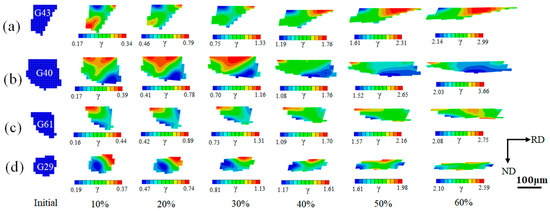

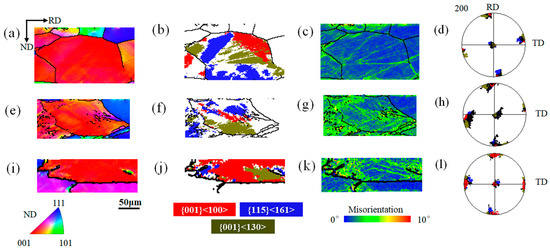

In this study, the evolutions of Cube and {115}<161> orientations of a cold-rolled ultra-thin non-oriented silicon steel were investigated using a combination of experimental investigation and the crystal plasticity finite element method (CPFEM). The results show that Cube orientations remain relatively stable when their initial deviation angles from the ideal Cube orientation are less than 12°, even after a 60% cold rolling reduction. However, larger deviations occur due to higher strain near grain boundaries. Furthermore, the {115}<161> orientations, with an initial deviation of ~18° from the ideal Cube orientation, become separated into different orientation regions during cold rolling. Some regions gradually approach the ideal Cube orientation as cold rolling progresses and reach ~12.5° deviation from the ideal Cube at a 40% reduction. This study demonstrates good agreement between simulation and experimental results, highlights the micro-deformation mechanisms during rolling, and offers insights for optimizing the ultra-thin strip rolling process. Full article

Nowadays, energy shortages and environmental pollution have received a lot of attention, which makes the electrification of transportation systems an inevitable trend. As the core part of an electrical driving system, the electrical machine faces the extreme challenge of keeping high power density and high efficiency output under complex workin g conditions. The development and research of new soft magnetic materials has an important impact to solve the current bottleneck problems of electrical machines. In this paper, the variation trend of magnetic properties of ultra-thin grain-oriented silicon steel electrical steel (GOES) under thermal-mechanical-electric-magnetic fields is studied, and the possibility of its application in motors is explored. The magnetic properties of grain-oriented silicon steel samples under different conditions were measured by the Epstein frame method and self-built multi-physical field device. It is verified that the magnetic properties of grain-oriented silicon steel selected within 30° magnetization deviation angle are better than non-grain-oriented silicon steel. The magnetic properties of the same ultra-thin grain-oriented silicon steel as ordinary non-oriented silicon steel deteriorate with the increase in frequency. Different from conventional non-grain-oriented silicon steel, its magnetic properties will deteriorate with the increase in temperature. Under the stress of 30 Mpa, the magnetic properties of the grain-oriented silicon steel are the best; under the coupling of multiple physical fields, the change trend of magnetic properties of grain-oriented silicon steel is similar to that of single physical field, but the specific quantitative values are different. Furthermore, the application of grain-oriented silicon steel in interior permanent magnet synchronous motor (IPM) for electric vehicles is explored. Through a precise oriented silicon steel motor model, it is proved that the magnetic flux density of stator teeth increases by 2.2%, the electromagnetic torque of motor increases by 2.18%, and the peak efficiency increases by 1% after using grain-oriented silicon steel. In this paper, through the investigation of the characteristics of grain-oriented silicon steel, it is preliminarily verified that grain-oriented silicon steel has a great application prospect in the drive motor (IPM) of electric vehicles, and it is an effective means to break the bottleneck of current motor design. Full article
