Search Results (4)

The authors researched the physical, metallurgical, and mechanical characteristics of A354 alloy (Al-Si-Mg-Cu) reinforced with 5, 10, and 15 wt% of fly ash metal matrix composites. A baseline alloy and three composites were fabricated by a liquid metallurgy route and poured into a permanent mold to obtain cast rods of dimension Φ32 mm × 156 mm. The metallurgical characterization of the developed alloy and metal matrix composites was conducted using energy-dispersive spectroscopy (EDS), field-emission scanning electron microscopy (FESEM), and X-ray diffraction. All the developed composites showed a pore-free nature, but only A354 alloy reinforced with 5 wt% of fly ash (AF₅) possessed a homogeneous distribution and perfect bonding of the fly ash with the A354 matrix. Therefore, transmission electron microscopy (TEM) analysis was performed on the sample AF₅. All developed alloys and metal matrix composites were subjected to hardness and mechanical property tests. It was observed that the AF₅ sample had 170 ± 5.6 HV and tensile strength of 216 ± 2.3 MPa, 18.8% and 24.8% higher than the A354 matrix, but the ductility (6.5 ± 0.43%) was reduced by 23% from the baseline alloy. Finally, the fractography analysis was conducted on all the samples using FESEM to analyze the fracture mode. The fabricated 5 wt% fly ash-based metal matrix composite showed better mechanical performance than other samples. Hence, sample AF₅ is suggested for manufacturing components in automotive and structural parts. Full article

This study investigates the comparison of the microstructural and mechanical properties of a novel ternary reinforced AA7075 hybrid metal matrix composite. Four samples, including AA7075 (base alloy), AA7075-5wt %SiC (MMC), AA7075-5wt %SiC-3wt %RHA (s-HMMC), and AA7075-5wt %SiC-3wt %RHA-1wt %CES (n-HMMC) were developed using the stir casting liquid metallurgy route, followed by the heat treatment. The experimental densities corresponded with the theoretical values, confirming the successful fabrication of the samples. A minimum density of 2714 kg/m³ was recorded for the n-HMMC. In addition, the highest porosity of 3.11% was found for n-HMMC. Furthermore, an increase of 24.4% in ultimate tensile strength and 32.8% in hardness of the n-HMMC was recorded compared to the base alloy. However, its ductility and impact strength was compromised with the lower values of 5.98% and 1.5 J, respectively. This was confirmed by microstructural analysis, which reveals that n-HMMC has mixing issues and forms agglomerates in the matrix, which served as the potential sites of stress concentration leading to low impact strength and ductility. Nevertheless, the hybrid composites showed superior mechanical properties over the MMC and its base alloy. Full article

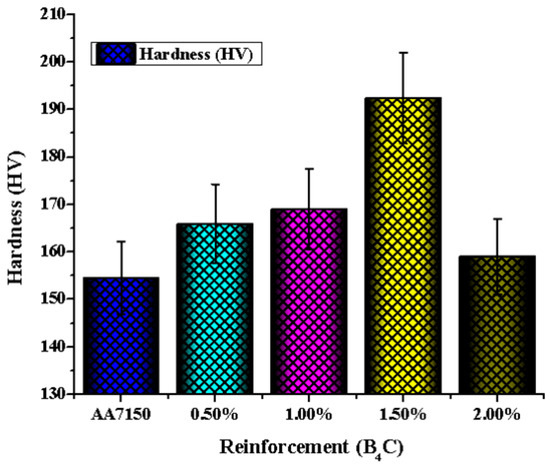

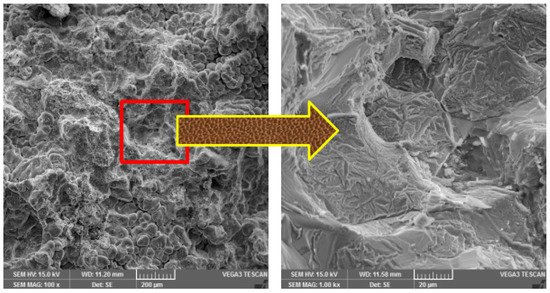

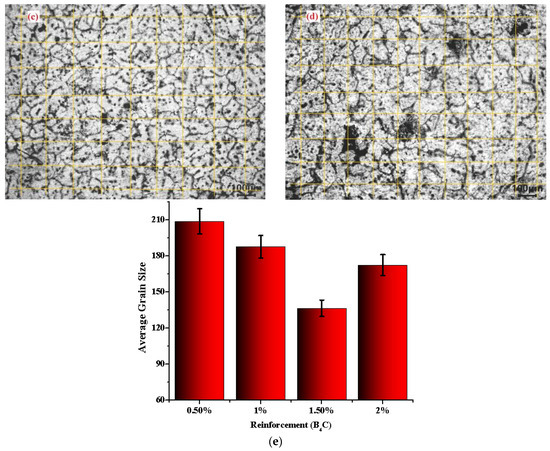

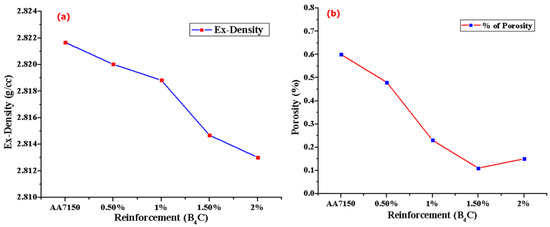

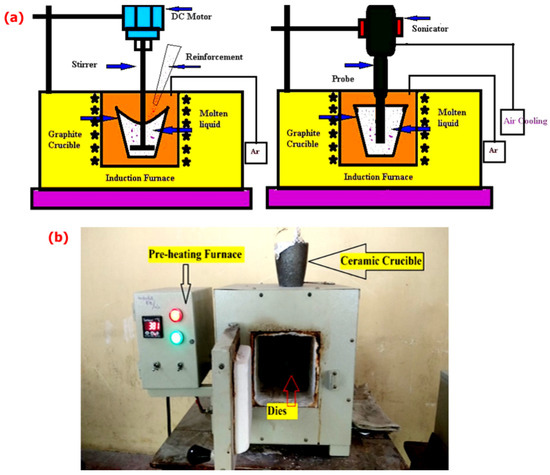

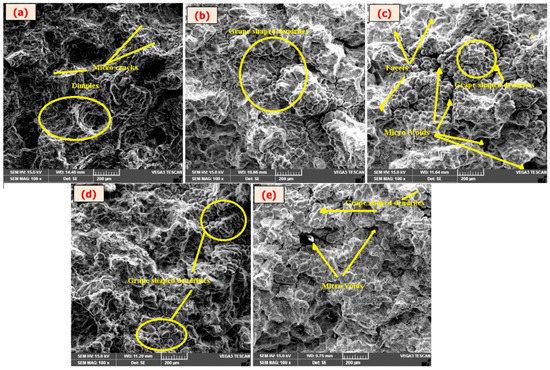

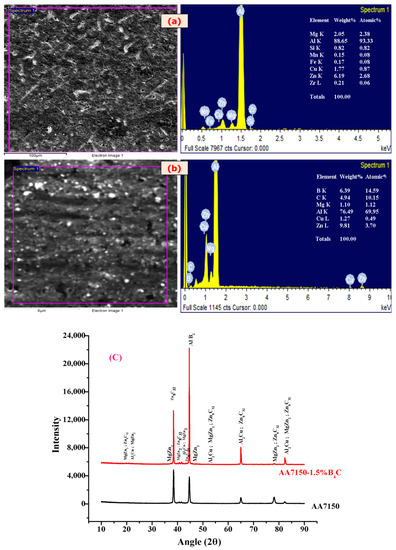

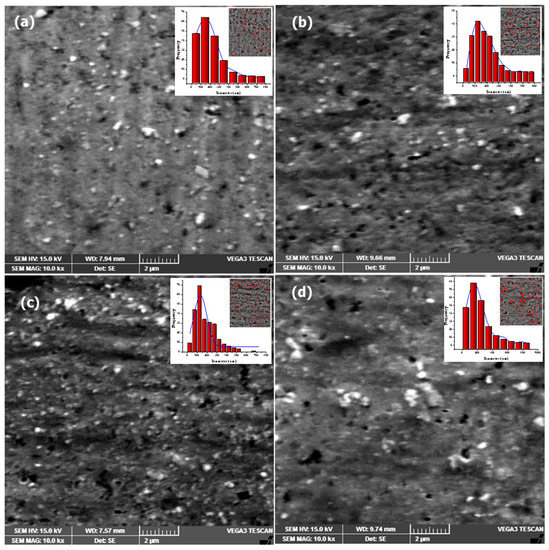

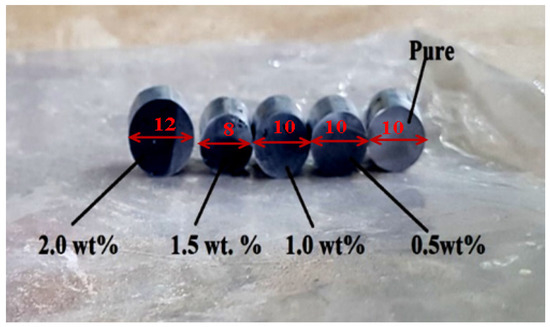

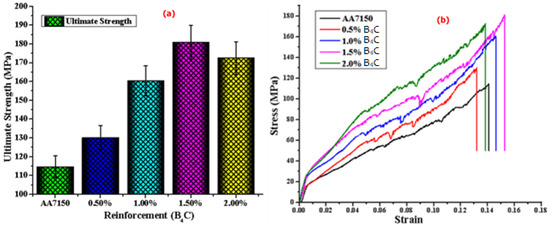

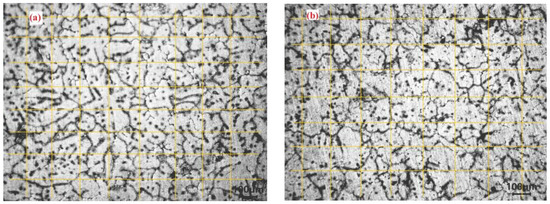

Aluminum-based metal matrix composites with single or multiple ceramic reinforcements are finding application in the aerospace and automobile industries. In this research work, novel AA7150-B4C (aluminium7150 alloy–Boron carbide) nanocomposites were successfully fabricated, through the liquid metallurgy route via stir casting method, with the incorporation of B4C nanoparticles with different weight percentages using a novel sequence of a vortex technique and a double stir casting process with ultrasonication. The formed composites have been thoroughly studied for microstructure refinement, nano-particulate distribution, and bonding with the matrix by making use of the optical microscopy (OM) and scanning electron microscopy (SEM) studies (respectively). In addition, the composites were analyzed for the density, porosity, and elemental composition. Further, the composites were tested for the investigation of mechanical properties, like micro-hardness and tensile strength, to investigate the influence of ultrasonic vibration on the arrangement of B4C nano-particulates. The analysis indicated that the mechanical properties of the AA7150-B4C nanocomposites in as-cast condition significantly improved with a gain of 57.7% in strength and 24.5% in hardness compared to the native AA7150 material. Full article

The current trend in the materials engineering sector is to develop newer materials that can replace the existing materials in various engineering sectors in order to be more and more efficient. Therefore, the present research work is aimed at fabricating and determining the physical, mechanical, and dry sliding wear properties of titanium carbide (TiC)-reinforced aluminum alloy (Al6061) metal matrix composites (MMCs). For the study, the Al6061-TiC microparticle-reinforced composites were fabricated via the liquid metallurgy route through the stir casting method, where the reinforcement of the TiC particles into the Al6061 alloy matrix was added in the range of 0 to 8.0 wt.%, i.e., in the steps of 2.0 wt.%. The synthesis procedure followed the investigation of the various mechanical properties of Al6061-TiC MMCs, such as the density and structure, as well as mechanical and dry wear experimentation. The tests performed on the casted Al6061, as well as its TiC composites, were in harmony with ASTM standards. As per the experimental outcome, it can be confirmed that the increase in the weight percentage of TiC into the Al6061 alloy substantially increases the density, hardness, and tensile strength, at the expense of the percentage of elongation. In addition, the dry wear experiments, performed on a pin-on-disc tribometer, showed that the Al6061-TiC MMCs have superior wear-resistance properties, as compared to those of pure Al6061 alloy. Furthermore, optical micrograph (OM), powdered X-ray diffraction (XRD), energy dispersive spectroscopy (EDS), and scanning electron microscopy (SEM) analyses were employed for the developed Al6061-TiC MMCs before and after the fracture and wear test studies. From the overall analysis of the results, it can be observed that the Al6061-TiC composite material with higher TiC reinforcement displays superior mechanical characteristics. Full article
