Search Results (6)

With the development of global hydropower, the scale of hydropower stations is increasing, and the operating conditions are becoming more complex, so the stable operation of hydropower stations is very important. The vibration of the turbine unit will cause resonance in the powerhouse, and the structural stability of the powerhouse will be affected. Many scholars pay attention to the stability of the turbine unit operation, and there are few studies on the powerhouse of the hydropower station. Therefore, this paper relies on the Weifang Hydropower Station project to study key issues such as the tensile strength of concrete and how to arrange steel bars to increase the structural stability by changing the material properties through FEA. Three schemes are designed to evaluate the safety of the powerhouse structure when the turbine unit is running through the safety factor. Our findings indicate that the stress variation patterns observed on the inner surface of the powerhouse remain consistent across different operating scenarios. Notably, along the spiral line of the worm section, we observed that the stress levels on the vertical loop line decrease gradually with increasing distance from the inlet. Conversely, stress concentrations arise near the inlet and the tongue. Additionally, it has been noted that the likelihood of concrete cracking increases significantly at the tongue region. Full article

The failure mechanism of torsional concrete beams with fiber-reinforced polymer (FRP) bars is essential for developing the design method. However, limited experimental research has been conducted on the torsion behavior of concrete beams with FRP bars. Therefore, the pure torsion test of four large-scale FRP-RC beams (2800 mm × 400 mm × 200 mm) was conducted to investigate the influence of the stirrup ratio (0, 0.49%, and 0.98%) and longitudinal reinforcement ratio (3.01%, 4.25%) on torsion behavior. The test results indicated that three typical failure patterns, including concrete cracking failure, stirrup rupturing failure, and concrete crushing failure, were observed in specimens without stirrups (stirrup ratio 0), partially over-reinforced specimens (stirrup ratio 0.49%), and over-reinforced specimens (stirrup ratio 0.98%), respectively. The tangent angle of spiral cracks at the midpoint of the long side of the cross-section was approximately 45° initially for all specimens. The torque–twist angle curves exhibited a linear and bilinear behavior for specimens without stirrups and specimens with stirrups, respectively. As the stirrup ratio increased from 0 to 0.98%, torsion capacity increased from 24.9 kN∙m to 27.8 kN∙m, increased by 12%, ultimate twist angle increased from 0.0018 rad/m to 0.0403 rad/m. As the longitudinal reinforcement ratio increased from 3.01% to 4.25%, the torsion capacity increased from 27.8 kN∙m to 28.3 kN∙m, and the ultimate twist angle decreased from 0.0403 rad/m to 0.0244 rad/m. Based on test results, the stirrup strain limit of 5200 με and spiral crack angle of 45° was suggested for torsion capacity calculation. In addition, based on the database of torsion tests, the performance of torsion capacity provisions was assessed. Full article

Preventing corrosion in the steel reinforcement of concrete structures is crucial for maintaining structural integrity and load-bearing capacity as it directly impacts the safety and lifespan of concrete structures. By preventing rebar corrosion, the durability and seismic performance of the structures can be significantly enhanced. This study investigates the hysteresis behavior of both corroded and non-corroded engineered cementitious composite (ECC)-glass-fiber-reinforced polymer (GFRP) spiral-confined reinforced-concrete (RC) columns. Employing experimental methods and finite element analysis, this research explores key seismic parameters such as crack patterns, failure modes, hysteretic responses, load-bearing capacities, ductility, stiffness degradation, and energy dissipation. The results demonstrate that ECC-GFRP spiral-confined RC columns, compared to traditional RC columns, show reduced corrosion rates, smaller crack widths, and fewer corrosion products, indicating superior crack control and corrosion resistance. Hysteresis tests revealed that ECC-GFRP columns, at a 20% target corrosion rate, exhibit an enhanced load-bearing capacity, ductility, and energy dissipation, suggesting improved durability and seismic resilience. Parametric and sensitivity analyses confirm the finite element model’s accuracy and highlight the significant influence of concrete compressive strength on load-bearing capacity. The findings suggest that ECC-GFRP spiral-confined RC columns offer promising applications in coastal and seismic-prone regions, enhancing corrosion resistance and mechanical properties, thus potentially reducing formwork costs and improving construction quality and efficiency. Full article

This paper presents experimental and theoretical assessments of the structural behavior of circular steel fiber-reinforced concrete (SFRC) columns reinforced with glass fiber-reinforced polymer (GFRP) bars subjected to a concentric axial compressive load. Laboratory experiments were planned to evaluate and compare the effect of different design parameters on the structural behavior of column specimens based on experiments and finite element (FE) analysis. The experimental variables were (i) concrete types, i.e., conventional concrete (CC) and fiber-reinforced concrete (FC), (ii) longitudinal reinforcement types, i.e., steel and GFRP bars, and (iii) transverse rebar configurations, i.e., tied and spiral with different pitches. Sixteen column specimens were fabricated and categorized into four groups with respect to rebar configurations and concrete types. The results showed that the failure modes and cracking patterns of those four column groups were comparable, particularly in the pre-peak branches of load-deflection curves. Even though the average ultimate load of the columns with longitudinal GFRP bars was 17.9% less than that with longitudinal steel bars, the ductility index (DI) was 10.2% greater than their counterpart on average. The addition of steel fibers (SF) to concrete increased the axial peak load by up to 3.1% and the DI by up to 6.6% compared to their counterpart CC columns without SFs. The DI of specimens was increased by higher volumetric ratios (up to 12%) and spiral types (up to 5.5%). The concrete damage plastic (CDP) model for FC columns was updated in the finite element software ABAQUS 6.14. Finally, a new simple equation was theoretically proposed to predict the axial capacity of specimens by considering the inclusion of longitudinal GFRP rebars, volumetric ratio, and steel spiral/hoop ties. Good agreement between the proposed model predictions and the experimental/numerical results was observed. Full article

A novel approach for the fracture characterization of soft adhesive materials using spiral cracking patterns is presented in this study. This research particularly focuses on hydrocarbon polymeric materials, such as asphalt binders. Ten different asphalt materials with distinct fracture characteristics were investigated. An innovative integrated experimental–computational framework coupling acoustic emissions (AE) approach in conjunction with a machine learning-based Digital Image Analysis (DIA) method was employed to precisely determine the crack geometry and characterize the material fracture behavior. Cylindrical-shaped samples (25 mm in diameter and 20 mm in height) bonded to a rigid substrate were employed as the testing specimens. A cooling rate of −1 °C/min was applied to produce the spiral cracks. Various image processing techniques and machine learning algorithms such as Convolutional Neural Networks (CNNs) and regression were utilized in the DIA to automatically analyze the spiral patterns. A new parameter, “Spiral Cracking Energy (E_Spiral)”, was introduced to assess the fracture performance of soft adhesives. The compact tension (CT) test was conducted at −20 °C with a loading rate of 0.2 mm/min to determine the material’s fracture energy (G_f). The embrittlement temperature (T_EMB) of the material was measured by performing an AE test. This study explored the relationship between the spiral tightness parameter (“b”), E_Spiral, G_f, and T_EMB of the material. The findings of this study showed a strong positive correlation between the E_Spiral and fracture energies of the asphalt materials. Furthermore, the results indicated that both the spiral tightness parameter (“b”) and the embrittlement temperature (T_EMB) were negatively correlated with the E_Spiral and G_f parameters. Full article

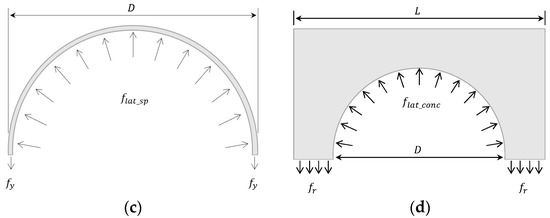

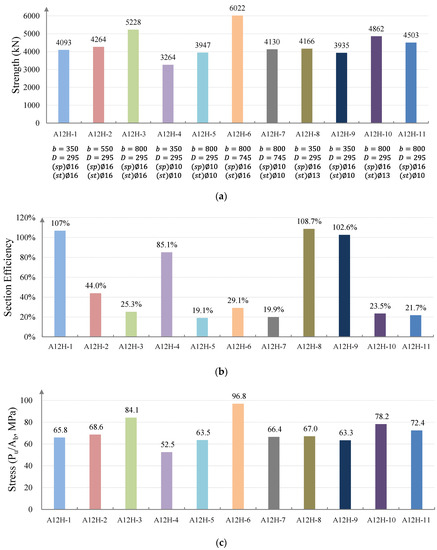

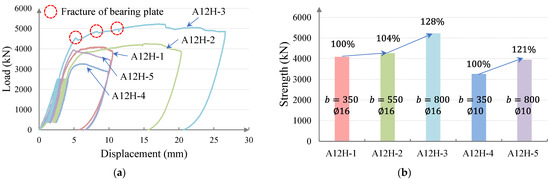

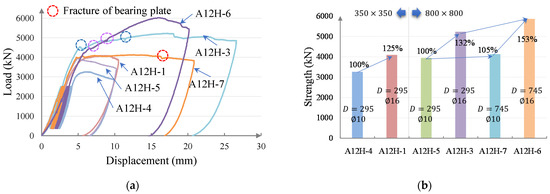

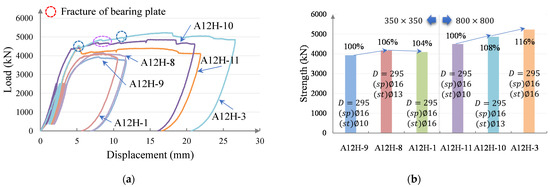

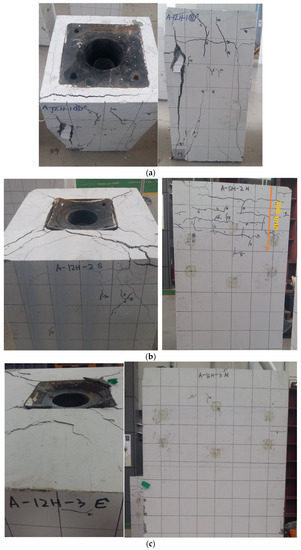

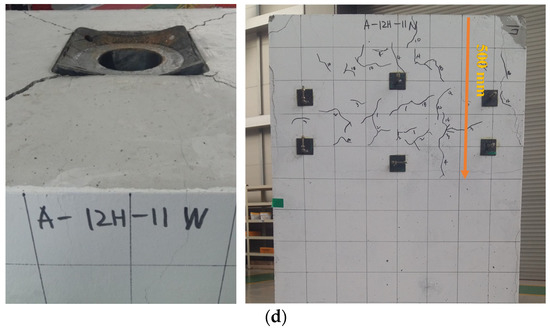

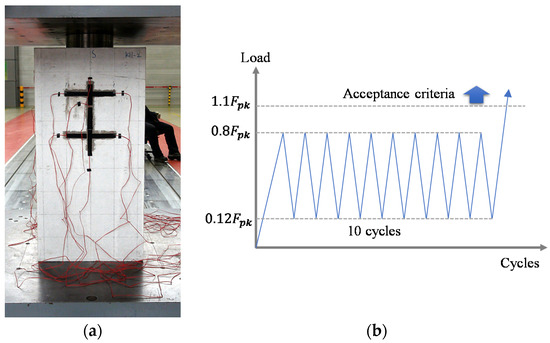

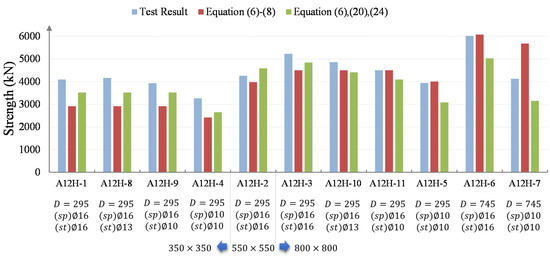

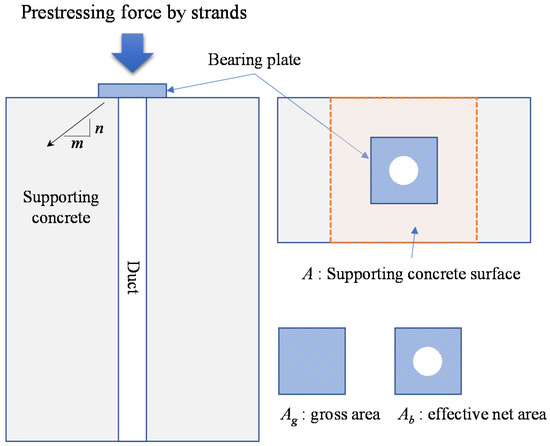

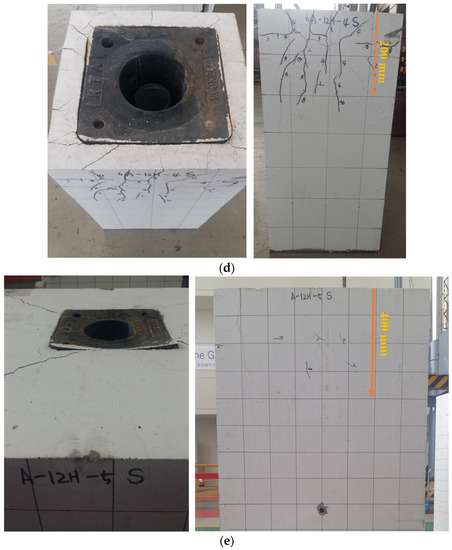

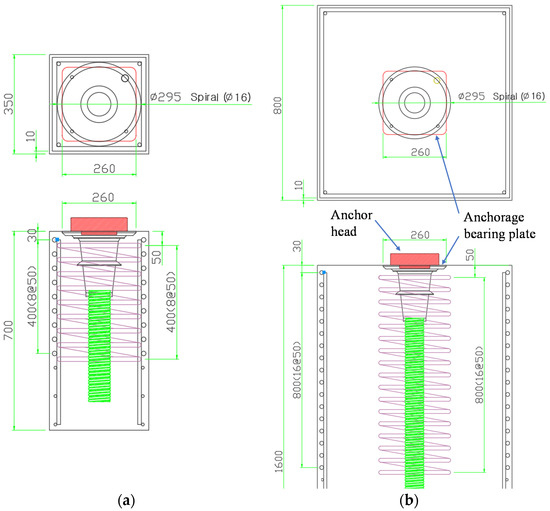

This study aimed to evaluate the bearing strength of the post-tensioning anchorage zone with respect to the relative bearing area and lateral confinement design of spiral and stirrup rebars. Eleven specimens were fabricated and tested to fracture in accordance with EAD 160004-00-0301. Load-displacement curves and fracture modes were analyzed. Then, the conventional design equation for the bearing strength and previous findings on the relative bearing area was re-investigated in comparison with the test results. From the test, the representative findings are as follows: (1) A specimen with relatively small size and less lateral reinforcement is more likely to be affected by the wedge action of the anchorage device; however, a larger specimen is affected by both concrete crushing and/or spalling; (2) The behavior of the anchorage zone is markedly affected by the local behavior near the anchorage bearing plate, and the sectional efficiency is mostly determined by A/A_g; (3) For specimens with A/A_g = 9.52, the proportional limit of the load-displacement curve is determined by the yield of spiral rebar or fracture of the bearing plate, but the later part of the curve is determined by lateral confinement; (4) The maximum A/A_g that could produce 100% sectional efficiency is about 2.0 for the anchorage bearing plate used in the test; (5) For a fully confined specimen with a small-diameter spiral for minimum anchorage spacing, the stirrup rebar design mainly influences crack occurrence and patterns when the size of the specimen is equal to the minimum anchorage spacing; however, the area of the load-displacement curve after the proportional limit as well as crack occurrence and patterns are also influenced by stirrup rebar design when A/A_g is relatively large; (6) Finally, a revised design model is proposed to effectively estimate the ultimate bearing strength of the post-tensioning anchorage zone without respect to A/A_g. From the comparison of the design equations, it was concluded that the proposed equation provides a more reliable prediction with a 14.0% average error rate and 5.7% standard deviation of error rate. Full article
