Search Results (4)

The effect of an alternative source of silica, based on class F fly ash mixed with blast furnace slag and activated by rice husk ash (RHA), to produce concrete exposed to marine environments was evaluated. Four mixtures activated by the combination of 85% NaOH 14M + 15% RHA were manufactured to achieve a liquid/solid ratio of 0.20. Fly ash was incorporated into the steel slag mixture at addition percentages of 20, 40, 60, and 80%, and evaluated at 28, 900, and 1800 days for pore and chloride ion absorption. In general, including rice husk ash in the mixture of fly ash and steel slag significantly affected mechanical performance because it was possible to obtain concrete with high mechanical resistance. Concerning the durability evaluation, the effect of the activator generated by rice husk ash was observed, and the increase in steel slag added to the cementitious samples improved the capacity of the material to resist the penetration and diffusion of chloride ions. Full article

The goal of this study was to determine the coefficient of permeability as well as the rate of carbonation of concrete constructed with rice husk ash (RHA) as a partial replacement for cement (i.e., 5%, 10%, and 15%) and two different concentrations of soap solutions (i.e., 1 percent and 2 percent). The microstructural studies of RHA, and carbonated samples have been conducted by using Scanning Electron Microscope (SEM) and X-Ray Diffraction (XRD) analysis. According to this study, the carbonation depth of concrete made with 1% and 2% soap solution concentration and without rice husk ash decreased by 11.89% and 46.55%, respectively. From the results, it may also be observed that the carbonation depth of concrete made with up to 10% replacement of cement by rice husk ash led to maximum carbonation resistance, while more than 10% replacement of cement showed higher carbonation depth. It is also observed that the coefficient of permeability of concrete with 2% soap solution significantly decreased as compared to the 1% soap solution and control mix. It may be observed from the SEM images that 0% soap solution (M1) concrete has a very rough concrete surface which may indicate more voids. However, 2% soap solution concrete has a much smoother surface, which indicates a smaller number of voids. Furthermore, the SEM images showed that the soap solution helps in filling the voids of concrete which ultimately helps in reduction in permeability. Energy Dispersive X-Ray Analysis (EDX) of concrete with 0% (M1) and 2% (M6) soap solution disclosed that the concrete with 2% soap solution (M6) exhibited more silica element formation than the concrete with no soap solution (M1). Full article

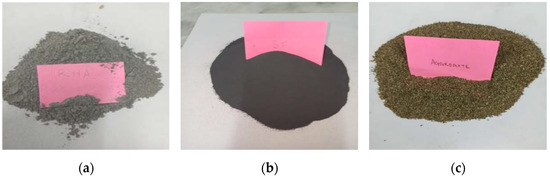

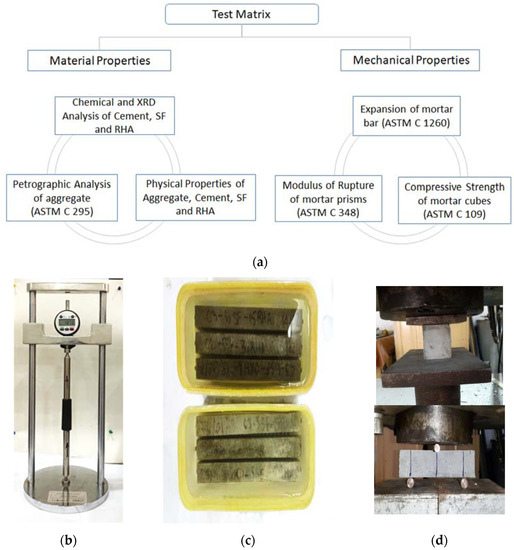

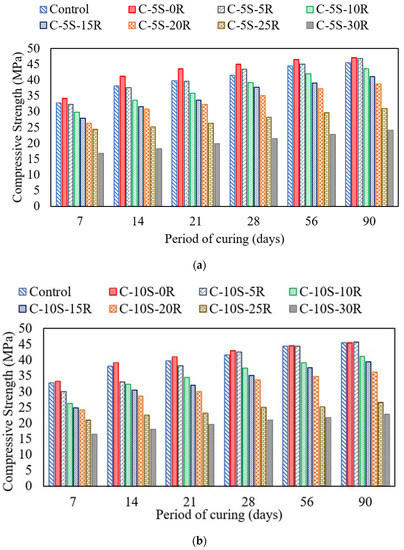

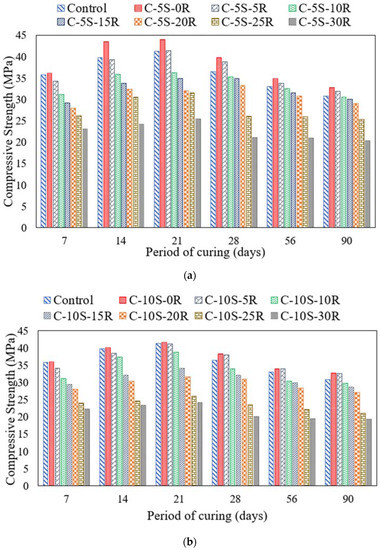

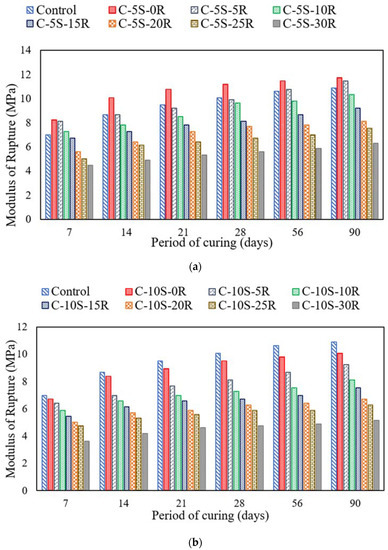

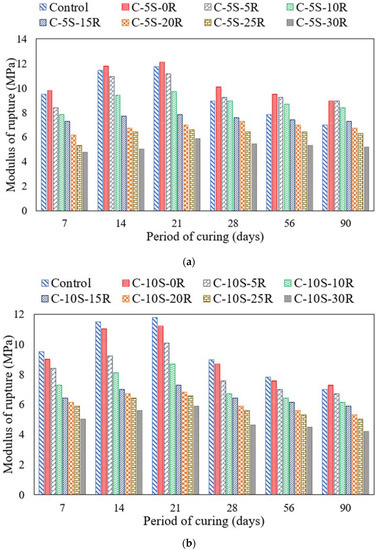

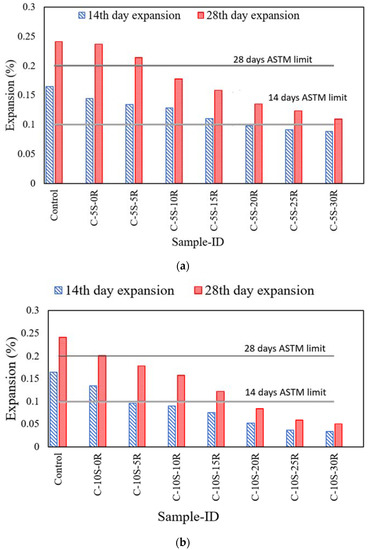

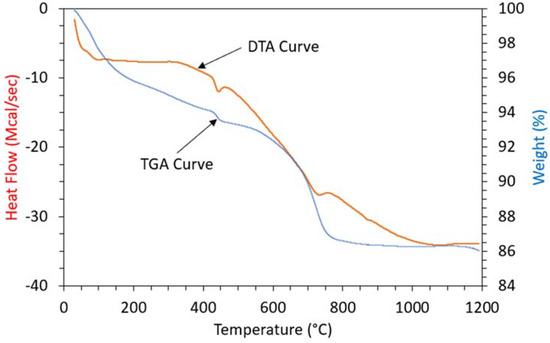

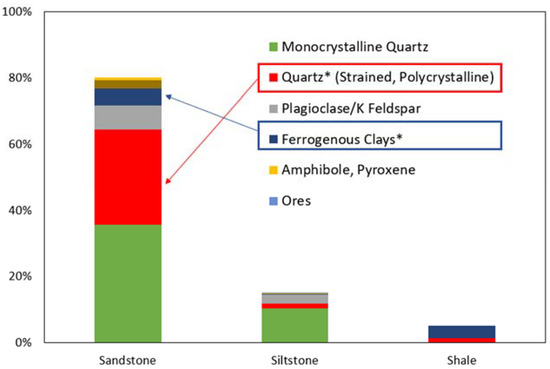

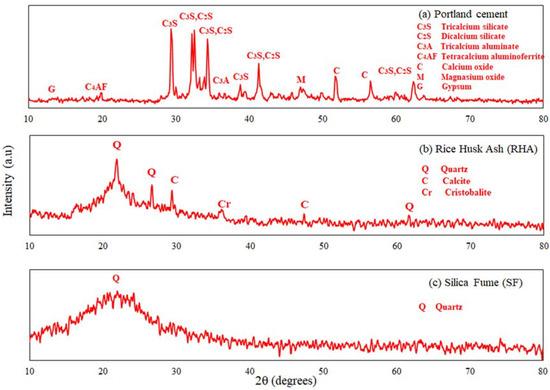

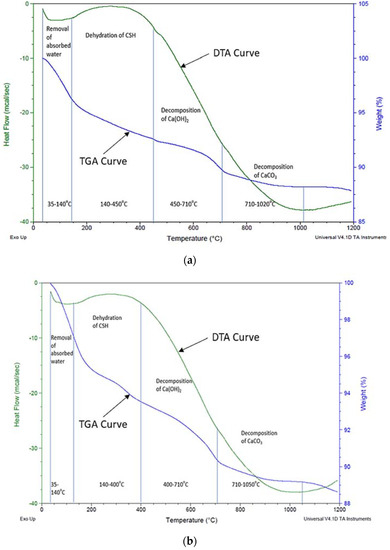

Although the disposal of waste ashes causes environmental hazards, recycling them helps in reducing their harmful impacts and improves the characteristics of building materials. The present study explores the possible use of locally available waste ashes including Rice husk ash (RHA)and Silica Fumes (SF) as a partial replacement for cement in concrete to counter the negative impact of alkali-silica reactions (ASRs). In the present study, ternary blends including RHA (0–30%), SF (5% and 10%) and Portland cement were investigated. The amorphous behavior of RHA and SF was confirmed by conducting an X-ray diffraction analysis. A petrography analysis was carried out to ensure the reactive nature of aggregates used to prepare the concrete specimen. Accelerated mortar bar tests were performed in accordance with ASTM C 1260 for up to 90 days. It was revealed that specimens incorporating a ternary blend of SF, RHA, and Portland cement exhibited less expansion compared to the control specimens without SF and RHA. The incorporation of 5% SF along with 20% RHA exhibited a 0.13% expansion at 28 days and 10% SF, along with 5% RHA which exhibited 0.18% expansion at 28 days which is within the range specified by ASTM C 1260, with the lowest compromise of the mechanical properties of concrete. Thus, the utilization of SF and RHA in the partial replacement of cement in concrete may be considered a practical approach to mitigate ASR effects as well as to reduce the environmental burden. Full article

This paper presents the experimental results of the production of Nano-SiO₂ (NS) from rice husk ash (RHA) and the engineering properties of High Strength Concrete (HSC) containing various NS contents. Firstly, the mesoporous silica nanoparticles were effectively modulated from RHA using NaOH solution, and subsequently precipitated with HCl solution until the pH value reached 3. The optimum synthesis for the manufacture of SiO₂ nanoparticles in the weight ratio of RHA/NaOH was 1:2.4, and the product was calcined at 550 °C for 2 h. The EDX, XRD, SEM, TEM, FT-IR, and BET techniques were used to characterize the NS products. Results revealed that the characteristics of the obtained NS were satisfactory for civil engineering materials. Secondly, the HSC was manufactured with the aforementioned NS contents. NS particles were added to HSC at various replacements of 0, 0.5, 1.0, 1.5, 2.0, and 2.5% by the mass of the binder. The water-to-binder ratio was remained at 0.3 for all mixes. The specimens were cured for 3, 7, 28, 25 days under 25 ± 2 °C and a relative humidity of 95% before testing compressive and flexural strengths. Chloride ion permeability was investigated at 28 and 56 days. Results indicated that the addition of NS dramatically enhanced compressive strength, flexural strength, chloride ion resistance, and reduced chloride ion permeability compared to control concrete. The optimal NS content was found at 1.5%, which yielded the highest strength and lowest chloride ion permeability. Next, the development of flexural and compressive strengths with an age curing of 3–28 days can be analytically described by a logarithmic equation with R² ≥ 0.74. The ACI code was used, and the compressive strength at t-day was determined based on 28 days with R² ≥ 0.95. The study is expected to solve the redundancy of waste RHA in southern Vietnam by making RHA a helpful additive when producing high-strength concrete and contributing meaningfully to a sustainable environment. Full article
