Search Results (8)

This study examines the microstructure, mechanical properties, and precipitation behavior of 1000 MPa grade GEN3 steel when subjected to various quenching processes, with a focus on the quench and partition (Q&P) technique. The Q&P-treated samples achieved 1300 MPa tensile strength and demonstrated superior yield strength, attributed to their refined substructure and their large amounts of precipitates. The quenched samples exhibited the thinnest martensite laths due to the highest martensite volume. Despite the as-annealed samples having the smallest grain size, the Q&P treatment resulted in optimal microstructural refinement results and a high dislocation density, reaching 1.15 × 10¹⁵ m⁻². Analysis of the precipitates revealed the presence of V₈C₇, M₇C₃, M₂C, and Ti(C, N) across various heat treatments. The application of the McCall–Boyd method and the Ashby–Orowan correction model indicated that quench and tempered (Q&T) samples contained the largest volume of fine precipitates, contributing to their high yield strengths. These findings offer valuable insights for optimizing heat treatment processes to develop advanced high-strength steels for industrial applications. Full article

A novel low-alloy ultrahigh-strength steel featuring excellent mechanical properties and comprising a nanolath structure was fabricated in this work using a quenching–partitioning–tempering (Q-P-T) process. The Q-P-T process comprised direct quenching and an isothermal bainitic transformation for partitioning after thermo-mechanical control processing (online Q&P) and offline tempering (reheating and tempering). The ultrafine nanolath martensite/bainite mixed structure, combined with residual austenite in the form of a thin film between the nanolaths, was formed, thereby conferring excellent mechanical properties to the steel structures. After the Q-P-T process, the yield and tensile strengths of the steels reached 1450 MPa and 1726 MPa, respectively. Furthermore, the Brinell hardness and elongation rate were 543 HB and 11.5%, respectively, with an average impact energy of 20 J at room temperature. Full article

An Fe-0.44%C-1.8%Si-1.3%Mn-0.82%Cr-0.28%Mo steel was subjected to quenching followed by low-temperature tempering (Q&T) and quenching and partitioning (Q&P) processing after full austenitization. The Q&P treatment led to an increase in the volume fraction of retained austenite (RA) by factors ranging from 30 to 40 depending on the quenching temperature, T_q, and an additional precipitation of transition η-carbides in the martensitic matrix. The Q&P processing provided a decrease in the yield stress (YS) from 1730 to 1350 MPa and an increase in the ductility by a factor of 3; the product of strength and elongation (PSE) increased from 13.7 to 32 GPa·%. The novelty of the work lies in establishing the origin of the good ductility and high YS of Q&P steel. Blocky-type RA plays a vital role in the effect of Q&P processing on mechanical properties. The main feature of RA is a very high dislocation density proving the strength of ~1000 MPa of this structural component. The strength of RA controls the YS of the steel if its volume fraction is ≥25%. Ductility is provided by the almost full transformation of RA into strain-induced martensite under tension. The localization of plastic deformation in the form of deformation bands is associated with the γ→α′ transformation. Medium carbon Q&P steel with a high volume fraction of RA meets the requirements for advanced high-strength steel (AHSS) belonging to the third generation of AHSS due to the combination of the YS > 1050 MPa with the PSE > 30 GPa·%. Full article

Quenching-partitioning-tempering (Q-P-T) heat treatment is a relatively novel approach to attain excellent ductility in high-strength steels. In the present work, the microstructural evolution and the mechanical properties of a low carbon microalloyed advanced steel were systematically investigated after the Q-P-T process. The microstructural evolution was explored by employing X-ray diffraction, transmission electron microscopy and scanning electron microscopy. The results indicate that the multiphase microstructures strongly depend on both the initial microstructure and the processing parameters of the quenching and partitioning process, especially the quenching temperature. Compositional inhomogeneity during the Q-P-T process results in multiphase microstructures, in which the mechanical properties of the quenching and partitioning steels may be strongly impacted by the distribution of heterogeneous austenite phase in the steel matrix. Full article

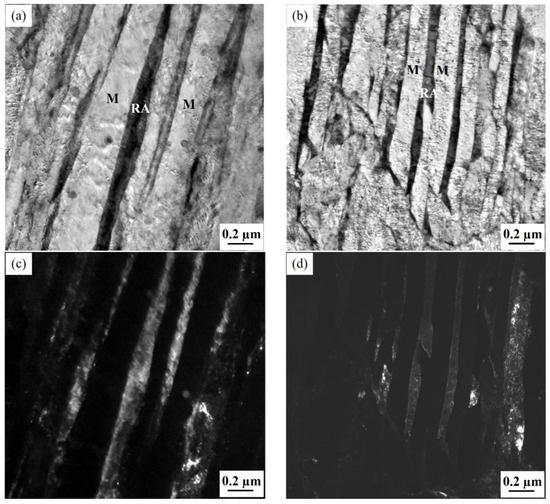

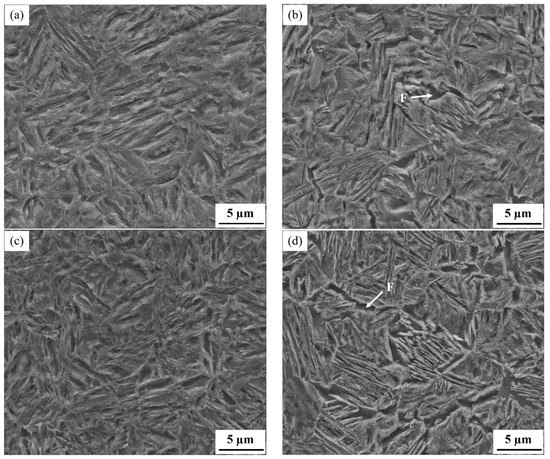

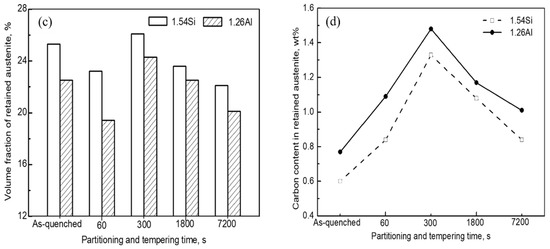

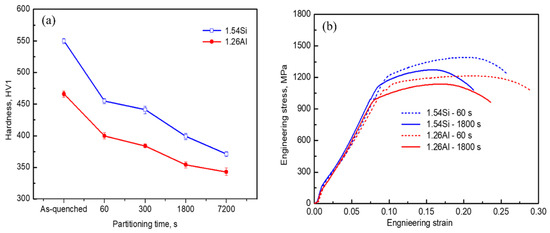

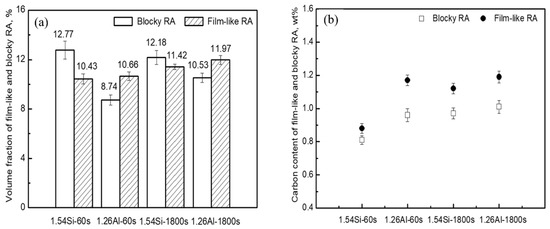

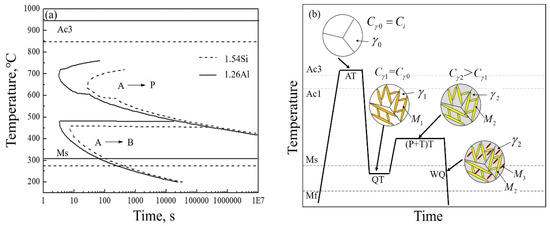

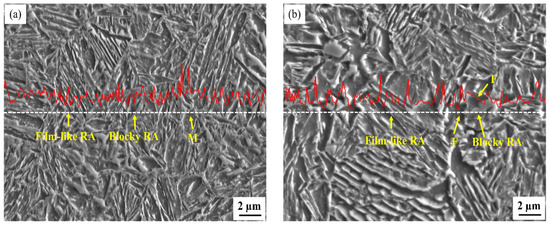

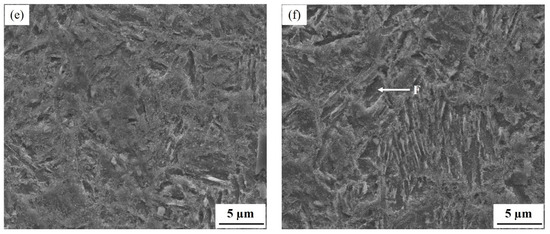

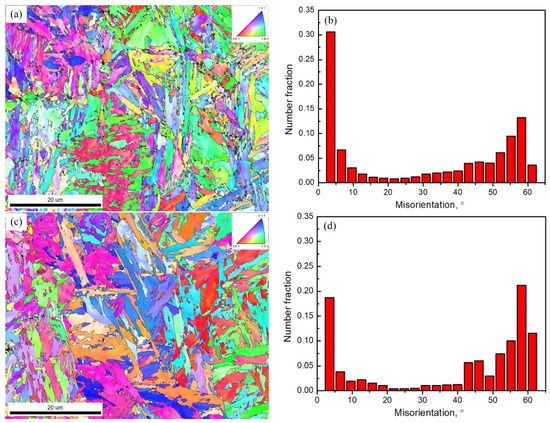

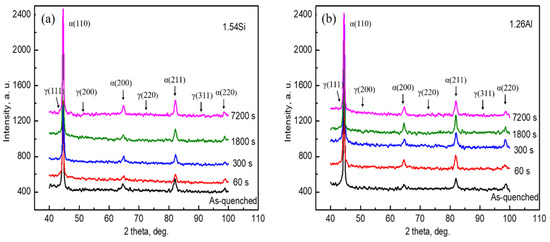

Nanostructured martensitic steels comprising nanoscale-martensite and retained austenite were obtained by quenching–partitioning–tempering (Q–P–T) treatment. The influence of partial replacement of Si by Al on the microstructure and properties were studied. Results showed that with partial replacement of Si by Al, except nanoscale-martensite and retained austenite, a little ferrite was also clearly observed. By contrast, with partial replacement of Si by Al, although the ultimate tensile strength (1392 MPa against 1215 MPa) was slightly lower, the elongation after fracture (16.7% against 19.9%) and the toughness (equivalent to the area under the stress–strain curve) (43.1 × 10⁶ against 37.1 × 10⁶ J/m³) were relatively higher. This was because the retained austenite in the steel with partial replacement of Si by Al had higher carbon content, similar volume fraction of film-like morphology, lower volume fraction of blocky morphology and was surrounded by ferrite, which played significant role in the transformation-induced plasticity (TRIP) effect. Full article

Low chromium ferritic stainless steel has great potential in automobile structures for improved strength. In this study, quenching and partitioning (Q-P) treatment was applied to a low-carbon-chromium ferritic stainless steel and compared with traditional heat treatment (quenching-tempering [Q-T] and annealing) in terms of microstructure, mechanical properties, corrosion resistance, and deformation of plate. The results show that the quenching and partitioning (Q-P) treatment has a series of advantages over conventional heat treatments (quenching-tempering and annealing). In terms of mechanical properties, it achieves a good match between strength and plasticity by combining the advantages of “soft state” with high elongation resulting from conventional annealing and high strength "hard state” through the traditional quenching-tempering process. The material possesses better crash safety; for the quenching-partitioning (Q-P) process, quenching-tempering process, and annealing process, the production of strength plasticity is about 16 GPa%, 15 GPa%, and 14 GPa%, respectively. The material has low yield strength, high work hardening index (compared with Q-T), a smooth tensile curve, and no yield plateau (compared with annealing), so it has better forming performance and processing surface, and the corrosion resistance has also improved. The pitting potential of the samples produced by the quenching treatment of Q-P and Q-T increased by about 0.2 V, which is about 20% higher than the one by the traditional annealing process. Full article

New medium Mn steels for forged components, in combination with a new heat treatment, are presented. This new annealing process implies air-cooling after forging and austenite reversion tempering (AC + ART). This leads to energy saving compared to other heat treatments, like quenching and tempering (Q + T) or quenching and partitioning (Q + P). Furthermore, the temperature control of AC + ART is easy, which increases the applicability to forged products with large diameters. Laboratory melts distinguished by Ti, B, Mo contents have been casted and consecutively forged into semi-finished products. Mechanical properties and microstructure have been characterized for the AC and the AC + ART states. The as forged-state shows YS from 900 MPa to 1000 MPa, UTS from 1350 MPa to 1500 MPa and impact toughness from 15 J to 25 J. Through the formation of nanostructured retained metastable austenite an increase in impact toughness was achieved with values from 80 J to 100 J dependent on the chemical composition. Full article

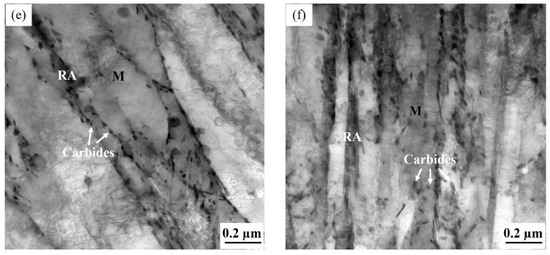

High-strength medium-carbon martensitic steel was heat treated through a quenching-partitioning-tempering (Q-P-T) treatment. Both the mechanism for improved ductility and the high temperature stability of austenite were investigated. The Q-P-T martensitic steel showed good products of strength and elongation (PSE) at various deformation temperatures ranging within 25–350 °C. The optimum PSE value (>57,738 MPa%) was achieved at 200 °C. The microstructure of the Q-P-T steel is constituted of laths martensite with dislocations, retained austenite located within lath martensite and small niobium carbides (NbC), and/or transitional ε-carbides that precipitated in the lath martensite. The good ductility can be mainly attributed to the laminar-like austenite that remained within the lath-martensite. The austenite can effectively enhance ductility through the effect of dislocation absorption by the retained austenite and through transformation-induced plasticity. The relationship between the microstructures and mechanical properties was investigated at high deformation temperatures. Full article
