Search Results (4)

This work is concerned with polyethylene terephthalate (PET) saponification by different potassium compounds in various polyols as well as biodiesel’s main by-product, crude glycerol. It was established that reaction conditions (initial PET/K+ molar ratio, reaction time, etc.) could control the molecular weight of obtained oligomeric products. In ethylene glycol, depolymerization proceeds rapidly, and already at 10–30 min, PET is completely dissolved in the reaction mixture with the formation of liquid oligomers. Then, these oligomers react with potassium compounds, and after 200 min of the process, there are only solid, low-molecular-weight products (dipotassium terephthalate, monomers, and dimers). At the same time, PET saponification in pure glycerol is less effective, and solid polyether flakes could not fully decompose even after 200 min of the process. Crude glycerol takes the middle position between pure polyols. Based on the obtained data, an improved kinetic model was developed, and rate constants were estimated. This model takes into account PET saponification by potassium salts as well as direct PET glycolysis. Ethylene glycol is formed in situ by transesterification between fatty acid ethylene glycol esters and glycerol in the case of pure and crude glycerol. Full article

Polyurethane (PU) is an indispensable part of people’s lives. With the development of polyurethane, the disposal of polyurethane waste has become a significant issue around the world. Conventional degradation catalysts have poor dispersion and low degradation efficiency when used in the process of solid degradation into liquid. Therefore, this paper innovatively adopts self-made core–shell nanoscale titanium catalysis, traditional alkali metal catalyst (KOH), and polyol to carry out the glycolysis of waste polyurethane (PU) pipeline foam. The homogenized nanoscale titanium catalyst coated with alcohol gel has an obvious core–shell structure. The alcohol gel not only protects the catalyst but also dissolves with the alcoholysis agent in the process of glycolysis and disperses more evenly into the alcoholysis agent to avoid the phenomenon of nanocatalyst agglomeration, so as to facilitate catalytic cracking without reducing catalyst activity. In this study, investigated and compared the production of renewable polyurethane foam via a one-step method based on use of a homogeneous core–shell nanostructured titanium catalyst vs. a traditional alkaline catalyst in terms of the properties of regenerated polyether polyols as well as of the foams produced from these polyols. The physicochemical properties of regenerated polyether polyols that were analyzed included viscosity, hydroxyl value, and average molecular weight. The regenerated polyurethane foams were characterized based on water absorption, TG, SEM, and thermal conductivity analyses. The results show that, when the addition of homogeneous titanium catalyst was T2 0.050 wt.%, the viscosity of regenerated polyether polyols was the lowest, at 5356.7 mPa·s, which was reduced by 9.97% compared with those obtained using the alkali metal catalyst (KOH). When the amount of titanium catalyst was T3 0.075 wt.%, the hard foam made of regenerated polyurethane prepared by the catalyst showed the best properties, with a compressive strength of 0.168 MPa, which is 4.76% higher than that of the foam prepared using KOH catalyst. Full article

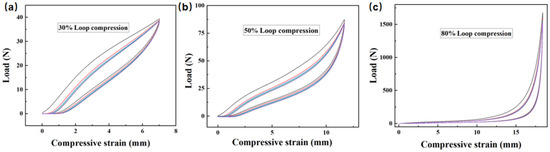

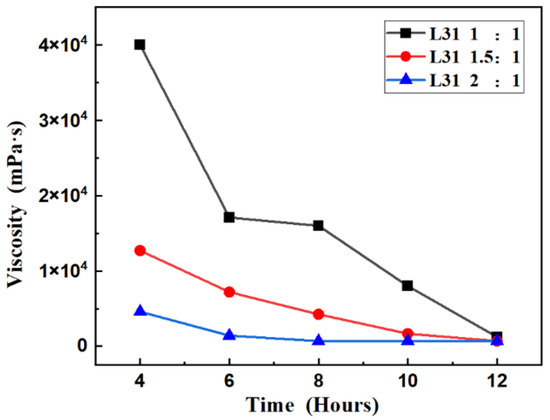

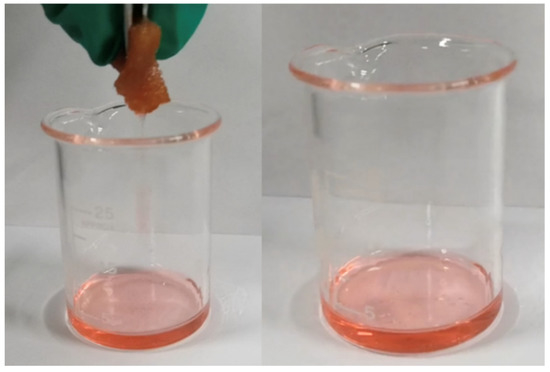

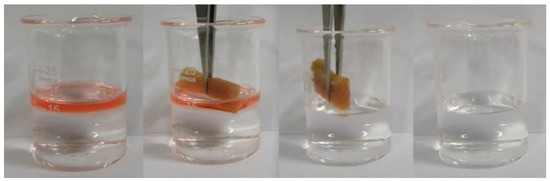

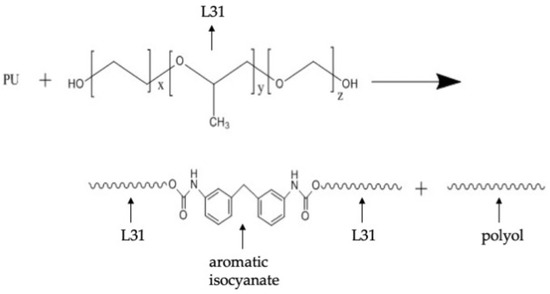

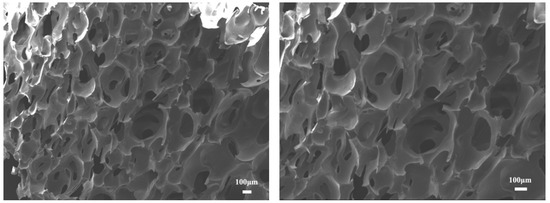

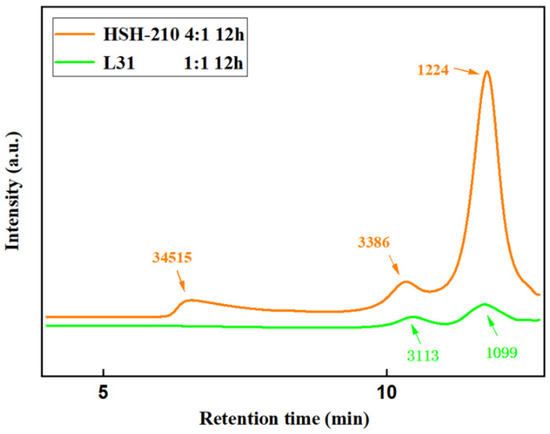

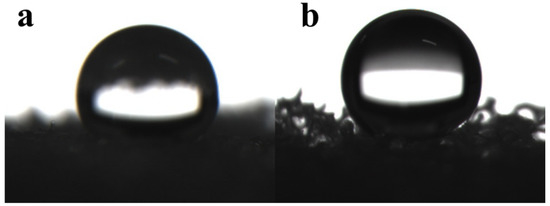

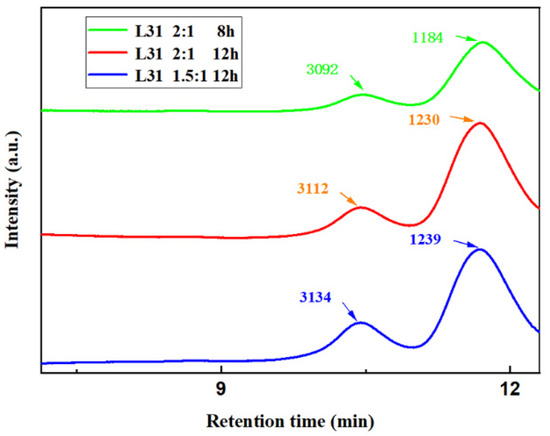

Ester exchange glycolysis of flexible polyurethane foam (PU) usually results in split-phase products, and the recovered polyether polyols are obtained after separation and purification, which can easily cause secondary pollution and redundancy. In this paper, we propose a green recycling process for the degradation of waste polyurethane foam by triblock polyether, and the degradation product can be used directly as a whole. The polyurethane foam can be completely degraded at a minimum mass ratio of 1.5:1. The secondary full utilization of the degradation product as a whole was directly synthesized into recycled polyurethane foam, and the compression cycle test proved that the excess glycolysis agent had less effect on the resilience of the recycled foam. The hydrophobic modification of the recycled foam was carried out, and the oil absorption performance of the recycled foam before and after the hydrophobic modification was compared. The oil absorption capacity for diesel oil ranged from 4.3 to 6.7, while the oil absorption performance of the hydrophobic modified recycled foam was significantly improved and had excellent reusability (absorption–desorption oil processes can be repeated at least 25 times). This economical and green process has large-scale application prospects, and the hydrophobic recycling foam can be applied to the field of oil and water separation. Full article

Ester polyurethane (PU) foam waste was reacted at atmospheric pressure in an autoclave and using microwaves with diethylene glycol (DEG) at different PU/DEG ratios in the presence of diethanolamine as a catalyst to find the glycolysis conditions that allow for the improved recovery of the PU foam waste and enable the recycling of the whole glycolysis product in foam formulations suitable for industrial application. The recycled polyol was characterized by dynamic viscosity, hydroxyl number, water content, and density, while thermal stability was assessed using thermogravimetric analysis. In the PU foam formulation, 1% and 5% of the glycolyzed material was reused. The relationship between the reuse level of the recycled polyol and the physical properties of the foam was thoroughly investigated. It was observed that both hardness and air flow decreased with increasing recycled polyol content, particularly for the polyester type foam, while tensile strength and compression strength increased. Depending on the amount of recycled polyol and catalyst used, polyether-based foams could be obtained with a low air permeability, needed in special applications as sealed foams, or with higher air permeability desirable for comfort PU foams. The results open the way for further optimization studies of industrial polyurethane foam formulations using a glycolysis process without any separation stage. Full article
