Search Results (4)

In this paper, we report a novel thermally conductive semi-aromatic heat-resistant PA5T-CO-10T/hexagonal boron nitride (PA5T-CO-10T/BN) composite, based on as-synthesized PA5T-CO-10T, which is a copolymer of poly (pentamethylene terephthalamide) (PA5T) and poly (decamethylene terephthalamide) (PA10T). We confirmed the structure of PA5T-CO-10T through a nuclear magnetic resonance carbon spectrometer (¹³C-NMR). The differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA) results indicate that PA5T-CO-10T demonstrates a processing window (greater than 90 °C) which is suitable for melt processing and injection molding. Moreover, the PA5T-CO-10T composites with different BN contents were tested by scanning electron microscopy (SEM), a thermal conductivity meter, a rotational rheometer and X-ray diffraction (XRD). The results indicate that as the content of h-BN increases, the thermal conductivity of the PA5T-CO-10T/BN composites is significantly enhanced. When the mass of h-BN reaches 30 wt%, the thermal conductivity of the composite material is 2.5 times that of the original matrix resin. Simultaneously, there is a notable upward trend observed in the storage modulus, loss modulus, complex viscosity and orientation degree of h-BN. This is attributed to the high thermal conductivity and the high orientation degree of h-BN, which ensure the continuous enhancement of the material’s thermal conductivity. Additionally, the introduction of h-BN enhances the degree of connection between the material’s molecular chains. PA5T-CO-10T/BN possesses excellent heat resistance and thermal conductivity, presenting significant application prospects in the fields of electronics, electrical appliances and automobiles. Full article

With the development of miniaturization and integration of electrical and electronic equipment, the heat accumulation problems caused by the long-term operation of devices have become more and more serious. High thermal-conductivity and high-performance plastic composites have attracted significant interest from both academia and industry. Numerous studies have been recently conducted to enhance the thermal conductivity (TC) of nanofiller-filled polymeric composites. However, the homogeneous dispersion and directional arrangement of nanofillers in the resin matrix are the key factors limiting their effectiveness in enhancing thermal conductivity. Based on the feasibility considerations of mass production and industrial application, this paper reports on a novel preparation method of Poly(decamethylene terephthalamide)/graphite nanoparticle (GNP) nanocomposites with high thermal conductivity. Without borrowing solvents or other reagents, this method can effectively strip the inexpensive scaled graphite into nanoscale for its uniform dispersion and orientation arrangement by relying only on mechanical external forces. The whole technology is simple, green, and easy to industrialize. The fillers were well-dispersed and aligned in the PA10T, which played a role in significantly enhancing the thermal conductivity of the PA10T. In addition, we found that the thermal conductivity of the composites reached 1.20 W/(m·K) at 10 wt% filler content, which was 330% higher than that of the pure matrix. The mechanical properties of the composites were also significantly improved. This work provides guidance for the easy fabrication of thermally conductive composites with aligned structures. Full article

Plant-derived PA10T is regarded as one of the most promising semi-aromatic polyamides; however, shortcomings, including low dimensional accuracy, high moisture absorption, and relatively high dielectric constant and loss, have impeded its extensive utilization. Polymer blending is a versatile and cost-effective method to fabricate new polymeric materials with excellent comprehensive performance. In this study, various ratios of PA10T/PPO blends were fabricated via melt blending with the addition of a SEBS-g-MAH compatibilizer. Molau test and scanning electron microscopy (SEM) were employed to study the influence of SEBS-g-MAH on the compatibility of PA10T and PPO. These studies indicated that SEBS-g-MAH effectively refines the domain size of the dispersed PPO phase and improves the dispersion stability of PPO particles within a hexafluoroisopropanol solvent. This result was attributed to the in situ formation of the SEBS-g-PA10T copolymer, which serves as a compatibilizer. Differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA) results showed that the melting–crystallization behavior and thermal stability of blends closely resembled that of pure PA10T. Dynamic mechanical analysis (DMA) revealed that as the PPO content increased, there was a decrease in the glass transition temperature and storage modulus of PA10T. The water absorption rate, injection molding shrinkage, dielectric properties, and mechanical strength of blends were also systematically investigated. As the PPO content increased from 10% to 40%, the dielectric loss at 2.5 GHz decreased significantly from 0.00866 to 0.00572, while the notched Izod impact strength increased from 7.9 kJ/m² to 13.7 kJ/m². Full article

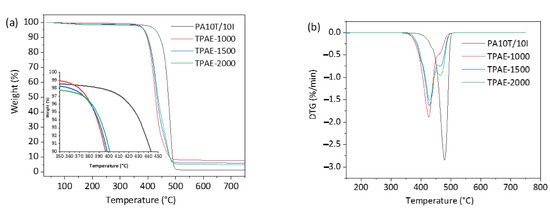

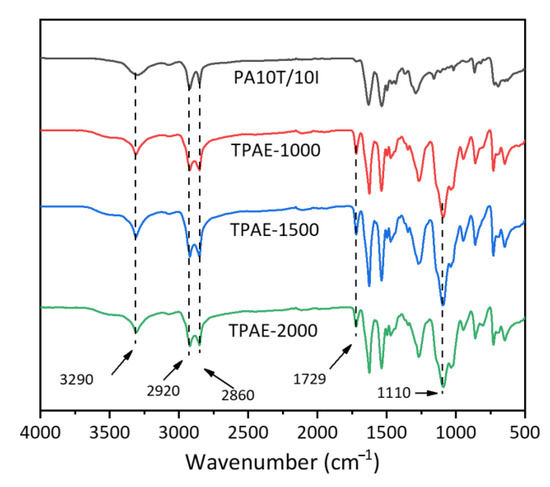

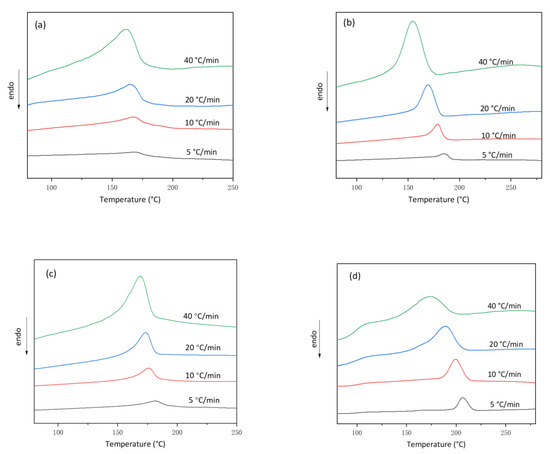

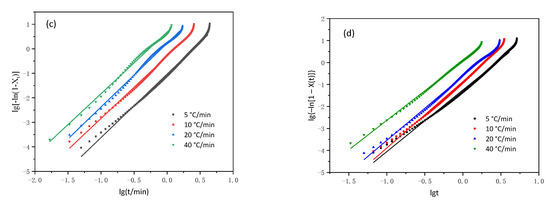

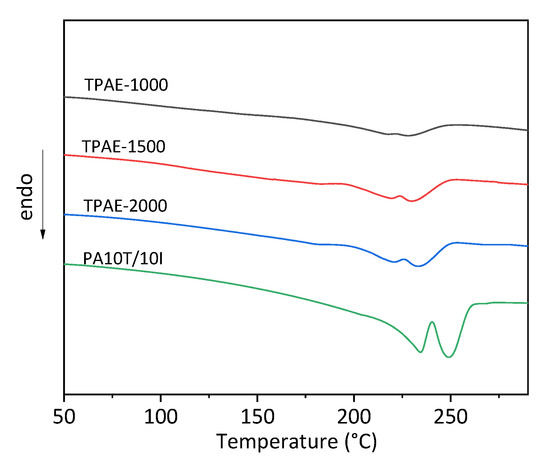

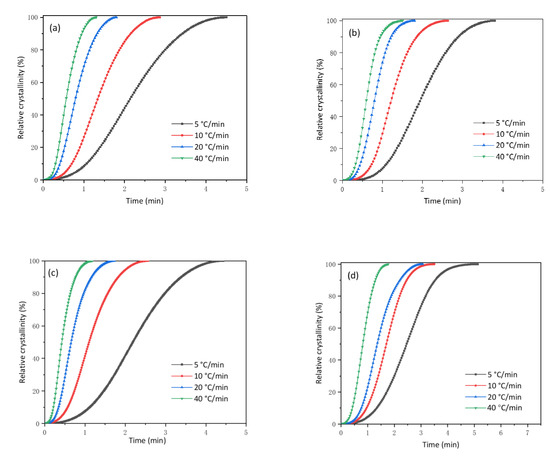

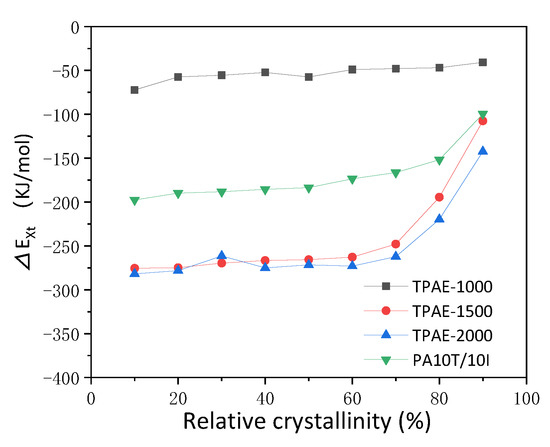

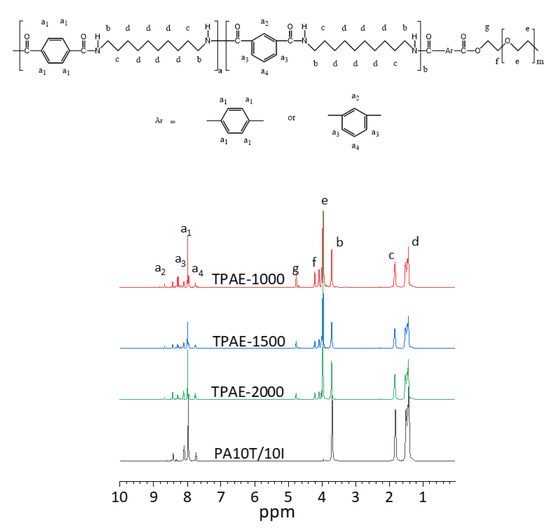

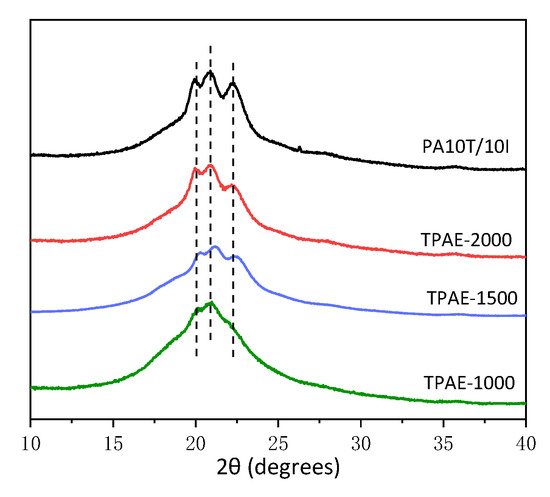

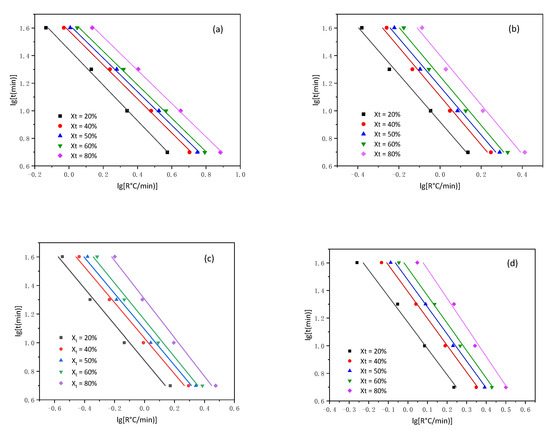

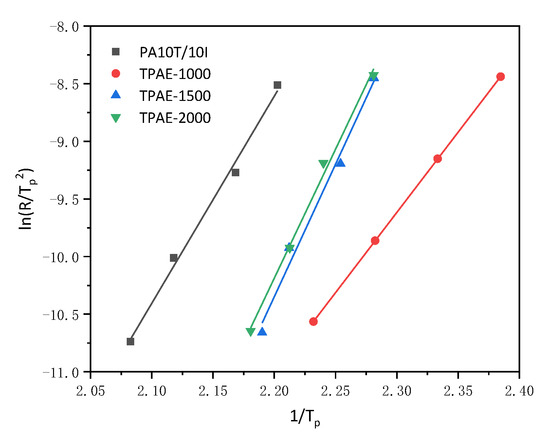

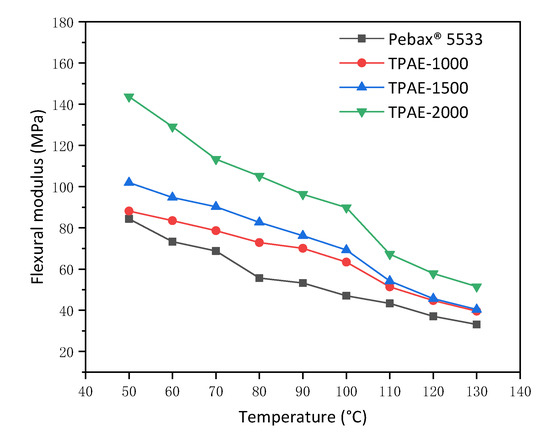

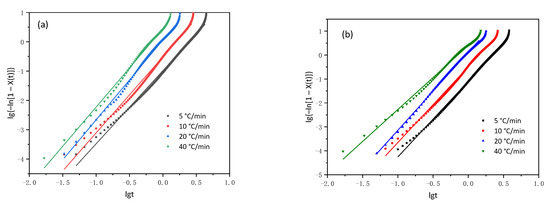

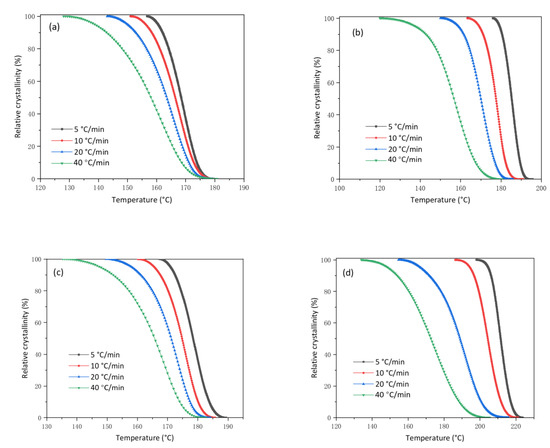

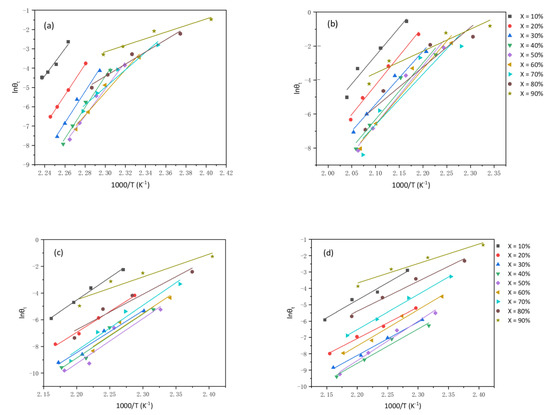

A series of novel thermoplastic elastomers based on (poly(decamethylene terephthalamide/decamethylene isophthalamide), PA10T/10I) and poly(ethylene glycol) (PEG) were synthesized via a facile one-pot, efficient and pollution-free method. The thermal analysis demonstrates that the melting points of the resultant elastomers were in the range of 217.1–233.9 °C, and their initial decomposition temperatures were in the range of 385.3–387.5 °C. That is higher than most commercial polyamide-based thermoplastic elastomers. The tensile strength of the resultant elastomers ranges from 21.9 to 41.1 MPa. According to the high-temperature bending test results, the resultant samples still maintain considerably better mechanical properties than commercial products such as Pebax^® 5533 (Arkema, Paris, France), and these novel thermoplastic elastomers could potentially be applied in high-temperature scenes. The non-isothermal crystallization kinetics of the resultant elastomers and PA10T/10I was investigated by means of Jeziorny and Mo’s methods. Both of them could successfully describe the crystallization behavior of the resultant elastomers. Additionally, the activation energy of non-isothermal crystallization was calculated by the Kissinger method and the Friedman equation. The results indicate that the crystallization rates follow the order of TPAE-2000 > TPAE-1500 > PA10T/10I > TPAE-1000. From the crystallization analysis, the crystallization kinetics and activation energies are deeply affected by the molecular weight of hard segment. Full article
