Search Results (4)

Starting from poly(4-vinylpyridine) ((P4VP)_n), poly(2-vinylpyridine) ((P2VP)_n), and [N=P(O₂CH₂CF₃)]_m-b-P2VP₂₀ block copolymers, a series of metal-containing homopolymers, (P4VP)_n⊕MX_m, (P2VP)_n⊕MX_m, and [N=P(O₂CH₂CF₃)]_m-b-P2VP₂₀]⊕MX_m MX_m = PtCl₂, ZnCl₂, and Eu(NO₃)₃, have been successfully prepared by using a direct and simple solution methodology. Solid-state pyrolysis of the prepared metal-containing polymeric precursors led to the formation of a variety of different metallic and metal oxide nanoparticles (Pt, ZnO, Eu₂O₃, and EuPO₄) depending on the composition and nature of the polymeric template precursor. Thus, whereas Eu₂O₃ nanostructures were obtained from europium-containing homopolymers ((P4VP)_n⊕MX_m and (P2VP)_n⊕MX_m), EuPO₄ nanostructures were achieved using phosphorus-containing block copolymer precursors, [N=P(O₂CH₂CF₃)]_m-b-P2VP₂₀]⊕MX_m with MX_m = Eu(NO₃)₃. Importantly, and although both Eu₂O₃ and EuPO₄ nanostructures exhibited a strong luminescence emission, these were strongly influenced by the nature and composition of the macromolecular metal-containing polymer template. Thus, for P2VP europium-containing homopolymers ((P4VP)_n⊕MX_m and (P2VP)_n⊕MX_m), the highest emission intensity corresponded to the lowest-molecular-weight homopolymer template, [P4VP(Eu(NO₃)₃]₆₀₀₀, whereas the opposite behavior was observed when block copolymer precursors, [N=P(O₂CH₂CF₃)]_m-b-P2VP₂₀]⊕MX_m MX_m= Eu(NO₃)₃, were used (highest emission intensity corresponded to [N=P(O₂CH₂CF₃)]₁₀₀-b-[P2VP(Eu(NO₃)₃)_x]₂₀). The intensity ratio of the emission transitions: ⁵D₀ → ⁷F₂/⁵D₀ → ⁷F₁, suggested a different symmetry around the Eu³⁺ ions depending on the nature of the polymeric precursor, which also influenced the sizes of the prepared Pt°, ZnO, Eu₂O₃, and EuPO₄ nanostructures. Full article

Aliphatic polycarbonate (APC) compounds are an important class of biodegradable materials with excellent biocompatibility, good biodegradability, and low toxicity, and the study of these compounds and their modification products aims to obtain biodegradable materials with better performance. In this context, the ring-opening polymerization (ROP) of trimethylene carbonate (TMC) from a low nucleophilic organic superbase of phosphazene (t-BuP₄) as a catalyst and benzyl alcohol (BnOH) as an initiator at room temperature was carefully studied to prepare poly(trimethylene carbonate) (PTMC) which is one of the most studied APC. ¹H NMR and SEC measurements clearly demonstrate the presence of a benzyloxy group at the α-terminus of the obtained PTMC homopolymers while investigation of the polymerization kinetics confirms the controlled/living nature of t-BuP₄-catalyzed ROP of TMC. On the basis of this, the block copolymerization of TMC and δ-valerolactone (VL)/ε-caprolactone (CL) was successfully carried out to give PTMC-b-PCL and PTMC-b-PVL copolymers. Furthermore, PTMC with terminal functionality was also prepared with the organocatalytic ROP of TMC through functional initiators. We believe that the present ROP system is a robust, highly efficient, and practical strategy for producing excellent biocompatible and biodegradable PTMC-based materials. Full article

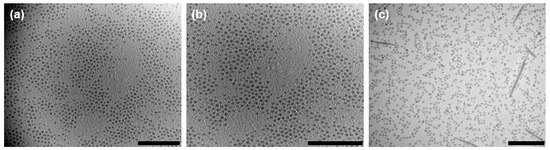

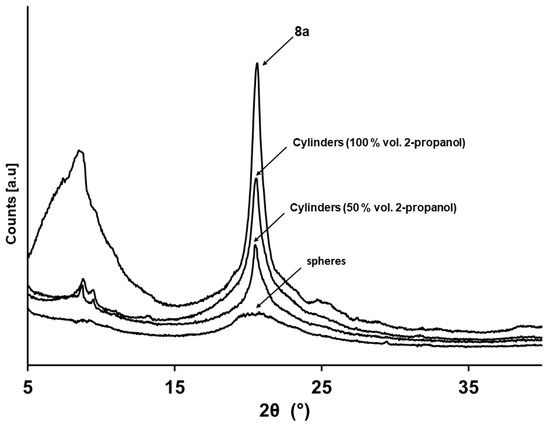

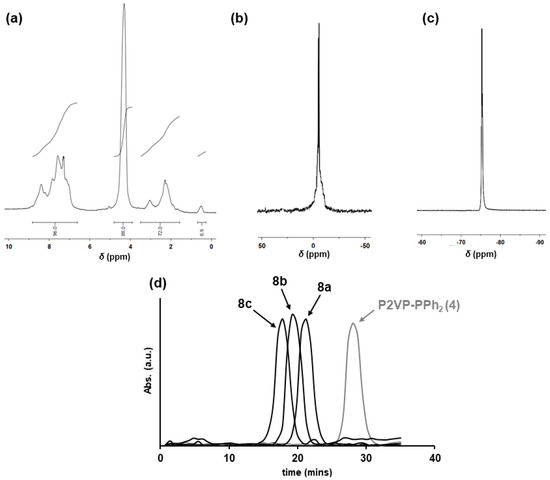

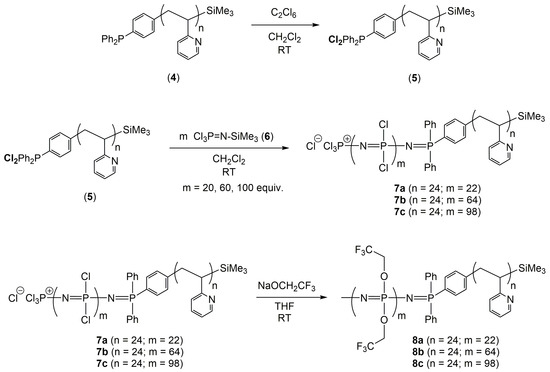

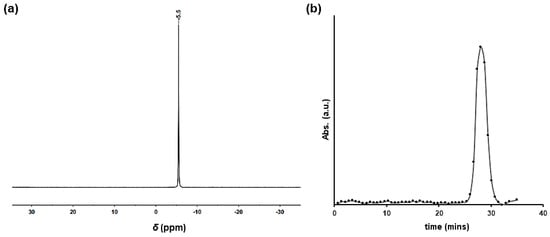

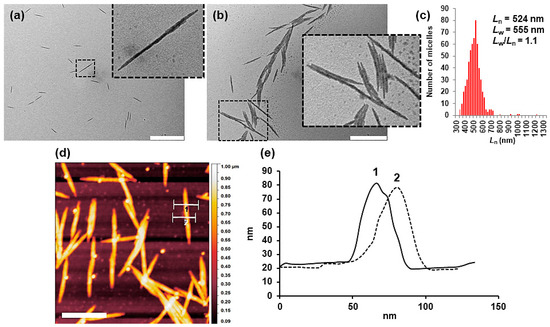

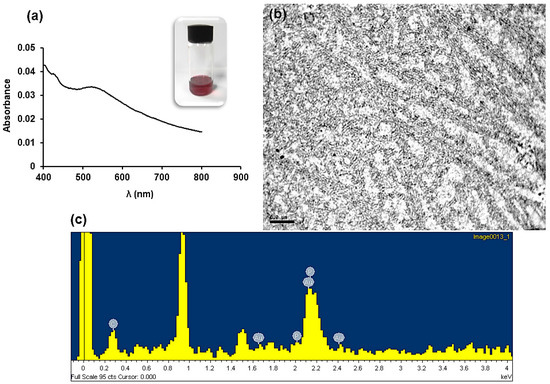

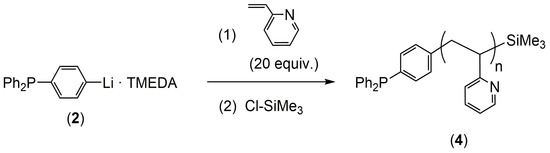

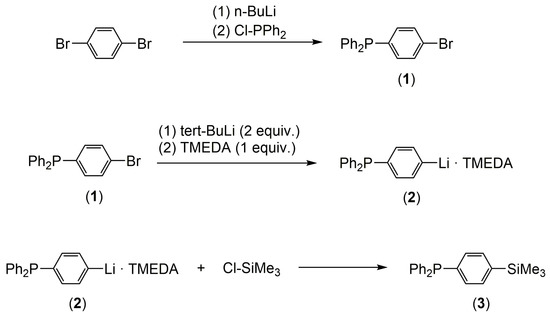

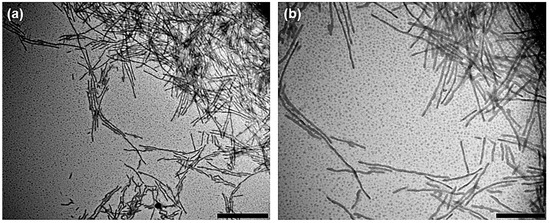

During the last number of years a variety of crystallization-driven self-assembly (CDSA) processes based on semicrystalline block copolymers have been developed to prepare a number of different nanomorphologies in solution (micelles). We herein present a convenient synthetic methodology combining: (i) The anionic polymerization of 2-vinylpyridine initiated by organolithium functionalized phosphane initiators; (ii) the cationic polymerization of iminophosphoranes initiated by –PR₂Cl₂; and (iii) a macromolecular nucleophilic substitution step, to prepare the novel block copolymers poly(bistrifluoroethoxy phosphazene)-b-poly(2-vinylpyridine) (PTFEP-b-P2VP), having semicrystalline PTFEP core forming blocks. The self-assembly of these materials in mixtures of THF (tetrahydrofuran) and 2-propanol (selective solvent to P2VP), lead to a variety of cylindrical micelles of different lengths depending on the amount of 2-propanol added. We demonstrated that the crystallization of the PTFEP at the core of the micelles is the main factor controlling the self-assembly processes. The presence of pyridinyl moieties at the corona of the micelles was exploited to stabilize gold nanoparticles (AuNPs). Full article

The anionic polymerization of styrene and 1,3-butadiene in the presence of phosphazene bases (t-BuP4, t-BuP2 and t-BuP1), in benzene at room temperature, was studied. When t-BuP1 was used, the polymerization proceeded in a controlled manner, whereas the obtained homopolymers exhibited the desired molecular weights and narrow polydispersity (Ð < 1.05). In the case of t-BuP2, homopolymers with higher than the theoretical molecular weights and relatively low polydispersity were obtained. On the other hand, in the presence of t-BuP4, the polymerization of styrene was uncontrolled due to the high reactivity of the formed carbanion. The kinetic studies from the polymerization of both monomers showed that the reaction rate follows the order of [t-BuP4]/[sec-BuLi] >>> [t-BuP2]/[sec-BuLi] >> [t-BuP1]/[sec-BuLi] > sec-BuLi. Furthermore, the addition of t-BuP2 and t-BuP1 prior the polymerization of 1,3-butadiene allowed the synthesis of polybutadiene with a high 1,2-microstructure (~45 wt %), due to the delocalization of the negative charge. Finally, the one pot synthesis of well-defined polyester-based copolymers [PS-b-PCL and PS-b-PLLA, PS: Polystyrene, PCL: Poly(ε-caprolactone) and PLLA: Poly(L-lactide)], with predictable molecular weights and a narrow molecular weight distribution (Ð < 1.2), was achieved by sequential copolymerization in the presence of t-BuP2 and t-BuP1. Full article
