Partial discharge (PD) is a critical indicator of insulation degradation in high-voltage DC systems, necessitating accurate diagnosis to ensure long-term reliability. Conventional AC-based diagnostic methods, such as phase-resolved partial discharge analysis (PRPDA), are ineffective under DC conditions, emphasizing the need for waveform-based analysis. This study presents a novel clustering framework for DC PD pulses, leveraging multi-level wavelet decomposition and statistical feature extraction. Each signal is decomposed into multiple frequency bands, and 70 distinctive waveform features are extracted from each pulse. To mitigate feature redundancy and enhance clustering performance, principal component analysis (PCA) is employed for dimensionality reduction. Experimental data were obtained from multiple defect types and measurement distances using a 22.9 kV cross-linked polyethylene (XLPE) cable system. The proposed method significantly outperformed conventional time-frequency (T-F) mapping techniques, particularly in scenarios involving signal attenuation and mixed noise. Propagation-induced distortion was effectively addressed through multi-resolution analysis. In addition, field noise sources such as HVDC converter switching transients and fluorescent lamp emissions were included to assess robustness. The results confirmed the framework’s capability to distinguish between multiple PD types and noise sources, even in challenging environments. Furthermore, optimal mother wavelet selection and correlation-based feature analysis contributed to improved clustering resolution. This framework supports robust PD classification in practical HVDC diagnostics. The framework can contribute to the development of real-time autonomous monitoring systems for HVDC infrastructure. Future research will explore incorporating temporal deep learning architectures for automated PD-type recognition based on clustered data. Full article

The tendency towards thin insulation layers in traction battery systems presents new challenges regarding insulation quality and service life. Phase-resolved DC partial discharge diagnostics can help to identify defects. Furthermore, different root causes are characterized by different patterns. However, to industrialize the procedure, there is the need for an automatic pattern recognition system. This paper shows how methods from computer vision can be applied to DC partial discharge diagnostics. The derived system is self-learning, needs no tedious manual calibration, and can identify defects within a matter of seconds. Thus, the combination of computer vision and phase-resolved DC partial discharge diagnostics provides an industrializable system for detecting insulation faults and identifying their root causes. Full article

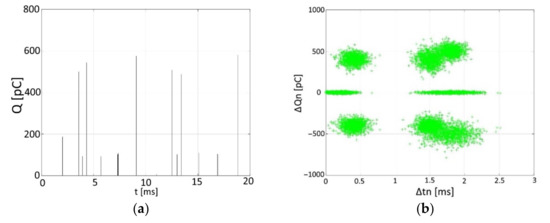

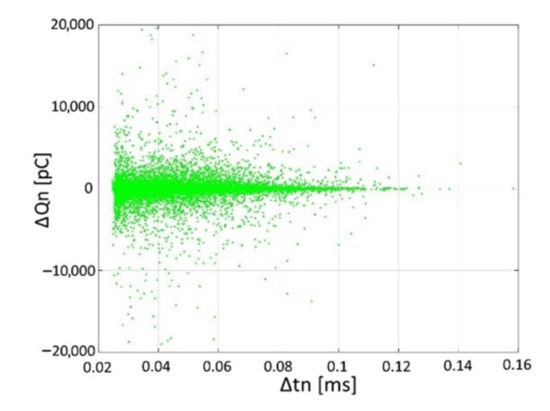

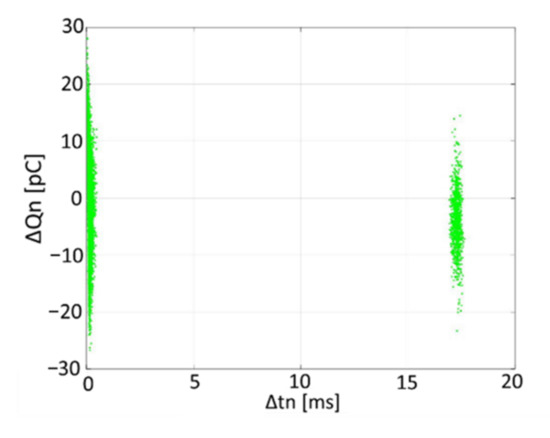

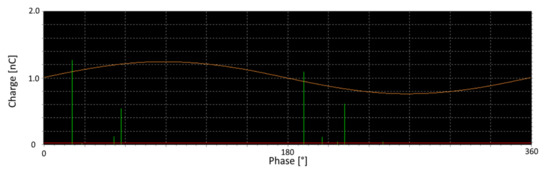

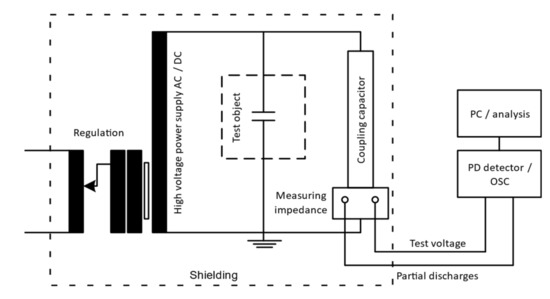

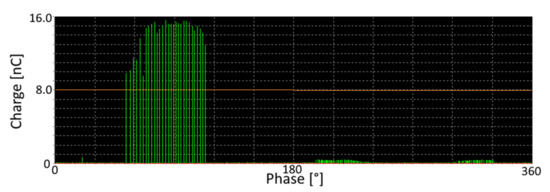

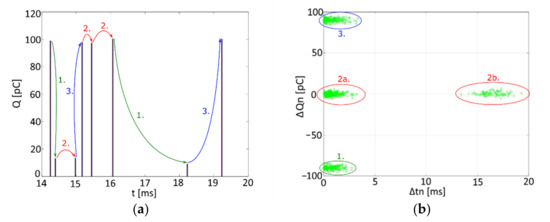

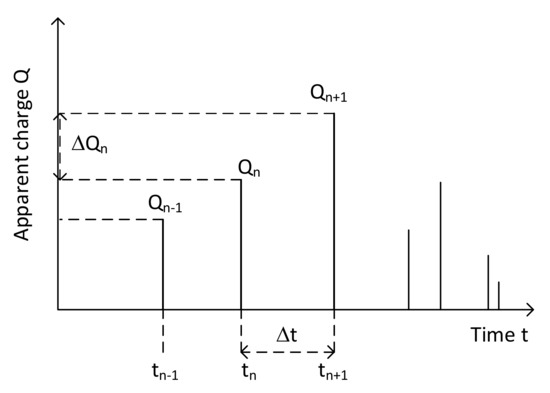

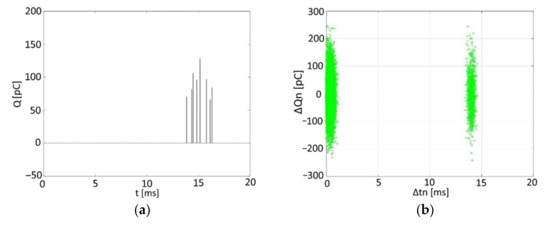

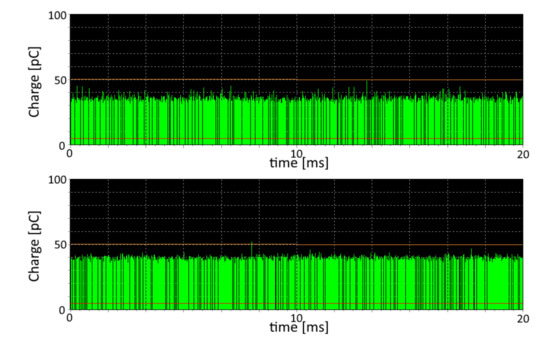

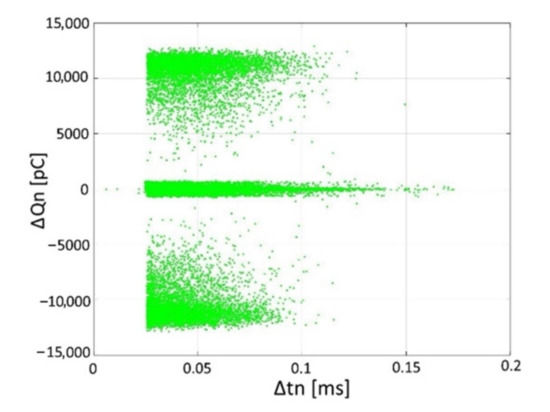

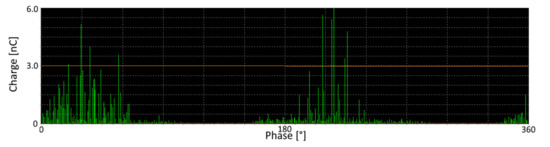

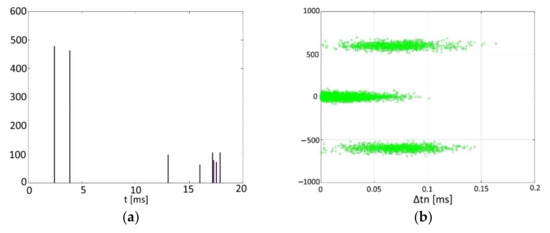

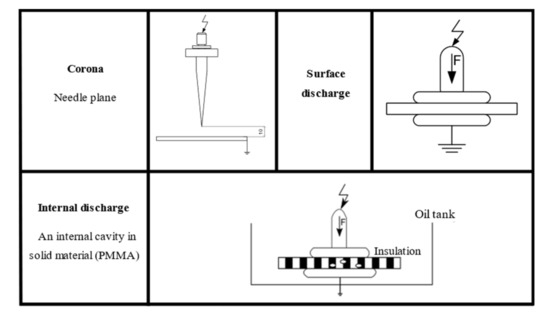

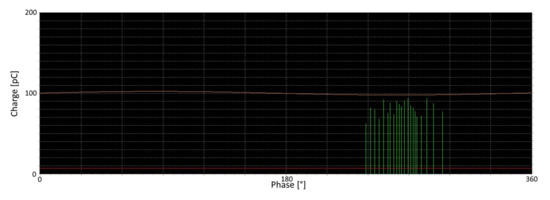

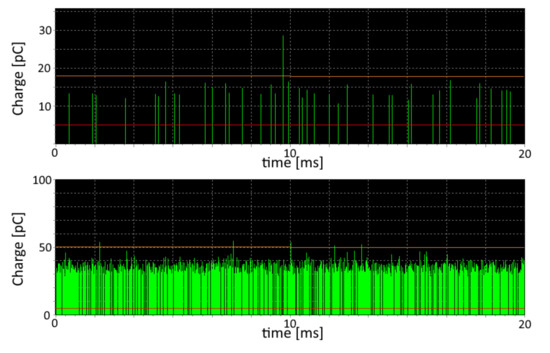

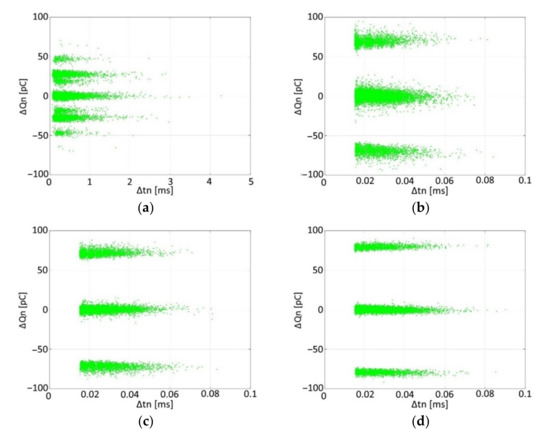

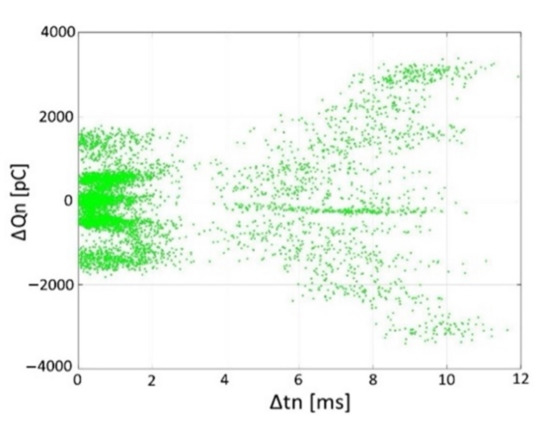

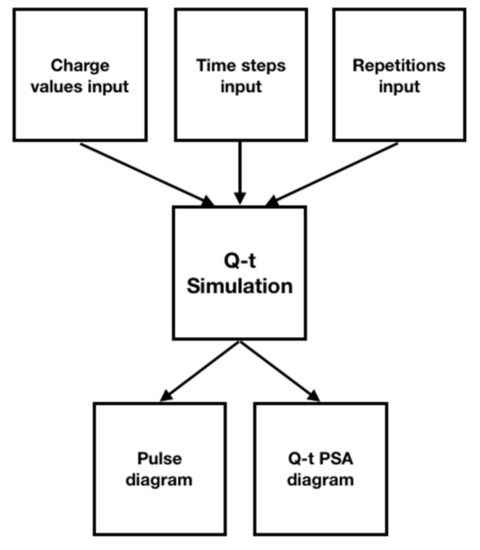

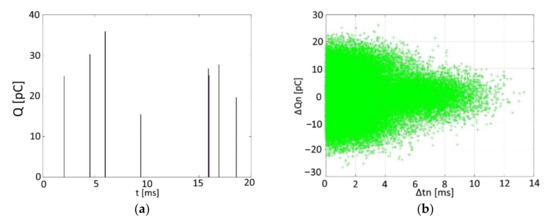

The behaviour of partial discharge as consequences of an alternating current (AC) is already well defined. AC partial discharges have completely different behaviour, background physics and parameters than partial discharges (PD) under direct current (DC) stress. This paper focuses on the most used and promising evaluation method of the PD DC stress—pulse sequence analysis (PSA). The first step is understanding and verifying the mechanisms and principles of this method. It is provided by well-known fundamentals of AC PD and by comparison with the other diagnostic and fault-locating methods such as phase-resolved partial discharge (PRPD) and pulse diagrams. The paper shows the PSA simulations and PD analyses performed at AC and partly at DC test conditions on typical PD test arrangements such as corona, surface and internal discharges. It is shown that the simulations performed, compared and validated with data obtained from measurements on different PD arrangements are a good match. This fact opens the way for the PD source recognition in DC, especially the time-resolved pulse sequence analysis described in detail in the paper. Full article
