Search Results (3)

Composite pipe fittings with an outer layer of 20% long glass fiber-reinforced polypropylene (LGFR-PP) and an inner layer of polypropylene (PP) were prepared via water-powered projectile-assisted co-injection molding short-shot (W-PACIM-S), water-powered projectile-assisted co-injection molding overflow (W-PACIM-O), gas-powered projectile-assisted co-injection molding short-shot (G-PACIM-S), and gas-powered projectile-assisted co-injection molding overflow (G-PACIM-O)techniques. The effects of different injection molding processes on the wall thickness, inner surface roughness, glass fiber orientation, and pressure resistance of pipe fittings were studied to evaluate the quality of the pipe fittings formed by each process. Compared with the short-shot method, the overflow method results in pipes with thinner walls in each layer, a more uniform distribution, smoother inner wall surfaces, and better orientation of glass fibers along the axial direction in the near boundary layer, resulting in better pressure resistance. Under the same injection method, the difference in fluid medium did not significantly change the trend of wall thickness variation in each layer. However, compared with gas, high-pressure water improves the uniformity of the pipe wall thickness and inner wall quality. In addition, the introduction of the warhead is more conducive to improving the degree of glass fiber orientation of the pipe fittings, and the thickness of the residual wall thickness of the pipe fittings has a great influence on the pressure resistance of the pipe fittings. Full article

Long glass fiber-reinforced polypropylene (LGFR-PP) composite structures with stiffeners are important substitutes for metal parts for vehicle lightweighting; a good understanding of the buckling characteristics of LGFR-PP stiffeners would provide an important reference for engineering design. The current work is therefore intended to study the buckling characteristics of different cross-sectioned LGFR-PP stiffeners under axial compression via experimental and theoretical analysis. Firstly, LGFR-PP stiffeners with semicircular, rectangular, and trapeziform cross-sections were compressed at the axial direction using a universal testing machine to obtain the buckling process data. Then, the elasticity stability theory modified according to the experimental results was derived to estimate the buckling resistance of LGFR-PP stiffeners in different designs. The test results showed that the LGFR-PP stiffeners possessed a flexible–torsional bulking instability mode under axial compression, the LGFR-PP stiffeners with a semicircular cross-section had higher compression buckling resistance, and the rectangular and trapeziform cross-sectioned stiffeners had better rigidity. The theoretical analysis showed that the modified elasticity stability theory could generally predict the buckling resistance of LGFR-PP stiffeners under axial compression. Full article

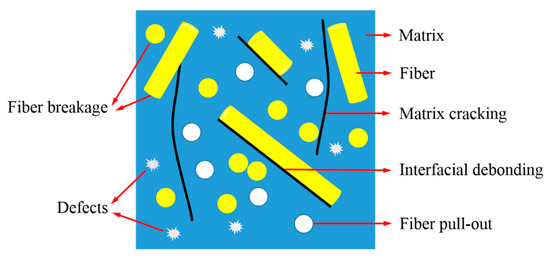

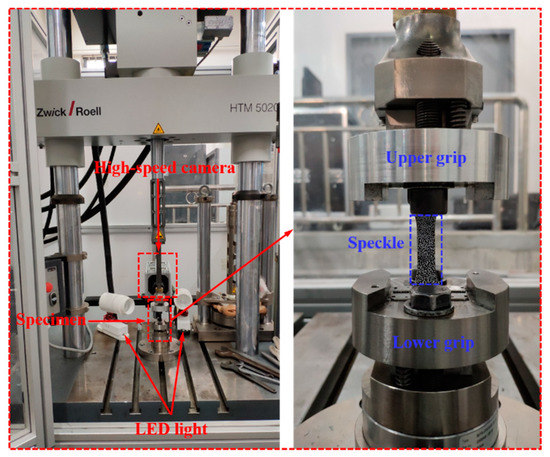

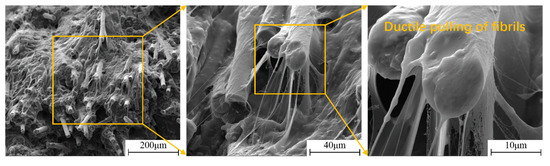

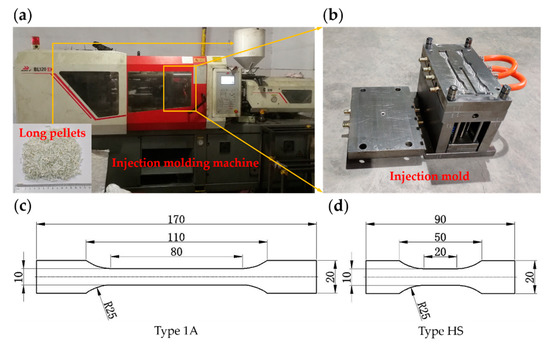

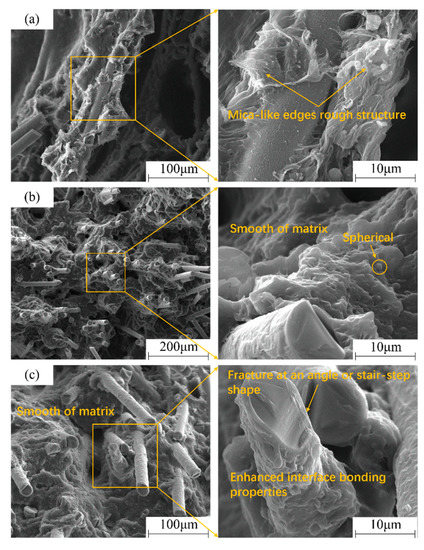

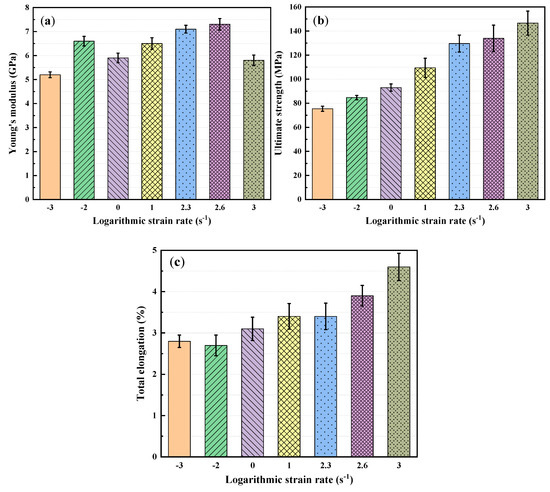

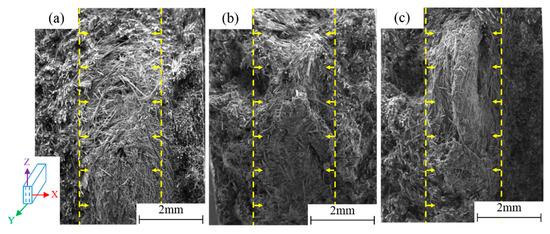

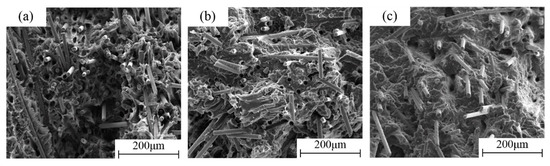

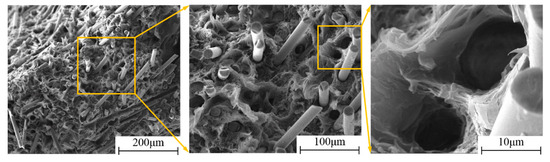

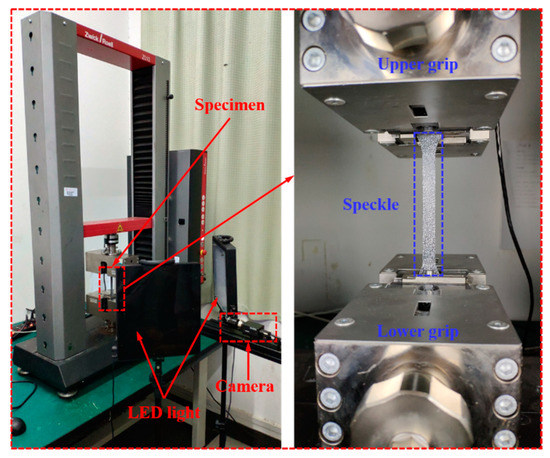

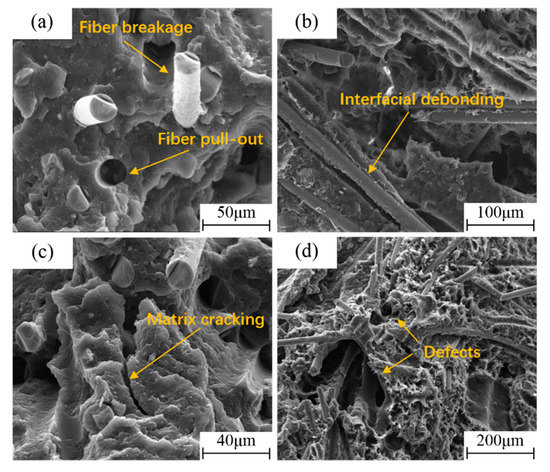

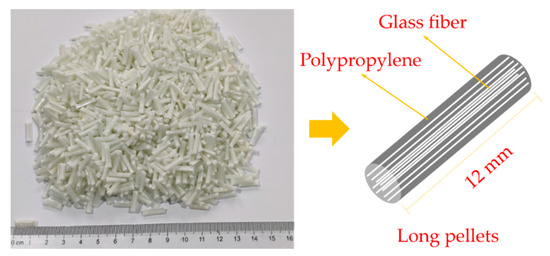

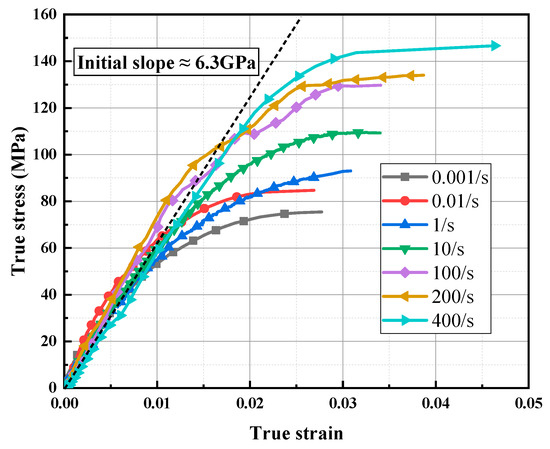

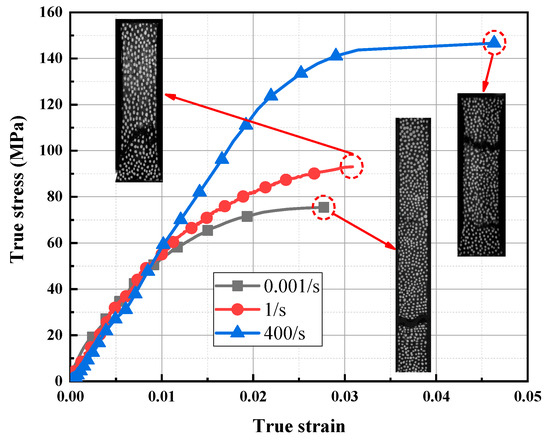

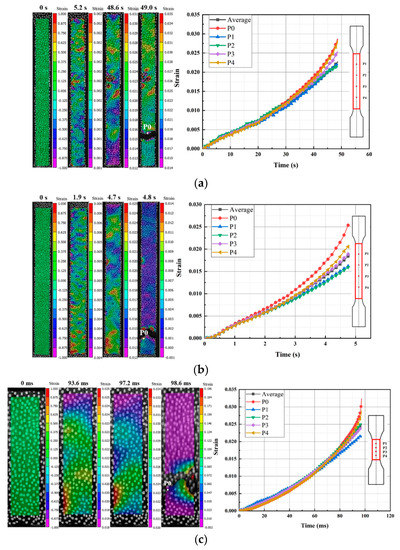

Long glass fiber reinforced thermoplastic composites have been increasingly used in automotive parts due to their excellent mechanical properties and recyclability. However, the effects of strain rates on the mechanical properties and failure mechanisms of long glass fiber reinforced polypropylene composites (LGFRPPs) have not been studied systematically. In this study, the effects of strain rates (from 0.001 s⁻¹ to 400 s⁻¹) on the mechanical properties and failure mechanism of LGFRPPs were investigated. The results showed that ultimate strength and fracture strain of the LGFRPPs increased obviously, whereas the stiffness remained essentially unchanged with the strain rates from low to high. The micro-failure modes mainly consisted of fibers pulled out, fiber breakage, interfacial debonding, matrix cracking, and ductile to brittle (ductile pulling of fibrils/micro-fibrils) fracture behavior of the matrix. As the strain rates increased, the interfacial bonding properties of LGFRPPs increased, resulting in a gradual increase of fiber breakage at the fracture surface of the specimen and the gradual decrease of pull-out. In this process, more failure energy was absorbed, thus, the ultimate strength and fracture strain of LGFRPPs were improved. Full article
