Search Results (6)

This work is part of a research project aimed at producing ceramic-like materials, without the need for an initial sintering, for potential applications in catalysis or filtration at temperatures up to 1000 °C. In that context, cordierite-derived materials were prepared from recycled cordierite powder (automotive industry waste) bonded with metakaolin-potassium silicate geopolymer. The principle is that these materials, prepared at temperatures below 100 °C, acquire their final properties during the high-temperature commissioning. The focus is on the influence of the K/Al ratio and cordierite fraction on the stability of the dimensions and porosity during heating at 1000 °C, and on the final Young’s modulus and coefficient of thermal expansion. Conventional and high-temperature XRD evidenced the absence of crystallization of the geopolymer binder and interaction with the cordierite filler during the heating stage when K/Al = 1 or 0.75. By contrast, crystallization of kalsilite and leucite, and diffusion of potassium ions in the structure of cordierite is evidenced for K/Al = 1.5 and 2.3. These differences strongly influence the shrinkage due to sintering and the final properties. It is shown that a K/Al ratio of 0.75 or 1 is favorable to the stability of the porosity, around 25 to 30%. Moreover, a low coefficient of thermal expansion of 4 to 4.5 × 10⁻⁶ K⁻¹ and a Young’s modulus of 40 to 45 GPa is obtained. Full article

A metakaolinite-based geopolymer binder was prepared by using calcined claystone as the main raw material and potassium as the alkaline activator. Chamotte was added (65 vol%) to form geopolymer composites. Potassium hydroxide (KOH) was used to adjust the molar ratio of K/Al and the effect of K/Al on thermo-mechanical properties of geopolymer composites was investigated. This study aimed to analyze the effect of K/Al ratio and exposure to high temperatures (up to 1200 °C) on the compressive and flexural strengths, phase composition, pore size distribution, and thermal dilatation. With an increasing K/Al ratio, the crystallization temperature of the new phases (leucite and kalsilite) decreased. Increasing content of K/Al led to a decline in the onset temperature of the major shrinkage. The average pore size slightly increased with increasing K/Al ratio at laboratory temperature. Mechanical properties of geopolymer composites showed degradation with the increase of the K/Al ratio. The exception was the local maximum at a K/Al ratio equal to one. The results showed that the compressive strength decreases with increasing temperature. For thermal applications above 600 °C, it is better to use samples with lower K/Al ratios (0.55 or 0.70). Full article

Uranium mining waste causes serious radiation-related health and environmental problems. This has encouraged efforts toward U(VI) removal with low cost and high efficiency. Typical uranium adsorbents, such as polymers, geopolymers, zeolites, and MOFs, and their associated high costs limit their practical applications. In this regard, this work found that the natural combusted coal gangue (CCG) could be a potential precursor of cheap sorbents to eliminate U(VI). The removal efficiency was modulated by chemical activation under acid and alkaline conditions, obtaining HCG (CCG activated with HCl) and KCG (CCG activated with KOH), respectively. The detailed structural analysis uncovered that those natural mineral substances, including quartz and kaolinite, were the main components in CCG and HCG. One of the key findings was that kalsilite formed in KCG under a mild synthetic condition can conspicuous enhance the affinity towards U(VI). The best equilibrium adsorption capacity with KCG was observed to be 140 mg/g under pH 6 within 120 min, following a pseudo-second-order kinetic model. To understand the improved adsorption performance, an adsorption mechanism was proposed by evaluating the pH of uranyl solutions, adsorbent dosage, as well as contact time. Combining with the structural analysis, this revealed that the uranyl adsorption process was mainly governed by chemisorption. This study gave rise to a utilization approach for CCG to obtain cost-effective adsorbents and paved a novel way towards eliminating uranium by a waste control by waste strategy. Full article

Framework silicates form about 70% of the Earth’s crust, mainly feldspars ~50–60% and quartz ~10–15%. Less-abundant feldspathoids include nepheline-, leucite-, and sodalite-group minerals, rich in structurally challenging properties. This review paper deals with anhydrous feldspar-, nepheline-, and leucite/pollucite groups, emphasising the importance of parallel studies on natural and synthetic samples. Four topics are covered. For decades, petrologists have analysed nephelines and recalculated their compositions as endmember molecules but, by not following rules of stuffed-tridymite crystal chemistry, have not estimated reliably the excess SiO₂ present in solid solution. Some materials scientists make similar mistakes, and a new approach is described here. Synthesis studies of analogue feldspars, nephelines, and leucite/pollucites led to collaborative studies, mainly using laboratory and synchrotron X-ray powder diffraction methods at room and elevated temperatures, to study thermal expansion and displacive phase transitions. Such work was recently expanded to address the spontaneous strain relations. Topics covered here include work on nepheline/kalsilite analogues in the system SrAl₂O₄—BaAl₂O₄; thermal expansion of (K,Na)Al-, RbAl-, RbGa-, and SrAl-feldspars; and thermal expansion and phase transitions in analogue leucites KGaSi₂O₆ (tetragonal to cubic) and K₂MgSi₅O₁₂ (monoclinic to orthorhombic). Results are reviewed in the context of research published in mineralogical and more-widely in physical sciences journals. Full article

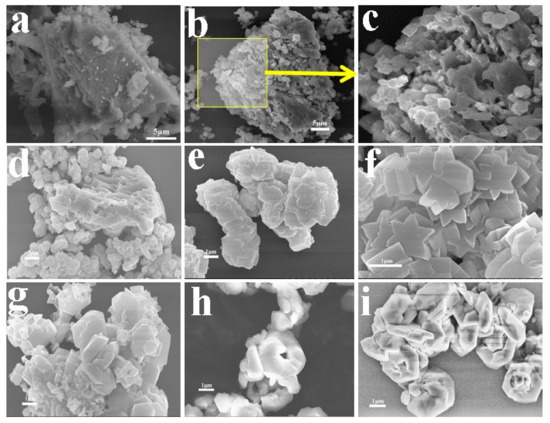

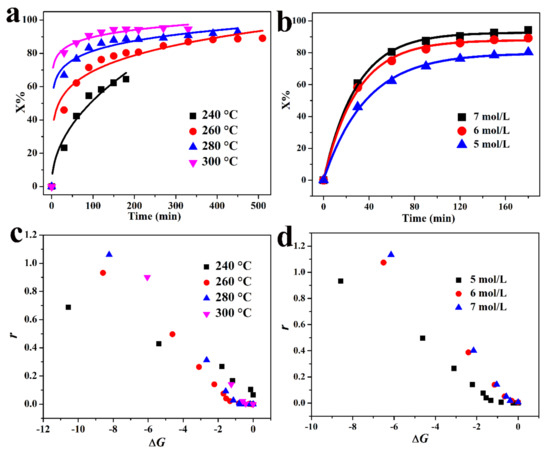

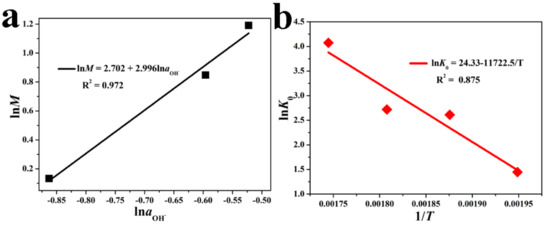

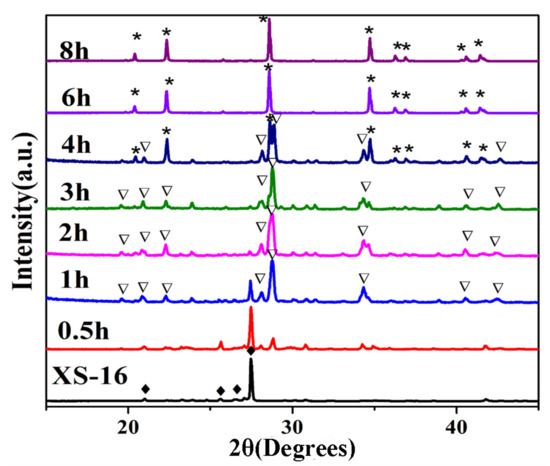

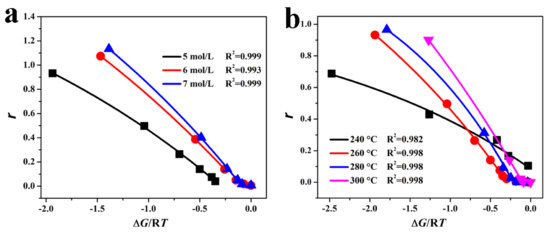

To make potassium from K-bearing rocks accessible to agriculture, processing on biotite syenite powder under mild alkaline hydrothermal conditions was carried out, in which two types of KAlSiO4 were obtained successfully. The dissolution-precipitation process of silicate rocks is a significant process in lithospheric evolution. Its effective utilization will be of importance for realizing the comprehensiveness of aluminosilicate minerals in nature. Two kinds of KAlSiO₄ were precipitated in sequence during the dissolution process of biotite syenite. The crystal structures of two kinds of KAlSiO₄ were compared by Rietveld structure refinements. The kinetics model derived from geochemical research was adopted to describe the dissolution behavior. The reaction order and apparent activation energy at the temperature range of 240–300 °C were 2.992 and 97.41 kJ/mol, respectively. The higher dissolution reaction rate of K-feldspar mainly relies on the alkaline solution, which gives rise to higher reaction order. During the dissolution-precipitation process of K-feldspar, two types of KAlSiO4 with different crystal structure were precipitated. This study provides novel green chemical routes for the comprehensive utilization of potassium-rich silicates. Full article

We report here pressure dependence of the electrical resistivity of natural kalsilite (K0.998Na0.002Al0.998Fe0.002SiO4) from a granulite facies terrain in southern India. The electrical resistivity of kalsilite was measured with four probe technique up to 7.5 GPa at room temperature. The electrical resistivity decreases continuously with the increase of pressure up to 3.7 GPa, where there is a discontinuous drop in the electrical resistivity by 14%–16% indicating a first order transition. Further increase of pressure does not induce any phase transition up to 7.5 GPa at room temperature. Fourier transform infrared (FTIR) spectroscopy of the kalsilite sample at various pressures indicates that the observed transition is reversible in nature. Full article
