Search Results (3)

The present study investigates the effects of different compaction methods on the properties of roller-compacted concrete (RCC) used for road pavements. The study focuses on comparing the Proctor compaction method utilizing different compaction efforts and molds (2.5 kg rammer with three layers of 56 blows and 4.5 kg with three and five layers of 56 blows, cylindrical and cube molds) with a slab compactor in static and vibratory setting. The samples produced in a slab compactor were obtained by drilling from the prepared slab. The evaluated properties of the samples included compressive strength and bulk density. The study involved a C25/30 concrete with the intention to be used in low volume roads according to national standards. The study concluded that the utilization of Proctor compaction and slab compactor with vibratory setting provided similar levels of strength performance of the RCC mixture, regardless of the shape of the Proctor compacted samples. In terms of the bulk densities, the main differentiating factor in the case of Proctor compaction was the weight of the rammer. The compressive strength of the samples was also strongly related to their bulk densities. Full article

Nanomaterials enhance the performance of both asphalt binders and asphalt mixtures. They also improve asphalt durability, which reduces resource consumption and environmental impact in the long term associated with the production and transportation of asphalt materials. Thus, this paper studies the effectiveness of Nano Calcium Carbonate (Nano CaCO₃) and Nano Hydrated Lime (NHL) as modifiers and examines their impact on ranges from 0% to 10% through comprehensive laboratory tests. Softening point, penetration, storage stability, viscosity, and mass loss due to short-term aging using the Rolling Thin Film Oven Test (RTFO) were performed on asphalt binders. Results indicated a significant improvement in binder stiffness, particularly at 4% Nano CaCO₃ and 6% NHL content by weight. Dynamic Shear Rheometer (DSR) tests further revealed substantial improvements in rutting resistance, with NHL exhibiting superior high-temperature stability and a notable increase in the rutting factor. Marshall stability tests on asphalt concrete (AC) mixtures showed a 22.3% increase in stability with 6% NHL by weight, surpassing the 20.2% improvement observed with Nano CaCO₃ and indicating enhanced load-bearing capacity. The resilient modulus of the mixtures consistently increased with the addition of NHL, suggesting improved durability in rutting. Moisture susceptibility tests revealed that NHL significantly enhances moisture resistance, exceeding the 80% TSR benchmark at just 2% content by weight and reaching an impressive 94.6% at 10% content by weight. In contrast, Nano CaCO₃ demonstrated a more gradual improvement, achieving an 88.2% TSR at 10% content. Furthermore, permanent deformation analysis indicated a 68.64% improvement in rutting resistance with 10% NHL content by weight, exceeding Nano CaCO₃’s improvement rate. Optimal fatigue resistance was achieved at 4% for Nano CaCO₃ and 6% for NHL by weight, with respective CT index improvements of 30% and 35.4%, showing NHL’s consistent benefits across various nanomaterial contents. Overall, the study suggests that both Nano CaCO₃ and NHL positively impact asphalt performance, with NHL offering more pronounced benefits across a range of properties. These findings provide valuable insights for pavement engineers and underscore NHL’s potential as an effective additive in asphalt mixture design. Real-world applications and validations are essential for a comprehensive understanding of these nanomaterials in practical pavement engineering scenarios. Full article

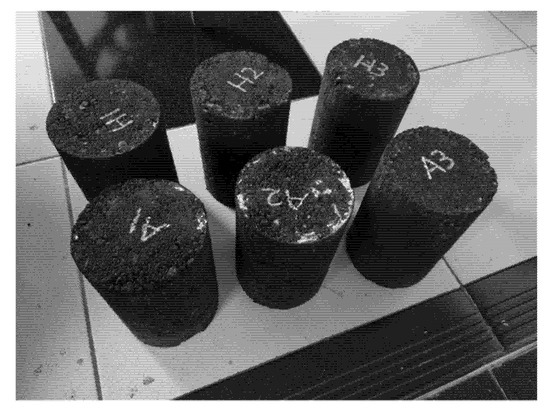

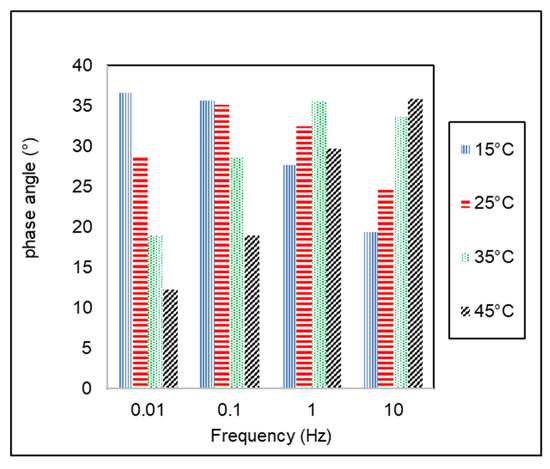

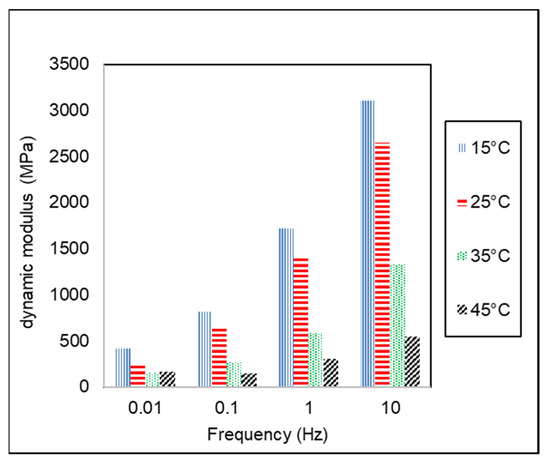

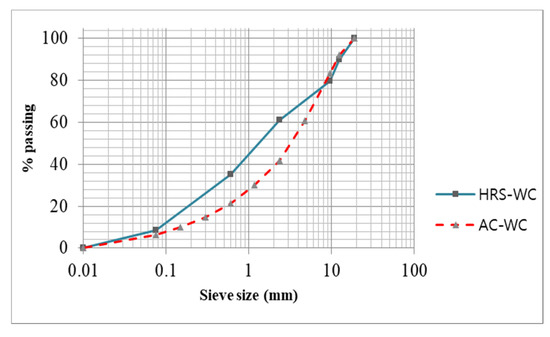

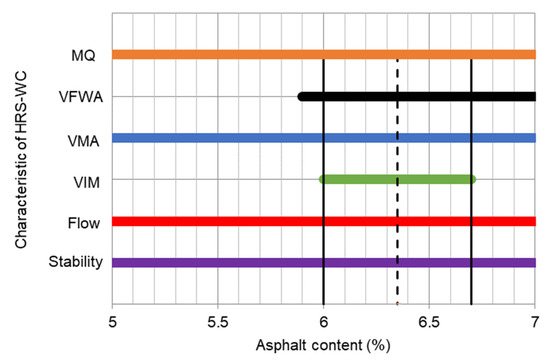

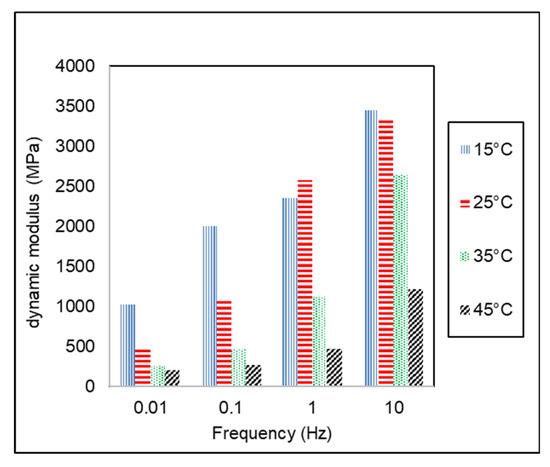

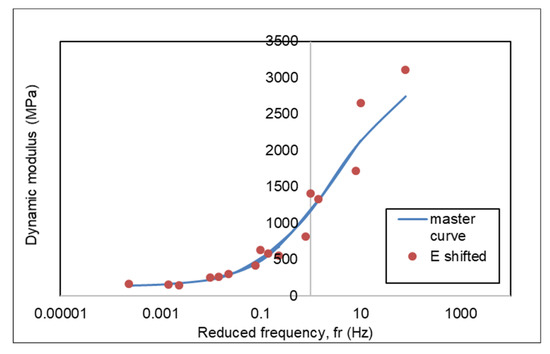

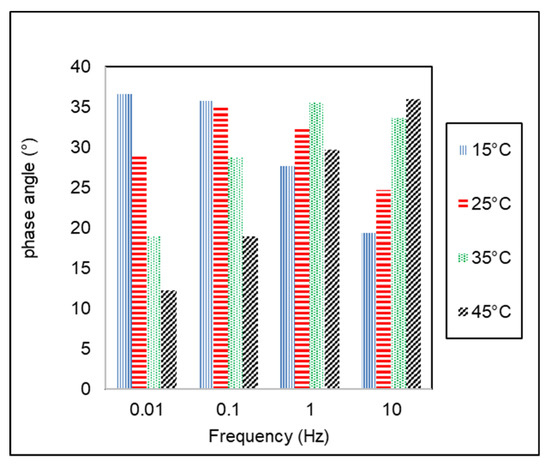

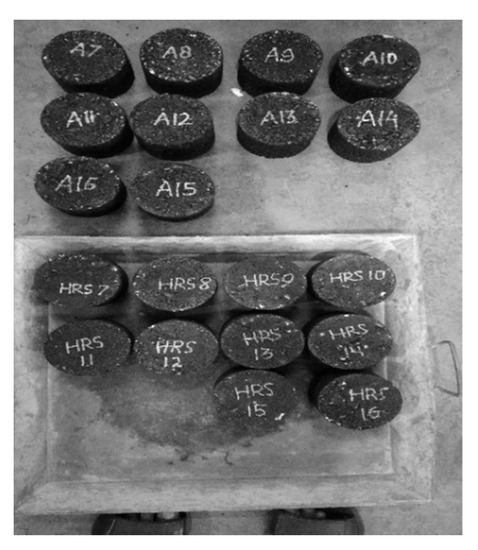

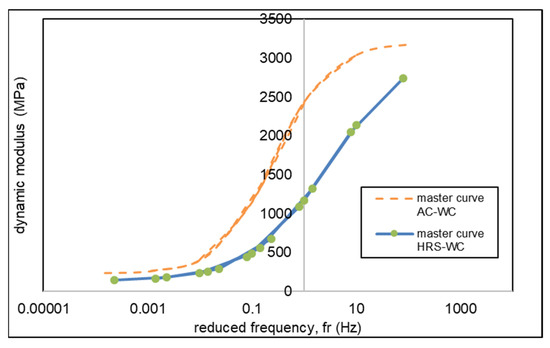

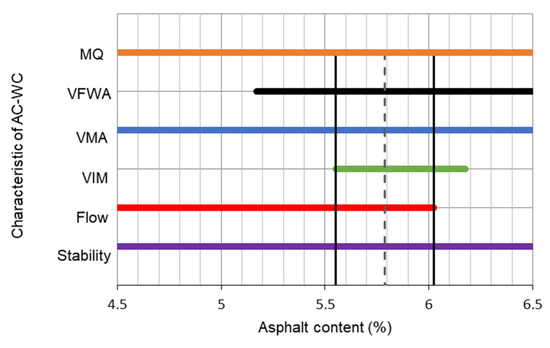

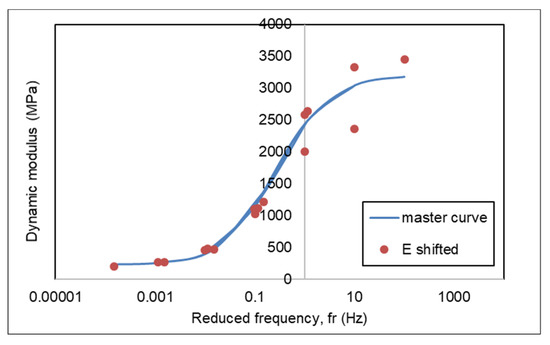

The aim of this study is to assess the viscoelastic parameters (i.e., phase angle and dynamic modulus) of asphalt concrete-wearing course (AC-WC) and hot rolled sheet-wearing course (HRS-WC) mixtures obtained from the dynamic modulus test. This study was accomplished in four stages: determining optimum asphalt content using Marshall mix design procedure, stability and flow parameters from Marshall test, viscoelastic parameters from dynamic modulus testing and finally the generation of dynamic modulus master curves at a reference temperature of 25 °C. The results showed that at the same temperature, the dynamic modulus of AC-WC and HRS-WC mixtures tended to increase with escalating the loading frequency, while dynamic modulus decreases with an increase in the test temperature at constant loading frequency. Furthermore, the dynamic modulus of the AC-WC mixture was recorded as 100% higher than the HRS-WC asphalt mixture. The phase angle, however, showed contradictory behavior with that shown in dynamic modulus. The phase angle of the AC-WC mixture and HRS-WC asphalt mixture showed almost the same behavior. Similarly, the dynamic modulus master curves of AC-WC and HRS-WC asphalt mixtures can be used to predict the dynamic modulus at the frequency range of 0.01 to 10 Hz and a reference temperature of 25 °C. The results were also used to evaluate the rutting and fatigue performance of AC-WC and HRS-WC. Full article
