Search Results (1)

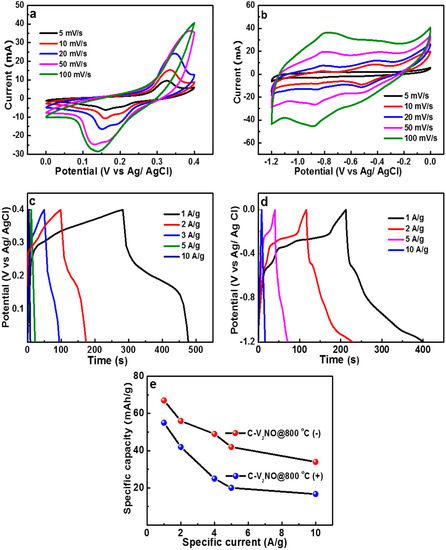

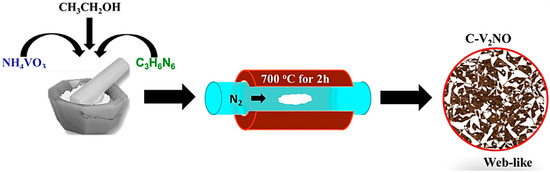

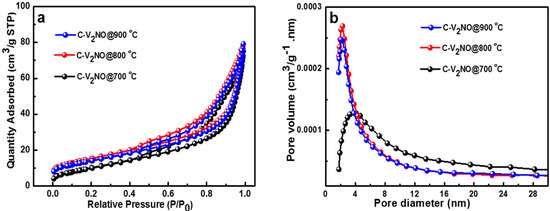

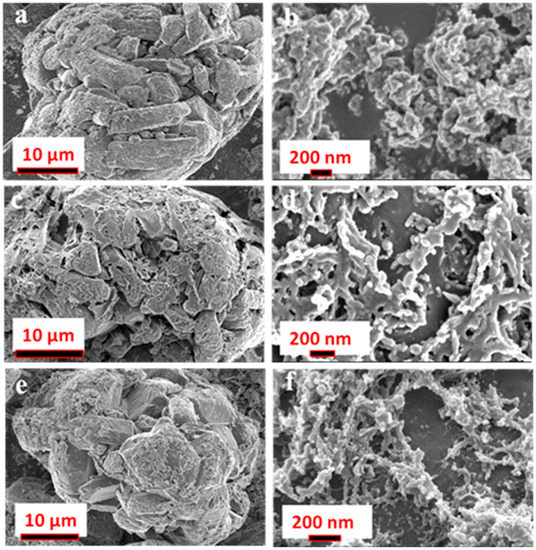

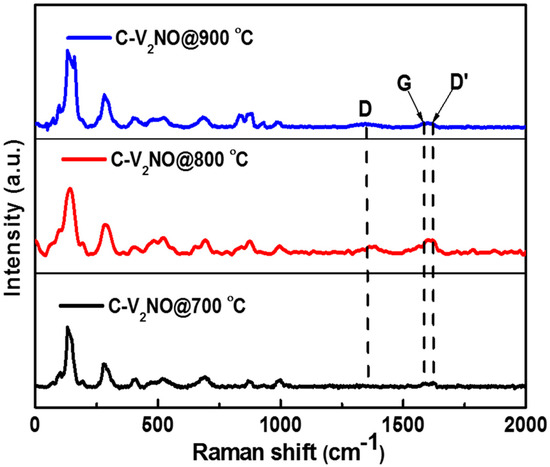

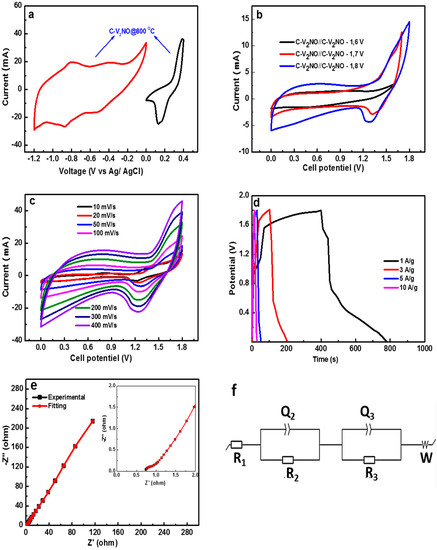

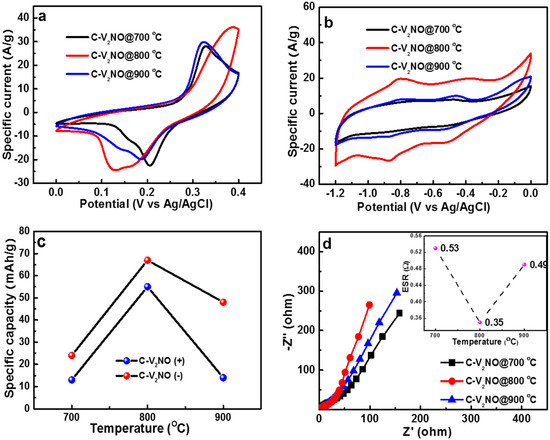

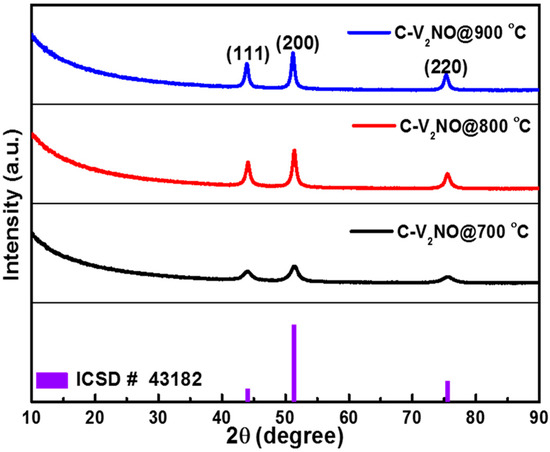

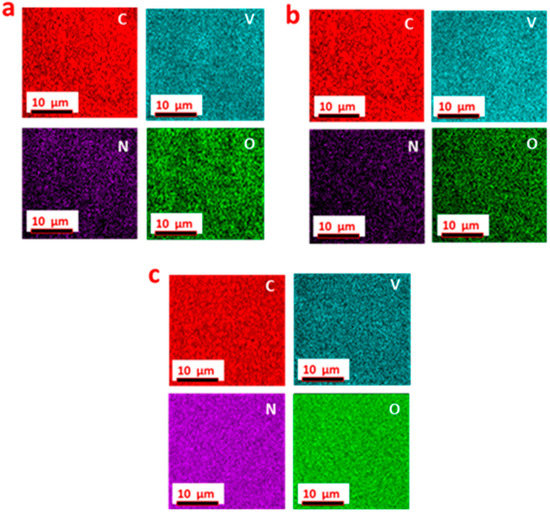

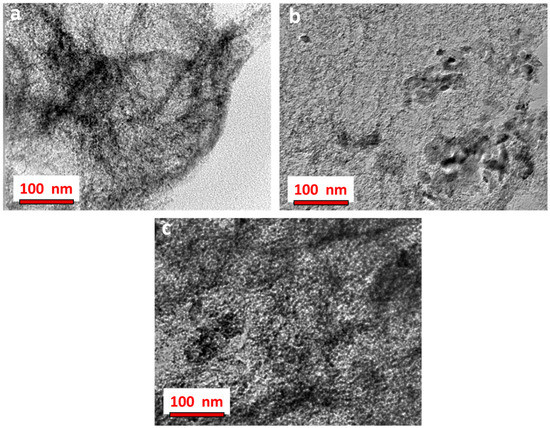

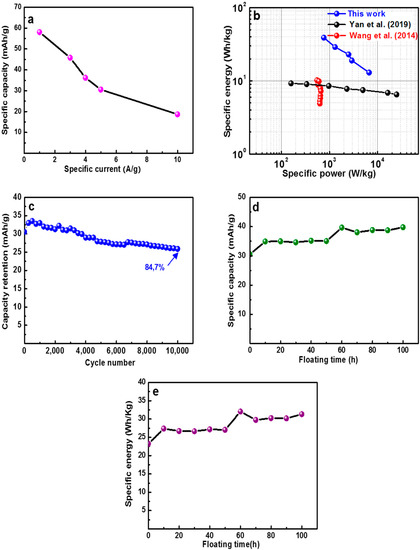

In this work, porous carbon-vanadium oxynitride (C-V₂NO) nanostructures were obtained at different nitridation temperature of 700, 800 and 900 °C using a thermal decomposition process. The X-ray diffraction (XRD) pattern of all the nanomaterials showed a C-V₂NO single-phase cubic structure. The C-V₂NO obtained at 700 °C had a low surface area (91.6 m² g⁻¹), a moderate degree of graphitization, and a broader pore size distribution. The C-V₂NO obtained at 800 °C displayed an interconnected network with higher surface area (121.6 m² g⁻¹) and a narrower pore size distribution. In contrast, at 900 °C, the C-V₂NO displayed a disintegrated network and a decrease in the surface area (113 m² g⁻¹). All the synthesized C-V₂NO yielded mesoporous oxynitride nanostructures which were evaluated in three-electrode configuration using 6 M KOH aqueous electrolyte as a function of temperature. The C-V₂NO@800 °C electrode gave the highest electrochemical performance as compared to its counterparts due to its superior properties. These results indicate that the nitridation temperature not only influences the morphology, structure and surface area of the C-V₂NO but also their electrochemical performance. Additionally, a symmetric device fabricated from the C-V₂NO@800 °C displayed specific energy and power of 38 W h kg⁻¹ and 764 W kg⁻¹, respectively, at 1 A g⁻¹ in a wide operating voltage of 1.8 V. In terms of stability, it achieved 84.7% as capacity retention up to 10,000 cycles which was confirmed through the floating/aging measurement for up to 100 h at 10 A g⁻¹. This symmetric capacitor is promising for practical applications due to the rapid and easy preparation of the carbon-vanadium oxynitride materials. Full article
