Search Results (6)

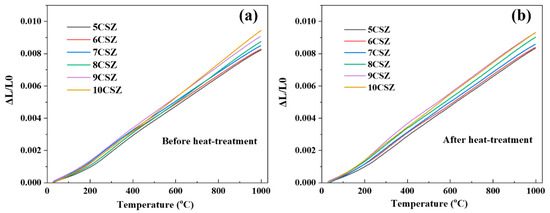

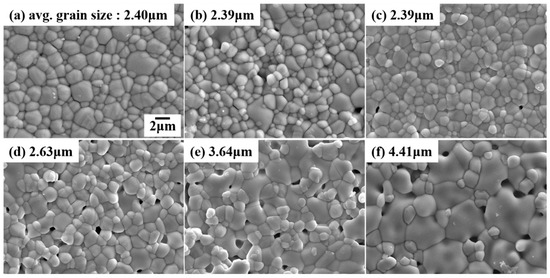

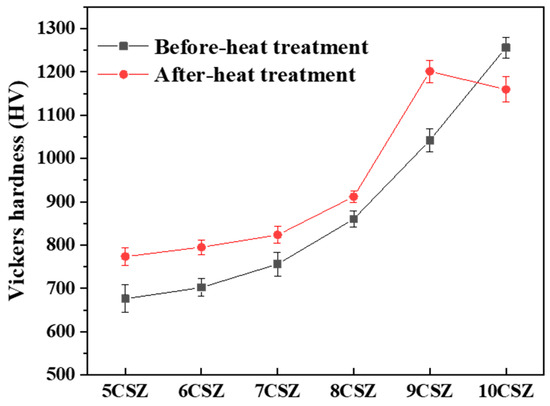

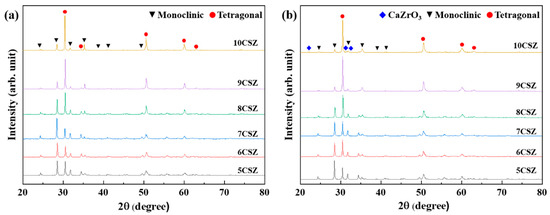

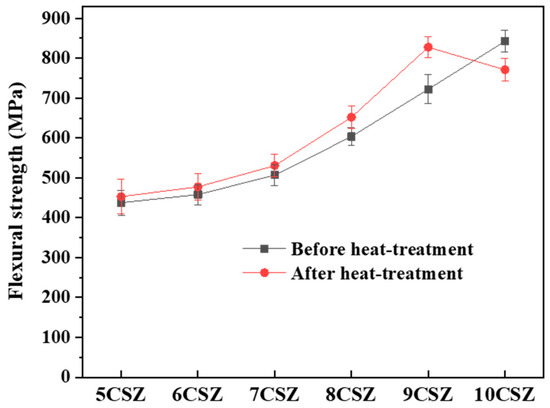

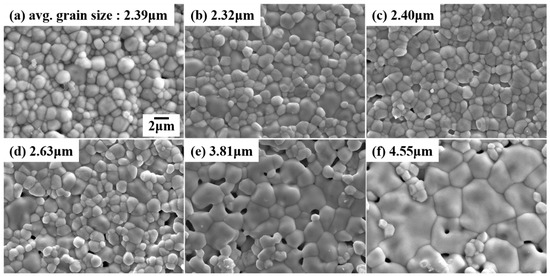

The effects of CaO content and post-heat treatment were investigated on the phase stability and mechanical and thermal properties of Ca-PSZ. ZrO₂ specimens with 5–10 mol% CaO were sintered, and post-heat treatment was performed at 1200 °C for 100 h. Subsequently, to test and analyze the crystal structure and the microstructure, the mechanical and thermal properties of the specimens were evaluated. All specimens were partially stabilized by 5–10 mol% CaO (5CSZ–10CSZ) in a mixed monoclinic and tetragonal phase; however, peaks of the secondary phase of CaZrO₃ were observed in 10CSZ. The ratio of the monoclinic phase decreased from 62.50% (5CSZ) to 21.02% (10CSZ) as the CaO content increased. Additionally, the monoclinic phase ratio decreased from 59.38% (5CSZ) to 19.57% (9CSZ) after the post-heat treatment; an increase to 24.84% was observed for 10CSZ. An increase in Vickers hardness from 676.02 to 1256.25 HV and flexural strength from 437.7 to 842.7 MPa was observed with increasing CaO content. The post-heat treatment resulted in further increases in these values as the CaO content increased from 5CSZ to 9CSZ; however, the Vickers hardness and flexural strength of 10CSZ decreased by approximately 8% and 9%, respectively. The thermal expansion coefficient exhibited the same tendency as the mechanical properties. This coefficient increased from 8.229 × 10⁻⁶ to 9.448 × 10⁻⁶ K⁻¹ with increasing CaO content and was enhanced after the post-heat treatment in 5CSZ to 9CSZ; however, the thermal expansion coefficient of 10CSZ decreased by approximately 4% after the post-heat treatment. The mechanically and thermally stable tetragonal phase increased, and the monoclinic phase decreased as the doped Ca replaced the Zr sites, as was confirmed by the X-ray diffraction (XRD) analysis. The post-heat treatment and the increased Ca addition further facilitated the replacement of Zr sites by Ca. However, at high Ca concentrations of 10CSZ, an equilibrium phase of CaZrO₃ was formed as a secondary phase at the post-heat treatment temperature, resulting in low performance. Full article

Nano Zirconia (ZrO₂) has been used in dental implants due to having excellent mechanical properties and biocompatibility that match the requirements for the purpose. Zirconia undergoes phase transformation during heating: monoclinic (room temperature to 1170 °C), tetragonal (1170 °C to 2370 °C), and cubic (>2370 °C). Most useful mechanical properties can be obtained when zirconia is in a multiphase form or in partially stabilized zirconia (PSZ), which is achieved by adding small amounts of a metal oxide dopant, such as MgO (magnesia). This study aimed to synthesize nano Mg-PSZ from a local resource found in West Kalimantan, Indonesia, and examine its structural stability, biochemical stability, and mechanical properties. Nano Mg-PSZ was prepared from a zircon local to Indonesia, from West Kalimantan Province, MgSO₄∙7H₂O, and polyethylene glycol (PEG)-6000 was used as a template. The obtained t-ZrO₂ after calcination at 800 °C was shown to be stable at room temperature. The highest percentage of the t-ZrO₂ phase was obtained at Zr_0.95Mg_0.05O₂ with a variation of 99.5%. The hardness of Mg-PSZ increased from 554 MPa for ZrO₂ without MgO doping to 5266 MPa for ZrO₂ with a doping of 10% MgO. An in vitro biodegradation test showed that the greater the concentration of MgO in doping the ZrO₂, the greater the degradation resistance of Mg-PSZ in simulated body fluid (SBF) solution. Full article

We herein report manufacturing of dental crowns made of 5-mol% yttria partially stabilized zirconia (5Y-PSZ) with desired mechanical properties, optical translucency and dimensional accuracy using digital light processing (DLP). To this end, all processing parameters were carefully controlled and optimized. First, 5Y-PSZ particles with a bimodal distribution were prepared via calcination of as-received granules and subsequent ball-milling and then used to formulate 5Y-PSZ suspensions with a high solid loading of 50 vol% required for high densification after sintering. Dispersant content was also optimized. To provide high dimensional accuracy, initial dimensions of dental crowns for 3D printing were precisely determined by considering increase and decrease in dimensions during photopolymerization and sintering, respectively. Photopolymerization time was also optimized for a given layer thickness of 50 μm to ensure good bonding between layers. A multi-step debinding schedule with a slow heating rate was employed to avoid formation of any defects. After sintering at 1500 °C for 2 h, 5Y-PSZ could be almost fully densified without noticeable defects within layers and at interfaces between layers. They had high relative densities (99.03 ± 0.39%) with a high cubic phase content (59.1%). These characteristics allowed for achievement of reasonably high mechanical properties (flexural strength = 625.4 ± 75.5 MPa and Weibull modulus = 7.9) and % transmittance (31.4 ± 0.7%). In addition, 5Y-PSZ dental crowns showed excellent dimensional accuracy (root mean square (RMS) for marginal discrepancy = 44.4 ± 10.8 μm and RMS for internal gap = 22.8 ± 1.6 μm) evaluated by the 3D scanning technique. Full article

This study reports the utility of solid camphor as a novel diluent in photocurable hexanediol diacrylate (HDDA) monomer to manufacture 4 mol% yttria partially stabilized zirconia (4Y-PSZ) components for dental applications by digital light processing (DLP). The use of a 65 wt% HDDA–35 wt% camphor solution allowed 4Y-PSZ suspensions to have reasonably low viscosities (1399 ± 55.8 mPa·s at a shear rate of 75 s⁻¹), measured by a cone/plate viscometer, at a high solid loading of 48 vol%, where 4Y-PSZ particles prepared by calcination of as-received 4Y-PSZ granules, followed by a ball-milling process, were used with assistance of a dispersant. These 4Y-PSZ suspensions could be successfully applied to our custom-made DLP machine for manufacturing 4Y-PSZ components. To this end, several processing parameters, including layer thickness of 4Y-PSZ suspension, UV illumination time for layer-by-layer photocuring process, and initial dimensions of 4Y-PSZ objects, were tightly controlled. As sintering temperature increased from 1300 °C to 1500 °C, relative density and grain size of 4Y-PSZ objects increased, and cubic phase content also increased. Thus, after sintering at the highest temperature of 1500 °C for 3 h, high mechanical properties (biaxial flexural strength = 911 ± 40.7 MPa, hardness = 1371 ± 14.4 H_v) and reasonably high optical transmittance (translucency parameter = 7.77 ± 0.32, contrast ratio = 0.809 ± 0.007), evaluated by a spectrophotometer, were obtained due to a high relative density (97.2 ± 1.38%), which would be useful for dental applications. Full article

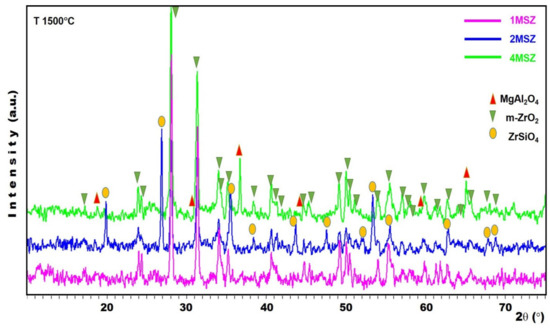

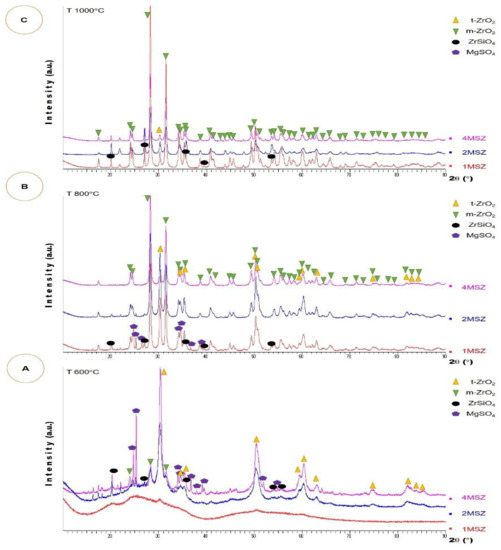

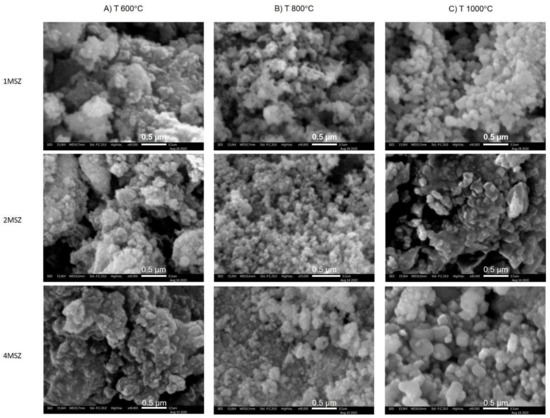

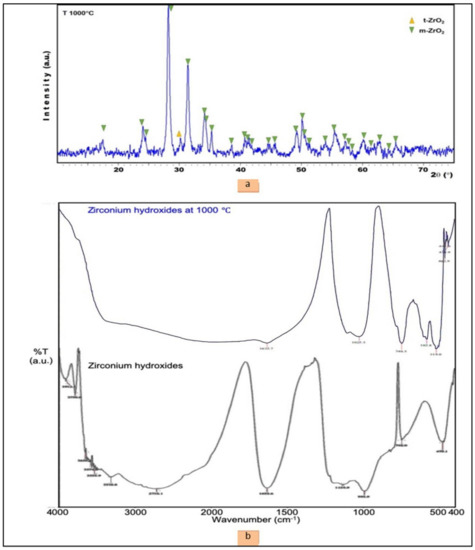

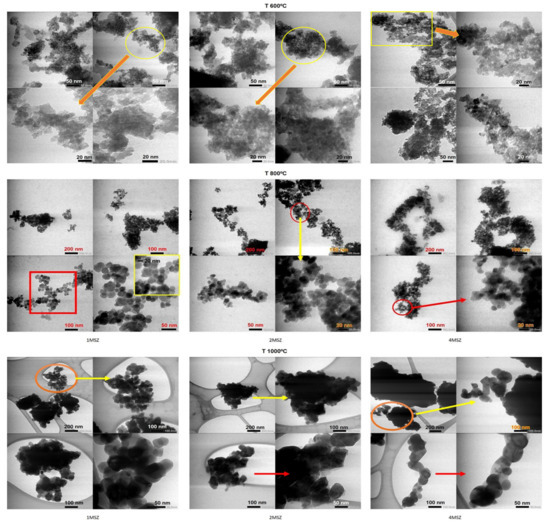

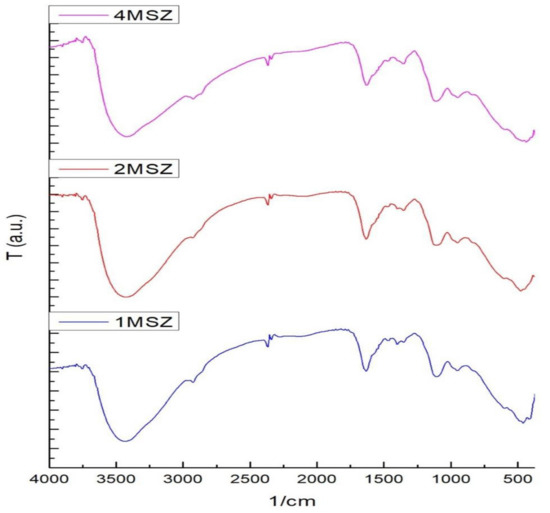

Stabilized zirconia is a promising material due to its great physical and chemical properties, and thermal stability. In this work, MgO was used as a stabilizer in ZrO₂ to obtain Magnesia Partially Stabilized Zirconia (MSZ) nanomaterials assisted with PEG as a template through conventional mixing process. Zirconium hydroxides prepared from local zircon and MgCO₃ were used as MSZ precursors. Meanwhile, the stabilizer concentration was varied from 1 to 4 wt% of ZrO₂. The effect of the stabilizer concentration and the calcination temperature to the crystallinity and the morphological properties of the MSZ nanoparticles were studied using X-ray diffraction and scanning and transmission electron microscopy. The ZrO₂ content in the zirconium hydroxides precursors is accounting 89.52 wt% of the total and exhibits the dominant m-phase at 1000 °C. Meanwhile, the tetragonal and the monoclinic phases were formed in all MSZ samples at a temperature of 800–1000 °C. The as-synthesized MSZ samples show typical FT-IR spectra, consisting of the metal–oxygen bonds at below 500 cm⁻¹ and the organic functional groups ranging at 1000–3000 cm⁻¹. The ZrO₂ morphologies exhibit spherical-like shapes with elongated agglomeration at 800 °C. In addition, the average particle sizes of the final product ranges from 20 to 50 nm. At a sintering temperature of 1500 °C, MSZ samples show the monoclinic phase of ZrO₂ and densities in the range of 3.95–4.14 g/cm³. Full article

The catalytic activity of the partial oxidation reforming reaction for hydrogen production over 10% Ni supported on high and low surface area alumina and zirconia was investigated. The reforming reactions, under atmospheric pressure, were performed with a feed molar ratio of CH₄/O₂ = 2.0. The reaction temperature was set to 450–650 °C. The catalytic activity, stability, and carbon formation were determined via TGA, TPO, Raman, and H₂ yield. The catalysts were calcined at 600 and 800 °C. The catalysts were prepared via the wet-impregnation method. Various characterizations were conducted using BET, XRD, TPR, TGA, TPD, TPO, and Raman. The highest methane conversion (90%) and hydrogen yield (72%) were obtained at a 650 °C reaction temperature using Ni-Al-H-600, which also showed the highest stability for the ranges of the reaction temperatures investigated. Indeed, the time-on-stream for 7 h of the Ni-Al-H-600 catalyst displayed high activity and a stable profile when the reaction temperature was set to 650 °C. Full article
