Search Results (5)

The Al₂O₃ inclusions and mold flux particles are the initial causes of the sliver defects on the surface of automobile exposed panels. During the rolling process, the smashed Al₂O₃ inclusions or mold flux particles will hinder the growth of recrystallized grains. Compared with mold flux particles, the smashed Al₂O₃ inclusions have a smaller size, a denser distribution, and a larger number density, so the smashed Al₂O₃ inclusions have a stronger ability to hinder grain boundary migration. Therefore, the average grain size is small in the following sequence: Al₂O₃ defect zone with Al₂O₃ inclusions (Al₂O₃ DZ with Al₂O₃), mold flux defect zone with mold flux particles (MFDZ with MFP), mold flux defect zone without mold flux particles (MFDZ without MFP), Al₂O₃ defect zone without Al₂O₃ inclusions (Al₂O₃ DZ without Al₂O₃), and non-defect zone (NDZ). The influence of particles on the grain orientation of the defect zones results in the microtexture of Al₂O₃ DZ without Al₂O₃ is {111}<313>, which is close to the {111}<101> microtextures of NDZ and MFDZ without MFP, while the {001}<114> microtexture on Al₂O₃ DZ with Al₂O₃ and the {313}<111> microtexture on MFDZ with MFP are quite different from that of NDZ. Due to differences in the inclusions, orientation, and microtexture of the defect zones and NDZ, dark-gray or bright white sliver defects on the surface of the automobile exposed panel are eventually formed. Full article

In this paper, the effects of the width of the mold on the surface velocity, flow field pattern, turbulent kinetic energy distribution, and surface-level fluctuation in the mold were studied with measurement of the flow velocity near the surface of the mold at high temperature with the rod deflection method and numerical calculation with the standard $k$-$\epsilon$ model coupled with the discrete-phase model (DPM) model for automobile exposed panel production. Under the conditions of low fixed steel throughput of 2.2 ton/min, a nozzle immersion depth of 140 mm, and an argon gas flow rate of 4 L/min, as the width of the mold increases from 880 mm to 1050 mm and 1300 mm, the flow velocity near the surface of the mold decreases. The flow direction changes from the positive velocity with the mold widths of 880 mm and 1050 mm to the unstable velocity with the mold width of 1300 mm. The calculated results are in good agreement with the measured results. The turbulent kinetic energy near the submerged entry nozzle (SEN) gradually increases, and the risk of slag entrainment increases. Under the conditions of high fixed steel throughput of 3.5 ton/min, the SEN immersion depth of 160 mm, and the argon gas flow rate of 10 L/min, as the width of the mold increases from 1600 mm to 1800 mm and 2000 mm, the velocity near the mold surface decreases. The flow velocity at 1/4 of the surface of the mold is positive with the mold width of 1600 mm, while the velocities are negative with the widths of 1800 mm and 2000 mm. The calculated results are basically consistent with the measured results. The high turbulent kinetic energy area near the nozzle expands to a narrow wall, and the risk of slag entrainment is significantly increased. In both cases of low and high fixed steel throughput, the change rules of the flow field in the mold with the width are basically the same. The argon gas flow rate and the immersion depth of SEN should be adjusted reasonably to optimize the flow field in the mold with different widths under the same fixed steel throughput in the practical production. Full article

In the present work, the flow field in a slab continuous casting mold with thicknesses of 180 and 250 mm are compared using high temperature quantitative measurement and numerical simulation. The results of the numerical simulation are in agreement with those of the high temperature quantitative measurement, which verifies the accuracy and reliability of the numerical simulation. Under the same working conditions, the velocities near the mold surface with the thickness of 180 mm were slightly higher than those of the mold with the thickness of 250 mm. The flow pattern in the 180 mm thick mold maintains DRF more easily than that in 250 mm thick mold. The kinetic energy of the jet dissipates faster in the 250 mm thick mold than in the 180 mm mold. For double-roll flow (DRF), as the argon gas bubbles can be flushed into the deeper region under the influence of strong jets on both sides, the argon bubbles distribute widely in the mold. For single-roll flow (SRF), as the argon bubbles float up quickly after leaving the side holes, the bubble distribution is more concentrated in the width direction, which may cause violent interface fluctuation and slag entrainment. The fluctuation at the steel-slag interface in the mold with 180 mm thickness is greater than that in the mold with 250 mm thickness but less than 5 mm. The increase of mold thickness may lead to a decrease of the symmetry of the flow field in the thickness direction and uniformity of mold powder layer thickness. In summary, the steel throughput should be increased in the 250 mm thick mold compared with that in the 180 mm thick mold. Full article

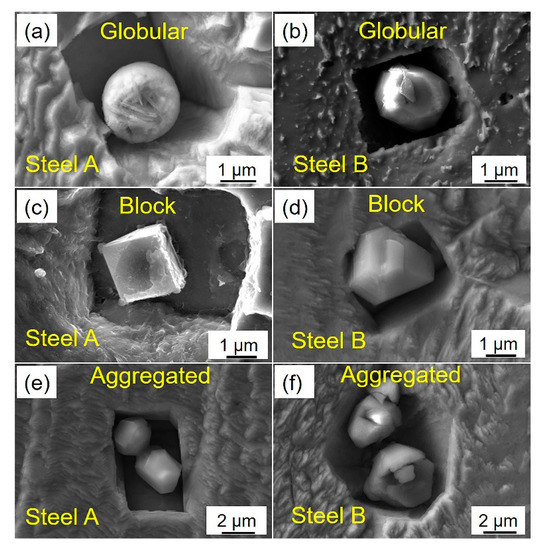

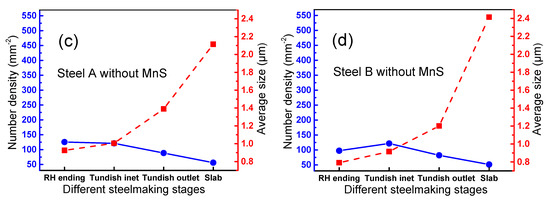

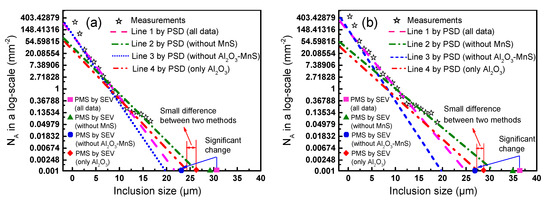

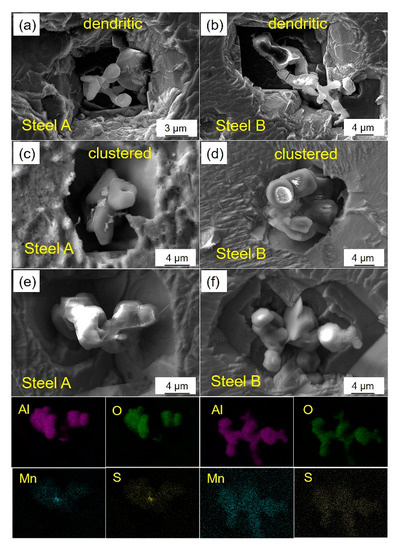

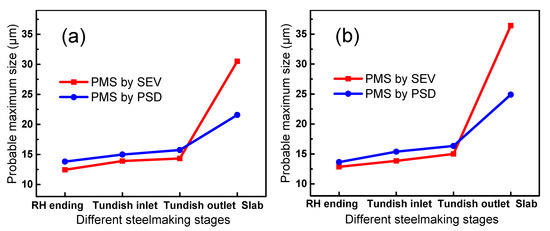

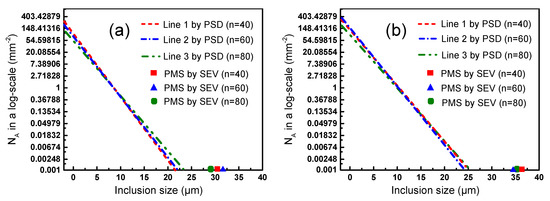

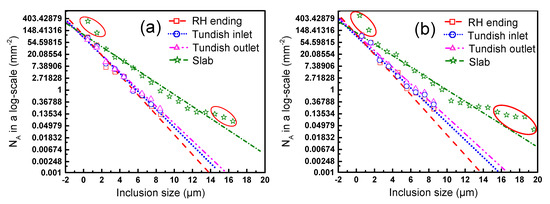

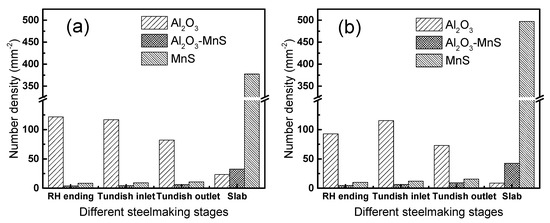

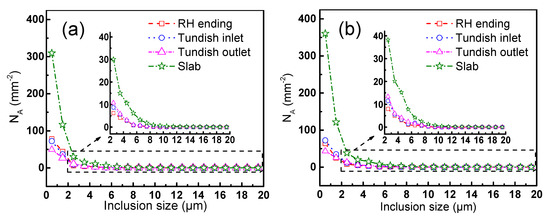

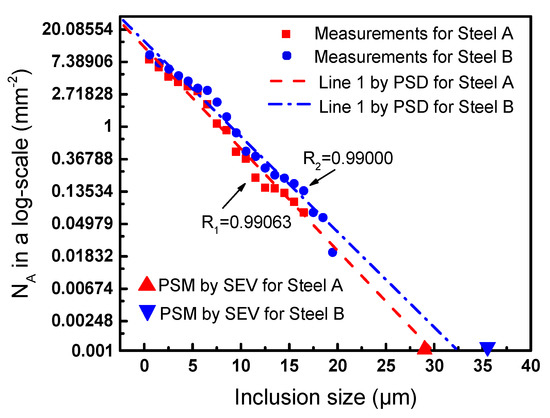

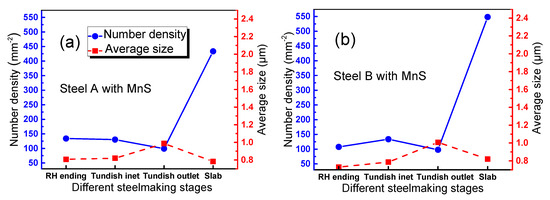

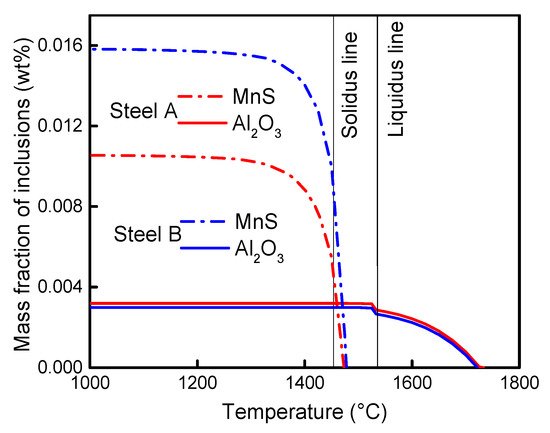

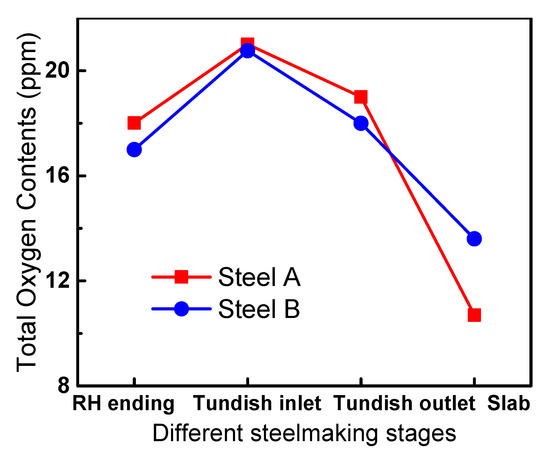

This study attempted to estimate the maximum size of inclusions in the ultra-low carbon Bake Hardening (BH) steels of automobile exposed panel. The Probable Maximum Sizes (PMS) of inclusions at the different steelmaking stages for BH steel with different sulfur contents were predicted by two methods of Statistics of Extreme Values (SEV) and Particle Size Distribution (PSD). The S content does not show a relationship with the PMS prediction of inclusions in the molten steel in which Al₂O₃ is the main inclusion, while the higher content of S leads to a larger PMS value in the slab, due to more number of large-sized Al₂O₃-MnS inclusions formed during solidification. The PMS value in the slab is greater than that in the molten steel for BH steel. Thus, the PMS of inclusions in the slab cannot be estimated from the molten steel samples. The SEV can be used to predict well the PMS values at different steelmaking stages for BH steels. However, the PSD of exponential function cannot predict well the PMS value in the slab for BH steel when considering all kinds of inclusions due to the large influence of small-sized MnS with high number density on the PSD of exponential function. When only considering Al₂O₃-MnS inclusions, the PSD of exponential function can make a reasonable PMS prediction in the slab, because the size distribution of Al₂O₃-MnS with large size can follow the exponential function. Full article

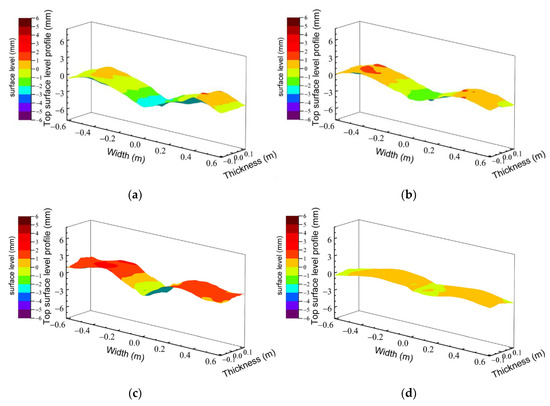

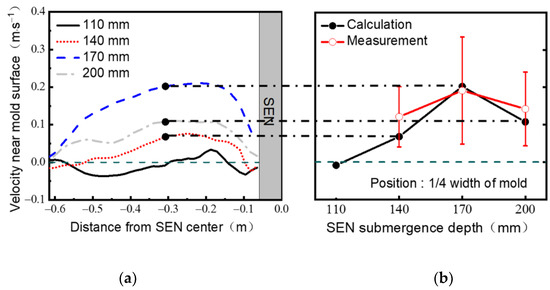

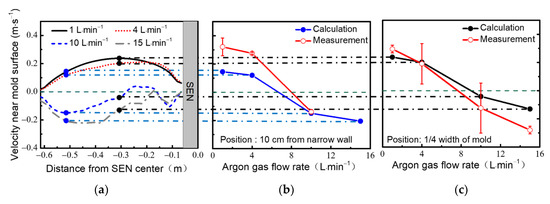

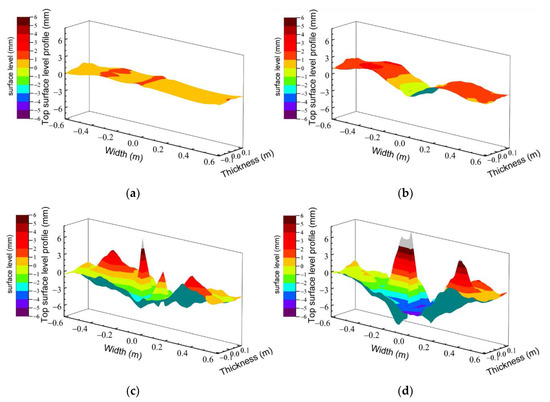

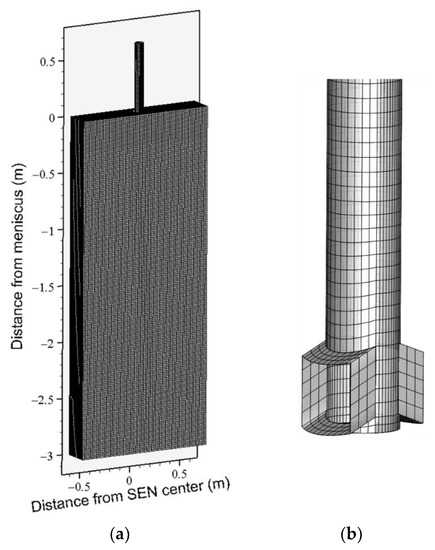

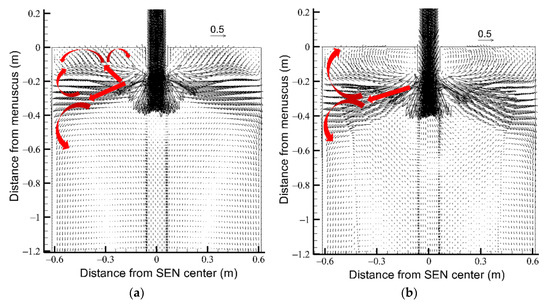

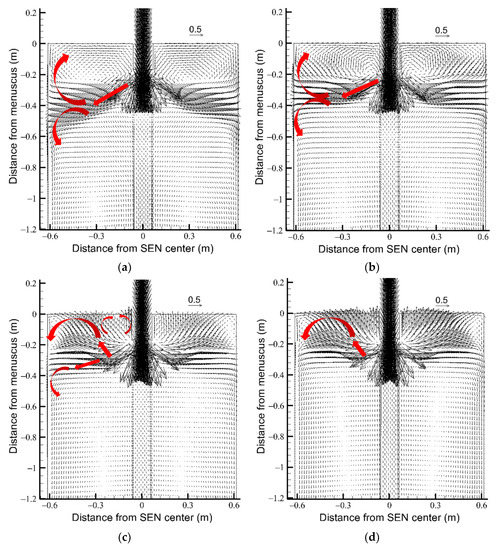

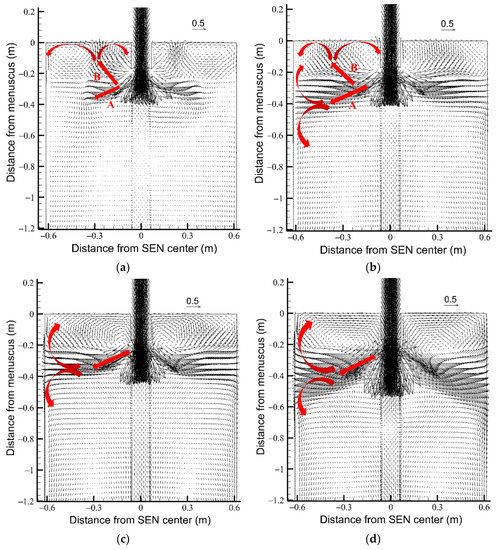

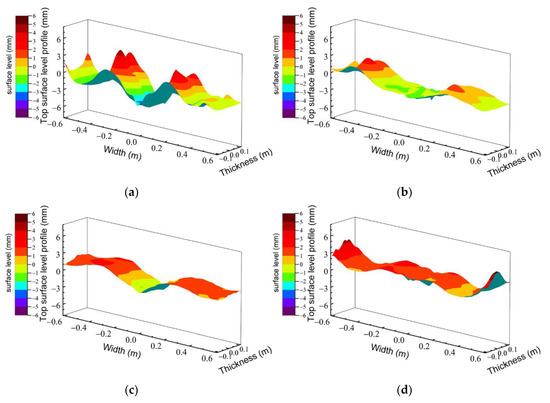

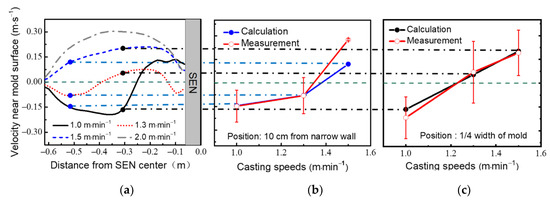

In the present work, mathematical modeling combined with measurement of the velocities near mold surface with rod deflecting method at the high temperature was carried out to optimize the flow field of slab continuous casting mold with medium width of 1230 mm for the production of an automobile exposed panel. The results show that the measured results of the velocities near the mold surface are in good agreement with the calculated results. The velocities near the mold surface increase with increasing the casting speed and decreasing the argon gas flow rate. When the casting speed is increased from 1.0, to 1.3, 1.5, and 2.0 m/min, the flow pattern in the mold is changed from single-roll flow (SRF), to unstable flow (UF), and then to double-roll flow (DRF), the top surface level fluctuations has the smallest value at 1.5 m/min. When the argon gas flow rate is 1 and 4 L/min, the velocity near the mold surface has a moderate value, and the flow pattern in the mold is DRF and the top surface level fluctuation is small and symmetrical. When the submerged entry nozzle (SEN) submergence depth is increased to 200 mm, the velocities near the mold surface decrease, and the top surface level fluctuation becomes small. The optimized flow field in the mold can be judged to be favorable to the surface quality of the automobile exposed panel; if the velocities near the mold surface are relatively small, the flow pattern in the mold is DRF and the top surface level fluctuation is small and symmetrical. Full article
