Search Results (5)

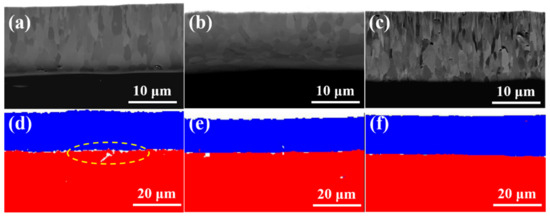

This study investigates the role of Al alloying in tailoring the oxidation resistance of AlTiCrZrNbTa refractory high-entropy alloy (RHEA) coatings on Zry-4 substrates under high-temperature steam environments. Coatings with varying Al contents (0–25 at.%) were deposited via magnetron sputtering and subjected to oxidation tests at 1000–1100 °C. The results demonstrate that Al content critically governs oxidation kinetics and coating integrity. The optimal performance was achieved at 10 at.% Al, above which a dense, continuous composite oxide layer (Al₂O₃, TiO₂, Cr₂O₃) formed, effectively suppressing oxygen penetration and maintaining strong interfacial adhesion. Indentation tests confirmed enhanced mechanical integrity in Al-10 coatings, with minimal cracking post-oxidation. Excessive Al alloying (≥17 at.%) led to accelerated coating oxidation. This work establishes a critical Al threshold for balancing oxidation and interfacial bonding, providing a design strategy for developing accident-tolerant fuel cladding coatings. Full article

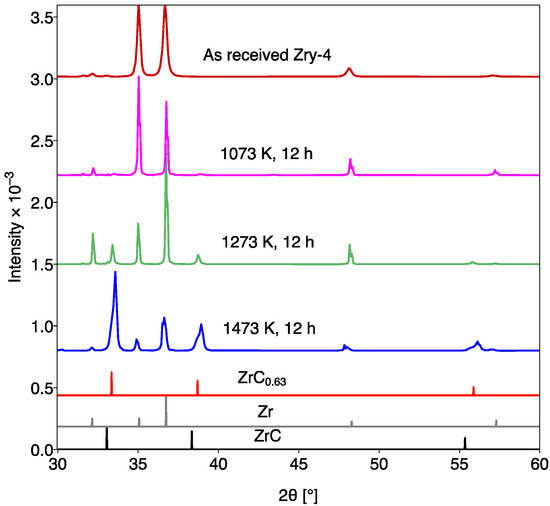

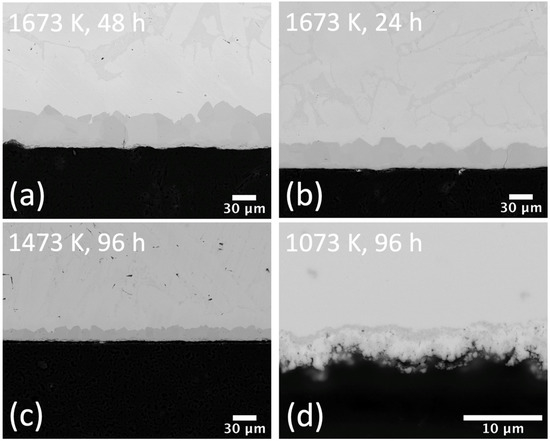

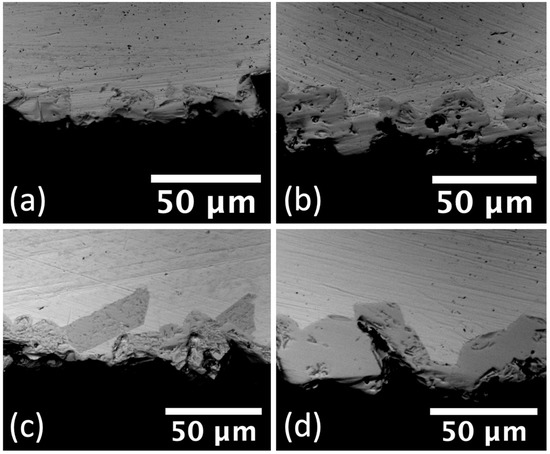

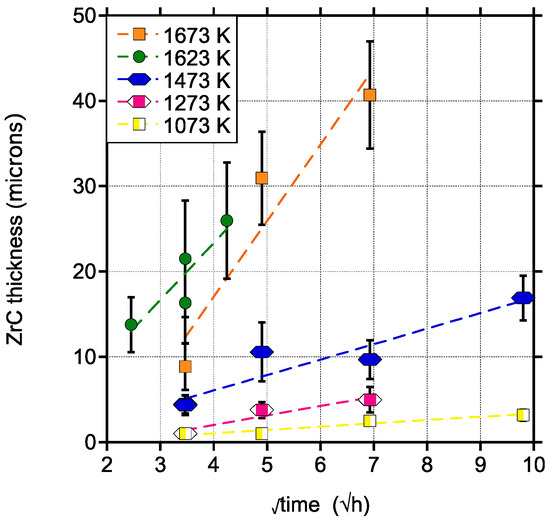

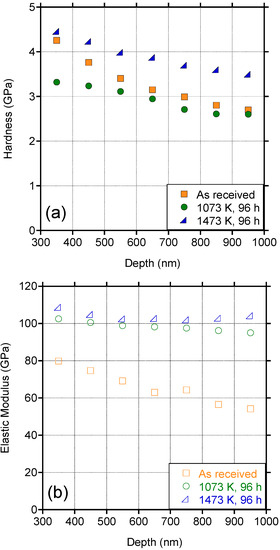

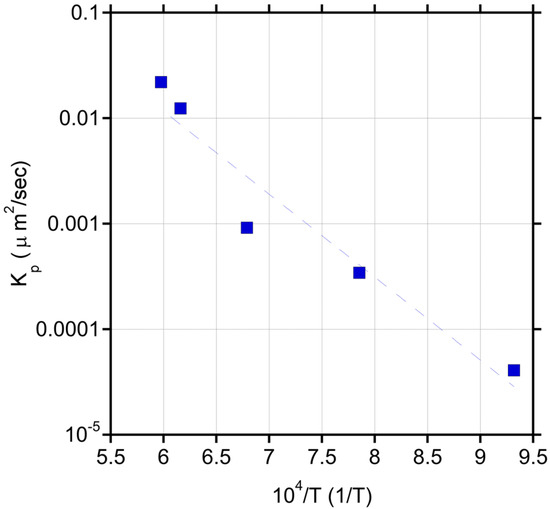

Carburization of cladding materials has long been a concern for the nuclear industry and has led to the restricted use of high-thermal conductivity fuels such as uranium carbides. With the rise of small modular reactors (SMRs) that frequently implement a graphite core-block, carburization of reactor components is once more in the foreground as a potential failure mechanism. To ensure commercial viability for SMRs, neutron-friendly cladding materials such as Zr-based alloys are required. In this work, the carburization kinetics of Zircaloy-4 (Zry-4), for the temperature range 1073–1673 K (covering typical operating temperatures and off-normal scenarios) are established. The following Arrhenius relationship for the parabolic constant describing ZrC growth is derived: K_p (in μm²/s) = 609.35 exp(−1.505 × 10⁵/RT)). Overall, the ZrC growth is sluggish below 1473 K which is within the operational temperature range of SMRs. In all cases the ZrC that forms from solid state reaction is hypo-stoichiometric, as confirmed through XRD. The hardness and elastic modulus of carburized Zry-4 are also examined and it is shown that despite the formation of a ZrC layer, C ingress in the Zry-4 bulk does not impact the mechanical response after carburization at 1073 K and 1473 K for 96 h. Full article

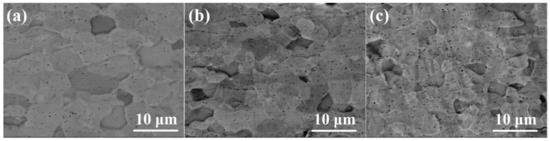

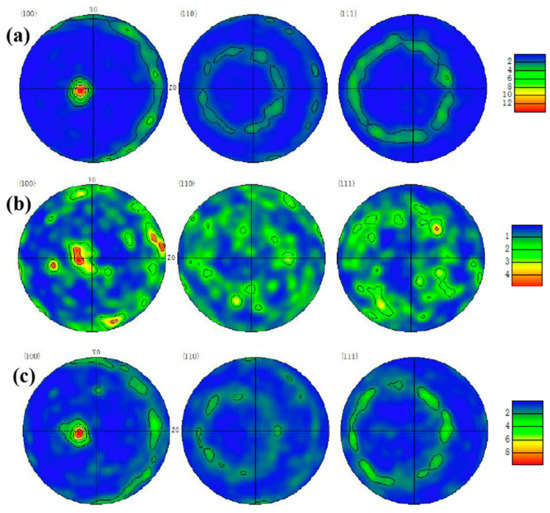

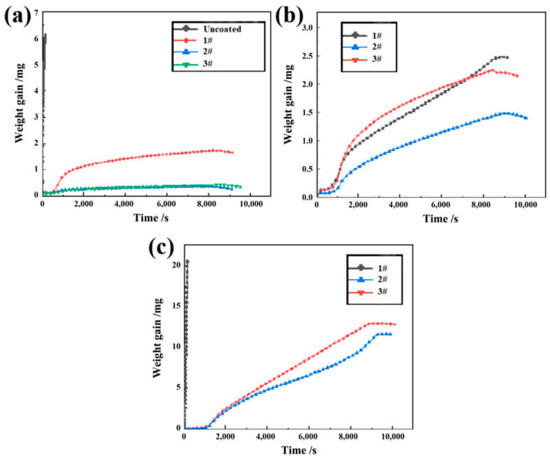

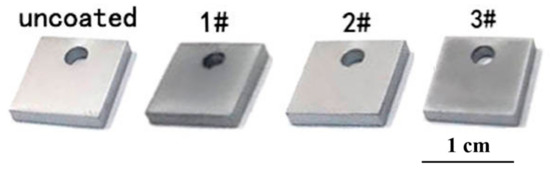

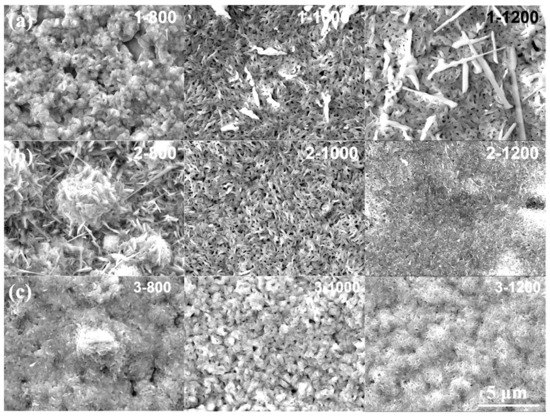

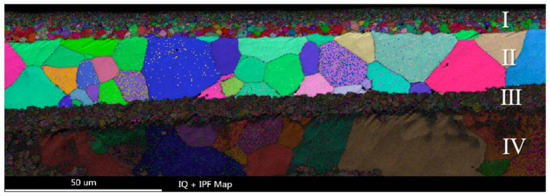

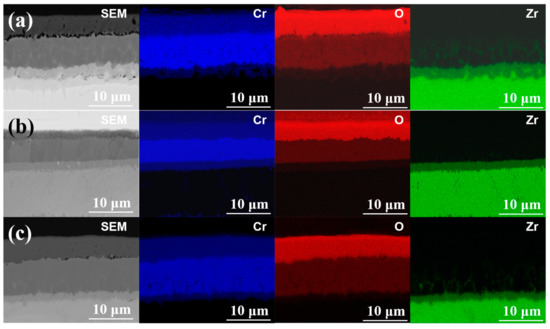

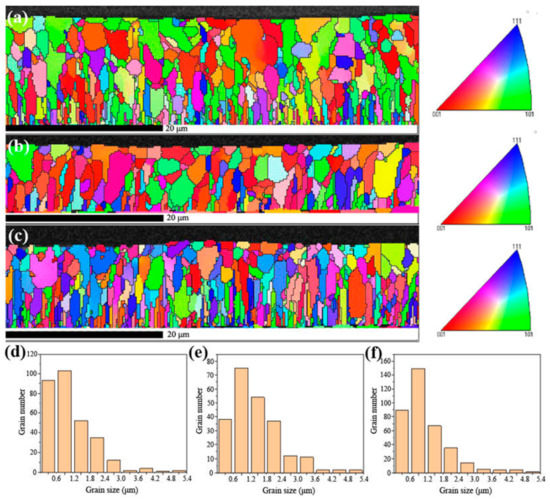

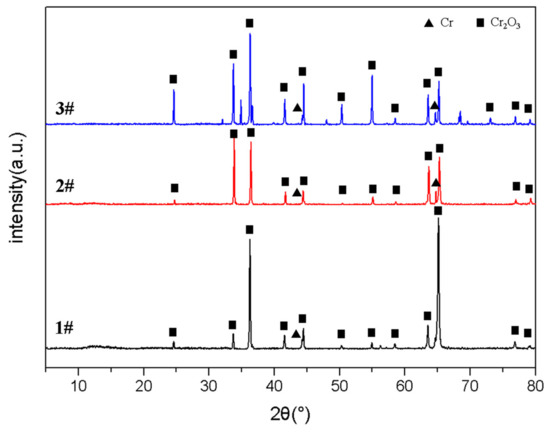

Introducing the oxidation-resistant coating on Zr alloy is considered to be one of the potential solutions for accident-tolerant fuel (ATF) materials. In this study, pure Cr coatings were prepared on a Zircaloy-4 (Zry-4) alloy surface by multi-arc ion plating under different process parameters. The ability of Cr coating on Zry-4 alloy cladding to improve the oxidation resistance to prevent a loss-of-coolant accident (LOCA) was studied. The microstructure of Cr coating was analyzed using the EBSD technique, and the high-temperature steam oxidation was tested at 800, 1000 and 1200 °C. Compared with the original Zry-4 alloy, the samples with Cr coatings exhibited much better oxidation resistance under different high-temperature steam oxidation conditions. However, the Cr coating exhibited columnar grain, strong preferred orientation and (001) fiber texture. The columnar grain boundaries provided paths for the diffusion of oxygen atoms to the Zry-4 alloy matrix at high temperatures. The results showed that the oxidation film of Cr coating with relatively random grain orientation was compact and uniform and exhibited the best oxidation resistance at high temperatures. Full article

Zirconium alloys are commonly used as a cladding material for fuel elements in nuclear reactors. This application is connected with zirconium alloy’s good resistance to water corrosion and radiation resistance under normal working conditions. In the case of severe accident conditions, the possibly very fast oxidation of zirconium alloys in steam or/and air atmosphere may result in the intense generation of hydrogen and explosion of the hydrogen oxide mixture. The development of a solution to minimize the aforementioned risk is of interest. One of the actual concepts is to improve the oxidation resistance of Zr alloy cladding with protective coatings. This study aimed to develop, form, and investigate new coatings for zirconium alloy Zry-2. Multi-elemental Physical Vapour Deposition (PVD) coatings with Cr, Si, and Zr were considered for Institute of Nuclear Chemistry and Technology) INCT as corrosion protective coatings for nuclear fuel claddings. Heat treatment at 850–1100 °C/argon, air oxidation processes at 700 °C/1–5 h, and a long-term corrosion test in standard conditions for Pressure Water Reactor (PWR) reactors (360 °C/195 bar/water simulating the water used in PWR) were carried out. Initial, modified, and oxidized materials were characterized with Scanning Electron Microscopy (SEM) (morphology observations), Energy Dispersive Spectroscopy (EDS) (elemental composition determination), and X-ray Diffraction (XRD) (phase composition analysis). Slower oxidation processes and a smaller oxidation rate, in the case of modified material investigations, were observed, as compared with the unmodified material. The obtained results displayed a protective character against the oxidation of formed layers in the defined range of parameters in the process. Full article

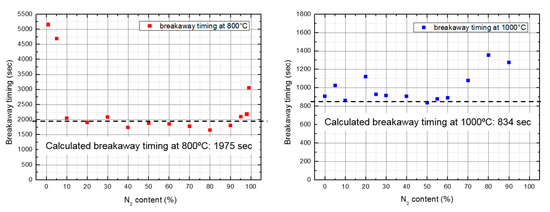

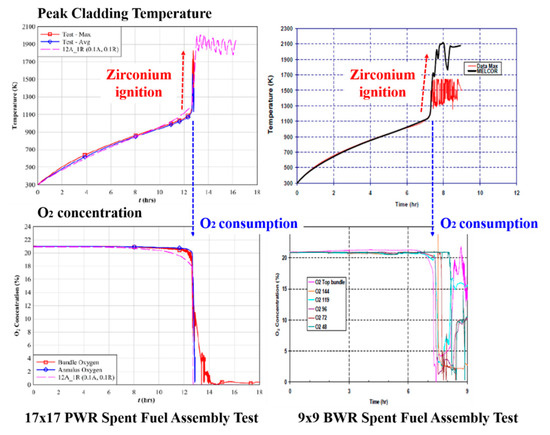

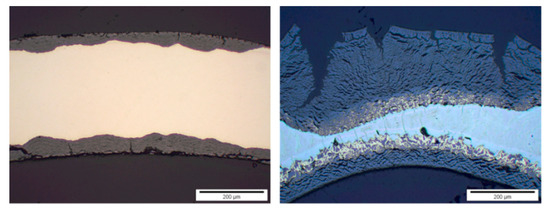

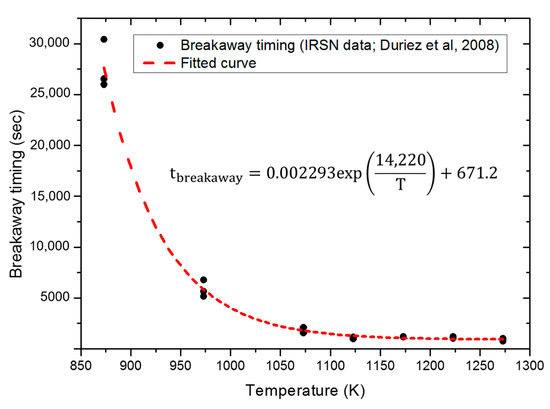

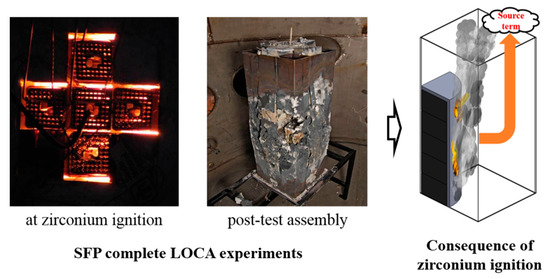

The temperature of zirconium alloy cladding on the postulated spent nuclear fuel pool complete loss of coolant accident is abruptly increased at a certain time and the cladding is almost fully oxidized to weak ZrO₂ in the air. This abrupt temperature escalation phenomenon induced by the air-oxidation breakaway is called a zirconium fire. Although an air-oxidation breakaway kinetic model correlated between time and temperature has been implemented in the MELCOR code, it is likely to bring about unexpected large errors because of many limitations of model derivation. This study suggests an improved time–temperature correlated kinetic model using the Johnson–Mehl equation. It is based on that the air-oxidation breakaway is initiated by the phase transformation from the tetragonal to monoclinic ZrO₂ at the oxide–metal interface in the cladding. This new model equation is also evaluated with the Zry-4 air-oxidation literature data. This equation resulted in the almost similar air-oxidation breakaway timing to the actual experimental data at 800 °C. However, at 1000 °C, it showed an error of about 8 min. This could be inferred from the influence of the ZrN phase change due to the nitrogen existing in air. Full article
