Search Results (5)

In analogue and digital printing technologies, from 3 up to 12 layers of lacquer products are applied. Technological parameters significantly influence the adhesion in the coating system. This article refers to the analysis of the influence of selected technological parameters, such as the number of layers, energy doses distributed by the radiators, and line speed, on the topography and adhesion of varnish coatings formed in the process of varnishing with rollers and UV-curing systems. The appropriately prepared surface can be used as a background layer for the analogue and digital printing technology. Manufacturers must adapt the production process to the particular varnish to obtain finished products with the best possible performance properties. The state of surface free energy and finally adhesion can be assessed by theoretically determining the possibility of an adhesive bonding between the product and the substrate, taking into account the assumptions of the adsorption theory of adhesion and measurement of the contact angle (Θ). An experimental confirmation of adhesion measurements included removing the coatings from the substrate via stamps glued to the coating. Full article

In this study, we propose a promising photoprotective additive that combines the advantages of both organic UV absorbers and inorganic particles without compromising the properties of the paint material. This additive involves the intercalation of a well-known organic UV absorber, 2-phenylbenzimidazole-5-sulfonic acid (PBISA), into zinc-aluminum layered double hydroxide (ZnAl-LDH). Three ZnAl-LDH intercalates with PBISA were prepared using various methods based on either anion exchange or direct synthesis. The intercalates were characterized using powder X-ray diffraction, thermogravimetry, elemental analysis, and IR and UV-Vis spectroscopies. The composition and basal spacings of all three intercalates are very similar. An effective UV protection film was prepared when the ZnAl–PBISA–1 intercalate was incorporated into polyurethane-acrylate lacquer. The resultant UV protective film exhibited stability and uniform distribution of the intercalated fillers. Some minimal particle sedimentation and aggregation were observed on the cured film’s underside, but did not compromise the films’ UV protective properties. The prepared lacquers with intercalated fillers offer a viable solution for the surface modification of plastic products. Full article

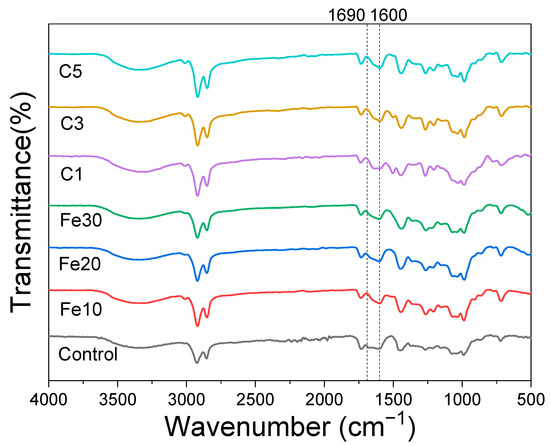

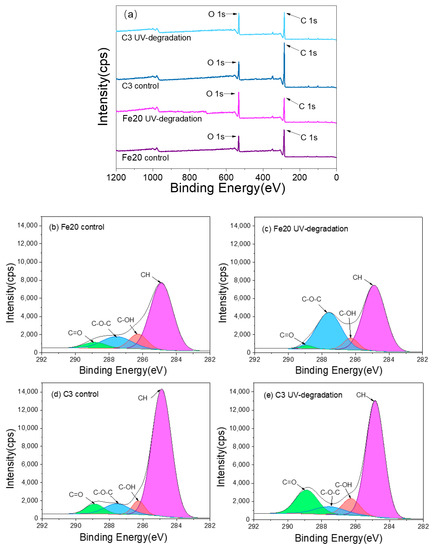

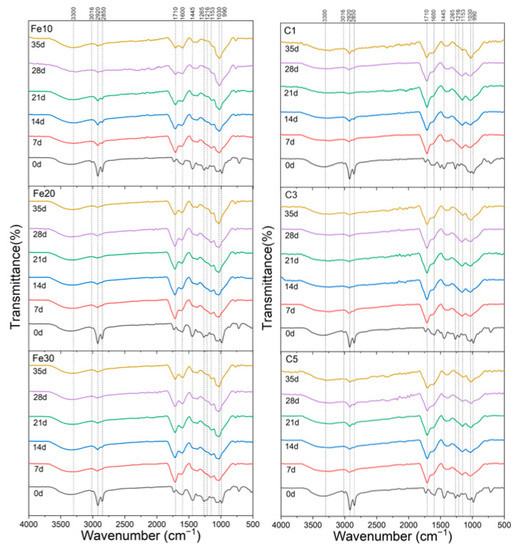

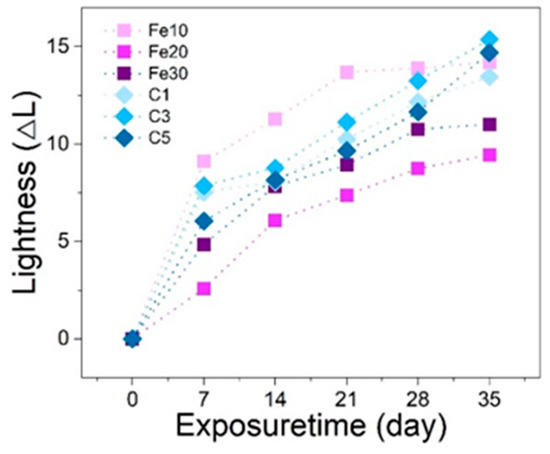

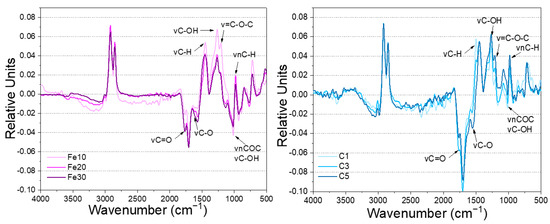

This study investigates the UV degradation of black Chinese lacquer by incorporating carbon black and ferrous hydroxide as additives. The purpose of this research is to understand the effects of these additives on the degradation behavior of the lacquer film. Different concentrations of carbon black powder (1%, 3%, and 5%) and Fe(OH)₂ (10%, 20%, and 30%) were added to the lacquer following traditional techniques. The main methods employed for analysis were gloss loss measurement, color change assessment, SEM imaging, FTIR spectroscopy, and XPS analysis. The results demonstrate a significant decrease in gloss levels and an increase in lightness values with increasing ultraviolet exposure time. SEM images reveal the formation of cracks in the lacquer film. FTIR analysis indicates oxidation of the urushiol side chain and an increase in oxidation products. The infrared difference spectrum highlights the differences between the additives, with Fe(OH)₂ showing a lower impact on the spectra compared to carbon black. XPS analysis confirms the oxidation of the C-H functional group and the presence of C-O-C and C-OH groups. In conclusion, this study sheds light on the influence of carbon black and ferrous hydroxide additives on the UV degradation of black Chinese lacquer and suggests the protective effect of Fe(OH)₂ against UV aging. These findings contribute to a better understanding of the degradation mechanisms and provide insights for improving the UV resistance of Chinese lacquer coatings. Further research can explore alternative additives and optimization strategies to mitigate UV-induced degradation. Full article

A key feature of varnish coatings on furniture surfaces is their optical properties, which often determine customers’ purchase choices. Furniture may be produced using various boards, which are much cheaper than wood-based materials. For their finishing, among others, UV-cured varnish products are used. The aim of this study was to determine the effect of different types of HDF boards, the amount of basecoat and topcoat applied, the number of layers, and the different lamp powers used for hardening on the gloss of coatings obtained using UV technology. The gloss was tested with a photoelectric apparatus. An auxiliary parameter in the assessment of the gloss of the coatings was the surface roughness, which was measured with the Mitutoyo SJ-210 Analysis of variance (ANOVA) was used to obtain the results. Statistical considerations showed that the amount of topcoat applied, the power of the lamps, and the interactions between them had the greatest impact on gloss, followed by the number of layers. In general, the gloss of the coating decreased with a decrease in lamp power in the range of 120–60 W/cm and with an increase in the amount of topcoat applied. Full article

In this paper, the waterborne UV lacquer product (WUV) was used as the main raw material, zinc oxide (ZnO) was used as the additive, and the stearic acid as the surface modifier. According to the method of spraying coating on the surface of poplar wood (Populus tomentosa), a simple and efficient preparation method was carried out to generate a super-hydrophobic surface and enhance the erosion resistance of the coating. By testing, the contact angle (CA) of water on the coating surface can reach 158.4°. The microstructure and chemical composition of the surface of coatings were studied by scanning electron microscope (SEM), Fourier transform infrared spectroscopy (FT-IR), and X-ray diffraction (XRD). The results showed that under acidic conditions, the non-polar long chain alkyl group of stearic acid vapor molecule reacted with the hydroxyl group in acetic acid, the metal ions of the ZnO were displaced to the stearic acid and generated globular zinc stearate (C₃₆H₇₀O₄Zn). The hydrophobic groups –CH₃ were grafted to the surface of zinc stearate (ZnSt2) particles and the micro/nano level of multistage flower zinc stearate coarse structure was successfully constructed on the surface of poplar wood, which endowed it with superhydrophobic properties. It is shown that the coating has good waterproof and erosion resistance. Full article
