Search Results (7)

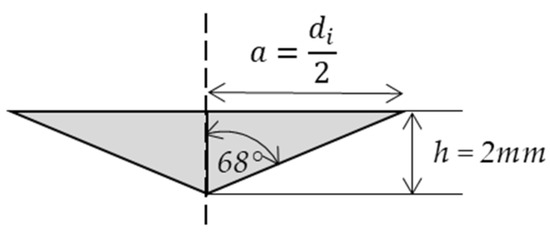

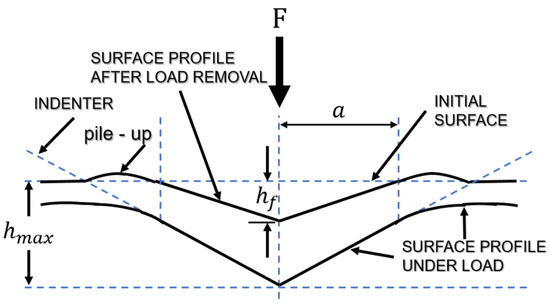

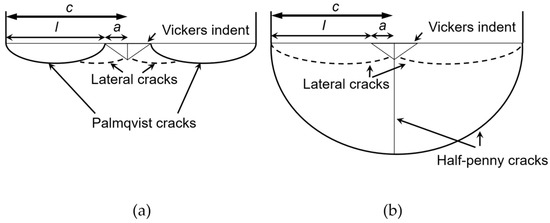

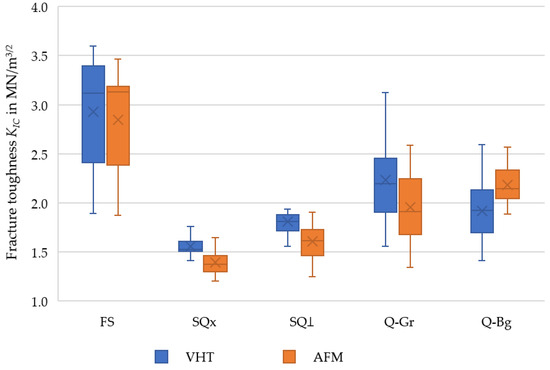

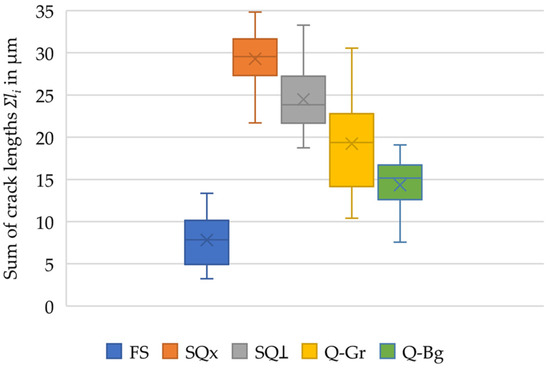

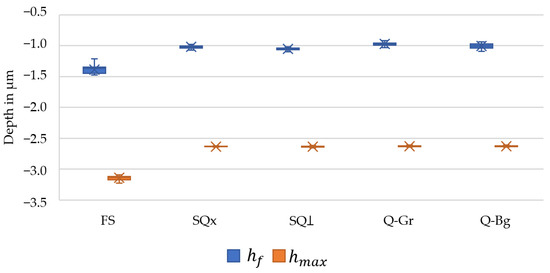

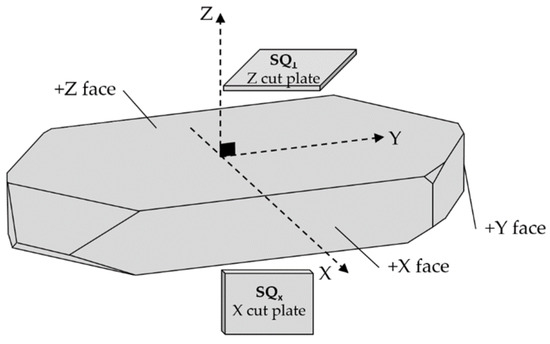

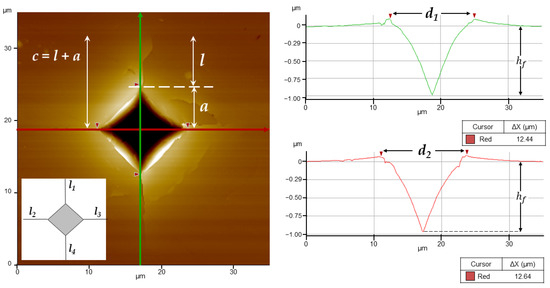

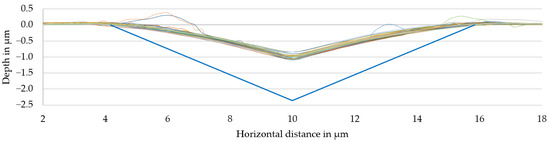

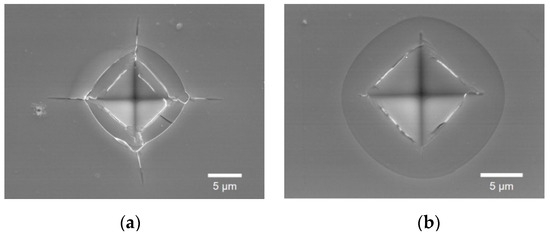

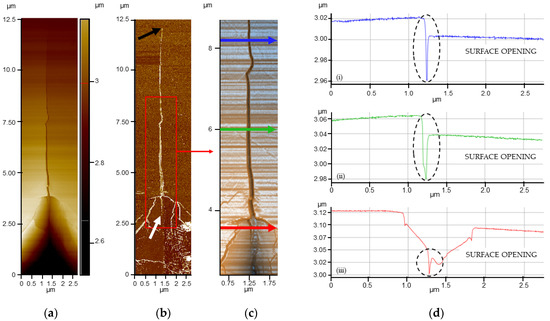

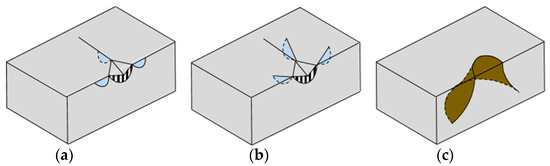

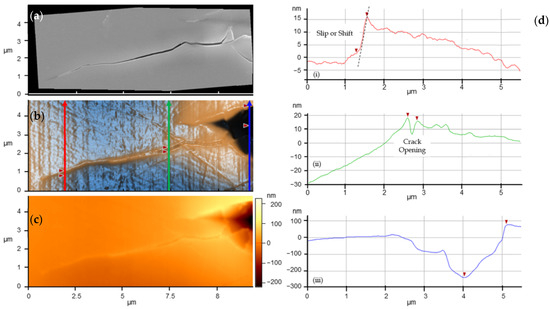

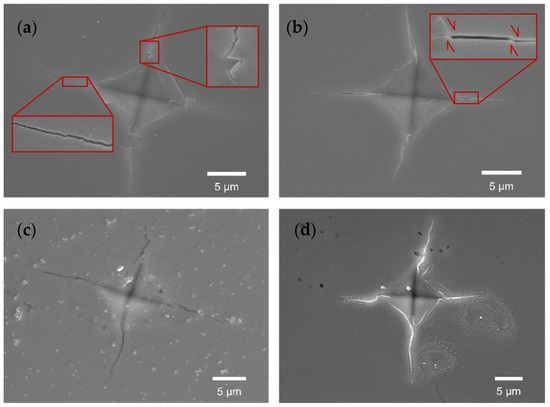

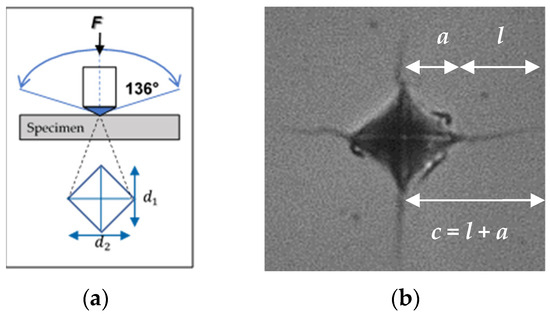

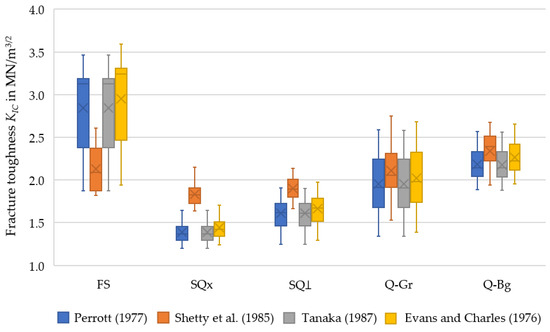

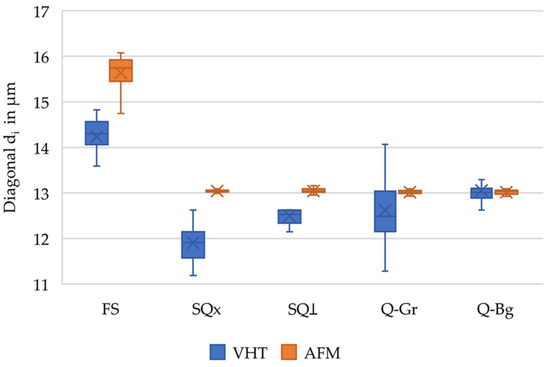

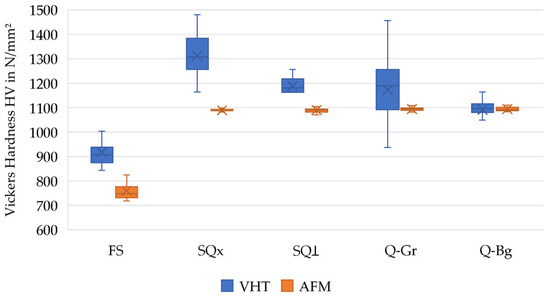

Studies of micro/nanoscale mechanical properties of materials are scarce and the determination of the corresponding parameters such as fracture toughness (K_IC) and Vickers hardness number (HV) at those scales remains a challenge. In the presented work, a methodological approach was applied that provides detailed insight on the elastic/plastic behavior of minerals subjected to Vickers indentation experiments. In this research, five samples were analyzed: one fused silica sample (reference material), two synthetic quartz crystals (differently cut, SQ_⊥ and SQ_X), and two quartz grains from polished sections of granite and granodiorite rock. The applied methodology was predominantly based on qualitative and quantitative morphology measurements by Atomic Force Microscopy (AFM). This analysis shows the dominant presence of either Primary Radial Cracks (PRC) or Secondary Radial Cracks (SRC) in both natural (mineral) quartz grains and synthetic quartz crystals, and Cone Cracks (CC) in fused silica. Moreover, the parameters associated with the indentation (e.g., length of the cracks, the depth of residual indentation, and the indentation mark size) allowed the reconstruction of the indentation profile model and the determination of K_IC and HV with enhanced accuracy. Full article

Potential-controlled nitriding is an effective technique for enhancing the life of steel molds and dies by improving their surface hardness and toughness against fatigue damage. In this study, the effect of the nitriding potential on the microstructure and fracture toughness of nitrided AISI D2 steels was investigated. The nitrided layers were characterized by microhardness measurements, optical microscopy, and scanning electron microscopy, and their phases were identified by X-ray and electron backscatter diffraction. As the nitriding potential increased to 2.0 atm^−1/2, an increase in the surface hardness and fracture toughness was observed with the growth of the compound layer. However, both the surface hardness and the fracture toughness decreased at the higher nitriding potential of 5.0 atm^−1/2 owing to the increased porosity in the compound layers, which mainly consist of the ε (Fe_2–3N) phase. Additionally, by observing crack growth behavior, the fracture toughness was analyzed considering the material characteristics of the diffusion and compound layers. The fracture toughness was influenced by the location of the initial Palmqvist cracks due to the localized plastic deformation of the diffusion layer and increased crack length due to the porous compound layer. Full article

Numerous studies show that vat photopolymerization enables near-net-shape printing of ceramics and plastics with complex geometries. In this study, vat photopolymerization was investigated for cemented carbide specimens. Custom-developed photosensitive WC-12 Co (wt%) slurries were used for printing green bodies. The samples were examined for defects using quantitative microstructure analysis. A thermogravimetric analysis was performed to develop a debinding program for the green bodies. After sintering, the microstructure and surface roughness were evaluated. As mechanical parameters, Vickers hardness and Palmqvist fracture toughness were considered. A linear shrinkage of 26–27% was determined. The remaining porosity fraction was 9.0%. No free graphite formation, and almost no η-phase formation occurred. WC grain growth was observed. 76% of the WC grains measured were in the suitable size range for metal cutting tool applications. A hardness of 1157 HV10 and a Palmqvist fracture toughness of 12 $\mathrm{MPa}\sqrt{\mathrm{m}}$ was achieved. The achieved microstructure exhibits a high porosity fraction and local cracks. As a result, vat photopolymerization can become an alternative forming method for cemented carbide components if the amount of residual porosity and defects can be reduced. Full article

Melting metallurgy is still the most frequently used and simplest method for the processing of metallic materials. Some of the materials (especially intermetallics) are very difficult to prepare by this method due to the high melting points, poor fluidity, or formation of cracks and pores after casting. This article describes the processing of Ti-Al-Si alloys by arc melting, and shows the microstructure, phase composition, hardness, fracture toughness, and compression tests of these alloys. These results are compared with the same alloys prepared by powder metallurgy by the means of a combination of mechanical alloying and spark plasma sintering. Ti-Al-Si alloys processed by melting metallurgy are characterized by a very coarse structure with central porosity. The phase composition is formed by titanium aluminides and titanium silicides, which are full of cracks. Ti-Al-Si alloys processed by the powder metallurgy route have a relatively homogeneous fine-grained structure with higher hardness. However, these alloys are very brittle. On the other hand, the fracture toughness of arc-melted samples is immeasurable using Palmqvist’s method because the crack is stopped by a large area of titanium aluminide matrix. Full article

This paper proposes a new method of evaluating the indentation toughness of hardmetals using the length of Palmqvist cracks (C) and Vickers indentation diagonal size (d_i). Indentation load “P” is divided into two parts: P_i for plastic indentation size and P_c for Palmqvist cracks. Pi depends upon the square of the indentation size (d_i²) and Pc depends upon (C^3/2). The new method produces a very good linear relationship between the calculated indentation toughness values and the standard conventional linear elastic fracture mechanics toughness values with the same cemented carbide materials for a large number of standard Kennametal grades for both straight WC-Co carbide grades and grades containing cubic carbides. The new method also works on WC-Co hardmetal data selected from recently published literature. The technique compares the indentation toughness values of WC-Co materials before and after vacuum annealing at high temperature. The indentation toughness values of annealed carbide samples were lower than for un-annealed WC-Co hardmetals. Full article

In this paper, the fracture toughness K_Ic of near-nano and nanostructured WC-Co cemented carbides by Vickers indentation fracture toughness (VIF) was investigated. The aim was to research the type of cracking occurring in near-nano and nano-grained WC-Co cemented carbides with respect to the Co content and, consequently, to evaluate the appropriateness of different models for the fracture toughness calculation. The mixtures with different binder content—4, 6, and 9 wt. % Co—were consolidated by sintering in a hydrogen atmosphere. Vickers indentation using a test force of 294 N was used for the determination of fracture toughness. The type of crack that occurred as a consequence of the applied load on the corners of the Vickers indentations was analysed with optical microscopy before and after repolishing the samples. Different crack models, Palmqvist and radial-median, were applied for the calculation of K_Ic. Instrumented indentation testing was used to determine the modulus of elasticity of the consolidated samples. From the research it was found that near-nano and nanostructured cemented carbides with 9 and 6 wt. % Co do not exhibit median cracking and the indenter cracks remain radial in nature, while near-nano and nanostructured cemented carbides with 4 wt. % Co exhibit both radial and median cracking. Accordingly, it was concluded that the critical amount of the binder phase in near-nano and nanostructured WC-Co at which the crack changes its geometry from Palmqvist to radial-median is around 4 wt. % Co. Comparing different models it was found that K_Ic values are not consistent and differ for each method used. Models from Exner crack resistance for the Palmqvist crack showed good agreement. Radial-median crack models showed significant K_Ic deviations for the same testing conditions for all samples. Full article

We investigated the high-P,T annealing and mechanical properties of nanocomposite materials with a highly nitrided bulk composition close to Ti₃N₄. Amorphous solids were precipitated from solution by ammonolysis of metal dialkylamide precursors followed by heating at 400–700 °C in flowing NH₃ to produce reddish-brown amorphous/nanocrystalline materials. The precursors were then densified at 2 GPa and 200–700 °C to form monolithic ceramics. There was no evidence for N₂ loss during the high-P,T treatment. Micro- and nanoindentation experiments indicate hardness values between 4–20 GPa for loads ranging between 0.005–3 N. Young's modulus values were measured to lie in the range 200–650 GPa. Palmqvist cracks determined from microindentation experiments indicate fracture toughness values between 2–4 MPa·m^1/2 similar to Si₃N₄, SiC and Al₂O₃. Significant variations in the hardness may be associated with the distribution of amorphous/crystalline regions and the very fine grained nature (~3 nm grain sizes) of the crystalline component in these materials. Full article
