Search Results (3)

We propose two single-wavelength notch filters and one dual-wavelength (480 and 620 nm) notch filter to enhance image contrast. The stack structure of the notch filters was designed as (Ta₂O₅/SiO₂)⁴Ta₂O₅ in Essential Macleod thin film simulation software. Dual-electron-beam evaporation with ion beam-assisted deposition was used to prepare optical interference filters with different center wavelengths. A multilayer notch filter with a center wavelength of 620 nm was deposited on the front surface of the glass, and then a notch filter with a center wavelength of 480 nm was coated on the rear surface of the same glass. The proposed dual-wavelength (480 and 620 nm) notch filter is a combination of two single-wavelength notch filters coated on a double-sided glass substrate to compensate for residual stress. The transmittance, residual stress, and surface roughness of the proposed notch filter were evaluated using different measuring instruments. The experimental results show that the residual stress of the dual-wavelength notch filter could be reduced to 10.8 MPa by using a double-sided coating technique. The root-mean-square (RMS) surface roughness of the notch filters was measured by using a Linnik microscopic interferometer. The RMS surface roughness was 1.80 for the 620 nm notch filter and 2.09 for the 480 nm notch filter. The image contrast obtained with the three different notch filters was measured using an optical microscope and a CMOS camera. The contrast value could be increased from 0.328 (without a filter) to 0.696 (dual-wavelength notch filter). Full article

Calcium fluoride (CaF₂) is deposited via vacuum thermal evaporation on borosilicate glass to produce an anti-reflection coating for use in solar modules. Macleod’s essential simulation is used to optimize the thickness of the CaF₂ coating on the glass. Experimentally, a 120 ± 4 nm-thin CaF₂ film on glass shows an average increase of ~4% in transmittance and a decrease of ~3.2% in reflectance, respectively, when compared to that of uncoated glass (Un CG), within the wavelength spectrum of approximately 350 to 1100 nm. The electrical PV performance of CaF₂-coated glass (CaF₂-CG) was analyzed for conventional and lightweight photovoltaic module applications. An improvement in the short-circuit current (J_sc) from 38.13 to 39.07 mA/cm² and an increase of 2.40% in the efficiency (η) was obtained when CaF₂-CG glass was used instead of Un CG in a conventional module. Furthermore, J_sc enhancement from 35.63 to 36.44 mA/cm² and η improvement of 2.32% was observed when a very thin CaF₂-CG was placed between the polymethyl methacrylate (PMMA) and solar cell in a lightweight module. Full article

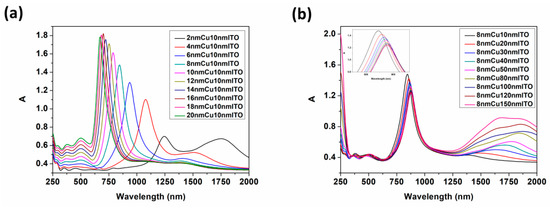

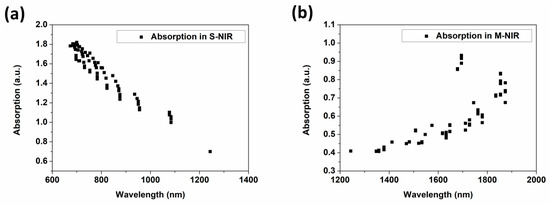

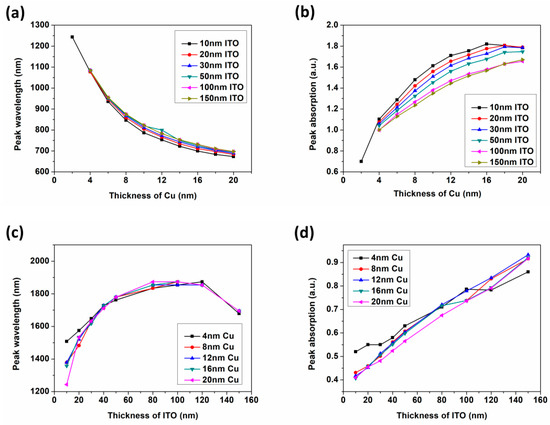

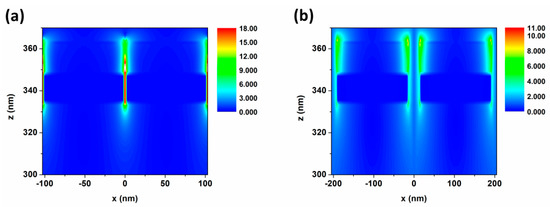

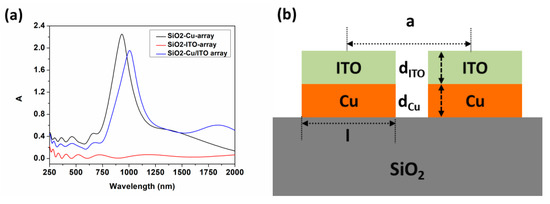

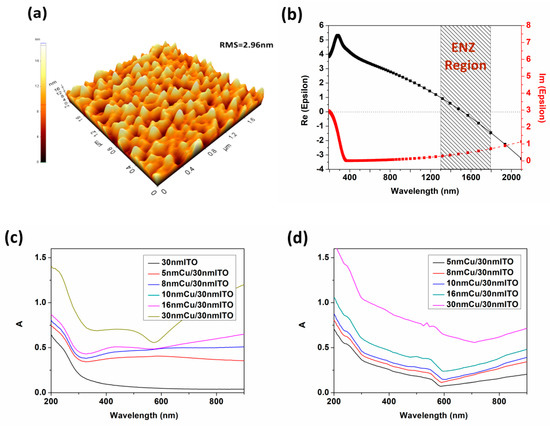

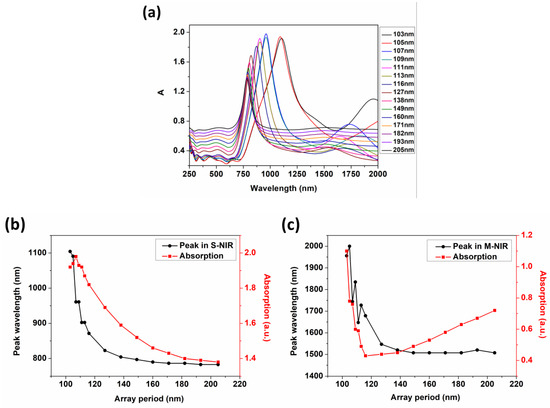

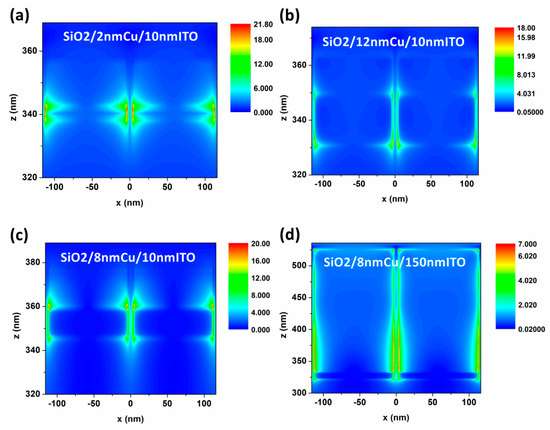

Sub-wavelength artificial photonic structures can be introduced to tailor and modulate the spectrum of materials, thus expanding the optical applications of these materials. On the basis of SiO₂/Cu/ITO arrays, a hybrid coupled resonance (HCR) mechanism, including the epsilon-near-zero (ENZ) mode of ITO, local surface plasmon resonance (LSPR) mode and the microstructural gap resonance (GR) mode, was proposed and researched by systematically regulating the array period and layer thickness. The optical absorptions of the arrays were simulated under different conditions by the finite-difference time-domain (FDTD) method. ITO films were prepared and characterized to verify the existence of ENZ mode and Mie theory was used to describe the LSPR mode. The cross-sectional electric field distribution was analyzed while SiO₂/Cu/ITO multilayers were also fabricated, of which absorption was measured and calculated by Macleod simulation to prove the existence of GR and LSPR mode. Finally, the broad-band tailoring of optical absorption peaks from 673 nm to 1873 nm with the intensities from 1.8 to 0.41 was realized, which expands the applications of ITO-based plasmonic metamaterials in the near infrared (NIR) region. Full article
