Search Results (2)

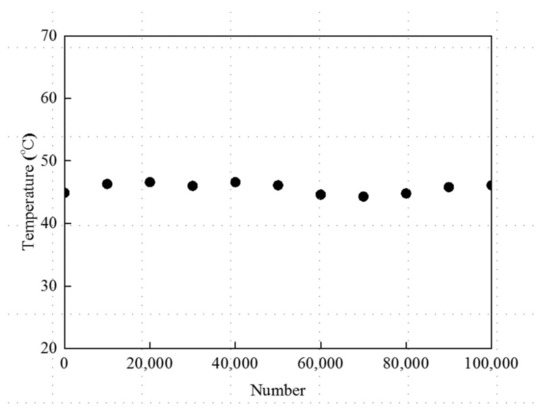

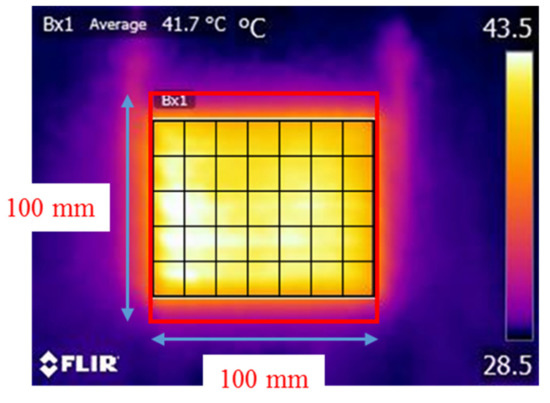

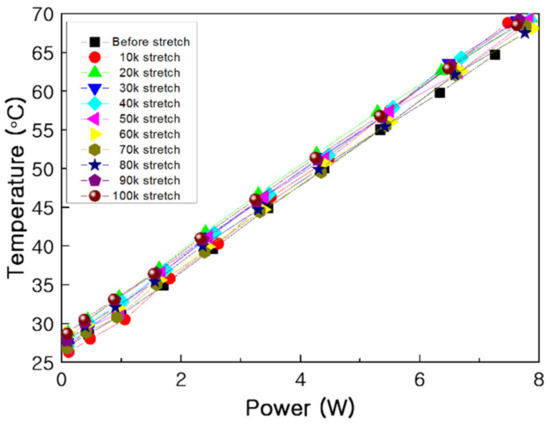

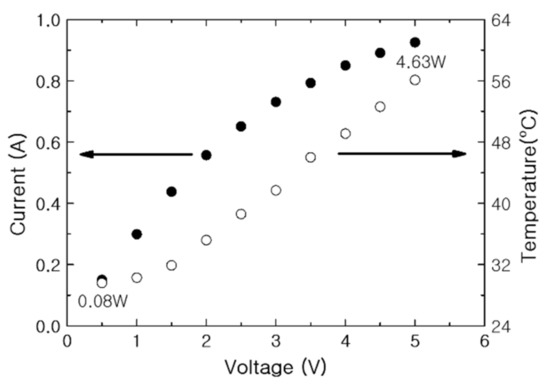

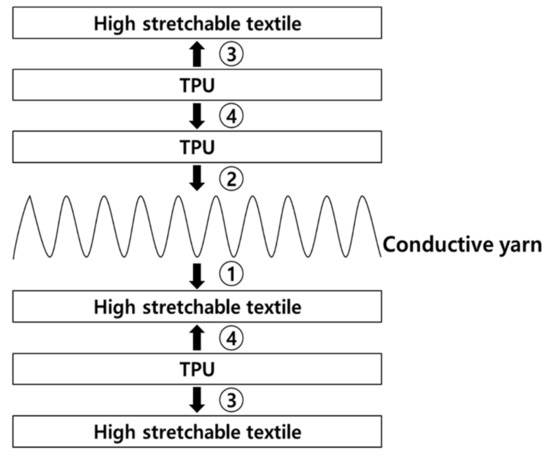

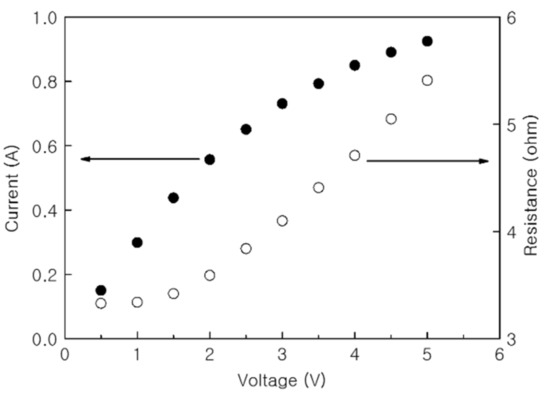

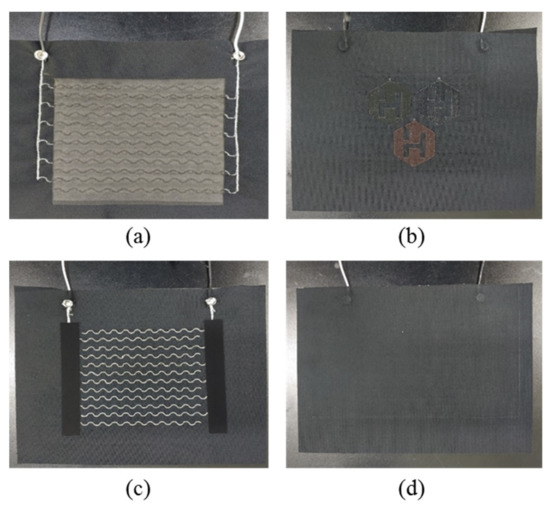

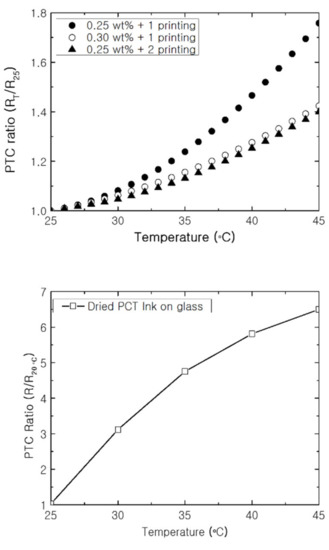

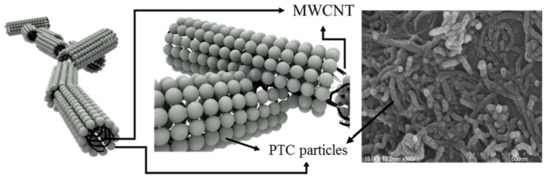

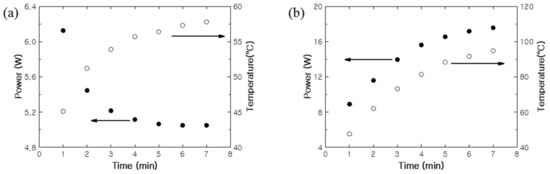

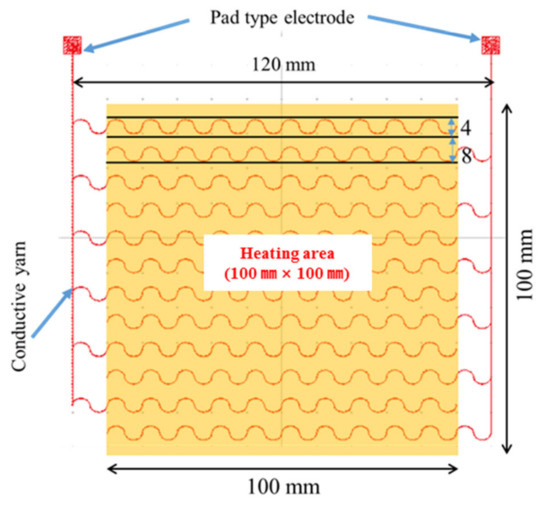

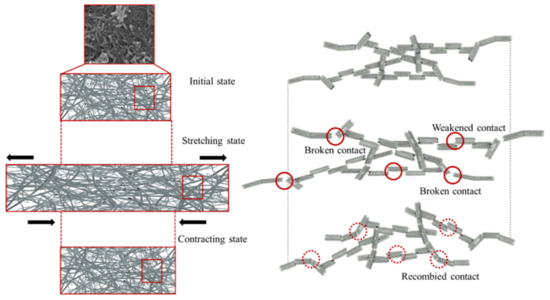

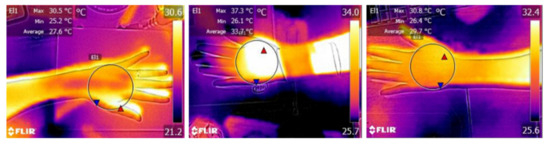

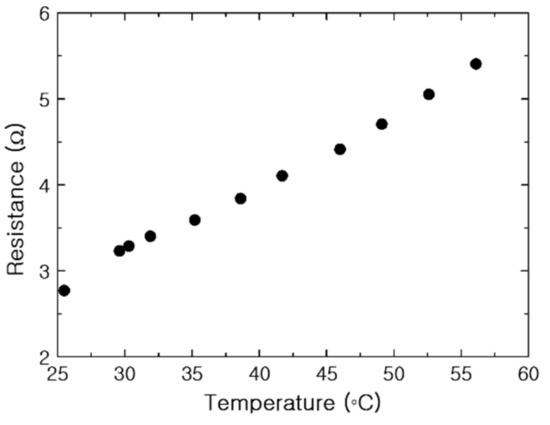

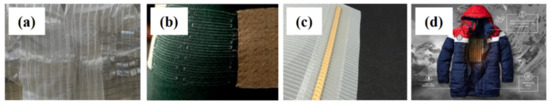

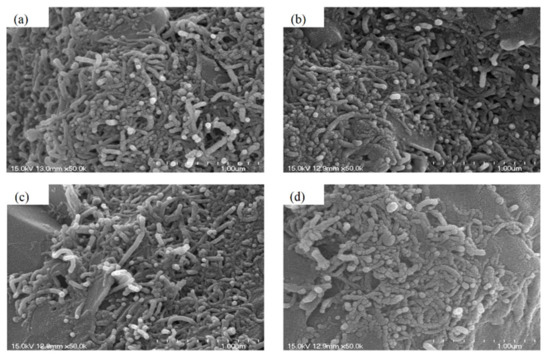

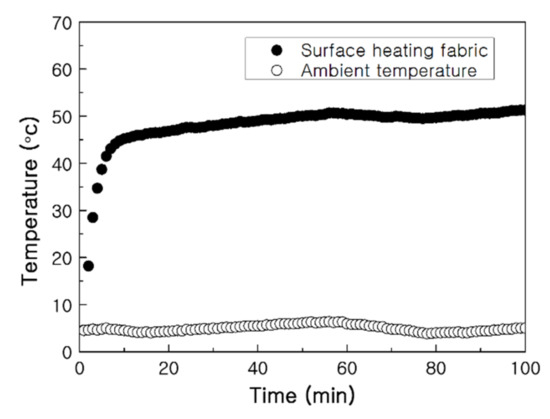

A high-stretch positive temperature coefficient (PTC) surface heating textile (PTC-SHT) was fabricated using a composite of PTC powder and multiwall carbon nanotubes (MWCNTs). The PTC-SHT (heating area = 100 × 100 mm²) was produced by screen-printing the PTC-MWCNT composite paste onto a high-stretch textile with embroidered electrodes. Overall, the temperature increased to 56.1 °C with a power consumption of 5 W over 7 min. Subsequently, the surface temperature of the PTC-SHT remained constant despite the continued decrease in power consumption. This indicated that heating was accompanied by an increase in resistance of the PTC-SHT, which is typical of this process—i.e., heating to a constant temperature under a constant voltage over an extended period of time. In addition, 4.63 W power was required to heat the PTC-SHT surface from an external temperature of 5 to 45 °C in 10 min, after which stable low-temperature heat generation behavior was observed at a constant temperature of 50 °C, which was maintained over 40 min. In contrast, negative temperature coefficient (NTC) behavior has been observed in an NTC-SHT consisting of only MWCNTs, where a slow heating rate in the initial stage of power application and a continuous increase in surface temperature and power consumption were noted. The PTC-SHT consumed less power for heat generation than the NTC-SHT and exhibited rapid heating behavior in the initial stage of power application. The heat generation characteristics of the PTC-SHT were maintained at 95% after 100,000 cycles of 20% stretch–contraction testing, and the heating temperature remained uniformly distributed within ± 2 °C across the entire heating element. These findings demonstrated that an SHT with PTC characteristics is highly suitable for functional warm clothing applications that require low power consumption, rapid heating, stable warmth, and high durability. Full article

High-performance heater films are here proposed. They manifest great applicative potentiality in the de-icing technology of aircraft and motor vehicles. The films are suitable to be integrated into composite structures for the de/anti-icing function, which can be activated if the need arises. The heating is based on the joule effect of the current flowing through the electrically conductive films. Voltage and current parameters have been set based on the generators’ capacities on-board an aircraft and a car, as well as on the energy consumption during the operating conditions and the autonomy in the time. Green processes have been employed through all preparative steps of the films, which are composed of expanded graphite (60% wt/wt) and polyvinyl alcohol (PVA) (40% wt/wt). The results reveal a very significant influence of the aspect ratio of the filler on the heating and de-icing performance and suggest how to enhance the de-icing efficiency saving energy and adapting the current on-board aircraft/car generators for de-icing operations. Full article
