The Guangshigou deposit is the largest pegmatite-type uranium deposit in the Shangdan domain of the North Qinling Orogenic Belt, which is characterized by the enrichment of uraninite hosted in biotite granitic pegmatites. At Guangshigou, uraninite commonly occurs as mineral inclusions in quartz, K-feldspar and biotite or in interstices of these rock-forming minerals with magmatic characteristics (e.g., U/Th < 100, high ThO₂, Y₂O₃ and REE₂O₃ contents and low concentrations of CaO, FeO and SiO₂). It crystallized at 407.6 ± 2.9 Ma from fractionated calc-alkaline high-K pegmatitic melts under conditions of 470–700 °C and 2.4–3.4 kbar as deduced by the compositions of coexisting peritectic biotite. The primary uranium mineralization took place during the Late Caledonian post-collisional extension in the North Qinling Orogen. After this magmatic event, uraninite has experienced multiple episodes of fluid-assisted metasomatism, which generated an alteration halo of mineral assemblages. The alteration halo (or radiohalo) was the result of the combined effects of metamictization and metasomatism characterized by an assemblage of goethite, coffinite and an unidentified aluminosilicate (probably clay minerals) around altered uraninite. This fluid-assisted alteration was concomitant with the albitization of K-feldspar subsequently followed by the coffinitization of uraninite during the major period of 84.9–143.6 Ma, as determined by U-Th-Pb chemical ages. Further investigations revealed that the metasomatic overprinting on uraninite initially and preferentially took place along microcracks or cavities induced by metamictization and promoted their amorphization, followed by the release of U and Pb from structure and the incorporation of K, Ca and Si from the fluids, finally resulting in various degrees of uraninite coffinitization. The released U and Pb were transported by alkali-rich, relatively oxidizing fluids and then re-precipitated locally as coffinite and an amorphous U-Pb-rich silicate under low to moderate temperature conditions (85–174 °C). The compositional changes in primary uraninite, its structure amorphization together with the paragenetic sequence of secondary phases, therefore, corroborate a combined result of intense metamictization of uraninite and an influx of alkali–metasomatic fluids during the Late Mesozoic Yanshanian magmatic event in the region. Hence, the remobilization and circulation of uranium in the North Qinling Orogen was most likely driven by post-Caledonian magmatism and hydrothermal activities related to large-scale tectonic events. In this regards, Paleozoic pegmatite-type uranium mineralization may represent a significant uranium source for Mesozoic hydrothermal mineralization identified in the Qinling Orogenic Belt. Full article

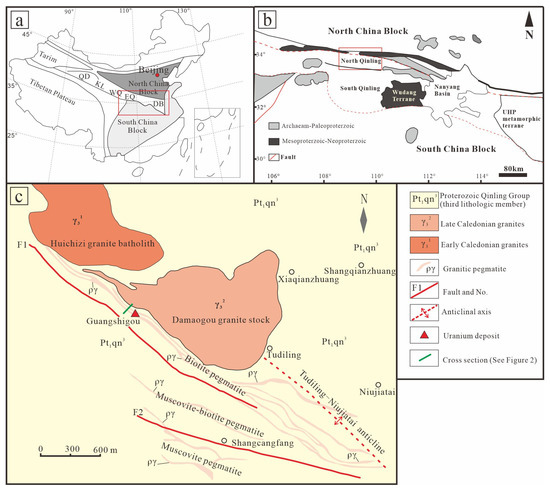

Pegmatite-type uranium mineralization occurs in the Shangdan domain of the North Qinling Orogenic Belt, representing a significant uraniferous province. The Guangshigou deposit is the largest U deposit of the district. Within the North Qinling area, a series of Caledonian granitic igneous rocks intruded the Proterozoic metamorphic rocks of the Qinling Group in two magmatic stages: (i) the Early Silurian Huichizi granite that was derived from a low degree of partial melting of thickened lower basaltic crust combined with mantle-derived materials following the subduction of the Shangdan Ocean; and (ii) the Late Silurian–Early Devonian Damaogou granite and associated pegmatites derived from the same source but emplaced in a late tectonic post-collisional extension environment. In the Guangshigou deposit, the U mineralization mainly occurs as uraninite disseminated in U-rich granitic biotite pegmatites, which formed by assimilation-fractional crystallization magmatic processes. Petrographic observations showed evidence for coeval crystallization of uraninite and other rock-forming minerals of the host pegmatite including quartz, feldspar, biotite, zircon, monazite, apatite, and xenotime. In addition, the low U/Th ratios (~19) and Th, REE, and Y enrichments characterized a magmatic origin for uraninite, which was likely derived from fractionated high-K calc-alkaline pegmatitic magma that experienced various degrees of crustal material contamination. In situ U-Pb isotopic dating performed by Secondary-Ion Mass Spectrometry (SIMS) on uraninite from the Guangshigou deposit yielded a crystallization age of 412 ± 3 Ma, which is concomitant (within errors) with the emplacement age of the host pegmatite (415 ± 2 Ma) and constrained the U ore genesis to the Early Devonian, which corresponds to the late Caledonian post-collisional extension in the North Qinling area. Uraninite then experienced various degrees of metamictization and/or post-Caledonian hydrothermal alteration characterized by an alteration rim associated with coffinite, chlorite and limonite. Finally, the characteristics of the pegmatite-related Guangshigou deposit exhibiting Th-rich uraninite which was the product of assimilation-fractional crystallization of pegmatitic magma defined a model significantly different than the one established for the world-class Rössing deposit characterized by Th-poor uraninite hosted in alaskite dykes formed by low degree of partial melting of U-rich metasediments. Full article

The biotite pegmatites in the Shangdan domain of the North Qinling orogenic belt contain economic concentrations of U, constituting a low-grade, large-tonnage pegmatite-hosted uraniferous province. Uraninite is predominant and ubiquitous ore mineral and coffinite is common alteration mineral after initial deposit formation. A comprehensive survey of the uraninite and coffinite assemblage of the Chenjiazhuang, Xiaohuacha, and Guangshigou biotite pegmatites in this uraniferous province reveal the primary magmatic U mineralization and its response during subsequent hydrothermal events. Integrating the ID-TIMS (Isotope Dilution Thermal Ionization Mass Spectrometry) ²⁰⁶Pb/²³⁸U ages and U-Th-Pb chemical ages for the uraninites with those reported from previous studies suggests that the timing of U mineralization in the uraniferous province was constrained at 407–415 Ma, confirming an Early Devonian magmatic ore-forming event. Based on microtextural relationships and compositional variation, three generations of uranium minerals can be identified: uaninite-A (high Th-low U-variable Y group), uranite-B (low Th-high U, Y group), and coffinite (high Si, Ca-low U, Pb group). Petrographic and microanalytical observations support a three-stage evolution model of uranium minerals from primary to subsequent generations as follows: (1) during the Early Devonian (stage 1), U derived from the hydrous silicate melt was mainly concentrated in primary magmatic uaninite-A by high-T (450–607 °C) precipitation; (2) during the Late Devonian (stage 2), U was mobilized and dissolved from pre-existing uraninite-A by U-bearing fluids and in situ reprecipitated as uraninite-B under reduced conditions. The in situ transformation of primary uraninite-A to second uraninite-B represent a local medium-T (250–450 °C) hydrothermal U-event; and (3) during the later low-T (100–140 °C) hydrothermal alteration (stage 3), U was remobilized and derived from the dissolution of pre-existing uraninite by CO₂- and SiO₂-rich fluids and interacted with reducing agent (e.g., pyrite) leading to reprecipitation of coffinite. This process represents a regional and extensive low-T hydrothermal U-event. In view of this, U minerals evolved from magmatic uraninite-A though fluid-induced recrystallized uraninite-B to coffinite, revealing three episodes of U circulation in the magmatic-hydrothermal system. Full article
