Search Results (5)

This work compared the effect of soaking and roasting Phoenix dactylifera L. seeds pretreatment methods on oil yield. The conversion of the Phoenix dactylifera L. seed oil to fatty acid methyl ester (FAME) was conducted via transesterification reaction using Ce-Zr/Al-MCM-41 monometallic and bimetallic catalysts. The reaction conditions were optimized using response surface methodology based on the central composite design (RSM-CCD). The result shows a quadratic model fitting with an R² value of ~0.98% from the analysis of variance. In addition, the optimum FAME yield of 93.83% was obtained at a reaction temperature of 60.5 °C, a reaction time of 3.8 h, a catalyst concentration of 4 wt.%, and a methanol to oil molar ratio of 6.2:1 mol/mol. The effect of the regenerated catalyst was significantly maintained for five cycles. The fuel properties of the produced FAME lie within the values reported in studies, ASTM D6751, and EN14214 standards. Full article

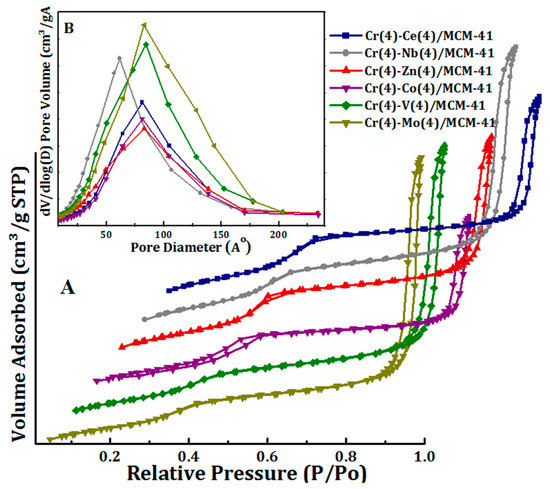

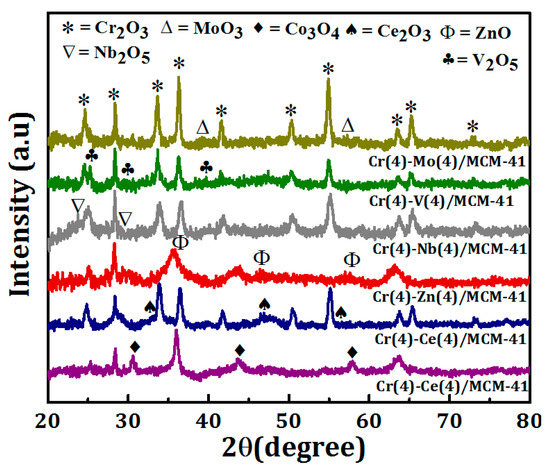

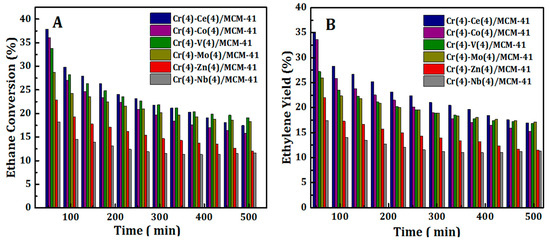

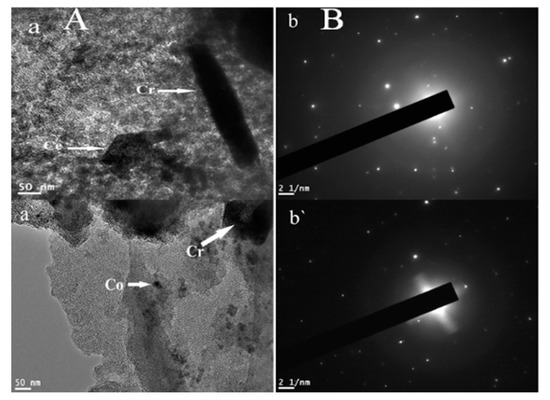

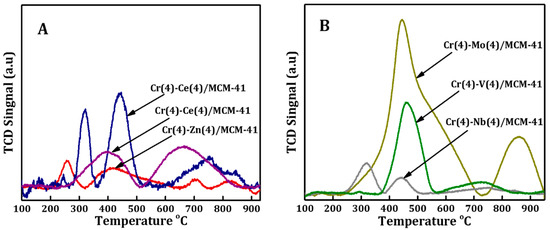

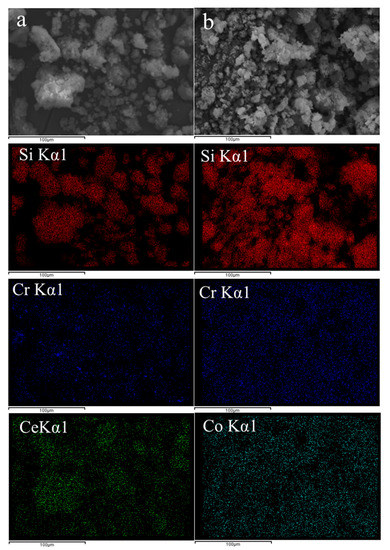

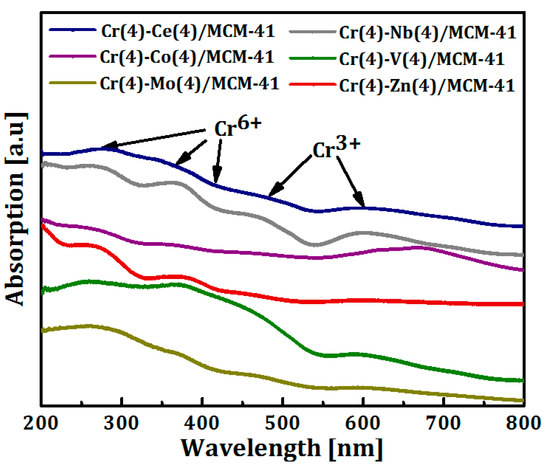

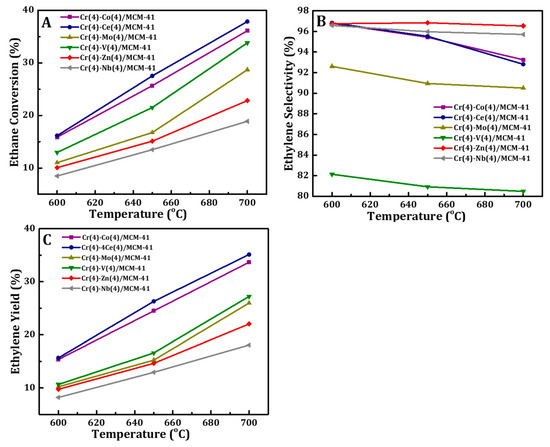

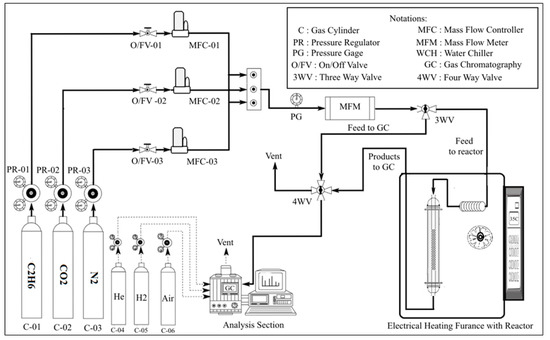

Oxidative dehydrogenation of alkanes to alkenes by a mild oxidant such as carbon dioxide is an active area of research. A series of MCM41-supported bimetallic oxide catalysts containing chromium oxide in addition to metal oxides (Ce, Co, Zn, V, Nb, and Mo) has been prepared. The binary catalysts have Cr metal oxide incorporated into MCM41 structure while the other oxides are either incorporated with Cr or impregnated on the MCM41 surface. The synthesized catalysts were characterized by X-ray diffraction (XRD), transmission electron microscopy (TEM), N₂ sorption, scanning electron microscopy (SEM), hydrogen temperature programmed reduction (H₂-TPR), and Diffuse reflectance UV–vis spectroscopy (DRS). The catalytic activity of Cr(4)-M(4)/MCM-41 catalysts in the dehydrogenation of ethane with CO₂ was investigated. The textural properties of the synthesized samples showed that the addition of the bimetallic oxides did not disturb the mesoporous structure of MCM41 and the prepared catalysts exhibited a high BET surface area; however, the lowest surface area was recorded for Cr(4)-Mo(4)/MCM41 catalyst at 701 m²/g. Among the prepared catalysts, H₂-TPR profile of Cr(4)-Ce(4)/MCM41 revealed the increase in the concentration of Cr⁶⁺ species which interacted with the framework of siliceous support. On the other hand, H₂-TPR profiles of Cr(4)-Co(4)/MCM41 showed wide reduction peaks centered at 400 °C which is ascribed to reduction of Cr⁶⁺ to Cr³⁺ species and Co₃O₄ to metallic Co. At the same time, Cr(4)-Mo(4)/MCM41 and Cr(4)-V(4)/MCM41 exhibited higher temperature reduction peaks, indicating these two catalysts require higher activation temperatures. The synergy between the Cr with Zn or Nb metals reduced the concentration of Cr⁶⁺ species which is reflected in their catalytic performance. Cr(4)-Ce(4)/MCM41 recorded the highest catalytic activity toward ethylene production where the ethane conversion and ethylene yield were 37.9% and 35.1%, respectively. Full article

Understanding the effects of synthetic parameters in the catalytic activity of heterogeneous catalysts is of utmost importance when aiming for optimal reaction conditions. Hence, we disclose in this work the synthesis and characterization of cerium-modified MCM-41 materials. In addition, it was observed for the first time, differences in catalytic activity when using different cerium synthetic precursors: CeCl₃·7H₂O and Ce(NO₃)₃·6H₂O (Ce-MCM-Cl and Ce-MCM-NO₃, respectively). A mechanism for cerium incorporation in MCM-41 was proposed, where [Ce(OH)₃] species were hydrogen bonded to silicate anions, forming framework Ce-O-Si bonds during condensation and, consequently, causing distortion of the typical hexagonal mesophase. It was also observed that Ce(OH)₃ formed aggregated layers with template assemblies during synthesis, resulting in non-framework CeO₂ species on the MCM-41 surface after calcination. These CeO₂ species were preferentially formed for Ce-MCM-NO₃ and were attributed to the nitrate ions’ strong binding to template molecules. In the solvent free liquid-phase oxidation of benzyl alcohol (BzOH), Ce-MCM-Cl achieved better BzOH conversions and benzaldehyde (BzD) yields, while Ce-MCM-NO₃ offered increased BzD selectivity. The catalysts’ reusability was also studied over three catalytic runs, where Ce-MCM-NO₃ was more resistant than Ce-MCM-Cl towards deactivation. The observed catalytic behavior shows the importance of metal precursors in the obtainment of materials with desirable final properties. Full article

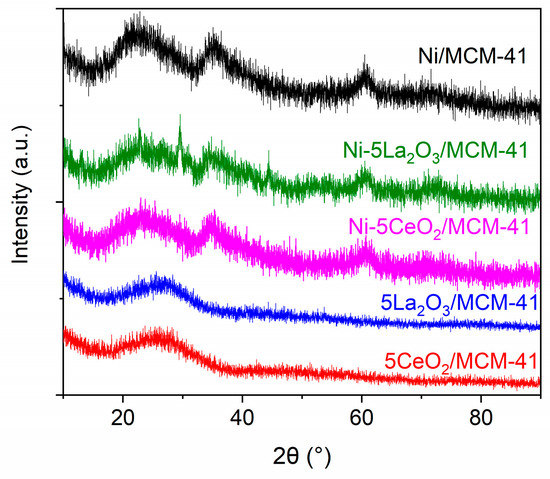

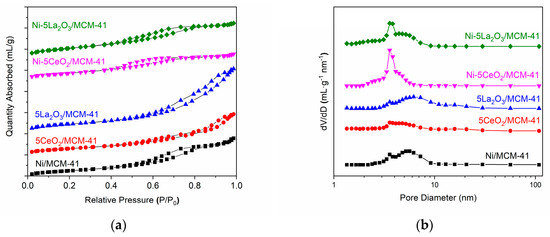

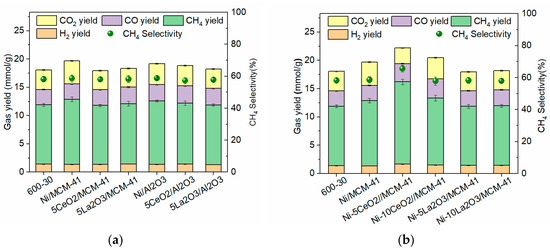

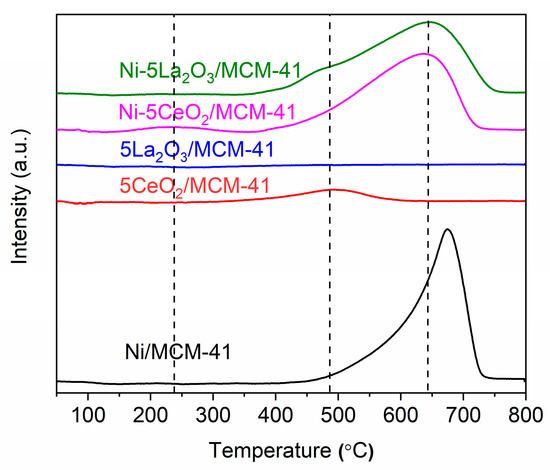

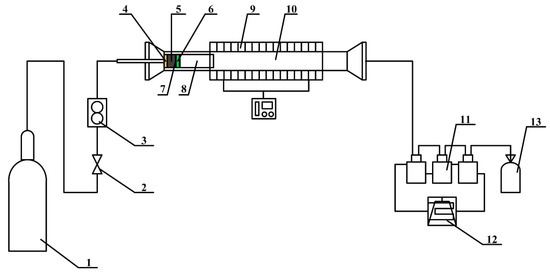

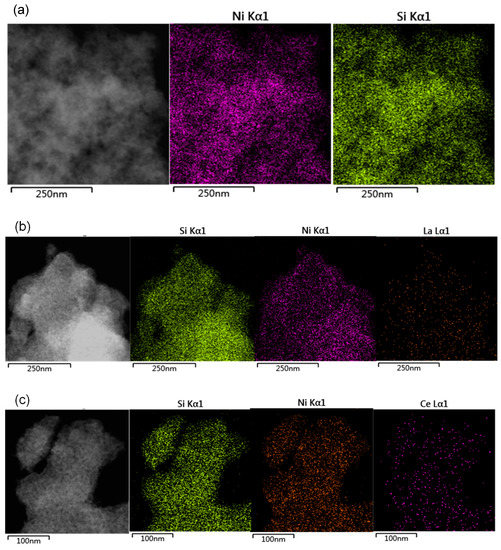

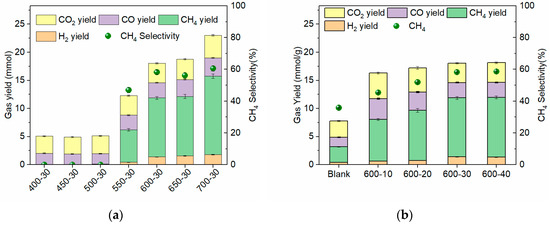

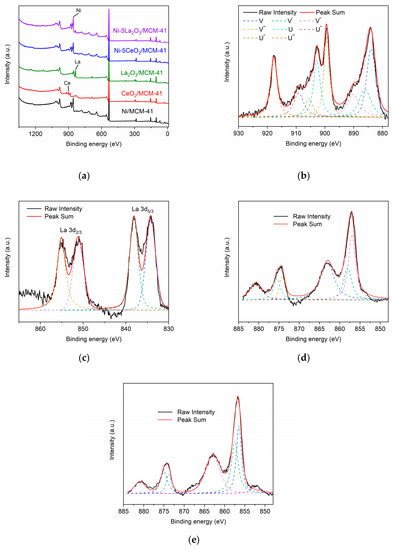

Production of syngas from lignocellulosic biomass though pyrolysis is a promising solution for the large-scale utilization of biomass. However, current pyrolysis approaches suffer from the relative low product yield and selectivity, limiting their practical application. To solve this problem, a series of nickel-based catalysts including Ni/MCM-41, Ni-5CeO₂/MCM-41, and Ni-5La₂O₃/MCM-41 were prepared and characterized by transmission electron microscopy (TEM), N₂ adsorption–desorption, X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), and H₂-temperature-programmed reaction (TPR) analysis. It was observed that the simultaneous addition of Ni and CeO₂ to MCM-41 could increase the reducibility of Ni and the number of active Ni⁰ sites on the surface of the catalyst. Consequently, Ni-5CeO₂/MCM-41 gave a CH₄ yield of 14.6 mmol/g, which is remarkably higher than that (10.5 mmol/g) obtained in the absence of the catalyst. Meanwhile, the CO and H₂ yields increased slightly, while the CO₂ yield decreased slightly. Therefore, the improved CH₄ yield and selectivity was mainly due to the increased decomposition of tarry compounds catalyzed by Ni/MCM-41 with the assistance of CeO₂. Full article

Ce-modified mesoporous silica materials MCM-41 and SBA-15, namely 32 wt % Ce–Si–MCM-41, 16 wt % Ce–H–MCM-41 and 20 wt % Ce–Si–SBA-15, were prepared, characterized and studied in the selective preparation of trans-carveol by α-pinene oxide isomerization. The characterizations of these catalysts were performed using scanning electron microscopy, X-ray photoelectron spectroscopy, nitrogen adsorption and FTIR pyridine adsorption. Selective preparation of trans-carveol was carried out in the liquid phase in a batch reactor. The activity and the selectivity of catalyst were observed to be influenced by their acidity, basicity and morphology of the mesoporous materials. The formation of trans-carveol is moreover strongly influenced by the basicity of the used solvent and in order to achieve high yields of this desired alcohol it is necessary to use polar basic solvent. Full article
