Search Results (3)

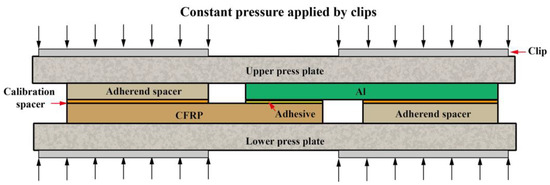

This paper studied favorable low-temperature plasma (LTP) surface treatment modes for Carbon Fiber Reinforced Polymer (CFRP)/Al7075 single-lap joints using complex experimental methods and analyzed the failure modes of the joints. The surface physicochemical properties of CFRP after LTP surface treatment were characterized using scanning electron microscopy (SEM), contact angle tests, and X-ray photoelectron spectroscopy (XPS). The influence mechanism of LTP surface treatment on the bonding properties of CFRP/Al7075 single-lap Joint was studied. The results of the complex experiment and range analysis showed that the favorable LTP surface treatment parameters were a speed of 10 mm/s, a distance of 10 mm, and three repeat scans. At these parameters, the shear strength of the joints reached 30.76 MPa, a 102.8% improvement compared to the untreated group. The failure mode of the joints shifted from interface failure to substrate failure. After low-temperature plasma surface treatment with favorable parameters, the CFRP surface exhibited gully like textures, which enhanced the mechanical interlocking between the CFRP surface and the adhesive. Additionally, the surface free energy of CFRP significantly increased, reaching a maximum of 78.77 mJ/m². XPS results demonstrated that the low-temperature plasma surface treatment led to a significant increase in the content of oxygen-containing functional groups, such as C-O, C=O, and O-C=O, on the CFRP surface. Full article

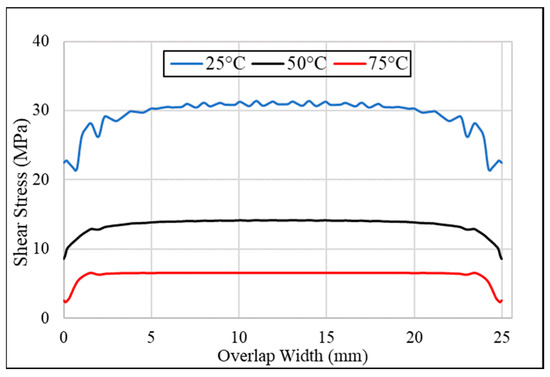

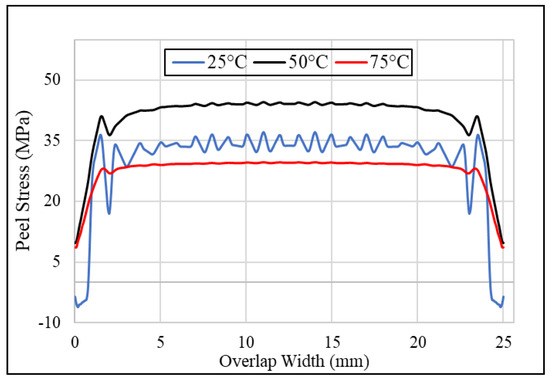

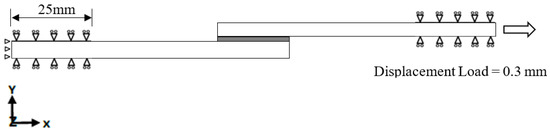

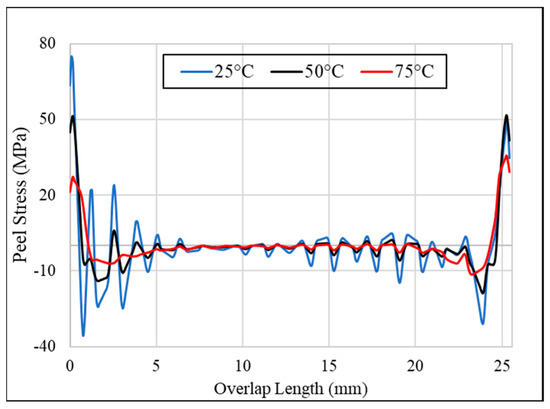

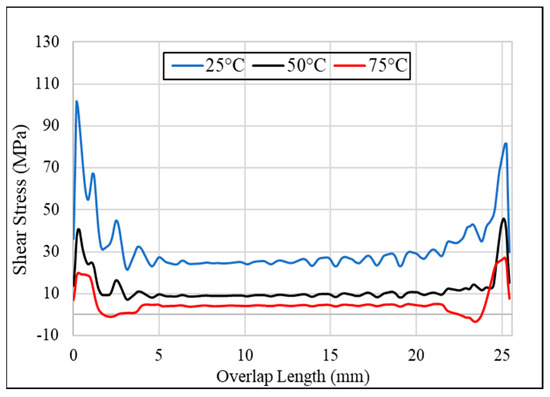

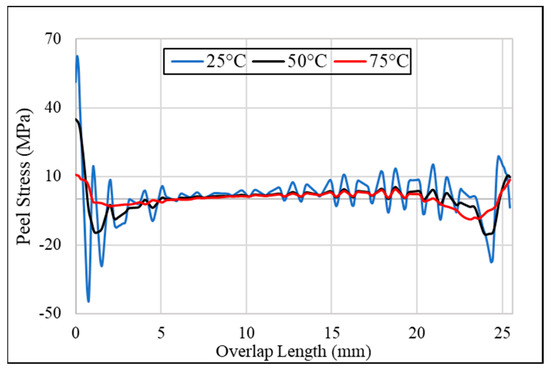

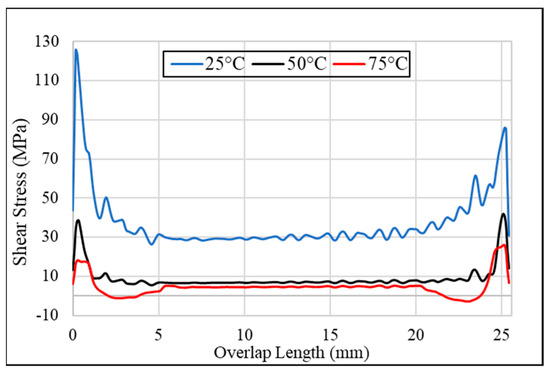

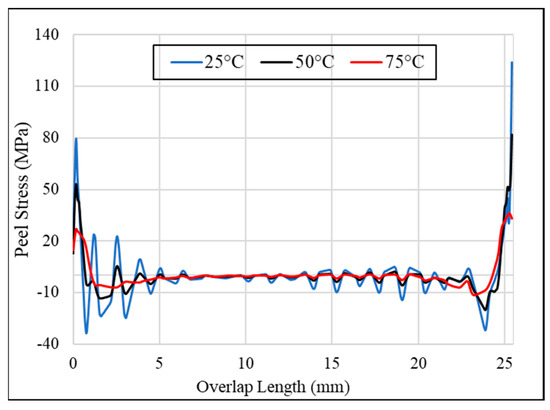

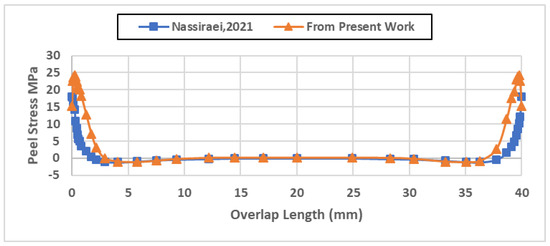

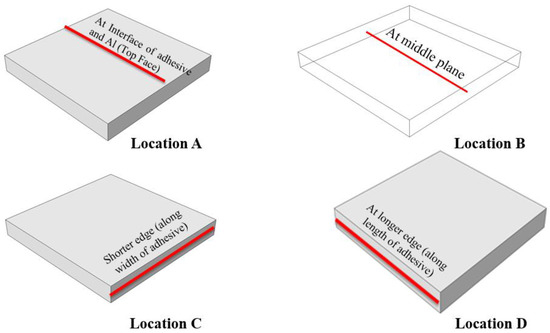

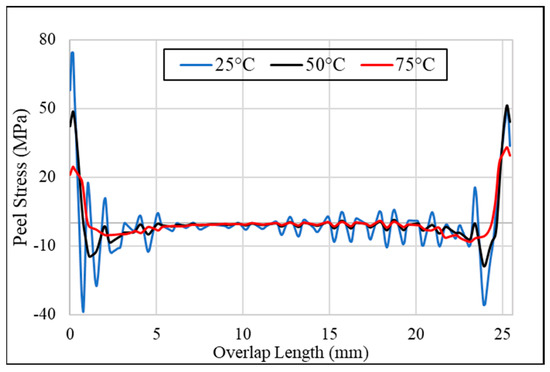

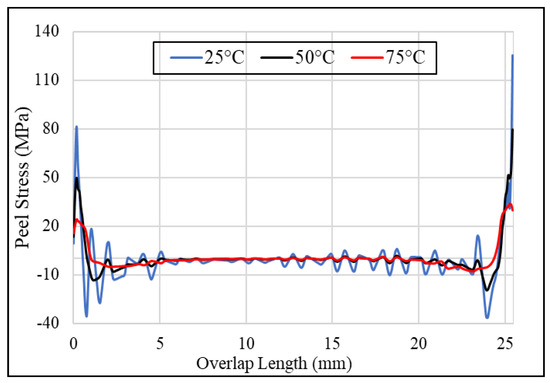

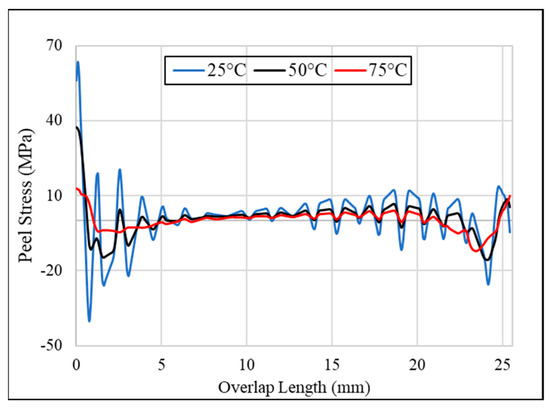

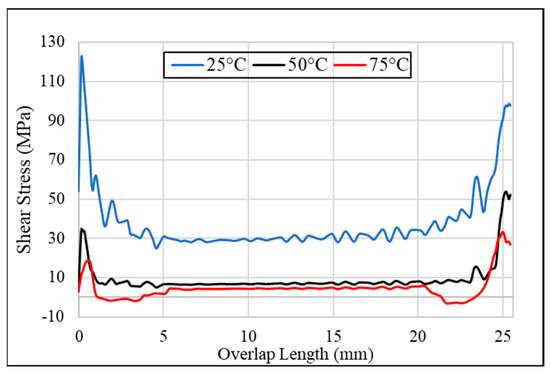

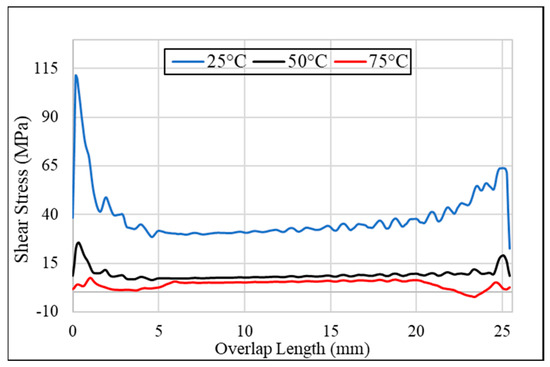

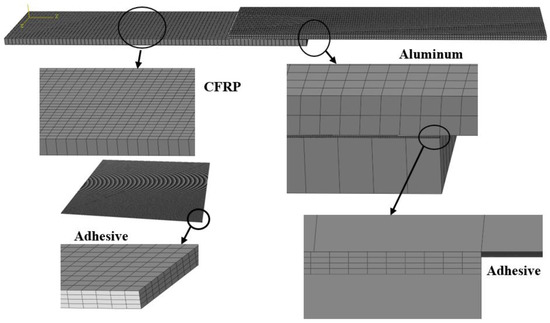

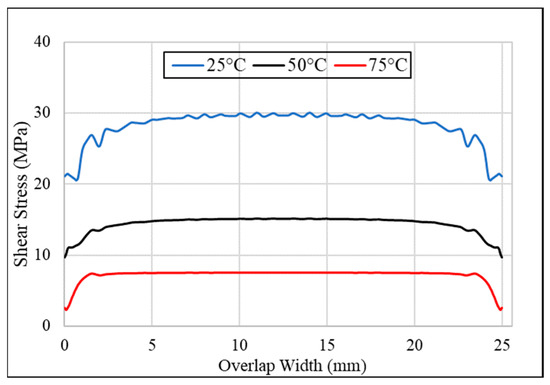

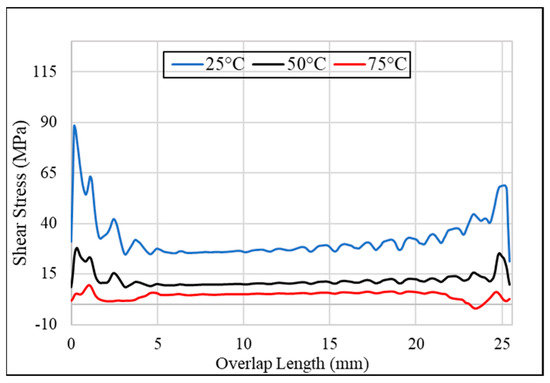

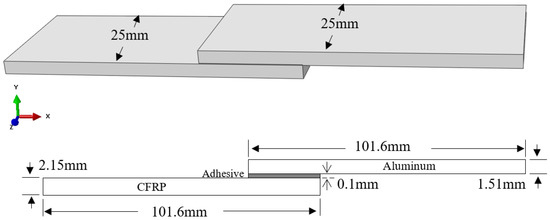

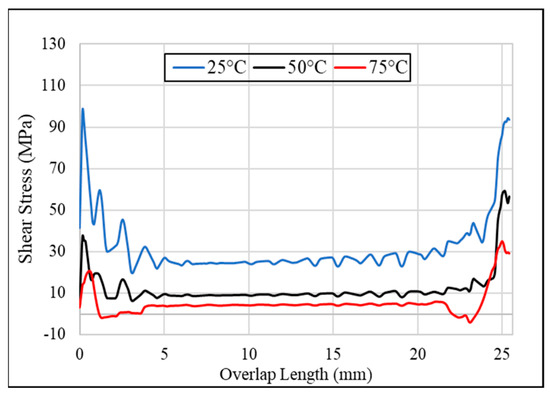

In this paper, the effect of aluminum oxide, Al₂O₃, nanoparticles’ inclusion into Epocast 50-Al/946 epoxy adhesive at different temperatures, subjected to quasi-static tensile loading, is numerically investigated. The single-lap adhesive joint with two different types of material adherends (composite fiber-reinforced polymer (CFRP) and aluminum (Al) 5083 adherends) and adhesive Epocast 50-A1/hardener 946 were modeled in ABAQUS/CAE. A numerical methodology was proposed to analyze the effect on peel stress and shear stress by adding Al₂O₃ nanoparticles into the neat adhesive at 25 °C, 50 °C, and 75 °C temperatures at four different locations of the adhesive regions: the interface of the adhesive and aluminum adherend (location A), the middle plane of the adhesive region (location B), the middle longer edge (along the length of the adhesive, location C), and the middle shorter edge (along the width of the adhesive, location D). The results showed that adding nanoparticles into the neat adhesive improves joint strength at room and elevated temperatures. High peel and shear stresses were recorded near both edges of the locations (A, B, C, and D). For location A, adding nanofillers into the adhesive resulted in the reduction in peak peel stress by 1.3% for 25 °C; however, it increased by 2.7% and 10.7% for 50 °C and 75 °C temperatures, respectively. Furthermore, the peak shear stress observed a considerable reduction of 19.6% for 25 °C, but it increased by 7.7% and 8.7% for 50 °C and 75 °C temperatures, respectively, for location A. The same trend was also observed for other locations (i.e., B, C, and D). This signified that adding aluminum oxide nanoparticles in the adhesive resulted in increased stiffness at higher temperatures and increased ductility of the joint, as compared to the joint with neat adhesives at room temperature. Moreover, it was observed that locations A and B were more vulnerable to damage initiation, as the peak of stresses lay near the edges, indicating that the crack initiation would take place close to the edges and propagate towards the center, leading to ultimate failure. Full article

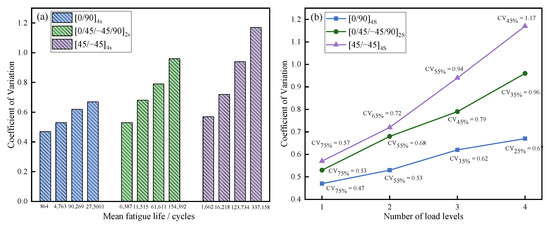

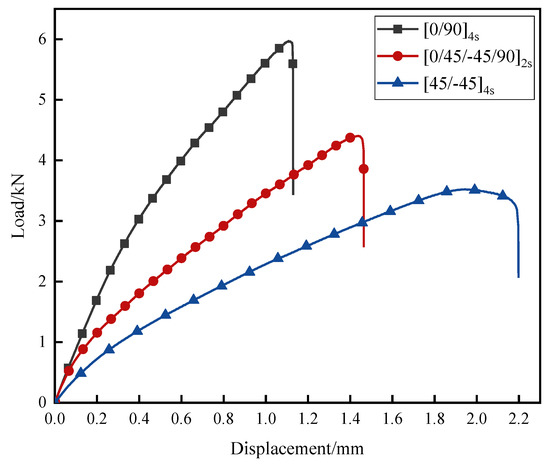

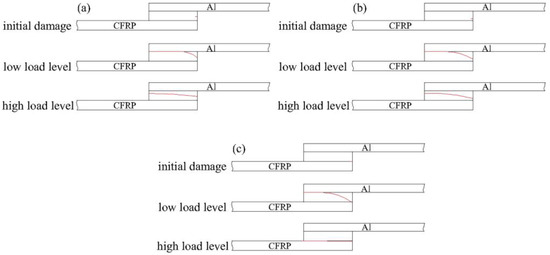

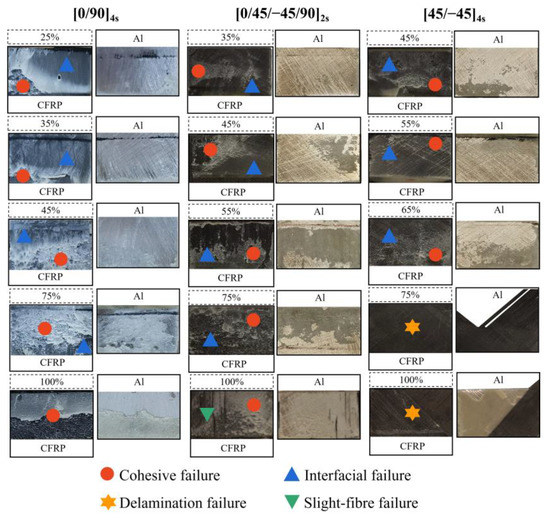

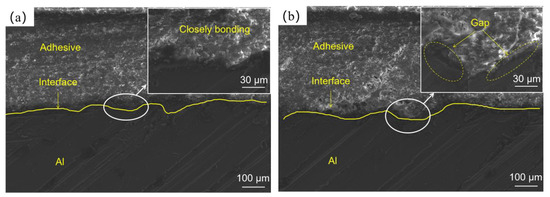

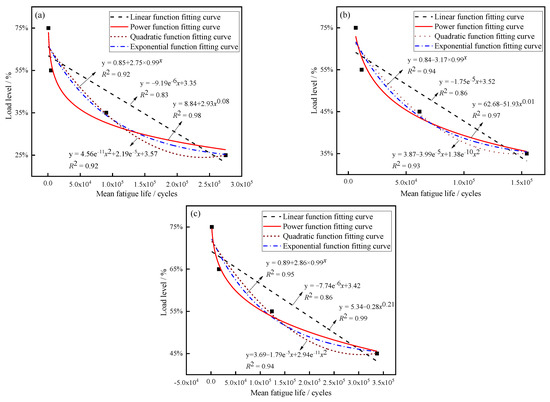

This study aimed to explore failure mechanisms of carbon fibre-reinforced plastic (CFRP)–aluminium (Al) single-lap adhesive joints which CFRP adherends had different stacking sequences. These results showed that fatigue performance of CFRP decreased as the number of 45° plies increased, which caused the initial failure location to gradually move from the adhesive layer towards the CFRP. Under high load levels, joint-failure models were influenced by the stacking sequence of CFRP; large-area cohesive failure occurred in joints when the CFRP stacking sequence was [0/90]_4s and [0/45/−45/90]_2s, and delamination failure occurred when the CFRP stacking sequence was [45/−45]_4s, due to the weak interlaminar properties of CFRP. However, under low load levels, the stacking sequence of CFRP had little effect on the failure model of the joint, with interfacial failure being the main failure mode for all joints due to weakening of the mechanical interlock. Full article
