Search Results (6)

Over the past few years, researchers have developed the alloy Al-Mg-Zn(-Cu), a new aluminum alloy based on the technique of ‘crossover alloying’. The main strengthening phase of this novel alloy is T-Mg₃₂(Al, X)₄₉(X is Zn and Cu) after ageing and hardening. This alloy system has exceptional strength and corrosion resistance, making it a promising candidate for applications in fields like automotive, marine, aerospace, and many others. In this work, the research progress of the Al-Mg-Zn(-Cu) alloy based on microstructure control, composition, design, and properties has been reviewed. Future directions for the research of this alloy are highlighted, too. In this work, crossover alloys are presented as a potential novel class of Al alloys implicating a pioneering design approach, with particular emphasis on the aeronautical and aerospace field in which radiation resistance results are one hundred times higher than traditional precipitation hardening alloys. Full article

The effect of an erbium alloying on the hot deformation behavior of the crossover Al3Zn3Mg3Cu0.2Zr alloy was investigated in detail. First of all, Er increases the solidus temperature of the alloy. This allows hot deformation at a higher temperature. The precipitates resulting from the Er alloying of the Al3Zn3Mg3Cu0.2Zr alloy were analyzed using transmission electron microscopy. Erbium addition to the alloy produces the formation of more stable and fine L1₂-(Al₃(Zr, Er)) precipitates with a size of 20–60 nm. True stress tends to increase with a decline in the temperature and an increase in the deformation rate. The addition of Er leads to decreases in true stress at the strain rates of 0.01–1 s⁻¹ due to particle-stimulated nucleation softening mechanisms. The effective activation energy of the alloy with the Er addition has a lower value, enabling an easier hot deformation process in the alloy with an elevated volume fraction of the intermetallic particles. The addition of Er increases the strain rate sensitivity, which makes the failure during deformation less probable. The investigated alloys have a significant difference in the dependence of the activation volume on the temperature. The flow instability criterion allows better deformability of Er-doped alloys and enables the alloys to be formed more easily. The evenly distributed particles prevent the formation of shear bands with elevated storage energy and decrease the probability of crack initiation during the initial stages of hot deformation when only one softening mechanism (dynamic recovery) is working. The microstructure analysis proves that dynamic recovery is the main softening mechanism. Full article

The effect of 0.2%Cr addition on the structure, phase composition, and mechanical properties of the novel cast and wrought Al-2.5Zn-2.5Mg-2.5Cu-0.2Zr-Er(Y) alloys were investigated in detail. Chromium is distributed between primary crystals (5.7–6.8%) of the intermetallic phase and the aluminum solid solution (0.2%) (Al). The primary crystals contain for the main part Cr, Ti, Er(Y). The experimental phase composition is in good correlation with the thermodynamic computation data. The micron-sized solidification origin phases (Al₈Cu₄Er(or Y) and Mg₂Si) and supersaturated (Al) with nano-sized Al₃(Zr,Ti) and E (Al₁₈Mg₃Cr₂) precipitates are presented in the microstructure of the novel alloys after solution treatment. The nucleation of η (MgZn₂) (0.5%), S (Al₂CuMg) (0.4%), and T (Al,Zn,Mg,Cu) (8.8%) phase precipitates at 180 °C, providing the achievement of a maximum hardness of 135 HV in the Al2.5Zn2.5Mg2.5CuYCr alloy. The corrosion potential of the novel alloy is similar to the E_cor of the referenced alloy, but the corrosion current density (0.68–0.98 µA/sm²) is still significantly lower due to the formation of E (Al₁₈Mg₃Cr₂) precipitates and S phase precipitates of the aging origin, in addition to the T phase. The formation of E (Al₁₈Mg₃Cr₂) precipitates under the solution treatment provides a lower proportion of recrystallized grains (2.5–5% vs. 22.4–25.1%) and higher hardness (110 HV vs. 85–95 HV) in the Cr-rich alloys compared to the referenced alloys. Solution treated, hot and cold rolled, recrystallized, water quenched and aged at 210 °C alloys demonstrate an excellent microstructure stability and tensile properties: YS = 299–300 MPa, UTS = 406–414 MPa, and El. = 9–12.3%. Full article

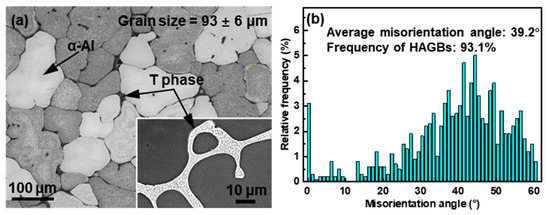

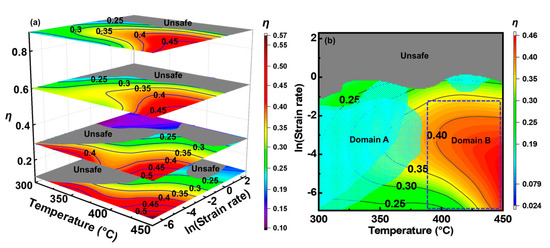

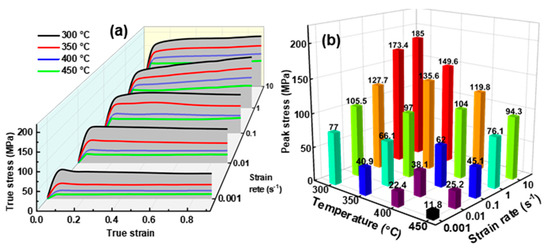

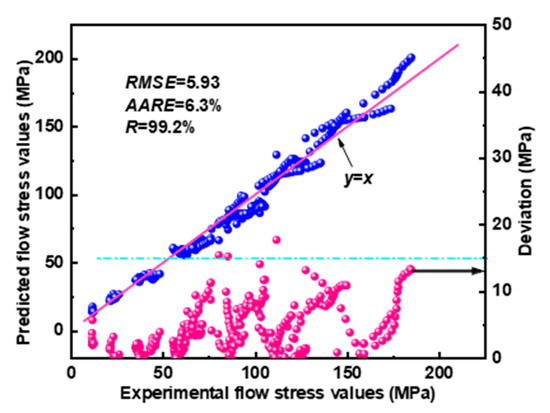

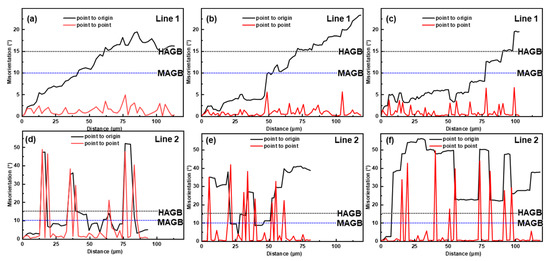

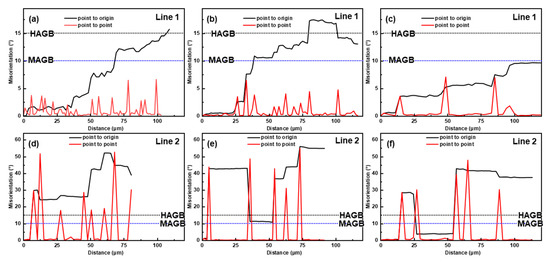

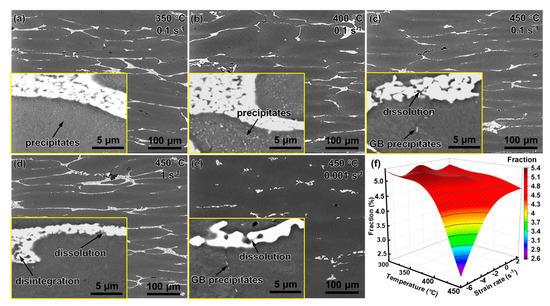

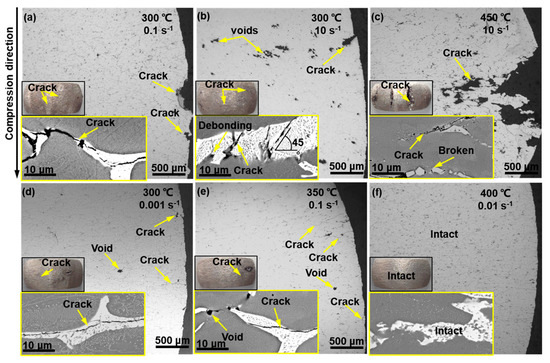

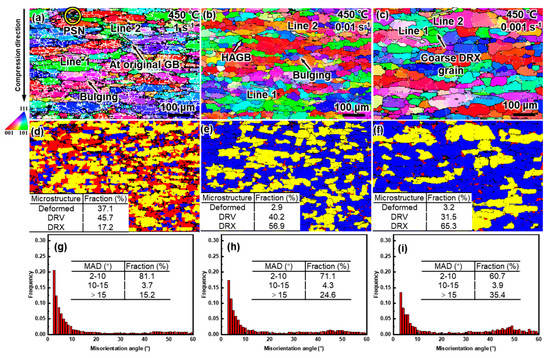

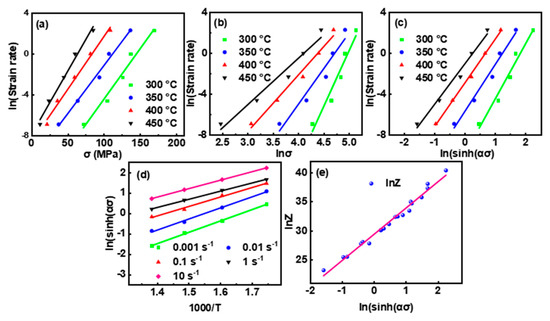

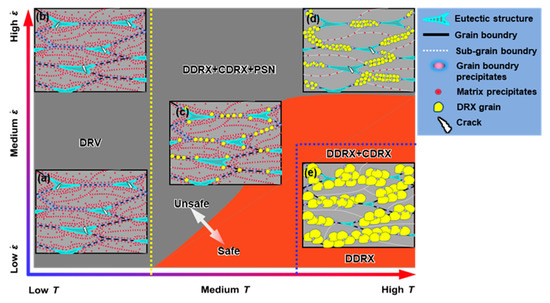

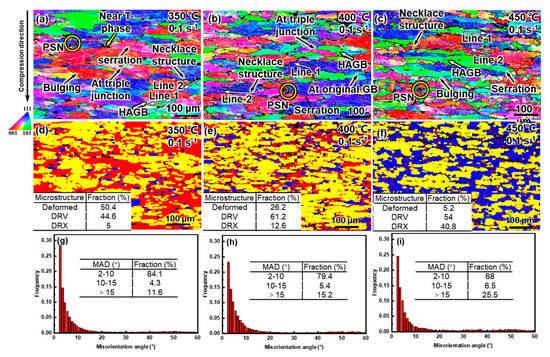

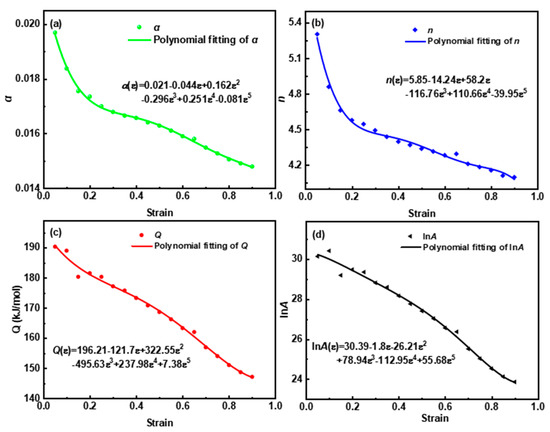

One of the key issues limiting the application of Al-Mg-Zn-Cu alloys in the automotive industry is forming at a low cost. Isothermal uniaxial compression was accomplished in the range of 300–450 °C, 0.001–10 s⁻¹ to study the hot deformation behavior of an as-cast Al-5.07Mg-3.01Zn-1.11Cu-0.01Ti alloy. Its rheological behavior presented characteristics of work-hardening followed by dynamic softening and its flow stress was accurately described by the proposed strain-compensated Arrhenius-type constitutive model. Three-dimensional processing maps were established. The instability was mainly concentrated in regions with high strain rates or low temperatures, with cracking being the main instability. A workable domain was determined as 385–450 °C, 0.001–0.26 s⁻¹, in which dynamic recovery (DRV) and dynamic recrystallization (DRX) occurred. As the temperature rose, the dominant dynamic softening mechanism shifted from DRV to DRX. The DRX mechanisms transformed from continuous dynamic recrystallization (CDRX), discontinuous dynamic recrystallization (DDRX), and particle-stimulated nucleation (PSN) at 350 °C, 0.1 s⁻¹ to CDRX and DDRX at 450 °C, 0.01 s⁻¹, and eventually to DDRX at 450 °C, 0.001 s⁻¹. The eutectic T-Mg₃₂(AlZnCu)₄₉ phase facilitated DRX nucleation and did not trigger instability in the workable domain. This work demonstrates that the workability of as-cast Al-Mg-Zn-Cu alloys with low Zn/Mg ratios is sufficient for hot forming. Full article

Modern industrial development has put forward higher demands on the performance of metallic structural materials, especially in terms of light weight, high strength and corrosion resistance. All of these characteristics are of particular importance in transportation fields. As one of the most representative structural materials, aluminum and alloys have exhibited significant advantages in light weight. Most of the alloys are prominently featured in one specific aspect. The overall performance still needs to be improved. In recent years, researchers have developed Al-Mg-Zn(-Cu) alloy, a new wrought aluminum alloy, whose design strategy is known as “crossover alloying”. This novel alloy is an age-hardened Al-Mg alloy with a T-Mg₃₂(Al, X)₄₉ (X is Zn, Cu) phase as the main strengthening phase. This system of alloys exhibits excellent properties in terms of strength and corrosion resistance, which makes it promising for applications in automotive, marine, aerospace and other fields. This paper summarizes the research progress of Al-Mg-Zn(-Cu) alloy, and analyzes the basic methods of microstructural control in terms of composition design and property research. Finally, the future directions of this alloy are proposed. Full article

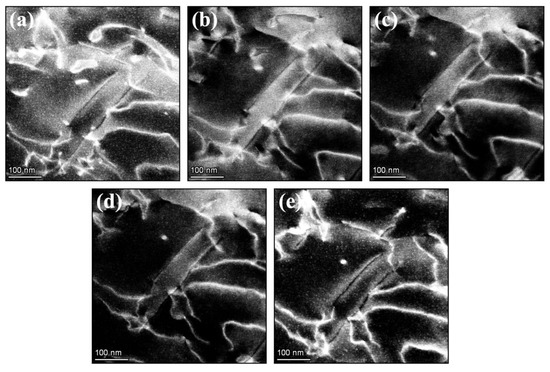

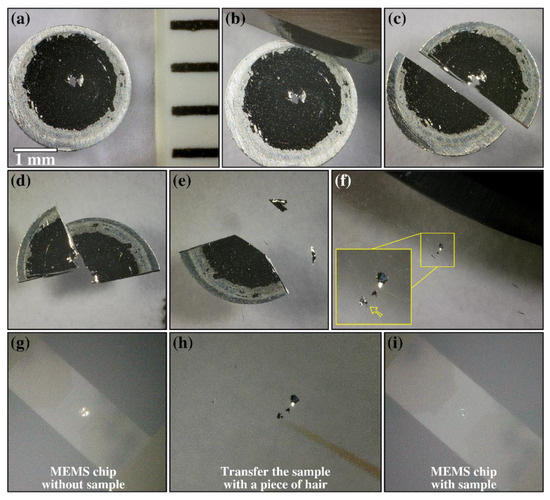

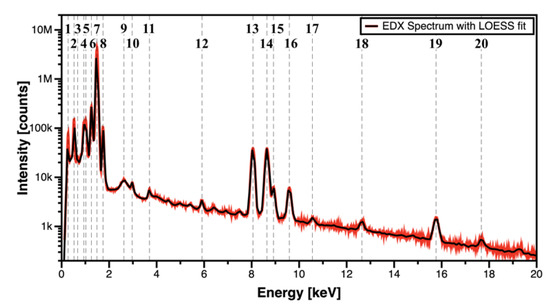

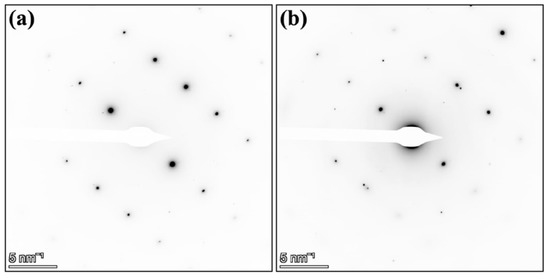

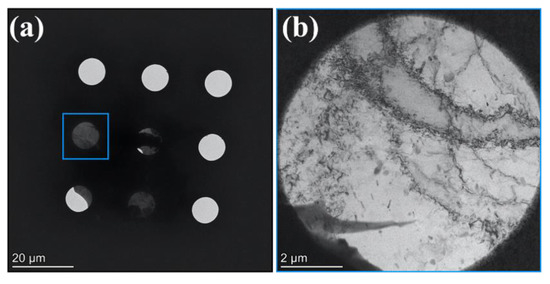

Microelectromechanical systems (MEMS) are currently supporting ground-breaking basic research in materials science and metallurgy as they allow in situ experiments on materials at the nanoscale within electron microscopes in a wide variety of different conditions such as extreme materials dynamics under ultrafast heating and quenching rates as well as in complex electro-chemical environments. Electron-transparent sample preparation for MEMS e-chips remains a challenge for this technology as the existing methodologies can introduce contaminants, thus disrupting the experiments and the analysis of results. Herein we introduce a methodology for simple and fast electron-transparent sample preparation for MEMS e-chips without significant contamination. The quality of the samples as well as their performance during a MEMS e-chip experiment in situ within an electron microscope are evaluated during a heat treatment of a crossover AlMgZn(Cu) alloy. Full article
