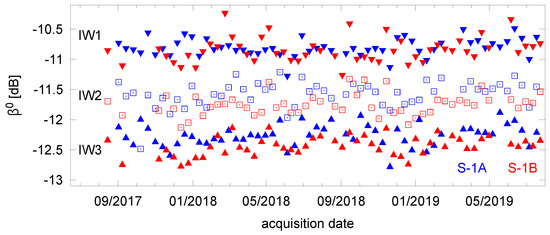

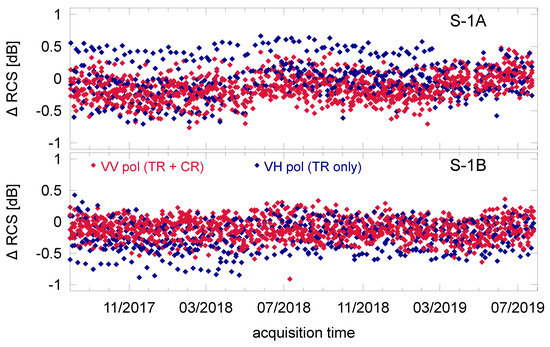

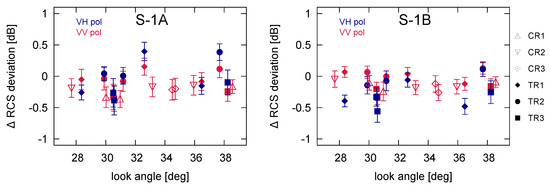

SAR data products for Sentinel-1 have been freely available and delivered operationally on behalf of the European Space Agency since the routine operation of Sentinel-1A in 2014. These products were delivered using the best knowledge at their processing time, in particular with respect to the radiometric calibration. As reprocessing of SAR data products is not foreseen in the nominal processing chain of Sentinel-1, changes of applied processing parameters impact the SAR data quality and can be a disturbing factor for long-term monitoring of radiometric features. In particular, antenna pattern updates produce artificial radiometric steps which are visible in radar backscatter time series, especially in case of monitoring radiometric stable reference targets. This paper introduces a method for correcting changes due to such updates without the need of reprocessing SAR data products. The method was applied to long-lasting time series of data acquisitions which are used to monitor the radiometric performance with reference targets at the DLR calibration site. It has been shown that artificial steps due to antenna pattern updates disappear in backscatter timelines after correct application. Furthermore, the derived absolute radiometric accuracy was improved for the joint observation period of S1A and S1B for almost five years until December 2021. Full article

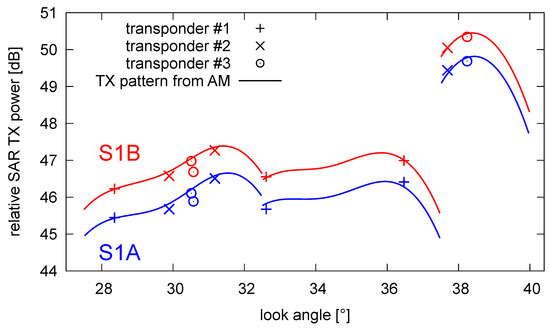

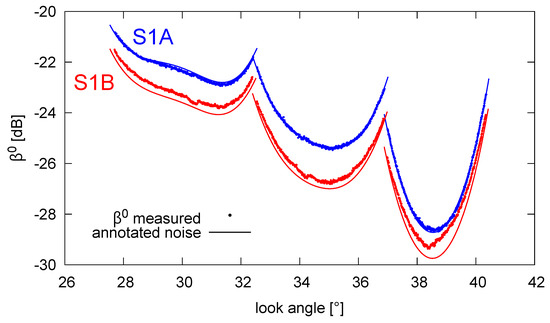

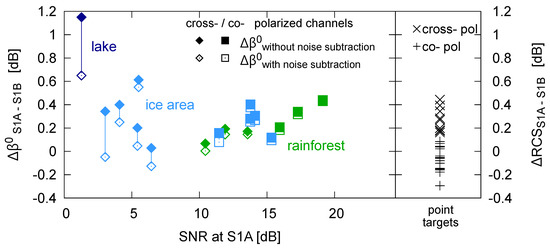

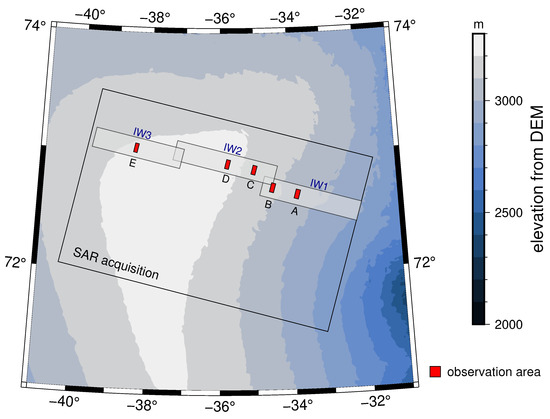

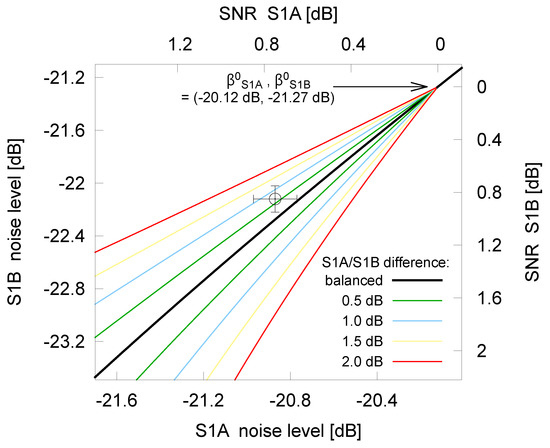

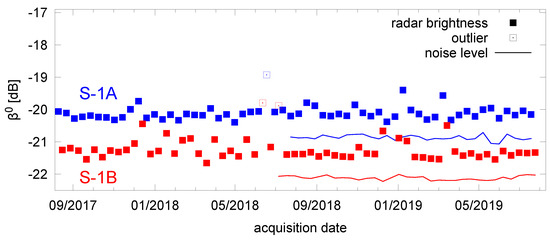

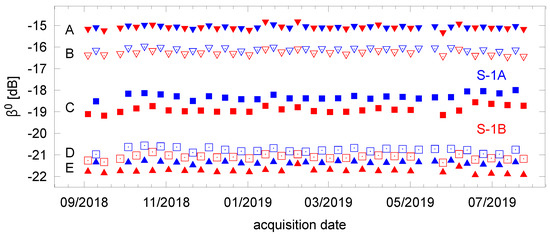

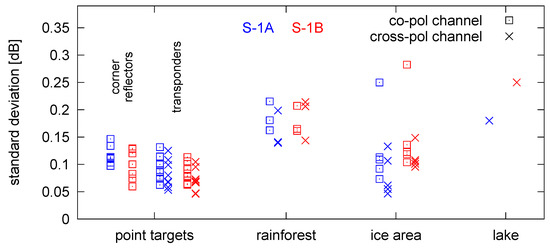

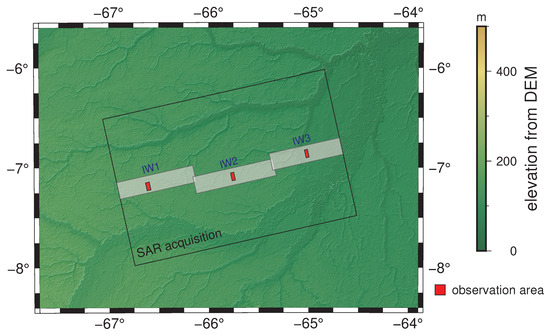

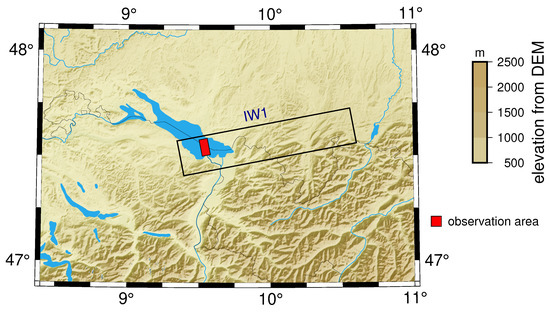

Radiometric calibration adjusts the measured pixel intensity to a physical property, the radar cross section (RCS). After calibration, this relationship is defined over the entire backscatter range: from low image power (near noise) up to high reflections (below saturation). Based on a proper radiometric calibration, the measured radar backscatter for the Sentinel-1 synthetic aperture radar (SAR) satellite constellation is validated over a wide backscatter range using different target types. Therefore, the RCS derived from point targets and radar brightness from distributed targets are compared between Sentinel-1A (S-1A) and Sentinel-1B (S-1B) acquisitions over the same observation area for regions where a stable target backscatter is expected for a certain period of time. Low differences (in the order of 0.3 dB) are found between S-1A and S-1B for high and medium backscatter derived from point targets or rainforest regions, but higher differences for low backscattering regions like ice areas and lakes. For comparing radar brightness containing low backscatter targets, an accurate derived noise level has to be taken into account. In addition to the measured lower noise equivalent beta zero (NEBZ) level, higher transmit power was detected for S-1B compared to S-1A. The higher antenna gain of S-1B leads finally to a higher sensitivity for low backscattering areas of S-1B compared to S-1A and explains the found differences. Full article

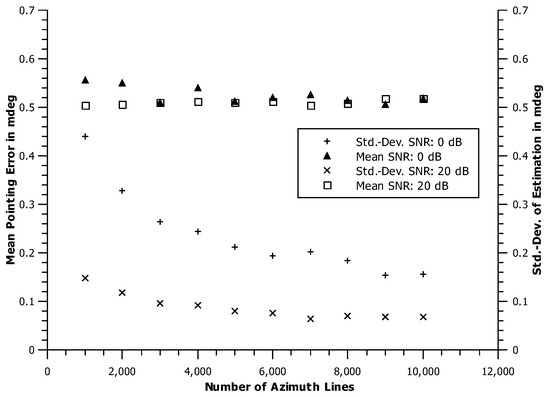

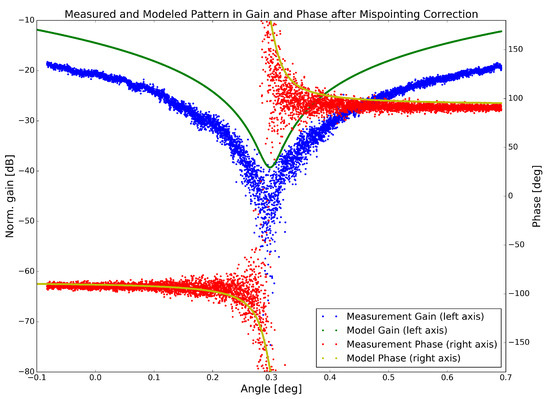

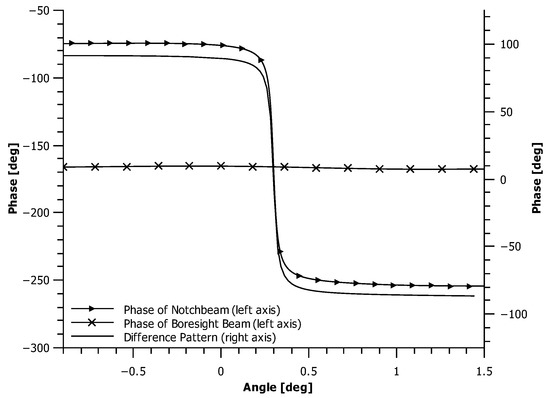

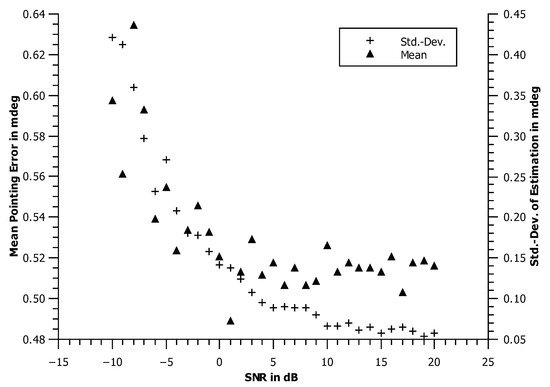

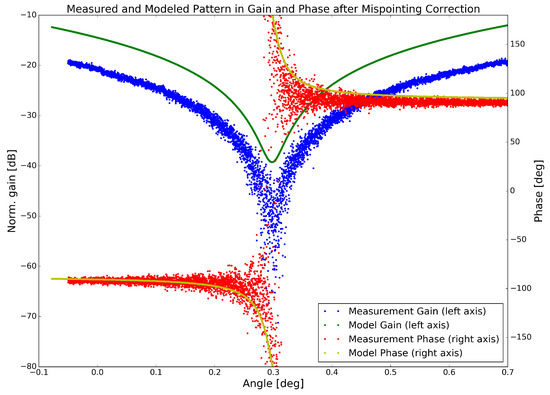

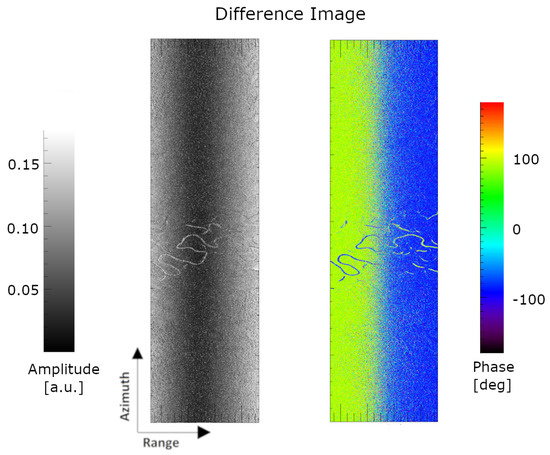

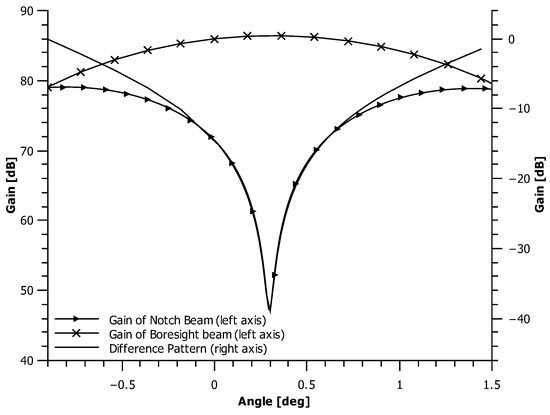

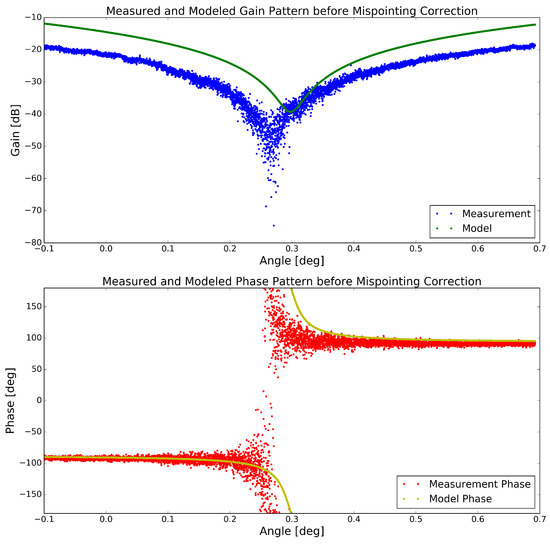

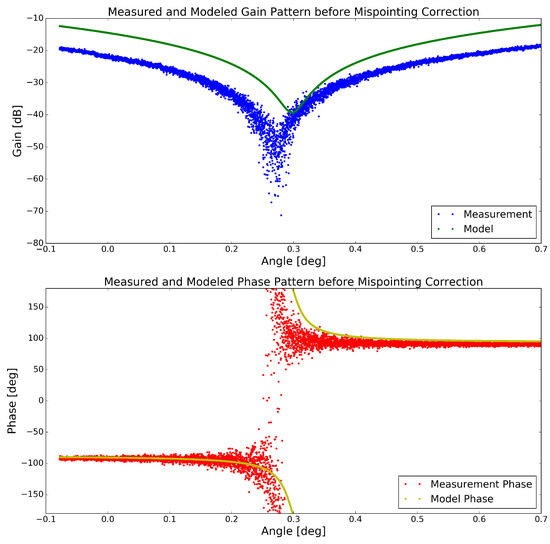

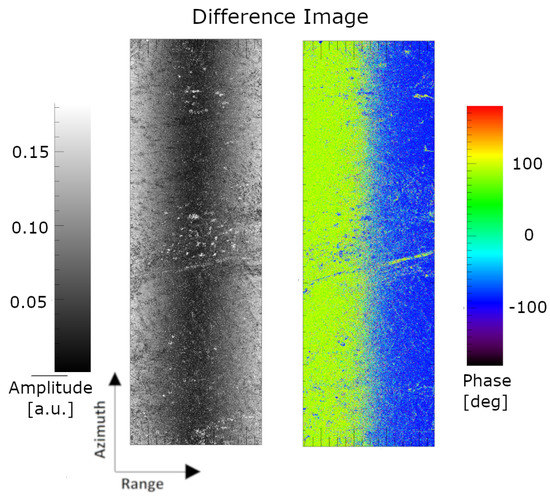

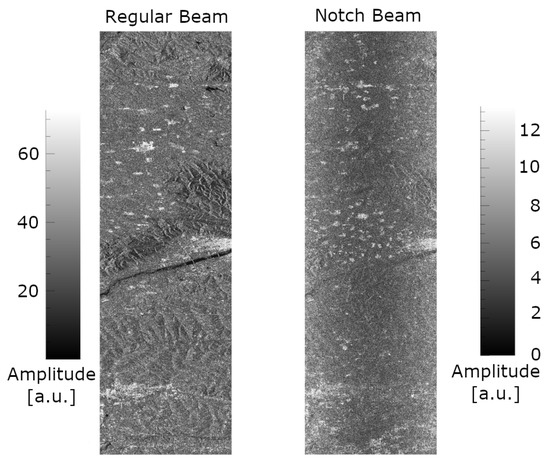

The precise determination of the SAR (synthetic aperture radar) antenna pointing is an essential task initially performed during the commissioning phase of a spaceborne SAR system and is permanently monitored during the whole mission life-time. Besides a correct illumination of the scene during data acquisition, antenna pointing is required for proper compensation of the radiation pattern for radiometric correction during SAR data processing. The Amazon rainforest is a well-established target area for antenna pointing estimation in elevation as proven by many past and current SAR missions. Several new SAR systems are now proposed which are using long wavelengths, i.e., L- and P-bands, which will be implemented using reflector-based antenna systems. These reflectors have, in contrast to planar phased array antennas, no completely rigid connection to the satellite body and, hence, a more volatile antenna pointing. Due to the huge dimensions of such reflector antennas required for the envisaged long wavelengths and the finite stiffness of the boom, the antenna pointing may change significantly along the orbit. Such variation cannot be tracked using the common Amazon rainforest approach only, as this measurement opportunity exists only at two positions along the orbit (ascending and descending). Here, the performance of an alternative technique is presented which mitigates the influence of the underlying SAR scene by employing two coherent SAR datasets acquired simultaneously with different antenna patterns. This allows the use of amplitude and phase information for pointing estimation. No assumption upon the homogeneity of the underlying scene is required and, hence, pointing estimation becomes feasible at nearly any point along the orbit. This paper outlines the technique, describes simulation results and presents outcomes from first experimental acquisitions performed with the TerraSAR-X satellite. Full article

The TerraSAR-X mission, based on two satellites, has produced SAR data products of high quality for a number of scientific and commercial applications for more than ten years. To guarantee the stability and the reliability of these highly accurate SAR data products, both systems were first accurately calibrated during their respective commissioning phases and have been permanently monitored since then. Based on a short description of the methods applied, this paper focuses on the radiometric performance including the gain and phase properties of the transmit/receiver modules, the antenna pattern checked by evaluating scenes acquired over uniformly distributed targets and the radiometric stability derived from permanently deployed point targets. The outcome demonstrates the remarkable performance of both systems since their respective launch. Full article

The geometric accuracy of synthetic aperture radar (SAR) data is usually derived from level-1 products using accurately surveyed corner reflector positions. This paper introduces a novel approach that derives the range delay and azimuth shift from acquired SAR raw data (level-0 products). Therefore, the propagation path is completely retrieved from SAR pulse transmission up to the reception of the point target’s backscatter. The procedure includes simple pulse compression in range and azimuth instead of full SAR data processing. By applying this method, the geometric accuracy of ESA’s Sentinel-1 SAR satellites (Sentinel-1A and Sentinel-1B) is derived for each satellite overpass by using corner reflectors with precisely surveyed GPS positions. The results show that the azimuth bias of about 2 m found in level-1 products for Stripmap acquisitions is reduced to about 15 cm. This indicates an artificial bias arising from operational Sentinel-1 SAR data processing. The remaining range bias of about 1.0 m, observed in L0-products, is interpreted as the offset between the SAR antenna phase center and the spacecraft’s center of gravity. The relative pixel localization accuracy derived with the proposed method is about 12 cm for the evaluated acquisitions. Compared to the full processed level-1 SAR data products, this accuracy is similar in the range direction, but, for the azimuth direction, it is improved by about 50% with the proposed method. Full article

Sentinel-1B is the second of two C-Band Synthetic Aperture Radar (SAR) satellites of the Sentinel-1 mission, launched in April 2016—two years after the launch of the first satellite, Sentinel-1A. In addition to the commissioning of Sentinel-1B executed by the European Space Agency (ESA), an independent system calibration was performed by the German Aerospace Center (DLR) on behalf of ESA. Based on an efficient calibration strategy and the different calibration procedures already developed and applied for Sentinel-1A, extensive measurement campaigns were executed by initializing and aligning DLR’s reference targets deployed on the ground. This paper describes the different activities performed by DLR during the Sentinel-1B commissioning phase and presents the results derived from the analysis and the evaluation of a multitude of data takes and measurements. Full article

A synthetic aperture radar (SAR) system requires external absolute calibration so that radiometric measurements can be exploited in numerous scientific and commercial applications. Besides estimating a calibration factor, metrological standards also demand the derivation of a respective calibration uncertainty. This uncertainty is currently not systematically determined. Here for the first time it is proposed to use hierarchical modeling and Bayesian statistics as a consistent method for handling and analyzing the hierarchical data typically acquired during external calibration campaigns. Through the use of Markov chain Monte Carlo simulations, a joint posterior probability can be conveniently derived from measurement data despite the necessary grouping of data samples. The applicability of the method is demonstrated through a case study: The radar reflectivity of DLR’s new C-band Kalibri transponder is derived through a series of RADARSAT-2 acquisitions and a comparison with reference point targets (corner reflectors). The systematic derivation of calibration uncertainties is seen as an important step toward traceable radiometric calibration of synthetic aperture radars. Full article
