Development of the Niger Basin Drought Monitor (NBDM) for Early Warning and Concurrent Tracking of Meteorological, Agricultural and Hydrological Droughts

Abstract

Drought remains a phenomenal disaster of critical concerns in West Africa, particularly within the Niger River Basin, due to its insidious, multifaceted, and long-lasting nature. Its continuous severe impacts on communities, combined with the limitations of existing univariate index-based monitoring methods, worsen the challenge. This paper introduces and evaluates a Hybrid Drought Resilience Empirical Model (DREM) that integrates meteorological, agricultural, and hydrological indicators to improve their concurrent monitoring and early warning for effective decision-making in the region. Using reanalysis hydrometeorological data (1980–2016) and community vulnerability records, results show that the DREM-based composite index detects drought earlier than the Standardized Precipitation Index (SPI), with stronger alignment to soil moisture and streamflow variations. The model identifies drought onset when thresholds range from −0.26 to −1.19 over three consecutive months, depending on location, and signals drought termination when thresholds rise between −0.08 and −0.82. The study concludes that the DREM-based composite index provides a more reliable and integrated framework for early drought detection and decision-making across the Niger River Basin, and hence, has proven to be a suitable drought monitor for stakeholders in the Niger Basin which can be relied upon and trusted with high confidence.

1. Introduction

Drought remains one of the most severe threats to human well-being and ecological stability across Africa, especially in West Africa. It is a form of extreme climatic variability [1], long hypothesized to be deeply rooted in the region’s climate system [2,3]. Its creeping and cumulative nature makes both the onset and termination difficult to determine [4], often becoming noticeable only after substantial impacts emerge [4,5]. In the Niger Basin, drought is the most complex and least understood natural hazard, historically triggering famine, displacement, and substantial economic losses. Major crises in the 1970s, 1980s, and 2010–2013, when the 2012 episode left 18.7 million people food insecure, demonstrate the depth of this challenge [2,4,6,7,8,9,10]. The high number and spatial extent of the affected people shown in Figure 1 are clear evidence of the failure of existing approaches to drought monitoring and early warning systems in the Niger Basin, which are driven majorly by univariate drought indicators. As [11] reported, the 2010 Sahel drought reduced agricultural output by more than 40% and displaced communities across northern Nigeria, Niger, and Mali, underscoring weaknesses in existing early-warning systems.

Drought disregards political boundaries and affects all countries irrespective of their development levels [12]. Thus, basin-wide analysis of the Niger Basin is essential in a changing climate. Elsewhere in Africa, Southern and Eastern Africa are also experiencing extreme drought episodes; for example, El Niño-driven drought in 2023–2024 left more than 61 million people in urgent need of food aid [13,14,15]. Recent analysis further identifies densely populated agricultural zones as drought hotspots across Southern Africa, heightening vulnerability in the absence of strong monitoring and early-warning systems [16].

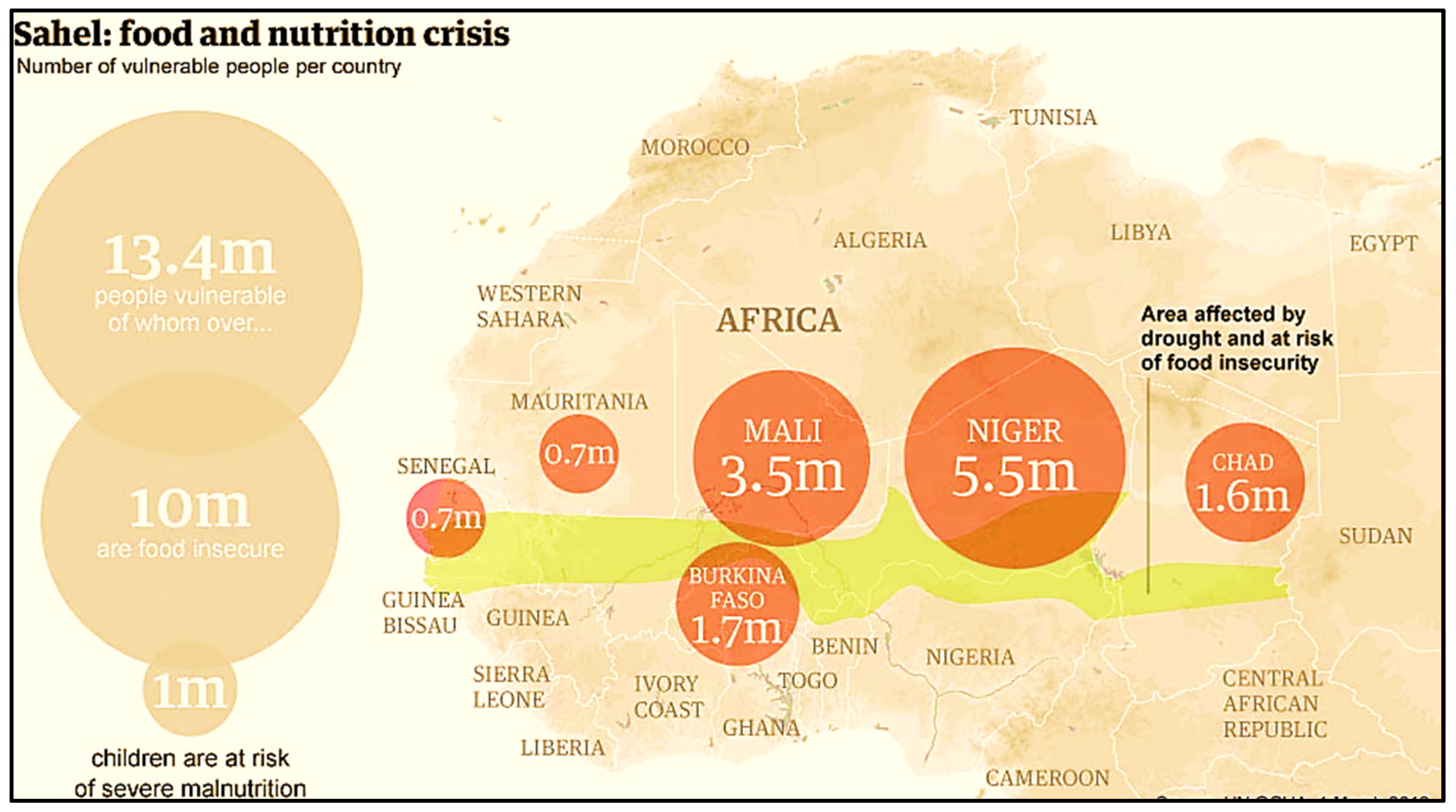

The Niger Basin, an important hydrological and socio-economic corridor, is under threat by projected drying trends [6]. Climate change modifies rainfall patterns and intensifies evapotranspiration, thereby amplifying drought frequency and severity [1,17,18,19]. As [17] notes, shifts in rainfall timing, delayed rainy seasons, and increased dry spells pose substantial risks to agriculture, water management, and health. Rising temperatures also accelerate soil and surface-water moisture loss [18,19], supporting projections that meteorological drought will increasingly evolve into agricultural and hydrological droughts as global warming intensifies [20,21,22]. As meteorological drought evolves into soil moisture or agricultural and hydrological droughts, its cascading impacts further magnify regional vulnerability. According to [23], future projections show a strong increase in SPEI-based drought intensity over Southern Africa, while SPI projections show no notable change, highlighting the sensitivity of drought assessments to evapotranspiration and index choice. Globally, the World Meteorological Organization (WMO) noted that droughts have increased by 29% since 2000 and remain particularly deadly in Africa [24], according to its Report on State of Global Climate 2021, underscoring the urgency for improved monitoring tools.

The WMO further reports that late-2023 to early-2024 dry conditions caused major droughts across north-western Africa, severely affecting agriculture and hydropower [25]. Research shows that changes in drought intensity and frequency disproportionately degrade hydrological ecosystem services [26]. Defining drought remains inherently challenging because it is multidimensional and varies across climatic, hydrological, and socio-economic settings [4,27]. There are four categories of drought, namely, meteorological, agricultural, hydrological, and socio-economic drought [28], illustrating its multifaceted nature and management complexity. As ref. [4] emphasized, it is difficult to effectively manage drought without clear identification, detection, and measurement. Hence, the authors argued that if you cannot define drought, you cannot detect and measure it, and if you cannot measure it, you cannot effectively manage it.

Traditionally, drought monitoring relies on univariate indicators derived from precipitation, soil moisture, or streamflow anomalies. Meteorological droughts, often characterized by rainfall deficits, may progress into soil moisture and hydrological droughts, leading to water scarcity across sectors [28,29,30]. Soil moisture plays a critical role in crop production and land–atmosphere interactions [31]. Although these single-variable approaches track individual aspects of the hydrologic system, they miss interactions across components and fail to represent drought propagation. Increasingly, drought is a multi-stage phenomenon requiring tools that consider evaporative demand of the atmosphere, vegetation stress, water-storage anomalies, and land-surface feedback simultaneously [32,33].

Index-based drought monitoring has become central to operational drought assessment due to its ability to simplify complex climatic interactions [34]. Over the past five decades, drought managers have relied on a diverse suite of drought indices for early warning and decision-support [35,36,37]. These indices, derived from precipitation, temperature, streamflow, groundwater, soil moisture, or crop yield data, provide a structured means of identifying drought onset, end, severity, and duration [38,39,40,41]. Drought thresholds, single-value indicators used to define drought characteristics, are especially important for decision-makers [34,42]. According to [39,43,44], thresholds must be impact- and location-specific; as [4] stresses, West Africa can benefit from objective SPI-based thresholds tailored to local impacts. Hence, the authors argued in this study that linking drought thresholds to impacts of drought over a specific region makes them more robust and effective triggers of unfolding drought events. By implication, the effectiveness of an established drought threshold in drought depiction or detection is dependent on the quality of the dataset used.

More than 150 drought indices exist [45,46,47,48,49], but those widely used in the Niger Basin, SPI, SPEI, PDSI, RAI, SAI, and BMDI, rely primarily on precipitation or temperature [3,26,35,36,37,46]. These indices are valuable but have documented weaknesses [15,47]. Studies show inconsistencies across indices, which can mislead decision-making. For example, ref. [48] found substantial discrepancies between SAI, BMDI, and SPI in the Upper Niger Basin, illustrating how index choice may distort impact assessments [50]. Other studies document how variations in datasets and indices produce divergent drought signals, introducing uncertainty into monitoring systems [51,52,53]. Index selection therefore critically influences early warning systems and policy actions [54].

A critical major limitation in the Niger Basin is the continued dependence on univariate drought assessments [40,55,56], resulting in fragmented monitoring and inconsistent evaluations of drought risk [57]. Moreover, policy makers often use these indices without fully understanding their assumptions, data requirements, or structural weaknesses [36]. Even widely used indices such as SPI and SPEI often neglect essential components such as soil moisture, groundwater, and runoff [58].

Additionally, there has been increasing interest recently for a regional dimension to the management of the recurrent Sahelian droughts in the Niger basin. As ref. [59] emphasized, improved techniques are needed with urgency to accurately determine drought occurrence in the region. This is because current univariate-based drought indicator techniques employed in the management of the drought disasters have not yielded the desired solution, nor have they been effective in addressing the problem [4]. The failure stems from the fact that first, droughts affect the entire hydrologic system and a wide variety of disciplines and socio-economic sectors. Second, the series of timescales drought is known to be operating on and diverse geographical and temporal distribution of the phenomenon, which makes it difficult to establish both a universal definition of drought and an index to measure it. This univariate dependence has persisted despite technological advances that offer improved monitoring capabilities. Despite advances in remote sensing (NDVI, VCI, SMOS/SMAP soil moisture), reanalysis datasets (ERA5, MERRA-2), hydrological models, and blended indicators [60,61,62,63,64], these tools remain underutilized in Niger Basin drought monitoring. Leveraging these datasets is essential for transitioning from fragmented assessments to integrated, evidence-based early-warning systems. Continuous and simultaneous monitoring of multiple indicators is indeed highly needed [65], achievable through composite drought indices (CDIs).

Globally, CDIs have emerged as best practice for multivariate drought assessment. Systems such as the U.S. Drought Monitor (USDM) and North American Drought Monitor (NADM) integrate SPI, PDSI, soil moisture, streamflow, and other metrics using linear combinations and percentile thresholds to characterize drought severity across scales [66,67]. Although data limitations hinder full implementation of USDM outside the United States, adaptations of the approach have been successful in Morocco, Spain, South Korea, and other regions [68,69,70]. Additional CDI-based systems exist in China [71], the European Drought Observatory [57], and Kenya [72]. Recent regional advances include multivariate wavelet coherence analysis for West Africa [73] and a weighted composite index using entropy and Euclidean distance in Niger [74]. In an earlier study over the West African Sahel (WAS), ref. [75] developed a remote-sensing-based composite drought index (CDI) and found the CDI to be more sensitive in detecting drought over the region than the SPI and SPEI. The authors further revealed that CDI exhibits a good correlation with millet, maize, and sorghum production data. Hence, it is effective for detecting agricultural drought, but not hydrological drought. These global models demonstrate the feasibility and benefits of CDI frameworks, though data scarcity and monitoring infrastructure remain a major drawback in their implementation in most African basins.

Despite these developments, the Niger Basin still lacks a basin-wide, integrated early-warning system capable of jointly capturing meteorological, agricultural, and hydrological droughts [76,77]. Limited institutional capacity and insufficient monitoring infrastructure further widen the gap between scientific knowledge and operational response [78,79]. Current efforts, though valuable, remain insufficient for fully integrating diverse drought types and emerging datasets into a coherent decision-support framework [80,81,82,83]. Effective drought management requires harmonized, multi-indicator approaches capable of reducing contradictions between indices and providing actionable, real-time information to all stakeholders.

This raises important questions for decision-makers: Is holistic drought monitoring possible across sectors like meteorological, agricultural, and hydrological domains? What form should integrate thresholds take for early drought detection? How operationally practical are composite tools for multi-sector drought management? To address these gaps, this study develops a multivariate Objective Drought Resilience Empirical Model (DREM) for the Niger Basin, an approach designed to diagnose multiple drought types simultaneously and benchmark performance against widely used standard indices such as SPI.

2. Materials and Methods

2.1. Study Area

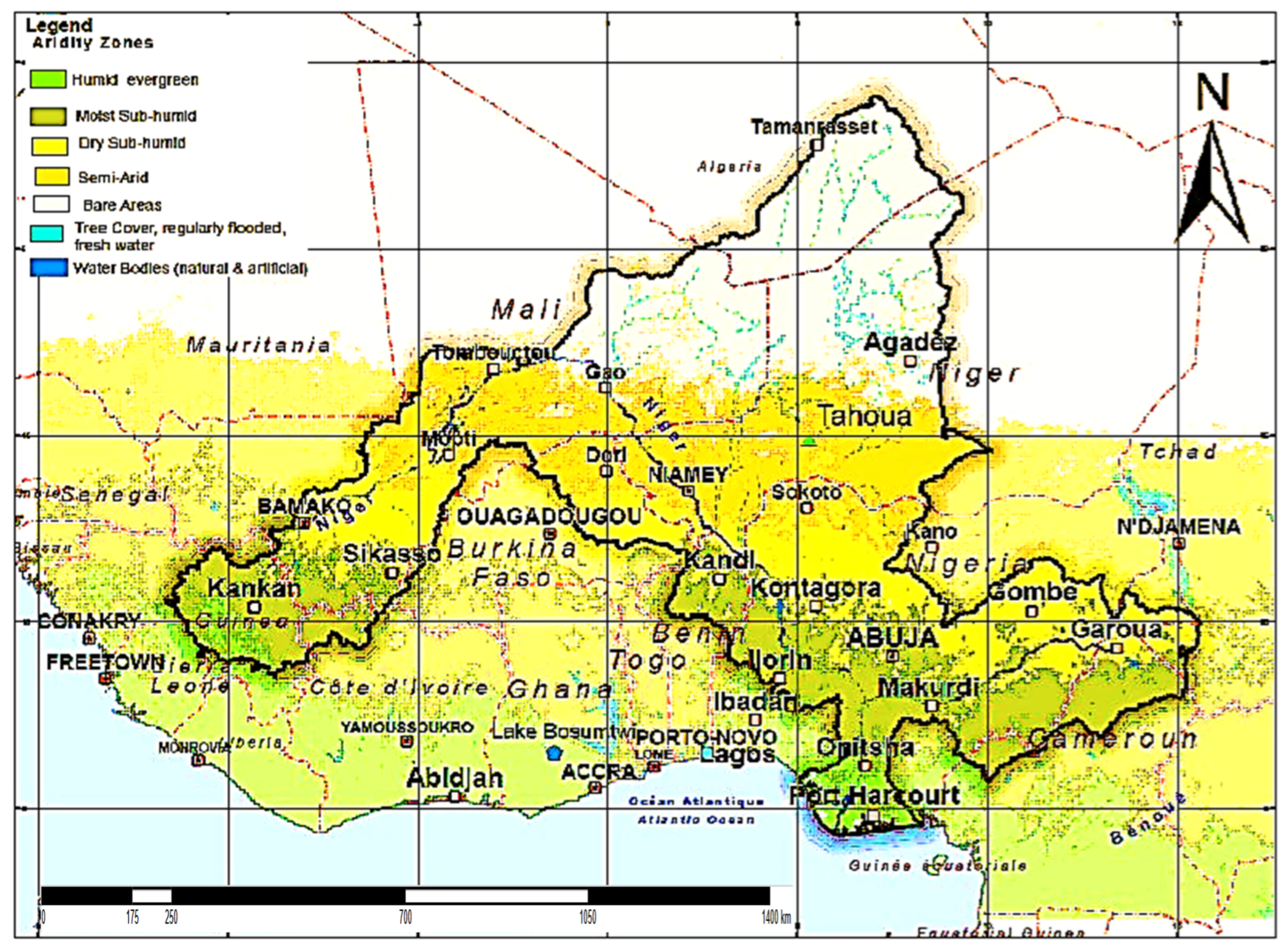

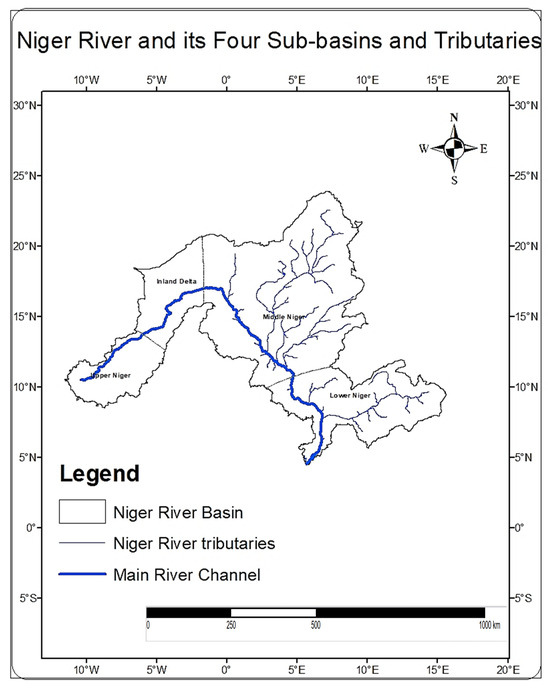

The study focuses on the Niger River Basin (NRB) of West Africa located roughly between longitudes 12° W and 15° E, and latitude 4° and 17° N, and covering approximately 7.5% of the continent of Africa [84]. With the headwaters located at the fringes of the Guinean moist forests, the Niger River traverses almost all the possible ecosystem zones in West Africa, especially along its course. It is a trans-boundary river basin shared by nine riparian countries (Figure 2), geographically spanning over Guinea, Mali, Niger, Nigeria, Benin, Burkina Faso, Cameroon, Chad, and Côte d’Ivoire. It has a total population of over 100 million people depending on the river for their livelihoods, such as agricultural production, food security, transportation, trade, hydropower, and recreation [85]. In terms of drainage area including the flow regime, the Niger River is the third longest river in Africa, after Nile and Congo, with its 4200 km length and drains through a hydrologically active catchment area of 1.5 million km². Figure 2 provides succinct description of major vegetation belts and drainage networks of the Niger Basin [86].

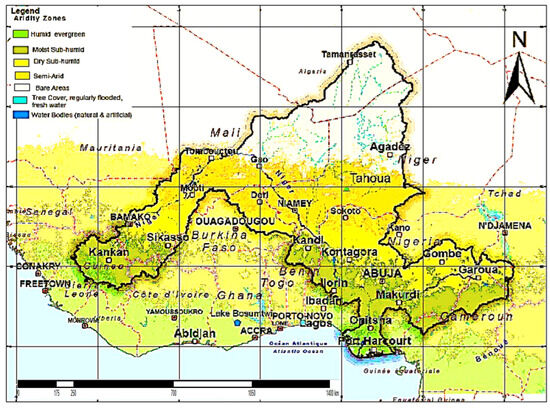

Furthermore, the tropical climate of Niger Basin witnesses 7 months of cropping season (i.e., April to October) every year, during which more than 95% of the total annual rainfall is experienced [87]. Usually, rainfall in West Africa is produced through Meso-Scale Convective System (MCS) and West African Monsoon (WAM) from the Atlantic Ocean, giving normal annual rainfall ranging from about 100 mm in the Sahel zone to more than 2500 mm along the pure tropical areas in the Guinea zone [2]. The basin regularly experiences alternating wet and dry seasons that characterize the climate of the region and comprises two sub-areas, the semi-arid Sahelian region (12° N–20° N) and humid Guinean coast (south of 10° N). The Sahel region represents an ecotone or transition between the Saharan desert and the wet climate of Guinea coast.

Additionally, because of its heterogeneous nature and large size, as well as its topographical and hydrological characteristics, the basin is often divided into four sub-basins, namely, the Upper Niger, inner delta, Middle Niger, and Lower Niger [88]. Figure 3 is a schematic map of the four (4) Niger River sub-basins. These sub-basins provide a better understanding of the biophysical, hydrological, and socio-economic processes affecting the basin’s water resources [89,90].

2.2. The Reanalysis Data

The data required and analyzed in this study comprise principally long-term monthly hydro-meteorological reanalysis datasets from the African Drought and Flood Monitor (ADFM) database covering the period 1980–2016 as shown in

Table 1. Summary of reanalysis hydro-meteorological data used.

Parameters	Record Period	Time Scale	Spatial Scale	Source
Precipitation	1980–2016	Daily	0.25° × 0.25°	AFDM website
Temperature	1980–2016	Daily	0.25° × 0.25°	AFDM website
Soil moisture	1980–2016	Daily	0.25° × 0.25°	AFDM website
Streamflow	1980–2016	Daily	0.25° × 0.25°	AFDM website

.

The ADFM was developed by [91] and is updated daily and provides multiple hydrologic variables at both continental and basin scales. The suite of univariate drought indicators from the ADFM was produced using Variable Infiltration Capacity (VIC) model. The VIC model is a large-scale, semi-distributed land surface hydrologic model [92]. This suite of indicators includes precipitation, temperature, soil moisture, and streamflow datasets. Normally, to display and view the data of a desired variable, the location or a point for which the data is to be extracted was first selected [4,93]. Typically, the data extraction is performed graphically by clicking on the map or by entering the location coordinates (i.e., latitude and longitude). Accordingly, by selecting point data section on the system and the time interval, clicking on data download and answering ’yes’ on creating a corresponding data file question, and manually entering the coordinates (i.e., the latitudes and longitudes) of each of the selected locations, respectively, the datasets were obtained at point scale.

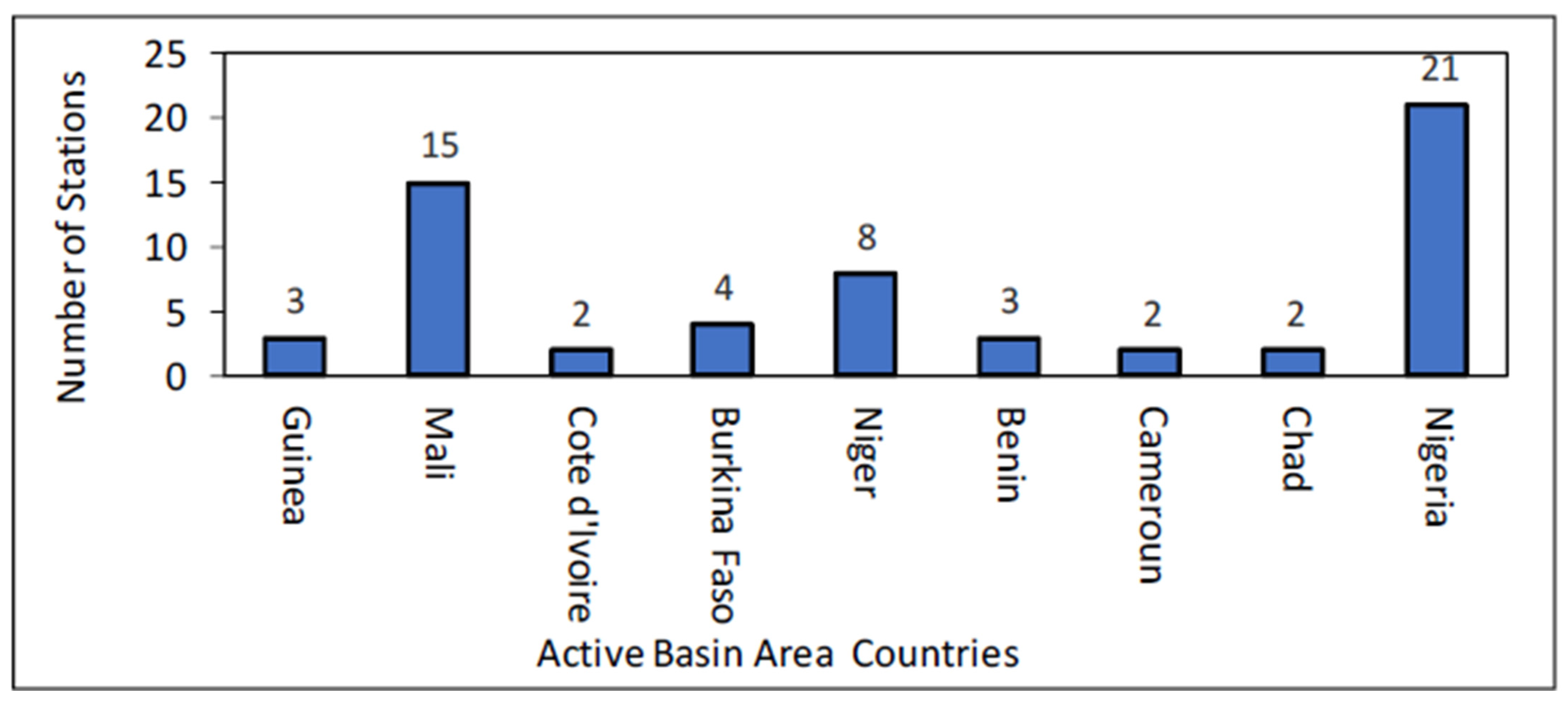

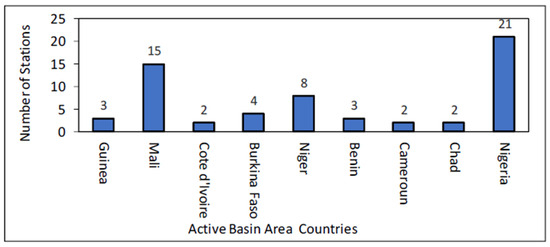

Following the procedure, the datasets were extracted for 60 stations scattered across the nine countries of the Niger River Basin shown in Figure 4. With regard to the study period, it has been selected to bring major drought episodes that occurred after the 1970s and the recovery years from the 1990s into historical context, as well as to ensure that the minimum of 30 years of continuous records required for the computation of robust drought indices is conformed with [94].

Historically, drought assessment usually relies on limited ground-based meteorological precipitation and temperature measurements. However, it is well-known that these have never captured the full complexity of drought impacts on vegetation, soil moisture, agriculture, and water resources [95]. In this study, therefore, the reanalysis dataset has been preferred because of the (a) paucity of the observational dataset that has been a major problem to drought depiction in the region [4,96,97]. For example, according to [98] the percentage of data gaps found from a preliminary analysis carried out ranges from 13.2 to 50.5% depending on the location, especially the streamflow datasets, which may lead to wrong inference and scientific conclusions about drought events and their characteristics. Underscoring the recent call by WMO for better network monitoring [99], (b) the database provides a hydro-meteorological series of high resolution and quality. In addition, they have global and long-term coverage, suitable for data-scarce regions such as Africa and the variables are physically consistent. Usually, the AFDM reanalysis datasets are made available to the public through a web-based interactive interface, which is based on Google maps. Such setting allows a user to interact with the system, zoom in to a specific location, display maps and time series, as well as download the data. The source of the AFDM dataset was cited in the work of [4] with the link https://doi.org/10.1007/s11069-022-05273-3. However, this has long been updated in December 2021, with a new version of the African Flood and Drought Monitor launched with the link https://www.princetonclimateinstitute.org/news/new-version-of-the-african-flood-and-drought-monitor-live, accessed on 4 January 2026. Unfortunately, with the new version of the African Flood and Drought Monitor, datasets are available only for the current date and the past 1 months and can be accessed via http://hydrology.soton.ac.uk/apps/afdm/ on 4 January 2026.

2.3. In Situ Observational Station and Ancillary Data

The in situ observational records used in this study for bias correction of the AFDM datasets were extracted from the database of the Global Historical Climatology Networks (GHCN-NOAA), which was cited in the earlier work of [2] with the link https://doi.org/10.1007/s11069-017-2980-6 and available for the period 1950–2001. The choice of the database hinged on its well-known high-quality data. The link has been updated and data currently accessed via https://www.ncei.noaa.gov/cdo-web/api/v2/data on 4 January 2026. Another source of observed station data considered to cover the study period was air temperature and rainfall data (1980–2020) from Nigerian Meteorological Agency (NiMet). Also used is the community-based drought-related vulnerability data such as losses in agricultural yields, losses in hydropower production, income, migration of affected population, etc., collected through research questionnaire instruments.

The ancillary data used in this study includes the Digital Elevation Model (DEM) and Normalized Difference Vegetation Index (NDVI). The DEM was sourced from HYDRO1k, a geographic database developed by the U.S. Geological Survey’s EROS Data Center which was cited in the earlier published work with the link https://doi.org/10.3389/fcosc.2024.1481791. It was used for delineating and describing the study area using Spatial Analyst Tool in ArcMap Geographic Information System (GIS). It was manufactured by Environmental Systems Research Institute (Esri), an American multinational company based in Redlands, California, known as the leading provider of GIS technology for mapping and spatial analysis. The ArcMap software (10.8.2) was sourced from Abuja, Federal Capital Territory (FCT) Nigeria. The NDVI dataset was extracted from the ADFM database and used for the performance evaluation of the CDI. The performance evaluations were based on exploratory data analysis and use of some statistical tools, which include Mean Absolute Error (MAE), Coefficient of Determination (R²), Nash Sutcliff Efficiency (NSE), Percent Bias (PBIAS), and Index of Agreement (d).

2.4. Methodology

2.4.1. Data Quality Control: Bias Correction of Reanalysis Dataset

Climate models and their associated reanalysis outputs are inherently prone to systematic biases. Despite notable advances in reanalysis techniques, substantial uncertainties persist in the representation of extreme precipitation events. For instance, reanalysis products often underestimate precipitation extremes (e.g., heavy rainfall), particularly when the pronounced temporal and spatial variability of global precipitation patterns is considered [100]. Such underestimation can adversely affect accurate detection, monitoring, and early warning of drought termination. Moreover, reanalysis performance varies across regions and climatic variables, underscoring persistent methodological limitations and ongoing challenges in addressing regional-scale precipitation data gaps [100]. These limitations highlight the necessity of rigorous data quality control procedures [4].

Data quality control is commonly implemented through bias correction techniques. A wide range of bias correction methods has been documented in the literature, including Mean Bias Correction, linear scaling (seasonal bias correction), Delta Change (change factor method), Quantile Mapping (QM), Empirical Quantile Mapping (EQM), Quantile Delta Mapping (QDM), machine-learning-based approaches, and hybrid or multi-source bias correction methods [101,102,103,104,105,106,107]. However, the plurality of available methods can complicate the selection of an appropriate approach, as each method exhibits distinct strengths and limitations. High-performing techniques such as QM, EQM, and machine-learning-based methods generally offer improved representation of variability and extremes but are often associated with increased computational demand, methodological complexity, and time-intensive implementation [102,106,108].

The AFDM reanalysis datasets, namely, precipitation, air temperature, soil moisture, and streamflow, were therefore subjected to quality control to correct the biases and improve on the quality of the datasets using the linear scaling method [109]. This method was preferred to delta and quantile mapping methods of bias correction, because it accounts for seasonal variability and is easy to implement, relative to other methods that are computationally demanding. Its strength is also in its simplicity, robustness, and straightforward application in dealing with observed and predicted probability distribution functions (PDFs)/CDFs. In addition, linear scaling usually corrects biases separately for each month or season, thereby accounting for seasonal differences in model performance, which is relevant in drought depiction [104]. The approach is also well-suited for handling both bounded variables such as precipitation and unbounded variables like temperatures [110]. In this study, probability distribution functions (PDFs) broadly refer to any function that describes how probabilities are distributed over possible outcomes of a random variable, while cumulative distribution functions (CDFs) refer to the total probability accumulated up to a certain value of a random variable or the integral of the PDF from negative infinity up to point x. To apply the bias correction factor (BCF), we argued that the bias behavior of climate models does not change with time and the transfer function is time independent. Hence, any bias correction factor can be applied in the future. The BCF was obtained as the difference between the monthly mean of observed and model data or the monthly mean observed data divided by the monthly mean model data, which is applied to the model data to obtain bias-corrected climate data. Usually, precipitation is corrected with a multiplier (x) and temperature with an additive term [111,112]. Subsequently, the obtained BCF was used to correct the reanalysis dataset for the 2002–2016 periods. The mathematical expression of the linear scaling method is as stated below.

$$P_{corr.m}\left(t\right)=P_{raw\left(model\right).m}\left(t\right) \times {\displaystyle \frac{{\overline{P}}_{obs.m} \left(t\right)}{{\overline{P}}_{raw.m} \left(t\right)},\mathrm{t}=1,2,\dots \dots \dots \dots \dots ,35\mathrm{J}}$$

(1)

$$T_{corr.m}\left(t\right)=T_{raw\left(model\right).m}\left(t\right)+\mu \left(T_{obs.m}\left(t\right)\right)-\mu \left(T_{raw.m }\left(t\right)\right)$$

(2)

where ${ P}_{corr.m}$ and $T_{corr.m}$ are corrected monthly precipitation and temperature, while $P_{raw\left(model\right).m}$ and $T_{raw\left(model\right).m}$ are uncorrected monthly precipitation and temperature. ${\overline{P}}_{obs.m}$ and ${\overline{P}}_{raw.m}$ are the mean values of monthly observed and climate model reanalysis data for the calibration period(t), and J is the number of years.

A key assumption of linear scaling (LS) approach is that the correction factors estimated from the historical period remain valid in the future. However, several studies have shown that this assumption can fail, especially if model errors change with climate state; LS can distort trends or produce unrealistic future signals. Moreover, extreme events such as drought and flood remain poorly represented even after correction, because the method assumes stationary seasonal bias and does not correct distribution shape [104]. These are central critiques in the literature as their limitations [112,113]. Nevertheless, the LS method is more realistic than global mean correction approach [104]. The quality of the reanalysis data before and after bias correction is shown in

Table 2. Linear scaling bias correction performance assessment of precipitation reanalysis data.

Sub-Basins	Nash Sutcliffe Efficiency (NSE)		Bias Percent		Mean Absolute Error		Coefficient of Determination
	Before	After	Before	After	Before	After	Before	After
Upper Niger	0.870	1.000	−0.049	0.008	4.543	0.065	0.852	1.000
Inland Delta	0.622	0.996	−0.075	0.002	2.916	0.035	0.516	0.995
Middle Niger	0.884	1.000	−0.330	0.000	3.646	0.071	0.929	1.000
Lower Niger	0.527	1.000	−0.838	0.000	51.126	0.002	0.725	1.000

as adjudged by the values of the Succliff Efficiency (NSE) and Coefficient of Determination (R²), Mean Absolute Error (MAE), and Percent Bias (PBIAS). Thus, the accuracy of reanalysis-based drought depiction is dependent on the quality of the dataset, which in turn depends on the choice of the bias correction approach implemented.

More recently, ref. [100] proposed a Global Spatiotemporal Precipitation Imputation and Correction model based on Regional-Scale Intelligent Optimization and Topography analysis (GSPIC-RT) to address the above-mentioned limitations, to reduce uncertainty in satellite/reanalysis precipitation fields in data-scarce, complex regions such as Africa, especially over the West African region. The framework integrates multi-source precipitation datasets to bridge historical data gaps and enhance overall model performance. Central to the GSPIC-RT approach is an intelligent spatial clustering module that optimizes regional-scale precipitation imputation by constructing tailored models that capture the distinct spatial and temporal variability patterns unique to each region with the intent to improve drought depiction.

2.4.2. Understanding the Climatology of Niger River Basin Based on Station Data

Knowledge of the climatology of a place is critical in establishing an objective operational threshold for defining and distinguishing dry spells from actual drought conditions; thus, it needs to be analytically elucidated. Additionally, being able to recognize an emerging drought, or knowing whether drought is over, entails understanding what is normal for a given season or location and considering longer time frames. For instance, if an area has been in drought for a while it naturally takes more than one or two rains of significant values to end it, although one rain may be all that is needed to awaken inactive vegetation or spur growth of crops (https://drought.unl.edu/Education/Tutorials/usdm.aspx, accessed on 19 November 2018). To this effect, analyses of the spatial characteristics of rainfall of the region from 1980 to 2016 have been carried out.

2.4.3. Conceptual Framework of Design of Niger Basin Drought Monitor (NBDM)

The Niger Basin Drought Monitor (NBDM) functions as a Drought Resilience Empirical Model (DREM), represented in Figure 5. The Figure is a schematic representation of the conceptual framework of the process of development of different types of droughts. Hence, it is a simplified visual diagram used to explain or illustrate relationships, processes, or concepts in this study. It connects the main drought types, namely, meteorological, agricultural, hydrological, and socio-economic, showing how precipitation acts as the carrier of drought signals [114,115,116] through the hydrological cycle. Reduced rainfall leads to soil moisture deficits, plant stress, groundwater decline, and streamflow reduction, resulting in agricultural and hydrological droughts [18,117,118]. For example, ref. [118] found a substantial seasonal correlation between meteorological and agricultural droughts in spring, summer, and autumn, as evidenced by cross-wavelet coherence analysis.

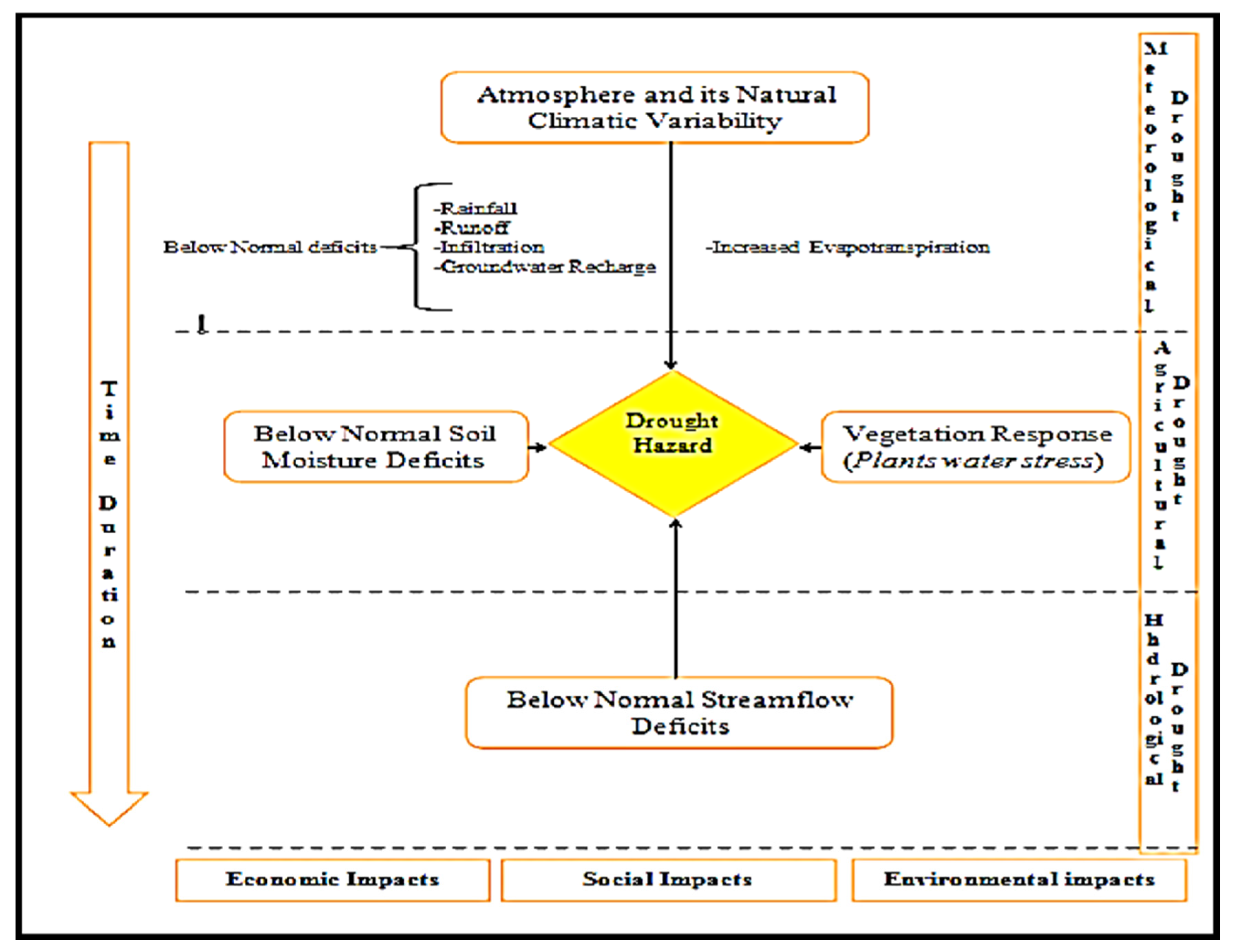

Meteorological drought arises from prolonged precipitation shortages. These shortages, worsened by rising temperature or evapotranspiration, trigger agricultural drought when soil moisture falls below levels needed for crop growth, leading to reduced yields. Hydrological drought occurs when surface and subsurface water resources runoff and groundwater recharge fall below normal. Socio-economic drought emerges when these water deficits disrupt human activities.

Previous studies show that meteorological droughts are often asynchronous with other drought types, with agricultural and hydrological droughts typically lagging behind by varying periods. This temporal lag enables the propagation of drought signals from one type to another [18,19,20,119,120]. Drought response time is primarily controlled by hydrometeorological factors, while environmental characteristics (e.g., terrain and land-cover types) play secondary roles. Areas with higher precipitation, soil moisture, or runoff generally experience shorter response times, whereas regions with higher elevations or steeper slopes show longer delays, especially for the propagation of meteorological to agricultural drought (PMAD) and shorter delays for meteorological to hydrological drought (PMHD) [119]. Regions with less cropland and more forest cover also tend to exhibit shorter response times. Furthermore, ref. [121] describes drought response time (or propagation time) as season-dependent, noting faster propagation from meteorological to hydrological drought during the hot season (June–September) and slower propagation during the cold season (December–March) in the Weihe River Basin, China. A clear understanding of these drought propagation drivers and characteristics is therefore critical for effective drought early warning systems and reducing societal impacts.

Two concepts, namely, timescale and inertia, underpin drought behavior and monitoring [35]. Inertia reflects delays in system responses to drought signals, while timescale refers to the lag between water shortages and their impacts [118,122]. For instance, soil moisture reacts quickly to rainfall deficits, while groundwater responds slowly. Monitoring requires capturing these lags to provide early warning and action [123]. To integrate predictors, multiple regression models generate a weighted linear combination (https://pmc.ncbi.nlm.nih.gov/articles/PMC2772215/pdf/nihms139290.pdf, accessed on 20 July 2018) as illustrated in Figure 6.

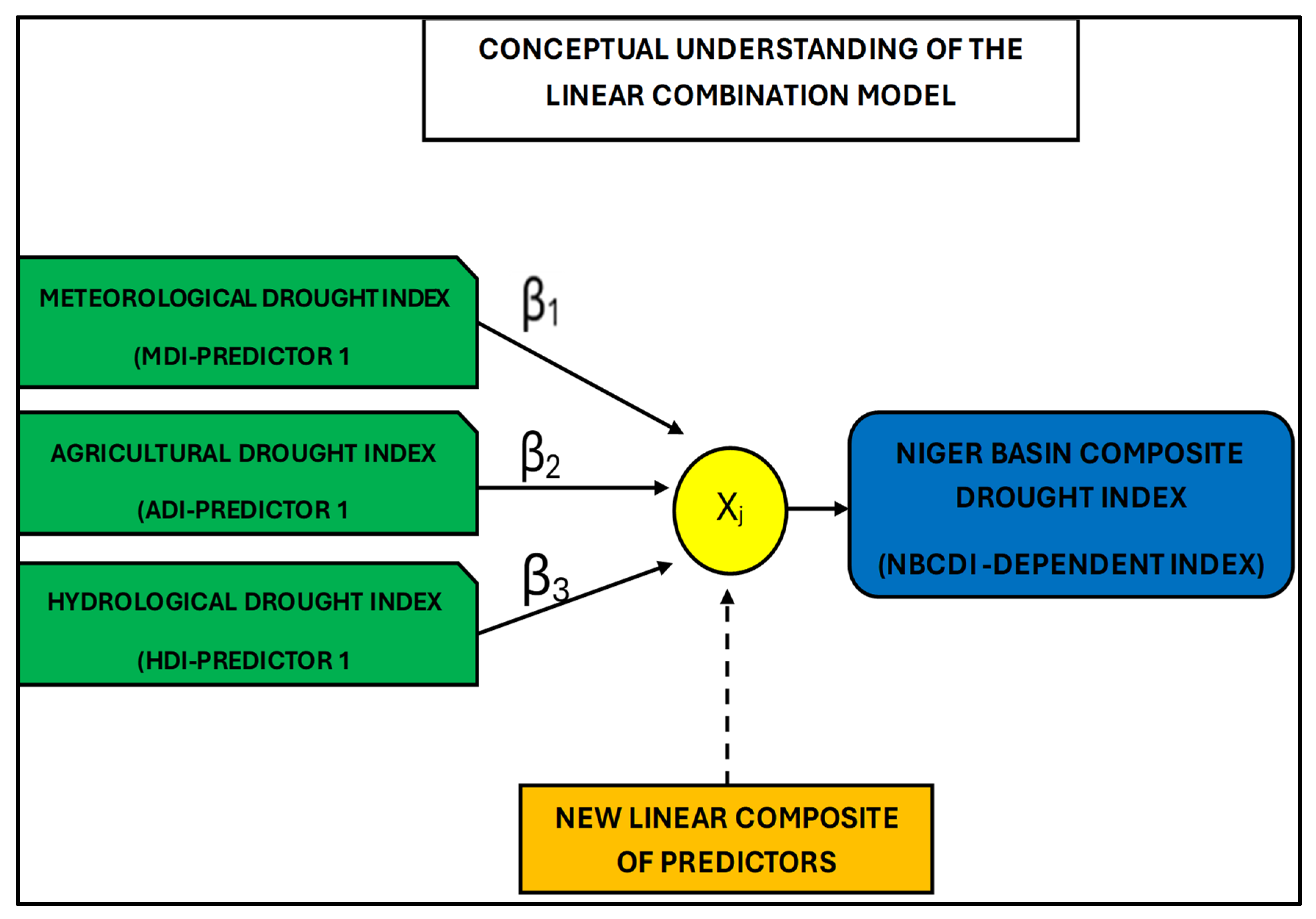

The figure is a schematic representation of the working of the linear combination model used to integrate the different independent predictor indices highlighted in green color, the new linear predictor highlighted in orange color, and the dependent predictand highlighted in blue color.

The mathematical formulation for the empirical derivation of the DREM or NBDM model based on the objective blend of drought indicators (OBDI) is as expressed below:

$$OBDI= {\sum }_{J=1}^N{W}_j{DI}_j$$

(3)

where ${DI}_j$ represents the selected input drought indices and/or indicators, $W_j$ is the weight for each index, and N is the number of input drought indices

$$NBDM=CDI={\beta }_{1}MET.DI+{\beta }_{2}Agric.DI+{\beta }_3 Hydro.DI$$

(4)

where β₁, β₂, and β₃ represent the weightings (Wj) of the Meteorological Drought Index (Met. DI), Agricultural Drought Index (Agric. DI), and Hydrological Drought Index (Hydro. DI), respectively. The weights β₁, β₂, and β₃, as shown in Equation (4), is constraint to 1 to minimize error, and hence β₁+ β₂ + β₃ = 1.

2.4.4. The Development Process of the Niger Basin Drought Monitor (NBDM)

The Niger Basin Drought Monitor (NBDM) was developed in the form of Objective Blend of Burden of Drought Disaster Indicator (OBBDDI), similar to USDM Objective Blend Drought Indicators (OBDI). The OBBDDI is a Drought Resilience Empirical Model (DREM) established from a linear combination equation. The OBBDDI was created by integrating three input indices, namely, the Standardized Effective Precipitation Index (SEPI), Soil Moisture Index (SMI), and the Streamflow Index (SFI) representing indices for the three biophysical forms of drought, i.e., meteorological, agricultural, and hydrological drought to establish an “All-in-One drought Model” for concurrent tracking of anomalies of three components of the hydrological cycle (i.e., precipitation, soil moisture, and streamflow) with the view to monitor drought evolution in the basin holistically.

With regard to the commonly used meteorological drought indicator, the SPI, the lack of consideration for the effect of temperature on drought constitutes one of the limitations of SPI model. Hence, instead of using SPI as input indicator, the Standardized Effective Precipitation Index (SEPI) was introduced as indicator of meteorological drought. Therefore, to account for the effect of temperature or potential evapotranspiration, effective precipitation was considered and transformed into Standardized Effective Precipitation Index (SEPI) following the SPI approach by replacing precipitation with effective precipitation as input data. The other input indicators into the CDI were soil moisture (SM) and streamflow (SF) which were transformed into Soil Moisture Index (SMI) and Streamflow Index (SFI) using the Normal Curve Equivalent (NCE) method, because the units of measurement of the indicators were in percentiles. The computation of the potential evapotranspiration and effective precipitation parameters and of the standardization process are detailed below under general methodological framework.

Following the standardization of the input indicators, the independent variable coefficients or weightings, i.e., (Wi) = W1, W2, and W3, were determined for the Niger River Basin, and on average they were W1 = 0.278, W2 = 0.322, W3 = 0.400, representing the weight for the meteorological, agricultural, and hydrological drought indices.

Thereafter, drought category thresholds and weights for each individual index were assigned.

The higher weight assigned to hydrological drought reflects its greater societal impacts compared to meteorological and agricultural droughts. This aligns with findings by [124] in the Jinghe River Basin, where hydrological drought is projected to worsen while meteorological drought may ease. Although meteorological drought typically occurs first, several studies note that its catastrophic impacts are lower than those of agricultural and hydrological droughts [17,21,22,125]

Hence, the NBDM is a worksheet model and mathematically expressed as

$$NBDM\left(CDI\right)=OBBDDI=0.278SEPI+0.322SMI+0.400SFI$$

(5)

The weight coefficients of each of the three input indicators or variables (SEPI, SMI, and SFI) in the Objective Blend of Burden of Drought Disaster Index (OBBDDI) was established using the concept of drought disaster burden (DDB) resulting from exposure of the society to different biophysical forms of drought events. The Burden Of Drought Disaster (BDD) or drought disaster burden (DDB) measures the weight of the impacts of the different types of droughts on society based on drought disaster damage indicators or simply disaster damage indicators (DDI). The concept of BDD was adapted from the World Health Organization (WHO) concept of Disability-Adjusted Life Years (DALYs) Measure of the Direct Impact of Natural Disasters. Thus, the weight of each input indicator component was empirically determined. This was achieved using the obtained community-level drought vulnerability data collected through research questionnaire instruments. This weighting technique was selected because drought thresholds must be impact-specific and location-specific, as no universal operational drought definition exists. To address this, the concept of Burden of Drought Disaster (BDD) was applied to estimate the relative importance of the three biophysical drought types, namely, meteorological, agricultural, and hydrological drought experienced in the study region during the 1980s drought-induced famine, being a worst-case scenario of drought episodes in the region. This approach allowed us to identify which drought type imposed the greatest societal burden. Our framework adapts the World Health Organization’s (WHO) Disability-Adjusted Life Years (DALYs) concept, which measures the burden of disease disasters (BDD) on society, to guide the weighting of drought impacts in the empirical model.

2.4.5. Description of the General Methodological Framework of NBDM Development

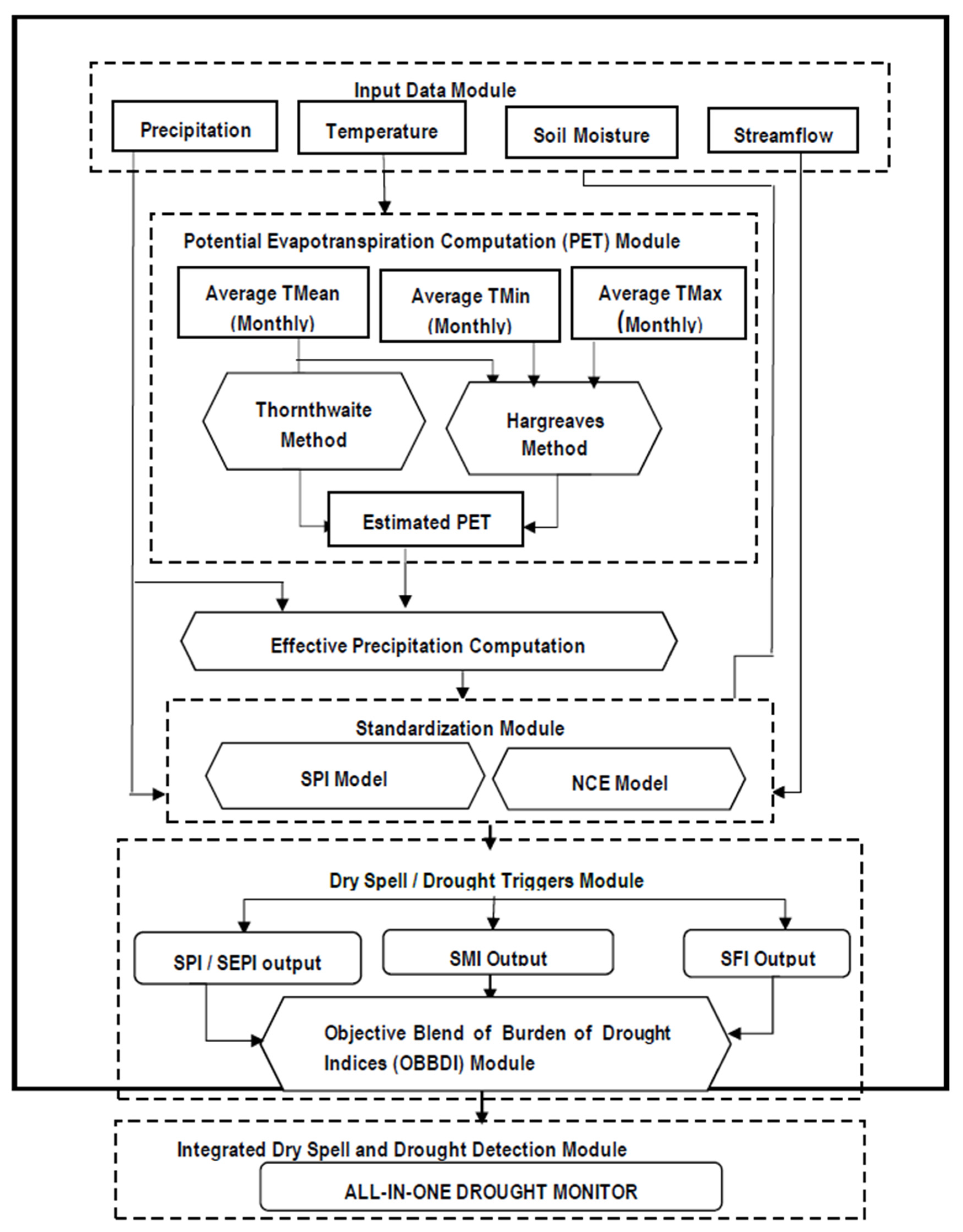

The general methodological framework for the development of the NBDM is described in Figure 7. There are six (6) different modules, namely, the (i) input data/database management module, (ii) the potential evapotranspiration (PET) computation module, (iii) the indicators standardization module, (iv) dry spell/drought triggers module, (v) Objective Blend of Burden of Drought Indices (OBBDI) module, and (vi) integrated dry spell and drought detection module. Provided below is a brief description of each module.

i.

The input data module: It comprises all the monthly hydrometeorological data used in the analysis, which includes precipitation, temperature, soil moisture, and streamflow. Hence, the database contains 60 stations with 4 different parameters as highlighted above.

ii.

The potential evapotranspiration (PET) computation module: It consists of two different approaches for computing the PET for the purpose of comparing results. They are the Thornthwaite method and Hargreaves and Samani method using Mean surface air temperature, maximum, and minimum temperatures.

Usually, the Thornthwaite method uses air temperature as an index of the energy available for evapotranspiration, with the assumption that air temperature has a correlation with the integrated effects of net radiation and other controls of evapotranspiration, and the available energy is being shared in fixed proportions between heating the atmosphere and evapotranspiration.

The empirical equation relating the evapotranspiration to the air temperature is expressed below [126].

$$PET=16{\left(T/I\right)}^a\left(N/12\right)\left(\mu /30\right)$$

(6)

$$I={\sum }_{n=1}^{12}(0.2T_a{)}^{1.514}$$

(7)

$$a=6.75\times {10}^{-7}{I}^3-7.71\times {10}^{-5}{I}^2-1.7912\times {10}^{-2}I+0.49239$$

(8)

where PET is the monthly potential evapotranspiration, T is the monthly mean air temperature (°C), I is a heat index for the station imposed by the local normal climatic temperature regime and the exponent a is a function of I, µ is the number of days in the month under consideration, and N is the mean number of daylight hours in a particular month. The Thornthwaite method was selected in this study because it provides the best results on the regional level [127,128] and less data is required. The major drawback of this method is that the computation of PET ceases as soon as temperature becomes below zero. This condition is not visible for a tropical hot type of climate in West Africa.

With regard to the [129] equation, it is an empirical radiation-based method that is extensively used in the conditions of limited weather data, such as the study region. It has been found to also give better results relative to other methods [128]. It requires only maximum and minimum air temperatures and extra-terrestrial radiation (R_a). It is mathematically expressed as

$$PET=0.0135\times K{R}_s\times 0.408R_{a } (T_{mean}+17.8)(T_{max}-T_{min}{)}^{0.5}$$

(9)

$$K{R}_s=0.00185(T_{max}-T_{min}{)}^2-0.0433(T_{max}-T_{min})+0.4023$$

(10)

$$T_{mean}=(T_{max}+T_{min})/2$$

(11)

where PET is the potential evapotranspiration (mm/month); $R_{a }$ is extraterrestrial radiation (mm/month) and the values of $R_{a }$ gotten from table depending on the latitude position of each station or location; $T_{mean}$ is the monthly mean air temperature (°C); $T_{max}$ is the monthly maximum air temperature (°C); $T_{min}$ is the monthly minimum air temperature (°C); and $K{R}_s$ is the empirical radiation adjustment coefficient.

iii.

Effective precipitation module: With the computation of PET, all the precipitation data were converted to an “effective precipitation”. The effective precipitation (Ep) was computed using the combination of precipitation and PET. For comparison of results two approaches were considered in this study and built into the DREM, namely, the (i) Multivariable Regression Model method or (ii) the United States Department of Agriculture, Soil Conservation Service [130] method, which is applicable under irrigation condition or assumption.

iv.

The drought indicators standardization module: It uses percentile method to transform all input data into a standardized scale. To achieve this, two options were considered: the Standardized Precipitation Index (SPI) model approach [4], if the indicator measurement was in international system units (i.e., S.I unit), or the Normal Curve Equivalent (NCE) method, if the unit of measurement of the indicator was in percentile. The SPI model was selected because of its widespread acceptance and recognition as the standard index for the monitoring of drought events [131].

The mathematical expression for the SPI model used in this study is as stated below.

$$Z=SEPI=SPI=+\left(t-{\displaystyle \frac{c_0+c_{1}t+c_2{t}^2}{1+d_{1}t+d_2{t}^2+d_3{t}^3}}\right) for 0.5<H\left(x\right)<1.0$$

(12)

$$Z=SEPI=SPI=-\left(t-{\displaystyle \frac{c_{0+} c_{1}t+c_2{t}^2}{1+d_{1}t+d_2{t}^2+d_3{t}^3}}\right) for 0<H\left(x\right)<0.5$$

(13)

where

$$t=\sqrt{ln\left({\displaystyle \frac{1}{H(x{)}^2}}\right)} 0<H\left(x\right)\le 0.5$$

(14)

$$t=\sqrt{ln\left({\displaystyle \frac{1}{(1.0-H(x{\left)\right)}^2}}\right)} 0.5<H\left(x\right)\le 1.0$$

(15)

C₀ = 2.515517, C₁ = 0.802853, C₂ = 0.010328, d₁ = 1.432788, d₂ = 0.189269, and d₃ = 0.001308.

The mathematical expression of the NCE method used in this study is as shown below.

$$Z=SMI=SFI={\displaystyle \frac{\left(NCE-50\right)}{21.063}}$$

(16)

where z is z-score, NCE is the Normal Curve Equivalent value in percentile.

v.

The dry spell and drought conditions triggers module: It comprises the various drought definitions or drought initiation (onset) thresholds for each of the respective indices considered in this study, namely, SPI, SEPI, SMI, SFI, and CDI. It also consists of the threshold(s) for the phase change or transition from dry spell to actual drought phase.

vi.

Objective Blend of Burden of Drought Indices (OBBDI) module: It determines first the relative weight of the impacts of each type of droughts (i.e., meteorological, agricultural, and hydrological droughts) on the society based on available drought disaster damage indicators, and then, thereafter, established the OBBDDI hinged on the concept of drought disaster burden (DDB) resulting from exposure of the society to different biophysical forms of drought events.

vii.

The last module is the integrated dry spell and drought detection module: It identifies and categorizes the severity of the detected drought events using the established thresholds.

2.4.6. Determination of Percentile-Based Drought Threshold

To determine operational objective drought thresholds for defining and measuring drought episodes in the Niger Basin, a “Baseline Assessment Analysis (BAA)” of the region’s precipitation behavior when known historical drought-induced famine with serious impact on the society occurred was carried out by determining the percentiles of the precipitation anomalies. To achieve this, the precipitation behavior during the well-known 1980s drought-induced famine was examined. All the precipitation records were first rendered as percentiles with respect to the selected study period 1980–2016 using the “Percentile Rank (PR)” method. Normally, the PR method returns the rank of value in a data set as a percentage of the data set. Thus, within a dataset, this function can be used to evaluate the relative standing of a value in a time series 7 (https://support.microsoft.com/en-us/office/percentrank-function-f1b5836c-9619-4847-9fc9-080ec9024442, accessed on 8 December 2022). The analyses were carried out using Excel for Microsoft 365.

Based on the annual averages, the precipitation deficits percentile for each year was determined to identify the drought months and years and their percentile values. This is with the view to ascertaining the relative standing of the 1980s rainfall values at different locations recorded in the drought chronology of the region that caused famine during the period. The Microsoft Excel PR method adopted in this study is defined as the number of values in the dataset (y) smaller than x divided by the sum of the number of values in a dataset (y) smaller than x and the number of values in a dataset (z) larger than x. The PR approach is mathematically expressed as below.

$${PR}_{\left(X\right)}={\displaystyle \frac{\left(Y\right)}{\left(Y+Z\right)}}\times 100$$

(17)

where x is the value for which you want to know the rank, Y is the number of values in the variable dataset smaller than x, and Z is the number of values in the variable dataset larger than x.

The PR approach has been preferred in this study because of its simplicity, and it has been successfully applied in US Drought Monitor (USDM), which is the first composite drought index that is widely known to have successful application and has become, at least in the North American continent, the golden standard in multivariate drought analysis. Also, the 1980s period was chosen to bring the major drought-induced famine events after the 1970s drought and the recovery years from 1990s into historic context. Moreover, the drought events of 1980s eclipsed that of 1970s as the worst drought ever recorded in history of the region, resulting in the region witnessing the worst rainfall deficit since instrumental records began [132]. Therefore, in this study, “an objective threshold(s) for defining the onset of a moderate drought is being established as the corresponding index values of the CDI associated with the established precipitation deficits percentiles during the 1980s when drought-induced famine occurred in the region for each of the months and for the annual average”. The CDI-based threshold for defining drought has been computed by determining the CDI values corresponding to the already established percentiles for drought occurrence in the study region and its various severity categories accordingly. The thresholds were established for both monthly and annual average timescales. Subsequently, based on runs theory concept, the CDI values were less than the computed index thresholds, which were identified as drought and their severity categorized accordingly.

2.4.7. Operational Application of the Established Drought Definition Thresholds

To apply the obtained CDI thresholds to define or detect and characterize drought conditions the principle of runs theory proposed by [133] and recommended by [134] was followed using the threshold method of drought definition. Figure 8 is an illustration of the application of runs theory by [135]. According to [133], a run is defined as a sequence of consecutive values of a variable below given or defined thresholds that are preceded and followed by at least one value of the variable. Below is the procedure to characterize drought events using threshold approach [135].

Precipitation deficit (d_t), which could also be expressed in normalized form, was obtained as a difference in precipitation record (P_t) from the expected threshold (T_e). The logic and rationale behind the application of runs theory in drought detection is mathematically expressed below.

$$Deficit \left(d_t\right)=P_{t }-T_e ,{ d}_t= CDI<0$$

(18)

In this study, we argued that agricultural and water resources activities within a region are usually adapted to a norm that can be approximated by long-term averages of precipitation. As a result, defining Xo as the mean or median of the time series (X) from Figure 8 usually results in about 50% of the time periods being “droughts”. By implication, one is analyzing dryness or dry periods rather than drought. But all dryness is not drought; some could be dry spells. In this study, therefore, the term “drought” is restricted to the more extended and severe dry periods [135]. Thus, this underscores why long-term averages cannot be a suitable truncation level for drought definition. In this study, therefore,

Expected threshold (T_e) = Long-term average

(19)

For the impact of the d_t to be felt in a region, the precipitation deficit must have cumulative effect, which can be estimated using mathematical expression below.

$$Cumulative deficits \left(D_i\right)=\sum CDI<0$$

(20)

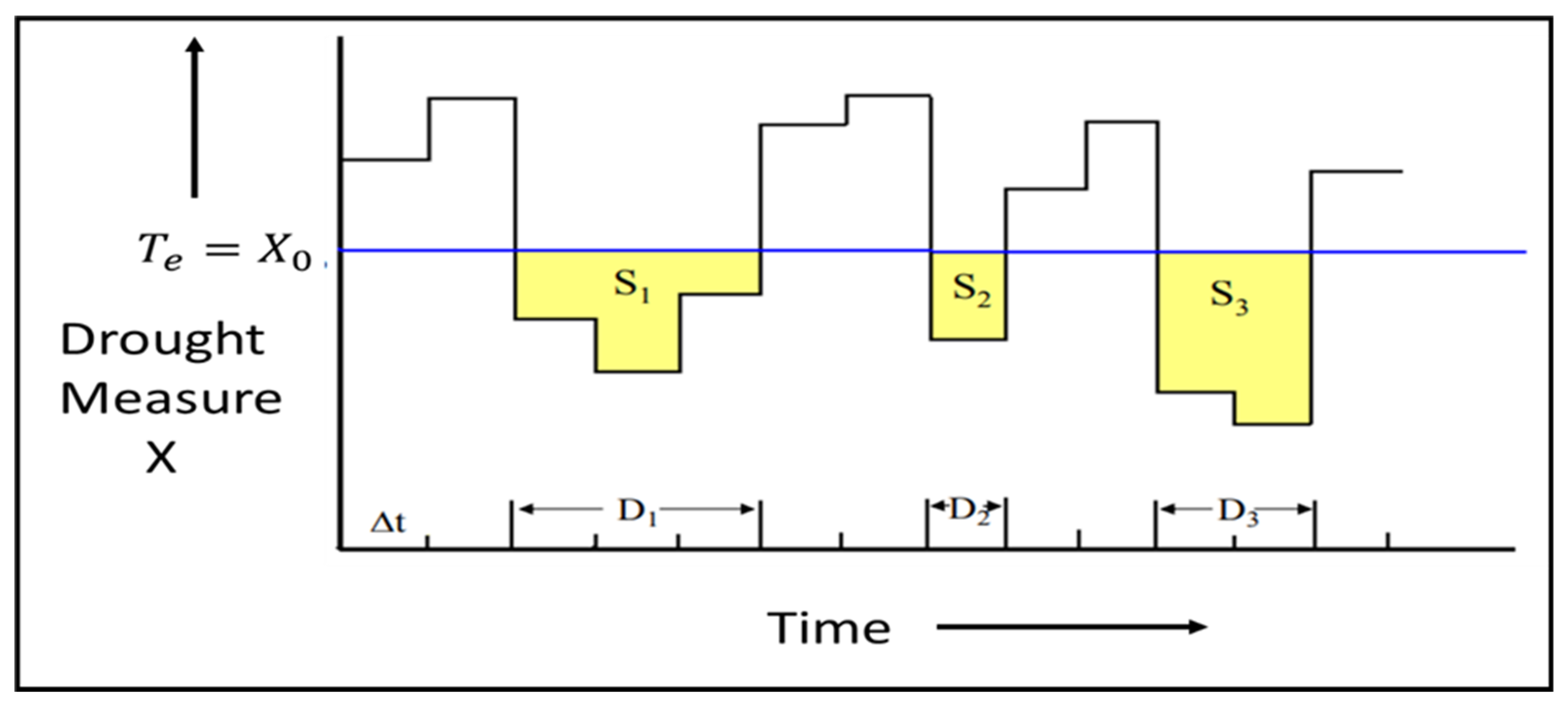

Drought initiation occurs when the cumulative deficit is less than the critical threshold (T_c), i.e., the objective drought thresholds being determined in this study. Thus, the Tc becomes the ideal truncation level (threshold) for defining drought occurrence.

$$Drought=D_i-T_c$$

(21)

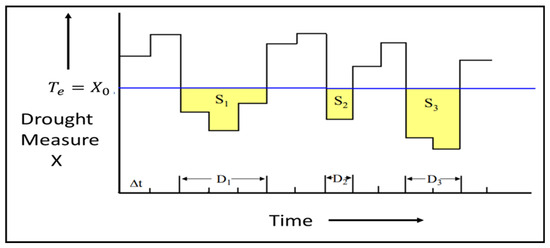

Thus, once $T_c$ is determined, each period for which X < $T_c$ constitutes a “drought” and each “drought” is characterized by the following:

(a) Duration (D) is defined as length of period for which X < $T_c$;

(b) Severity (S) is defined as cumulative deviation from $T_c$;

(c) Intensity (or magnitude) (I) is defined as S/D.

2.4.8. NBDM as Visual Basic Application-Driven Drought Early Warning System (DEWS)

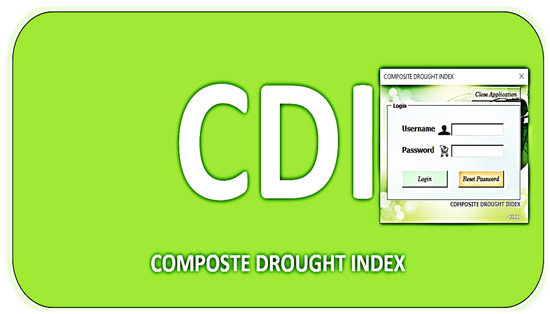

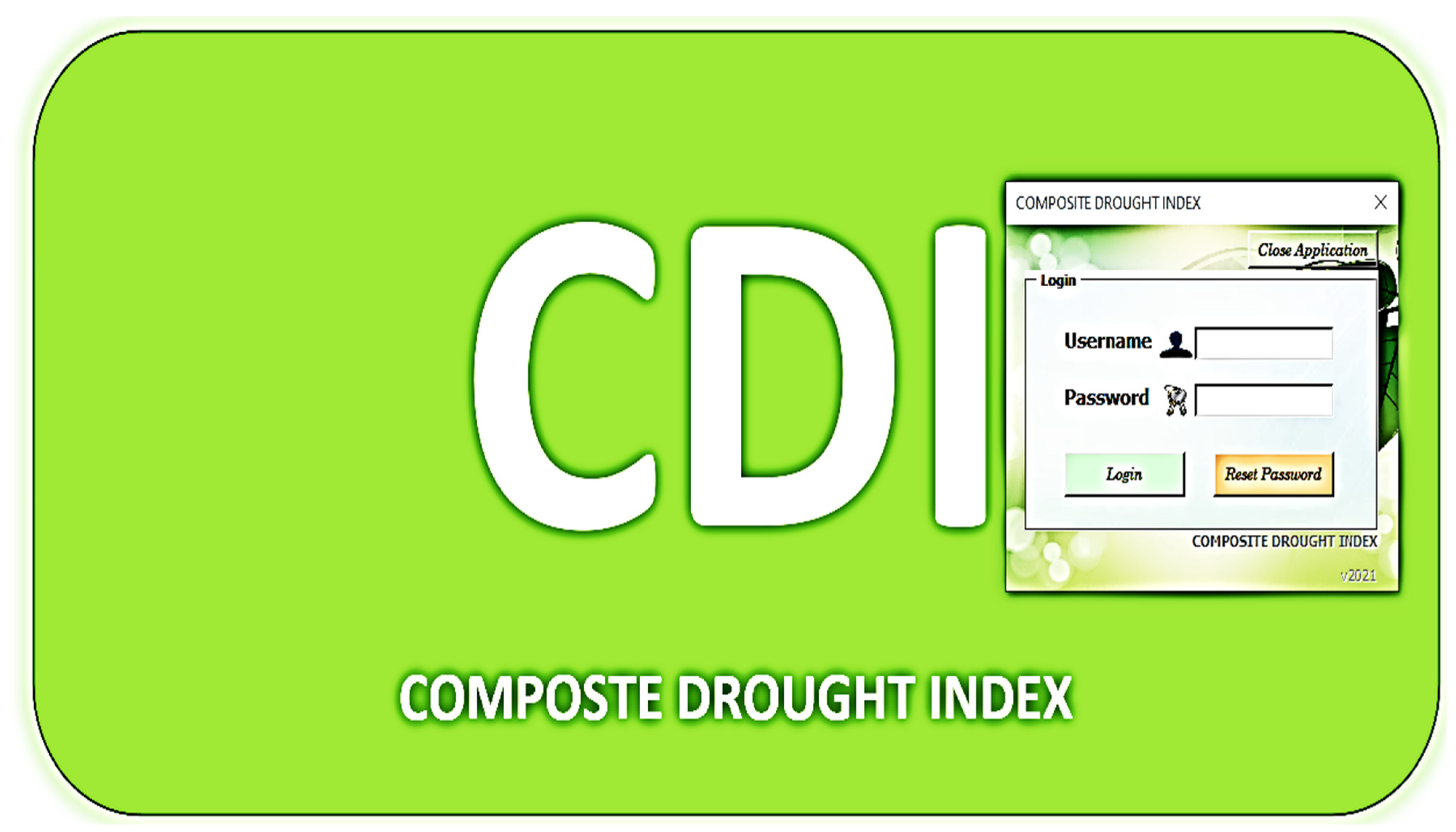

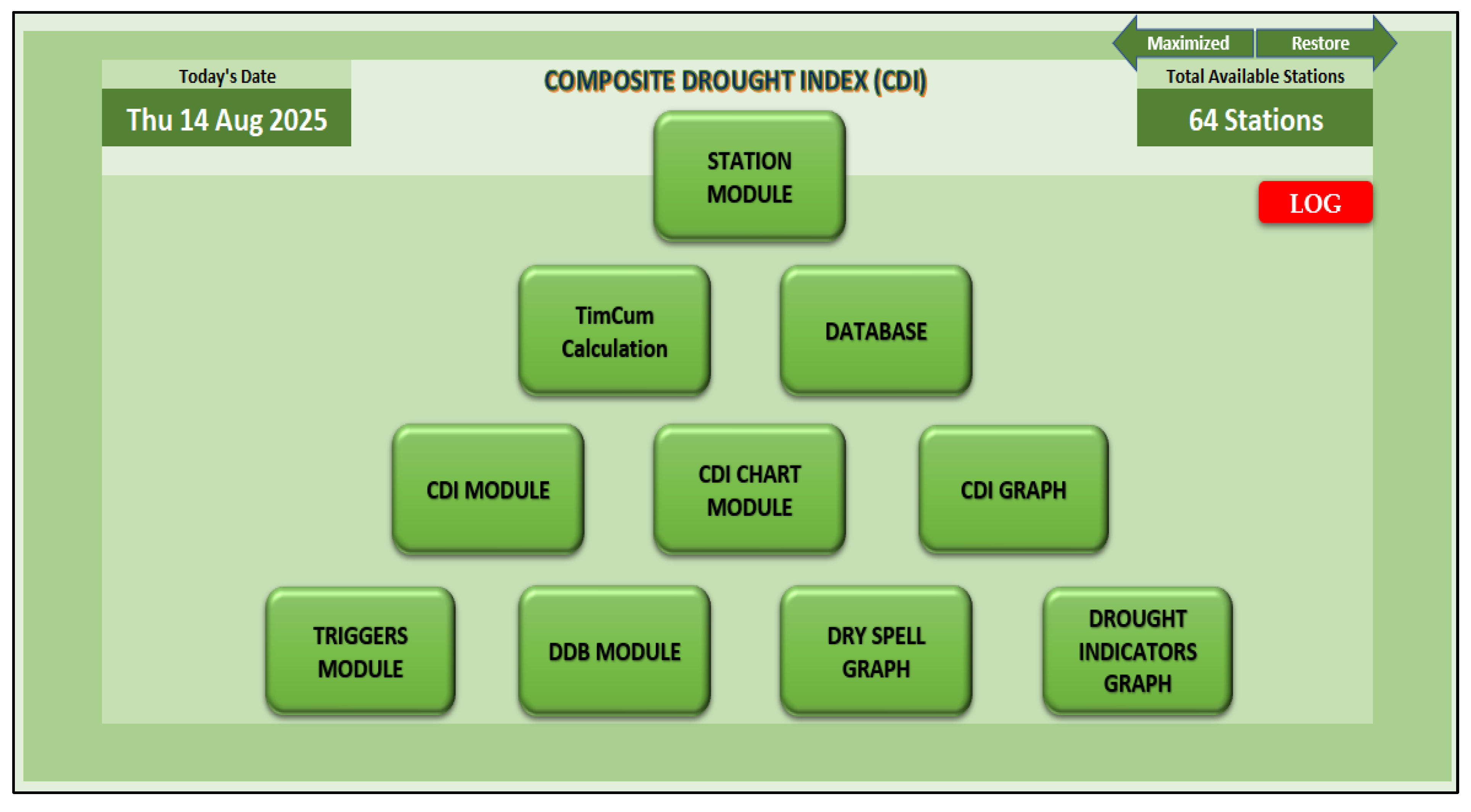

To seamlessly operate NBDM represented as DREM, a hybrid drought monitoring and earning system tool, Microsoft Excel Visual Basic Application (VBA) program 7.1 was used to execute and connect all the various modules that are involved in computational tasks. The VBA programming language was selected because in the DREM application for the computation of the CDI it required several macros of writing to handle different aspects of the application tasks [136]. Usually, the rule is, when developing an Excel-based application that will span several worksheets, that it is advisable to use macro to handle several procedures rather than writing formulas in the Excel cells. Normally, when a new value is entered into a worksheet cell, Excel will recalculate all the cells that refer to it. If the macro is writing values into the worksheet, VBA will need to wait until the worksheet is performed with recalculating each entry before it can resume. Hence, it is advisable to use VBA when one needs to accomplish tedious tasks such as those involved in this study [136,137]. With VBA therefore, even if the CDI database grows bigger and heavier it will still run fast since there are no Excel formulas written inside cells. Microsoft also adds a lot of code at the background for VB projects to make them easier for any coder.

2.4.9. Evaluation of Performance of NBDM Outputs

The NBDM performance was evaluated against SEPI, SMI, SFI, and Normalized Difference Vegetation Index (NDVI). The performance evaluations were based on exploratory data analysis and use of some statistical tools, which include Mean Absolute Error (MAE), Coefficient of Determination (R²), Nash Sutcliff Efficiency (NSE), Percent Bias (PBias), and Index of Agreement (d).

3. Results and Discussion

3.1. Model Development Outputs

Niger Basin Drought Monitor represented as Drought Resilience Empirical Model (DREM) has been developed as a hybrid composite drought index (CDI) for defining and concurrent monitoring of the different aspects and biophysical forms of drought and the characterization of historical droughts. The DREM’s Login interface, Menu interface, output format, and typical CDIs generated results using DREM are all displayed in Figure 9, Figure 10 and Figure 11, respectively. The Login user interface is for inputting the user’s ID to ensure that user’s information and work are secure. The Menu interface shows the various functionalities and computations that could be performed using DREM including the display of number of stations in the database and date a particular task was carried out. Hence, it is an interface where the user can select any task to be executed by DREM. The format of the CDI output from DREM is shown in Figure 11, and drought occurrence is detected on monthly basis and the category of the severity of drought identified shown using colored codes—whether it is moderate (MOD DRGT), severe (SEV DRGT), extreme (EXTR DRGT), or exceptional (EXCPT DRGT) drought.

3.2. Thresholds and Detection of Drought Onset and Cessation

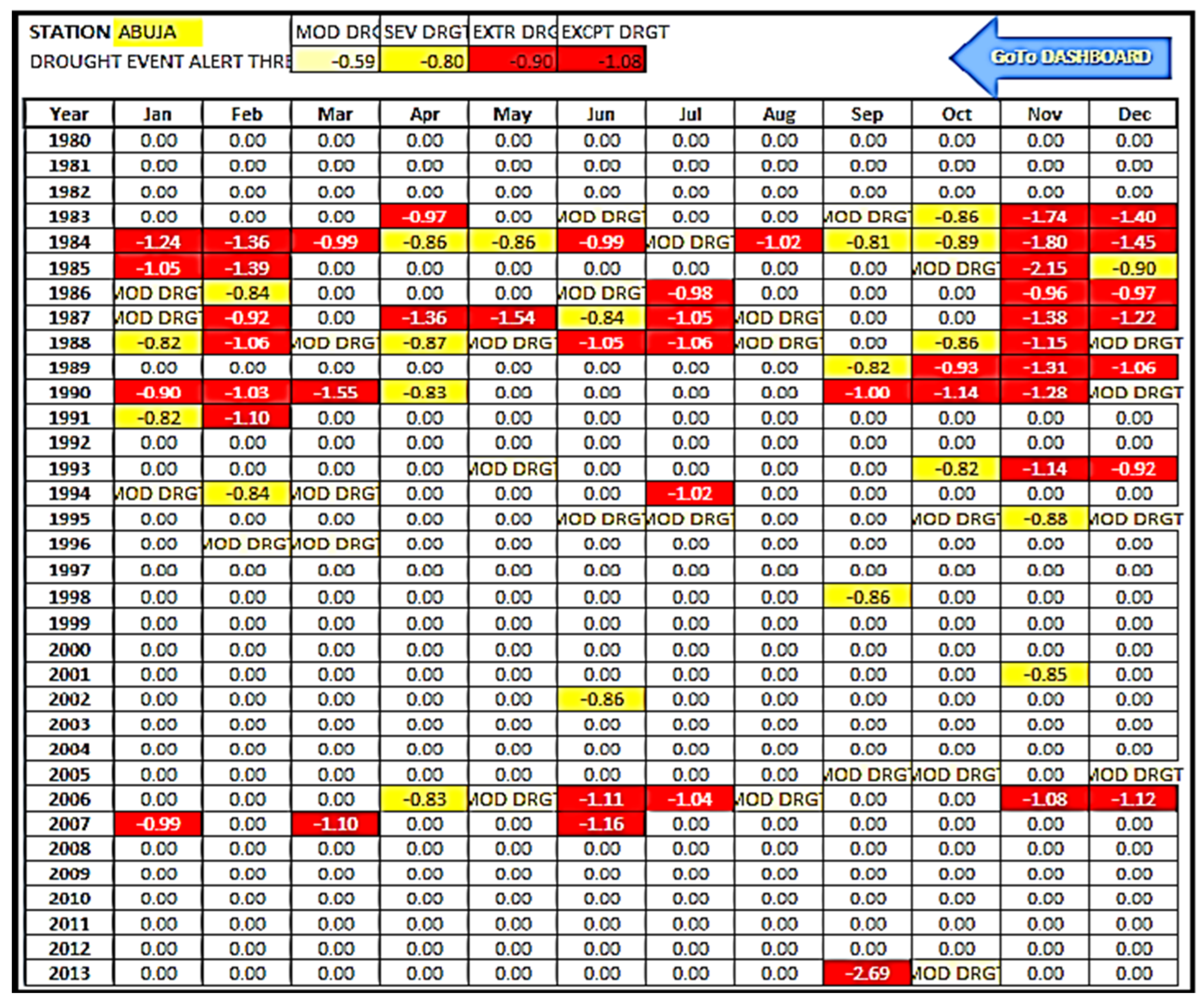

To identify the occurrence of drought events in the study region, CDI thresholds were computed using DREM which were in the range −0.26 to −1.19, −0.42 to −1.60, −0.58 to −1.76, and −0.73 to −1.96. The index-based thresholds were computed corresponding to the established precipitation deficit percentiles defining drought occurrence at each location in the study region, that is, 20th, 10th, 5th, and 2nd percentiles representing moderate (D1), severe (D2), extreme (D3), and exceptional (D4) drought, respectively, which are also distinguished by color codes. Thus, to concurrently monitor the different aspects of drought, namely, meteorological, agricultural, and hydrological drought in different socio-economic sectors of the Niger Basin, DREM defines and identifies the onset of drought of moderate intensity when the CDI values fall below the threshold range of −0.26 to −1.19 over a period of three consecutive months depending on the location. However, when it comes to knowing drought cessation over an area, DREM computed CDI values were in the range of thresholds of −0.08 to −0.82 depending on the location corresponding to precipitation deficits of 30 percentile representing an abnormally dry condition (D0), that is, not yet drought. Normally, D0 is a “heads-up” stage, which is simply saying two things. First, it says “pay attention, because if it stays dry, the region or area could slide into a real drought” represented as D1, D2, D3, or D4 depending on the severity. Second, it can also mean the area is just coming out of a drought, but the soil and water supply have not fully recovered yet. Possible physical signs could be grass turning brown early, small streams low, early stress on crops, and need for more watering.

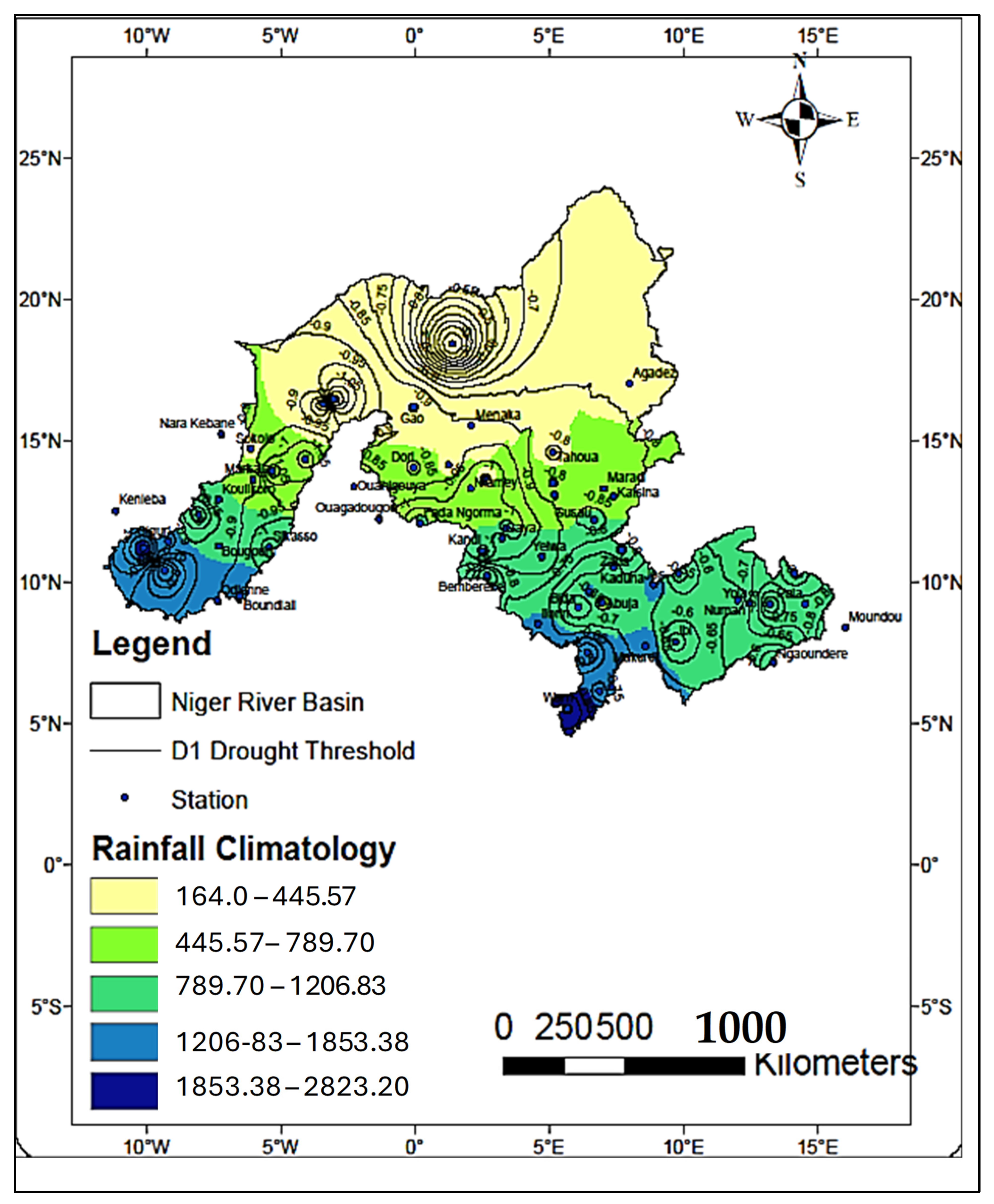

Furthermore, for easy identification of drought threshold at any location within the basin, for moderate drought severity level, the spatial distribution of the moderate drought level threshold (D1) was computed and is depicted in Figure 12. It defines the 20th percentile precipitation deficits relative to the climatology of the basin. This is with the view that being able to recognize emerging drought, or knowing whether drought is over, entails understanding what is normal for a given location or season (https://droughtmonitor.unl.edu/data/docs/USDM_brochure.pdf, accessed on 4 January 2026). The corresponding index-based thresholds for initiation or onset of drought of moderate severity in different locations of the Niger basin are, for example, Bamako (−0.71) Koulikoro (−0.90), Dire (−0.74), Gao (−0.90), Dori (−0.84), Ouagadougou (−0.96), Niamey (−0.98), Tahoua (−0.79), Malaville (−1.04), Kandi (−1.02), Abuja (−0.64), Makurdi (−0.69), Numan (−0.59), and Yola (−0.70). Thus, there are variations in the drought thresholds even within the same sub-basin and country, thereby affirming the fact that drought definition thresholds are always location-specific as asserted by [28]. Additionally, it is observed in the figure that even the same amount of rainfall does not translate to moderate, severe, extreme, or exceptional drought events in different parts of the basin at the same time. This corroborates well with the equiprobability transformation of rainfall distribution in the basin. Further results revealed that relative to the rainfall climatology of the basin, areas with wetter climate require lower drought index threshold values or higher precipitation deficits values to initiate onset of drought, while areas known for drier climate regimes require higher drought index thresholds or lesser precipitation deficits values to define drought events in those regions. By rainfall climatology, it refers to the systematic study of long-term patterns, frequency, intensity, and distribution of rainfall across spatial and temporal scales. Usually, rainfall climatology integrates multi-decadal observations, atmospheric dynamics, and statistical methods to characterize the spatial and temporal patterns of rainfall. Therefore, understanding these patterns and their evolution is crucial for climate science, environmental management, and societal resilience to hydroclimatic extremes [138,139,140,141].

3.3. Equiprobability Transformation Analysis for Drought Detection

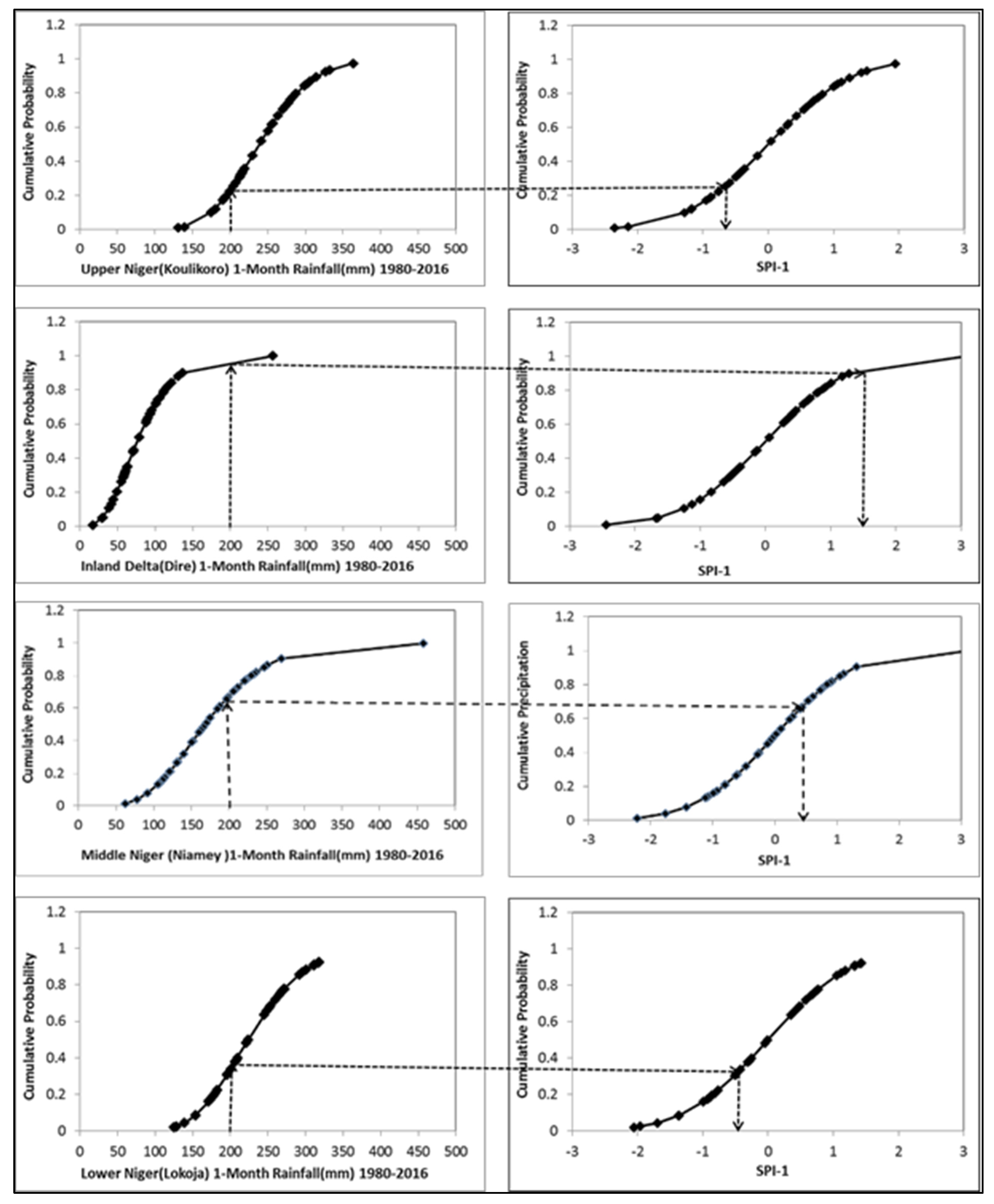

The NBDM-CDI result was further substantiated through an SPI equiprobability transformation analysis of rainfall distribution in the Niger. As evidenced in the conceptual graph in Figure 13, the same amount of August monthly precipitation of 200 mm, for example, produced different index values and cumulative probabilities in different parts of the basin (i.e., Upper Niger, Inland Delta, Middle Niger, and Lower sub-basins).

These SPI values and the cumulative probabilities obtained for each of the sub-basins are −0.765, 2.37, 0.435, and −0.421 and 0.224, 0.960, 0.670, and 0.315, respectively. By implication, drought episodes in different locations of the basin are comparable in space and time, which agrees very well with the findings over United States by [142]. It, therefore, demonstrates one of the strengths of application of SPI metrics in drought management analysis. The consequence of the result is that farmers in different parts of the basin will experience differently the effects of the same amount of rainfall. Thus, the use of varying drought thresholds remains critical for objective drought identification and planning in the Niger River Basin.

3.4. Spatial Characteristics of the Major Droughts of 1980s in the Niger Basin

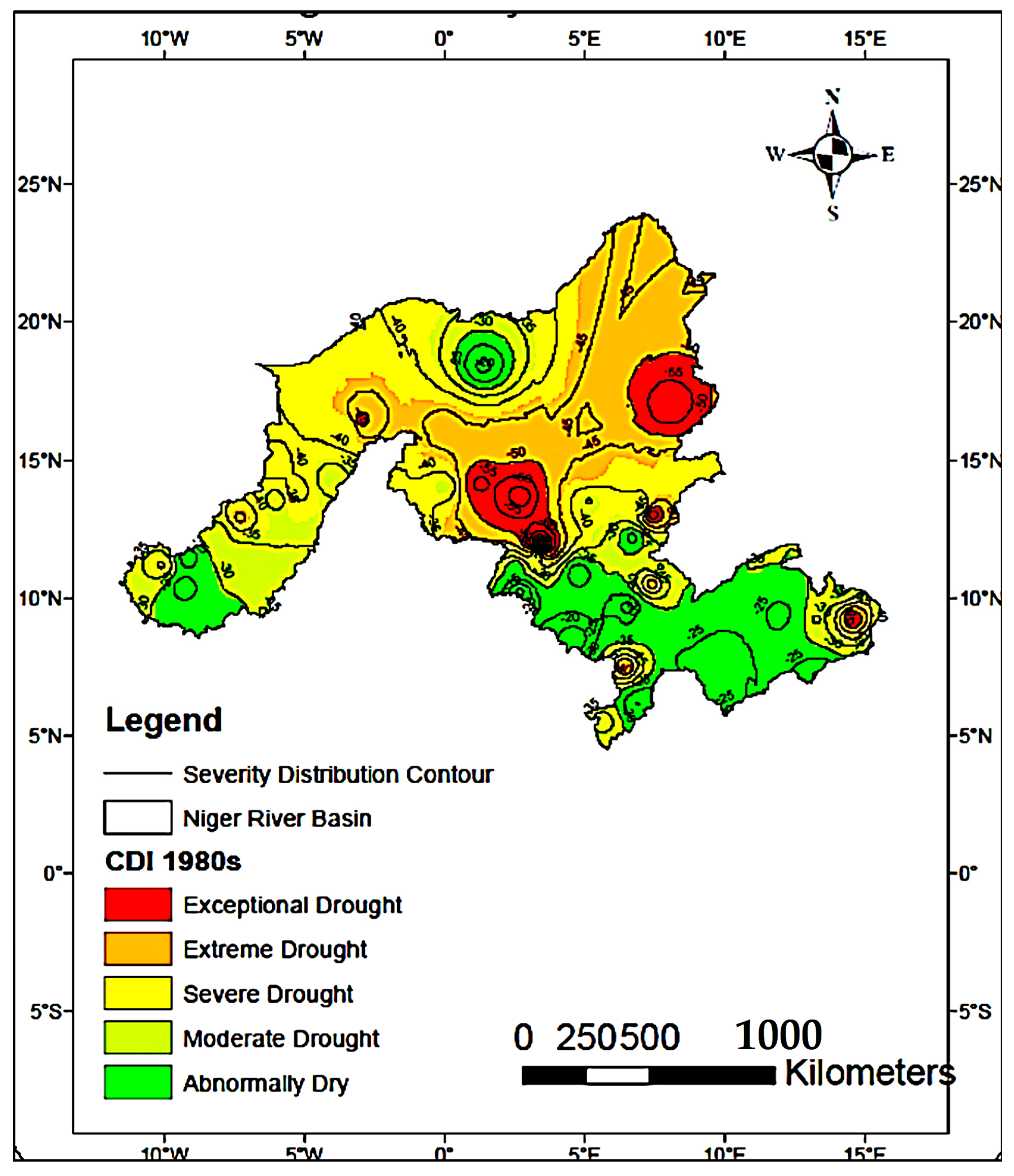

The result of the capability of NBDM to reproduce the occurrence of the well-known drought-induced famine in the Niger Basin revealed through spatial analysis that during the 1980s period, a large portion of the Middle Niger and Inland Delta sub-basins were under extreme to exceptional drought conditions, while most other parts of the Upper Niger and Lower sub-basins within the rain forest climatic zones were under moderate drought conditions as shown in Figure 14. Additionally, relative to the univariate or single indicator subjective drought threshold proposed by [26] and the objective SPI-based thresholds established in this study, the NBDM-CDI-based drought thresholds are higher values and would require lesser cumulative precipitation deficits to be attained, as shown in Table 2. So, on average, across the whole basin, the NBDM-CDI-based thresholds are higher (requiring smaller precipitation deficits) than single variable SPI-based ones, because the NBDM-CDI are designed based on multi-indicator approach. It incorporates soil moisture and streamflow as inputs. As a result, CDI flags drought with less rainfall deficit than SPI alone. Additionally, the NBDM-CDI allows for a holistic view of drought conditions [143]. This makes it particularly useful for decision-making, as it captures not only meteorological deficits but also hydrological and agricultural impacts.

3.5. Effectiveness in Early Detection and Cessation of Drought

The CDI threshold values are the bold figures highlighted in

Table 3. Comparison between the subjective and objective drought definition thresholds (SPI and CDI).

Category	Subjective Threshold	Objective Indices	Upper Niger (Koulikoro)	Inland Delta (Dire)	Middle Niger (Niamey)	Lower Niger (Lokoja)
Mild Drought/Abn Dry	0 to −0.99	SPI	(−0.49 to −0.78)	(−0.39 to −0.83)	(−0.59 to −0.74)	(−0.45 to −0.84)
		CDI	(−0.43 to −0.81)	(−0.48 to −0.81)	(−0.08 to −0.82)	(−0.32 to −0.69)
Moderate Drought	(−1.0 to −1.49)	SPI	(−0.79 to −1.32)	(−0.84 to −1.34)	(−0.75 to −1.34)	(−0.85 to − 1.25)
		CDI	(−0.64 to −1.11)	(−0.72 to −1.08)	(−0.26 to −1.19)	(−0.56 to −0.99)
Severe Drought	(−1.50 to−1.99)	SPI	(−1.33 to −1.76)	(−1.35 to −1.50	(−1.35 to −1.71)	(−1.26 to −1.49)
		CDI	(−0.91 to −1.39)	(−0.99 to −1.45)	(−0.42 to −1.60)	(−0.94 to −1.72)
Extreme Drought	<−2.0	SPI	(−177 to − 1.81)	(−1.51 to −1.63)	(−1.72 to −1.86)	(−1.50 to −1.77)
		CDI	(−1.09 to −1.58)	(−1.14 to −1.69)	(−0.58 to −1.76)	(−1.52 to −1.67)
Exceptional Drought		SPI
		CDI	(−1.32 to −1.79)	(−1.28 to −1.85)	(−0.73 to −1.87)	(−1.12 to −1.96)

. With CDI-based thresholds established in this study, research findings reveal that impending drought events or outbreak of drought would be detected earlier, faster, and more accurately than the SPI-based objective thresholds and much earlier than the SPI-based subjective thresholds from the literature developed by [27] that will require more precipitation deficits. The same holds for the cessation of drought in the region. The study findings are in consistent with the results of [144] over India, where the CDI was found to provide a more accurate reflection of crop stress than SPI alone. According to the authors, the Indian Meteorological Department tested the CDI by integrating rainfall, soil moisture, and vegetation indices to improve monitoring of agricultural droughts in states such as Maharashtra. Similarly, over China, ref. [145] developed a CDI by integrating soil moisture and evapotranspiration data for northern China. The CDI captured agricultural drought impacts better than SPI, especially during high-temperature summers. In the Sahelian region of West Africa, SPI sometimes identifies drought even when irrigated agriculture maintains stable crop yields, highlighting its limitations [146]. Likewise, ref. [28] in their study over Europe posited that SPI may indicate drought even when impacts are mitigated by irrigation or groundwater, something composite indices such as the USDM would account for.

However, in the United States, scientific studies consistently show that SPI is more effective in detecting drought onset, especially short-term agricultural and meteorological droughts [147]. Its simplicity and sensitivity to rainfall deficits allow it to signal early warnings before broader impacts manifest. On the contrary, SPI struggles with drought cessation detection, as recovery in precipitation does not always align with soil moisture or hydrological recovery. Also, in 2017 for example, parts of the Northern Plains of United States experienced a flash drought. But SPI alone failed to detect the early onset, because rainfall deficits were minor, but USDM captured rapid soil moisture depletion, proving more effective for early warning [148]. In addition, the USDM was also found to be more effective in monitoring drought persistence and cessation, as it integrates soil moisture, streamflow, and other factors that reflect recovery more accurately [40,148]. According to [149] USDM provides a more accurate picture of drought recovery, since it considers lagging indicators like groundwater and vegetation health, whereas SPI may signal recovery as soon as rainfall resumes, but this can be misleading if soil moisture or hydrology remain stressed. For example, in California’s 2012–2016 drought, SPI signaled recovery earlier than reality, while USDM correctly indicated ongoing hydrological stress [150]. Generally, SPI is more effective for rapid, rainfall-driven drought onset detection, especially in data-sparse regions such as West Africa, because it detects rainfall anomalies quickly, thereby making it effective for meteorological drought onset [26]. However, CDI is more accurate for drought persistence and cessation monitoring, particularly in agricultural systems and regions where evapotranspiration plays a major role, such as West African region, because it detects drought onset more reliably than SPI, when temperature and evapotranspiration drive soil moisture stress, even without rainfall deficits [147,148].

3.6. NBDM-CDI Performance Evaluation

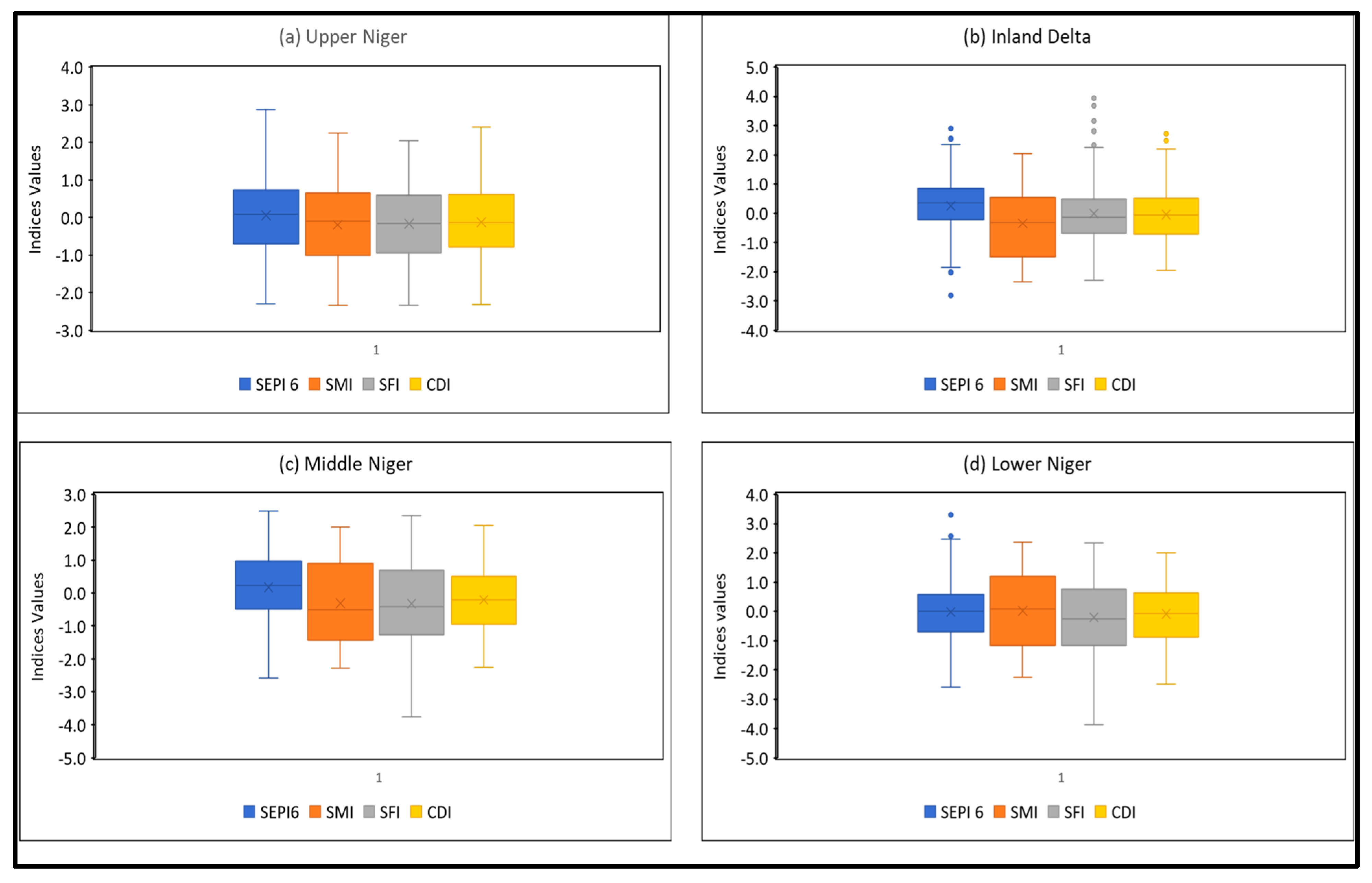

The NBDM CDI-based time series performance was evaluated sub-basin-wise, based on the ability of the CDI to reproduce the meteorological, agricultural, and hydrological drought conditions represented by SEPI 6-month timescale, soil moisture index (SMI), and streamflow index (SFI), respectively. The result of the exploratory data analysis obtained based on the Coefficient of Determination (R²) for example showed that CDI can explain about 70%, 84%, and 92% of variances in SEPI 6-month, SMI, and SFI, respectively, over the Upper Niger sub-basin, as shown in

Table 4. DREM CDI model performance evaluation.

Sub-Basin	Index Models	R2	NSE	PBIAS	MAE	d
Upper Niger	SEPI	0.701	0.776	−0.374	0.322	0.906
	SMI	0.842	0.946	0.169	0.239	0.953
	SFI	0.922	0.977	0.071	0.149	0.978
Inland Delta	SEPI	0.477	−0.146	−2.200	0.546	0.800
	SMI	0.655	0.721	0.516	0.846	0.844
	SFI	0.683	0.928	−0.070	0.165	0.898
Middle Niger	SEPI	0.501	−0.377	−1.601	0.681	0.816
	SMI	0.744	0.889	0.278	0.418	0.914
	SFI	0.790	0.935	0.234	0.332	0.932
Lower Niger	SEPI	0.501	0.864	−0.305	0.235	0.839
	SMI	0.698	0.906	0.286	0.380	0.890
	SFI	0.736	0.899	0.302	0.412	0.910

.

Further results based on other statistical evaluation analyses showed strong agreement between DREM-CDI values and SEPI, SMI, and SFI representing meteorological, agricultural, and hydrological drought indicators, respectively. Especially, stronger agreement exists with soil moisture (SMI) and streamflow (SFI) over the Upper Niger, Middle Niger, and Lower Niger sub-basins, where the Nash Sutcliff Efficiency (NSE) values were 0.946 and 0.922, 0.889 and 0.935, and 0.864 and 0.906, respectively, and Index of Agreement (d) values were 0.953 and 0.978, 0.914 and 0.932, and 0.890 and 0.910, respectively, thereby making DREM a suitable Niger Basin Drought Monitor abd an effective early warning tool decision-makers that stakeholders can trust and rely upon for effective management of drought in the basin. Other results of the statistical tools used, namely, Mean Absolute Error (MAE) and Percent Bias (PBias), are shown in Table 3.

The DREM CDI tool has therefore proven to have the capability to simultaneously track meteorological drought (if measured using SEPI), agricultural drought (if measured using SMI), and hydrological drought (if measured using SFI) at a minimal error. Thus, it can serve as an all-purpose useful tool for concurrent monitoring and early warnings of impending different aspects of drought hazards in the Niger Basin.

3.7. Validation of Performance of NBDM CDI

To ascertain the suitability of the NBDM represented as Drought Resilience Empirical Model (DREM) as a decision-support tool, the composite drought index (CDI) was validated country-wise against historical drought records from the EM-DAT/UN-FAO chronology database and ENSO-related drought years from the International Research Institute (IRI) for the nine Niger Basin countries (1980–2016). Drought years were identified or defined when CDI values fell at or below established objective thresholds. Validation measured agreement between CDI-defined droughts and historical events was expressed as hit/success rates. Results displayed in

Table 5. Country-wise NBDM CDI performance validation.

Country	Drought Chronology Success Rate (%)	ENSO Success Rate (%)
Cameroun	100	69
Chad	89	62
Nigeria	85	69
Niger	75	62
Benin	100	62
Burkina Faso	100	62
Cote d’Ivoire	100	62
Guinea	67	77
Mali	100	62

showed 67–100% success with historical drought events captured by NBDM CDI and 62–77% with ENSO-related droughts captured by NBDM CDI. The strong agreement and high success rate of the DREM-CDI outputs with ENSO-induced droughts align with the findings of [151] on the 2023 West African drought and its link to food insecurity. Typically, farmers anticipate rainfall in early April to begin the planting season. However, the 2023 drought brought early rains in March, followed by high temperatures, reduced precipitation, and vegetation loss between April and June. These conditions, driven by ENSO and amplified by global temperature rise and Atlantic circulation, disrupted the agricultural cycle and heightened food insecurity across West Africa.

The strong performance of NBDM CDI and its ability to further distinguish dry spells from genuine droughts suggest it is more practical and objective than indices using subjective thresholds to define drought events, making it highly suitable for drought alert triggers, decision-making, and early warning in the Niger Basin.

Further, the NBDM CDI time series was validated sub-basin-wise against the Standardized NDVI (SNDVI). Correlations ranged from –0.231 to 0.522, with negative values over Niamey, a semi-arid region influenced by microclimatic changes due to the Kandaji Dam. Since CDI is temperature-related and NDVI is sensitive to air temperature, especially during summer or warm months of the year (April–October), then, negative correlations are expected [152,153]. High temperatures increase evapotranspiration and reduce soil moisture and vegetation vigor, which in turn lowers NDVI [154,155]. This confirms the close relationship between soil moisture and vegetation health in arid and semi-arid areas [152].

In terms of potential limitations, the NBDM-CDI requires multiple reliable datasets, such as soil moisture and streamflow datasets that are often lacking in developing regions such as West Africa. In constructing the NBDM OBDDDI, I had to rely on reanalysis datasets. Also, it is region-specific, with weights assigned to the input components based on local conditions and data availability. So, the weighting of components can vary, leading to inconsistent results across studies, especially if the region outside its region of development is more vulnerable to agricultural drought than hydrological drought. Additionally, in terms of calibration and validation, both historical drought event comparison and remote sensing validation approaches were used which may potentially have some limitations. For instance, the approaches are dependent on quality of historical drought records, which may be incomplete or subjective and the NDVI Satellite data, which may be influenced by non-drought factors (e.g., pests, land-use changes), respectively. Moreover, while composite indices can capture drought complexly, they can also mask individual drought signals unlike the single-variable-based indices. The robustness of the new CDI (i.e., NBDM) as an operational all-in-one early warning tool was examined by comparing the statistical properties of the blended indices (a) Meteorological Drought Index (SEPI 6-month), (b) Agricultural Drought Index (SMI) (c) Hydrological Drought Index (SFI), and (d) composite drought index (CDI) using a boxplot analysis. The result shown in Figure 15 showed that the NBDM captured well the variations in the respective input drought indices, as well as the extent and strength of the relationship existing among them.

3.8. Comparison Between NBDM, USDM, and China CDI

In comparison to the USDM OBDI, the NBDM OBDDBI is computed at a station-level (finite resolution) with minimal complexity and subjectivity. NBDM has minimal subjectivity. Its construction combines subjective community-level vulnerability datasets (e.g., income, migration, dependence on rainfed agriculture, yield losses) collected through research questionnaire instruments and used mainly for weighting indicators, with minimal objective hydrometeorological indicators, namely, precipitation, soil moisture, and streamflow. This makes it applicable in regions highly vulnerable to hydrological and agricultural drought. The NBDM OBDDBI is scalable and replicable just like SPI, as it can be applied at local or station, regional, or global scales with consistent methodology, though further verification is needed.

By contrast, the USDM is more flexible, in the sense that any number of inputs can be used, integrating up to 40–50 inputs that include objective hydrometeorological datasets and subjective sources such as expert judgment, farmer/community impact reports, citizen science observations, and local agency input. This wide input base makes USDM highly robust and adaptable to diverse user needs but also more complex and subjective [156]. The USDM is a weekly, expert-blend product that emphasizes confirmed impacts and local reports, which makes it credible but it typically yields less pure lead time than automated indicator-first systems. In fact, study has been shown that soil moisture observations consistently identify rapid-onset drought events earlier than the U.S. Drought Monitor [157]. The authors observed that soil moisture percentiles provide a 2–3-week lead time over the U.S. Drought Monitor. In terms of temporal scale, the USDM is issued weekly but can be adapted for monthly use. However, when fewer inputs are available, its robustness weakens, though it remains functional. Spatially, USDM OBDI values are computed at a climate-division level (coarser resolution), aimed at consistently assessing drought severity across multiple timescales [157,158]. Further results shown in

Table 6. Comparison of the drought magnitude category thresholds of the NBDM, USDM, and China CDI.

Category	Drought Condition	Percentile Chance	USDM	China CDI	NBDM
D0	Abn. Dry	20 to ≤30	(−1.42 to −0.95)	(−1.2 to −0.6)	(−1.19 to −0.82)
D1	Moderate	10 to ≤20	(−1.90 to −1.42)	(−1.8 to −1.2)	(−1.60 to −1.19)
D2	Severe	5 to ≤10	(−2.14 to −1.90)	(−2.4 to −1.8)	(−1.76 to −1.60)
D3	Extreme	2 to ≤5	(−2.28 to −2.14)	≤−2.4	(−1.96 to −1.76)
D4	Exceptional	≤2	≤−2.28		≤−1.96

revealed that NBDM based on the established drought magnitude category thresholds has the capability to detect an impending drought event or outbreak much earlier, faster, and more accurately than USDM and China meteorological composite index (China CDI). For example, for drought magnitude level with 20th percentile chance of occurring, that is, moderate drought intensity, NBDM detects it with higher drought thresholds of range −1.60 to −1.19. On the contrary, the China CDI and USDM detect the same drought level with lower thresholds of −1.8 to −1.2 and −1.90 to −1.42, respectively. To implement this comparison, the USDM drought category percentile chance threshold was first standardized using the Normal Curve Equivalent (NCE) technique. By implication, NBDM will require lesser or lower cumulative precipitation deficits for the thresholds to be attained and will detect drought initiation much earlier compared to the China CDI and USDM thresholds that will require more or higher cumulative precipitation deficits before being attained. The findings are also in agreement with results of earlier studies [4,158,159].

Arguably, the findings of this study, which also align with the findings of [157], have shown that careful selection and blending of 2–4 right indicators that adequately represent the key components of the hydrological cycle such as precipitation, evapotranspiration, soil moisture, and streamflow or even less can give a better result in terms of early drought detection than the more complicated and heavy data demanding composite indices.

Although data constraints in the study region are acknowledged, however, in terms of future research, there may be need to consider the following areas. These may include, for example, validating NBDM CDI with ground observations or extending the study period to more recent years to strengthen the study outcome and conclusions. Another area for further research consideration is in verification and validation of the scalability of the NBDM OBDDBI.

4. Conclusions

Drought remains one of the most persistent and damaging climate-related hazards in the Niger River Basin, where its cascading impacts across meteorological, agricultural, and hydrological systems continue to undermine livelihoods, water security, ecological stability, and regional development. Despite decades of research and the availability of more than 150 drought indices, current drought monitoring practices in the Basin remain largely univariate, fragmented, and insufficient for capturing the full spectrum of drought propagation. This limitation, compounded by the region’s high climatic vulnerability, weak early-warning infrastructure, and growing exposure to climate-induced extremes, continues to leave communities and institutions without timely or actionable information.

In response to these challenges, this study develops the Objective Blend of Burden of Drought Index (OBBDI), a composite, index-based early-warning framework designed to concurrently diagnose meteorological, agricultural, and hydrological drought conditions across the Basin. By integrating multiple drought indicators through empirically derived weights based on the relative burden imposed by each drought type, the OBBDI provides a holistic representation of drought evolution and propagation across the hydrologic cycle. The model’s linear formulation allows clear interpretation, operational simplicity, and adaptability while maximizing the information content embedded in diverse drought signals.

The OBBDI/Niger Basin Drought Monitor (NBDM) establishes a foundation for an objective, basin-wide early-warning system capable of identifying drought severity category transition thresholds, an essential advancement for anticipatory planning and climate risk management. By enabling simultaneous tracking of multiple drought dimensions, this model addresses longstanding deficiencies in existing monitoring systems and advances the Basin toward a more proactive, data-driven, and resilient drought management architecture.

The NBDM framework represents a significant step toward harmonizing drought monitoring across West Africa. Also, it offers decision-makers, farmers, water-resource managers, and regional institutions a more reliable basis for preparedness, mitigation, and long-term adaptation in an era of intensifying climate variability and change. The key findings, conclusions, and recommendations of this study are the following:

i.

The Niger Basin Drought Monitor (NBDM) has been developed to effectively integrate three hydrometeorological indicators, precipitation, soil moisture, and streamflow to provide a single ‘average’ drought designation at station level with the intent to have a composite drought index (CDI) that captures local drought conditions.

ii.

The percentile rank approach was used to transform first all input datasets into a standardized scale to which drought category thresholds and weights for each individual index were assigned. The CDI-based thresholds of range −0.26 to −1.19 for defining drought of moderate intensities were established and found to be consistently higher than the single variable SPI-based ones, implying earlier detection of any impending drought for a given rainfall deficit.

iii.

In terms of evaluation of the NBDM-CDI, high Nash Sutcliff Efficiency and Index of Agreement values show NBDM-CDI tracks soil moisture and streamflow drought well.

iv.

The model validation showed 67–100% success with historical drought events captured by NBDM-CDI and 62–77% with ENSO-related droughts captured by NBDM-CDI. Also, NBDM-CDI time series were further validated sub-basin-wise against the Standardized NDVI (SNDVI); the result further confirms the close relationship between soil moisture and vegetation health in arid and semi-arid areas.

v.

The NBDM offers a robust all-in-one drought early-warning tool for the basin region and is therefore being recommended for use as drought alert triggers in decision-making and early warning in the Niger Basin.

vi.

Future research directions should include investigating the temporal scaling of the analysis, use of satellite vegetation layers or evapotranspiration products, as well as testing the NBDM model in a variety of climatic situations to assess the model transferability.
