Near-Infrared Phosphorescence of Raman Photogenerated Singlet Oxygen

Abstract

We report on the phosphorescence of singlet oxygen photogenerated through a stimulated Raman process. Nanosecond radiation in the green spectral region focused on hexane and carbon tetrachloride induces a Raman transition of the dissolved solvent oxygen molecules towards the singlet oxygen state, producing a Stokes signal in the near-infrared. The excited oxygen relaxes to the ground, emitting an infrared photon at 1272 nm. While the Stokes signal’s wavelength changes with the light’s wavelength, the wavelength of the phosphorescent photon remains unaltered. The result confirms previous reports on the stimulated Raman excitation of singlet oxygen.

1. Introduction

Singlet oxygen (¹O₂) is a reactive oxygen species (ROS) corresponding to the first excited electronic state of molecular oxygen. ¹O₂ is highly electrophilic. This property is the basis for its broad use in inactivating bacteria [1], viruses [2], and fungi [3]; the photodynamic treatment of cancer [4]; protein studies [5]; and environmental conservation [6], among other remarkable applications in photochemistry, photobiology, and photomedicine [7]. Photosensitizing is the standard procedure for its production. A photosensitizer absorbs energy from visible photons and retransmits it toward surrounding oxygen molecules through a radiation-less relaxation process, exciting the ¹O₂ state. The procedure adds complexity and undesirable secondary effects, such as excessive long-lasting photosensitivity and phototoxicity.

We have recently described a new approach that does not require photosensitizers based on the stimulated Raman effects [8,9]. Nanosecond laser radiation in the blue spectral region induces ¹O₂ Raman excitation, emitting a Stokes component in the red spectral region. In this work, we validate the finding demonstrating ¹O₂ Raman photogeneration by directly detecting its phosphorescence. ¹O₂ exhibits a weak phosphorescence in the near-infrared (NIR) around 1268–1275 nm, corresponding to its relaxation toward the ground state. Krasnovsky reported ¹O₂ phosphorescence as a direct method of its detection in 1976 [10]. Since then, near-infrared luminescence has been widely used as the standard procedure for ¹O₂ identification [11,12,13,14]. NIR high-sensitivity methods are required to register the weak ¹O₂ phosphorescence [15]. Alternative methods for photosensitizer-free ¹O₂ photogeneration have been reported [16,17,18,19,20,21,22,23,24,25]. Different authors have demonstrated direct laser excitation of oxygen in aerated organic solvents at 762 nm and 1269 nm [16,17,18,19,20,21,22]. However, these direct transitions are forbidden by quantum-mechanical selection rules; therefore, the corresponding absorption coefficients are small, resulting in limited efficiency. Bregnhoj and Ogilby studied photosensitizer-free ¹O₂ production through two-photon excitation of oxygen-solvent charge-transfer (CT) states [23]. A complex of two oxygen molecules (dimols) may absorb visible light and then relax toward two ¹O₂ molecules in vibration-excited states without involving a photosensitizer [23,24,25]. Finally, solvent impurities may act as photosensitizers, producing small detectable amounts of ¹O₂. These different mechanisms may compete in the process of visible light ¹O₂ photoexcitation. However, only the Raman effect generates Stokes components directly associated with ¹O₂ excitation [8,9]. Simultaneous detection of the ¹O₂ Stokes components and its phosphorescence around 1269–1275 nm is a good approach to understanding the actual physical origin of the process.

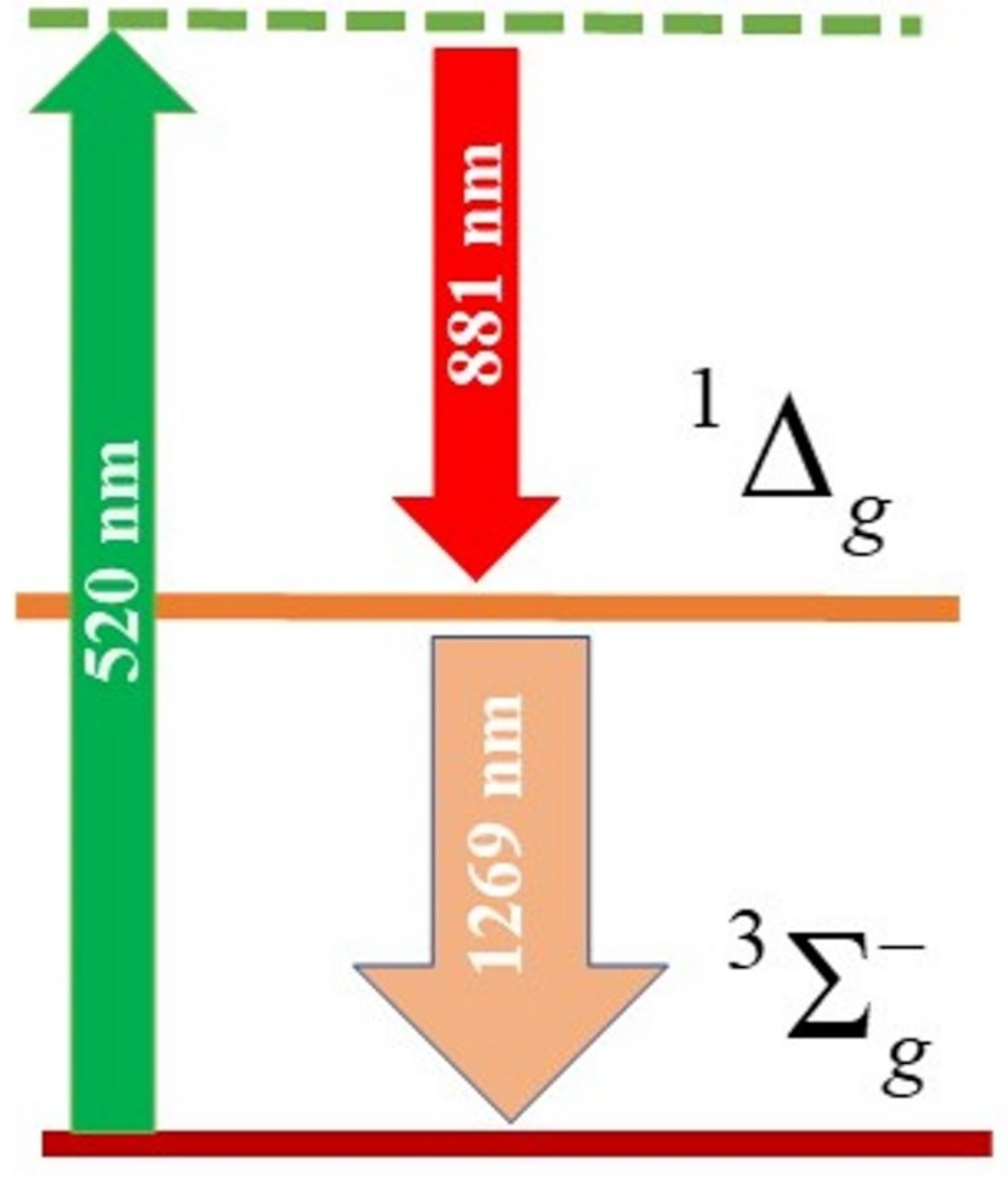

This article describes the NIR phosphorescence detection of Raman photogenerated ¹O₂. The samples used were hexane (C₆H₁₄) and carbon tetrachloride (CCl₄), which contain relatively large dissolved oxygen concentrations [26,27,28]. We irradiate the sample using nanosecond radiation in the green region of the spectra (520–540 nm). We use long-pass glass filters and a double-grating monochromator to remove the contribution from the solvent vibrational modes. A germanium detector detects the NIR signal. The ¹O₂ Stokes component is expected in the 880–940 nm spectral region. Figure 1a shows a schematic of the Raman excitation of oxygen dissolved in the solvent toward the ¹O₂ level and its subsequent phosphorescence emission. The transition occurs between the two lowest electronic states of the oxygen molecule: the ground and the ¹O₂ level. Pumping at 520 nm generates a ¹O₂ Stokes signal at 881 nm through a virtual level (indicated by the dot line in Figure 1a) resulting in the excitation of the ¹O₂ state. The solvent molecules do not participate in the process, although they also produce Stokes components that may overlap with the oxygen response. For example, the second overtone from the solvent stretching mode occurs in the 930–1000 nm region. The position of the Stokes peaks depends on the value of the pumping wavelength, as it corresponds to Raman-generated signals. We detected weak peaks around 1272 nm, which we associate with ¹O₂ phosphorescence. When changing the pump wavelength, the phosphorescence wavelength remains the same within the uncertainties of the experiment, as it corresponds to a luminescence signal. We use this fact as the criterion for identification and separation from the Stokes components.

2. Materials and Methods

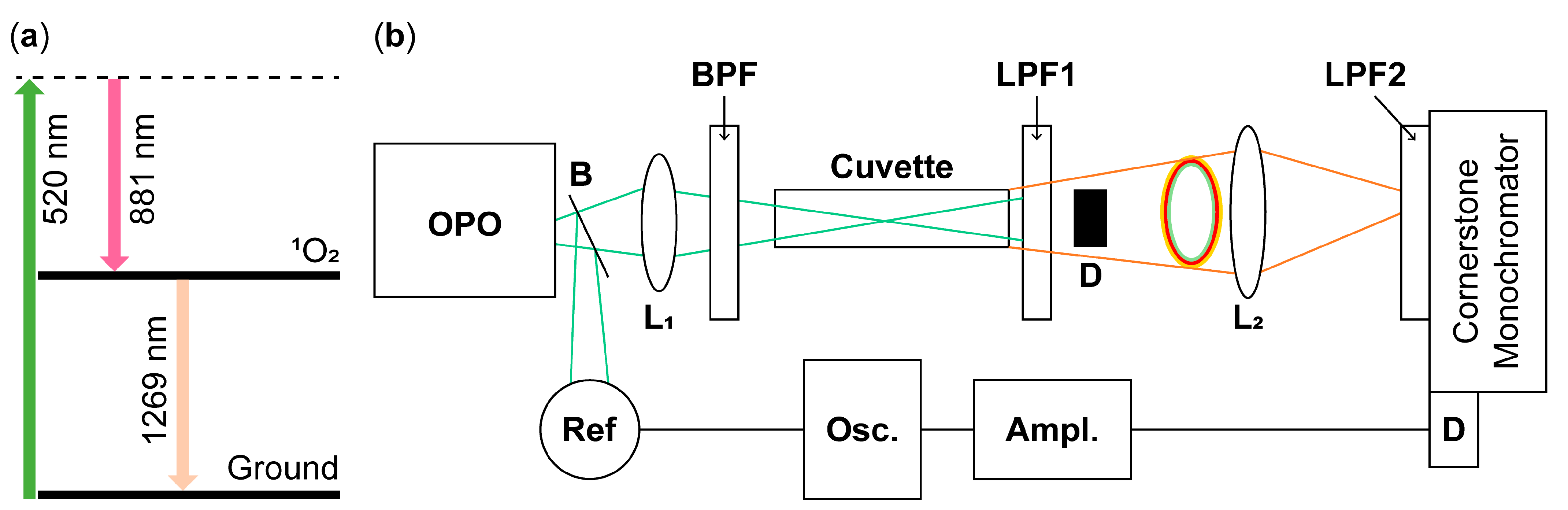

Figure 1b shows a simplified schematic of the experiment. An optical parametric oscillator (OPO, OPOTEK, Carlsbad, CA, USA) provides 5-nanosecond excitation in the blue-green region (490–560 nm) with an average energy per pulse of 20 mJ. A beam splitter B deviates part of the light toward a reference detector. The bandpass filter BPF (375–700 nm) transmits the green radiation and depletes any residual NIR light from the OPO. A 20 cm focal length lens L₁ focuses the pump light onto a 10 cm path-length glass cuvette containing the sample. A long-pass filter (LPF1) with a cut-off wavelength of 610 nm depletes the pumping light and most of the visible (VI) Stokes components of the solvent. Due to Raman nonlinear refraction, the beam transmitted through the sample exhibits a central spot and a colored ring structure. The central spot contains remnants of the pumping light and solvent Stokes contributions, including the weak NIR components. The ring structure also has contributions from the pumping beam and VI Stokes peaks but in lower proportions, providing better conditions for NIR detection. We use the light blocker D to remove the central spot without affecting the ring structure’s light.

The lens L₂ focuses the transmitted ring light into a double grating spectrometer (Cornerstone 260 ¼ m extended range, Newport, Irvine, CA, USA). At the spectrometer’s entrance, we placed a long-pass filter with a cut-on wavelength of 715 nm, which depletes any visible light contribution. An additional long-pass filter with a cut-on wavelength of 1200 nm and a low-pass filter with a cut-on wavelength of 1300 nm are used to detect phosphorescence. The spectrometer performs scans in the region of 800 nm–1100 nm to register the NIR Stokes signals and between 1200 nm and 1300 nm to detect the phosphorescence. The pumping wavelength is kept constant for each spectrum. At the output of the spectrometer, we use a germanium-biased photodiode (Thorlabs DET50B2, Newton, NJ, USA) with a responsivity of around 0.6 A/W in the 1200–1300 region and a rise time of 445 ns. The detector signal is amplified by a current amplifier (SR570, Stanford Research Systems, Stanford, CA, USA) and sent toward a digital oscilloscope (TDS 3052, Tektronix, Beaverton, OR, USA) for averaging and display. The oscilloscope averages 512 pulses, providing a stable signal proportional to the luminescence at the wavelength selected by the spectrometer. The system records luminescence spectra for different pumping wavelengths (410–550 nm). Aerated pure C₆H₁₄ and CCl₄ in 10 cm glass cuvettes were used as samples. As reported previously, the Stokes signals follow the time evolution of the pumping pulse in the nanosecond time frame [9]. The ¹O₂ phosphorescence evolves in the microsecond time frame [29]. The differences in time behavior can be used as another criterion for identifying the signals.

3. Results and Discussion

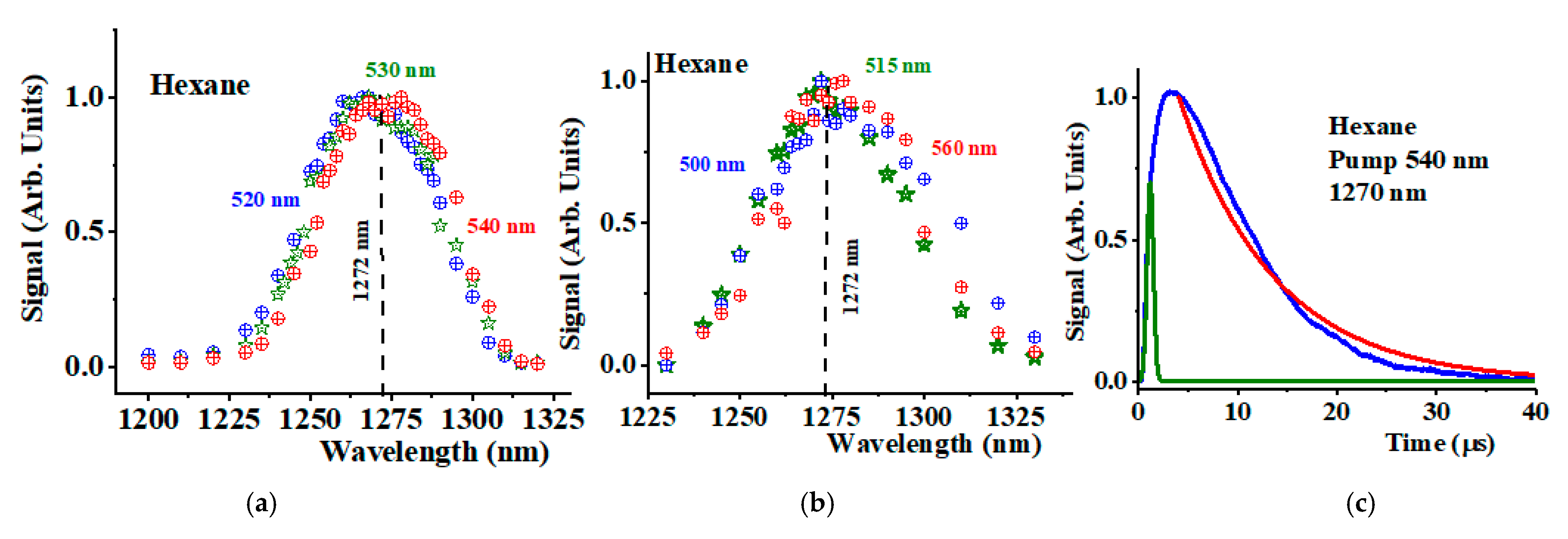

Figure 2a shows the spectra detected in the IR region 1200–1300 nm for the C₆H₁₄ sample when pumping at 520 nm (blue crossed circles), 530 nm (open green stars), and 540 nm (blue crossed squares). The peak corresponds to the ¹O₂ phosphorescence peak at 1272 nm. Figure 2b shows similar spectra completed when pumping at 500 nm, 515 nm, and 560 nm. Within the experimental error, all spectra exhibit a singlet line centered around 1272 nm with a spectral half-width-half-maximum (HWHM) of 20 nm. These values correspond well to the ¹O₂ phosphorescence peak reported for C₆H₁₄ [30].

We compare this peak with the Stokes signals generated by the solvent molecules’ stretching modes and those corresponding to the ¹O₂ photoexcitation. One fundamental difference between these signals is that all Stokes components should shift when shifting the pump wavelength. The ¹O₂ phosphorescence signal must remain around 1272 nm for all pumping wavelengths.

The main source of experimental uncertainties in Figure 2a,b is the contributions from the tail background of the solvent Stokes components and their overtones, which change with the changing pumping wavelength. Figure 2c shows the time dependence of the amplified phosphorescent signal at 1270 nm when pumping at 540 nm. The rise time of the signal occurs in the range of 500 ns as expected from the time response of the Ge detector. The green line represents a direct detection of a 5 ns pulse at 950 nm that illustrates the detector’s rise time. The signal’s tail exhibits a decay time of 22 μs (solid red line in Figure 2c), which is in good agreement with the ¹O₂ decay reported values in C₆H₁₄ [25].

The Raman stretching mode of hexane is around 2940 cm⁻¹. A second overtone of the vibration occurs in the NIR.

Table 1. Wavelengths of the 2nd overtone of the hexane stretching mode, ¹O₂ Stokes, and ¹O₂ phosphorescence for different pump wavelengths.

Pump Wavelength (nm)	2nd Overtone (nm)	1O2 Stokes (nm)	1O2 Phosphorescence (nm)
520	932	879	1272
530	964	908	1272
540	998	938	1272

provides the values of the second overtone of this fundamental solvent vibrational mode when pumping at 520, 530, and 540 nm (see column 2 in Table 1). The third column of the same table shows the expected values of the NIR Stokes components corresponding to ¹O₂ Raman photoexcitation. Due to their proximity and the limited spectrometer’s spectral resolution, both signals combine into a single broad Stokes peak that shifts when the pumping wavelength changes. Meanwhile, the ¹O₂ phosphorescence peak should remain unaltered (fourth column in Table 1). The above experiments confirm this fact.

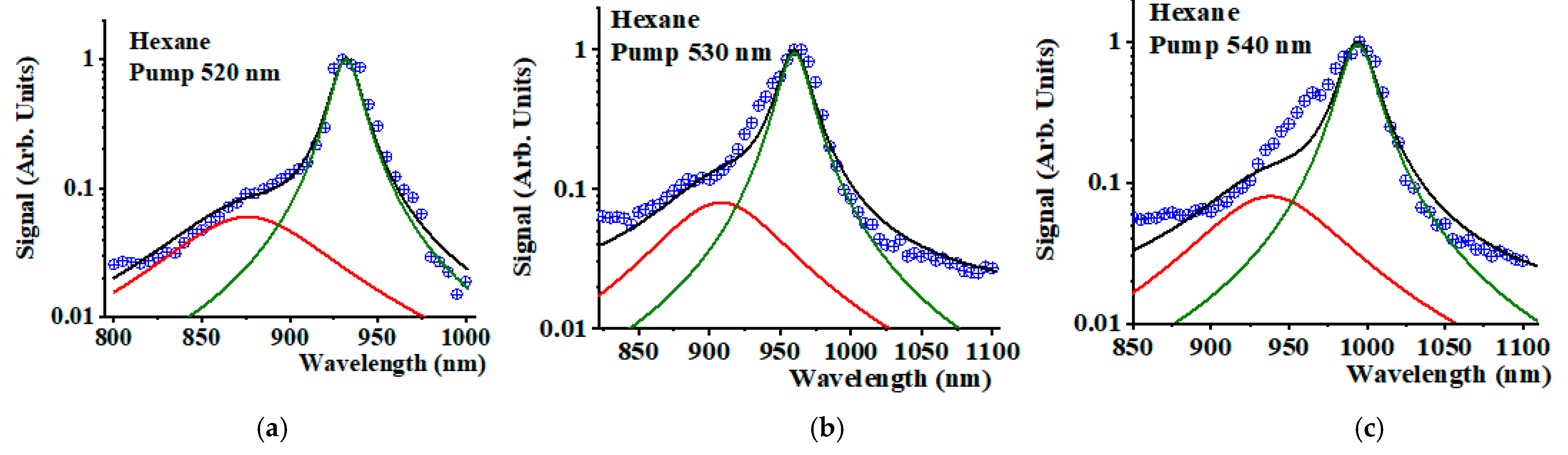

Figure 3 shows the spectra detected (crossed blue circles) in the NIR region 800–1100 nm for the hexane sample when pumping at 500 nm (a), 520 nm (b), and 540 nm (c). We observe a peak that shifts when changing the pumping wavelength corresponding to a Stokes signal. The peaks appear distorted due to the presence of two components. Part of the signal corresponds to the second overtone of the stretching vibration of the solvent molecule. Another part includes contributions from the Stokes signals generated during the ¹O₂ Raman excitation. The black solid lines are an interpretation of the data as the sum of two Lorentzian lines: one centered around the ¹O₂ Stokes signal (see Table 1) with a HWHM of 45 nm (solid red line) and another centered around the solvent second overtone (see Table 1) with an HWHM of 10 nm (solid green line). Figure 3a,b fits this interpretation well. A discrepancy is observed when pumping at 540 nm (Figure 3c). Resonant Raman contributions from oxygen-solvent CT states may provide additional Stokes peaks that distort the final spectrum, adding complexity to the result. Studies using spectroscopic systems with improved resolution are needed to clarify this point. However, this discrepancy does not eliminate the fact that the line is distorted and that there must be a contribution from the ¹O₂ Raman photogeneration process. The changes in the total amplitude for different pumping wavelengths in Figure 3a is not larger than 20%. The phosphorescence signal’s amplitude is about three orders of magnitude smaller than the Raman Stokes signals shown in Figure 3.

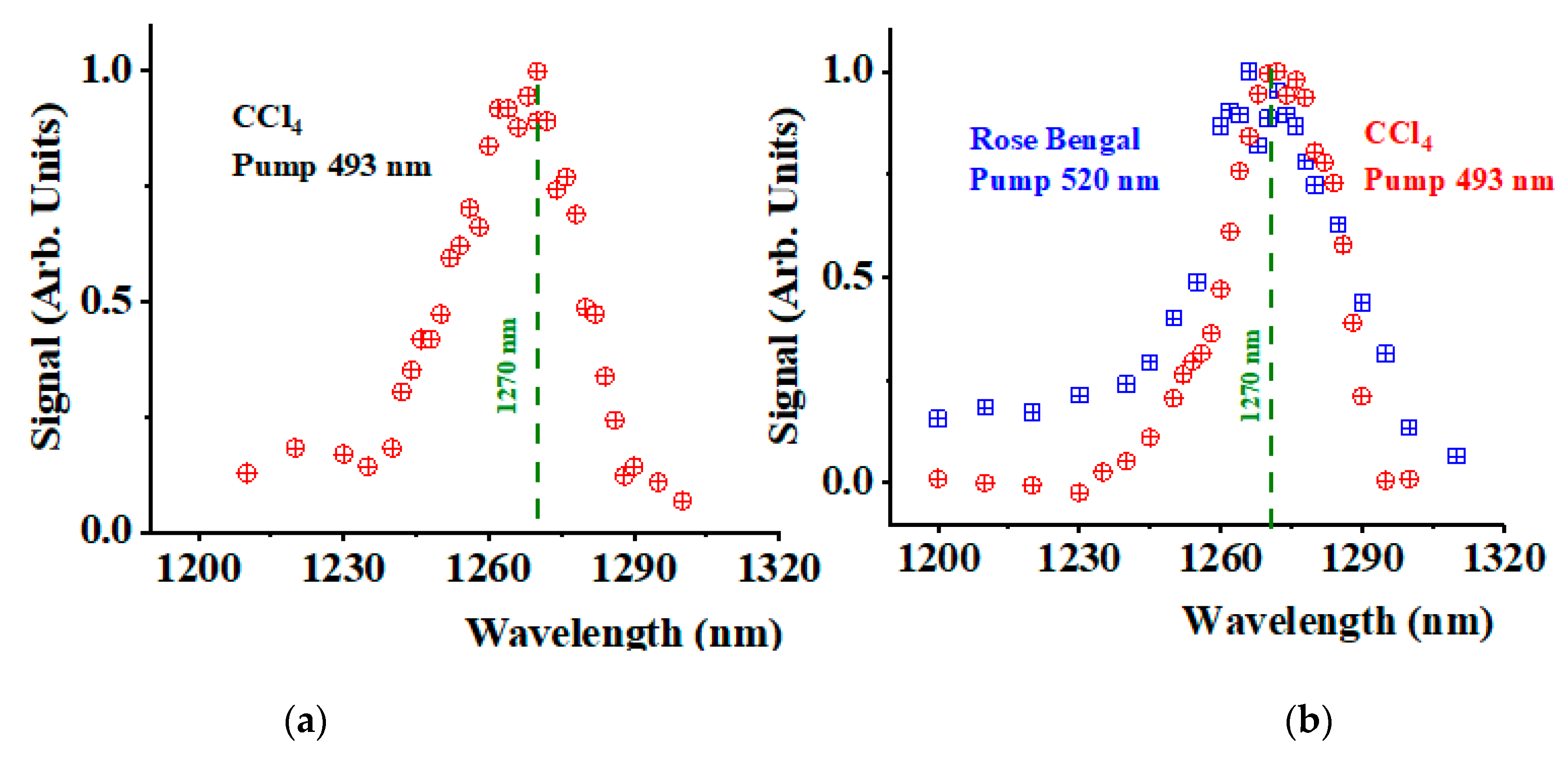

We conduct similar experiments in carbon tetrachloride (CCl₄). Figure 4a shows the NIR spectra of CCl₄ in the spectral region 1200–1300 nm when pumping at 493 nm. A peak is detected around 1270 nm. The signal was about one order of magnitude smaller than the hexane phosphorescence. The results show that the efficiency of ¹O₂ Raman photoexcitation is larger in C₆H₁₄ than in CCl₄. Future work should provide concrete values of this efficiency in both solvents to confirm the observation.

For comparison, experiments were conducted using the standard photosensitizer rose bengal dissolved in water at a concentration of 10 μM when pumping at 520 nm. The rose bengal absorption coefficient is estimated to be 0.3 cm⁻¹. Under these conditions, the light propagates through the sample by a few centimeters. The collection system only monitors a limited area of around one centimeter in length. Detecting the ¹O₂ phosphorescence was impossible in the same longitudinal configuration shown in Figure 1b. However, the experimental configuration was changed to collect the signal in the transversal direction. The rose bengal concentration was increased to 10 mM, and the focusing lens was removed to cover more volume within the sample. Under these conditions, the pumping light penetrates about one centimeter into the sample. The new configuration provides a measurable signal for the ¹O₂ phosphorescence. Figure 4b shows the collected ¹O₂ phosphorescence spectra using rose bengal (blue crossed squares). In the same transversal configuration, the system collected the phosphorescence when focusing a 493 nm pumping light on the CCl₄ sample without rose bengal (red crossed circles). Both detected signals were of the same order of magnitude.

The use of different solvents (water and CCl₄) explains the small spectral differences observed in Figure 4b. The wavelength of the peak maximum and its spectral width depend on the type of solvent used [30].

4. Conclusions
