Photocatalytic Decomposition of Nitrobenzene in Aqueous Solution by Ag/Cu2O Assisted with Persulfate under Visible Light Irradiation

by
Wen-Shing Chen
* and
Jyun-Yang Chen
Department of Chemical and Materials Engineering, National Yunlin University of Science & Technology, 123 University Road, Section 3, Douliou 640, Yunlin, Taiwan
*
Author to whom correspondence should be addressed.
Photochem 2021, 1(2), 220-236; https://doi.org/10.3390/photochem1020013
Submission received: 15 July 2021 / Revised: 11 August 2021 / Accepted: 16 August 2021 / Published: 27 August 2021
(This article belongs to the Special Issue Visible Light Active Photocatalysts for Environmental Remediation and Organic Synthesis)
Browse Figures
Review Reports Versions Notes

Abstract

:
The mineralization of nitrobenzene was executed using an innovative method, wherein Ag/Cu2O semiconductors stimulated by visible light irradiation were supported with persulfate anions. Batch-wise experiments were performed for the evaluation of effects of silver metal contents impregnated, persulfate concentrations and Ag/Cu2O dosages on the nitrobenzene removal efficiency. The physicochemical properties of fresh and reacted Ag/Cu2O were illustrated by X-ray diffraction analyses, FE-SEM images, EDS Mapping analyses, UV–Vis diffuse reflectance spectra, transient photocurrent analyses and X-ray photoelectron spectra, respectively. Because of intense scavenging effects caused by benzene, 1-propanol and methanol individually, the predominant oxidant was considered to be sulfate radicals, originated from persulfate anions via the photocatalysis of Ag/Cu2O. As regards oxidation pathways, nitrobenzene was initially transformed into hydroxycyclohexadienyl radicals, followed with the production of 2-nitrophenol, 3-nitrophenol or 4-nitrophenol. Afterwards, phenol compounds descended from denitration of nitrophenols were converted into hydroquinone and p-benzoquinone.

1. Introduction

Nitrobenzene is commonly used for the manufacture of polyurethane by way of intermediates of aniline. It has been also applied in the following industries: plastics, pesticides, pharmaceuticals and explosives [1]. Due to high risks for mutagenicity and carcinogenicity suffered, effluent contaminated with nitrobenzene and related derivatives would cause strong damage to the aqueous circumstances [2,3]. Consequently, much effort has been focused on the development of economically and effectively treating manners for industrial wastewater.
Advanced oxidation processes have been extensively explored for the mineralization of nitrobenzene in wastewater due to its resistance to biodegradation resulted from the electron-withdrawing property of nitro groups [4]. Firstly, much research has been carried out on hydroxyl radical-based processes, such as Fenton’s methods [5,6,7], Fenton-like manners [8,9,10], Fenton reagents with auxiliary ultrasound [11] and Fenton reagents coupled with fluidization flow patterns [12,13]. Secondly, as commercial titanium dioxide is under investigation, the significant enhancement of the nitrobenzene destruction efficiency took advantage of doping ferric oxides, which successfully prevent the combination of photon-induced electrons with holes [14]. In another aspect, ultraviolet absorbance band was obviously changed to the visible light range by virtue of impregnating ammonium and cerium nitrates simultaneously [15,16]. On the other hand, ozone supported with ultrasound was employed for nitrobenzene removal, wherein hydroxyl radicals were claimed to be predominant oxidizing agents [17,18]. The oxidation of nitrobenzene through the catalysis of ozone over aluminum silicate was performed to elucidate the influences of operating parameters [19,20]. Additionally, the electrochemical oxidation of nitrobenzene was conducted by the modified PbO2 electrode plates, which were incorporated with titanium dioxide nanotubes, resulting in ordered arrangement and surface areas extended [21,22].
To date, sulfate-radical-related processes have been also dedicated to decomposing nitrobenzene in wastewater. The thermal activation of persulfate was effective for the disposal of effluents contaminated with nitrobenzene, wherein reaction pathways consist of 2-nitrophenol, 4-nitrophenol, 2,6-dinitrophenol and 2,4-dinitrophenol [23]. Except ferrous ions for the catalytic transformation of persulfate to sulfate radicals, zinc metal and magnetized iron metal also exhibited fruitful performance on nitrobenzene removal [24,25,26]. With a view to promoting nitrobenzene abatement, experiments were carried out utilizing persulfate anions irradiated with ultraviolet light [27]. Even though persulfate activated with photoelectrons descended from semiconductors excited by visible light, this has been barely studied in regard to nitrobenzene oxidation. As expected, the band gap energy of semiconductors meets the luminous energy of the incident light, leading to the generation of photo-induced electron–hole pairs. Persulfate anions would be transformed into reactive sulfate radicals via the activation of photo-induced electrons [28].
In this research, an innovative technique for the effective removal of nitrobenzene in wastewater was developed. Considerable sulfate radicals could be produced by way of persulfate via photoelectrons originated from Ag/Cu2O irradiated with visible light, which are well known as semiconductors [29,30,31,32]. The influences of operating parameters on the nitrobenzene degradation behaviors were explored, such as persulfate concentrations and Ag/Cu2O dosages. Nitrobenzene decomposition pathways catalyzed by the Ag/Cu2O coupled with persulfate under visible light irradiation would be investigated in the meantime.

2. Experimental Methods

2.1. Testing of Photocatalytic Oxidation of Nitrobenzene by Ag/Cu2O with Assistance of Persulfate

The experimental system containing the main equipment was referred to in our previous report [33]. The photocatalytic cell was a quartz cylinder fitted internally with a magnetic stirrer and cooling coils, in which the testing temperature was maintained through a thermostat (PIIN JIA Technol. Co. New Taipei City, Taiwan). Visible light irradiation was supplied from twelve lamps (8.6 W each) surrounding the cell with three chief peaks of 438 nm, 550 nm and 619 nm, respectively (Philips Corp. PL-S, Hanover, MD, US). Owing to consistence with practical concentrations of industrial wastewater, feedstock was prepared at 1.0 mM concentrations of nitrobenzene (≥99.5%, Riedel-de Haen, Seelze, Germany) [34], being well agitated with proper weights of sodium persulfate (≥99.5%, Fluka, Seelze, Germany) beforehand. The Ag/Cu2O, manufactured from Cu2O powder (SHOWA, Tokyo, Japan) by incipient impregnation with 1–5 wt% of silver nitrate (≥99.5%, Fluka), respectively, and sequential 3 h calcination at 473 K by sieving with 400 mesh [35], was carefully loaded into the basket and fixed near the center of photocatalytic cell. For the duration of tests, samples were taken from the cell at constant time intervals, and sequentially quenched to the temperature of 273 ± 0.5 K to terminate nitrobenzene oxidation [36]. Aqueous samples were executed on total organic carbon analyses to evaluate residual organic compounds. The Ag/Cu2O separated from oxidation tests were examined by an X-ray photoelectron spectrometer. In this work, experiments were performed in a series of persulfate concentrations of 35.0 to 70.0 mM to elucidate the sulfate radical effect at the pH values of 5 to 6. Photocatalytic tests under diverse dosages of Ag/Cu2O (1.05 up to 1.50 g L−1) were carried out for enhancement on nitrobenzene removal efficiency. All experiments were undertaken repeatedly for the affirmation of data reliability.

2.2. Total Organic Carbon (TOC) Analysis

Within the duration of photocatalytic testing by Ag/Cu2O assisted with persulfate, wastewater was periodically sampled and measured, utilizing a TOC analyzer (GE Corp. Sievers InnovOx, Boston, MA, USA). The hydrocarbons involved were completely oxidized into carbon dioxide and quantified through nondispersive infrared (NDIR) analyses, wherein persulfate mineralization was carried out under supercritical water conditions. On the contrary, non-hydrocarbons were exhausted in the species of carbonic acid. In this work, the TOC concentrations reported were calibrated to the standard curve, fulfilled faithfully in the range (0–5.0 mM) utilizing standard chemicals of potassium hydrogen phthalate.

2.3. Physicochemical Properties of Ag/Cu2O

The crystal compositions of fresh Ag/Cu2O semiconductors were examined using an X-ray diffractometer (Rigaku, MiniFlex II, Tokyo, Japan) integrated with high-intensity monochromated CuKα radiation at the wavelength of 0.15418 nm, operating with the current of 30 mA and 40 kV volts over the 2θ range from 10 to 80 degrees. For the inspection of surface morphology and silver content impregnated on Ag/Cu2O semiconductors, surface scanning was executed by a field-emission scanning electron microscope (JEOL, JSM-6500F) equipped with an energy dispersive X-ray spectroscope (JEOL, JED-2300). As far as light absorption band is concerned, the Ultraviolet–Visible diffuse reflectance spectra on Ag/Cu2O were measured using a UV–Vis spectrometer (PerkinElmer, Lambda-850, Waltham, MA, USA), of which wavelength was among the range of 250 to 800 nm with reference to BaSO4. The photocurrent measurements of the samples were carried out using a potentiostat (Zensor, ECAS-100, Etterbeek, Belgium) under continuous visible light irradiation (Philips, PL-S), wherein a Pt wire served as an auxiliary electrode, coated with Ag/Cu2O and polymer electrolyte membrane, and was referenced to a saturated calomel electrode. Further, electronic states of fresh and reacted Ag/Cu2O semiconductors were monitored by means of XPS spectra from an X-ray photoelectron spectrometer (Kratos Analytical Ltd. Axis Ultra, Manchester, UK), in which monochromated AlKα irradiation was used as a light source and the binding energy of samples was calibrated to 284.8 eV for C 1s core level of adventitious carbon.

2.4. Gas Chromatography–Mass Spectrometry (GC-MS) Analysis

A proper amount of wastewater was withdrawn from the photocatalytic cell after nitrobenzene oxidation testing for 30 min. The microextraction fiber spread with carboxen/polydimethylsiloxane (Supelco, Bellefonte, PA, USA) was added into aqueous solution for the effective adsorption of degradation intermediates. Then, the fiber was directly packed into a micro-needle which was immediately injected into the orifice of the gas chromatograph–mass spectrometer (Hewlett Packard, MASS 59864B/5973, Palo Alto, CA, USA). The metal capillary column for ingredient separation was used at the dimension of 30 m × 0.25 mm (Ultra ALLOY UA-5), wherein helium gas served as the carrier gas. The degradation intermediates resolved were trustworthy based on mass spectra obtained in comparison with those of standards.

2.5. Scavenging Effects

In order to disclose the main oxidants on the mineralization of nitrobenzene, testing was conducted in the presence of diverse scavengers simultaneously, such as methanol, 1-propanol and benzene, respectively [37,38]. The nitrobenzene degradation percentage was determined on the basis of the peak area (262 nm) shown in a UV–Vis spectrophotometer (PerkinElmer, Lambda 850) [8]. In the course of pretesting, benzene was verified as the most sharp scavenger. The benzene scavenging effect may represent sulfate radical yields at different experimental conditions. To evaluate sulfate radical yields, the decrement of nitrobenzene degradation percentage was examined upon the addition of suitable amounts of benzene scavenger into wastewater.

3. Results and Discussion

3.1. Comparison of Photocatalytic Oxidation by Ag/Cu2O Alone and Ag/Cu2O Assisted with Persulfate Respectively

Figure 1 demonstrates the time flow patterns of TOC removal efficiency executed by photocatalytic oxidation over Ag/Cu2O alone and Ag/Cu2O aided with persulfate, respectively. Apparently, the nitrobenzene removal rate caused by Ag/Cu2O supported with persulfate process was much higher than those simply using persulfate anions, Cu2O and Ag/Cu2O alone. Noteworthily, Ag(1%)/Cu2O integrated with persulfate displayed a synergistic performance in comparison with photocatalytic behaviors exhibited with the Ag(1%)/Cu2O and persulfate individually. The observation could be ascribed to great enhancement on reactive sulfate radical yields. In fact, persulfate anions have been successfully transformed to sulfate radicals through the photocatalysis of Cu2O [39]. It has been also recognized that Ag metal functions as an electron sink and strengthens charge separation, leading to the repression of the combination of photo-induced electrons and holes over Cu2O [40,41]. As expected, a higher extent of Ag metal doped on the surface of Cu2O gave rise to higher nitrobenzene removal efficiency (refer to Figure 2). The main reactions that occurred could be concluded as follows.
(1)
Ag/Cu2O + hυ → h+vb + e−cb
(2)
S2O82− + e−cb → SO4•− + SO42−
(3)
SO42- + h+vb → SO4•−
(4)
H2O + h+vb → HO• + H+
where in e−cb represents photo-induced electrons in the conduction band and h+vb represents photo-induced holes in the valence band. Ag(5%)/Cu2O was chosen as a candidate for next testing due to its better nitrobenzene degradation behavior.
XPS measurements were carried out to elucidate surface electronic states of Ag(5%)/Cu2O. Figure 3 illustrates the Cu2p XPS spectra of fresh Ag(5%)/Cu2O and reacted Ag(5%)/Cu2O. As far as fresh Ag(5%)/Cu2O semiconductor is concerned, two peaks centered at 933.0 and 952.0 eV were clearly found, which were appointed to the binding energy of Cu+2p (3/2) and Cu+2p (1/2), respectively [42,43,44]. With regard to reacted Ag(5%)/Cu2O, four peaks centered at 933.5, 941.0, 953.0 and 961.0 eV were present, which were separately assigned to the binding energy of Cu+2p (3/2), Cu2+2p (3/2), Cu+2p (1/2) and Cu2+2p (1/2) [45,46]. Obviously, Cu+ cations on the surface of reacted Ag(5%)/Cu2O shifted to higher oxidation states in comparison with the fresh one, in consideration of the migration of photo-induced electrons to persulfate anions [39,47]. The observations manifest the above hypothesis that persulfate anions could be converted into sulfate radicals upon activation by photo-induced electrons. Instead, sulfate anions may be also transformed to sulfate radicals via photo-induced holes over Ag(5%)/Cu2O [48]. It makes partial contributions for nitrobenzene oxidation.

3.2. Physicochemical Properties of Ag/Cu2O

The X-ray diffraction patterns of Ag/Cu2O semiconductors are displayed in Figure 4. Major peaks in the spectra were matched with crystal planes of Cu2O, wherein the characteristic peak at 2θ value of 36.5° was ascribed to the (111) plane [48,49]. Conversely, the diffraction peak at 2θ values of 38.1° was appointed to the (111) plane of Ag metal [50]. It is evident that slight weight of Ag metal was doped on the surface of Cu2O. Figure 5 presents field-emission SEM images of Ag/Cu2O semiconductors. Obviously, the majority of the Cu2O surface was smooth. In contrast, a few irregular-shaped sediments were found over Ag/Cu2O and more clumps of particles were observed upon increasing Ag extent. It is apparent that Ag metal was well spread on the surface of Cu2O. The Energy-Dispersive X-ray Mapping analysis on Ag/Cu2O is illustrated in Figure 6. Ag metal was well dispersed, and its contents measured agreed with those impregnated theoretically (see Table 1).
Figure 7 depicts the UV–Vis diffuse reflectance spectra for a series of Ag/Cu2O semiconductors. The analogous spectra were observed between Ag/Cu2O and Cu2O at the absorbance wavelength between 400 and 530 nm, which fall into the visible light range. Particularly, the light absorbance intensity of Ag/Cu2O was stronger than that of Cu2O. It implies that Ag/Cu2O semiconductors are more responsive to the visible light irradiation. This phenomenon could be mainly ascribed to Ag metal dopant, creating an electron sink and restraining a combination of photo-induced electrons with holes over Cu2O [51,52]. Further, the Ag/Cu2O band gap energy was resolved by means of a Tauc’s equation [(αhν)1/n = A(hν − Eg)], in which hν stands for incident optical energy. The “n” parameter was set at the value of 1/2 according to the electronic transition state of Ag/Cu2O semiconductors. The draft of (αhν)2 varied with incident optical energy; (hν) was drawn to obtain the band gap energy by intercepting tangent lines to the X-axis [53,54,55]. Consequently, the Cu2O band gap energy was determined to be 2.17 eV, consistent with that reported by Muthukumaran et al. [56]. For a series of Ag/Cu2O semiconductors, the band gap energy was estimated to be 2.06, 1.92, 1.75, 1.55 and 1.43 eV, respectively, upon increasing Ag metal doping (refer to Table 2). The superior photocatalytic performance presented by Ag(5%)/Cu2O could be reasonably attributed to a significant yield of photo-induced electrons, caused by a lower band gap energy. In other words, the optical energy of visible light could stimulate Ag/Cu2O semiconductors for the generation of electron–hole pairs. Persulfate anions would be effectively converted into reactive sulfate radicals via activation of photo-induced electrons. Likewise, photo-induced holes may also transform sulfate anions into sulfate radicals. Figure 8 illustrates transient photocurrence of Cu2O and Ag(5%)/Cu2O excited under visible light irradiation. The photocurrent intensity of the latter was clearly higher than that of the former. It means that Ag(5%)/Cu2O possessed the higher yield of photo-induced electron [40,41]. The results support the issue of the inhibition of a combination of photo-induced electrons and holes over Cu2O through the impregnation of Ag metal.

3.3. Effect of Scavenger Dosages on Photocatalytic Oxidation by Ag/Cu2O Assisted with Persulfate

Equivalent concentrations of benzene, 1-propanol and methanol were individually blended with nitrobenzene in wastewater to disclose reactive radicals under photocatalysis by Ag/Cu2O with assistance of persulfate. As demonstrated in Figure 9, nitrobenzene removal efficiency was sharply faded upon the addition of benzene, due to a high reaction rate constant for benzene and sulfate radicals (3 × 109 M−1 s−1) [37]. Alternatively, 1-propanol and methanol slightly suppressed the nitrobenzene removal rate, on account of moderate rate constants for 1-propanol and methanol, with sulfate radicals being 6.0 × 107 M−1 s−1 and 3.2 × 106 M−1 s−1, respectively [57]. It deserves noting that the extent of nitrobenzene removal percentages faded corresponds to the reactive activity for various scavengers and sulfate radicals. It was revealed that sulfate radicals were principal oxidants for nitrobenzene degradation in wastewater.

3.4. Effect of Persulfate Concentrations on Photocatalytic Oxidation by Ag/Cu2O Assisted with Persulfate

The optimal persulfate concentration for nitrobenzene elimination should be determined in consideration of commercialization. As presented in Figure 10a, the time flow patterns of TOC removal efficiency were dependent on persulfate concentrations. Undoubtedly, increasing persulfate concentrations enhanced nitrobenzene removal rates, wherein high sulfate radical yields could be sensibly expected. Nonetheless, the nitrobenzene removal efficiency faded under an excess persulfate concentration (70 mM). This phenomenon may be interpreted with probable side reactions for the overdosage of persulfate anions and sulfate radicals [38,58]. Further, the photocatalytic oxidation of nitrobenzene was performed in the existence of benzene scavengers to discriminate sulfate radicals yields under various persulfate concentrations (refer to Figure 10b). Definitely, the scavenging effect dramatically displays an analogy between sulfate radical yields and TOC removal efficiency. Accordingly, sulfate radicals were likely to be responsible for nitrobenzene oxidation.

3.5. Effect of Ag/Cu2O Dosage on Photocatalytic Oxidation by Ag/Cu2O Assisted with Persulfate

An optimal dosage of Ag/Cu2O semiconductor needs to be essentially established from the process design viewpoint. Figure 11a illustrates the time flow patterns of TOC removal efficiency as functions of Ag/Cu2O dosages. Evidently, the nitrobenzene degradation rate raised with an increment of Ag/Cu2O dosages, whereas it reduced under overdosages of Ag/Cu2O (≥1.50 g L−1). The improvement in the nitrobenzene removal efficiency could be attributed to high sulfate radical yields, caused by the massive activation of persulfate anions via the photocatalysis of Ag/Cu2O. Conversely, lesser semiconductors received optical energy because of scatter of visible light irradiation, resulting from excessive dosages of Ag/Cu2O powder [59]. Nitrobenzene decomposition efficiency likewise displayed a similar trend as benzene scavenging behaviors (refer to Figure 11b). The outcomes convince us that sulfate radicals were chief oxidants toward nitrobenzene destruction. Especially, the optimal conditions for complete mineralization of nitrobenzene were determined as follows: visible light power = 103.2 W, persulfate concentration = 60 mM, Ag/Cu2O dosage = 1.35 g L−1 and T = 318 K. In this work, the photocatalytic stability of Ag/Cu2O was proved via repetitions of five tests (shown in Figure 12). Evidently, nitrobenzene removal efficiency reached almost 98% during the overall experiment. That convinces us of the feasibility for the potential application of Ag/Cu2O to industrial wastewater treatment.

3.6. Reaction Pathways of Photocatalytic Oxidation of Nitrobenzene by Ag/Cu2O Assisted with Persulfate

All reaction intermediates extracted from photocatalytic oxidation of nitrobenzene using Ag/Cu2O with assistance of persulfate were examined by a GC-MS spectrometer. Table 3 summarizes the ingredients procured, including nitrobenzene used for raw materials, phenol, 2-nitrophenol, 3-nitrophenol, 4-nitrophenol, hydroquinone and p-benzoquinone. In consideration of the source of 2-nitrophenol, 3-nitrophenol and 4-nitrophenol, it was believed that nitrobenzene underwent O2 addition, followed with HO2• elimination for the generation of hydroxycyclohexadienyl radicals and sequential hydroxylated compounds [57,60]. Phenol was clearly monitored as an intermediate because of the probable occurrence of nitrophenol denitration [61]. Afterward, phenol ordinarily executed oxidation reaction to hydroquinone, accompanied with successive hydrogen abstraction to p-benzoquinone. Ultimately, nitrobenzene would be mineralized into nitrate ions (analyzed by UV–Vis 313 nm), water and carbon dioxide. Based on most degradation intermediates cautiously identified, the hypothesized pathways for photocatalytic oxidation of nitrobenzene by Ag/Cu2O aided with persulfate is demonstrated in Figure 13.

4. Conclusions

In light of the above discussions, nitrobenzene contaminants were principally mineralized via reactive sulfate radicals, induced from persulfate anions activated effectively by the photocatalysis of Ag/Cu2O semiconductors. It was intensely supported by benzene scavenger, wherein sulfate radical yields display an analogy with nitrobenzene removal efficiency. As far as GC-MS analyses are concerned, the overall reaction pathways on nitrobenzene oxidation could be proposed as follows. Firstly, nitrobenzene was transformed into hydroxycyclohexadienyl radicals, followed with oxidation step into 2-nitrophenol, 3-nitrophenol and 4-nitrophenol separately. Sequentially, nitrophenol-related compounds executed the denitration procedure to phenol, which was oxidized further for the synthesis of hydroquinone and p-benzoquinone. As expected, nitrobenzene would be nearly mineralized into carbon dioxide, nitrate ions and water. The striking results persuade us that the photocatalysis of Ag/Cu2O coupled with persulfate is an effective and synergistic manner for disposal of industrial effluents.

Author Contributions

Conceptualization, W.-S.C. and J.-Y.C.; methodology, J.-Y.C.; software, J.-Y.C.; validation, W.-S.C., J.-Y.C.; formal analysis, J.-Y.C.; investigation, W.-S.C.; resources, W.-S.C.; data curation, J.-Y.C.; writing—original draft preparation, W.-S.C.; writing—review and editing, W.-S.C.; visualization, J.-Y.C.; supervision, W.-S.C.; project administration, W.-S.C.; funding acquisition, W.-S.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The study did not contain any data reported.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Weissermel, K.; Arpe, H.-J. Ullmann’s Encyclopedia of Industrial Chemistry, 5th ed.; VCH: Weinheim, Germany, 1991; Volume A17. [Google Scholar]
  2. Holder, J.W. Nitrobenzene carcinogenicity in animals and human hazard evaluation. Toxicol. Ind. Health 1999, 15, 445–457. [Google Scholar]
  3. Wang, G.X.; Zhang, X.Y.; Yao, C.Z.; Tian, M.Z. Acute toxicity and mutagenesis of three metabolites mixture of nitrobenzene in mice. Toxicol. Ind. Health 2011, 27, 167–171. [Google Scholar] [CrossRef]
  4. Zhu, L.; Ma, B.; Zhang, L. The study of distribution and fate of nitrobenzene in a water/sediment microcosm. Chemosphere 2007, 69, 1579–1585. [Google Scholar] [CrossRef]
  5. Carlos, L.; Nichela, D.; Triszcz, J.M.; Felice, J.I.; Einschlag, F.S.G. Nitration of nitrobenzene in Fenton’s processes. Chemosphere 2010, 80, 340–345. [Google Scholar] [CrossRef] [PubMed]
  6. Jiang, B.C.; Lu, Z.Y.; Liu, F.Q.; Li, A.M.; Dai, J.J.; Xu, L.; Chu, L.M. Inhibiting 1,3-dinitrobenzene formation in Fenton oxidation of nitrobenzene through a controllable reductive pretreatment with zero-valent iron. Chem. Eng. J. 2011, 174, 258–265. [Google Scholar] [CrossRef]
  7. Zhang, Y.; Zhang, K.; Dai, C.; Zhou, X.; Si, H. An enhanced Fenton reaction catalyzed by natural heterogeneous pyrite for nitrobenzene degradation in an aqueous solution. Chem. Eng. J. 2014, 244, 438–445. [Google Scholar] [CrossRef]
  8. Nichela, D.A.; Berkovic, A.M.; Costante, M.R.; Juliarena, M.P.; Einschlag, F.S.G. Nitrobenzene degradation in Fenton-like systems using Cu(II) as catalyst. Comparison between Cu(II)- and Fe(III)-based systems. Chem. Eng. J. 2013, 228, 1148–1157. [Google Scholar] [CrossRef]
  9. Duan, H.; Liu, Y.; Yin, X.; Bai, J.; Qi, J. Degradation of nitrobenzene by Fenton-like reaction in a H2O2/schwertmannite system. Chem. Eng. J. 2016, 283, 873–879. [Google Scholar] [CrossRef]
  10. Sun, Y.; Yang, Z.; Tian, P.; Sheng, Y.; Xu, J.; Han, Y.F. Oxidative degradation of nitrobenzene by a Fenton-like reaction with Fe-Cu bimetallic catalysts. Appl. Catal. B Environ. 2019, 244, 1–10. [Google Scholar] [CrossRef]
  11. Elshafei, G.M.S.; Yehia, F.Z.; Dimitry, O.I.H.; Badawi, A.M.; Eshaq, G. Ultrasonic assisted-Fenton-like degradation of nitrobenzene at neutral pH using nanosized oxide of Fe and Cu. Ultrason. Sonochem. 2014, 21, 1358–1365. [Google Scholar] [CrossRef]
  12. Anotai, J.; Sakulkittimasak, P.; Boonrattanakij, N.; Lu, M.C. Kinetics of nitrobenzene oxidation and iron crystallization in fluidized-bed Fenton process. J. Hazard. Mater. 2009, 165, 874–880. [Google Scholar] [CrossRef] [PubMed]
  13. Ratanatamskul, C.; Chintitanun, S.; Masomboon, N.; Lu, M.C. Inhibitory effect of inorganic ions on nitrobenzene oxidation by fluidized-bed Fenton process. J. Mol. Catal. A Chem. 2010, 331, 101–105. [Google Scholar] [CrossRef]
  14. Nitoi, I.; Oancea, P.; Raileanu, M.; Crisan, M.; Constantin, L.; Cristea, I. UV-VIS photocatalytic degradation of nitrobenzene from water using heavy metal doped titania. J. Ind. Eng. Chem. 2015, 21, 677–682. [Google Scholar] [CrossRef]
  15. Shen, X.Z.; Liu, Z.C.; Xie, S.M.; Guo, J. Degradation of nitrobenzene using titania photocatalysts co-doped with nitrogen and cerium under visible light illumination. J. Hazard. Mater. 2009, 162, 1193–1198. [Google Scholar] [CrossRef]
  16. Tayade, R.J.; Bajaj, H.C.; Jasra, R.V. Photocatalytic removal of organic contaminants from water exploiting tuned band gap photocatalysts. Desalination 2011, 275, 160–165. [Google Scholar] [CrossRef]
  17. Weavers, L.K.; Liang, F.H.; Hoffmann, M.R. Aromatic compound degradation in water using a combination of sonolysis and ozonolysis. Environ. Sci. Technol. 1998, 32, 2727–2733. [Google Scholar] [CrossRef]
  18. Zhao, L.; Ma, W.; Ma, J.; Wen, G.; Liu, Q. Relationship between acceleration of hydroxyl radical initiation and increase of multiple-ultrasonic field amount in the process of ultrasound catalytic ozonation for degradation of nitrobenzene in aqueous solution. Ultrason. Sonochem. 2015, 22, 198–204. [Google Scholar] [CrossRef]
  19. Zhao, L.; Ma, J.; Sun, Z.Z.; Zhai, X.D. Catalytic ozonation for the degradation of nitrobenzene in aqueous solution by ceramic honeycomb-supported manganese. Appl. Catal. B Environ. 2008, 83, 256–264. [Google Scholar] [CrossRef]
  20. Zhao, L.; Ma, J.; Sun, Z.Z.; Liu, H. Influencing mechanism of temperature on the degradation of nitrobenzene in aqueous solution by ceramic honeycomb catalytic ozonation. J. Hazard. Mater. 2009, 167, 1119–1125. [Google Scholar] [CrossRef]
  21. Chen, Y.; Li, H.; Liu, W.; Tu, Y.; Zhang, Y.; Han, W.; Wang, L. Electrochemical degradation of nitrobenzene by anodic oxidation on the constructed TiO2-NTs/SnO2-Sb/PbO2 electrode. Chemosphere 2014, 113, 48–55. [Google Scholar] [CrossRef]
  22. Xia, K.; Xie, F.; Ma, Y. Degradation of nitrobenzene in aqueous solution by dual-pulse ultrasound enhanced electrochemical process. Ultrason. Sonochem. 2014, 21, 549–553. [Google Scholar] [CrossRef]
  23. Ji, Y.; Shi, Y.; Wang, L.; Lu, J. Denitration and renitration processes in sulfate radical-mediated degradation of nitrobenzene. Chem. Eng. J. 2017, 315, 591–597. [Google Scholar] [CrossRef]
  24. Guo, J.; Zhu, L.; Sun, N.; Lan, Y. Degradation of nitrobenzene by sodium persulfate activated with zero-valent zinc in the presence of low frequency ultrasound. J. Taiwan Inst. Chem. Eng. 2017, 78, 137–143. [Google Scholar] [CrossRef]
  25. Pan, Y.; Zhou, M.; Li, X.; Xu, L.; Tang, Z.; Sheng, X.; Li, B. Highly efficient persulfate oxidation process activated with pre-magnetization Fe0. Chem. Eng. J. 2017, 318, 50–56. [Google Scholar] [CrossRef]
  26. Zhang, Y.; Xu, X.; Pan, Y.; Xu, L.; Zhou, M. Pre-magnetized Fe0 activated persulphate for the degradation of nitrobenzene in groundwater. Sep. Purif. Technol. 2019, 212, 555–562. [Google Scholar] [CrossRef]
  27. De Luca, A.; He, X.; Dionysiou, D.D.; Dantas, R.F.; Esplugas, S. Effects of bromide on the degradation of organic contaminants with UV and Fe2+ activated persulfate. Chem. Eng. J. 2017, 318, 206–213. [Google Scholar] [CrossRef]
  28. Chen, W.S.; Shih, Y.C. Mineralization of aniline in aqueous solution by sono-activated peroxydisulfate enhanced with PbO semiconductor. Chemosphere 2020, 239, 124686. [Google Scholar] [CrossRef]
  29. Zheng, Z.; Huang, B.; Wang, Z.; Guo, M.; Qin, X.; Zhang, X.; Wang, P.; Dai, Y. Crystal faces of Cu2O and their stabilities in photocatalytic reactions. J. Phys. Chem. C 2009, 113, 14448–14453. [Google Scholar] [CrossRef]
  30. Su, Y.; Li, H.; Ma, H.; Robertson, J.; Nathan, A. Controlling surface termination and facet orientation in Cu2O nanoparticles for high photocatalytic activity: A combined experimental and DFT study. ACS Appl. Mater. Interfaces 2017, 9, 8100–8106. [Google Scholar] [CrossRef] [Green Version]
  31. Tang, H.; Liu, X.; Xiao, M.; Huang, Z.; Tan, X. Effect of particle size and morphology on surface thermodynamics and photocatalytic thermodynamics of nano-Cu2O. J. Environ. Chem. Eng. 2017, 5, 4447–4453. [Google Scholar] [CrossRef]
  32. Chu, C.Y.; Huang, M.H. Facet-dependent photocatalytic properties of Cu2O crystals probed by electron, hole and radical scavengers. J. Mater. Chem. A 2017, 5, 15116–15123. [Google Scholar] [CrossRef]
  33. Chen, W.S.; Huang, S.L. Photocatalytic degradation of bisphenol-A in aqueous solution by calcined PbO semiconductor irradiated with visible light. Desalin. Water Treat. 2020, 190, 147–155. [Google Scholar] [CrossRef]
  34. He, S.L.; Wang, L.P.; Zhang, J.; Hou, M.F. Fenton pre-treatment of wastewater containing nitrobenzene using ORP for indicating the endpoint of reaction. Procedia Earth Planet. Sci. 2009, 1, 1268–1274. [Google Scholar] [CrossRef] [Green Version]
  35. Satdeve, N.S.; Ugwekar, R.P.; Bhanvase, B.A. Ultrasound assisted preparation and characterization of Ag supported on ZnO nanoparticles for visible light degradation of methylene blue dye. J. Mol. Liq. 2019, 291, 111313. [Google Scholar] [CrossRef]
  36. Chen, W.S.; Huang, C.P. Mineralization of aniline in aqueous solution by electro-activated persulfate oxidation enhanced with ultrasound. Chem. Eng. J. 2015, 266, 279–288. [Google Scholar] [CrossRef]
  37. Liang, C.J.; Su, H.W. Identification of sulfate and hydroxyl radicals in thermally activated persulfate. Ind. Eng. Chem. Res. 2009, 48, 5558–5562. [Google Scholar] [CrossRef]
  38. Lin, H.; Wu, J.; Zhang, H. Degradation of bisphenol A in aqueous solution by a novel electro/ Fe3+/ peroxydisulfate process. Sep. Purif. Technol. 2013, 117, 18–23. [Google Scholar] [CrossRef]
  39. Wang, B.; Fu, T.; An, B.; Liu, Y. UV light-assisted persulfate activation by Cu0-Cu2O for the degradation of sulfamerazine. Sep. Purif. Technol. 2020, 251, 117321. [Google Scholar] [CrossRef]
  40. Xi, Q.; Gao, G.; Jin, M.; Zhang, Y.; Zhou, H.; Wu, C.; Zhao, Y.; Wang, L.; Guo, P.; Xu, J. Design of graphitic carbon nitride supported Ag-Cu2O composites with hierarchical structures for enhanced photocatalytic properties. Appl. Surf. Sci. 2019, 471, 714–725. [Google Scholar] [CrossRef]
  41. Sakar, M.; Balakumar, S. Reverse Ostwald ripening process induced dispersion of Cu2O nanoparticles in silver-matrix and their interfacial mechanism mediated sunlight driven photocatalytic properties. J. Photochem. Photobiol. A Chem. 2018, 356, 150–158. [Google Scholar] [CrossRef]
  42. Zhang, M.; Wang, J.; Wang, Y.; Zhang, J.; Han, X.; Chen, Y.; Wang, Y.; Karim, Z.; Hu, W.; Deng, Y. Promoting the charge separation and photoelectrocatalytic water reduction kinetics of Cu2O nanowires via decorating dual-cocatalysts. J. Mater. Sci. Technol. 2021, 62, 119–127. [Google Scholar] [CrossRef]
  43. Chen, L.; Guo, S.; Dong, L.; Zhang, F.; Gao, R.; Liu, Y.; Wang, Y.; Zhang, Y. SERS effect on the presence and absence of rGO for Ag@Cu2O core-shell. Mater. Sci. Semicond. Process. 2019, 91, 290–295. [Google Scholar] [CrossRef]
  44. Sharma, K.; Maiti, K.; Kim, N.H.; Hui, D.; Lee, J.H. Green synthesis of glucose-reduced graphene oxide supported Ag-Cu2O nanocomposites for the enhanced visible-light photocatalytic activity. Compos. Part. B 2018, 138, 35–44. [Google Scholar] [CrossRef]
  45. Biesinger, M.C.; Lau, L.W.M.; Gerson, A.R.; Smart, R.S.C. Resolving surface chemical states in XPS analysis of first row transition metals, oxides and hydroxides: Sc, Ti, V, Cu and Zn. Appl. Surf. Sci. 2010, 257, 887–898. [Google Scholar] [CrossRef]
  46. Poulston, S.; Parlett, P.M.; Stone, P.; Bowker, M. Surface oxidation and reduction of CuO and Cu2O studied using XPS and XAES. Surf. Interface Anal. 1996, 24, 811–820. [Google Scholar] [CrossRef]
  47. Liu, S.; Zhao, X.; Zeng, H.; Wang, Y.; Qiao, M.; Guan, W. Enhancement of photoelectrocatalytic degradation of diclofenac with persulfate activated by Cu cathode. Chem. Eng. J. 2017, 320, 168–177. [Google Scholar] [CrossRef]
  48. Liu, X.; Chen, J.; Liu, P.; Zhang, H.; Li, G.; An, T.; Zhao, H. Controlled growth of CuO/Cu2O hollow microsphere composites as efficient visible-light-active photocatalysts. Appl. Catal. A Gen. 2016, 521, 34–41. [Google Scholar] [CrossRef]
  49. Kumar, S.; Parlett, C.M.A.; Isaacs, M.A.; Jowett, D.V.; Douthwaite, R.E.; Cockett, M.C.R.; Lee, A.F. Facile synthesis of hierarchical Cu2O nanocubes as visible light photocatalysts. Appl. Catal. B Environ. 2016, 189, 226–232. [Google Scholar] [CrossRef] [Green Version]
  50. Anbu, P.; Gopinath, S.C.B.; Yun, H.S.; Lee, C.-G. Temperature-dependent green biosynthesis and characterization of silver nanoparticles using balloon flower plants and their antibacterial potential. J. Mol. Struct. 2019, 1177, 302–309. [Google Scholar] [CrossRef]
  51. Han, Z.; Ren, L.; Cui, Z.; Chen, C.; Pan, H.; Chen, J. Ag/ZnO flower heterostructures as a visible-light driven photocatalyst via surface plasmon resonance. Appl. Catal. B Environ. 2012, 126, 298–305. [Google Scholar] [CrossRef]
  52. Zhang, X.; Wang, Y.; Hou, F.; Li, H.; Yang, Y.; Zhang, X.; Yang, Y.; Wang, Y. Effects of Ag loading on structural and photocatalytic properties of flower-like ZnO microspheres. Appl. Surf. Sci. 2017, 391, 476–483. [Google Scholar] [CrossRef]
  53. Maji, S.K.; Mukherjee, N.; Dutta, A.K.; Srivastava, D.N.; Paul, P.; Karmakar, B.; Mondal, A.; Adhikary, B. Deposition of nanocrystalline CuS thin film from a single precursor: Structural, optical and electrical properties. Mater. Chem. Phys. 2011, 130, 392–397. [Google Scholar] [CrossRef]
  54. Štengl, V.; Grygar, T.M. The simplest way to Iodine-doped anatase for photocatalysts activated by visible light. Int. J. Photoenergy 2011, 2011, 685935. [Google Scholar] [CrossRef]
  55. Kamaraj, E.; Somasundaram, S.; Balasubramani, K.; Eswaran, M.P.; Muthuramalingam, R.; Park, S. Facile fabrication of CuO-Pb2O3 nanophotocatalysts for efficient degradation of Rose Bengal dye under visible light irradiation. Appl. Surf. Sci. 2018, 433, 206–212. [Google Scholar] [CrossRef]
  56. Muthukumaran, M.; Niranjani, S.; Samuel Barnabas, K.; Narayanan, V.; Raju, T.; Venkatachalam, K. Green route synthesis and characterization of cuprous oxide (Cu2O): Visible light irradiation photocatalytic activity of MB dye. Mater. Today Proc. 2019, 14, 563–568. [Google Scholar] [CrossRef]
  57. Neta, P.; Huie, R.E.; Ross, A.B. Rate constants for reactions of inorganic radicals in aqueous solution. J. Phys. Chem. Ref. Data 1988, 17, 1027–1284. [Google Scholar] [CrossRef]
  58. Hou, L.W.; Zhang, H.; Xue, X.F. Ultrasound enhanced heterogeneous activation of peroxydisulfate by magnetite catalyst for the degradation of tetracycline in water. Sep. Purif. Technol. 2012, 84, 147–152. [Google Scholar] [CrossRef]
  59. Jyothi, K.P.; Yesodharan, S.; Yesodharan, E.P. Ultrasound (US), ultraviolet light (UV) and combination (US + UV) assisted semiconductor catalysed degradation of organic pollutants in water: Oscillation in the concentration of hydrogen peroxide formed in situ. Ultrason. Sonochem. 2014, 21, 1787–1796. [Google Scholar] [CrossRef] [PubMed]
  60. Anipsitakis, G.P.; Dionysiou, D.D.; Gonzalez, M.A. Cobalt-mediated activation of peroxymonosulfate and sulfate radical attack on phenolic compounds Implications of chlorine ions. Environ. Sci. Technol. 2006, 40, 1000–1007. [Google Scholar] [CrossRef] [PubMed]
  61. Zhou, J.; Xiao, J.; Xiao, D.; Guo, Y.; Fang, C.; Lou, X.; Wang, Z.; Liu, J. Transformations of chloro and nitro groups during the peroxymonosulfate-based oxidation of 4-chloro-2-nitrophenol. Chem. Eng. J. 2015, 134, 446–451. [Google Scholar] [CrossRef]
Photochem 01 00013 g001 550

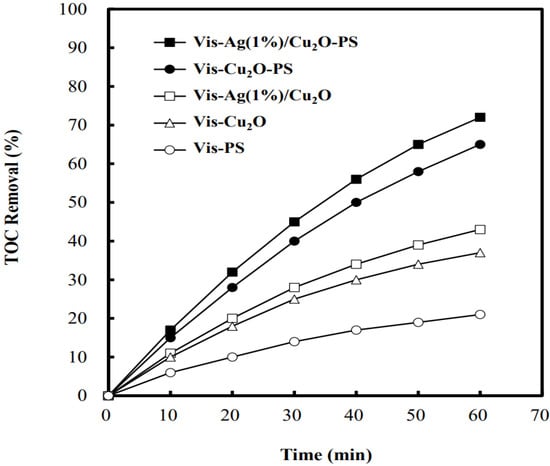

Figure 1. Time flow patterns of TOC removal efficiency by Cu2O, persulfate, Ag(1 wt%)/Cu2O, Cu2O-persulfate and Ag(1 wt%)/Cu2O-persulfate, respectively under the conditions of visible light power = 103.2 W, persulfate concentration = 50 mM, Cu2O or Ag(1 wt%)/Cu2O dosage = 1.20 g L−1 and T = 318 K.
Figure 1. Time flow patterns of TOC removal efficiency by Cu2O, persulfate, Ag(1 wt%)/Cu2O, Cu2O-persulfate and Ag(1 wt%)/Cu2O-persulfate, respectively under the conditions of visible light power = 103.2 W, persulfate concentration = 50 mM, Cu2O or Ag(1 wt%)/Cu2O dosage = 1.20 g L−1 and T = 318 K.
Photochem 01 00013 g001
Photochem 01 00013 g002 550

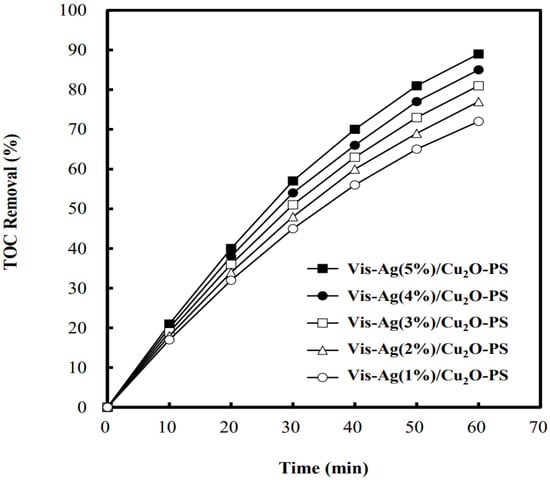

Figure 2. Effect of silver metal contents on the TOC removal efficiency under the conditions of visible light power = 103.2 W, persulfate concentration = 50 mM, Ag/Cu2O dosage = 1.20 g L−1 and T = 318 K.
Figure 2. Effect of silver metal contents on the TOC removal efficiency under the conditions of visible light power = 103.2 W, persulfate concentration = 50 mM, Ag/Cu2O dosage = 1.20 g L−1 and T = 318 K.
Photochem 01 00013 g002
Photochem 01 00013 g003 550

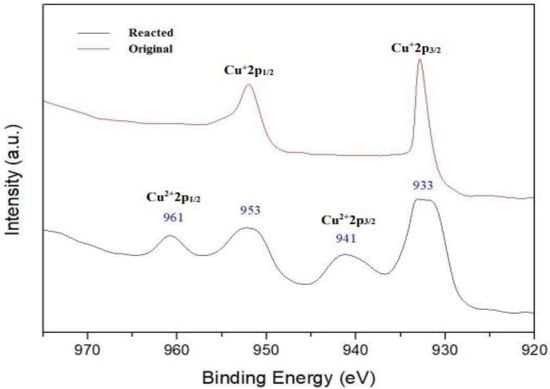

Figure 3. X-ray photoelectron spectra of Cu+2p or Cu2+2p core level for original Ag(5 wt%)/Cu2O and reacted Ag(5 wt%)/Cu2O semiconductors.
Figure 3. X-ray photoelectron spectra of Cu+2p or Cu2+2p core level for original Ag(5 wt%)/Cu2O and reacted Ag(5 wt%)/Cu2O semiconductors.
Photochem 01 00013 g003
Photochem 01 00013 g004 550

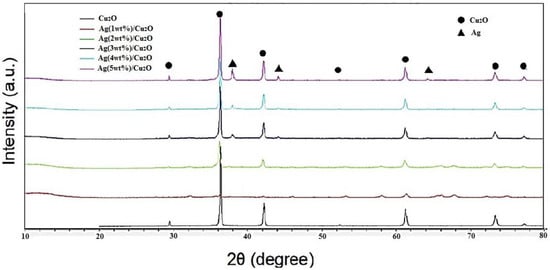

Figure 4. The XRD patterns of Cu2O and Ag/Cu2O semiconductors.
Figure 4. The XRD patterns of Cu2O and Ag/Cu2O semiconductors.
Photochem 01 00013 g004
Photochem 01 00013 g005 550
Figure 5. FE-SEM images of the (a) Cu2O, (b) Ag(1 wt%)/Cu2O, (c) Ag(2 wt%)/Cu2O, (d) Ag(3 wt%)/Cu2O, (e) Ag(4 wt%)/Cu2O and (f) Ag(5 wt%)/Cu2O semiconductors.
Figure 5. FE-SEM images of the (a) Cu2O, (b) Ag(1 wt%)/Cu2O, (c) Ag(2 wt%)/Cu2O, (d) Ag(3 wt%)/Cu2O, (e) Ag(4 wt%)/Cu2O and (f) Ag(5 wt%)/Cu2O semiconductors.
Photochem 01 00013 g005
Photochem 01 00013 g006 550
Figure 6. The EDS Mapping analyses on Ag/Cu2O semiconductors: (a) Ag(1 wt%)/Cu2O, (b) Ag(2 wt%)/Cu2O, (c) Ag(3 wt%)/Cu2O, (d) Ag(4 wt%)/Cu2O and (e) Ag(5 wt%)/Cu2O.
Figure 6. The EDS Mapping analyses on Ag/Cu2O semiconductors: (a) Ag(1 wt%)/Cu2O, (b) Ag(2 wt%)/Cu2O, (c) Ag(3 wt%)/Cu2O, (d) Ag(4 wt%)/Cu2O and (e) Ag(5 wt%)/Cu2O.
Photochem 01 00013 g006
Photochem 01 00013 g007 550

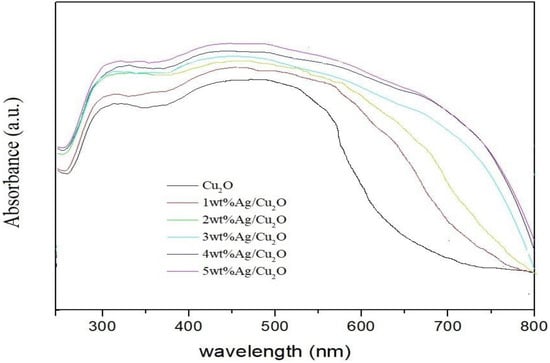

Figure 7. UV–Vis diffuse reflectance spectra of Cu2O, Ag(1 wt%)/Cu2O, Ag(2 wt%)/Cu2O, Ag(3 wt%)/Cu2O, Ag(4 wt%)/Cu2O and Ag(5 wt%)/Cu2O semiconductors.
Figure 7. UV–Vis diffuse reflectance spectra of Cu2O, Ag(1 wt%)/Cu2O, Ag(2 wt%)/Cu2O, Ag(3 wt%)/Cu2O, Ag(4 wt%)/Cu2O and Ag(5 wt%)/Cu2O semiconductors.
Photochem 01 00013 g007
Photochem 01 00013 g008 550

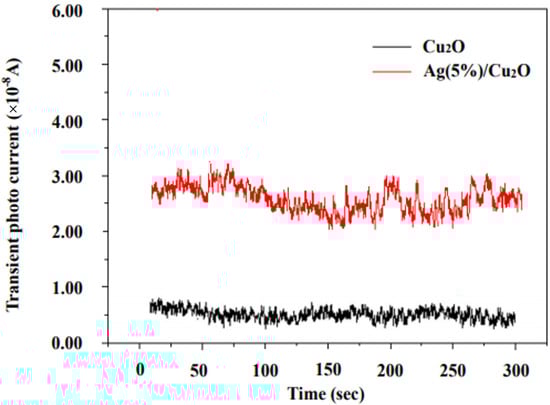

Figure 8. The transient photocurrent analyses of Cu2O and Ag(5%)/Cu2O under visible light irradiation.
Figure 8. The transient photocurrent analyses of Cu2O and Ag(5%)/Cu2O under visible light irradiation.
Photochem 01 00013 g008
Photochem 01 00013 g009 550

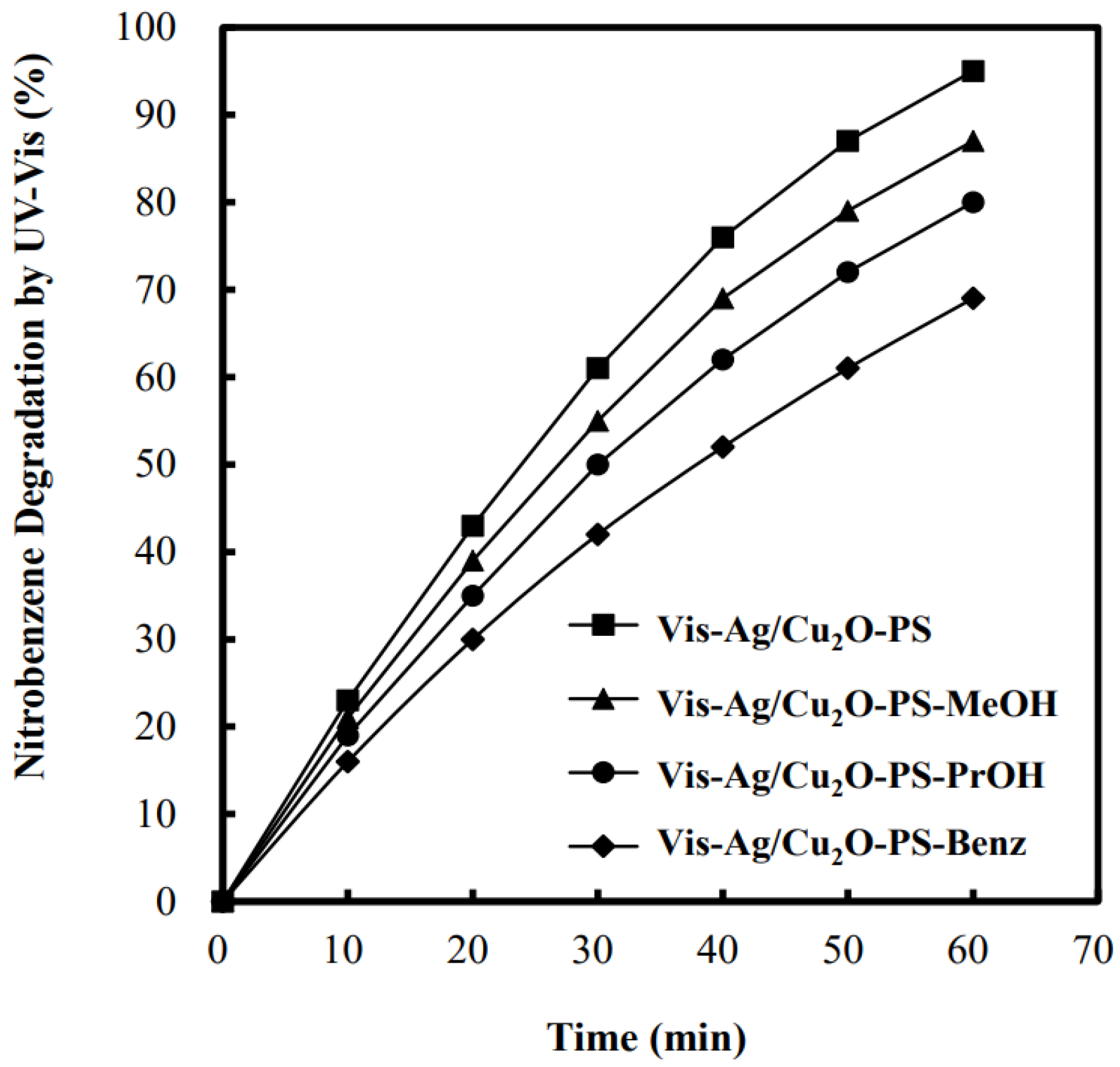

Figure 9. Effect of coexistence of benzene, 1-propanol and methanol, respectively, on the nitrobenzene degradation efficiency.
Figure 9. Effect of coexistence of benzene, 1-propanol and methanol, respectively, on the nitrobenzene degradation efficiency.
Photochem 01 00013 g009
Photochem 01 00013 g010 550

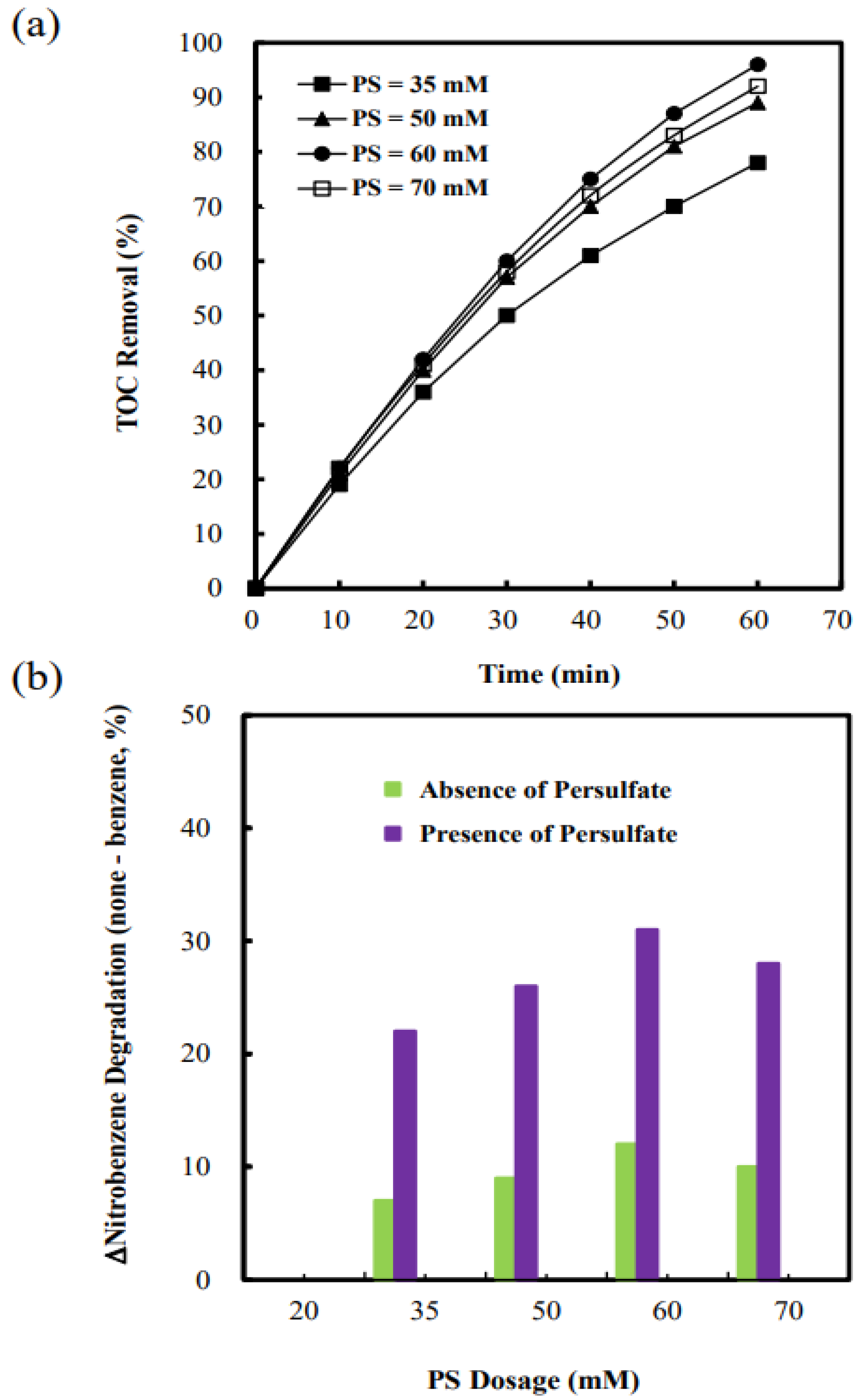

Figure 10. (a) Effect of persulfate concentrations on the TOC removal efficiency under the conditions of visible light power = 103.2 W, Ag(5 wt%)/Cu2O dosage = 1.20 g L−1 and T = 318 K. (b) The difference of nitrobenzene degradation efficiency between the absence of benzene and presence of benzene monitored by UV–Vis and served as scavenging effect under the conditions of visible light power = 103.2 W, Ag(5 wt%)/Cu2O dosage = 1.20 g L−1 and T = 318 K.
Figure 10. (a) Effect of persulfate concentrations on the TOC removal efficiency under the conditions of visible light power = 103.2 W, Ag(5 wt%)/Cu2O dosage = 1.20 g L−1 and T = 318 K. (b) The difference of nitrobenzene degradation efficiency between the absence of benzene and presence of benzene monitored by UV–Vis and served as scavenging effect under the conditions of visible light power = 103.2 W, Ag(5 wt%)/Cu2O dosage = 1.20 g L−1 and T = 318 K.
Photochem 01 00013 g010
Photochem 01 00013 g011 550

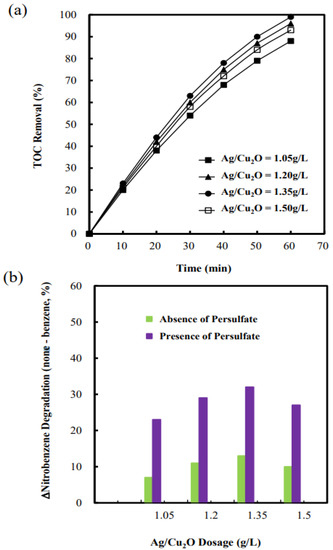

Figure 11. (a) Effect of Ag(5 wt%)/Cu2O dosages on the TOC removal efficiency under the conditions of visible light power = 103.2 W, persulfate concentration = 60 mM and T = 318 K. (b) The difference of nitrobenzene degradation efficiency between the absence of benzene and presence of benzene monitored by UV–Vis and served as scavenging effect under the conditions of visible light power = 103.2 W, persulfate concentration = 60 mM and T = 318 K.
Figure 11. (a) Effect of Ag(5 wt%)/Cu2O dosages on the TOC removal efficiency under the conditions of visible light power = 103.2 W, persulfate concentration = 60 mM and T = 318 K. (b) The difference of nitrobenzene degradation efficiency between the absence of benzene and presence of benzene monitored by UV–Vis and served as scavenging effect under the conditions of visible light power = 103.2 W, persulfate concentration = 60 mM and T = 318 K.
Photochem 01 00013 g011
Photochem 01 00013 g012 550

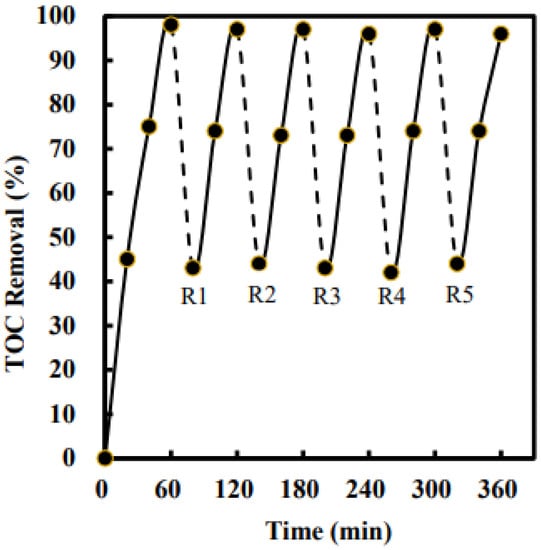

Figure 12. The photocatalytic stability of Ag(5 wt%)/Cu2O examined by means of repetitions of five tests.
Figure 12. The photocatalytic stability of Ag(5 wt%)/Cu2O examined by means of repetitions of five tests.
Photochem 01 00013 g012
Photochem 01 00013 g013 550

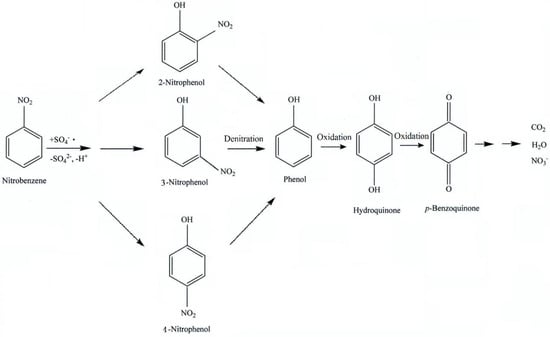

Figure 13. Overall reaction pathways of nitrobenzene in wastewater by photocatalysis of Ag/Cu2O with assistance of persulfate.
Figure 13. Overall reaction pathways of nitrobenzene in wastewater by photocatalysis of Ag/Cu2O with assistance of persulfate.
Photochem 01 00013 g013
Table
Table 1. The elemental compositions of semiconductors by EDS analyses.
Table 1. The elemental compositions of semiconductors by EDS analyses.
SemiconductorAg(wt%)Cu(wt%)O(wt%)
Cu2O0.0085.8114.19
Ag(1 wt%)/Cu2O1.1587.4111.44
Ag(2 wt%)/Cu2O2.0587.5610.39
Ag(3 wt%)/Cu2O3.5684.3212.12
Ag(4 wt%)/Cu2O4.9982.3912.62
Ag(5 wt%)/Cu2O6.8480.6712.49
Table
Table 2. The band gap energy of semiconductors by UV–Vis DRS analyses.
Table 2. The band gap energy of semiconductors by UV–Vis DRS analyses.
SemiconductorBand Gap Energy (eV)
Cu2O2.17
Ag(1 wt%)/Cu2O2.06
Ag(2 wt%)/Cu2O1.92
Ag(3 wt%)/Cu2O1.75
Ag(4 wt%)/Cu2O1.55
Ag(5 wt%)/Cu2O1.43
Table
Table 3. Compositions of nitrobenzene and reaction intermediates identified by GC-MS.
Table 3. Compositions of nitrobenzene and reaction intermediates identified by GC-MS.
Componentm/z (Relative Abundance, %)
Feedstock
Nitrobenzene50 (15.7), 51 (37.7), 65 (13.6), 74 (9.0), 77 (100), 78 (7.5), 93 (16.9), 123(70.2)
Reaction intermediate
Phenol
2-Nitrophenol		38 (5.4), 39 (12.5), 40 (6.9), 55(6.4), 63 (6.5), 65 (21.0), 66 (27.4), 94 (100), 95 (7.7)
39 (15.7), 53 (9.8), 63 (20.2), 64 (13.9), 65 (25.5), 81 (19.6), 109 (18.2), 139 (100)
3-Nitrophenol39 (35.9), 53 (10.7), 63 (14.7), 64 (7.9), 65 (63.7), 81 (15.8), 93 (51.4), 139 (100)
4-Nitrophenol39 (44.2), 53 (23.3), 63 (28.1), 65 (79.9), 81 (33.0), 93 (26.9), 109 (67.1), 139 (100)
Hydroquinone39 (6.9), 53 (14.4), 54 (12.9), 55 (10.5), 81 (25.3), 82 (12.3), 110 (100), 143 (9.6)
p-Benzoquinone26 (18.1), 52 (17.9), 53 (17.1), 54 (63.3), 80 (28.2), 82 (36.3), 108 (100), 110 (12.1)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chen, W.-S.; Chen, J.-Y. Photocatalytic Decomposition of Nitrobenzene in Aqueous Solution by Ag/Cu2O Assisted with Persulfate under Visible Light Irradiation. Photochem 2021, 1, 220-236. https://doi.org/10.3390/photochem1020013

AMA Style

Chen W-S, Chen J-Y. Photocatalytic Decomposition of Nitrobenzene in Aqueous Solution by Ag/Cu2O Assisted with Persulfate under Visible Light Irradiation. Photochem. 2021; 1(2):220-236. https://doi.org/10.3390/photochem1020013

Chicago/Turabian Style

Chen, Wen-Shing, and Jyun-Yang Chen. 2021. "Photocatalytic Decomposition of Nitrobenzene in Aqueous Solution by Ag/Cu2O Assisted with Persulfate under Visible Light Irradiation" Photochem 1, no. 2: 220-236. https://doi.org/10.3390/photochem1020013

APA Style

Chen, W. -S., & Chen, J. -Y. (2021). Photocatalytic Decomposition of Nitrobenzene in Aqueous Solution by Ag/Cu2O Assisted with Persulfate under Visible Light Irradiation. Photochem, 1(2), 220-236. https://doi.org/10.3390/photochem1020013

Article Metrics

Back to TopTop
