Review

A Signaling View into the Inflammatory Tumor Microenvironment

1
BioISI—Biosystems & Integrative Sciences Institute, Faculty of Sciences, University of Lisbon, 1749-016 Lisbon, Portugal
2
Department of Human Genetics, National Health Institute ‘Dr. Ricardo Jorge’, 1649-016 Lisbon, Portugal
*
Author to whom correspondence should be addressed.
Immuno 2021, 1(2), 91-118; https://doi.org/10.3390/immuno1020007
Submission received: 30 April 2021 / Revised: 9 June 2021 / Accepted: 10 June 2021 / Published: 15 June 2021

Abstract

:
The development of tumors requires an initiator event, usually exposure to DNA damaging agents that cause genetic alterations such as gene mutations or chromosomal abnormalities, leading to deregulated cell proliferation. Although the mere stochastic accumulation of further mutations may cause tumor progression, it is now clear that an inflammatory microenvironment has a major tumor-promoting influence on initiated cells, in particular when a chronic inflammatory reaction already existed before the initiated tumor cell was formed. Moreover, inflammatory cells become mobilized in response to signals emanating from tumor cells. In both cases, the microenvironment provides signals that initiated tumor cells perceive by membrane receptors and transduce via downstream kinase cascades to modulate multiple cellular processes and respond with changes in cell gene expression, metabolism, and morphology. Cytokines, chemokines, and growth factors are examples of major signals secreted by immune cells, fibroblast, and endothelial cells and mediate an intricate cell-cell crosstalk in an inflammatory microenvironment, which contributes to increased cancer cell survival, phenotypic plasticity and adaptation to surrounding tissue conditions. Eventually, consequent changes in extracellular matrix stiffness and architecture, coupled with additional genetic alterations, further fortify the malignant progression of tumor cells, priming them for invasion and metastasis. Here, we provide an overview of the current knowledge on the composition of the inflammatory tumor microenvironment, with an emphasis on the major signals and signal-transducing events mediating different aspects of stromal cell-tumor cell communication that ultimately lead to malignant progression.

1. Introduction

In the human body, complex physiological processes need to be coordinated at a cellular level. Circulating cytokines, hormones, and growth factors control aspects such as cell proliferation, differentiation, metabolism, angiogenesis, apoptosis, and senescence. Cells respond to such signals from their environment through sensors at the cell surface, namely receptor proteins that propagate their activation to intracellular proteins via sequential protein kinase signaling, often translocating into the nucleus, where transcription factors become activated, resulting in changes in gene expression that subsequently alter the cell’s biological responses.
Tumor cells develop several well-defined features that cause dysregulation of cellular signal transduction pathways, leading to increased cell proliferation, resistance to apoptosis, metabolic changes, genetic instability, induction of angiogenesis, and increased migratory capacity. This dysregulation involves genetic mutations and epigenetic changes in the tumor cells but also a complex interplay and exchange of signals with surrounding non-neoplastic cells and the extracellular matrix (ECM), designated as the tumor microenvironment (TME) [1,2].

2. The Tumor Microenvironment (TME)

Interactions between malignant and non-transformed cells define the tumor microenvironment and are nowadays recognized as being of vital importance in the tumorigenic process. Intercellular communication is driven by a complex and dynamic network of cytokines, chemokines, growth factors, and inflammatory and matrix remodeling enzymes, all of which respond to perturbations in the physical and chemical properties of the tissue [2].
Besides these soluble factors, the tumor microenvironment (TME) consists of an extracellular matrix (ECM) as well as cellular players, such as fibroblasts and cancer-associated fibroblasts (CAFs), neuroendocrine cells, adipose cells, immune cells such as tumor associated neutrophils (TANs), myeloid-derived suppressor cells (MDSCs), monocytes and tumor-associated macrophages (TAMs), mast cells, CD8+ and CD4+ T- cells, dendritic cells (DCs), or natural killer (NK) cells, and vascular networks of blood and lymphatic vessels lined by endothelial cells (Figure 1). This TME can provide a complex functional support to potentiate cancer progression and metastasis [3,4,5], and also modulate responses to therapy [2].
Indeed, over the past decade, solid tumors have increasingly been recognized as organs that consist not only of cancer cells but also a variety of morphologically distinct cells, which are described in the following and can be classified into three main groups: cells of hematopoietic origin, cells of mesenchymal origin, and non-cellular components [6].

2.1. Cancer Cells

Cancer cells are at the basis of the disease: they initiate tumor formation and drive tumor progression forward, carrying the oncogenic and tumor suppressor gene mutations that define cancer as a genetic disease. Traditionally, the cancer cells within tumors are portrayed as cell populations of clonal origin, but in the course of tumor progression, hyperproliferation combined with increased genetic instability spawn distinct clonal subpopulations [7]. Reflecting such clonal heterogeneity, many human tumors are histopathologically diverse, containing regions demarcated by various degrees of differentiation, proliferation, vascularity, inflammation, and invasiveness. Tumor heterogeneity may be responsible for tumor progression, metastasis, resistance to therapy, and relapse [7,8].
In recent years, evidence has emerged of the existence of a new dimension of intratumor heterogeneity and a hitherto-unappreciated subclass of neoplastic cells within tumors, termed cancer stem cells (CSCs). CSCs share similar properties with normal stem cells, including the ability to self-renew and differentiate into heterogeneous mature cancer cells that make up the bulk of the tumor [9]. Due to this similarity, CSCs are commonly characterized by the expression of surface markers associated with stem cells, such as CD133, CD44, and CD90, which allow their identification and isolation [10]. Notably, however, there is evidence that mature cancer cells are capable of high phenotypic plasticity, allowing them to regain stem cell characters under stress conditions [9]. Moreover, recent data indicates that TME-derived signals, including inflammatory factors, can determine the generation of CSCs pools with distinct functional transition states [11]. On one hand, there are CSCs pools (termed cyclic CSCs) that exhibit a predominantly epithelial phenotype and can self-renew or differentiate into mature cancer cells. On the other hand, there are pools of autophagic (non-cyclic) CSCs that show an enhanced ability to resist apoptosis, escape immunosurveillance, survive chemotherapies, and present with a predominant mesenchymal phenotype that facilitates invasion and metastasis [11]. Differences in phenotypic plasticity may form the basis of the differential impact of therapeutic outcomes on heterogeneous subpopulations of CSCs and mature cancer cells.
CSCs reside in particular tumor microenvironment niches that play an important role in regulating their proliferation, renewal, differentiation, and stemness. CSC regulation by their niche operates through cell-cell interaction, secreted factors, cell-matrix interaction, and the biophysical properties of the niche, such as hypoxia. CSCs may also be inherently resistant to medical therapy and contribute to tumor relapse [12].

2.2. Cells of Mesenchymal Origin

2.2.1. Cancer-Associated Fibroblasts (CAFs)

Fibroblasts are non-epithelial, non-immune cells with a likely mesenchymal lineage origin, and are part of the diverse connective tissue components [13]. Fibroblasts in normal tissues are generally single cells present in the interstitial space or occasionally near a capillary, without any association with a basement membrane but embedded within the fibrillar ECM of the interstitium. Without question, fibroblasts are the most versatile and extensively studied cells in vitro owing to their ease of isolation and culture. Tissue-resident fibroblasts are usually quiescent and become activated in a wound healing response, regulating the proliferation and differentiation of epithelial tissues [14].
After activation by the presence of tumor cells, fibroblasts are known as CAFs. Besides tissue fibroblasts, CAFs can also be derived from multiple resident cell types, including epithelial cells, endothelial cells, adipocytes or mesenchymal or hematopoietic stem cells [2,15]. It has been postulated that about 40% of CAFs are formed from endothelial cells [15].
Recent biomarker studies have defined in more detail distinct coexisting subtypes of CAFs in the TME. CAFs expressing high levels of αSMA, named myofibroblastic CAFs (myCAF), are tumor-suppressing, whereas cells expressing low levels of αSMA but high levels of cytokines and chemokines are named inflammatory CAFs (iCAFs) and have tumor-promoting effects [16]. CAFs have a significant impact on cancer progression: they remodel the ECM, stimulate cancer cell proliferation via the secretion of growth factors, recruit inflammatory cells, induce angiogenesis, and produce immune suppressive cytokines. Through their activity, CAFs influence mesenchymal-epithelial cell interactions, the formation of CSC niches, drug access, and therapy responses [5,14,15,17].
Targeting CAFs by altering their numbers, subtype, or functionality is being explored as an avenue to improve cancer therapies. However, research in this area faces numerous challenges because it still remains unclear which stimuli regulate the balance between CAFs with either pro-tumorigenic or anti-tumorigenic effects [17]. Various studies suggest that under certain stimuli, CAFs can acquire a pro-inflammatory signature characterized by the expression of immunomodulatory molecules (e.g., TGF-β or PD-L1/L2), as well as chemokines that promote recruitment of immunosuppressive myeloid cells [18,19]. Moreover, CAFs can also act on tumor cells to render them more resistant to the cytotoxic activity of natural killer (NK) cells. In contrast, CAF-secreted matrix metalloproteinases (MMPs) decrease the expression of MHC class I chain-related protein A and B (MICA/B) in melanoma cells, which are required for NK cells to recognize malignant cells [20]. Thus, CAFs appear to play several important roles in the anti-tumor immune response.
Many patient studies have documented how either CAF number or CAF function is linked to outcome [21,22], and thus any ability to target CAFs would represent an appealing addition to the suite of anticancer therapies. Further targeting mechanisms, such as TGF-β signaling that activate CAFs or emanate from CAFs to modulate the tumor phenotype, are being intensively explored to treat colorectal cancer [23]. More recently, there is a growing appreciation of the ability of CAFs to modulate the immune response [24].

2.2.2. Endothelial Cells (ECs)

The vascular endothelium is a versatile structure that separates the circulating blood from tissues. Moreover, apart from regulation and maintenance of blood fluidity, it plays multifunctional roles in the delivery of water and nutrients, maintenance of metabolic homeostasis, trafficking of immune cells, activation of innate and acquired immune responses, as well as angiogenesis [25].
In the initial tumor stage, tumor cells absorb oxygen and nutrients to survive and proliferate by diffusion. Their microenvironment then undergoes hypoxia and acidification as a result of excess metabolic products. When tumor volume exceeds 1–2 mm3, the tumor must become angiogenic and recruit new vasculature to grow. Cancer cells, together with tumor-associated stromal cells, stimulate the development of new blood vessels, using various mechanisms of tumor angiogenesis, including sprouting of nearby vessels [26]. When a quiescent blood vessel senses an angiogenic signal from malignant or inflammatory cells, or owing to hypoxic conditions in the TME, new vessels sprout from the existing vasculature [27]. Many soluble factors present in the TME, such as vascular endothelial growth factors (VEGFs), fibroblast growth factors (FGFs), platelet-derived growth factors (PDGFs), and chemokines stimulate endothelial cells and their associated pericytes during the neovascularization that is needed for cancer growth. Hypoxia-induced factor-1α (HIF-1α) is the main factor that initiates sprouting [28]. Blood vessels can also be formed by ECs recruited from the surrounding tissue as tumor endothelial cells (TECs) [28]. The tumor vasculature, in contrast to well-differentiated normal vessels, is abnormal in almost every aspect of its structure and function [29]. These aspects are targeted by many new cancer therapies because solid tumors are dependent on blood vessels for growth [28].

2.3. Immune Cells

2.3.1. Tumor-Associated Macrophages (TAMs)

Macrophages are myeloid-derived tissue sentinels that maintain tissue integrity by eliminating damaged cells and matrices for tissue repair [30].
Despite the initial hypothesis that macrophages are involved in antitumor immunity, there is now abundant evidence from human and experimental mouse cancer models that their activities in the majority of cases are pro-tumorigenic and enhance tumor progression to malignancy [2,31].
The tumor-promoting functions of macrophages at the primary site include supporting tumor-associated angiogenesis, promotion of tumor cell invasion, migration and intravasation, as well as suppression of antitumor immune responses [1]. Moreover, macrophage-derived osteoclasts can facilitate metastatic cell colonization by remodeling bone to create an environment that is receptive to transiting cancer cells, allowing them to survive and proliferate [32].
There is pre-clinical and clinical evidence that an abundance of TAMs in the TME is associated with poor prognosis, e.g., for breast cancer [33,34] or lung cancer [35,36]. Additionally, gene array studies in follicular lymphoma have demonstrated that the expression of genes that are associated with a strong ‘macrophage’ signature confers a poor prognosis, independent of other clinical variables [2,37]. However, there are examples of TAMs correlated with good prognosis of cancer [34,38].
In the literature, there are several terms and definitions to describe macrophage activation and polarization. One of the most used nomenclatures, introduced in 2000, classifies macrophages into two major subtypes: M1 and M2 [39]. M1 or classical macrophages, activated with LPS and/or interferon gamma (INF-γ), have a pro-inflammatory phenotype with pathogen-killing abilities, whereas M2 or alternative macrophages, activated with interleukin (IL)-4, promote cell proliferation and tissue repair and are immunosuppressive, which also promotes tumor growth [40]. M1 macrophages produce cytokines such as IL-6 and tumor necrosis factor α (TNF-α), while M2 macrophages produce TGF-β and IL-10 to start tissue repair. Although in this linear view, M1 and M2 macrophages represent two extreme ends [41], the M2 designation has rapidly expanded to include essentially all other types of macrophages, with dramatic differences in their biochemistry and physiology, arising as a class of regulatory macrophages. Nevertheless, currently the definition of macrophage populations continues to be defined by the different expression of marker proteins [42,43].
The role of macrophages in cancer is controversial and many aspects indicate opposing roles [44]. While classically activated macrophages would act as anti-tumorigenic in later tumor stages, they have the potential to promote the earliest stages of neoplasia [45], primarily because the free radicals that they produce can lead to DNA damage and cause mutations in surrounding cells that can promote transformation. However, as tumors progress and grow, the TME markedly influences tumor-associated macrophages. These macrophages change their physiology and take on a phenotype that is more closely to regulatory macrophages.
Many observations indicate that TAMs exhibit several M2-associated pro-tumoral functions, including promotion of angiogenesis, matrix remodeling, and suppression of adaptive immunity [46].

2.3.2. Tumor-Associated Neutrophils (TANs)

Neutrophils represent 50–70% of the myeloid-derived white circulating cells in human blood. Normally, neutrophils contain a nucleus divided into 2–5 lobes connected by chromatin and, when circulating in the bloodstream and inactivated, neutrophils are spherical. Once activated, they change shape and become more amorphous or amoeba-like and can extend pseudopods as they hunt for antigen-containing cells or structures [47]. Several studies have reported high neutrophil counts in the peripheral blood of cancer patients, particularly in those with advanced-stage disease, and a high circulating neutrophil-to-lymphocyte ratio is considered a strong indicator of poor prognosis in various cancer types [48].
The role played by tumor infiltrating neutrophils, known as tumor-associated neutrophils (TANs), in TME architecture and in tumor development is still limited [48]. Neutrophils are chemotactic phagocytes that migrate toward the site of inflammation, and their engagement by cytokines and chemokines from the TME is thought to recruit these cells to the tumor niche [49]. Similar to TAMs, TANs can be classified in N1 neutrophils, with an anti-tumor activity, and N2 neutrophils, with pro-tumor activity [47].
N1 neutrophil polarization is induced by type 1 interferon (IFN), and N1 cells express high levels of CD54/ICAM-1 and CD95/FASR at the cell surface, whereas TGF-β is a major determinant for N2 polarization, and these can be distinguished by their high expression of CD182 [50]. Notably, most neutrophils in the TME of solid tumors have an N2 phenotype [47]. After being recruited to the TME, polarized TANs participate in the remodeling process of the TME by promoting tumor angiogenesis and suppressing anti-tumor immunity. These cells act by secreting both pro-inflammatory and immunosuppressive factors, as well as pro-angiogenic factors, including IL-17, VEGF, MMP-9, IL-8, and angiopoietin-1 (ANG1) [50,51]. TANs have also been shown to participate in immune response modulation by antigen presentation, inhibition of T cell responses, and induction of B cell conversion [47,52,53,54].
It has been suggested that the plasticity and anti-inflammatory properties of N1 TANs could be exploited to control excessive inflammation in the TME [50]. However, the tumor-promoting effects of TANs seem to be more prominent than their anti-tumor effects [48]. Under the influence of the tumor microenvironment, TANs maintain the N2 phenotype in many solid tumors [47]. Moreover, it has been suggested that the interplay between TANs and tumor cells has an important role in the establishment of metastatic niches [55]. For example, the enhancement of lung metastasis of breast cancer cells after 5-fluorouracil (5-FU) administration is related with increased expression of neutrophilic chemokines CXCL1 and 2 by metastatic cells, which induce the intrapulmonary infiltration of large numbers of TANs expressing high levels prokineticin 2 that, in turn, promote the proliferation of the metastatic cells [56].
Neutrophils are also activated to form neutrophil extracellular traps (NETs) in the TME. NETs are networks of extracellular fibers, primarily composed of neutrophil-derived DNA, that are part of the innate immune response, designed to bind and trap pathogens [57]. It has been reported that IL-8 expression by tumor cells not only recruits neutrophils to tumor lesions, but also stimulates their IL-8 receptors, CXCR1 and CXCR2, triggering NET release into the TME [57], which wrap and coat tumor cells shielding them from CTL and NK cell-mediated cytotoxicity [58]. In addition, it has been reported that NETs are rich in serine proteases that degrade cytokines and chemokines inhibiting inflammation [59], which may also contribute to an immune-suppressive TME.

2.3.3. T Lymphocytes

There are many different T cell populations within the TME that infiltrate the tumor at the invasive margin and in draining lymphoid organs. Cytotoxic CD8+ memory T cells, which are normally antigen ‘experienced’ and capable of killing tumor cells, and CD4+ T helper 1 cells, which are characterized by the production of the cytokines IL-2 and IFN-γ, are strongly associated with a good prognosis in a lot of cancer types, such as melanoma [60,61], breast cancer [62,63], colorectal cancer [64,65,66], lung carcinoma [67,68], and renal cancer [69]. In these last two types, there is also contradictory evidence associating the presence of the CD8+ lymphocytes with a poor prognosis [69,70].
Another type of T helper cells, such as TH2, TH17, or immunosuppressive T regulatory (Treg), are generally thought to promote tumor growth and correlate with worse prognosis in many types of cancer [67,68,69]. However, Tregs can also be tumor-suppressive and their presence in Hodgkin’s Lymphoma correlates with a good prognosis, presumably through a direct suppression of tumor cell growth [71,72].
Regulatory pathways that limit the immune response to cancer are becoming increasingly well-characterized and targets for immunotherapy. One good example is Cytotoxic T-lymphocyte–associated antigen 4 (CTLA-4), which is an immune checkpoint molecule that downregulates pathways of T-cell activation [73]. CTLA-4-directed immunotherapy is used in a range of solid tumors, such as melanoma [74].
Another example is programmed cell death 1 (PD-1) and programmed cell death ligand 1 (PD-L1), since this signaling pathway plays a key role in physiological immune homeostasis. PD-1 signaling negatively regulates T cell-mediated immune responses and serves as a mechanism for tumors to evade the immune system. The development and application of immune checkpoint inhibitors that block PD-1/PD-L1 interaction result in very durable responses and prolong survival in patients with a wide range of cancers. There is an increasing number of different FDA-approved drugs for this immunotherapy [75] that targets the TME instead of the tumor cell.
Recent evidence has highlighted NKG2D, an activating cell surface receptor that is predominantly expressed on cytotoxic immune cells, as a potential therapeutic target in cancer, since it has the potency to enhance cytolytic immune responses against tumor cells [76]. CD4+ T cells generally do not express NKG2D even after activation, but its expression can be induced under certain inflammatory conditions, such as Crohn’s disease [77]. NKG2D binds to number of structurally different MHC-I-like ligands whose expression is upregulated in conditions of cellular stress, including oncogenic transformation [78]. Engagement of NKG2D stimulates the production of cytokines and cytotoxic molecules and it has been shown to participate in immune responses against a variety of tumors, playing an important role in the recognition and elimination of altered cells [79]. However, given the complexity of NKG2D-mediated responses, further research will be required before the biology of this receptor can be harnessed therapeutically [76,79].

2.3.4. B Lymphocytes

B lymphocytes carry antibodies inserted into the plasma membrane as part of B-cell receptors and differentiate into antibody-secreting effector cells upon recognition of the cognate antigen. Besides this humoral immunity response, tumor-infiltrating B cells (TIBs) can be found at the invasive margin of tumors, but are more common in lymphoid structures adjacent to the TME and associated with good prognosis in some breast and ovarian cancers [80,81]; however, in mouse models, in which B cells inhibit tumor-specific cytotoxic T cell responses [82], the role of B cells is tumor-promoting [83,84].
In the TME, TIBs shape the immune response by affecting other immune cells in the surrounding lymphoid tissue [85,86] and modulating the activity of myeloid cells [83].

2.3.5. Other Immune Cells

Innate lymphoid cells (ILCs) are a recently characterized family of innate immune cells, derived from common lymphoid progenitors, that are important for tissue homeostasis and for the initiation of immune responses [87]. ILCs represent a heterogeneous population of innate immune cells. In contrast to adaptive immune cells (T and B lymphocytes), ILCs lack the somatic rearrangement of antigen-specific receptors and do not express either T- or B-cell receptors (TCR or BCR) [87,88].
Based on their transcriptional regulation and cytokine profiles, ILCs can be categorized into different subsets with defined phenotypes and functional profiles: NK cells, ILC1, intra-epithelial ILC1 (ieILC1), ILC2, ILC3, lymphoid tissues inducer (LTi), and ILC progenitor (ILCP) cells [88]. It should be noted, however, that ILCs have the ability to adapt to local environmental cues by changing these profiles [89].
The activation and selective accumulation of ILC subsets have been observed in several types of inflammatory diseases [89]. For example, IFN-γ-producing ILC1s and IL-17-producing ILC3s accumulate in the inflamed tissues of patients with Crohn’s disease, accompanied by a decrease in the number of IL-22-producing ILC3s, and these changes in ILC composition correlate with disease severity [90].
Tumors are infiltrated with a large number of lymphocytes and the ability of ILCs to respond rapidly to signals in the TME has led to the suggestion that they might have a role in the immune response to tumors [91]. Nevertheless, the development and behavior of NK cells and other ILCs in the context of cancer is still incompletely understood. For instance, NK cells and NKT cells (which share the characteristics of both T and natural killer cells), are known to infiltrate the tumor stroma, but are usually not found in contact with tumor cells. For many cancers, such as colorectal, gastric, lung, renal, and liver, their presence appears to predict a good prognosis [92,93,94,95,96].
Dendritic cells (DCs) have important functions in antigen processing and presentation. The DCs that are found in the TME are thought to be suppressed, that is, they cannot adequately stimulate an immune response to tumor-associated antigens, maybe due to the hypoxic and inflammatory conditions in the TME that inhibit their activation [97].
Myeloid-derived suppressor cells (MDSCs) are immature myeloid cells. In contrast to TAMs and TANs, the number of MDSCs in the TME is negatively correlated with the number of tumor infiltrating T cells [98]. However, MDSCs are closely influenced by tumor hypoxic conditions, and they can rapidly differentiate into TAMs in the TME [99]. It is worth noting that MDSCs can have powerful immunosuppressive properties. MDSCs migrate into inflammatory and hypoxic tumor tissues and produce a large number of HIF-1α-mediated immunosuppressive cytokines (such as Arg1, NO, TGF-β, IL-10) and chemokines (such as CCL4 and CCL5) attracting Tregs to the tumor [99]. Consistent with the function of Treg cells, MDSCs inhibit T cell tolerance by increasing the expression of PD-L1 and CTLA-4 receptors [98].
The immune cell populations infiltrating human tumors are highly complex and due to their synergistic or opposing effects, it is difficult to predict their activity. They may influence tumors differently depending on their histological and molecular type, their stage, the microenvironment of the organ in which they grow, or the nature of the primary tumor or its metastases [73].
Although this review attempts to provide a general overview, it is important to note that tissue-specific properties determine the TME composition and regulation. For more detailed descriptions, the reader is referred to reviews on specific tumor types, such as breast [100,101], lung [102,103], colorectal [104,105], prostate [106,107], or brain cancer [108,109].

2.4. Non-Cellular Components

The Extracellular Matrix (ECM)

The ECM provides structure and support for the cellular components in the extracellular space of tissues and organs, but also contains cell-secreted growth factors that can be released during remodeling and contribute to paracrine cellular signaling. The ECM is comprised of highly organized interactions of fibrous molecules, proteoglycans, glycoproteins, glycosaminoglycans, and other macromolecules. It is composed of around 300 proteins in mammals and constantly remodeled by cells to control tissue homeostasis [110,111].
Although long viewed as a mechanical support structure that maintains tissue morphology, the ECM is a dynamic and versatile part of the milieu of a cell, and influences fundamental key aspects of cell biology [112]. ECM composition ranges from soft and compliant to stiff and rigid and determines the mechanoperception of a cell [113,114,115], functioning as a major environmental cue that determines cell comportment and contributes to development and disease [116].
Components of the ECM constantly interact with epithelial cells by serving as ligands for cell receptors such as integrins or growth factors, thereby transmitting signals that regulate adhesion or migration, proliferation, apoptosis, or differentiation, and angiogenesis. Disruption or disorganization of the ECM, leads to abnormal behavior of cells and ultimately failure of organ homeostasis and function [116]. Indeed, abnormal ECM dynamics is one of the most ostensible clinical outcomes in diseases such as fibrosis [117] and are considered a hallmark of cancer [116].
Tumor-derived ECM is biochemically distinct in its composition compared with normal ECM. In consequence, the tumor stroma is typically stiffer than normal stroma, for example in breast cancer [118,119] and this promotes cell transformation and metastasis. Consistent with these changes, expression of many ECM remodeling enzymes is often deregulated in human cancers, for example: heparanases, sulfatases, cysteine cathepsins, urokinase, and many MMPs are frequently overexpressed in different cancers [120,121].
In addition, growing evidence suggests that the ECM is an essential non-cellular component of the cell niche, both for tumors and adult stem cells. For example, ECM receptors allow stem cells to anchor to the special local niche environment where stem cell properties can be maintained. Such an anchorage physically constrains stem cells to make direct contact with niche cells, which produce paracrine signaling molecules that are essential for maintaining stem cell properties [122]. Moreover, anchorage allows stem cells to maintain cell polarity, orient their mitotic spindles, and undergo their characteristic asymmetric cell division [116].

3. Cancer-Associated Inflammation (CAI) and the TME

Under normal conditions, acute inflammation is a desirable, strictly regulated response to infection or tissue damage. After resolving the underlying cause, inflammation is usually associated with tissue healing processes and this is self-limiting because the production of pro-inflammatory cytokines is followed by the production of anti-inflammatory cytokines. The dysregulation of this controlled sequence of events can lead to pathogenesis, as is the case with neoplastic transformation [4,5].
A tissue environment with persistent or chronic inflammation is considered today to be a risk factor for cancer development because cells infiltrating the tumor microenvironment provide tumor-supporting molecules such as cytokines and growth factors, cell survival signals, angiogenic factors, and other carcinogenesis mediators [123,124], and this promotes tumor progression and supports metastatic spread, as documented in numerous studies [46,125,126,127,128]. For example, patients with inflammatory bowel diseases (such as ulcerative colitis and Crohn’s diseases, caused by both genetic and environmental factors) are at increased risk of developing colorectal cancer [129,130,131].
A number of other examples are purely environmental-related inflammation caused by asbestos, smoking, or silica particles associated with lung cancer [132], chronic gastritis caused by bacteria such as Helicobacter pylori associated with gastric cancer [133], E. coli infection of the prostate correlated with prostate cancer [134], a viral infection with either hepatitis virus B/C associated with hepatocellular carcinoma [135], or human papilloma virus (HPV) linked with many different cancers such as cervical and anogenital cancers, head and neck squamous cell carcinoma, esophageal carcinoma, and even ophthalmologic and breast cancers [91,136], reflux disease and Barrett’s esophagus associated with esophageal cancer [137], parasitic liver flukes and primary sclerosing cholangitis correlated with cholangiocarcinoma [138], UV irradiation-associated skin inflammation related with melanoma [139], endometriosis linked with endometrial carcinoma [140], and gallbladder stone-associated chronic cholecystitis associated with gallbladder carcinoma [141].

3.1. Mediators of Cancer-Associated Inflammation (CAI)

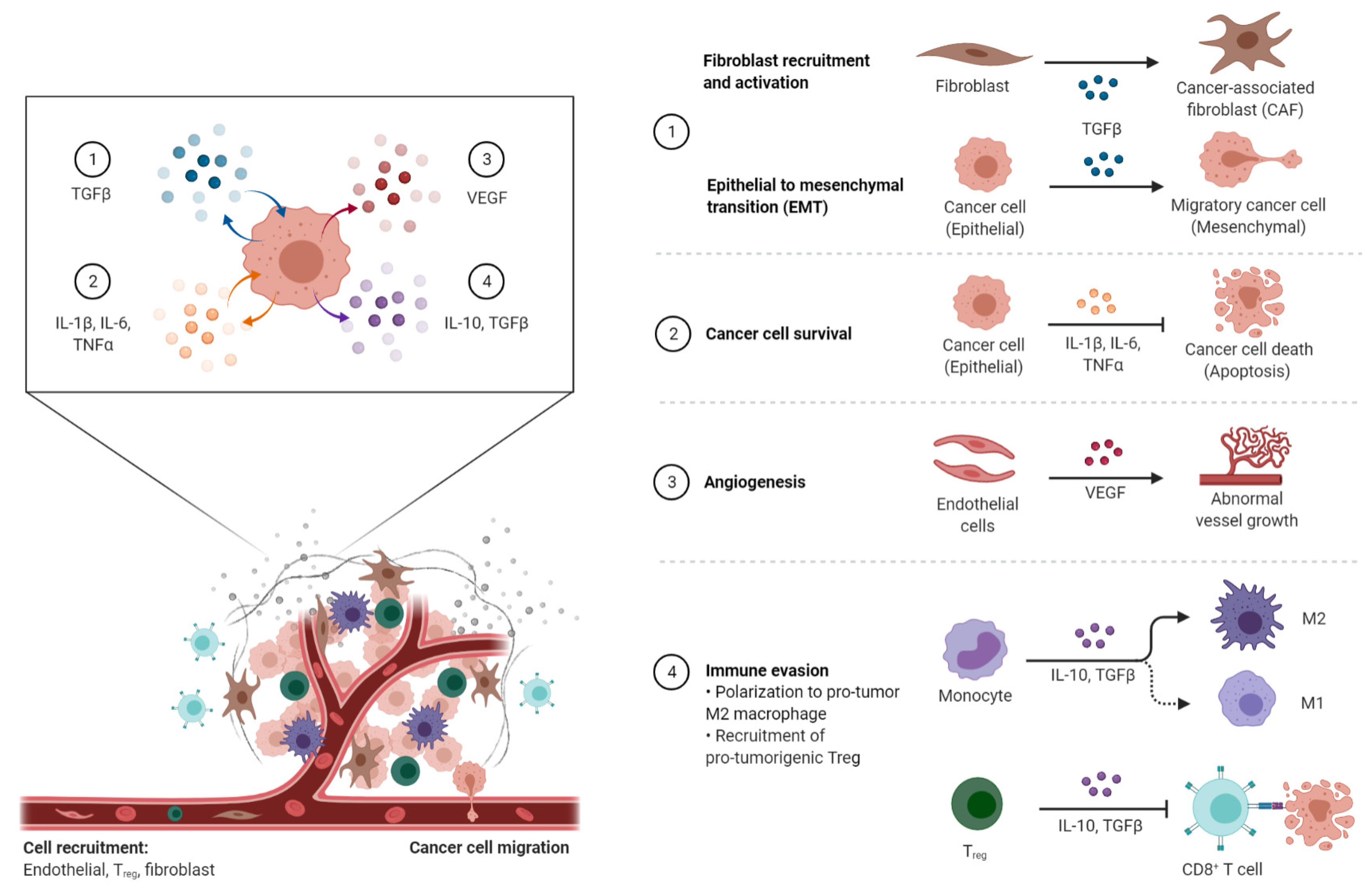

Soluble components in the TME are derived both from stroma and tumor cells. The main inflammatory mediators are cytokines, which include chemokines, interferons, interleukins, and tumor necrosis factors. Some are signaling molecules that trigger a specific biological function in the receptor-expressing target cells, whereas chemokines function by attracting immune cells to sites of inflammation. Cytokines modify the behavior of both tumor and inflammatory cells, influencing the type, abundance, and activity of the latter in the TME.

3.1.1. Pro-Inflammatory Factors

The main primary inflammatory cytokines are IL-1β, IL-6, and TNF-α that use type I transmembrane receptors with extracellular immunoglobulin domains for signaling [142]. These pro-inflammatory cytokines are not expressed in healthy tissue but become upregulated by an inflammatory insult to protect the host. Paradoxically, during carcinogenesis, they do not protect the host but promote cancer cell survival. In many cases, the reason for this paradox of cytokine function is the presence of a smoldering subclinical-level of chronic inflammation, continuously drawing in inflammatory cells [143,144].
IL-1β is crucial to initiate acute inflammation and is mainly synthesized as a precursor protein in tissue-resident macrophages, monocytes, or neutrophils. Upon their activation, IL-1β is cleaved by intracellular caspase-1 within the inflammasome complex and can then be secreted. Inflammasome activation can be initiated by cytosolic pattern recognition receptors (PRRs) in response to microbial pathogen-associated molecular patterns (PAMPs) or danger-associated molecular patterns (DAMPs) generated by the host cell. Apparently, intestinal epithelial cells also contain inflammasome components and are able to release IL-1β as a first line of defense against environmental pathogens that then promotes differentiation of monocytes to macrophages [145,146,147,148]. When IL-1β binds to a cell with IL1R, signal transduction leads to activation of the transcription factor NF-κB, which stimulates expression of pro-inflammatory cytokine genes, including IL-6 and TNF-α (see 3.2 for details). Tumor cells can also express IL1R, which in breast cancer cells was shown to stimulate IL-6 production [149], or in colon cells to drive sustained NF-κB activation involved in cell proliferation [150]. IL-1β further promotes tumor development by stimulating secretion of VEGF by malignant cells and influencing angiogenesis to increase blood vessel density in tumors [148,151,152].
Altogether, IL-1β in the TME is generally pro-tumorigenic, sustaining chronic non-resolved inflammation, endothelial cell activation, tumor angiogenesis, and the induction of immune-suppressive cells, although divergent data ascribing tumor-inhibiting effects to IL-1β exist [153]. Clinically, high serum levels of IL-1β correlate with bad prognosis in cancer patients and detection of IL-1β within the TME generally predicts tumor growth and metastasis [154].
IL-6 is critical in the final maturation of B-cells, T cell differentiation into Th1, Th2 and Treg phenotypes, and also inhibits functional maturation of DC to activate effector T-lymphocytes, blocking the anticancer immunity [155]. IL-6 is produced mainly by fibroblasts, monocytes, and macrophages, but also tumor cells, which can enhance IL-6 production by activated stromal fibroblasts.
IL-6R with its associated gp130 co-receptor activates JAK-STAT signaling leading to phosphorylation and nuclear translocation of STAT3 transcription factor and expression of IL-6-responsive genes (see Section 3.2 for details). IL-6-activated STAT3 has been shown to be a survival and/or proliferation factor in certain cancers [156] and high serum IL-6 levels were reported in various cancer types and associated with poor prognosis [157], with anti-IL-6 receptor antibodies showing anti-tumor and anti-angiogenic activity in vivo [158].
TNF-α is a potent inflammatory mediator in any inflammatory reaction of the innate immune system. It induces the expression of chemokines and endothelial and cellular adhesion molecules in order to facilitate the recruitment of effector immune cells to the site of infection [142]. TNF-α is first synthesized as a transmembrane precursor (mTNF-α) requiring release by proteolytic cleavage through TACE (or ADAM17) [142,159]. A soluble trimer (sTNF-α) is the ligand for TNF receptors with TNFR1 being widely expressed on different cell types. TNFR1 is a single transmembrane glycoprotein containing an intracellular death domain, to which upon activation the adaptor molecule TRADD and TRAF2 are recruited, leading to the addition of linear ubiquitin chains to RIPK1 via the ubiquitin-E3 ligase activity of TRAF2. If the formation of this so-called Complex I is successful, the ubiquitin chains act as scaffolds for additional factors that lead to the activation of NF-κB, JNK, and p38 pathways and induction of cytokine signaling and cell survival [159]. Alternatively, failure of RKIP1 ubiquitination leads to Complex II formation by recruitment of Fas-associated death domain (FADD) and activation of pro-caspase-8 to mediate cell death via apoptosis or necroptosis, hence the initial designation as tumor-necrosis factor [160].
The therapeutic administration of neutralizing anti-TNF-α antibodies effectively reduces local and systemic inflammation in patients with rheumatoid arthritis or Crohn’s Disease [161] but may also increase the risk for malignant diseases [162].

3.1.2. Pro-Inflammatory Chemokines in the TME

More than 50 different chemokines exist, mainly from the CC and CXC subfamilies, that attract immune cells to sites of inflammation, including the TME [163]. One example is IL-8/CXCL8 that is recognized by the G protein-coupled receptors CXCR1 and CXCR2, and signals via phosphatidylinositol-3 kinase (PI3K) and MAPK [164] (see Section 3.2 for details). The main role of IL-8 in inflammation is the recruitment of neutrophils but increased expression of IL-8 and/or its receptors has been characterized in cancer cells, where IL-8 acts as an autocrine growth factor inducing proliferation and preventing apoptosis. Chemokines also modulate stromal cells in the TME to release growth and angiogenic factors [164,165].
Other soluble factors in the TME are reactive oxygen species (ROS) that are secreted either by activated immune cells such as neutrophils or MDSCs, or as intercellular signaling molecule such as nitric oxide secreted by M1-type macrophages or cancer cells. Their presence can increase DNA damage and the mutation rate in cancer cells. On the other hand, excess ROS production by altered metabolism of cancer cells contributes to immunosuppression, as immune effector cells such as NK and Treg cells are inhibited by ROS [166].

3.1.3. Anti-Inflammatory Mediators—IL-10

Anti-inflammatory cytokines are functionally defined as those inhibiting the synthesis of pro-inflammatory cytokines such as IL-1 or TNF-α. Their function is mainly to limit the magnitude of the immune response and prevent damage to the inflamed host tissue by allowing tissue repair and regeneration. Major anti-inflammatory cytokines include IL-1 receptor antagonist (ra), IL-4, IL-10, IL-11, and IL-13, but also soluble and decoy variants of TNF, IL-1, or IL-18 receptors.
A key immunosuppressive cytokine is IL-10, which is produced by a variety of immune but also non-hematopoietic and cancer cells. Upon binding of IL-10, the receptor IL-10R inhibits the activation of NF-κB and STAT3 that are required for transcription of pro-inflammatory cytokine genes [167].
IL-10 is an essential regulator of intestinal homeostasis, and mice and humans deficient in either IL-10 or its receptor (IL-10R) develop spontaneous intestinal inflammation. In addition, polymorphisms or mutations in the IL-10 locus confer increased genetic risk for developing ulcerative colitis or Crohn’s disease [168,169,170]. Another phenomenon of insufficient anti-inflammatory response is known as the cytokine storm, characterized by an aggressive pro-inflammatory response with loss of homeostasis of the immune response to either pathogens, like SARS-CoV-2 [171] or in response to cancer immunotherapy [172,173].
The presence of IL-10 in the TME may thus suggest that it undermines the immune response of macrophages to cancer; however, IL-10 is also required for the expansion of tumor-specific cytotoxic CD8+ T cells to control tumor cells [174].

3.1.4. The Transforming Growth Factor-β (TGF-β)

Virtually all human cell types are responsive to TGF-β and a dual role has been described in relation to cancer.
In normal or initiated cancer cells, TGF-β suppresses growth. The active TGF-β dimer activates a pair of receptor serine/threonine kinases known as the type I and type II receptors, which propagate the signal by phosphorylating Smad transcription factors. After trimerization, phospho-SMAD2, SMAD3, and SMAD4 translocate to the nucleus and bind to their specific SMAD binding element in the promoter of target genes. For its growth-inhibitory effect, Smads mobilize cyclin-dependent kinase (CDK) inhibitors and suppress expression of c-Myc. Later in tumorigenesis, mutations in the tumor-suppressive arm of the pathway (e.g., the TGFBR2 or SMAD4 genes) allows TGF-β to promote expression of the transcription factors SNAIL and SLUG, which stimulate EMT and invasiveness [175].
In the TME, TGF-β is mostly secreted by TAMs and Tregs as an immune-suppressive molecule [176]. Similar to IL-10, TGF-β inactivates NK cells and promotes differentiation of TAN into the N2 phenotype or of T cells into the Treg class [177]. TGFβ further stimulates the activation of mesenchymal stem cells, tissue fibroblasts, or endothelial cells into CAFs that produce matrix metalloproteases and degrade the ECM, facilitating tumor cell invasion, and also produce cytokines, promoting cancer cell proliferation and angiogenesis. Thus, TGFβ acts in the TME as an immune suppressor, an inducer of tumor-cell mitogens and a promoter of carcinoma invasion [175,178].

3.2. Signaling in the Inflammatory TME

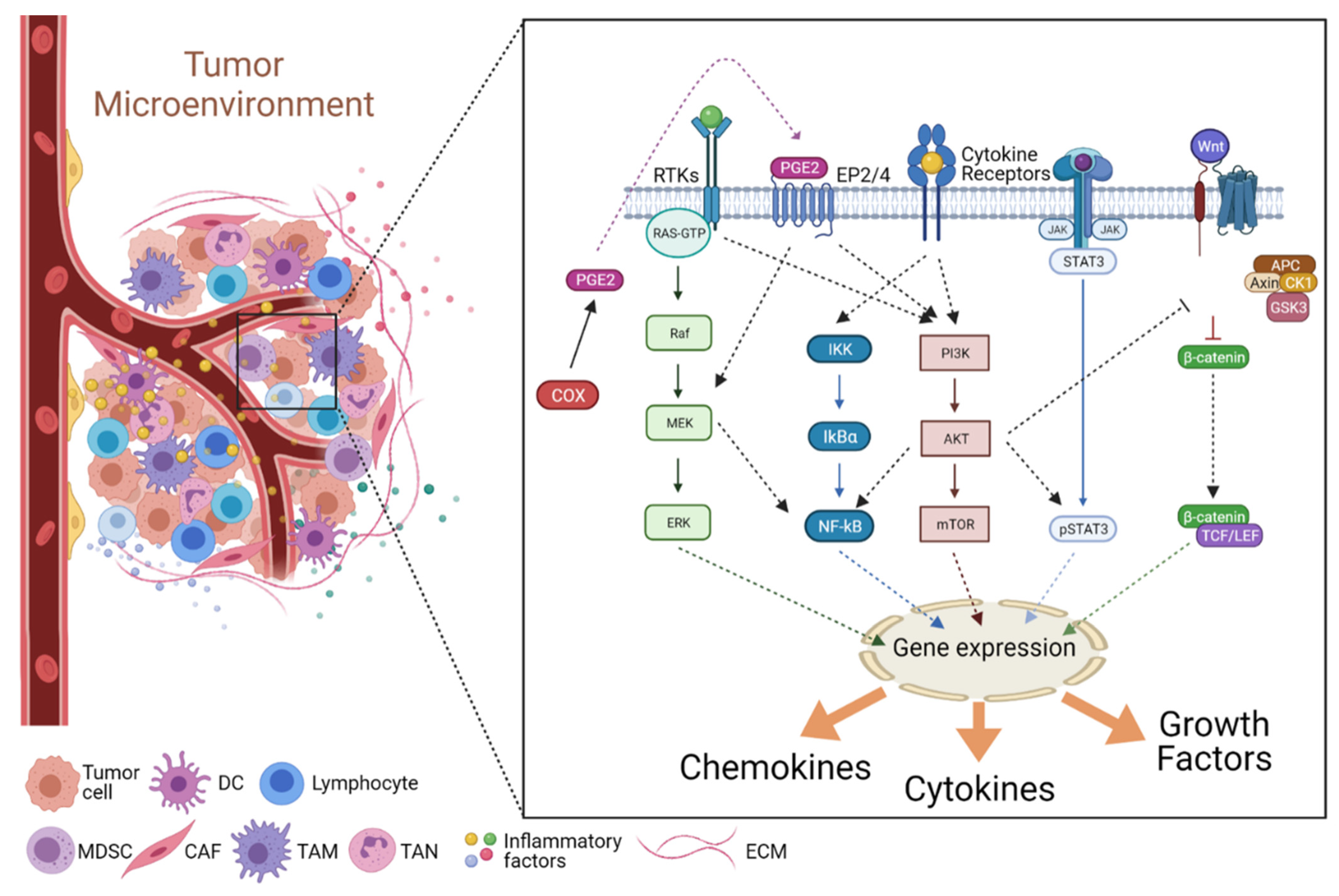

Many signaling events and pathways have been shown to mediate the contribution of inflammatory cues in the TME to the tumorigenic process. However, a set of molecules and pathways are considered to be prime drivers of cancer-associated inflammation (CAI) (summarized in Figure 2).

3.2.1. The JAK/STAT Pathway

The Janus kinase (JAK) family of nonreceptor tyrosine kinases includes JAK1, JAK2, JAK3, and TYK2. JAK family proteins associate with the intracellular domain of cytokine receptors, transducing cytokine-induced signals to the signal transducer and activator of transcription (STAT) family of transcription factors [179]. The JAK/STAT pathway contributes to the regulation of many cellular processes, including immunity, cell growth, cell death, and differentiation. Dysregulation of JAK/STAT signaling underlies several pathogenic conditions related to chronic inflammation, autoimmune diseases, and cancer [179]. Among the seven mammalian STAT family members, STAT3 has been reported as having a vital role in modulating both endogenous and exogenous inflammatory signaling in tumors, by mediating the expression of inflammatory molecules triggered by oncogenic stimuli [180].
Most of these inflammatory mediators are produced by stromal immune cells such as TAMs and MDSCs, although some are produced by the tumor cells [1]. Underlying this inflammatory interplay is the continuous upregulation of STAT3 activity, which has been detected in as many as 50% of all human tumors [180]. In tumor cells, STAT3 promotes gene expression of many pro-inflammatory products such as IL-6, IL-10, and TNF-α. These, in turn, stimulate immune cell receptors that activate their STAT3 signaling pathways, further potentiating the expression of pro-tumorigenic cytokines, chemokines, and growth factors, thus establishing a STAT3 positive feedback loop between tumors and the inflammatory TME [1,181].
Notably, STAT3 signaling is also known to play an important role in tumor-associated angiogenesis. Upregulated STAT3 signaling in both tumor and stromal cells leads to the production of several angiogenic stimuli [182]. For example, the pro-inflammatory cytokine IL-6 activates STAT3 via the classical IL-6R/gp130-JAK-STAT3 pathway, leading to VEGFA expression by binding of activated STAT3 to the promoter of the VEGF gene [183]. Moreover, pro-inflammatory cytokines act via STAT3 not only on stromal and tumor cells but also on endothelial cells. For instance, stimulation of endothelial cells by IL-17 induced STAT3-mediated expression and secretion of additional inflammatory factors such as growth-related oncogene-α (GRO-α), GM-CSF, and IL-8 [184]. These factors also mediate the recruitment of additional inflammatory cells, including neutrophils, to the TME, namely to the perivascular stroma, thus promoting another tumorigenic feedforward cycle [182]. Of note, it was reported that TNF-α-induced IL-10 also participates in angiogenesis by promoting endothelial progenitor cell migration, adhesion, and tubule formation, through activation of the STAT3 pathway and induction of VEGF and MMP-9 expression [185]. Additionally, VEGF secretion also promotes breast and lung cancer stem cell self-renewal via VEGF receptor-2 (VEGFR-2)/JAK2/STAT3 pathway-mediated upregulation of MYC and SOX2 expression [186]. Finally, STAT3 activity has also been implicated in the evasion from immune surveillance, by promoting the expression of PD-L1 and PD-L2 in cancer cells, suppressing immune cell activity [187].

3.2.2. The NF-κB Pathway

Nuclear factor kappa-light-chain-enhancer of activated B cells (NF-κB) is a transcription factor assembled by the dimerization of two of five members of the Rel family of proteins that share a Rel homology domain in their N-terminus. However, whereas subunits RelA (p65), RelB, and c-Rel, have a transactivation domain in their C-termini, the p50 and p52 subunits do not. The classical NF-κB heterodimer is a combination of the p65 (RelA) and p50 subunits. While in an inactivated state, NF-κB is located in the cytosol complexed with the inhibitory protein nuclear factor of kappa light polypeptide gene enhancer in B-cells inhibitor alpha (IκBα). A variety of extracellular signals, stimulating various receptor types, result in the activation of the IκB kinase (IKK). IKK, in turn, phosphorylates the IκBα protein, which results in its dissociation from NF-κB dimers and eventual proteasomal degradation, allowing activated NF-κB to translocate into the nucleus and bind to the promoters of multiple target genes [188].
Although initially identified as a central mediator of immune cell stimulation, the NF-κB pathway is also activated in tumor cells and has been reported to promote tumor cell proliferation, survival, and invasion [1,189,190,191]. Nevertheless, the upregulation of NF-κB activity does not seem to be associated with oncogenic mutations of Rel proteins or their direct regulators [192]. On the contrary, the activation of NF-κB is mainly driven by inflammatory cytokines present in the TME, such as TNF-α, IL-6, IL-1, and IL-8 [192,193]. Indeed, persistent chronic inflammation can trigger abnormal NF-κB activity in precancerous lesions, promoting tumor development, which is then sustained by the inflammatory microenvironment, induced and maintained after malignant transformation [192,194]. The magnitude of NF-κB upregulation in tumors has been further highlighted by recent data showing that it can be detected in high levels in the plasma of breast and colon cancer patients, correlating with increased systemic inflammation markers such as, TNF-α, IL-6, and C-reactive protein (CRP) [195].
Notably, studies have shown that there is an important interplay between STAT3 and NF-κB signaling pathways in the development of inflammation-induced tumors. The concomitant activation of these two factors in the tumor and stromal immune cells results in secretion of a large number of tumor-promoting cytokines, including TNF-α, IL-1β, IL-6, IL-8, and VEGF [1,192,193]. This again triggers positive feedback loops where the inflammatory cytokines mediate the initiation signals to non-tumor stromal cells, including endothelial cells. NF-κB binds to the promoter of VEGFR2 and stimulates its expression in endothelial cells. The activation of VEGFR2 by the VEGF in the TME further promotes the activation of downstream angiogenesis signals in endothelial cells [196]. NF-κB also binds the IL-8 gene promoter, and stimulates its transcription by stromal and tumor cells, an inflammatory chemokine that also functions as a pro-angiogenic agent [192]. By binding to the C-X-C motif chemokine receptor 2 (CXCR2), IL-8 upregulates VEGF levels in endothelial cells, also via the NF-κB pathway, leading to the autocrine activation of VEGFR2 [197].
Thus, the crosstalk between tumor and tumor-associated stromal cells feeds back to the TME, further stimulating angiogenesis but also tumor cell proliferation, epithelial-mesenchymal transition (EMT), invasion, metastasis, and chemoresistance [1,181]. Indeed, NF-κB activation is a well-known mechanism by which chemoresistance to anticancer agents arises, namely through the upregulation of a multitude of mediators, including anti-apoptotic genes [198]. Moreover, activated NF-κB also induces the expression of MMP-2 and MMP-9, again synergizing with STAT3 activity to facilitate EMT, invasion and metastasis [199,200]. NF-κB also regulates the expression of another important mediator of the inflammatory TME, often found overexpressed in malignant tumors—cyclooxygenase-2 (COX-2) [193,201].

3.2.3. The COX2/PGE2 Pathway

As we discussed above, inflammatory mediators can be produced by the different stromal cell types or directly by the cancer cells themselves. Besides the crucial cytokines, chemokines, growth factors, and matrix remodeling factors already mentioned, several other tumor-sustaining mediators are known to contribute to the inflammatory microenvironment. Among this, prostaglandin E2 (PGE2) clearly stands out [202]. PGE2 is a prostanoid lipid associated with the promotion of cancer cell survival, growth, migration, and invasion, also participating in tumor-associated angiogenesis, and immunosuppression [193,202]. Cyclooxygenase (COX)-1 and -2 are the rate-limiting enzymes for prostaglandin synthesis from arachidonic acid [202]. COX-1 is constitutively expressed in a wide range of normal tissues and works as a housekeeping enzyme responsible for maintaining tissue homeostasis. COX-2 is nearly absent in most normal cells, but is often overexpressed in multiple cancers, including colorectal, breast, stomach, lung, and pancreatic cancers, and is associated with poor prognosis [201,203]. Of note, COX-2-derived PGE2 has been shown to mediate the crosstalk between colonic tumor cells and TAMs [204], induce the accumulation and activation of MDSCs [205,206], and promote the tumor growth of mutant BRAFV600E melanomas by suppressing immunity and enhancing tumor-promoting inflammation [204,207,208].The depletion of COX-2 or downstream PGE2 synthases modifies the TME inflammatory signaling profile from pro-tumorigenic to anticancer pathways [193,201]. Moreover, the inhibition of COX-2 synergizes with PD-1 blockade to improve tumor cell eradication and augment the numbers of functional tumor-specific CTLs in patients with advanced epithelial ovarian cancer [209]. These data indicate the critical role of COX-2 and PGE2 in modulating the TME to an immunosuppressive status. Notably, several clinical studies have shown that the long-term use of non-steroidal anti-inflammatory drugs, which act by inhibiting COX activity, may reduce the risk of developing several types of cancer, although the optimal preventive drug dosages and treatment durations remain to be fully clarified [210].
Several stimuli from the inflammatory TME can elevate the expression of COX-2 or upregulate COX-2/PGE2 signaling axis. For example, TME cues were shown to activate the receptor tyrosine kinase ephrin-A receptor 2 (EPHA2), which signals through the TGF-β pathway to stimulate COX-2 expression in pancreatic cancer [211]. In addition, reduction of Receptor-interacting protein kinase 3 (RIPK3), a key element in colonic mucosal repair, elicited NF-κB-mediated upregulation of COX-2 and consequent increased PGE2 production in colorectal cancer cells and associated MDSCs [212]. Moreover, PGE2 exacerbated the immunosuppressive activity of MDSCs, accelerated tumor growth, and further suppressed RIPK3 expression, in another example of a TME -associated feedforward cycle [212]. Notably, inhibition of COX-2 or PGE2 receptors reversed the immunosuppressive activity of MDSCs and dampened tumorigenesis [212].
In another example, histone deacetylase 6 (HDAC6), one of class II histone deacetylases, was frequently found associated with poor survival outcomes when upregulated in the CAFs from breast cancer patients [213]. HDAC6 upregulation in CAFs was a crucial epigenetic mediator to promote an immunosuppressive TME by regulating STAT3 activation and promoting STAT3-dependent expression of COX-2 and PGE2 synthesis [213]. Finally, the frequent cancer-associated aberrant activity of classical mitogen-activated protein kinase (MAPK) cascades, such as the MAPK/ERK and p38 MAPK pathways, also promoting the upregulation of COX-2/PGE2, thus favoring immunosuppressive TME and promoting the progression of various cancer types [201,214,215,216].

3.2.4. The PI3K/Akt Pathway

The phosphatidylinositol 3-kinase (PI3K)/AKT (Protein kinase B, PKB) pathway is a crucial coordinator of intracellular signaling in response to the extracellular stimuli. Consequently, its dysregulation has been reported to have a broad role in mediating the inflammatory signaling between tumors and the TME [217]. On one hand, upstream receptor tyrosine kinases, the p110α catalytic subunit of PI3K, the downstream effector kinase AKT, and the negative pathway regulator PTEN (a lipid phosphatase that dephosphorylates phosphatidylinositol (3,4,5)-trisphosphate (PIP3) to phosphatidylinositol (4,5)-bisphosphate (PIP2)), are all often mutated in a wide range of human tumors, contributing to the malignant transformation of cells by promoting tumor growth, but also invasion and metastasis [218]. For example, activation of mechanistic target of rapamycin (mTOR) serine/threonine kinase downstream of PI3K/AKT promotes tumor cell growth, proliferation, and survival, and also facilitates tumor cell motility through cytoskeletal reorganization [219]. Moreover, activated AKT signaling also facilitates EMT through differential phosphorylation on Twist, a key transcriptional regulator controlling cell plasticity, in response to growth factors and inflammatory cytokines in the TME [220]. On the other hand, various inflammatory factors, such as IL-1, IL-6, IL-17A, and TFN-α, stimulate AKT activation in tumor cells and, conversely, leading to the synthesis and secretion of more inflammatory mediators, including IL-8, IL-6 and CCL2 [218,221].
As described above, the transcriptional regulation of most of these cytokines is primarily controlled by NF-κB and STAT3 pathways. However, NF-κB and STAT3 activities are also tightly controlled via cross-talks with other key intracellular pathways, including the PI3K/AKT/mTOR pathway [217]. For example, AKT can activate the IKK complex, namely through a direct mTOR-IKK interaction [222], and part of TNF-α-induced AKT pro-oncogenic signaling is relayed through the NF-κB pathway [223]. In addition, in hepatocellular carcinoma, TME IL-17 robustly induced IL-6 expression and STAT3 activation in an AKT-dependent manner [224]. In turn, IL-6 activated JAK2/STAT3 signaling leading to IL-8, MMP-2, and VEGF upregulation, which promoted neutrophil infiltration and increased tumor vascularity [224].
Indeed, several reports have shown that multiple pathways downstream of activated AKT participate in the recruitment, proliferation, and differentiation of various TME-associated leukocytes, such as TAMs, TANs, and lymphocytes, thereby further promoting inflammation [217,225]. Thus, the dysregulation of PI3K/AKT signaling favors the aggregation of reactive immune cells in the TME, resulting in the release and accumulation of ROS in the tumor site by means of the oxidative stress response [1,220]. Notably, increased ROS levels in the TME can feedback and further stimulate AKT signaling in tumor cells. For instance, in ovarian cancer cells, epidermal growth factor (EGF)-induced increase in ROS levels promoted the activation of the AKT/mTOR/ p70 S6 Kinase 1 (p70S6K1) axis, which mediate the expression of (HIF-1 and VEGF, promoting tumor angiogenesis [226].
Interestingly, TAM-secreted IL-1 and TNF-α also promotes the phosphorylation of pro-apoptotic Bcl-2 family member BAD by activating the PI3K/AKT pathway, preventing BAD from inhibiting the activity of survival protein Bcl-2 and Bcl-xL, favoring neovascularization by promoting endothelial cell survival through a mechanism that also involves NF-κB activity [227,228]. Notably, despite limited by resistance and adverse effects, it has been suggested that the anti-angiogenic effects of PI3K inhibitors might account, at least in part, for their reported therapeutic effectiveness within the advanced stages of multiple cancers, including lymphoma, glioblastoma multiforme, melanoma, colorectal, lung, breast, and hepatocellular carcinomas [229,230,231].

3.2.5. The Wnt Pathway

The Wnt pathway is one of the central mechanisms regulating tissue morphogenesis during embryogenesis and repair [232]. It is thus not surprising that anomalous Wnt signaling has been associated with several cancers, namely colorectal, breast, lung, oral, cervical, and hematopoietic malignancies [233].
To date, 19 distinct Wnt proteins (ligands), 10 frizzled receptors (FZD), and several co-receptors have been identified in mammals [234]. In the canonical Wnt pathway, Wnt proteins bind to their complex receptor FZD/LRP5/6 (low-density lipoprotein receptor related protein), preventing proteasomal degradation of β-catenin. This allows β-catenin to be translocated to the nucleus, where it binds to transcription factors of the T cell factor (TCF)/lymphoid enhancer factor (LEF) family, activating the expression of multiple target genes [232,235]. Conversely, in the absence of Wnt ligands, the phosphorylation of β-catenin by the so-called destruction complex (composed of axin, Adenomatous Polyposis Coli (APC), and kinases CK1, and GSK3β) leads to its ubiquitination by β-TrCP ubiquitin ligase, targeting it for proteasomal degradation. As a result, the pool of β-catenin in the cytosol is depleted, and its nuclear translocation is blocked, restraining the transcription of Wnt target genes [235]. The APC protein serves as the building platform for the assembly of the β-catenin destruction complex. Loss-of-function mutations in APC, which occur early on in cancers such as colon cancer, lead to loss of β-catenin regulation and aberrant activation of Wnt signaling [235]. Indeed, familial adenomatous polyposis (FAP), an inherited condition characterized by numerous adenomatous polyps in the large intestine and highly increased risk of colon cancer, results from germline mutation in the APC gene [236].
Several growth factors secreted by stromal cells of TME have also been reported to induce the activation of Wnt signaling in tumor cells. For example, augmented hepatocyte growth factor (HGF) levels in colorectal cancer (CRC) upregulate β-catenin expression via the PI3K pathway and promote β-catenin dissociation from c-Met (HGF receptor) at the plasma membrane enhancing the activity of the β-catenin-regulated TCF family of transcription factors [237].
Also in CRC, TAMs express increasing levels of Wnt ligands Wnt2 and Wnt5a during progression from normal colorectal adenoma to carcinoma, suggesting that paracrine Wnt activation by macrophages may result in cancer progression [238]. A study, using mouse models of breast cancer, showed that Wnt7b, another Wnt ligand produced by TAMs, initiated the canonical Wnt pathway in TECs expressing LRP5 and Frizzled, leading to β-catenin-mediated transcription of cell cycle genes, thus linking Wnt signaling to tumor angiogenesis [239].
Notably, PGE2 secreted by TECs is also known to activate β-catenin signaling and help in the proliferation of CRC cells. PGE2-stimulated EP2 receptors promote the dissociation of GSK3β from the destruction complex while simultaneously inducing its inactivation via PI3K/AKT-mediated phosphorylation. This leads to translocation of β-catenin to the nucleus of cancer cells, promoting tumor proliferation and progression [240].
Finally, recent evidence indicates that the aberrant expression of Wnt5a in some tumors, including melanoma, non-small-cell lung cancer, and ovarian cancer, can drive a Wnt5a/NF-κB/IL-6/STAT3 positive feedback loop that contributes to an immunosuppressive tumor microenvironment [241,242]. Wnt5a expression is upregulated by several cytokines including TNF-α, IFN-γ, IL-1β, and IL-6, in both immune and non-immune cells [243,244,245,246,247].
This upregulation can be prevented by pre-incubation with either NF-κB or STAT3 inhibitors, suggesting that these pathways are implicated in Wnt5a transcription [244,248,249]. Conversely, Wnt5a can also induces NF-κB and STAT3 activity, thus generating a continuous feedforward loop in the TME [250,251,252]. At some point, particular subpopulations of stromal immune cells arise that respond to Wnt5a signals by promoting the synthesis of IL-10, thus generating tolerogenic microenvironments [241]. For instance, a recent study determined that a Wnt5a+CD68+/CD68+ TAMs ratio was significantly associated with poor prognosis in CRC patients and that the Wnt5a+ TAMs were of an M2-like subtype [249]. Wnt5a induced TAMs to secrete IL-10 by stimulating a CaKMII-ERK1/2-STAT3-dependent pathway, and IL-10 then acted autocrinally to induce M2 polarization of these TAMs. Furthermore, Wnt5a-induced M2 TAMs promoted CRC cells proliferation, migration and invasion, and the knockdown of Wnt5a significantly impaired the pro-tumor functions of TAMs [249].

4. TME in Cancer: Aggressor or Innocent Bystander?

In healthy tissue, the supporting connective tissue, or stroma, functions as an important barrier against tumorigenesis [253]. One way to look at the TME is that the presence of transformed tumor cells initiates crucial changes that convert this microenvironment into one that supports cancer progression.
For example, the breast tumor cell-derived chemokine osteopontin was found to trigger the activation of stromal fibroblasts into CAFs, which then secreted CXCL12 for tumor cell EMT [254]. In addition, overexpression of the membrane protein PD-L1 in cancer cells avoids activating T lymphocyte responses and mediates immune escape [255].
On the other hand, inflamed tissues are more permissive to the development of initiated tumor cells [256]. This probably explains the increased cancer risk of inflammatory bowel disease patients to develop colitis-associated colon cancer [257], or of obese individuals in whom the adipose tissue emanates inflammatory signals [258].
Moreover, there is evidence that initiated tumor cells only survive and strive when the microenvironment allows them to, for example, due to the presence of an already inflamed tissue condition. In this context, Weaver and Bissell showed how breast cancer cells with known oncogenic mutations either grow or remain quiescent depending on whether neutralizing anti-integrin antibodies block cancer cell binding to a stiff ECM [259]. Since then, the evidence for the role of the microenvironment in tumor development has increased steadily, and the targeting of a compromised immune response by immune-checkpoint inhibitors is a corresponding clinical outcome.
Indeed, cancer immunotherapy has achieved many positive clinical outcomes and is revolutionizing cancer treatment [260] (see also [100,108,163,178]). As TME is more penetrable and accessible than tumor cells, a lot of effort have recently been taken to generate inhibitors that specifically target TME (extensively reviewed in [261]). Currently, most of the agents are small molecules or antibodies, such as the Bristol-Myers Squibb (BMS) compounds that antagonize the PD-1/PD-L1 interaction [262], bindarit that targets TAMs in prostate and breast cancer [263], WRG-28 that inhibits tumor invasion and migration through CAFs in breast cancer [264], or the antibodies targeting the PD-1/PD-L1 axis (e.g., nivolumab), EGFR (e.g., cetuximab), and VEGF-A (e.g., bevacizumab) in metastatic colorectal and non-small cell lung carcinomas [260,265]. However, small molecules generally show low affinity and often cause side-effects, whereas therapeutic antibodies tend to have poor tissue penetration and costly production [99,265,266]. These drawbacks have recently fueled intensive research into the development of bioactive peptides capable of modulating the TME by targeting dendritic cells, MDSC, TAMs, NK cells, and Tregs; and activating antitumoral immunity, overcoming the disadvantages of previous approaches (reviewed in [266]). Nevertheless, so far, only a few peptide-based therapies have been approved for clinical usage in the oncology field [267].
So what comes first, the bad seed or the bad soil? As we have extensively discussed in this review, inflammatory signals exchanged between immune and stroma cells also act on tumor cells and have a tumor-promoting effect. This signaling view underlines a new look on cancer development that is less cancer-cell centered and less driven by accumulating genetic alterations, but rather seen as a dynamic equilibrium between the different cell types present in the TME as a constant adaptation of a new tissue-like structure, the tumor. The equilibrium is influenced by the effect that external determinants have on the TME, including microbial infections (HPV, H. pylori, gut microbioma), metabolic conditions (diet, obesity, insulin resistance, oxidative stress), and toxic compounds (tobacco, pollutants). According to this view, a combined targeting of both cancer cells and their TME should synergize and increase anti-tumor immune responses in the patient.

Funding

The work in the authors’ laboratory was supported by Fundação para a Ciência e a Tecnologia (FCT), Portugal, through grant UID/MULTI/04046/2019 to Research Unit BioISI and fellowship SFRH/BD/109162/2015 to JFSP.

Conflicts of Interest

The authors declare no conflict of interest.
