Spatial Dynamics of Tree Stand Disturbance under Siberian Silk Moth (Dendrolimus sibiricus) Impact in Central Siberia in 2016–2020 Based on Remote Sensing Data ^†

Abstract

In this study, we have analyzed the spatial dynamics of the forests disturbed by Siberian Silk Moth (Dendrolimus sibiricus Tschetverikov (Lepidoptera: Lasiocampidae)) in Central Siberia and obtained model equations that fit these dynamics. We considered three sites that experienced silk moth outbreaks in 1993–1996, 2015–2018, and 2018–2020 and used satellite data (NOAA/AVHRR, Terra/MODIS, Landsat/ETM/OLI), field data, a digital elevation model, and maps of predominant forests. Silk moth-disturbed areas were classified using NDVI, which was calculated for each 15-day period during the growing season (April–September). Time series of disturbed forest areas were obtained for three sites located in the Krasnoyarsk region (Central Siberia, Russia). Total damaged areas for these sites were 41, 430, and 470 thousand hectares. We obtained formalized descriptions for the temporal dynamics of the disturbed area.

1. Introduction

An analysis of the development of pest outbreak in the forests for each specific case requires knowledge of the entire complex of parameters that determine the location, growth rate, and dynamics of the affected area. It is known from the literature that populations of forest insects can be well described by parametric models that predict the population size under various environmental conditions [1]. At the same time, any numerical predictions based on parametric theoretical models must be validated on the basis of field data, which makes it possible to determine the list of model inputs, parameters, and constants [2,3,4,5]. The number of field measurements is usually limited and not always sufficient to calibrate the models that describe the dynamics of the process. When studying insect-disturbed areas, it is also important to study the issue of outbreak locations relative to the physiographic, forest, and meteorological conditions (humidity deficit, precipitation regimes, winter and summer temperature regimes, etc.) of the region. This also requires consideration of each individual case [5,6,7,8,9,10,11,12].

Regarding this issue, the studies of the dynamics of disturbed areas that usually have long-term scars on satellite images are of particular interest. It has been shown [13,14] that after the impact of disturbance factors on forest stands, in particular after the Siberian silk moth outbreak, changes in the spectral characteristics of damaged areas occur [15,16,17]. This determines the prospects of using remote sensing data, both for analyzing the forest mortality caused by the complex effects of forest fires, pest outbreaks, etc. [18,19,20,21] and to monitor the dynamics of the spatial distribution of pests. Satellite data also make it possible to perform long-term monitoring of the state of damaged forest stands, allowing one to classify the disturbance degree [22]. Such an approach is now commonly used and widespread in geospatial research in various regions [5,11,23,24].

The spatio-temporal model of the silk moth outbreak development allows estimating the growth rate of the total area and the main tactical elements of the disturbed area. The results of such studies are the basis for further analysis of the parameters that determine the predominant directions of outbreak propagation under conditions of local relief, aspect, and forest growing conditions.

We investigated the following issues: (a) the rate of pest outbreak development in dark coniferous forests of Siberia, (b) modeling the rate of disturbed area increase.

The obtained solutions make it possible to have a predictive model for the formation and development of the disturbed forest zone, which is necessary at the stage of planning appropriate preventive measures and developing a general strategy for minimizing the consequences under the conditions of repeated outbreaks of Siberian silk moth in the studied areas.

2. Material and Methods

The studies were performed for two sites of dark coniferous taiga in the Krasnoyarsk Region, Siberia, Russia: (1) 58°30′–60° N, 88°30′–92° E, in the Yenisei region (EnP), with a total area of 4.2 million ha; and (2) 54°45′–55°05′ N, 95°20′–99°10′ E in the Irbei district (IrP), with a total area of 904 thousand ha, where Siberian Silk Moth (Dendrolimus sibiricus Tschetverikov (Lepidoptera: Lasiocampidae)) outbreaks were observed between 2016 and 2020. Figure 1 shows forest areas disturbed by the silk moth according to the moderate spatial resolution data for EnP and IrP.

The initial data on the areas of disturbed forest zones detected by their spectral features were obtained from Landsat, Sentinel-2 data of moderate spatial resolution (15–30 m) with a frequency of 1–3 months and from Terra/Aqua MODIS data of low spatial resolution (250 m, 1000 m) with a frequency of 14–28 days (MOD13Q1/ MYD13Q1). Thus, the temporal resolution of satellite data for the region of interest was at least once a month in the case of moderate resolution data and two times a month for the data of low spatial resolution. Time series of disturbed forest areas were obtained for two sites located in the Krasnoyarsk region (Central Siberia, Russia).

A vegetation cover map was obtained using “Vega-service” (Database of the Institute of Space Research of the Russian Academy of Sciences, IKI RAS, Moscow, http://pro-vega.ru/maps/, accessed on 21 September 2022) [25].

3. Results and Discussion

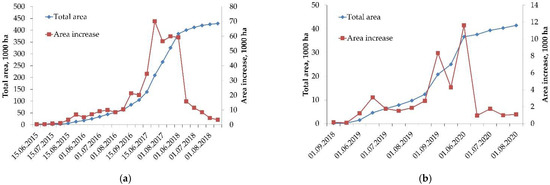

Using the previously described approaches, the dynamics of area disturbed by silk moth in the EnP and IrP plots was calculated. The duration of the outbreak in the EnP was 4 years, while for the IrP it was 3 years. The final disturbed areas were 428.6 and 41.5 thousand ha, respectively (Figure 2).

The temporal dynamics of the total disturbed area (Figure 2) can be approximated using the function of normal distribution as follows:

$$f(x)=\frac{1}{\sigma \sqrt{2\pi }}{e}^{-\frac{{(x-\stackrel{-}{x})}^2}{2{\sigma }^2}}$$

(1)

where $\bar{x}$ is expected value and σ is standard deviation.

Analyzing the general patterns of the development of the silk moth-disturbed area, two phases can be distinguished that reflect the rate of the geospatial spread of the disturbed:

(a)

a phase of increasing rate of disturbed area growth, which is limited by the characteristic of time, T_phase, unique for each case, which is determined by the change of the pattern of the disturbed area growth;

(b)

the phase of the decreasing rate of area growth and further “saturation” (the maximum value of the disturbed area for the given case).

In the case of the IrP, the value of T_phase for the time series was 11 months, the initial area of the disturbed forest was 109.4 ha, and the approximating maximum of the area (asymptote) was 35,000 ha (Figure 2).

The type of distribution allows extrapolation of the disturbed area, S = S(t), for each phase as an independent function. The general type of the model can be formulated as:

$$S \left(t\right)=\{\begin{array}{c}{S}^{\mathrm{ph}1}=A exp\left(Bt+C\right)+D, \mathrm{for} t<T_{\mathrm{phase}}\\ S^{\mathrm{ph}2}=E ln\left(Ft+G\right)+H, \mathrm{for} t\ge T_{\mathrm{phase}}\end{array}$$

(2)

and the corresponding set of coefficients (K_i), which determine the amplitude of the initial phase of the disturbed zone development (A), the rate of area growth (B, F), the state of the disturbed zone at the time of the beginning of logarithmic growth (E), and additive terms (C, D, G, H). Here, the phase of the increasing rate of the area growth (exponential increase) is designated S^ph1, and the phase of the decreasing rate of the area growth and further saturation is S^ph2.

The solution (Figure 3a) obtained based on the model approximations (2), agrees well with the experimental dataset and has a high level of correlation (r~0.99) (

Table 1. Coefficients of the equations for the model of disturbed zone growth.

IrP, 2018–2020
Model	Model Coefficients (2)
Phase I: Aexp(Bx + C) + D	A	B	C	D
	0.91	0.82	0.86	1.00
Phase II: E ln(Fx + G) + H	E	F	G	H
	22,497.42	0.187	0.07	558.35
EnP, 2015–2018, Tphase = 111 weeks
Model	Model Coefficients (2)
Phase I: Aexp(Bx + C) + D	A	B	C	D
	0.989	0.100	0.986	1.00
Phase II: E ln(Fx + G) + H	E	F	G	H
	60.903	0.007	7.704	0.101

).

A silk moth outbreak in the Yenisei region in 2015–2018 was characterized by the spatial scale of the disturbed area that limited the use of satellite data of moderate spatial resolutions (Landsat, Sentinel-2). Thus, the Terra/MODIS data were a unique data source on the dynamics of the silk moth outbreak development.

In the first approximation, the solution for the dynamics of the disturbed area contains a significant discrepancy for the stage of exponential growth (Figure 3 “I”) with the T_{phase 1} = 111 weeks, because the area of the disturbed area on the initial stages of 2015 and 2016 was significantly lower than the final values delineated using satellite data from 2017–2018.

With all the assumptions of the first approximation of the model, the obtained solution (Table 1) for the disturbed area dynamics is in good agreement with the experimental dataset and has a high level of correlation (r~0.97), which is shown in the correlation field plot (Figure 3c,f).

The restrictions imposed on the spatial advancement of the disturbed area are associated with natural boundaries (such as non-forested areas, ridges, valley complexes, rivers, etc.), the heterogeneity of vegetation and forest composition, and the time of the outbreak origination, as well as the spatial and temporal peculiarities of the origination of secondary (multiple) locations of pest outbreaks, anisotropy of physical and geographical characteristics, microrelief, and local conditions. Determination of the directions of the predominant advancement of the disturbed area requires a comprehensive analysis of all factors listed above [5,10,11,12,23,24]. In addition, these indicators can be input conditions that regulate the rate of spread of the disturbed area and individual tactical elements, as well as the degree of damage to forest stands [22].

4. Conclusions

The results obtained represent the formalized descriptions of the temporal distribution of the disturbed area consistent with data series based on satellite data for silk moth outbreaks in the EnP (in 2015–2018) and IrP (in 2018–2020) regions of the Krasnoyarsk region, Siberia, Russia.

We obtained formalized descriptions for the temporal dynamics of disturbed area. Coefficients for the model solution were optimized using the Lagrange multiplier method and non-linear generalized downgrading gradient method. It is shown that the systems of empirical solutions adequately (R²~0.97) fit field data and can be used to simulate silk moth outbreaks under similar conditions. We have tested model regression equations for predicting the azimuthal spread of damaged areas with a confidence level of r = 0.60–0.68.

It was shown that it is necessary to additionally identify and analyze inter-seasonal periods of disturbed area dynamics to improve the accuracy of the model. Individual seasons should be considered as independent sub-periods, which must be accompanied by refined coefficients of model equations when forming a general solution. A set of obtained solutions reflects the probable range of silk moth outbreak scenarios.
