Article

Influence of Recurrent Rolling/Crimping on Cover Crop Termination, Soil Strength and Yield in No-Till Cotton

USDA-ARS, National Soil Dynamics Laboratory, Auburn, AL 36830, USA
AgriEngineering 2020, 2(4), 631-648; https://doi.org/10.3390/agriengineering2040042
Received: 1 October 2020 / Revised: 12 December 2020 / Accepted: 15 December 2020 / Published: 17 December 2020

Abstract

:
Rollers/crimpers have been used to terminate cover crops typically with supplemental herbicide application to speed-up termination. Due to environmental concerns, there is a need to reduce herbicide use. In the Southern USA, the cash crop is typically planted three weeks after a rolled cover crop reaches more than 90% kill rate which eliminates competition with the cash crop for water and nutrients. A three-year replicated field experiment was initiated in the fall of 2014 to determine the effects of recurring rolling by experimental rollers/crimpers in terminating a cereal rye cover crop in central Alabama and how multiple rolling affected soil strength. Experimental 2-stage (one smooth drum and one crimping drum), 4-stage (one smooth drum and three crimping drums), spiral, and smooth rollers were tested to roll rye 1, 2, and 3 times (conducted at the same day). A smooth roller with mounted spray boom applying glyphosate rolling once was also evaluated, and untreated rye was the control. Rye was terminated at the milk growth stage and was evaluated one, two and three weeks after rolling. At one week after rolling, the highest rye kill rate was obtained with rolling three times by the 4-stage (96%), 2-stage (92%), spiral roller (81%); rolling once by the smooth roller with glyphosate (94%) compared to the untreated rye at 37%. At two weeks after rolling no differences among rollers were found (91% to 98%); the untreated rye was 54%. Similarly, at three weeks after rolling no differences were detected among rollers (99% to 100%); the untreated rye was 86%. Rolling 2 or 3 times compared with rolling one time did not cause soil compaction. However, at the 15 cm depth cone index (CI) did exceed 2 MPa (a critical value of root penetration restriction); although this CI increase was solely related to decrease in gravimetric soil moisture content (GMC). In addition, over three growing seasons, the seed cotton yield was not affected by rolling treatments with the average yield of 3601 kg ha−1 (1512 kg ha−1 of cotton lint).

1. Introduction

There are many soil benefits associated with using cover crops such as reduced runoff and soil erosion, increased infiltration and water holding capacity, increased soil organic carbon and decreased soil compaction [1,2]. In the Southeastern United States, three weeks is normally required from cover crop termination to cash crop planting to reduce competition with the cash crop nutrients and water [3,4]. Two weeks is the minimum time between cover crop termination and planting cash crop to replenish soil water [5].
For decades, rolling technology has been used in the United States on no-till systems to mechanically terminate cover crops, but because of adverse spring weather conditions (too wet or too cold) producers use synthetic herbicide such as glyphosate (RoundupTM) to accelerate cover crops death to keep recommended planting dates for subsequent cash crop. A multi-year field experiment conducted by Kornecki et al. [6] has shown that kill rates for cereal rye (Secale cereale, L.) one week after rolling were between 96% and 98% when using supplemental glyphosate with rolling. Nonetheless, synthetic herbicides cannot be used in organic production systems, and there is a push to reduce glyphosate use because of harmful effects on the environment.
Terminating tall cover crops (e.g., cereal rye) in a no-till system is associated with flattening and damaging plant tissue due to crimping action to promote desiccation. Desiccated cover crop residue forms a thick layer of mulch that completely covers the soil-protecting soil surface, constraining weed germination and conserving soil moisture [7].
Because commercially available synthetic herbicides such as glyphosate are banned in organically grown cotton (Gossypium hirsutum, L.), and organic herbicides are highly ineffective in terminating cover crops and expensive [8], the only solution is to increase the mechanical termination effectiveness of cover crops using rollers/crimpers. However, to accomplish this goal, multiple rolling over the same cover crop area or developing forceful rollers/crimpers to reduce the number of passes are the only practical options.
The majority of researchers worldwide are in the agreement that multiple passes of heavy agricultural machinery over the same farming land area can significantly increase soil compaction and have negative effects associated with soil degradation. Repeated traffic in agricultural field operations (number of passes over the same area) increases soil compaction because soil degradation (soil structure deformation, by increasing bulk density or decrease in porosity) can correlate to the number of passes of equipment [9]. Research has shown that soil quality was worsened in both scenarios of having a greater number of passes by a lighter tractor or by a heavy tractor with fewer passes [10].
Conventional tillage systems are considered to have the most negative effect by inducing soil compaction that creates serious environmental problems worldwide [11], because it degraded soil structure which often is difficult to assess from the top soil layers. This hidden degradation of soil structure is linked to particular problems such as inhibited plant growth and reduction of crop yields, and lower water infiltration that could be mistaken for other reasons besides soil compaction. Hamza and Anderson [12] stated that soil compaction increases soil strength and decreases soil fertility by decreasing soil available water and nutrients, which can increase production costs with the need for additional fertilizer applications. Furthermore, low soil organic matter can rapidly decrease soil quality, as this problem has been known worldwide. Neve and Hofman [13] indicated that soil compaction also has negatively affects the mineralization of soil organic carbon and nitrogen. In addition, soil compaction can lead to reduced oxygen supplies and increased levels of carbon dioxide in the soil that negatively impacts root growth [14].
Benito et al. [15] investigated the effects of conventional, minimum tillage, and zero-tillage on soil water, soil organic matter and soil compaction. They found that the zero-tillage treatment conserved much more soil water than conventional and minimum tillage treatments, especially in dry years, Moreover, for conventional tillage, soil compaction was present in the subsoil compared to the top soil. Wiermann et al. [16] investigated the long-term effects of conventional and conservation tillage systems on soil properties and soil strength on a silty loam soil in Germany. They concluded that the recurrent deep impact of tillage tools in conventional tillage plots caused permanent destruction of freshly developed soil aggregates, resulting in a relatively weak soil structure in the tilled soil layers when failing to support applied single wheel dynamic loads as low as 2.5 tons. Conversely, in the conservation tillage plots, a single wheeling event with an applied 2.5 ton load was adequately handled with the help of a robust aggregate system and did not lead to structural degradation provided by reduced tillage.
To monitor soil compaction issues, the soil water infiltration rate is a good indicator, particularly in high soil moisture situations, where the difference in soil resistance between compacted soil (with traffic) and uncompacted soil (no traffic) is low and usually lower than the 2 MPa threshold that limits root growth. In contrast, as soils become drier, soil compaction in the topsoil becomes observable [17]. Soil strength values have also been utilized to determine the degree of soil compaction because it mirrors soil resistance to root penetration [12,18,19,20,21]. Research conducted by Aliev [22] indicated that the most effective method of protecting soil from structural degradation and soil compaction issues is combining several independent agricultural field operations into single simultaneous runs, not only to reduce the number of wheel passes but to save farm resources. Cereal rye (Secale cereale L.) is a popular cover crop in the United States that can also help with soil compaction issues as it is at least 1.5 m tall, and generates up to 10,000 kg ha−1 of biomass that improves soil physical/chemical properties for better cash crop growth and reduced soil compaction [23].
The United States is among countries such as India, China, Turkey, and Tanzania that produce 97% of the global organic cotton [24]. Increased organic cotton production is stimulated by consumer demand, less regulatory restrictions and higher price to producers. In 2017, the U.S. planted 10,644 ha of organically grown cotton producing 5082 metric tons of lint with a slight increase of 1.3% in 2018 to 5380 metric tons of organic cotton production [25]. This increase continued in 2019, as the United States produced 6657 metric tons of organic cotton lint which is a 20% increase compared to 2018 [26]. The main concern related to no-till organic systems with cover crops is that synthetic herbicide use is prohibited, so the only effective way to terminate cover crops is through mechanical termination that might include repeating rolling/crimping over the same cover crop area. The concern is, however, that multiple rolling/crimping operations (multi-passes) might cause soil compaction issues.
Therefore, the objectives of this study were to: (1) determine the effectiveness of different roller/crimper designs in terminating cereal rye cover crop in single, double, and triple runs over the same cereal rye area, (2) determine effects of multiple rolling/crimping on soil compaction with associated gravimetric soil moisture content at two depths, and (3) to evaluate the effects of different rollers/crimpers on seed cotton yield in a conservation system.

2. Materials and Methods

A replicated three-year field experiment was initiated in 2014 in Central Alabama (E.V. Smith Research Center), USA by planting a rye cover crop in the fall of 2014 (10 November 2014) at a rate of 100 kg ha−1 to determine the effectiveness of different rollers/crimpers in mechanical termination of a cereal rye cover crop. The test was conducted on a Compass loamy sand (thermic Plinthic Paleudults) soil. Each spring, rolling treatments were applied in late April when rye was at the milk growth stage (Zadoks #77, [27]), and its kill rates were evaluated one, two, and three weeks after rolling. Field activities during the experiment are presented in Table 1. The following types of experimental rollers/crimpers were tested: 2-stage (Figure 1) [28], 4-stage (Figure 2) [28], and spiral roller (Figure 3) to roll rye 1, 2, and 3 times (passes), which were conducted at the same day. These rollers were developed at the United States Department of Agriculture—Agricultural Research Service (USDA—ARS) National Soil Dynamics Laboratory in Auburn, Alabama, USA. A smooth roller with spray boom applying glyphosate was also tested (Figure 4), and the standing rye (untreated) was the control. The application rate for a systemic, non-selective glyphosate (RoundupTM Weather Max) was a continuous spray at 1.6 L ha−1 (660 g of active ingredient of glyphosate in 1.0 L of potassium salt solution, i.e., 1.06 kg a.i. ha−1 with water spraying dilution of 140 L ha−1).
The experiment was a randomized complete block (RCB) design with randomized treatments (plots) within each block. Total of 14 treatments were employed: four different rollers (2-stage, 4-stage, spiral, and smooth drum rollers) with one, two, and three passes over the same cover crop area (12 treatments), smooth drum roller with glyphosate with one pass only (treatment 13) and standing (untreated) rye was the control (treatment 14). Treatments were randomly assigned to individual plots (56 plots total, each plot 9.1 m long and 1.8 m wide). Each treatment was repeated four times (four replications presented in tables as BLOCKS). Rye kill rates were estimated based on a procedure described in [29] utilizing a hand-held chlorophyll meter with data logger SPAD 502 (Konica-Minolta, Ramsey, N.J.) and calculating kill rates on a scale of 0% (no injury symptoms) to 100% (complete death of all plants). To obtain a kill rate value per plot, five readings of plant tissue were collected in each plot by manually clamping the chlorophyll meter on randomly selected plants and storing the readings in the data logger.
Evaluation was performed one, two, and three weeks after rolling treatments. Cotton (Phytogen 333WRF variety) was planted 14, 25, and 18 May 2015, 2016 and 2017, respectively, utilizing a John Deere 1700 MaxEmerge planter and DAWNR row cleaners (91 cm row spacing with a seeding rate of 180,380 seeds ha−1). Cotton was harvested on 19, 14, and 15 October 2015, 2016 and 2017, respectively, using a 2-row cotton picker (John Deere model 9920).
To determine soil compaction due to multiple rolling operations, soil penetration resistance (also referred to as soil strength) was assessed by quantifying cone index (CI) before rolling treatment applications and after rolling/crimping at dates presented in Table 1. Soil CI was measured by a mobile five cone penetrometer [30] depicted in Figure 5. Penetrometer cone index data were measured with 3 rods located between wheel tracks (non-traffic) inside the plot area, and 2 rods collecting in the wheel track (wheel traffic) for each plot. Since the standing (untreated) cereal rye was the control (undisturbed area not subjected to external forces; i.e., rolling and wheel traffic) and served as a reference point to the rolled plot area and wheel traffic, other parameters such as soil infiltration were not assessed. However, corresponding soil gravimetric moisture content (GMC) was measured for control plots at the same time CI readings and GMC readings were collected for all plots so that the relationship between soil strength (CI) and GMC could be established at two soil depths (0–15 cm and 15–30 cm). Soil samples were obtained using a soil probe to a depth of 30 cm to determine the associated GMC. Three soil samples were taken in each plot then each sample was divided equally for two depths (0 to 15 cm and 15 to 30 cm). Three samples from each depth were combined to make a composite sample. CI data were averaged over the depth for each treatment and averaged over treatments at two depths to attain the analysis of variance for soil compaction and gravimetric soil moisture content at 15 and 30 cm depths. Soil CI and GMC data were obtained at least three weeks after rolling but not longer than 1 month after the last rolling application. The reason for this range was due to constant monitoring of weather and associated soil conditions (wet soil after rain). Stainless steel cone tips with a base area of 129 mm2 were utilized in the experiment [31]. Cone index data were obtained according to procedures described in [32] and measured in the middle of the plot and on the wheel track to identify compaction issues. CI measurements were obtained from each plot (three complete sets per plot) for a non-traffic area inside the plot using three stainless rods with cone tips spaced 19 cm apart providing measurements on a 76 cm width strip down to a 45 cm depth. Soil CI for wheel traffic was obtained using two rod readings per wheel traffic. Data were subjected to analysis of variance using the analysis of variance (ANOVA), Generalized Linear Model (GLM) procedure and treatment means were separated with Fisher’s protected least significant differences (LSD) test at the α = 0.05 (5% probability level) [33].

3. Results and Discussion

Results from analysis of variance for biomass production by cereal rye cover crop, its kill rates, and seed cotton yield are presented in Table 2. Highly significant differences were observed in cereal rye biomass for variables YEAR; therefore, the biomass production was evaluated every year separately. Likewise, significant differences in cereal rye kill rates were observed for variables WEEK, BLOCK, TRT (rolling treatments) and YEAR, thus rye kill rates data were analyzed separately by year week and rolling treatments. Similarly, significant difference in seed cotton yield was detected for variables YEAR and BLOCK, therefore cotton yield was analyzed separately for each growing season.
Over three growing seasons, cereal rye generated an average biomass of 7680 kg ha−1 with an average plant height of 1.57 m which was comparable to typical rye cover crop production in Alabama of 7000 kg ha−1 [34]. A significant difference in biomass production among growing seasons indicates that different weather and soil conditions in each growing season affected rye biomass production (Table 3). In 2015, rye generated higher biomass compared to 2016. The lowest rye biomass was obtained in 2017 and it appears that season was impacted by the weather. For instance, the lowest rye biomass in 2017 might be associated with unusually low rainfall amounts of only 20 mm during March and April. In contrast, higher cumulative rainfall amounts of 553 mm from November 2014 till April 2015 might have promoted rye growth in 2015. On the other hand, during the same period in the 2016 growing season, there was twice the amount of total rainfall (1287 mm) compared to 2015 [35]. This excessive rainfall caused flooding to the experimental area but did not have a considerable negative impact on rye biomass production in 2016. It appears that rye biomass was mostly dependent on plant available water stored in soil in winter and early spring, especially during the accelerated rye vegetative growth.

3.1. Cereal Rye Kill Rate

Cereal rye kill rates one, two and three weeks after rolling/crimping are presented in Table 4. In 2015, one week after rolling, no difference in kill rates between rolling once and two times were reported for the 2-stage, 4-stage, and smooth drum (from 86% to 89%); whereas the spiral roller rolling once had lower kill rates of 82%, although the higher kill rates for the spiral roller were reported rolling twice (86%), and three times (85%); the untreated control was 40%. Results have also shown that one week after rolling with three passes, rye kill rates generated by the 2-stage and 4-stage exceeded 90%, and kill rates were similar to the smooth drum rolling once with chemical treatment (glyphosate) indicating that these mechanical treatments were as effective as chemical treatment. These kill rates were high enough to plant a cash crop into rye residue cover just one week after rolling [3]. Two weeks after rolling, no significant differences in kill rates (95% to 97%) were reported among rollers; the control was 49%. In contrast, smooth drum and spiral rollers with three passes generated kill rates below 90%. Three weeks after rolling, no significant differences in rye kill rates were found (99% to 100%); the control was 88%. One week after rolling in 2015, the 2-stage and the 4-stage crimpers rolling 3 times generated kill rate over 90% which was very similar to the smooth drum with glyphosate application (91%).
In the 2016 growing season, one week after applying rolling treatments, the highest rye kill rate (96%) was observed for the 4-stage roller with two and three passes; the same was reported (96%) for the smooth roller with glyphosate and 95% for the 2-stage roller with three passes. The spiral roller and smooth drum with 1, 2, and 3 passes generated lower kill rates from 69% to 75%, whereas the control had only a 29% kill rate. At two weeks after rolling, kill rates for 2-stage, 4-stage, and spiral rollers were above 90%, ranging from 94% to 99%. The smooth drum with one pass produced a lower rye kill rate of 89%, and higher (95%) kill rate with two and three passes; the control (standing rye) had a 50% kill rate. Three weeks after rolling, all tested rollers with one, two or three passes, generated 98% to 100% kill rates, and a lower kill rate was found for the untreated rye (82%).
At one week after rolling in 2017, also seen in the two previous growing seasons, the 2-stage and 4-stage rollers (two and three passes) produced kill rates from 90% to 98%. Likewise, the smooth drum with glyphosate generated a 96% rye kill rate. In contrast, spiral roller and the smooth drum generated lower kill rates from 76% to 85%; the lowest kill rate of 43% was reported for the control. At two weeks after rolling, the 2-stage, 4-stage, and spiral rollers with one, two and three passes, produced rye kill rates ranging from 92% to 100% which were higher than observed for the smooth roller (from 81% to 88%); the control had the lowest kill rate (62%). Three weeks after rolling, there were no significant differences among the tested rollers and the number of rolling passes producing maximum (100%) rye kill rates, while the control had a lower rate of 87%.
These results clearly have shown that for the experimental 2-stage or 4-stage rollers that generated higher kill rates compared to other roller types, it may be necessary to complete three rolling passes in situations where effective mechanical termination is critical especially in no-till organic system. This is important when there is a short time (e.g., 7 days) from rolling of cover crop to cash crop planting and when cover crop kill rate must exceed 90% as recommended by Ashford and Reeves [3] for successfully planting the cash crop into desiccated residue cover.

3.2. Seed Cotton Yield

Over the three growing seasons rolling treatments for rye did not affect the yield (Table 2), with the average seed cotton yield of 3601 kg ha−1 and corresponding lint yield of 1512 kg ha−1 (Table 5). Conversely, cotton yield was significantly different at each growing season, and most likely was related to different weather conditions affecting the seed cotton yield. Lower lint cotton yield in 2016 (1224 kg ha−1) was likely weather related, as drought conditions occurred. According to Agricultural Weather Information Service (AWIS) [35], there was a low rainfall amount of 359 mm from May to October of 2016. In contrast, during the same period for 2015 and 2017, total rainfall was 644 mm and 962 mm, respectively. These higher rainfall amounts helped maintain higher lint cotton yields in 2015 (1721 kg ha−1) and 2017 (1592 kg ha−1). Across all growing seasons, there were significant differences in seed cotton yield among variable BLOCK, thus in this experiment blocking was justified.

3.3. Cone Index and Corresponding Gravimetric Moisture Content

The results for analysis of variance for CI and GMC with respective F-values and probabilities are shown in Table 6 and indicated that there were highly significant differences for cone index values with respect to variables YEAR, BLOCK, TIME, POS (position), and DEPTH. There were no significant differences among trolling treatments (TRT) as well as no significant YEAR by TRT interactions at significance level α = 0.05. Analysis of variance results with respect to GMC indicated that variables YEAR, BLOCK, TIME, DEPTH and TRT were highly significant, therefore, the data were analyzed separately for each growing season (variable YEAR). Although, the variable TRT was significant for GMC it was most likely related to variability in soil properties rather than from treatments effects on GMC. There was not significant interaction between YEAR ∗ TRT for CI and GMC.
Based on these analyses, CI before treatment applications was higher (1.46 MPa) compared to lower CI of 0.90 MPa after rolling rye with corresponding higher GMC of 13.1% after rolling compared to lower GMC of 11.0% before rolling rye. These results clearly indicate that changes in CI were related to changes in GMC and not to treatment effects. Because variable YEAR was highly significant (p-value < 0.0001), CI and GMC data were analyzed separately for each year with respect to position, depth, and time.

3.3.1. Growing Season 2015

The relationship between CI averaged over rolling treatments and gravimetric soil moisture content in the 2015 growing season for each depth is shown in Table 7. The CI values for both non-traffic and wheel traffic had an inverse relationship with respect to gravimetric soil moisture content indicating that the increase in CI is related to decreasing soil GMC. For in-plot at the 0–15 cm layer, CI was higher before rolling compared to lower CI after rolling; however, no significant difference in GMC was reported (12.9% to 13.1%), but both CI values were well under the 2 MPa compaction threshold for cotton root penetration restriction [37]. At 15–30 cm depth before rolling, CI increased above 2 MPa as the GMC decreased to 9.4%. For wheel traffic at the 0–15 cm depth there was no difference in CI before and after rolling with corresponding GMC 13.1% to 12.9%. In contrast, before rolling at 15–30 cm depth, CI was higher than 2 MPa with lower corresponding GMC of 9.4% compared to lower CI with higher GMC of 13.6%, which indicates the inverse relationship between CI and GMC.

3.3.2. Growing Season 2016

Analogous to the 2015 growing season, the CI values in 2016 both for non-traffic and wheel traffic had an inverse relationship to gravimetric soil moisture content (Table 8). For non-traffic plot at the 0–15 cm layer CI was higher before rolling compared to lower CI after rolling, with respective GMC values of 11.3% to 13.0%. At 15–30 cm depth, before rolling, CI values were lower compared to 0–15 cm depth governed by the higher respective GMC values of 13.0% and 14.l%. For wheel traffic at the 0–15 cm depth there was a difference in CI before and after rolling with corresponding GMC of 11.3% and 13.0%, respectively, indicating that soil moisture and influence of wheel traffic both affected soil strength. Similarly, at 15–30 cm depth, lower CI was reported before rolling with corresponding GMC of 14.1% compared to higher CI with lower GMC of 13.0% which supports the inverse relationship between CI and GMC.

3.3.3. Growing Season 2017

In 2017, CI values at both depths before and after rolling for plot and wheel traffic had an inverse relationship with the GMC (Table 9). Similar to the 2015 growing season, the in-plot non-traffic area at 0–15 cm layer before rolling had higher CI compared to lower CI after rolling, with respective GMC values of 9.4 and 12.2%. Likewise, at 15–30 cm depth, CI values were higher before rolling compared to lower CI after rolling with corresponding GMC values of 9.9% and 12.8%. As for plot area wheel traffic at the 0–15 cm depth, CI before rolling was higher compared to lower CI after rolling with corresponding GMC of 9.4% and 12.2%. Similarly, at the 15–30 cm depth, CI was higher than 2 MPa was reported before rolling with corresponding GMC of 9.9% compared to lower CI with higher GMC of 12.8% consistently supporting the inverse relationship between CI and GMC.

3.4. Soil Cone Index (CI) for Different Rolling Treatments and Depths

Highly significant differences were observed in soil CI for variable YEAR, BLOCK, TIME, POS, and DEPTH. In contrast, across all growing seasons, no significant differences were detected among rolling treatments (TRT) at significant level α = 0.05 and there were no significant YEAR by TRT interactions. This was most likely caused by the variability across the years due to climate differences between the years. However, a trend was present between rolling and soil compaction and TRT was significant at α = 0.10 (p-value = 0.0906, Table 10). Since variable YEAR was highly significant, rolling treatment effect on soil compaction was reanalyzed again by YEAR for variables TRT and DEPTH before and after rolling on non-traffic (area inside plot) and on wheel traffic. Results are presented in Table 11, Table 12, Table 13, Table 14, Table 15 and Table 16.
Evaluating each YEAR, significantly higher soil CI averaged over treatments and depths before and after rolling (time) and position (non-traffic and wheel traffic) were reported in 2017 (1.32 MPa), followed by lower CI of 1.18 MPa in 2015, and the lowest was found in 2016 (0.97 MPa). Overall average CI was reported before rolling treatment application (1.42 MPa) compared to lower CI of 0.90 MPa after the rolling. Likewise, significantly higher average CI was reported on wheel traffic (1.33 MPa) compared to lower CI of 0.99 MPa non-traffic. The average CI increased with depths having the highest CI at 30 cm depth (1.53 MPa) and the lowest (0.46 MPa) was at zero depth. The average highest CI (1.22 MPa) was reported for the smooth drum roller rolling three times, compared with lowest CI for the spiral roller/crimper rolling once (1.09 MPa).

3.4.1. Growing Season 2015

There were significant differences in cone index among rolling treatments before these rolling treatments were applied on rye non-traffic area and wheel traffic (Table 11). Because rolling treatments were not yet applied, this variability in soil compaction was not related to rolling treatments effects but solely on soil properties and gravimetric moisture content GMC. On the other hand, significant difference in cone index among rolling treatments (after treatment application) might have combined effects on soil cone index for both non-traffic and wheel traffic in addition to effects due to soil properties and changes in gravimetric soil moisture content.
Soil compaction after rolling (Table 11) revealed that no statistical differences for non-traffic were reported for 2-stage roller, spiral roller and smooth drum with one, two, and three passes. CI for 4-stage roller rolling 2 and 3 times was higher than rolling once, however, there was no difference in CI rolling twice or three times with the untreated control, indicating that repeated rolling did not cause soil compaction issues in the non-traffic area.
For the wheel traffic area, a significantly higher CI was reported for the 2-stage roller rolling two and three times compared to rolling one time. For 4-stage roller, higher CI was reported for rolling three times compared to rolling once or twice without differences between rolling once or twice. For the spiral roller and the smooth drum, higher CI was found after rolling twice compared to rolling once or three times, although a higher CI value was observed for after rolling three times compared to rolling once. No differences between rolling once and three times were reported for the smooth drum roller.
For the 2015 growing season, soil cone index values related to depth range 0 to 30 cm for before and after rolling treatment application are presented in Table 12. Before rolling, the soil strength on the non-traffic area increased with depth from 0.2 MPa at 0 cm depth to 3.2 MPa at 30 cm depth. Likewise, wheel traffic soil strength was similar at 0 cm depth with 0.2 MPa to 2.9 MPa at 30 cm depth. Soil cone index increased with depth which was influenced by gravimetric soil moisture content (13.1% GMC at the 0–15 cm depth; Table 7), but values were still less than the 2.0 MPa unrestricted root growth threshold for cotton [37]. In contrast, at depths of 20 cm to 30 cm, soil cone index for non-traffic increased above 3.0 MPa and this increase was caused by lower GMC of 9.4% at the 15–30 cm depth (Table 7). After rolling CI values for non-traffic and wheel traffic were lower than before applying rolling treatments due to higher GMC of 12.9% and 13.6%, at 0–15 cm and 15–30 cm depths, respectively.

3.4.2. Growing Season 2016

Soil cone index averaged over rolling treatments (before their application) for non-traffic was 0.83 MPa and for wheel traffic CI was 1.15 MPa. After rolling treatments were performed, the CI for non-traffic was 0.63 MPa compared to higher CI of 1.27 MPa for wheel traffic, and based on the CI value for untreated control, which was no different than for rolling treatments, it appears that these CI values were related to changes in soil gravimetric moisture content.
For the non-traffic (plot) after rolling (Table 13), CI values for the 2-stage roller rolling twice or three times was higher than for rolling once. CI for the 4-stage roller was lower for rolling once, compared to rolling twice and three times with higher CI value than rolling twice. The CI for the control was no different than rolling 2–3 times for both the 2- and 4-stage rollers indicating that repeated rolling did not cause soil compaction due to crimping bar force. For spiral roller and the smooth drum, there were no differences in CI among rolling once, twice and three times (Table 13).
For wheel traffic, higher soil strength for 2-stage and the spiral roller/crimper was observed for rolling twice compared to rolling once or three times without differences between these treatments. Higher CI for rolling twice vs. rolling three times was most likely due to variability in CI within the experimental area (p-value for block <0.0001). For the 4-stage roller/crimper, CI increased with number of rolling with the lowest with rolling once and the highest CI for rolling three times. No differences in CI rolling once, twice or three times for smooth drum roller and for smooth roller with glyphosate (rolling once). CI for the control was no different than for 4-stage and spiral roller rolling once. Overall, the soil CI values in 2016 were less than 2.0 MPa which was the limit for unrestricted root growth in cotton [37].
Soil cone index values in the 2016 growing season for depths 0 to 30 cm for 5 cm increments, obtained before and after applying rolling treatments are presented in Table 14. Except for one CI value that slightly exceeded 2.0 MPa for wheel traffic at the 5 cm depth, all other CI values for all depths before and after rolling value were less than 2.0 MPa. It appears that all CI values were related to gravimetric soil moisture content (Table 8). Before rolling, GMC at depth of 0–5 cm was 11.3% which would explain the higher CI value compared to lower depth for which the soil strength decreased with an increase in GMC to 13.0%. Similarly, after rolling, CI values were higher at depths 5–15 cm with lower GMC at 0–15 cm depth (13.0%) compared to lower CI values at 20–30 cm with higher corresponding GMC of 14.1% at 15–30 cm depth.

3.4.3. Growing Season 2017

Soil cone index (CI) averaged over treatments before applying rolling treatments were 1.40 and 2.01 MPa for non-traffic and wheel traffic, respectively. After rolling treatments application, averaged CI values for non-traffic was 0.77 MPa and for wheel traffic was 1.12 MPa.
CI values for specific rolling treatments are presented in Table 15. p-values for rolling treatments before and after rolling were highly significant (from <0.0001 to 0.0027; Table 15). For non-traffic, there was no difference in CI for 2-and 4-stage rollers for rolling once, twice or three times. For the spiral roller, the lower CI was observed for rolling twice which was statistically different compared to rolling once and three times. No differences in CI were found between smooth drum roller rolling once, twice and for smooth drum rolling once with glyphosate, but a statistically higher CI existed for smooth drum roller rolling three times. CI for all rollers and rolling times was significantly lower than for the control (non-rolled rye) indicating that rolling two or three times did not cause soil compaction issue. No differences in CI values were observed for rolling once or three times with respect to wheel traffic for the 2-stage roller, the smooth drum, and for smooth drum with glyphosate (rolling once), with no significant difference between rolling once and twice. Similarly, the 4-stage roller and spiral roller had lower CI for rolling once and three times, compared to higher CI for rolling twice. However, CI values for rolling twice were not different than for the control (non-rolled rye) indicating that rolling 2 or 3 times did not increase soil compaction, with CI values below the 2.0 MPa limit for non-restrictive root growth [37].
As in the two previous growing seasons, soil cone index values for 2017 were related to gravimetric soil moisture content. Before rolling soil strength for non-traffic area was 0.5 MPa at depth 0 cm, increasing to 1.9 MPa at 30 cm depth as seen in Table 16. For wheel traffic, soil CI was 0.7 MPa at 0 cm depth and increased to 2.2 MPa at 5 cm, then maintained above 2.0 MPa to 30 cm. These higher CI values were related to lower GMC which was 9.4% at the 0–15 cm layer and 9.9% at 15–30 cm layer. It appears that higher CI values especially before rolling for wheel traffic compared to non-traffic area might be also related to the cumulative effects of natural soil consolidation. Soil CI after rolling ranged from 0.4 to 1.5 MPa, and were related to higher GMC (12.2% at 0–15 cm to 12.8% at 15–30 cm) compared to lower GMC measured before rolling.

4. Conclusions

Results from the three growing seasons indicated that 7 days after rolling, the 4-stage and 2-stage rollers rolled 3 times had kill rates above 90% which were similar to the smooth drum roller with glyphosate. Data indicate that experimental rollers/crimpers after recurring rolling/crimping were as effective as rolling rye by the smooth drum with application of glyphosate in terminating a cereal rye cover crop. These rollers are suitable for use in organic systems where applying commercial herbicides is prohibited. In contrast, the spiral roller did not generate effective kill rates due to a lack of dynamic forces from crimping bars which are essential in mechanical cover crop termination. Overall, rolling treatments with cereal rye rolling 2 or 3 times did not cause soil compaction, and soil compaction expressed by cone index (CI) was dependent on gravimetric soil moisture content having an inverse relationship between CI and GMC. CI values before rolling were higher compared to lower values after rolling and were related to higher GMC. During three growing seasons, no CI values after rolling at the 0–15 cm and 15–30 cm depths (at root zone) had CI values that exceeded 2.00 MPa, a limit for unrestricted root development. Moreover, seed cotton yield was not affected by rolling treatments and supports the fact that recurring rolling does not cause yield decline due to soil compaction.

Funding

This research received no external funding.

Acknowledgments

The author wishes to acknowledge Corey Kichler, Agriculture Engineer, Jeffery Walker, Biological Science Technician and Morris Welch, Engineering Technician at the USDA-ARS, NSDL, Auburn, AL for their personal involvement in cover crop planting/termination, cash crop planting, and field data collection.

Conflicts of Interest

The author declares no conflict of interest.

Disclaimer

The use of trade names or company names does not imply endorsement by the USDA-Agricultural Research Service.

References

  1. Kern, J.S.; Johnson, M.G. Conservation tillage impacts on national soils and atmospheric carbon levels. Soil Sci. Soc. Am. J. 1993, 57, 200–210. [Google Scholar] [CrossRef]
  2. Reeves, D.W. Cover Crops and Rotations. In Advances in Soil Science: Crops Residue Management; Hatfield, J.L., Stewart, B.A., Eds.; CRC Press: Boca Raton, FL, USA, 1994; pp. 125–172. [Google Scholar]
  3. Ashford, D.L.; Reeves, D.W. Use of a mechanical roller crimper as an alternative kill method for cover crop. Am. J. Altern. Agric. 2003, 18, 37–45. [Google Scholar] [CrossRef]
  4. Kornecki, T.S.; Price, A.J.; Raper, R.L. Performance of different roller designs in terminating rye cover crop and reducing vibration. Appl. Eng. Agric. 2006, 22, 633–641. [Google Scholar] [CrossRef]
  5. Hargrove, W.L.; Frye, W.W. The need for legume cover crops in conservation tillage production. In The Role of Legumes in Conservation Tillage Systems; Power, J.F., Ed.; Soil and Water Conservation Society of America: Ankeny, IA, USA, 1987; pp. 1–5. [Google Scholar]
  6. Kornecki, T.S.; Price, A.J.; Raper, R.L.; Bergtold, J.S. Effectiveness of different herbicide applicators mounted on a roller/crimper for accelerated rye cover crop termination. Appl. Eng. Agric. 2009, 25, 819–826. [Google Scholar] [CrossRef]
  7. Derpsch, R.; Friedrich, T.; Kassam, A.; Hongwen, L. Current status of adoption of no-till farming in the world and some of its main benefits. Int. J. Agric. Biol. Eng. 2010, 3, 1–25. [Google Scholar] [CrossRef]
  8. Kornecki, T.S.; Price, A.J. Management of High-Residue Cover Crops in a Conservation Tillage Organic Vegetable On-Farm Setting. Agronomy 2019, 9, 640. [Google Scholar] [CrossRef][Green Version]
  9. Bakker, D.M.; Davis, R.J. Soil deformation observations in a Vertisol under field traffic. Aust. J. Soil Res. 1995, 33, 817–832. [Google Scholar] [CrossRef]
  10. Chygarev, Y.; Lodyata, S. Research of Tyre Rigidity in Terms of Ecological Safety of Agricultural Landscapes; Instytut Budownictwa, Mechanizacji i Elektryfikacji Rolnictwa: Lublin, Poland, 2000; pp. 171–176. [Google Scholar]
  11. McGarry, D. Tillage and soil compaction. In First World Congress on Conservation Agriculture; Garcia-Torres, L., Benites, J., Martinez-Vilela, A., Eds.; Natural Resource Sciences: Madrid, Spain, 2001; pp. 281–291. [Google Scholar]
  12. Hamza, M.A.; Anderson, W.K. Responses of soil properties and grain yields to deep ripping and gypsum application in a compacted loamy sand soil contrasted with a sandy clay loam soil in Western Australia. Aust. J. Agric. Res. 2003, 54, 273–282. [Google Scholar] [CrossRef]
  13. Neve, S.; Hofman, G. Influence of soil compaction on carbon and nitrogen mineralization of soil organic matter and crop residues. Biol. Fertil. Soils 2000, 30, 544–549. [Google Scholar] [CrossRef]
  14. Conlin, T.S.S.; Driessche, R. Response of soil CO2 and O2 concentrations to forest soil compaction at the long-term soil productivity sites in central British Columbia. Can. J. Soil Sci. 2000, 80, 625–632. [Google Scholar] [CrossRef][Green Version]
  15. Benito, A.; Sombrero, A.; Escribano, C. The effect of conservation tillage on soil properties. Agric. Rev. Agropecu. 1999, 68, 538–541. [Google Scholar]
  16. Wiermann, C.; Werner, D.; Horn, R.; Rostek, J.; Werner, B. Stress/strain processes in a structured unsaturated silty loam Luvisol under different tillage treatment in Germany. Soil Tillage Res. 2000, 53, 117–128. [Google Scholar] [CrossRef]
  17. Silva, V.R.; Reinert, D.J.; Reichert, J.M. Soil strength as affected by combine wheel traffic and two soil tillage systems. Cienc. Rural 2000, 30, 795–801. [Google Scholar] [CrossRef]
  18. Taylor, H.M. Effect of soil strength on seedling emergence, root growth and crop yield. Compaction of Agricultural Soils. Am. Soc. Agric. Eng. 1971, 292–304. [Google Scholar]
  19. Mason, E.G.; Cullen, A.W.J.; Rijkse, W.C. Growth of two Pinus radiata stock types on ripped and ripped/bedded plots at Karioi forest. N. Z. J. For. Sci. 1988, 18, 287–296. [Google Scholar]
  20. Panayiotopoulos, K.P.; Papadopoulou, C.P.; Hatjiioannidou, A. Compaction and penetration resistance of an Alfisol and Entisol and their influence on root growth of maize seedlings. Soil Tillage Res. 1994, 31, 323–337. [Google Scholar] [CrossRef]
  21. Hamza, M.A.; Anderson, W.K. Effect of competition between gypsum, potassium, iron and sulphur on lupin. In Proceedings of the 2nd Australia—New Zealand Conference on Environmental Geotechnics, Newcastle, Australia, 28–30 November 2001; pp. 95–97. [Google Scholar]
  22. Aliev, K. Current problems with regard to mechanization and greening of farming in Azerbaijan. Mezhdunarodnyi Sel’skokhozyaistvennyi Zhurnal 2001, 5, 57–61. [Google Scholar]
  23. Bowen, G.; Shirley, C.; Cramer, C. Managing Cover Crops Profitably. In Sustainable Agriculture Network Handbook Series, Book 3, 2nd ed.; National Agricultural Library: Beltsville, MD, USA, 2000. [Google Scholar]
  24. Textile Exchange—15 Years of Organic Cotton. June 2017. Available online: https://textileexchange.org/wp-content/uploads/2017/06/Textile-Exchange_Quick-Guide-To-Organic-Cotton_2017.pdf (accessed on 15 September 2020).
  25. Organic Trade Association. Get the Facts about Organic Cotton. 2020. Available online: https://ota.com/advocacy/fiber-and-textiles/get-facts-about-organic-cotton (accessed on 5 November 2020).
  26. USDA-Agricultural Marketing Service. Organic Cotton Market Summary. August 2020; Volume 11. Available online: https://www.ams.usda.gov/mnreports/cnaocms.pdf (accessed on 10 September 2020).
  27. Zadoks, J.C.; Chang, T.T.; Konzak, C.F. A decimal code for the growth stages of cereals. Weed Res. 1974, 14, 415–421. [Google Scholar] [CrossRef]
  28. Kornecki, T.S. Multistage Crop Roller. U.S. Patent Number 7,987,917 B1, 2 August 2011. [Google Scholar]
  29. Kornecki, T.S.; Arriaga, F.J.; Price, A.J. Evaluation of methods to assess termination rates of cover crops using visual and non-visible light active sensors. Trans. ASABE 2012, 55, 733–741. [Google Scholar] [CrossRef]
  30. Raper, R.L.; Washington, B.H.; Jarrell, J.D. A tractor mounted multiple-probe soil cone penetrometer. Appl. Eng. Agric. 1999, 15, 287–290. [Google Scholar] [CrossRef]
  31. ASAE Standards. S313.3: Soil Cone Penetrometer; ASAE: St. Joseph, MI, USA, 2004. [Google Scholar]
  32. ASAE Standards. EP542: Procedures for Obtaining and Reporting Data with the Soil Cone Penetrometer; ASAE: St. Joseph, MI, USA, 2004. [Google Scholar]
  33. SAS. Proprietary Software Release 9.2; SAS Institute, Inc.: Cary, NC, USA, 2013. [Google Scholar]
  34. Kornecki, T.S.; Price, A.J.; Balkcom, K.S. Cotton population and yield following different cover crops and termination practices in an Alabama no-till system. J. Cotton Sci. 2015, 19, 375–386. [Google Scholar]
  35. Agricultural Weather Information Service, Inc. (AWIS). 2015. Available online: http://www.awis.com/ (accessed on 29 August 2020).
  36. Glass, K.M.; Delaney, D.P.; Monks, C.D.; Brasher, J. Performance of Cotton Varieties in Alabama. 2017. Available online: https://ssl.acesag.auburn.edu/anr/crops/varietytesting/documents/2017PerformanceofCottonVarietiesinAlabama.pdf (accessed on 7 August 2020).
  37. Taylor, H.M.; Gardner, H.R. Penetration of cotton seedling taproots as influenced by bulk density, moisture content, and strength of soil. Soil Sci. 1963, 96, 153–156. [Google Scholar] [CrossRef]

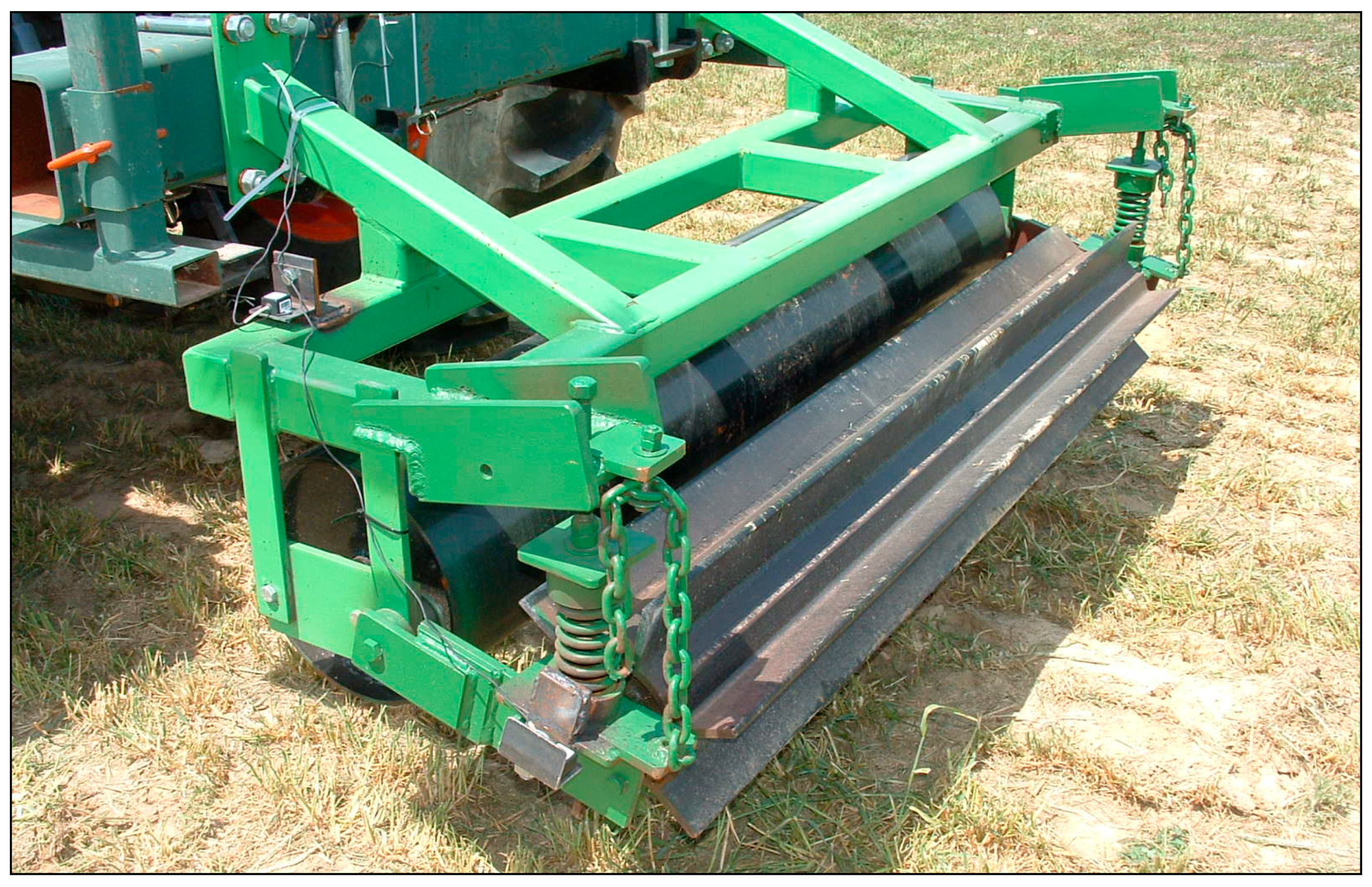

Figure 1. Two-stage roller/crimper [28], US patent number: 7,987,917 B.1.
Figure 1. Two-stage roller/crimper [28], US patent number: 7,987,917 B.1.
Agriengineering 02 00042 g001

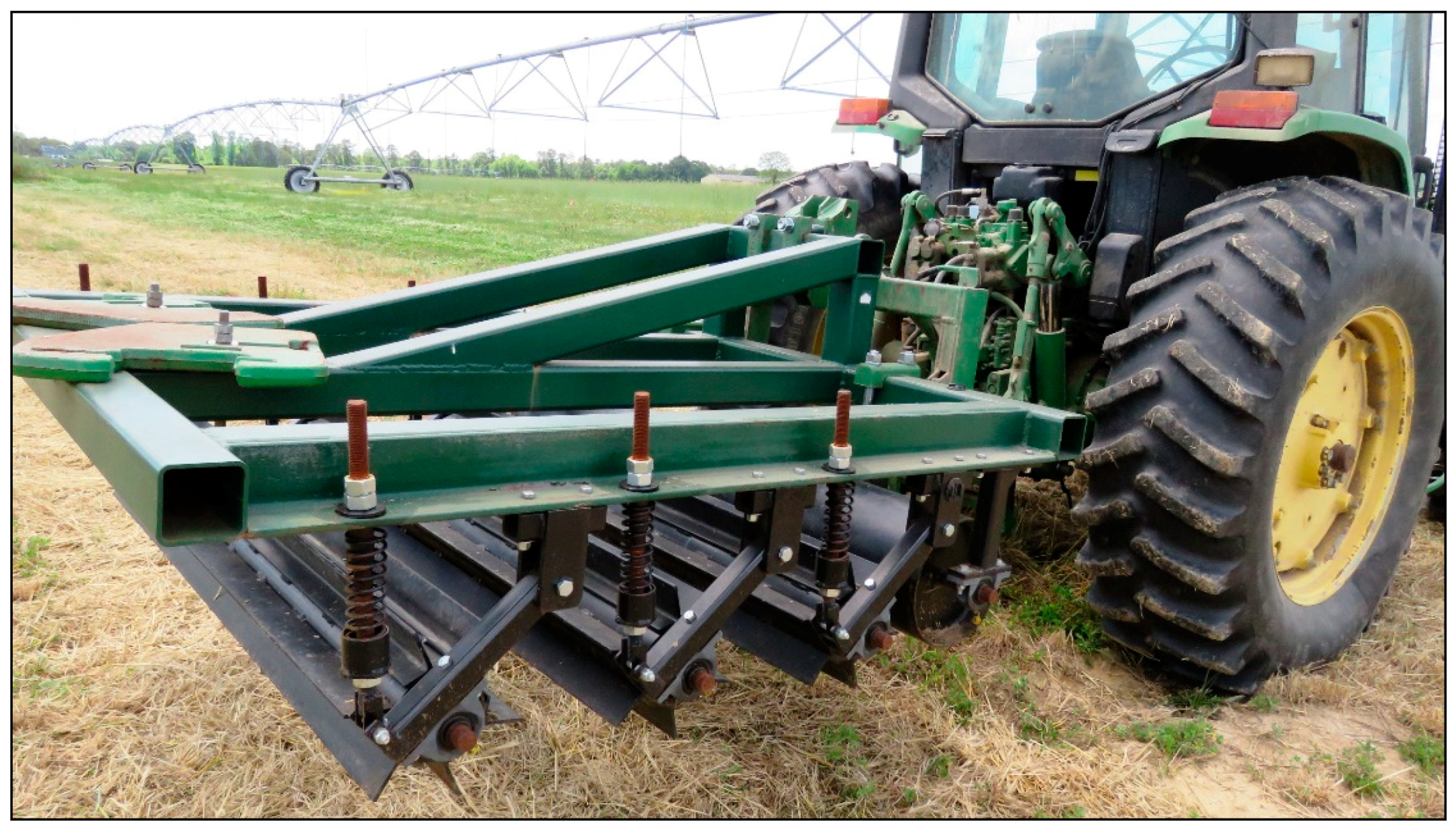

Figure 2. Four-stage roller/crimper [28], US patent number: 7,987,917 B1.
Figure 2. Four-stage roller/crimper [28], US patent number: 7,987,917 B1.
Agriengineering 02 00042 g002

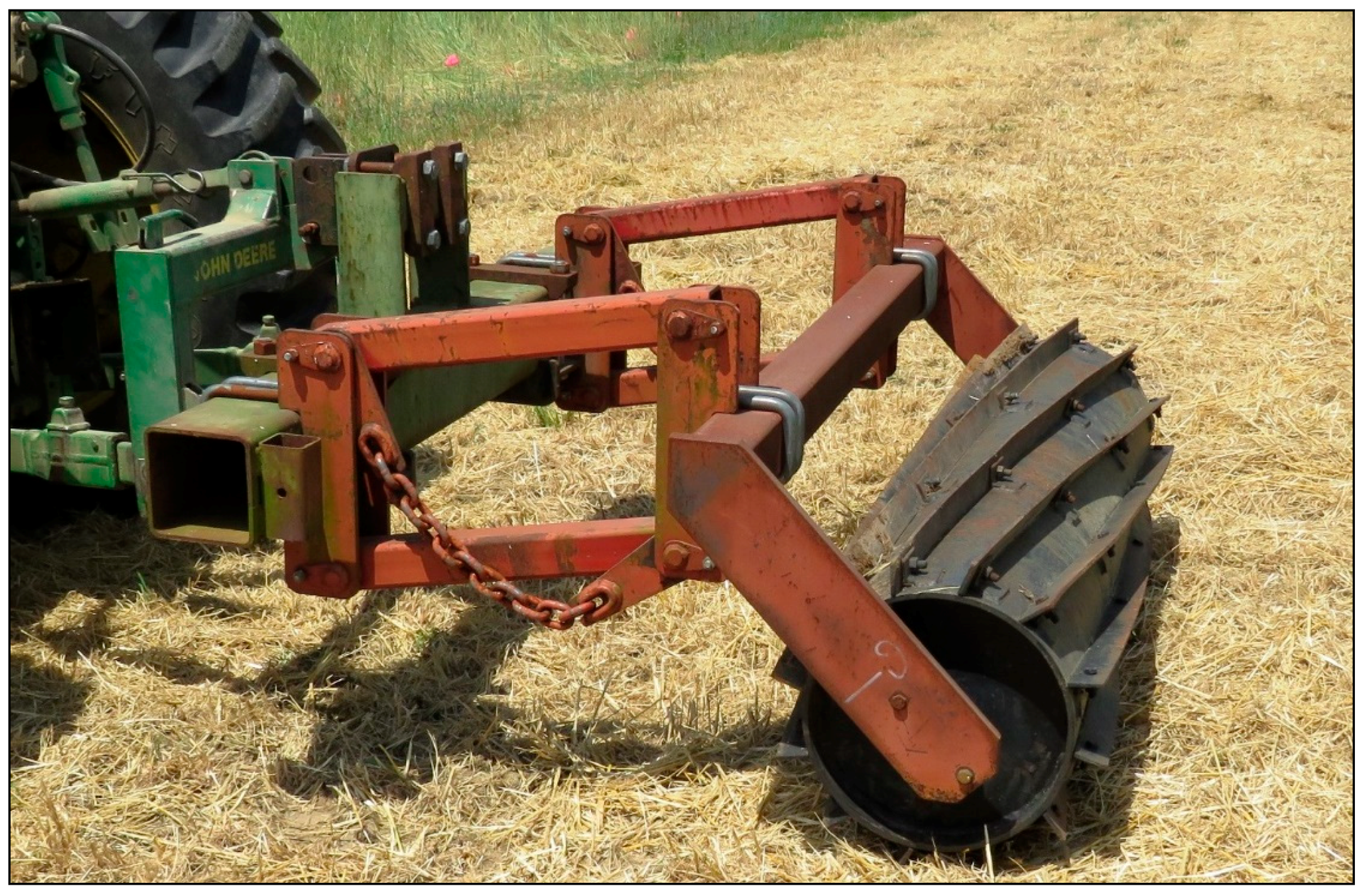

Figure 3. Experimental spiral roller/crimper.
Figure 3. Experimental spiral roller/crimper.
Agriengineering 02 00042 g003

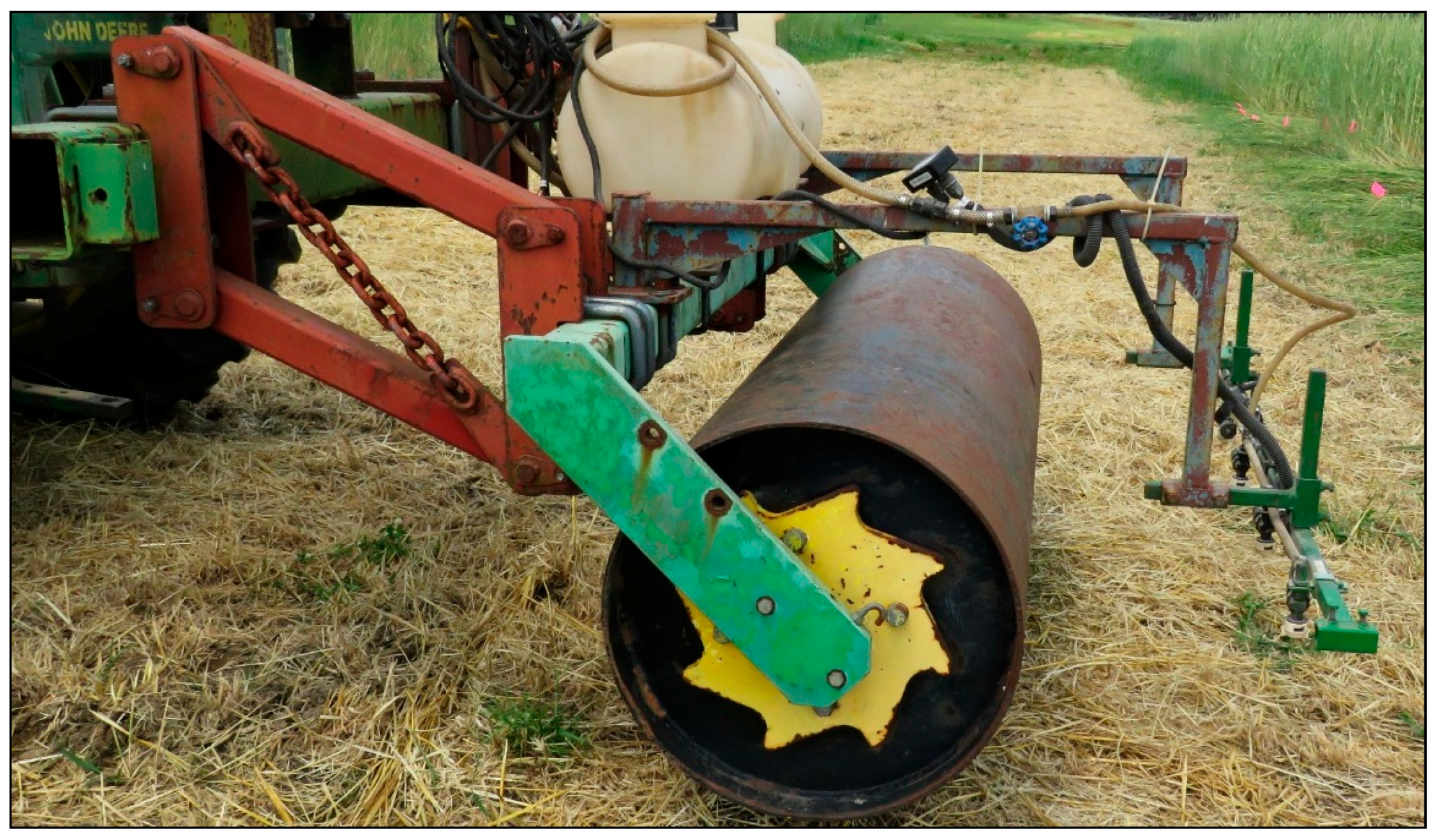

Figure 4. Smooth roller drum without or with herbicide applicator (shown).
Figure 4. Smooth roller drum without or with herbicide applicator (shown).
Agriengineering 02 00042 g004

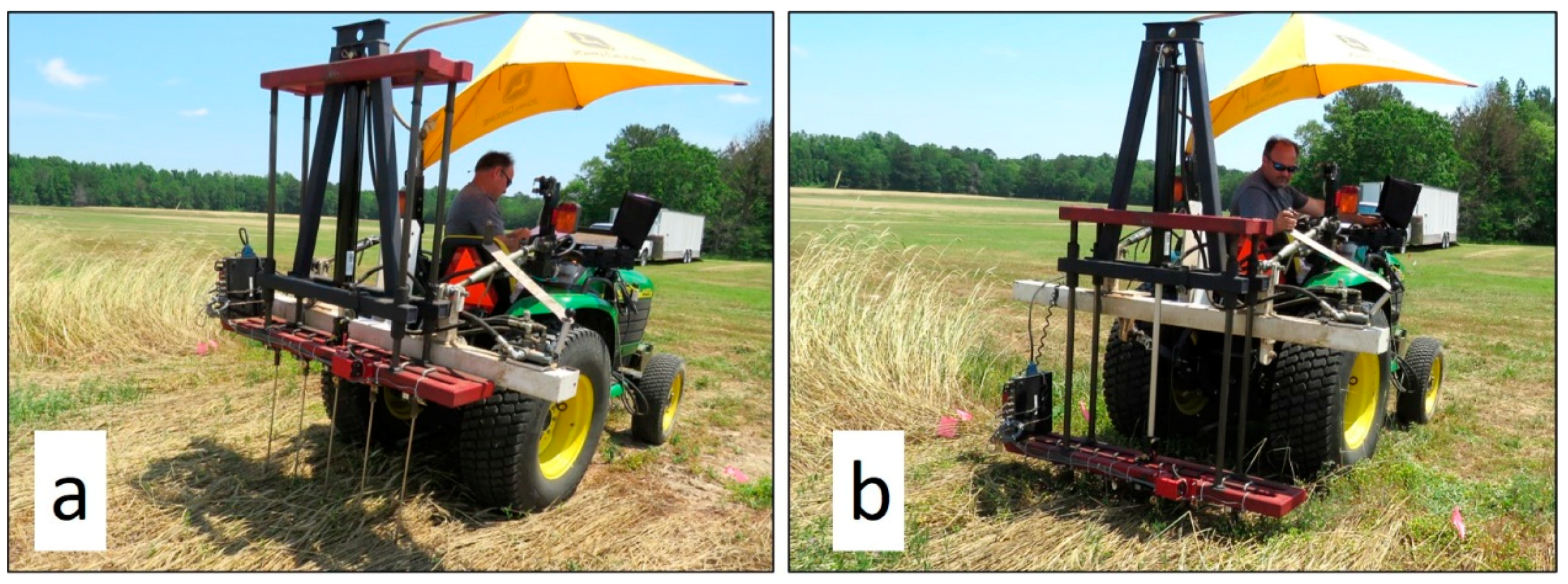

Figure 5. Soil strength measurements by mobile multiple soil cone penetrometer after rolling: (a) before inserting into soil; (b) fully inserted in soil.
Figure 5. Soil strength measurements by mobile multiple soil cone penetrometer after rolling: (a) before inserting into soil; (b) fully inserted in soil.
Agriengineering 02 00042 g005
Table 1. Field activities during the 2015, 2016, and 2017 growing seasons at the E.V Smith Research Center in Central Alabama.
Table 1. Field activities during the 2015, 2016, and 2017 growing seasons at the E.V Smith Research Center in Central Alabama.
Field ActivityGrowing Season
201520162017
Planting cereal rye cover crop10 November 201405 November 201517 November 2016
Obtaining soil compaction and GMC data
(before rolling)
08 April 201520 April 201630 March 2017
Rolling/crimping cover crop (1, 2, 3 times
over the same area)
23 April 201525 April 201626 April 2017
Obtaining soil compaction and GMC data
(after rolling)
05 May 201506 May 201611 May 2017
Evaluation 7 days after treatment30 April 201502 May 201603 May 2017
Evaluation 14 days after treatment07 May 201509 May 201610 May 2017
Evaluation 21 days after treatment14 May 201516 May 201617 May 2017
Planting cotton14 May 201525 May 201618 May 2017
Applying Nitrogen10 July 201507 July 201606 July 2017
Harvesting cotton19 October 201514 October 201626 October 2017
Table 2. Analysis of variance results for cereal rye biomass production, kill rates and seed cotton yield.
Table 2. Analysis of variance results for cereal rye biomass production, kill rates and seed cotton yield.
SourceDFCereal Rye BiomassRye Kill RatesSeed Cotton Yield
F ValuePr > FF ValuePr > FF ValuePr > F
YEAR292.51<0.00014.350.0135209.79<0.0001
YEAR ∗ TRT261.000.47973.60<0.00011.370.1438
BLOCK31.830.14777.21<0.000120.46<0.0001
TRT130.910.5473123.12<0.00010.510.9114
DF = Degrees of Freedom.
Table 3. Cereal rye biomass production and height in three growing seasons.
Table 3. Cereal rye biomass production and height in three growing seasons.
Rye Cover Crop ProductionYearp-ValueLSD3-Year Average
201520162017
Height (m)1.56 b *1.63 a1.51 c<0.00010.02331.57
Biomass (kg ha−1)9750 a7880 b5410 c<0.00015327680
* Means in each row followed by the same lower-case letters indicate no significant differences among years. Means with different letters are statistically different, in that the mean with the lower alphabetical order letter (e.g., a > c) has a mean statistically greater than the mean to which it is compared.
Table 4. Cereal rye kill rate results by rollers/crimpers (%) in 2015–2017 growing seasons.
Table 4. Cereal rye kill rate results by rollers/crimpers (%) in 2015–2017 growing seasons.
Roller
Name
No. of PassGrowing Season
201520162017
Days after Rolling/Crimping
714217142171421
2-stage roller
crimper
187 bcd 95 a *100 a82 bc96 abc99 a86 cde97 abc100 a
286 cde97 a100 a86 b99 a100 a93 abc98 ab100 a
391 ab97 a100 a95 a99 a99 a90 bcd99 ab100 a
4-stage roller
crimper
186 cde96 a100 a78 bcd97 abc99 a82 efg99 a100 a
289 abcd97 a100 a96 a98 ab99 a93 abc99 a100 a
394 a96 a100 a96 a99 a100 a98 a100 a100 a
Spiral roller
crimper
182 e95 a100 a71 de96 abc98 a81 efg92 cd100 a
286 cde95 a100 a73 de94 c98 a76 g90 de100 a
385 de96 a100 a72 de97 abc99 a85 def92 bcd100 a
Smooth drum roller188 bcd96 a100 a71 e89 d98 a77 g85 ef100 a
287 bcd97 a100 a69 e95 bc98 a82 efg88 de100 a
389 abcd97 a100 a75 cde95 bc99 a78 fg81 f100 a
Smooth + Roundup191 abc96 a100 a96 a98 ab100 a96ab100 a100 a
Untreated ctrl.040 f49 b89 b29 f50 d82 b43 h62 g87 b
p-value<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001<0.001
* Treatment means in each column followed by the same lower-case letters indicate no significant differences among rolling treatments. Treatment means with different letters are statistically different, in that the mean with the lower alphabetical order letter (e.g., a > c) has a mean statistically greater than the mean to which it is compared.
Table 5. Seed cotton yield (kg ha−1) from 2015, 2016, and 2017 growing seasons.
Table 5. Seed cotton yield (kg ha−1) from 2015, 2016, and 2017 growing seasons.
Growing Seasonp-ValueLSD3-Year
Average
Lint Yield
(42% of Seed
Cotton) **
201520162017
4098 a *2915 b3791 a<0.000110036011512
* Means in the row followed by the same lower-case letters indicate no significant differences among years. Means with different letters are statistically different, in that the mean with the lower alphabetical order letter (e.g., a > c) has a mean statistically greater than the mean to which it is compared. ** percentage based on production data for Phytogen 333WRF variety in central Alabama [36].
Table 6. Analysis of variance of soil cone index (CI) at the two depths (0–15 cm and 15–30 cm) with the corresponding gravimetric soil moisture content (GMC).
Table 6. Analysis of variance of soil cone index (CI) at the two depths (0–15 cm and 15–30 cm) with the corresponding gravimetric soil moisture content (GMC).
SourceDF *CI at 2 Depths (0–15 cm and 15–30 cm) with Corresponding GMCGravimetric Soil Moisture Content (GMC) at 0–15 cm and 15–30 cm Depth
F ValuePr > FF ValuePr > F
YEAR272.04<0.0001294.59<0.0001
BLOCK311.65<0.000197.04<0.0001
TIME1399.18<0.00011188.28<0.0001
POS1143.94<0.0001N/A **N/A **
DEPTH1122.98<0.000151.56<0.0001
TRT130.630.83073.69<0.0001
YEAR ∗ TRT260.510.98070.940.5560
* DF = Degrees of Freedom ** Gravimetric moisture content was obtained for plot and wheel traffic as the same joint sampling. ** N/A: non-applicable.
Table 7. CI values averaged over two depths (0–15 cm and 15–30 cm) and corresponding gravimetric soil moisture content in 2015 growing season.
Table 7. CI values averaged over two depths (0–15 cm and 15–30 cm) and corresponding gravimetric soil moisture content in 2015 growing season.
PositionDepthTimeCone index (CI) (MPa)Gravimetric Moisture Content (%)
Plot
(Non-traffic)
15 cmBefore rolling0.87 a *13.1 a
After rolling0.59 b12.9 a
p-value<0.00010.2824 (N/S)
30 cmBefore rolling2.60 a9.4 b
After rolling0.77 b13.6 a
p-value<0.0001<0.0001
Wheel
(Wheel traffic)
15 cmBefore rolling0.85 a13.1 a
After rolling0.93 a12.9 a
p-value0.1538 (N/S) **0.2824 (N/S)
30 cmBefore rolling2.42 a9.4 b
After rolling0.91 b13.6 a
p-value<0.0001<0.0001
* Means in each column (CI or GMC) followed by the same lower-case letters compared within each position (plot and wheel traffic) and sampling depth indicate no significant differences between means before and after treatment application. Treatment means with different letters are statistically different, in that the mean with the lower alphabetical order letter (e.g., a > c) has a mean statistically greater than the mean to which it is compared.** N/S: non-significant.
Table 8. CI values averaged over two depths (0–15 cm and 15–30 cm) and corresponding gravimetric soil moisture content in 2016 growing season.
Table 8. CI values averaged over two depths (0–15 cm and 15–30 cm) and corresponding gravimetric soil moisture content in 2016 growing season.
PositionDepthTimeCone Index (CI) (MPa)Gravimetric Moisture Content (%)
Plot
(Non-traffic)
15 cmBefore rolling0.90 a *11.3 b
After rolling0.65 b13.0 a
p-value<0.0001<0.0001
30 cmBefore rolling0.74 a13.0 b
After rolling0.61 b14.1 a
p-value<0.0001<0.0001
Wheel
(wheel traffic)
15 cmBefore rolling1.37 b11.3 b
After rolling1.45 a13.0 a
p-value0.0263<0.0001
30 cmBefore rolling0.87 b14.1 a
After rolling1.03 a13.0 b
p-value<0.0001<0.0001
* Means in each column (CI or GMC) followed by the same lower-case letters compared within each position (plot and wheel traffic) and sampling depth indicate no significant differences between means before and after treatment application. Treatment means with different letters are statistically different, in that the mean with the lower alphabetical order letter (e.g., a > c) has a mean statistically greater than the mean to which it is compared.
Table 9. CI values averaged over two depths (0–15 cm and 15–30 cm) and corresponding gravimetric soil moisture content in 2017 growing season.
Table 9. CI values averaged over two depths (0–15 cm and 15–30 cm) and corresponding gravimetric soil moisture content in 2017 growing season.
PositionDepthTimeCone index (CI) (MPa)Gravimetric Moisture Content (%)
Plot
(Non-traffic)
15 cmBefore rolling1.25 a *9.4 b
After rolling0.66 b12.2 a
p-value<0.0001<0.0001
30 cmBefore rolling1.61 a9.9 b
After rolling0.92 b12.8 a
p-value<0.0001<0.0001
Wheel
(wheel traffic)
15 cmBefore rolling1.80 a9.4 b
After rolling0.99 b12.2 a
p-value<0.0001<0.0001
30 cmBefore rolling2.29 a9.9 b
After rolling1.29 b12.8 a
p-value<0.0001<0.0001
* Means in each column (CI or GMC) followed by the same lower-case letters compared within each position (plot and wheel traffic) and sampling depth indicate no significant differences between means before and after treatment application. Treatment means with different letters are statistically different, in that the mean with the lower alphabetical order letter (e.g., a > c) has a mean statistically greater than the mean to which it is compared.
Table 10. Analysis of variance for cone index (CI) for 7 depths from 0 to 30 cm with 5 cm increments during 2015–2017 growing seasons.
Table 10. Analysis of variance for cone index (CI) for 7 depths from 0 to 30 cm with 5 cm increments during 2015–2017 growing seasons.
SourceDegrees
of Freedom
CI at 0 to 30 cm Depth with 5 cm Increments
F ValuePr > F
YEAR (three growing seasons)2143<0.0001
BLOCK332.4<0.0001
TIME (before and after rolling)1928<0.0001
POS (non-traffic and wheel traffic)1410<0.0001
DEPTH (0, 5, 10, 15, 20, 25, 30 cm)6212<0.0001
TRT (14 rolling treatments)131.550.0906
YEAR ∗ TRT261.220.2041
Table 11. Soil CI averaged over depth (0–30 cm) for rolling treatments in 2015 growing season.
Table 11. Soil CI averaged over depth (0–30 cm) for rolling treatments in 2015 growing season.
Roller TypeNumber of PassesCI before Rolling (MPa)CI after Rolling (MPa)
PlotWheelPlotWheel
2-stage roller/crimper11.72 abc *1.46 bcde0.68 cde0.91 cdef
21.81 ab1.57 bcd0.71 abc0.96 abc
31.36 ef1.47 bcde0.70 bcd1.03 a
4-stage roller/crimper11.70 abc1.62 bcd0.63 def0.88 ef
21.18 f1.26 e0.75 ab0.92 cdef
31.64 abcd1.66 bc0.76 a1.03 a
Spiral roller/crimper11.38 def1.26 e0.62 ef0.85 fg
21.87 a1.46 bcde0.65 cde1.03 a
31.81 ab1.36 de0.66 cde0.95 bcd
Smooth drum11.50 cde1.50 bcde0.62 ef0.92 cde
21.63 abcd1.73 ab0.64 cdef1.02 ab
31.77 ab1.98 a0.64 def0.89 def
Smooth + Roundup11.57 bcde1.62 bcd0.58 f0.77 h
Untreated control01.64 abcd1.38 cde0.70 abc0.80 gh
p-value0.00020.0019<0.0001<0.0001
LSD0.260.280.060.07
* Treatment means in each column followed by the same lower-case letters indicate no significant differences among rolling treatments. Treatment means with different letters are statistically different, in that the mean with the lower alphabetical order letter (e.g., a > c) has a mean statistically greater than the mean to which it is compared.
Table 12. Soil cone index (CI) values for different depths (0–30 cm, with 5 cm increments) averaged over rolling treatments in 2015 growing season.
Table 12. Soil cone index (CI) values for different depths (0–30 cm, with 5 cm increments) averaged over rolling treatments in 2015 growing season.
Depth (cm)CI before Rolling (MPa)CI after Rolling (MPa)
PlotWheelPlotWheel
00.19 f *0.19 g0.33 e0.48 d
50.36 f0.39 f0.59 d1.11 a
101.07 e1.06 e0.69 c1.12 a
151.87 d1.76 d0.70 c1.02 b
202.06 c1.97 c0.70 c0.92 c
252.58 b2.41 b0.77 b0.91 c
303.15 a2.88 a0.90 a0.92 c
p-value<0.0001<0.0001<0.0001<0.0001
LSD0.180.200.050.05
* Means in each column followed by the same lower-case letters indicate no significant differences among depths. Means with different letters are statistically different, in that the mean with the lower alphabetical order letter (e.g., a > c) has a mean statistically greater than the mean to which it is compared.
Table 13. Soil cone index (CI) values averaged over depth (0–30 cm) in 2016 growing season for each roller type and number of passes.
Table 13. Soil cone index (CI) values averaged over depth (0–30 cm) in 2016 growing season for each roller type and number of passes.
Roller TypeNumber of PassesCI before Rolling (MPa)CI after Rolling (MPa)
PlotWheelPlotWheel
2-stage roller/crimper10.86 ab *0.99 f0.63 de1.23 de
20.86 ab1.18 abcd0.69 ab1.36 abc
30.87 ab1.10 cdef0.68 abc1.28 cde
4-stage roller/crimper10.76 de1.04 ef0.59 ef1.11 f
20.84 abc1.15 bcde0.67 bcd1.32 bcd
30.80 bcde1.08 def0.73 a1.42 ab
Spiral roller/crimper10.84 abc1.08 def0.63 cde1.20 ef
20.73 e1.22 abc0.60 ef1.43 a
30.87 ab1.23 ab0.62 de1.31 cde
Smooth drum10.77 cde1.16 abcd0.60 ef1.25 cde
20.82 bcd1.27 a0.56 fg1.27 cde
30.90 a1.26 ab0.56 fg1.26 cde
Smooth + Roundup10.76 de1.21 abc0.53 g1.25 cde
Untreated control00.91 a1.16 abcd0.73 a1.12 f
p-value0.00030.0011<0.0001<0.0001
LSD0.070.120.050.11
* Treatment means in each column followed by the same lower-case letters indicate no significant differences among rolling treatments. Treatment means with different letters are statistically different, in that the mean with the lower alphabetical order letter (e.g., a > c) has a mean statistically greater than the mean to which it is compared.
Table 14. Soil cone index (CI) values for different depths (0–30 cm, with 5 cm increments) averaged over rolling treatments in 2016 growing season.
Table 14. Soil cone index (CI) values for different depths (0–30 cm, with 5 cm increments) averaged over rolling treatments in 2016 growing season.
Depth (cm)CI before Rolling (MPa)CI after Rolling (MPa)
PlotWheelPlotWheel
00.53 e *0.76 f0.40 d0.69 e
51.20 a2.04 a0.77 a1.91 a
101.03 b1.62 b0.75 a1.83 a
150.82 c1.06 c0.67 b1.39 b
200.68 d0.85 de0.57 c1.12 c
250.69 d0.83 ef0.57 c1.02 d
300.84 c0.92 d0.67 b0.96 d
p-value<0.0001<0.0001<0.0001<0.0001
LSD0.050.080.040.08
* Means in each column followed by the same lower-case letters indicate no significant differences among depths. Means with different letters are statistically different, in that the mean with the lower alphabetical order letter (e.g., a > c) has a mean statistically greater than the mean to which it is compared.
Table 15. Soil (CI) values averaged over depth (0–30 cm) in 2017 growing season.
Table 15. Soil (CI) values averaged over depth (0–30 cm) in 2017 growing season.
Roller TypeNumber of PassesCI before Rolling (MPa)CI after Rolling (MPa)
PlotWheelPlotWheel
2-stage roller/crimper11.48 abc *2.10 abcd0.84 b1.04 ed
21.40 bcde1.78 f0.78 bcd1.02 e
31.35 def1.80 ef0.80 bc1.15 bcd
4-stage roller/crimper11.26 f2.10 abcd0.72 cdef1.10 cde
21.35 cdef1.93 cdef0.73 cdef1.26 ab
31.43 abcd2.00 bcde0.71 def1.05 ed
Spiral roller/crimper11.50 ab1.90 def0.77 bcde1.06 cde
21.33 def2.14 abc0.68 f1.27 ab
31.55 a2.16 ab0.78 bcde1.11 cde
Smooth drum11.33 def1.89 def0.69 ef1.09 cde
21.50 ab1.98 bcdef0.71 def1.02 e
31.50 ab1.92 cdef0.80 bc1.18 abc
Smooth + Roundup11.29 ef2.32 a0.75 bcdef1.03 e
Untreated control01.38 bcdef2.10 abcd1.02 a1.28 a
p-value0.00060.0027<0.00010.0001
LSD0.130.220.080.12
* Treatment means in each column followed by the same lower-case letters indicate no significant differences among rolling treatments. Treatment means with different letters are statistically different, in that the mean with the lower alphabetical order letter (e.g., a > c) has a mean statistically greater than the mean to which it is compared.
Table 16. Soil CI (cone index) for different depths (0–30 cm, with 5 cm increments) averaged over rolling treatments in 2017 growing season.
Table 16. Soil CI (cone index) for different depths (0–30 cm, with 5 cm increments) averaged over rolling treatments in 2017 growing season.
Depth (cm)CI before Rolling (MPa)CI after Rolling (MPa)
PlotWheelPlotWheel
00.54 f *0.66 d0.31 e0.43 d
51.43 de2.23 b0.71 d1.25 b
101.57 b2.28 b0.81 c1.21 b
151.47 cd2.02 c0.79 c1.06 c
201.36 e2.05 c0.78 c1.11 c
251.54 bc2.27 b0.88 b1.27 b
301.92 a2.54 a1.10 a1.50 a
p-value<0.0001<0.0001<0.0001<0.0001
LSD0.090.160.060.09
* Means in each column followed by the same lower-case letters indicate no significant differences among depths. Means with different letters are statistically different, in that the mean with the lower alphabetical order letter (e.g., a > c) has a mean statistically greater than the mean to which it is compared.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kornecki, T.S. Influence of Recurrent Rolling/Crimping on Cover Crop Termination, Soil Strength and Yield in No-Till Cotton. AgriEngineering 2020, 2, 631-648. https://doi.org/10.3390/agriengineering2040042

AMA Style

Kornecki TS. Influence of Recurrent Rolling/Crimping on Cover Crop Termination, Soil Strength and Yield in No-Till Cotton. AgriEngineering. 2020; 2(4):631-648. https://doi.org/10.3390/agriengineering2040042

Chicago/Turabian Style

Kornecki, Ted S. 2020. "Influence of Recurrent Rolling/Crimping on Cover Crop Termination, Soil Strength and Yield in No-Till Cotton" AgriEngineering 2, no. 4: 631-648. https://doi.org/10.3390/agriengineering2040042

Article Metrics

Back to TopTop
