Detection and Characterisation of Eemian Marine Tephra Layers within the Sapropel S5 Sediments of the Aegean and Levantine Seas

Abstract

The Eemian was the last interglacial period (~130 to 115 ka BP) to precede the current interglacial. In Eastern Mediterranean marine sediments, it is marked by a well-developed and organic-rich “sapropel” layer (S5), which is thought to reflect an intensification and northward migration of the African monsoon rain belt over orbital timescales. However, despite the importance of these sediments, very little proxy-independent stratigraphic information is available to enable rigorous correlation of these sediments across the region. This paper presents the first detailed study of visible and non-visible (cryptotephra) layers found within these sediments at three marine coring sites: ODP Site 967B (Levantine Basin), KL51 (South East of Crete) and LC21 (Southern Aegean Sea). Major element analyses of the glass component were used to distinguish four distinct tephra events of Santorini (e.g., Vourvoulos eruption) and possible Anatolian provenance occurring during the formation of S5. Interpolation of core chronologies provides provisional eruption ages for the uppermost tephra (unknown Santorini, 121.8 ± 2.9 ka) and lowermost tephra (Anatolia or Kos/Yali/Nisyros, 126.4 ± 2.9 ka). These newly characterised tephra deposits have also been set into the regional tephrostratigraphy to illustrate the potential to precisely synchronise marine proxy records with their terrestrial counterparts, and also contribute to the establishment of a more detailed volcanic history of the Eastern Mediterranean.

1. Introduction

Tephra (volcanic ash) layers can potentially enable the precise alignment of sediment records to resolve the relative timings of palaeoenvironmental events between a wide range of terrestrial and marine archives [1,2,3]. If they can be dated directly, these markers provide independent checks on age models based on alternative dating methods [4,5,6]. Records preserving several superimposed tephra layers together constitute a tephrostratigraphy which can contribute to a more detailed understanding of volcanic histories [7,8,9,10,11,12].

The development of an Eastern Mediterranean marine tephrostratigraphy, which includes not only Italian but also Aegean Arc source volcanoes (e.g., Santorini, Kos, Nisyros, Yali), is still in its infancy. Data available from the Sea of Marmara and the northern Aegean Sea only extend back through the last ~80 kyrs and rarely include cryptotephra data [13,14,15,16]. Longer sediment sequences from the southern Aegean Sea and the Levantine Basin have only occasionally been studied in terms of their(crypto) tephra content despite the favourable downwind position of these sites with respect to Quaternary active volcanoes and their importance for palaeoceanographic research [17]. For example, marine cores in this area have provided detailed evidence of orbital-scale African monsoon variability over at least the last 3 Ma, forced by changes in Nile run-off into the basin [18,19,20,21,22], as well as centennial- to millennial-scale variations in sea surface temperature and circulation modes throughout the eastern Mediterranean [23,24,25,26,27,28,29]. Hence, independent dating and linking of these palaeo-records via (crypto)tephras is crucial.

The application of tephrochronological studies has been spurred to some extent by improved methods for recovering and analysing non-visible ash (cryptotephra) layers from sediment sequences worldwide. This has greatly extended the traceable “footprints” of some tephra isochrons and helped to extend or refine regional tephrostratigraphic frameworks (or “lattices”), particularly for the Late Quaternary in the Mediterranean [5,17,30,31,32,33].

The development of a tephra framework for the Mediterranean Sea started with the first recovery of deep-sea cores from the Ionian and Levantine Seas in the late 1940s and has been updated ever since [13,14,34,35,36,37,38,39,40]. Detailed marine tephrostratigraphies for Central Mediterranean (Italian) volcanoes were compiled for the last 200 kyrs from Tyrrhenian, Ionian and Adriatic Sea cores and the first cryptotephra studies were also undertaken in this region [5,8,30,41,42,43,44,45,46,47].

The Aegean and Levantine Seas are situated downwind from volcanoes in the Aegean Arc (Methana, Milos, Santorini, Kos, Yali, Nisyros), and, further to the west, on the Italian peninsula (Campanian and Roman Provinces) and islands (Etna, Aeolian Islands, Pantelleria) (Figure 1)—all of which were frequently active during the Late Quaternary (see [48] and references therein). The Levantine Sea in particular can also receive tephra from the North from highly active Western and Central Anatolian volcanoes (Acigöl, Hasan Dag, Erciyes Dag) (Figure 1). However, so far, very few tephra layers have been characterised in the eastern sector of the Mediterranean Basin and tephra studies have, therefore, been underexploited in the construction of volcanic histories. In the Levantine Sea, the known tephrostratigraphical record consists only of an Early Holocene tephra thought to originate from the Ericyes Dag stratovolcano in Central Anatolia [49], the ~22 ka Cape Riva tephra from Santorini [50,51], and the ~161 ka Kos Plateau Tuff (KPT; [50,52,53]). All these tephras form visible layers in the marine sediment records, and this sector of the Mediterranean has not previously been investigated for the presence of cryptotephra layers. The only published marine cryptotephra record in the Eastern Mediterranean Sea is derived from core LC21 in the southern Aegean Sea [17]. This core encompasses the last ~160 kyrs and has been used for high-resolution palaeoceanographic reconstructions [18,21,22,23,26,27,54]. A detailed study identified nine visible tephras and eight cryptotephra layers in core LC21 with provenances from Italian and Aegean Arc volcanoes [17], demonstrating the potential for tephra to correlate the region’s marine sediment cores.

Here, we present updated (crypto)tephra results from core LC21 and two other deep-sea cores; M40/4-67 (GeoTÜ-KL51) from the southeastern Aegean Sea and Ocean Drilling Project (ODP) Site 967B from the central Levantine Basin (Supplementary Materials 1 and 2). These cores hold sapropel sediments deposited during the Eemian (last) interglacial period (~130–115 ka) (sapropels S3–S5).

Sapropel S5 is represented in numerous sediment cores throughout the eastern Mediterranean and dated to between 128.3 and 121.5 ka [21]. It is the best developed (often annually laminated) sapropel of the last glacial/interglacial cycle (see [18] and references therein). Sapropel boundaries are frequently used as isochrons to synchronise eastern Mediterranean sediment records, but these can be blurred by post-depositional oxidation/reduction at the top/base of each layer. Furthermore, the exact onset and cessation of sapropel formation at each site depends on the development of benthic anoxia, which in turn depends on water depth, vertical mixing, and carbon export. These factors may result in differences of a few centuries between sites, for the start and end of sapropel formation [55]. Uncertainties (±2 ka) on current dates for the start and end of sapropels S3–S5 [21] are large enough to accommodate these centennial geographic differences in the timing of sapropel formation. Nonetheless, the tephra layers reported here may prove particularly valuable for clarifying centennial- to millennial-scale changes during the Eemian in this climatically sensitive region.

Where the geochemistry of a tephra layer can be matched to a proximal volcanic deposit, the date derived for the tephra layer can also be used to apply age constraints to the development and activity of a volcanic system [56,57]. This is sometimes the only way to define dates for volcanoes, particularly those with magmatic compositions which are not conducive to radiometric dating. For example, in the Aegean, dates for eruptions of Yali [17], Nisyros [58] and Santorini [59] are only known from the correlation of proximal volcanic stratigraphies to tephra deposits in marine sediment cores. The tephra deposits described here, therefore, provide a new opportunity to define eruption dates for the volcanic systems of the Eastern Mediterranean.

2. Materials and Sample Locations

Sample names in this study are the name of the sediment core (and section if relevant) followed by the depth (in cm) below the sea floor of the sample. This follows the convention set by [5,10,17,30] and allows easy correspondence with other studies [60,61].

2.1. ODP Site 967

ODP Site 967B (hereafter, ODP967B-2H1) is located ~60 km south of Cyprus at a water depth of 2555 m (34°04′ N, 32°43′ E; Figure 1; [62,63]). This study used samples obtained from core Section 2H1 from Hole B of ODP967, which includes sapropel S5 [64] (Figure 2), as well as over- and underlying Foraminifera-rich, nannofossil ooze and clays; bioturbation in these sediments is minor. A 2 × 2 × 150 cm u-channel was extracted at the ODP core repository at MARUM (Centre for Marine Environmental Sciences, University of Bremen, Bremen, Germany) after X-ray fluorescence (XRF) scanning analysis of the core section [22]. The sediment was then sampled contiguously throughout the sapropel S5 unit, between core section depths of 100 and 140 cm, initially at 5 cm intervals and subsequently at 1 cm resolution in those parts of the core in which tephra shards were found (Figure 2). Full details of the XRF scanning methods are presented in [22].

2.2. Site LC21

Core LC21 (Figure 1 and Figure 2) was collected off the north coast of Crete (35°66′ N, 26°58′ E) in 1995 during the Marion Dufresne 81 cruise, using heavy piston coring at a water depth of 1522 m [65,66]. The results of the only tephra study of this core, which found an abundance (>3000 shards g⁻¹) of cryptotephra throughout the upper part of sapropel S5 between 8.755 and 9.575 mbsf and a visible tephra layer within S5 at a core depth of at 9.709 mbsf (sample LC21 970.9—visible), are reported in [17]. Both of these tephra layers were attributed by [17] to activity of the Santorini volcano on the basis of major and trace element measurements and comparison with a proximally derived database of [48]. However, that study did not include detailed sampling and chemical characterisation of the cryptotephra found in the upper part of the sapropel except for one sample that derived from the base of this tephra interval at 9.575 mbsf (sample LC21 957.5). This is addressed in the present study through complete resampling of the S5 sediment unit within LC21, with a higher resolution (2 cm) sampling interval than that (5 cm) adopted by [17] and also by the production and presentation of additional geochemical data. The results of XRF scanning analysis of the core (Figure 2) were published by [21].

2.3. Site KL51

Site M40/4-67 (GeoTÜ-KL51, hereafter KL51) is the best preserved of a group of METEOR cores (M40/4 SL67, M51/3 SL103, M51/3 SL104; [60,67]) collected from southeast of Crete (34°49′ N, 27°17′ E) in a water depth of ~2150 m—all of which display the S5 sapropel horizon (Figure 2 and Figure 3). In KL51, S5 is located at a down-core depth of ~344.5–421.9 cm below the seafloor. At ~77 cm thick, it is one of the thickest sapropels recorded for the Eastern Mediterranean (Figure 3) and is characterised by laminated diatomaceous ooze which has been intensively studied by [60]. Although this core was not sampled for cryptotephra, a ~5 mm thick, dark-grey volcanic ash layer, visible to the naked eye, has been previously described but not yet chemically characterised within the upper part of exceptionally well-preserved S5 sediments in core KL51 [60] (Figure 2 and Figure 3). In this study, we report the first electron probe microanalysis (EPMA) results for this ash layer, obtained from shards extracted from an original core depth interval of 346.3–346.8 cm. High-resolution (1 mm interval) XRF scanning and spectrophotometric data were also obtained from the archived core halves of core Section 4 (294.5–395.5 cm) and 3 (395.5–496.5 cm), which were still intact after cold storage of more than 20 years at Tübingen and Bremen. A GeoB smart-CIS 1600 Line Scanner and camera system (Schäfter & Kirchhoff GMbH, Hamburg, Germany) was used to record sedimentary changes in core KL51 linked to varve/laminae formation and to tephra deposition (see Supplementary Material 3). However, the core depth scales had to be corrected by up to 2.0 cm (Figure 3) due to shrinkage. As a result, the interval previously sampled for EPMA is shifted down by two centimetres, i.e., to 348.3–348.8 cm in core KL51. Using this revised depth scale, XRF elemental counts were generated at 4 mm depth resolution for Ba and S (Figure 2) to provide additional stratigraphic context.

Importantly, the proxy stratigraphies of S5 in all three cores (ODP967B in [22]; LC21 in [54], and KL51 in [60]) investigated here are considered to be intact and affected only by minor bioturbation. The known sedimentology of the cores does not, therefore, indicate significant reworking.

3. Analytical Methods

Analytical methods for each core are presented separately, as each was investigated independently by different research teams.

3.1. Tephra Sample Preparation (Cores ODP967B and LC21)

Samples of 2 cm (core LC21) and 1 cm (core ODP967B) thickness from throughout the depth of sapropel S5 (Figure 2) were dried and weighed in order to subsequently determine the shard counts per gram of dry sediment. Then the samples were heated in a furnace for 3.5 h at 550 °C to remove organic material and soaked in 10% HCl for 30 min to dissolve carbonates. The residues were sieved over 125 and 25 μm meshes to filter large detrital particles and clays, then floated in diluted sodium polytungstate, first at a density of 1.95 kg L⁻¹ and then at 2.55 kg L⁻¹, to isolate the volcanic glass shards from organic and other mineral matter. The floated material was mounted onto a slide using Euparal and examined for cryptotephra shards under a high-power (×200 or ×400) microscope. Samples containing cryptotephra shards were then resampled at 1 cm resolution (ODP967B) and 2 cm resolution (LC21). The same procedures were adopted for isolating these repeat samples but combustion of the samples was avoided as this can distort their chemical composition. Instead, to remove organic matter, the samples were floated twice in sodium polytungstate at a density of 1.95 kg L⁻¹, as described in [68]. The resampling was undertaken in order to refine the positions of peak shard concentrations from which shards were extracted for chemical analysis; the resulting counts (per gram of dry sediment) are shown in Figure 2.

Cryptotephra samples were extracted from horizons in which peaks in shard concentrations were recorded (Figure 2). Defining a peak in shard concentrations for cryptotephra sampling is somewhat subjective and so a consistent methodology was employed here. A peak was defined where the concentration of shards per gram was at least 30% greater than that of the sample above or below, or where shards were present in a sample, but none were found in the adjacent samples above or below. Following these criteria, three samples were taken from the shard-rich upper part of the S5 unit. These were targeted on the lowermost, largest and uppermost of the concentration peaks recorded for this interval (Figure 2) with the aim to capture the geochemistry of the first, largest and last inputs of tephra in this interval.

The extracted shards were then mounted onto pre-flattened (to within 30 µm) SpeciFix-40 resin stubs (Struers Inc., Cleveland, OH, USA) with the aid of a micro-manipulator and syringe to ensure a pure glass sample, prior to submission for EPMA. Shards from the visible tephra layer in core LC21 at 970.9 cm depth were extracted using a spatula and mounted directly onto a pre-flattened (to within 30 µm) SpeciFix-40 resin stub (see [17]).

3.2. Visible Tephra Preparation (Core KL51)

A sample of the visible tephra layer in core KL51 at 346.3–346.8 cm depth was treated with a 10% HCl solution to remove carbonates and subsequently sieved to isolate the 20–100 μm size fraction. Bulk tephra material of this fraction was then dried with Ethanol, embedded in Araldite© 2020 resin (DGE, Alphen aan den Rijn, Netherlands) on a 48 × 28 mm glass slide, sectioned and polished for EPMA measurement targeted on glass shards.

3.3. Electron Probe Microanalysis (EPMA)

3.3.1. Samples from Cores LC21 and ODP967

Major element compositions of (crypto)tephras from cores LC21 and ODP967B were measured at the Research Laboratory for Archaeology and the History of Art, University of Oxford, Oxford, UK, using a 4 spectrometer JEOL JXA-8600 Superprobe (JEOL, Freising, Germany). The accelerating voltage was 15 kV with a defocused beam of 10 µm diameter and a current of 6 nA in order to avoid alkali migration. Count times were 30 s on each peak, except for Na (12 s, and measured first), P and Mn (60 s), and Cl (50 s). Off-peak background counting times were half those of the peaks. Max Planck Institute standards StHs6/80 and ATHO-G [69] were analysed at the start, during and at the end of the run to monitor analysis accuracy and precision. Analytical data were filtered to remove analyses of non-vitreous material as well as those analyses with analytical totals lower than 90% (water contents for rhyolitic glass shards can reach 9–10% through a combination of magmatic water and alteration [50,70]). All analyses were normalised to 100%, to account for variable volatile concentrations. Both raw data and 100% normalised (volatile-free) data are provided in the supplementary information (Supplementary Materials 1 and 2).

3.3.2. Sample from Core KL51

Glass shards from the visible tephra in core KL51 at 346.3–346.8 cm depth was analysed at the German Research Centre for Geosciences (GFZ) in Potsdam, Germany using a JEOL JXA-8250 Electron Microprobe with 5 spectrometers (JEOL, Freising, Germany). The analytical setup used a 15 kV accelerating voltage, 10 nA beam current, and a 10 µm defocused beam. Count times per element were 20 s except for sodium analysed first at 10 s. The rhyolitic Lipari obsidian [71,72] was used as a secondary standard to monitor accuracy and precision. Filtering and normalisation of analytical data followed the same protocols as those adopted for the LC21 and ODP967B tephra samples. EPMA sample analyses and accompanying standard analyses are provided in the supplementary information (Supplementary Material 1).

3.4. Data Analysis

The major element data determined by EPMA analysis was normalised to a volatile-free basis and presented on both bi-plots and a linear discriminant function analysis (DFA). Details of DFA are found in [73,74], and it was undertaken using the PAST software of [75,76]. Data were converted to a log-ratio using the geometric mean of each analysis [74] and using CaO values as the root to avoid the unit sum problem of compositional data [73]. This dual approach to determining differences and similarities in the geochemistry between samples reflects that employed by [30].

4. Results

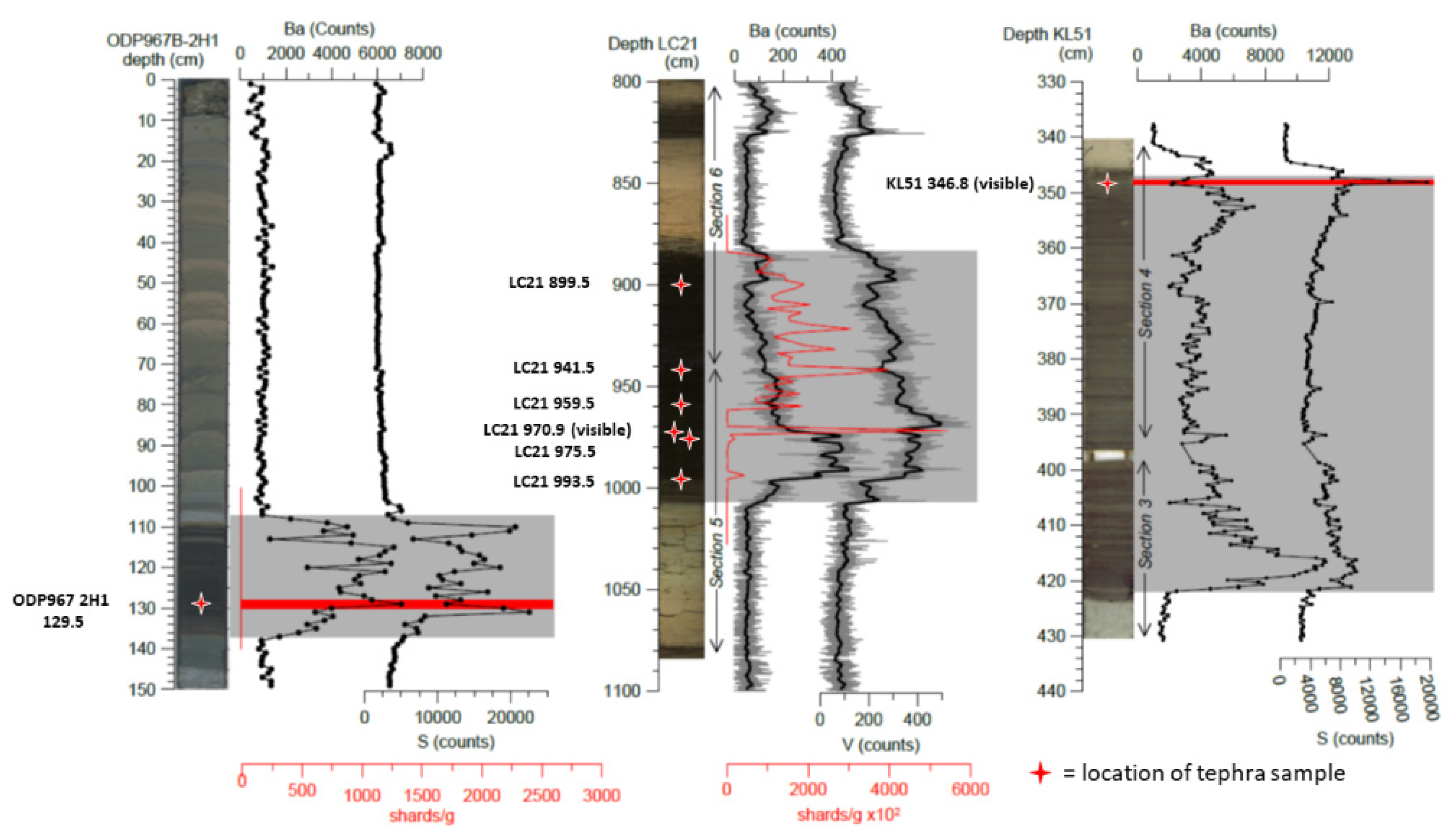

The results of the systematic counting of glass shard concentrations of LC21 and ODP967B tephras are provided in Figure 2, photomicrographs of each sample are shown in Figure 4, and plots of the measured major element ratios are provided in Figure 5. Here, we summarise the key findings to emerge from the data. All tephra samples are labelled according to their core name and lowermost (visible tephra layers) or mean sample depth (cryptotephra layers), e.g., the cryptotephra peak in core LC21 at 941–942 cm corresponds to sample “LC21 941.5”.

4.1. Geochemical Composition and Description of the ODP967B-2H1 129.5 Tephra

Core ODP967B contains only one cryptotephra layer in the lower section of sapropel S5 at 129.5 cm depth in Section 2H1 (Figure 2) (760.5 cm revised composite depth below sea floor). The shards are consistently colourless, platy and occasionally fluted in terms of morphology, and lack vesicles or mineral inclusions (Figure 4). Figure 5 and Figure 6 show that the shards recovered from this layer (hereafter sample ODP967B-2H1 129.5) are geochemically homogeneous. Consistently high values for SiO₂ (~77.5%) categorise this layer as high silica rhyolite (Figure 5). Other geochemical features are that K₂O values are significantly higher than those for Na₂O, while CaO values are only slightly higher than those for FeO^t (Figure 5).

Sedimentological Context of Tephra ODP967B-2H1 129.5

The glass shard counts (Figure 2) show a well-defined discrete peak of cryptotephra ODP967B-2H1 129.5 in the core section. Such a tightly constrained ash layer suggests it to be a stratigraphically reliable indicator of a primary ash fall event, as reworked material would probably be spread vertically through a few centimetres of the core [11]. Furthermore, there is no indication of bioturbation in this section of the core, and previous studies of the ODP967B cores [62,63,80] found no evidence of sediment reworking within the sapropel S5 sediment unit.

4.2. Geochemical Composition and Description of LC21 Tephra Samples

In addition to the already characterised tephra layer (LC21 970.9) in sapropel S5 [17], several new cryptotephra peaks have been detected (Figure 2). Notably, volcanic glass of variable concentrations was recorded continuously in the uppermost section of the S5 interval between 875.5 and 959.5 cm (Figure 2), from which three samples have been analysed.

4.2.1. Cryptotephra LC21 993.5

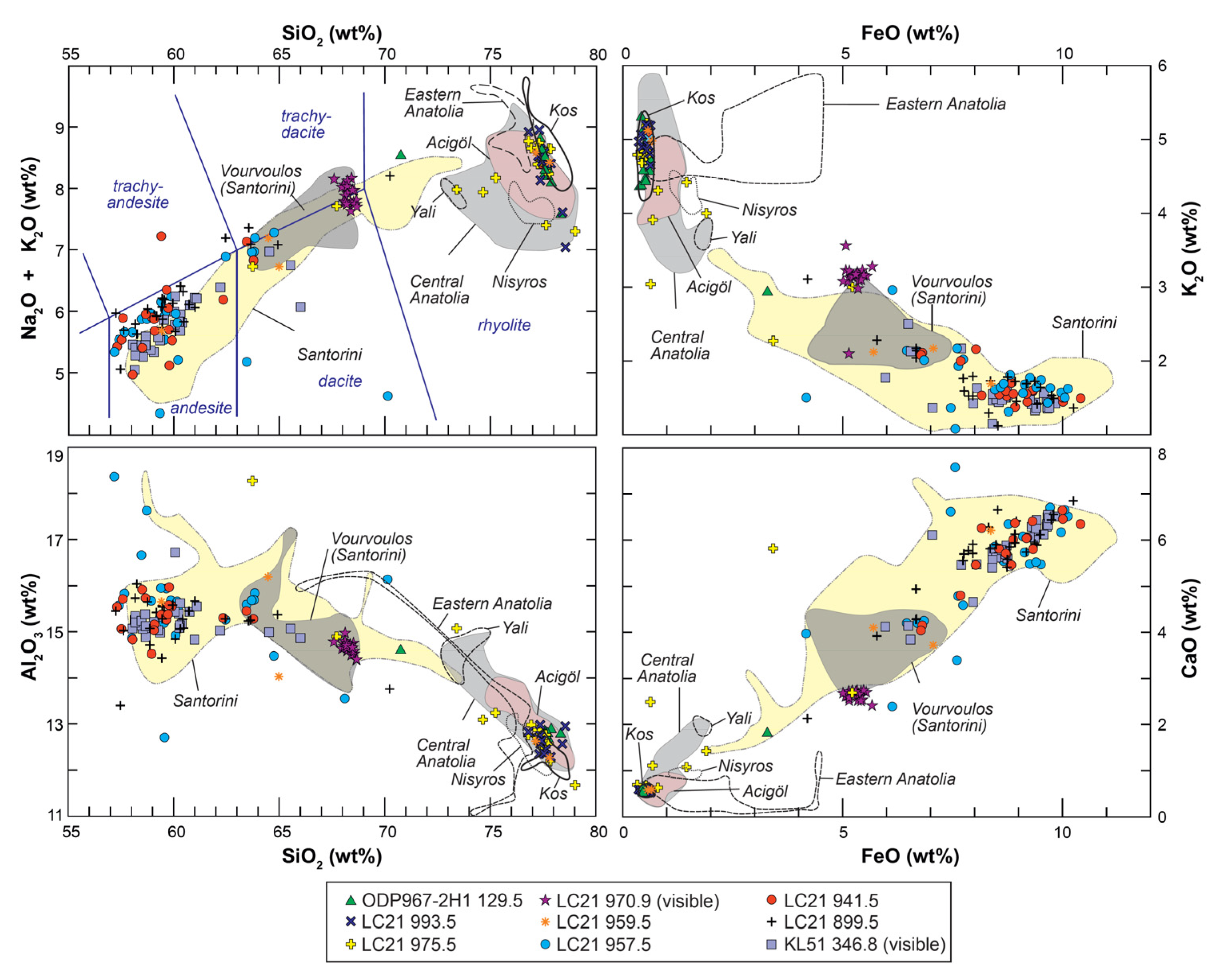

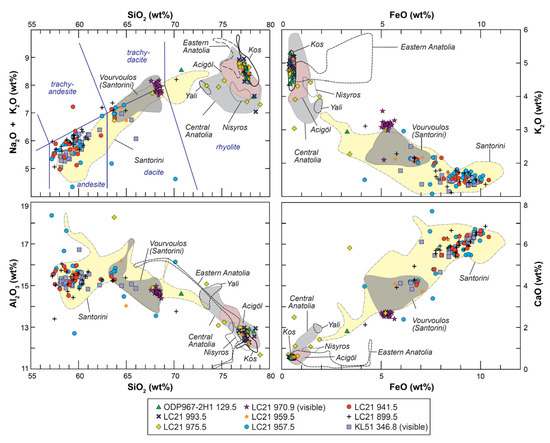

Shards in this cryptotephra sample are fluted and platy (Figure 4) and are rhyolitic in composition, with high normalised SiO₂ values between 76.6 wt% and 78.5 wt% (Figure 5). K₂O values of between 4.6 wt% and 5.2 wt% are always greater than Na₂O values which vary between 2.1 wt% and 4.0 wt%. FeO^t is always 0.36–0.62 wt% and CaO concentrations vary between 0.51 wt% and 0.62 wt% (Figure 5).

4.2.2. Cryptotephra LC21 975.5

Shards recovered from this cryptotephra horizon are predominantly platy and light green or colourless (Figure 4). The EPMA data show the majority of shards to have a rhyolitic composition (Figure 5), though a small number have dacitic to trachydacitic affinities. These mixed chemical signatures result in a wide range of elemental concentrations (Figure 5), for example in FeO^t (0.4–5.0 wt%) and CaO (0.5–5.7 wt%). On the other hand, values for Na₂O (2.8–4.6 wt%) and K₂O (2.2–4.7 wt%) are more homogeneous. A single shard in this layer forms a distinctive outlier, with a SiO₂ value of 65.1 wt% and a FeO^t concentration of 5.0 wt% (Figure 5).

4.2.3. Visible Tephra LC21 970.9

Tephra shards from this visible layer are generally clear to light brown in colour, platy or fluted with few vesicles or microcrystal inclusions (Figure 4). The EPMA data indicate a dacitic to trachydacitic composition (Figure 5) with CaO concentrations of 2.4–2.7 wt%, always lower than the FeO^t values of 5.0–5.7 wt% (Figure 6). Na₂O values (4.5–5.7 wt%) are consistently higher than those for K₂O (2.10–3.56 wt%; Figure 5).

4.2.4. Cryptotephras LC21 899.5, LC21 941.5 and LC21 959.5

Shards from the cryptotephra peaks LC21 899.5, 941.5 and 959.5 from the uppermost tephra-rich interval exhibit a range of colours and morphologies but are dominated by blocky and vesicular brown shards with abundant mineral inclusions (Figure 4). The glass compositions of these cryptotephra samples are identical and suggest a wide chemical range from andesite to dacite (Figure 5). They are also identical to the compositions of a sample at 957.5 cm depth (from [17], shown also on Figure 5). CaO values (3.9–6.9 wt%) are always lower than FeO^t values (5.8–10.3 wt%) and K₂O values are always less than Na₂O values (Figure 5). Cryptotephra LC21 959.5 contains a mix of shards from the above described andesitic to dacitic composition and an additional high-silicic glass component (n = 2) that is comparable with the glass composition of tephra LC21 993.5 (Figure 5)

4.2.5. Sedimentological Context of LC21 Tephra Samples

The lowermost tephra sample LC21 993.5 was obtained from a distinct peak (42,610 shards per gram) in glass shard concentrations that lies close to the base of the sapropel S5 lithological unit (Figure 2) and has a homogenous chemical signature (Figure 5). Since this tephra sample is also confined within visible sediment laminations (see [21,54]) it is considered to represent an individual and primary eruption event.

Another cryptotephra peak was detected at 975.5 cm depth, ~5 cm below the visible tephra layer. Yielding 18,722 shards per gram of sediment (Figure 2), this is a large increase over the samples below and above (3936 and 8417 shards per gram respectively) and thus could indicate input of primary air-fall tephra. Of 16 glass shards analysed for geochemical composition from this layer (Figure 5), one yielded a chemical signature similar to that of the overlying visible layer LC21 970.9 (Figure 5 and Figure 6), and may, therefore, have been derived from it by localised redistribution through bioturbation of shards. Nine of the shards revealed compositional data that closely resemble those of the underlying sample LC21 993.5 (Figure 6), which might indicate reworking by the process described by [81]. The remaining 6 shards are geochemically distinct from all other samples in this study (Figure 5 and Figure 6), and, therefore, may represent a primary tephra deposit. However, in view of the limited number of chemical measurements available, and the fact that reworked material appears to be the dominant component in this layer, this remains speculative, and in need of more rigorous investigation.

The 2 mm-thick discrete tephra layer represented by sample LC21 970.9 (visible) (Figure 2) is interpreted as primary tephra fallout and described in more detail in [17].

Cryptotephra shards were found in all samples extracted from the upper part of the sapropel S5 unit in LC21 ranging between core depths 875.5 and 970.9 cm, the latter depth marked by a visible tephra layer (Figure 2). This extensive spread of cryptotephra material (Figure 2) encompasses several peaks described in the previous section, and these are represented here by geochemical samples at core depths of 899.5 cm, 941.5 cm, and 959.5 cm (and additionally 957.5 cm from [17], which all have near-identical chemical compositions (Figure 5). The sample at 959.5 cm depth also contains some (presumably reworked) glass shards from the lowermost rhyolitic tephra LC21 993.5 (Figure 5). There are three possible explanations for this tephra sequence:

(1)

The tephra was continuously erupted and deposited throughout the period of time in which the upper part of Sapropel S5 was formed. However, linear interpolation between the dates for the top and the bottom of the sapropel (121.5 ka and 128.3 ka respectively) in LC21 suggests a timespan of approximately 4000 to 5000 years for the period during which this spread of tephras was deposited; continuous eruption of geochemically homogeneous eruptive material over such a long time span seems highly unlikely.

(2)

The spread reflects reworking by burrowing animals. Reworking on this scale seems unlikely, as sapropels are formed by anoxia of bottom waters, which would not support a thriving community of sea bottom burrowers. Furthermore, a detailed oxygen isotope stratigraphy for LC21 based on foraminifera [21,54] appears to be intact and coherent (i.e., it is not a “noisy” signal), while the sediments consist of undisturbed laminations and the visible tephra layer at 970.9 cm in the same core shows no upward or downward reworking [17] (Figure 2). However, some limited reworking by burrowing may have occurred as indicated by tephra sample LC21 959.5 which contains a mix of glass components from primary over- and underlying tephras.

(3)

Prolonged deposition of tephra in the vicinity of LC21 could have been fed by reworked material removed from the trough slopes that surround the core site, in a similar manner to the process proposed by [81] which appears to generate “pseudo-isochrons” in deltaic sediments on a millennial timescale (see [81], Figure 5). In this process the reworked tephra shards (and other sediment grains) can be co-deposited with primary pelagic sediment for a long time after the eruption event.

Explanation 3 is considered the most likely here, as the process of the redeposition of tephra shards into an otherwise intact foraminiferal isotope stratigraphy has been observed in other sedimentary records [81] whereas the processes invoked by Explanations 1 and 2 have not been recognised elsewhere. Explanation 2 is also contradicted by the evidence in [21,54]. Unfortunately, however, it is still not possible to define the precise depth of this tephra layer in core LC21. The implications for the LC21 proxy stratigraphy of defining the eruption event at each of the depths sampled (899.5, 941.5 and 959.5 cm) are provided in the supplementary information (Supplementary Information 4).

4.3. Geochemical Composition and Description of the KL51 346.8 Tephra

The visible tephra in core KL51 at 346.3–346.8 cm depth (hereafter sample KL51 346.8—Figure 3) consists of blocky, transparent to brownish-coloured glass shards (Figure 4) that are characterised by low to medium vesicularity and abundant mineral inclusions. The glass chemical composition of KL51 346.8 is rather heterogeneous, ranging from andesitic to dacitic (Figure 5) with SiO₂ concentrations varying between 58.2 wt% and 66.2 wt%. Figure 6 shows that FeO^t and CaO values are highly variable at 6.0–9.7 wt% and 3.9–6.6 wt%, respectively, and Na₂O (3.6–5.1 wt%) is greater in concentration than K₂O (1.2–2.5 wt%).

Sedimentological Context of Tephra Sample KL51 346.8

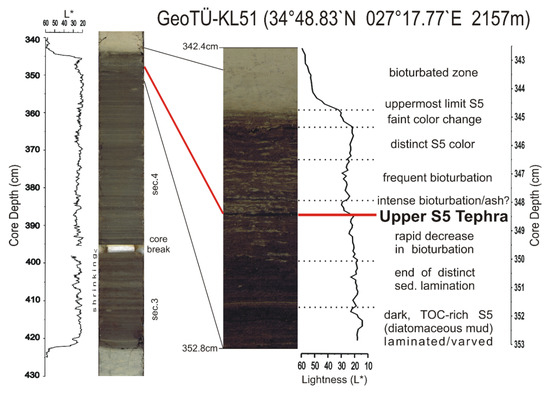

The visible tephra layer KL51 346.8 is a visible dark layer (Figure 3) with slightly variable thickness due to bioturbation disturbance expressed as light-coloured burrows of submillimetric scale. As with other records from this area (see Figure 2 of [60]), this ash layer is found within the upper part of S5, about 4 cm below its upper boundary. Post-depositional Fucoides-type bioturbation (Figure 3) seems to compromise the sedimentary layering in the uppermost part of the sapropel S5 lithological unit; there is no sharp boundary, but rather a diffuse transition between organic rich sediments that become more and more mixed and obscured by strongly homogenized hemipelagic muds incorporated from above.

5. Discussions

In this section, we assess the possible correlations of the individual tephra deposits reported in Section 4, and their potential to serve as regional isochrons. We do not attempt to definitively assign a detailed source to the tephra deposits, as a major constraint hampering this endeavour is the current paucity of relevant geochemical and geochronological information for the region’s proximal volcanic strata of Eemian age, especially for nearby Aegean Arc and Anatolian volcanic provinces. For example, Santorini’s proximal stratigraphy is well documented [82,83], but lacks glass chemical datasets for comparisons and precise radioisotopic dating of tephras >100 ka. The volcanic stratigraphy of Kos, Yali and Nisyros is not well documented [84] or dated [85,86,87] for this time frame, and only few glass chemical data are available [13,14,58,88]. The eruptive history of the Central and Eastern Anatolian volcanoes is reasonably well established for the last 35 kyrs [48,78,89] and for >160 ka [79], but is lacking data for the Eemian time interval. Other potential but more distal sources include Italian volcanic provinces. A few less widespread tephra markers of Italian provenance and Eemian age have been reported from terrestrial sites in central and southern Italy [4,90], but those layers are all K-alkaline (trachytic-phonolitic) in composition and, therefore, unrelated to the silica saturated tephra layers presented here (see Figure 5). In the Adriatic Sea, [5] found shards in the middle of sapropel S5 preserved in core PRAD 1–2 (sample PRAD-3065), but unfortunately these were not able to be geochemically characterised, precluding a comparison to the data presented here. Therefore, in the absence of a robust regional proximal database, attempts to adduce the provenance of the tephra layers reported here will necessarily be preliminary in nature.

5.1. Correlations Between Cores and Possible Sources of the Tephra

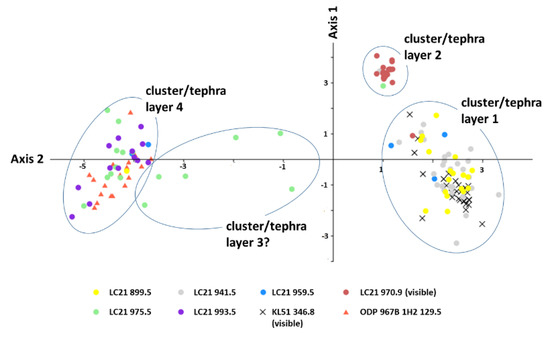

Attempts to correlate the tephra deposits between the three cores described above used a two-stage approach: first, bi-plots of key elements were used to identify overlapping chemical ranges, then DFA (Figure 6) was employed to test for possible correlations. The first and second discriminant functions were plotted and any similarity visually inspected (Figure 6) in tandem with ad hoc utilisation of the stratigraphic positions of samples to identify any clear correlations between the tephra layers, and hence between the three sediment cores examined here (Figure 7,

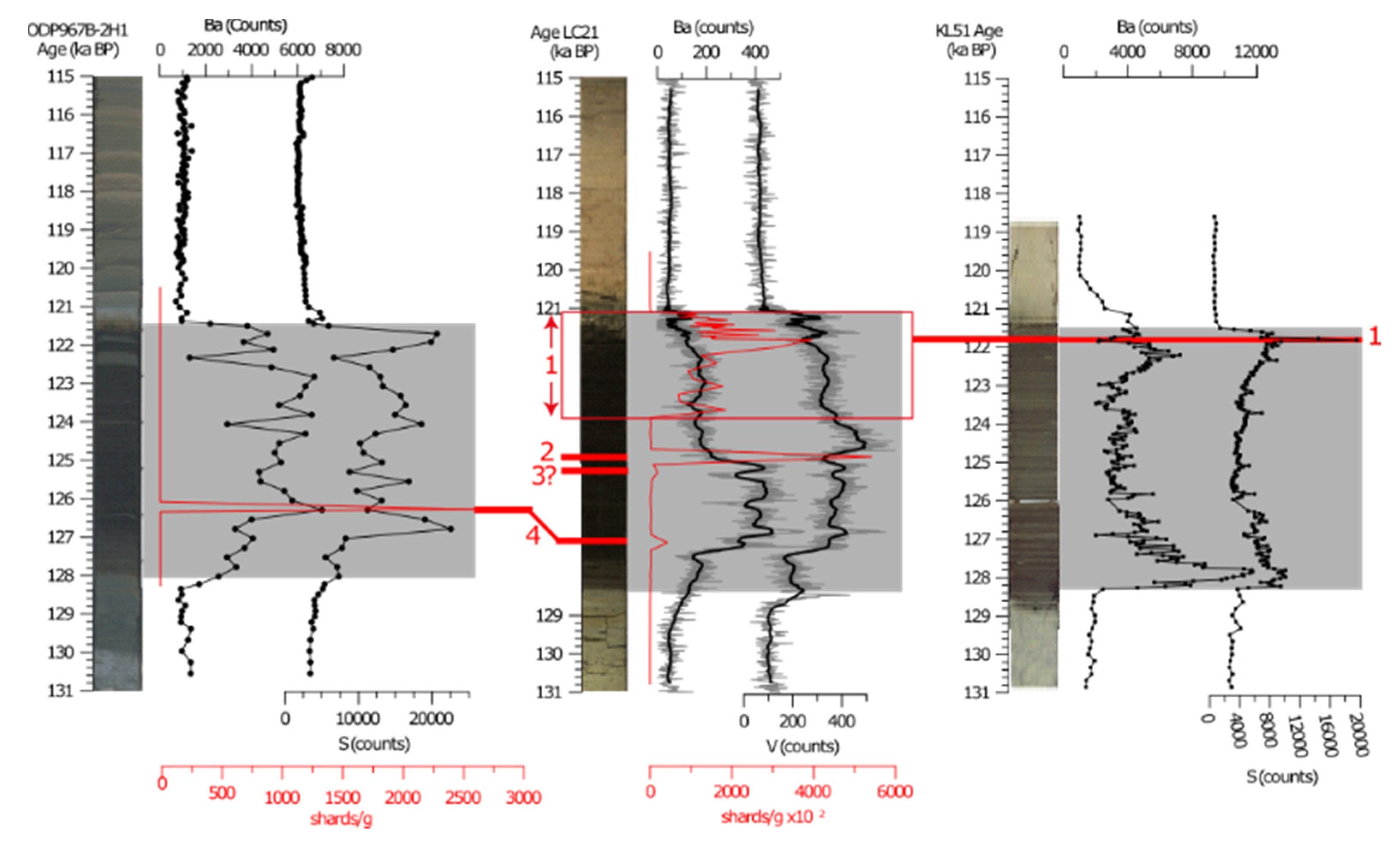

Table 1. Summary of correlations, interpolated ages and suggested sources of tephra layers in Mediterranean Sapropel S5. Ages are derived from linear interpolation between the ages for the top (121.5 ka) and base (128.3 ka) of S5 [54].

Samples Comprising Tephra Layer (Figure 7)	Tephra Layer Number (Figure 6 and Figure 7)	TAS Classification of Tephra Layer (Figure 5)	Interpolated Age of Tephra Layer	Method of Age Interpolation	Suggested Sources for Tephra Layer (from Figure 5)
LC21 899.5, 941.5 and 959.5; KL 51 346.8 (visible)	1	Andesitic to dacitic	121.8 ± 2 ka	Linear Interpolation between top (121.5 ka) and base (128.3 ka) of S5 in core KL51	Santorini
LC21 970.9 (visible)	1	Dacitic to trachytic	>121.8 ± 2 ka <126.4 ± 2 ka	Youngest age constrained by KL51 346.8 (visible). Oldest age constrained by ODP967B 2H1 129.5	Santorini (Vourvoulos eruption)
LC21 975.5	3?	Rhyolitic	>121.8 ± 2 ka <126.4 ± 2 ka	Youngest age constrained by KL51 346.8 (visible). Oldest age constrained by ODP967B 2H1 129.5	Santorini, Kos/Yali/Nisyros, Central/Eastern Anatolia
LC21 993.5 and ODP967B 2H1 129.5	4	Rhyolitic	>126.4 ± 2 ka	Linear Interpolation between top (121.5 ka) and base (128.3 ka) of S5 in core ODP967B 2H1	Kos/Yali/Nisyros, Central/Eastern Anatolia

).

The oldest tephra deposits reported here are those lying close to the lower boundary of the S5 sediment units in ODP967B and LC21 (Figure 2). Layers ODP967B-2H1 129.5 and LC21 993.5 cannot be differentiated either through their major element concentrations (Figure 5) or the DFA plot (Figure 6). Given their indistinguishable high-silica rhyolitic chemical compositions and similar stratigraphic position, it is reasonable to interpret that they represent the same eruption event, and hence provide a proxy-independent isochron for linking Eemian and S5 records between the Aegean and Levantine seas (Figure 1, Figure 7 and Figure 8). The high SiO₂ content (~77 wt%) and very low CaO and FeO concentrations of these rhyolitic shards indicate a likely origin from either Central Anatolia volcanoes (e.g., Acigöl) or from the Kos-Nisyros-Yali volcanic system (SE Aegean Arc) (Figure 1 and Figure 5).

Sample LC21 975.5 represents a cryptotephra peak 18 cm above the basal LC21 993.5 layer and only 5 cm below the visible tephra layer LC21 970.9 (Figure 2). As noted in Section 4, this sample yields shards with similar compositions to samples LC21 993.5 (below) and LC21 970.9 (above) (Figure 6), possibly indicating reworking of these tephra shards through bioturbation or redeposition. It does, however, also include rhyolitic shards (n = 6) which are chemically distinct from those of all other layers analysed within this study (tephra layer 3? in the DFA, where the question mark indicates uncertainty, see Figure 6). These could signal an additional distinctive eruption event associated with sapropel S5. Alternatively, the analyses obtained from this sample, considered together, could simply represent geochemical variation within one eruption. Here, we tentatively propose a tephra layer on the basis of a sharp peak in shard concentrations, but caution that these results would need to be replicated in other sediment sequences from the region for this interpretation to be confirmed. The rhyolitic shards show some affinities to Central and Eastern Anatolian tephras (Figure 5).

Just above the samples described above (see Figure 2) is the ~2 mm thick visible layer LC21 970.9, first reported in [17] with a glass composition that does not match any of the other samples presented here (Figure 5 and Figure 6). It, therefore, represents a distinctive eruption event. Being dacitic to trachydacitic in glass composition (Figure 5), it conforms to the geochemical ranges of proximal deposits on Santorini [17] and is outside the chemical range of other nearby Aegean Volcanic Arc sources (Nisyros, Yali, Kos), as well as of Anatolian or Italian volcanoes [17]. Glass chemical data available for Santorini proximal tephras is limited to only a few major eruptions from the time intervals <100 ka [48] and >200 ka [33], hence still hampering detailed correlations. Several of the Plinian events evident in the proximal stratigraphy of Santorini are undated. However, the similarly dacitic-trachydacitic Vourvoulos eruption is currently constrained to between ~152 and ~47 ka by the dates of the underlying (Middle Pumice) and overlying (Upper Scoria 2) deposits and is thus a viable candidate eruption for this Eemian tephra layer. Figure 5 shows that the EPMA of LC21 970.9 (visible) matches the composition of the silicic end-member of the Vourvoulos proximal deposits [57] and we propose an attribution to this eruption.

The youngest discrete tephra layer reported here is the KL51 346.8 tephra. It is a visible layer occurring close to the upper boundary of the S5 sediment unit (Figure 3). Both the major element bi-plots (Figure 5) and DFA plot (Figure 6), where these shards together form cluster 1, indicate that the glass chemistries of these samples are indistinguishable from (and, therefore, correlate to) the uppermost three tephra samples from core LC21, namely LC21 899.5, 941.5, and 959.5. A sample at 957.5 cm depth (from [17]) also matches this composition (Figure 5). The three LC21 samples represent tephra peaks selected for analysis from a series of tephra samples that extend continuously over a >70 cm sediment interval (Figure 2) with LC21 959.5 being the basal sample. As previously discussed, the thick sequence of tephra peaks in the upper part of S5 in core LC21 (Figure 2) results most probably from prolonged redeposition of tephra from the slopes surrounding the sedimentary basin, rather than in-situ reworking (for example by bioturbation). This interpretation is supported by the observation of undisturbed laminations in S5 in LC21 [54]. A range of possible correlations between the KL51 346.8 tephra and the LC21 shard count peaks presented in this paper are discussed in the supplementary information (Supplementary Material 4) with respect to the known biostratigraphy of the core. However, as no precise correlation can be made between the cores at present, these results highlight the need for trace element analyses of the tephra layers [17,58].

If differences in concentrations of fractionation-sensitive trace elements such as Ba or Sr can be detected between otherwise geochemically identical samples within the same core (such as LC21 899.5, 941.5 and 959.5 cm), this would support an interpretation that each peak in shard concentrations represents a separate eruption event. In addition, trace element analyses could also assist in the attribution of volcanic source regions to the tephra layers. For example, Rb, Nb, Ta, Y and Th are proposed to good discriminators between active and post-subduction tectonic settings [48] and so could discriminate between the Aegean Arc (active) and Anatolian (post-subduction) sources proposed here for tephra samples LC21 993.5 cm and ODP967B 2H1 129.5 cm.

Notwithstanding the difficulty in determining the precise correlation between LC21 and KL51, the andesitic to dacitic composition of these tephras strongly suggests an origin from an eruption of the Santorini volcano (Figure 5), which is known to have produced such compositions at least within the last 100 kyrs [48].

5.2. Age Estimates of the Tephra Deposits

Ideally, to maximise their utility, the ages of tephra layers should be derived by direct or indirect radiometric measurements from sequences with well-understood sedimentary contexts. However, the increasing numbers of detected tephra layers that are only registered at distal locations means this is not always possible, as these layers usually do not have sufficient material to obtain absolute age estimates in this manner. Hence, the inferred ages of such tephra layers are usually reliant on the robustness of age models based on independent evidence [4].

The tephra layers reported in this study have not been dated directly, so the ages presented here (Table 1) are derived from linear interpolation between age estimates with 2σ uncertainty previously established for the upper (121.5 ± 2 ka) and lower (128.3 ± 2 ka) boundaries of sapropel S5 in Eastern Mediterranean sediments [21]. These sapropel ages themselves are derived from an age model developed for the LC21 core sequence by [54]. Briefly, this is based on radiocarbon dates and two well-dated tephra layers (the Minoan and Campanian Ignimbrite eruption events) for the 0–40 ka interval, and constrained by tuning the LC21 planktonic foraminiferal δ¹⁸O record to the U/Th-dated Soreq Cave (Israel) speleothem δ¹⁸O record [91] for the 40–150 ka interval. Robust tie points link the top and base of sapropel S5 in LC21 to Soreq δ¹⁸O record, but crucially no intermediate tie points were proposed [54]. Hence the tephra age estimates provided here were necessarily derived by linear interpolation between the top and base of S5. They should, therefore, be regarded as provisional, because their derivation rests on the assumed correspondence of stratigraphic markers (the top and bottom of sapropel S5) between deep sea-floor pelagic sediments of cores ODP967B-2H1, LC21 and KL51, and between changes in the δ¹⁸O of eastern Mediterranean surface waters and Soreq cave speleothems. The latter relationship derives from a shared physical mechanism whereby evaporation from the eastern Mediterranean Sea provides the dominant source of precipitation over Soreq Cave (hence, the δ¹⁸O “source” signal is preserved in Soreq speleothems) [54,91]. Although there is thought to be a lag time of up to 400–600 years between deposition of S5 in the west and east of the Eastern Mediterranean basin [55], this is much smaller than the 2σ uncertainty of ages defined for the top (121.5 ± 2 ka) and base (128.3 ± 2 ka) of sapropel S5. Any asynchronicity between cores is, therefore, accommodated by the uncertainties of these dates. Defining age estimates for the tephra layers here does not preclude their valuable use as proxy-independent isochrones. It also allows them to provide a unique chronological contribution to the eruptive history of the region.

The age of 121.8 ± 2 ka (2σ uncertainty; Table 1) for the upper tephra marker KL51 346.8 (corresponding to samples LC21 959.5, 941.5 and 899.5) is derived from linear interpolation in core KL51 between the ages of the start and end of sapropel S5, as outlined above. The age estimate for the oldest tephra marker ODP967B-2H1 129.5 (corresponding to LC21 993.5) at 126.4 ± 2 ka is derived by linear interpolation in core ODP967B-2H1 between the ages of the start and the end of sapropel S5 (Table 1).

Bracketed between these two tephra deposits, but only represented in core LC21, are two further tephra layers, LC21 970.9 (visible) and LC21 975.5 (clusters/tephra layers 2 and 3? in Figure 7). Due to the uncertainty in the correlation of the tephra in the uppermost part of S5 in LC21 with the KL51 core (layer 1, Figure 7), their ages can only be constrained stratigraphically by being older than the KL51 346.8 tephra (121.8 ± 2 ka) and younger than the ODP967B-2H1 129.5 tephra at 126.4 ± 2 ka. Table 1 summarises these stratigraphical and chronological interpretations.

5.3. Synthesis with the Regional Tephrostratigraphy

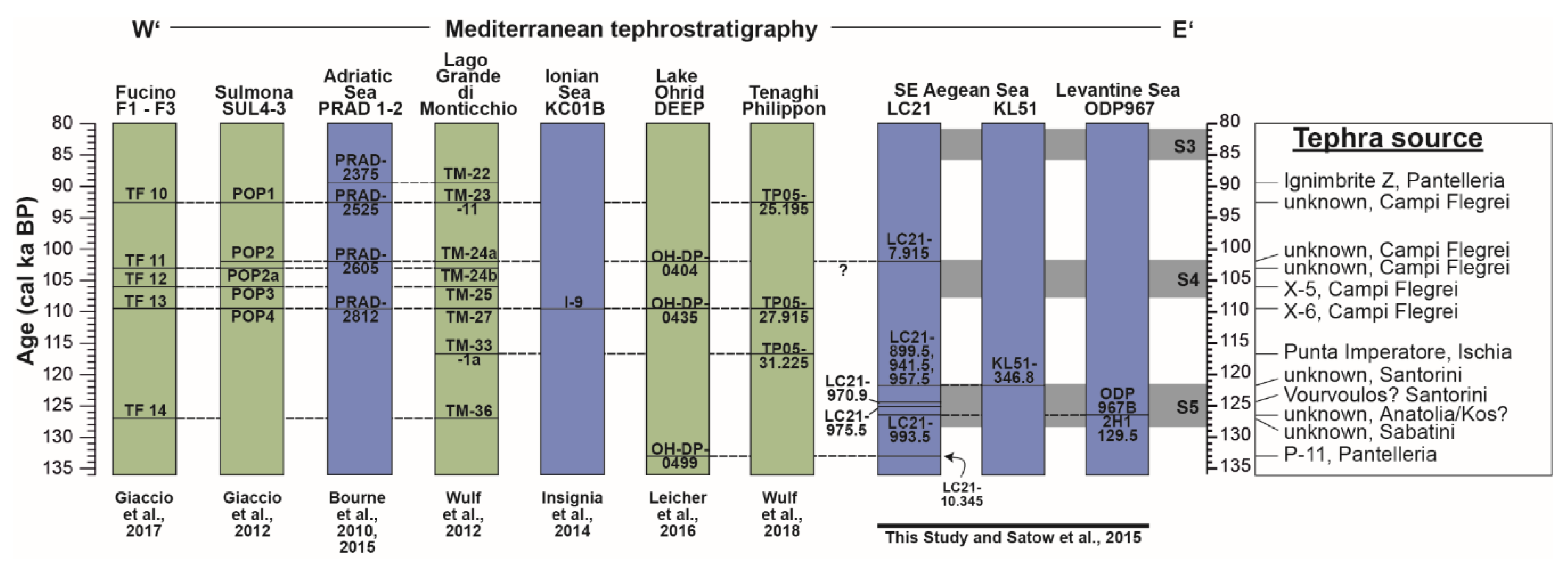

The four tephra layers described here are the first to be characterised within the Eemian, Eastern Mediterranean sapropel S5 and significantly add to the known tephrostratigraphy in this region (Figure 8). These Eemian sediments preserve a valuable record of the climate of the last interglacial period. Furthermore, volcanic stratigraphies in the region are often poorly dated [82,87] and so this updated regional tephrostratigraphy (Figure 8) has both palaeoenvironmental and volcanological applications. Prior to this publication, Eemian tephra layers in the Mediterranean have only been characterised in terrestrial sites in central and southern Italy, namely in Fucino [90] and Lago Grande di Monticchio [4]. Unfortunately, those are layers of Italian provenance and do not allow correlation to the marine sequences described here (Figure 8). However, other older and younger tephras such as the Pantelleria P-11 tephra (133 ka) and possibly the Campanian POP2/TM-24a tephra (102 ka) [92] are valuable markers which may prove invaluable in the precise synchronisation of terrestrial and marine records throughout the Mediterranean (Figure 8). In many cases, these tephra layers also provide the only chronological constraints for volcanic stratigraphies. For example, here, we suggest a date range for the Vourvoulos eruption of Santorini (Figure 8, Table 1).

6. Conclusions

Four Eemian tephra layers have been geochemically characterised using samples from three marine sediment cores spanning the Aegean and Levantine Seas. These tephra layers open new opportunities to correlate the proxy records of these cores with terrestrial or other marine environmental records in the region, as well as with archaeological sites. The assignation of provisional dates to these horizons in this paper also provides an opportunity for them to improve regional volcanic chronologies—many of which are currently poorly constrained. EPMA data indicate that a distinctive high-silica rhyolitic tephra of either Kos or Anatolian origin, dated by interpolation to approximately 126.4 ± 2 ka, links the S5 sediments of the SE Aegean Sea (core LC21) with those of the Levantine Basin (core ODP967) in a ca. 600 km West-East transect. An andesitic-dacitic tephra of likely Santorini provenance and an age of 121.8 ± 2 ka links the uppermost S5 sediments of the two southern Aegean records (KL51 and LC21), representing a more localised tephra marker in this region. The other two tephra layers; one dacitic-trachydacitic, the other rhyolitic, are proposed to originate from Santorini (the Vourvoulos eruption) and Central or Eastern Anatolian volcanic activity respectively. Their ages can be constrained to between 121.8 ± 2 ka and 126.4 ± 2 ka. These have only been detected in core LC21 thus far, but their potential to serve as regional isochrons in the southern Aegean Sea merits further exploration.
