Colorimetric Fiber Optic Based Probe for Real-Time Monitoring of Dissolved CO₂ in Aquaculture Systems ^†

Abstract

Dissolved carbon dioxide (dCO₂) evaluation is very important in many different fields. In this work, a new, integrated, colorimetric-optical fiber-based system for dCO₂ monitoring in aquaculture industry was developed. The sensing chemistry is based on colorimetric changes of the used indicator—poly p-nitrophenol (pNPh)—in contact with CO₂. Preliminary tests were done in a laboratory environment (calibration) and in a laboratory Recirculating Aquaculture System (RAS) with controlled CO₂ injection. The results have shown the suitability of the new sensor for assessing dCO₂ dynamics in RAS and its fast detection of low dCO₂ concentrations in an appropriate operation range.

1. Introduction

Dissolved carbon dioxide (dCO₂) evaluation is very important in many different fields as ocean, river and lake monitoring, food industry control (e.g., aquaculture) and clinical analysis. So far, there are some different methods for CO₂ measurements, including gas chromatography, colorimetry, amperometry, potentiometry, UV/VIS spectrophotometry and IR spectrometry [1]. These methods are time-consuming, expensive and usually not suitable for real-time monitoring of dCO₂. In the last years, several authors developed optical fiber-based technology for real time detection and quantification of dissolved carbon dioxide [2,3,4,5]. However, some complications appeared when measuring in the field due to the carbonate system complexity [2]. In this work, a new and integrated colorimetric-optical fiber-based system combined with a sensing membrane was developed for dCO₂ monitoring in aquaculture industry. The sensing chemistry of the membrane is based on colorimetric changes of the used indicator—p-nitrophenol (pNPh)—in contact with CO₂. To increase the sensitivity of the sensing membrane, the indicator was polymerized (poly pNPh) and its derivatives used to make the sensing cocktail. The poly pNPh is kept deprotonated in the sensing membrane by action of a quaternary ammonium hydroxide (QA-OH). In that form, the hydroxyl group is involved in protolithic reactions by action of the hydrogen carbonate formed by the equilibrium H₂O-CO₂. In the presence of carbon dioxide, the sensing layer changes its optical properties (absorption and refractive index), which changes the posterior optical response. Laboratory tests were made to ensure the suitability of the new sensor for assessing dCO₂ dynamics and its detection of low dCO₂ concentrations, important for aquaculture operations.

2. Materials and Methods

2.1. Chemical Reagents

The sensing membrane was developed from a cocktail with the following chemicals: p-nitrophenol (ReagentPlus^®, ≥99%; Sigma-Aldrich, St. Louis, MO, USA) as a colorimetric indicator for poly pNPh synthesis; a quaternary ammonium hydroxide solution (Sigma-Aldrich, St. Louis, MO, USA) and Hydrogel D₄ (AdvanSource Biomaterials, Wilmington, MA, USA). To be able to use the membrane in under water conditions a thin layer of Sylgard 184 (Dow Corning, Midland, Michigan, EUA) as gas permeable silicone was produced and attached to the sensing membrane trough a plastic 3D printed support. The laboratory tests were performed with the injection of controlled concentrations of gaseous CO₂ under dry Nitrogen atmosphere both supplied from 50 L bottles (Linde Portugal, Lisboa, Portugal). The chemical calibration, was carried out with citric acid (Sigma-Aldrich, St. Louis, MO, USA) and sodium carbonate (≥99.5%; Sigma-Aldrich, St. Louis, MO, USA).

2.2. Sensing Chemistry and Sensing Layer Preparation.

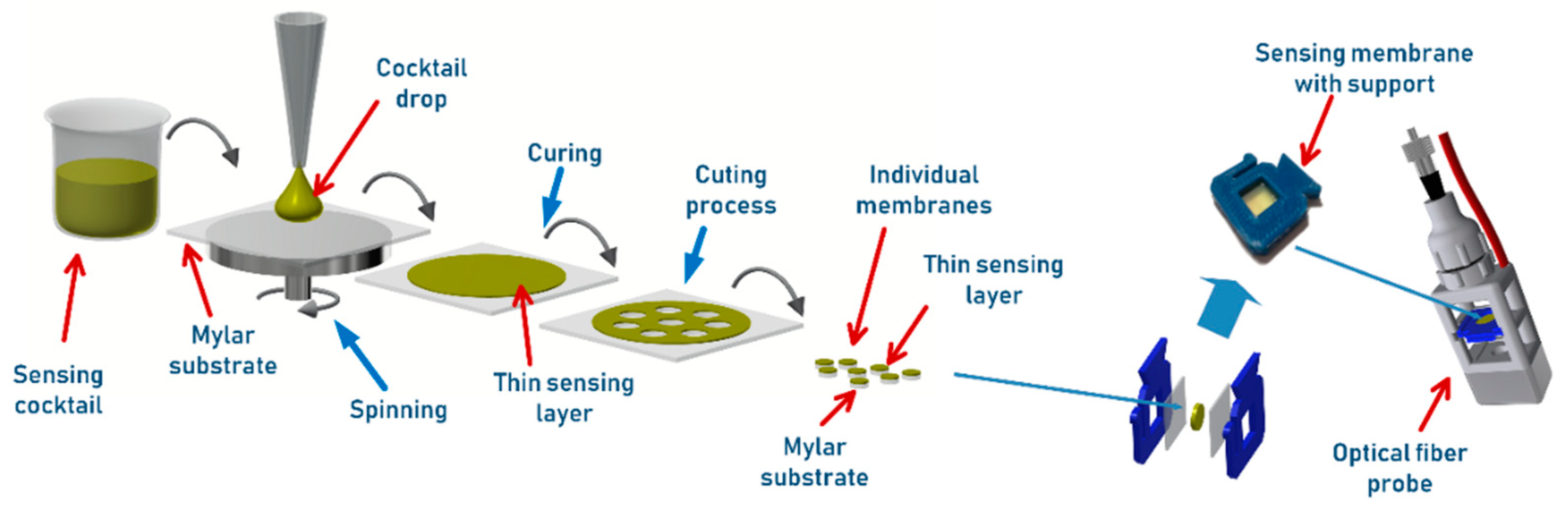

The sensing chemistry is based on the acid-basic equilibrium of p-nitrophenol (pNPh) derivatives, a well-known colorimetric indicator for titrations with a pKa of around 7.2, that is converted into the anionic form by addition of a quaternary ammonium hydroxide. The sensing layers were attained by dissolution of an amount of poly pNPh in MeOH:H₂O mixture and mixed with the QA-OH. After total mixing it was added the Hydrogel D4 solution (10% in Ethanol, 96%) and stirred till obtaining a homogeneous solution. The resulting cocktail was spread on a Mylar foil by spin coating and allowed to dry. After that, the sensing layer was protected with a thin layer of a gas permeable silicone. Furthermore, the total isolation of the sensing layer avoids the direct contact of the sensing film with the tested media making it impossible that the sensor responds to a media pH variation, allowing just the gas passage through it till the detection layer. In its turn, the CO₂ will react chemically with the ion pair formed by the polymer with the QA-OH (QA⁺pNPh⁻·xH₂O) as shown in equation 1. That reaction will decrease the internal pH of the membrane become it more colorless. The resulting membrane was attached to an optical fiber probe in transmission mode illuminated with integrated dual wavelength LED combined with collimating lenses to improve the light signal. The signal is received by a micro detector and analyzed by a computer software specially developed for this purpose. Figure 1 shows the preparation scheme of the sensing membrane and the optical fiber probe configuration.

$$Q{A}^{+}pNP{h}^{-}.x{H}_{2}O+{CO}_2\leftrightarrows {QA}^{+}HC{O}_3^{-}.\left(x-1\right)H_{2}O.HpNPh$$

(1)

3. Results and Discussion

3.1. Sensor Calibration

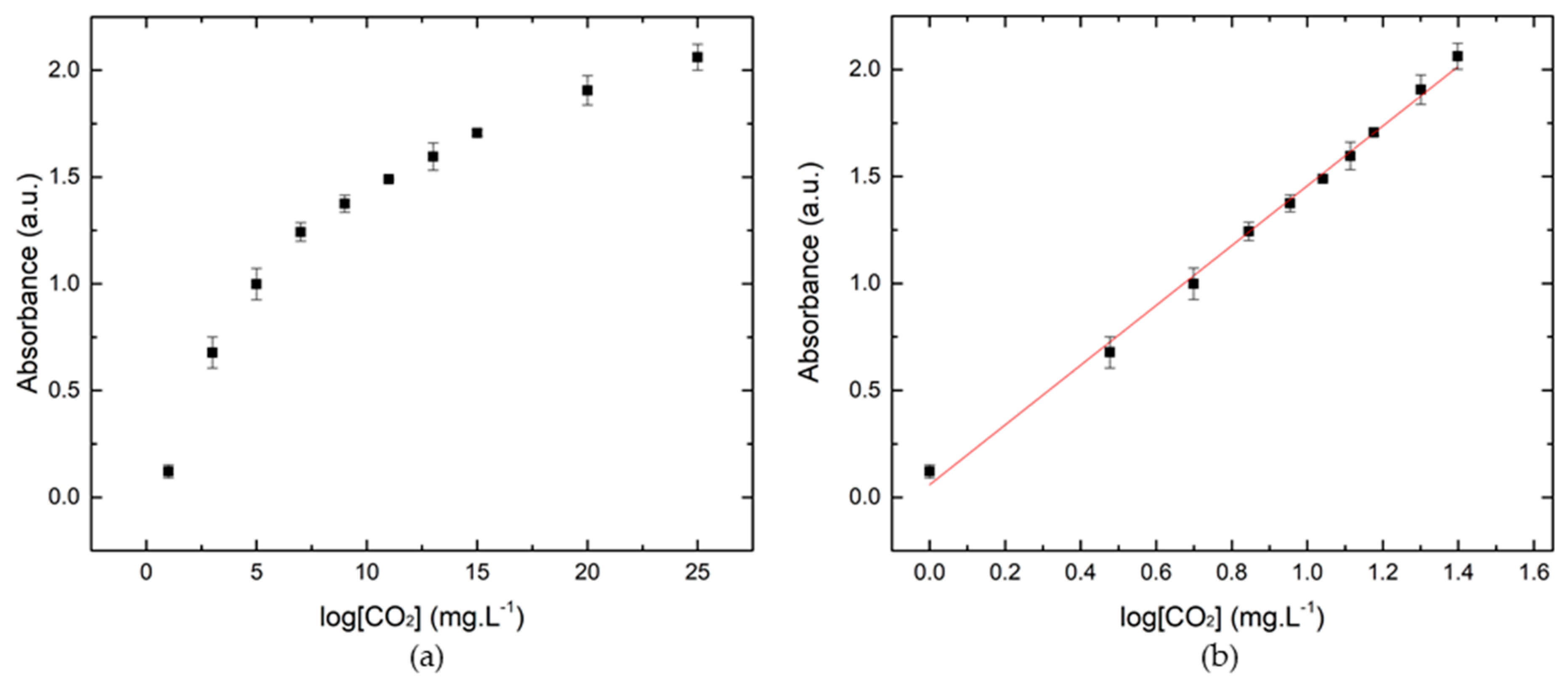

For a more precise dCO₂ evaluation it was made a chemical calibration using standard solutions with known concentrations of CO₂. The formation of carbon dioxide results from the reaction of sodium carbonate in a citric acid solution as shown in Equation (2). The sensor calibration was made in a range between 1 and 25 mg·L⁻¹ (Figure 2a). Furthermore, for a linear correlation, the graph in Figure 2b is presented in the form of logarithmic of the CO₂ concentration (log[CO₂]) versus the registered absorbance at each CO₂ concentration. The calibration values obtained from data calibration are presented in

Table 1. Calibration values obtained from data represented in Figure 2b.

Equation	Intercept (a)	Slope (b)	Residual Sum of Squares	Pearson’s	R-Square	Adj. R-Square
y = a + b.x	0.0589 ± 0.0315	1.3974 ± 0.0311	0.0122	0.9980	0.9961	0.9956

.

$${3Na}_2{CO}_3+{2C}_6{H}_8{O}_7\to {2Na}_3{(C}_6{H}_5{O}_7)+{3H}_{2}O+{3CO}_2$$

(2)

3.2. Sensor Validation

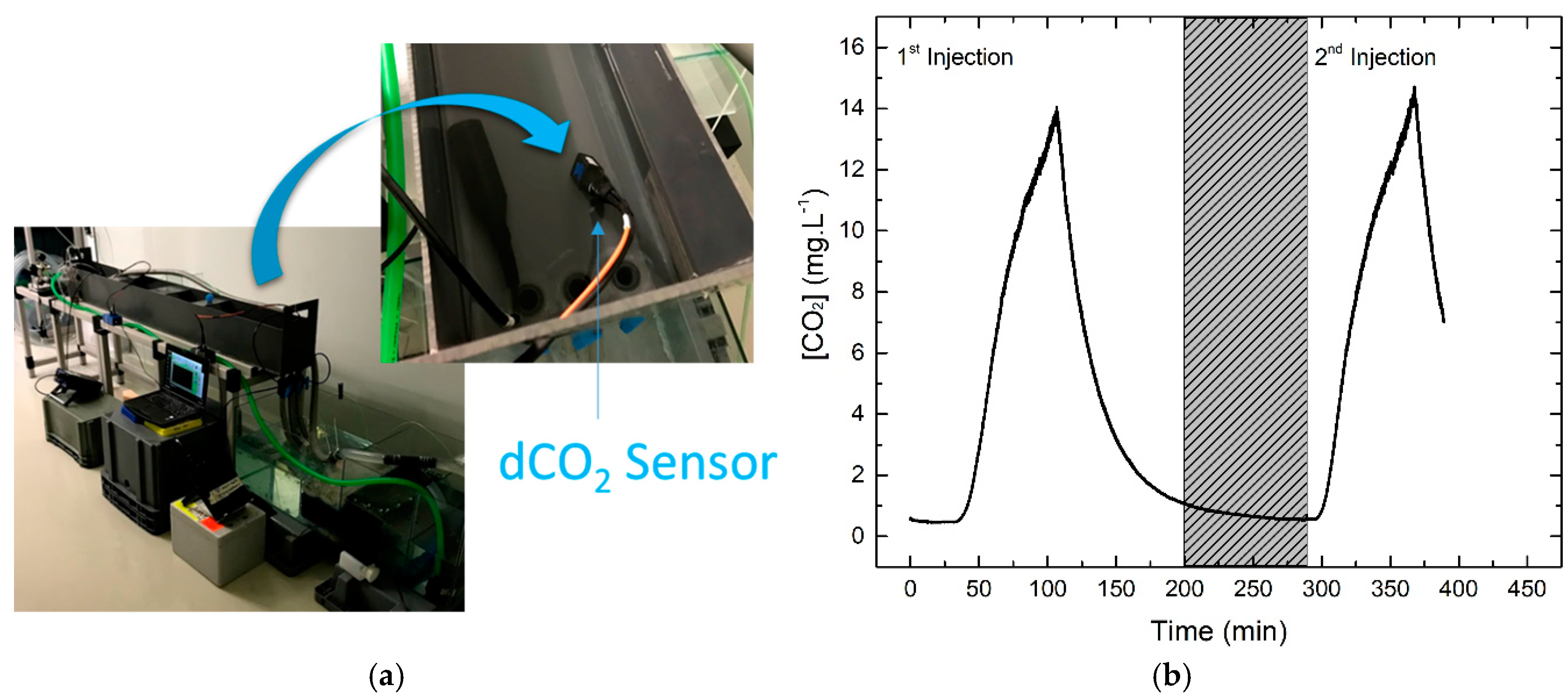

Tests were made in a laboratory aquaculture system (V = 1 m³ of dechlorinated freshwater), with a culture tank and water filtering systems (Figure 3a). This system recreates the environment of a Recirculating Aquaculture System (RAS) existent in several aquaculture facilities.

Gaseous carbon dioxide was injected in the tank to simulate the presence of a certain biomass of fish, controlled by a flow controller (7.5 mL·min⁻¹) and the experience was repeated twice in the same day. Each CO₂ injection lasted 1 h and the registered sensor data is plotted in Figure 3b.

The performance of the new dCO₂ sensor is almost the same after two injections, showing up to approximately 14.5 mg·L⁻¹ (see Figure 3b). Furthermore, the carbonate hardness (KH, Aquapex kit test) and the pH of the water (after full injection) were also accessed and from these parameters the dCO₂ was calculated to be in the range between 14.3 and 18.0 mg·L⁻¹ (

Table 2. Water parameters used to estimate the amount of dissolved CO₂ in water.

KH (Degrees, German Units)	T (°C)	pH	[dCO2] (mg·L−1)
5–6	15	7.0–7.1	14.3–18.0 *

* http://www.aquahobby.com/articles/b_phxkh.php.

).

4. Conclusions

In conclusion it is possible to say that the new colorimetric fiber optic based probe is appropriate to work in low CO₂ levels situations. These tests have shown the suitability of the sensor and it fast and precise detection in close to real applications. The dissolved carbon dioxide showed by the colorimetric sensor is in the range of concentrations estimated by the pH, carbonate hardness and temperature. It is secure to say that the sensor needs a complementary work on the sensing scheme but also in the sensor body to optimize its functionality and avoid the effect of the external interferences present in the real environment.
