Flexible Gas Sensor Printed on Polymer Substrate for Acetone Detection in Portable Exhaled Breath Analyzers ^†

1. Introduction

Gas detectors have constantly been developed over the few last decades as a result of industrial demands: for monitoring air quality, in the automotive industry in medicine for the detection of biomarkers in several diseases. Generally, the gas sensors consists of gas sensor substrate with a gas-sensitive layer and package. The gas sensor substrates are usually realized in alumina and silicon technology and gas-sensitive layers are based on the metal oxides. Flexible gas sensor substrates are very promising in the portable exhaled breath analyzers.

2. Material and Methods

2.1. Flexible Gas Sensors Substrates

The first stage of the work was the design of the electrode, deposited on the elastic substrate. The shape of the electrode should allow receiving the signal from the sensor in a stable undisturbed manner. Therefore, a tailored design compatible with the whole sensor was developed. The designed sensor substrate consists of a comb-shaped electrode with the sensitive material deposited on the top. The change in the conductivity of the sensitive layer due to the reaction with the detected gas will change the resistance between galvanically separated electrodes. Such a construction of electrodes allows to easily apply various sensitive materials to detect the presence of gases in the atmosphere and enable easy implementation for further high throughput manufacturing of the developed sensor. Large area contact pads allow connecting the external measuring apparatus to the sensor in a reliable manner, which will increase the reliability of the solution. Figure 1 shows the designed comb-shaped electrodes.

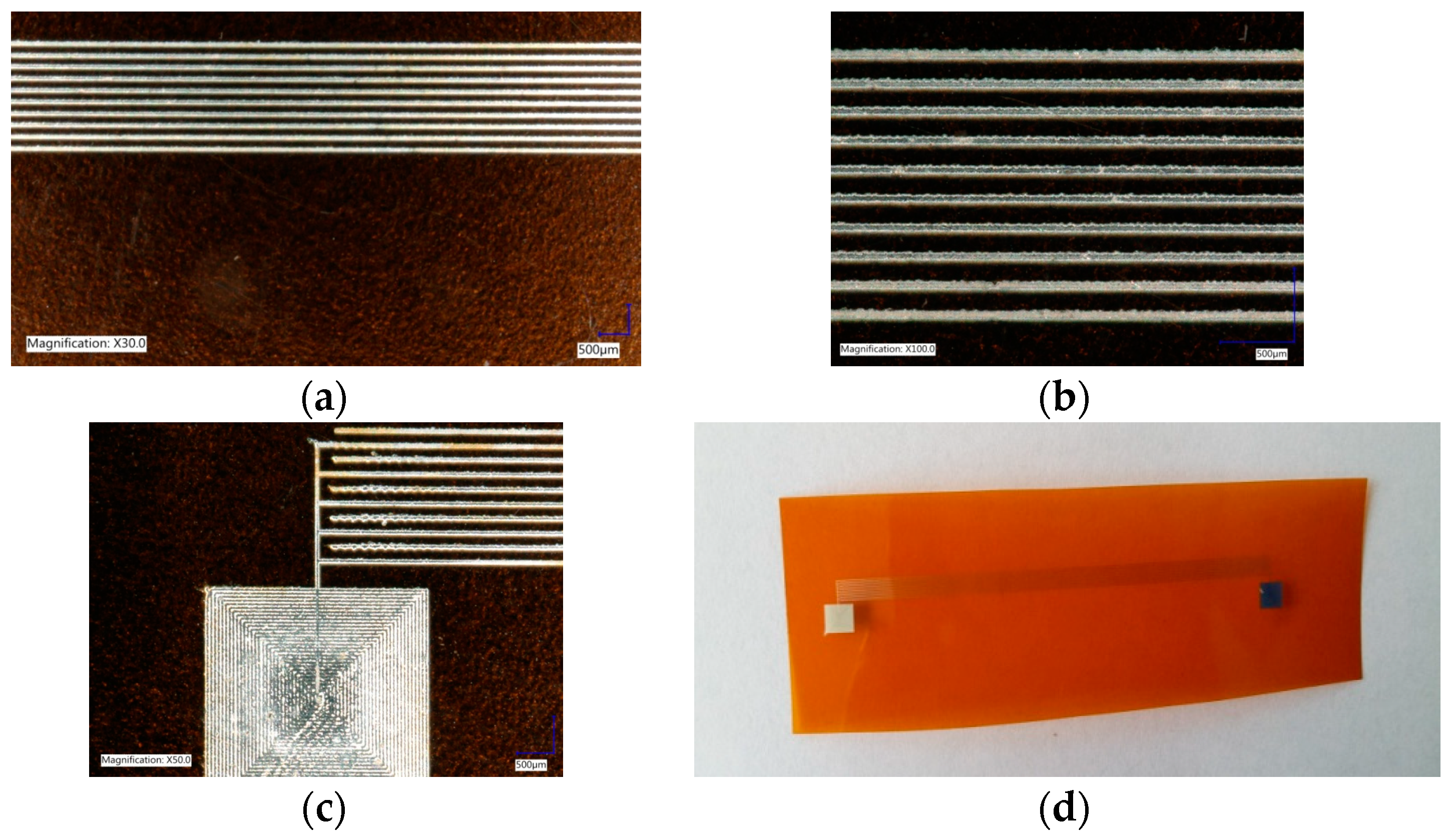

Printed electrodes exhibit a slight non-linearity at the edge of the paths visible in Figure 2, resulting from the limitations of aerosol printing deposition. Obtained lines are homogeneous and parallel. Both the edges and corners of the contact pads were printed correctly.

Conclusions

Presented results demonstrate that aerosol jet printed electrodes on flexible substrates are suitable for the fabrication of gas sensors. Further perspectives are based on the patent application [1]. Flexible electronics is extremely fast developed field due to applications in screen, monitors mobiles and a few more. In our case it is applied for portable device for diabetes diagnostics. Design of multi sensors matrix on elastic substrate is a key problem for construction of such device describe in [1]. Such elastic device could be fix to a body or cloth of a patient and collects necessary data it means level of diabetic markers. Figure 3 shows a possible realization that is currently patent pending [1].
