Uniformity Index as a Universal Air-Cooled Condenser Fan Performance Metric

Abstract

Ambient wind has a negative effect on mechanical forced-draft direct air-cooled steam condenser (ACC) fan volumetric performance, and increases dynamic fan blade loading. Investigating these effects directly using on-site measurement or numerical analysis is complicated, and most previous work has focused on only one effect at the expense of the other. In this study, fan axial velocity inflow uniformity is identified as a single metric offering the potential to holistically qualify ACC fan operation under windy conditions. A 3 × 6 fan cell ACC was modelled with CFD using a blade element theory-based fan model, and clear relationships between the fan inflow uniformity index and both fan volumetric performance and dynamic blade loading were observed in the results. The same relationships were observed in on-site test data collected at a single ACC fan, thus validating the numerical results. The uniformity index can be used in both numerical and experimental work as a means of investigating both fan volumetric performance and dynamic blade loading with less computational and measurement complexity; it also offers a potentially useful means of quantifying the severity of fan operating conditions, to assist with more reliable case-specific fan design and selection.

1. Introduction

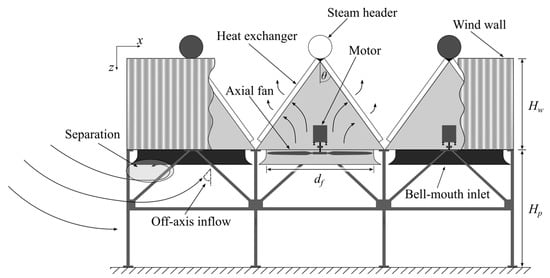

Mechanical forced-draft direct air-cooled steam condensers (ACCs) are widely employed as condenser technology in thermal energy systems (steam cycles). ACCs use large axial fans to force ambient air through A-frame heat exchangers (Figure 1) and reject the required heat load to maintain the steam turbine backpressure at or near its design point. The thermal performance of an ACC is both directly and indirectly influenced by ambient wind via: (1) a reduction in fan volumetric performance and increased inlet air temperatures with increasing wind speed [1]; and (2) increased dynamic fan blade loading of the upwind edge fans. Dynamic blade loading results in increased gearbox wear and accelerated blade fatigue, and can result in physical damage to the fan blades [2]. Subsequently, the ACC will experience more frequent repair and maintenance outages and poorer average thermal performance.

Wind effects on ACC fans are caused by an increase in the horizontal velocity component of the air moving beneath the fan platform (cross-flow) under windy conditions. High cross-flow past the fan inlets causes distortions in the inlet flow distribution [3]. This non-uniform inlet flow negatively affects the fans’ ability to deliver their rated air volume flow rate [3], and results in a variation in aerodynamic loading on the fan blades as they rotate through the non-uniform flow field [4]. There are two types of cross-flow-related inlet flow distortions identified in the literature: flow separation at the fan inlet [3,5] and off-axis inflows [6,7] (shown in Figure 1). Flow separation at the fan inlet is considered the dominant cause of the wind-related degradation in fan volumetric performance [3] and increased dynamic fan blade loading [8].

Wind effects on ACCs are primarily investigated via full-scale testing at operating ACCs (e.g., [2,9]), or via computational fluid dynamics (CFD) simulation (e.g., [10,11]). On-site measurement provides “true” information but is complicated by uncontrollable environmental variables, the need for specialist measurement equipment and the difficulty of accurately measuring on-site wind velocity. In on-site testing, ACC fan volumetric performance is quantified using propeller anemometer measurements at various radial and tangential locations on the fan’s inlet grid [2,9]. These anemometers are used to measure the axial velocity at these fixed locations within the fan inlet, and are subsequently used to calculate the volume flow rate or average axial velocity through the fan. The CTI-PTG-143 standard [12] recommends 40 anemometer measurements (four quadrants with 10 measurements at equal radial spacing per quadrant) for fans with diameters exceeding 20 ft., as is common in ACCs (typically around 36 ft.). This makes continuous measurement of on-site airflow difficult, as it requires a large quantity of measuring equipment. Dynamic fan blade loading can be accurately evaluated using bending strain measurements, typically using strain gauges attached to the root of a fan blade in a full-bridge configuration [9]. Access to the fan blades for installation of strain gauges requires the fan to be stopped, and can complicate the scheduling of on-site tests (i.e., it may not be possible to stop a fan when the test engineers would ideally want access to the blades).

Numerical studies using CFD avoid the complications of on-site testing, and offer more control and flexibility in the analysis; they do, however, require simplifying assumptions, and are thus exposed to lower accuracy. Numerical studies tend to focus on fan volumetric performance, due to the challenges related to the prediction of dynamic blade loading in CFD. Dynamic blade loading can, however, be approximated numerically. This has been done by either utilising a blade element theory-based fan model, that makes it possible to calculate a flap-wise bending moment distribution [7,13], or by analysing the variation in static pressure within the fan rotational plane [14]. Of the two methods, only the flap-wise bending moment distribution method has been directly evaluated against experimental blade loading trends [15].

The literature relating to ACC fans and wind effects tends to focus on either volumetric performance or dynamic blade loading, due to the difficulties related to determining the former in full scale experimental work and the latter in numerical work. That these two performance metrics are related is implicit, as they are both affected by the same phenomenon: distorted inflow.

Laboratory research [8], conducted using a system meant to mimic ACC fan operating conditions, has indicated that the uniformity of the axial velocity inflow to a fan could be used to indicate the severity of the dynamic blade loading. Furthermore, the uniformity of the inflow axial velocity should have a proportional relationship with fan volumetric performance. For a uniform distribution, the fan is likely to be operating close to design conditions. Increasingly non-uniform inflow is indicative of off-design conditions, and would therefore typically result in reduced volumetric performance. The uniformity of the axial velocity at the fan inlet therefore potentially offers a single metric that could be determined experimentally or with CFD, and which could be used to infer both fan volumetric performance and dynamic blade loading.

This study uses a CFD-based approach to investigate the relationship between ACC fan inflow uniformity, quantified by means of a uniformity index, and both fan volumetric performance and dynamic blade loading under windy conditions. The numerical correlations were also validated against on-site test data obtained from a third party.

2. Materials and Methods

2.1. Numerical Model

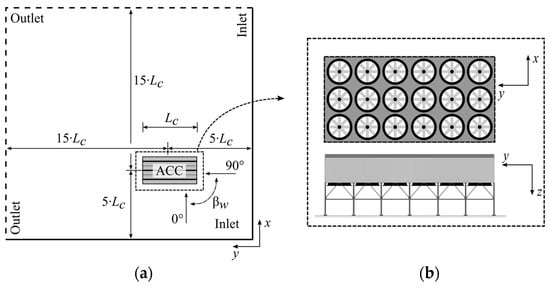

The numerical model consisted of a 3 × 6 fan cell ACC placed in a large flow domain (see Figure 2). Simulations were run in ANSYS Fluent 20 R1 using the steady, single-precision, pressure-based solver. Second-order discretization was used for the energy equation, and first-to-higher-order blended discretisation was applied to the momentum equations to improve the convergence of the fan model. Turbulence was modelled using the realizable k-ε model with standard wall functions (consistent with, e.g., [16,17]) and first-order upwind discretization. Buoyancy was accounted for using the Boussinesq approximation. A detailed description of the model, including information on grid sensitivity analyses, is available in [18].

Figure 2 shows the location of the domain inlet and outlet boundaries for 0° ≤ β_w ≤ 90° as well as the definition of the wind direction (β_w) used in this paper. The domain dimensions were based on Franke et al.’s [19] recommendations for computational modelling for wind engineering purposes. The ACC’s longest dimension was used as a conservative characteristic length (L_c), and a domain height (z-direction) of 6L_c was used. Richards and Hoxey’s [20] atmospheric wind boundary profiles for the z-velocity distribution, turbulent kinetic energy and dissipation rate were used to simulate a horizontally homogeneous turbulent atmospheric boundary layer when using a k-ε turbulence model. The wind speed (v_w) and direction ranges considered were 1 ≤ v_w ≤ 11 m/s and −90° ≤ β_w ≤ 90°. Note that the computational domain shown in Figure 2 was mirrored for −90° ≤ β_w < 0° such that the relative inlet and outlet boundary positions remained appropriate for all wind directions.

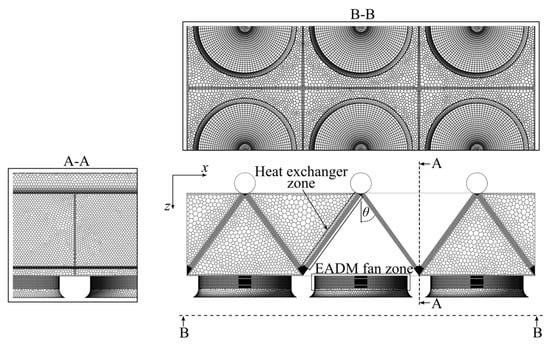

Each fan cell consisted of an axial flow fan, an A-frame heat exchanger and a steam supply duct, as shown in Figure 3.

The ACC’s finned tube heat exchangers (see

Table 1. Heat exchanger specifications.

Parameter Name	Symbol	Value
Tube length	Lt	10 m
Number of tubes (row 1)	nt1	228
Number of tubes (row 2)	nt2	232
Inner tube height	Ht	0.097 m
Inner tube width	Wt	0.017 m
Half apex angle	θ	36°
Heat exchanger frontal area	Afr	137.7 m2

) were modelled using porous media zones with appropriate momentum sink and energy source terms to replicate the flow resistance and heat transfer rate. Momentum sink terms for the x, y and z momentum equations were defined by the Darcy–Forcheimer equation, with the viscous and inertial loss coefficients derived from the empirical pressure loss coefficients [21]. The energy source term was calculated using the e-NTU method of heat exchanger analysis [22] with the empirical heat transfer characteristics provided in [21].

The axial flow fan considered in this work was based on a commercially available industrial fan; the specifications are given in

Table 2. Axial fan specifications.

Parameter Name	Symbol	Value
Fan diameter	df	10.363 m
Hub diameter	dh	1.4 m
Number of blades	nb	9
Rotational speed	N	93.2 rpm
Design flow rate 1	$\dot{V}$	576.54 m3/s
Design pressure rise 1	∆p	119.8 Pa

¹ At a reference air density of ρ_a = 1.22 kg/m³.

.

The fans were modelled using the Extended Actuator Disk Fan Model (EADM—see [23] for a full description), similar to [16,17]. The EADM is an adaptation of the blade element theory-based actuator disk model [4], and was implemented in a structured grid region with single element thickness and n_r = 20 radial and n_θ = 120 tangential divisions representing the fan’s rotor (see Figure 3, plane B–B). Each rotor region cell was approximated as a two-dimensional aerofoil (blade element) with lift (δL) and drag (δD) forces dependant on the relative velocity (w_m) and the lift (C_L) and drag (C_D) coefficients of the blade element’s aerofoil profile. The relative velocity was calculated from the incoming velocity vector (v_m) and the tangential velocity (Ω_r) linked to the fan speed. The lift and drag forces were introduced into the solver’s momentum equations as axial (Equation (1)) and tangential (Equation (2)) source terms:

$$S_z=\frac{-\delta f_z}{\delta V}=-\frac{1}{2}\rho w_m^2 \frac{\sigma }{t}\left(C_L\cos {\beta }_m-C_D\sin {\beta }_m\right),$$

(1)

$$S_{\theta }=\frac{\delta f_{\theta }}{\delta V}=\frac{1}{2}\rho w_m^2 \frac{\sigma }{t}\left(C_L\sin {\beta }_m+C_D\cos {\beta }_m\right),$$

(2)

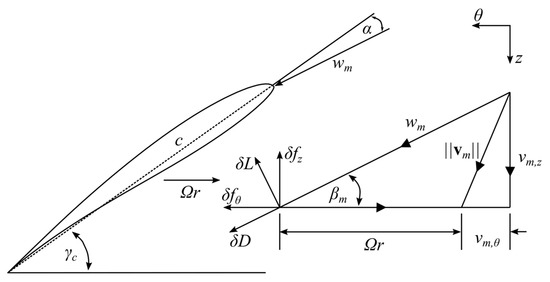

where β_m was the relative velocity angle, as shown in Figure 4, t was the rotor-zone thickness and σ was the blade solidity. Figure 4 shows the velocity vectors and force directions for a single blade element:

2.2. Numerical Evaluation Metrics

A uniformity index of unity represents perfectly uniform flow. The variation in the axial velocity within the fan rotor region was quantified using the uniformity index (γ_i) defined in Equation (3) [24]:

$${\gamma }_i=1-\frac{{{\displaystyle \sum }}_{k=1}^{n_r}{{\displaystyle \sum }}_{j=1}^{n_{\theta }}\left|v_{z,kj}-{\overline{v}}_{Az}\right|A_{z,kj}}{2{\overline{v}}_{Az}{{\displaystyle \sum }}_{k=1}^{n_r}{{\displaystyle \sum }}_{j=1}^{n_{\theta }}{A}_{z,kj}},$$

(3)

where v_z,kj was the axial velocity in element (k,j) of the fan’s rotor region, A_z,kj was the corresponding surface area normal to the axial direction and ${\overline{v}}_{Az}$ was the area-weighted average axial velocity given by Equation (4):

$${\overline{v}}_{Az}=\frac{{{\displaystyle \sum }}_{k=1}^{n_r}{{\displaystyle \sum }}_{j=1}^{n_{\theta }}{v}_{z,kj}{A}_{z,kj}}{{{\displaystyle \sum }}_{k=1}^{n_r}{{\displaystyle \sum }}_{j=1}^{n_{\theta }}{A}_{z,kj}},$$

(4)

The volumetric performance of each individual fan was quantified using a volumetric effectiveness metric (ξ_i), as shown in Equation (5):

$${\xi }_i=\frac{{\overline{v}}_{Az,i}}{{\overline{v}}_{Az,id}},$$

(5)

where ${\overline{v}}_{Az,i}$ was the area-weighted average axial velocity through fan (i) and ${\overline{v}}_{Az,id}$ was the “ideal” area-weighted average axial velocity through the fan with the most uniform axial velocity (highest uniformity index) within the dataset.

The flap-wise bending moment distribution (M_z,θ) was used to evaluate the fan blade loading [7,13]. This distribution was calculated using the differential axial forces (δf_Z,kj, see Equation (1)) exerted on each of the rotor region elements, as shown in Equation (6):

$$m_{z,j}={{\displaystyle \sum }}_{k=1}^{n_r}\delta f_{z,kj}\left(r_{kj}-r_h\right) \mathrm{for} j=1,\dots ,n_{\theta },$$

(6)

where m_z,j was the jth entry of the M_z,θ array, r_kj was the radius to the center of element (k,j) and r_h was the fan hub radius.

The peak bending moment (M_p) (Equation (7)) was used as the indicator of the severity of the dynamic blade loading. Venter [15] found this metric to provide the best correlation to experimental dynamic blade loading trends:

$$M_p=\max \left(\left|{\mathrm{M}}_{z,\theta }\right|\right),$$

(7)

This peak bending moment was normalized with the peak bending moment at the “ideal” most uniform inlet airflow condition (M_p,id at ${\overline{v}}_{Az,id}$), as per Equation (8):

$${\varphi }_i=\frac{M_{p,i}}{M_{p,id}},$$

(8)

2.3. Experimental Measurements and Evaluation Metrics

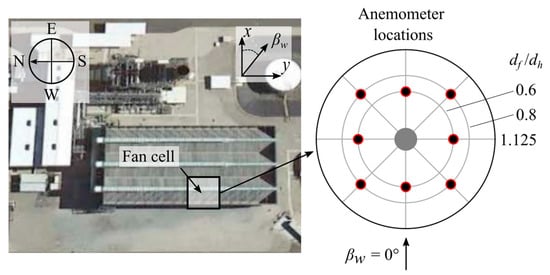

Experimental data collected during tests described in [2] were used for validation of the CFD results in this study. The on-site tests conducted in [2] took place at a power plant that utilized a 3 × 6 cell ACC (Figure 5) with a fan platform height of H_p/d_f = 1.353, and the same axial fan was used in the numerical model. The axial flow and blade loading data of a single fan over a three-day period are used here. The wind direction within this time period was predominantly south-westerly to north-westerly (i.e., −45° ≤ β_W ≤ 45°).

The fan and anemometer locations on the fan inlet screen are shown in Figure 5. Blade loading was measured using load cells installed at the retaining bolts of six of the nine fan blades. Data from a single load cell are considered here. The raw data (anemometers and load cell) were processed into average and standard deviation values, calculated over three-minute interval segments.

The experimental uniformity index (γ_ex) was quantified using the average axial velocity (${\overline{v}}_z$) of the eight anemometer measurements (n_a = 8), and not the area-weighted average. Equation (3) was therefore adapted to yield Equation (9):

$${\gamma }_{ex}=1-\frac{{{\displaystyle \sum }}_{j=1}^{n_a}\left|v_{z,j}-{\overline{v}}_z\right|/n_a }{2{\overline{v}}_z},$$

(9)

The fan volumetric performance is presented in terms of volumetric effectiveness (ξ_ex, Equation (5)) using the average of the eight anemometer measurements. The experimental dynamic blade loading was expressed as a normalized peak load (ϕ_ex) using Equation (8). The peak load (L_p) was determined from the standard deviation of the load cell measurement over the three-minute interval (L_σ), using Equation (10) based on the assumption that the signal was purely sinusoidal:

$$L_p=L_{\sigma }\sqrt{2},$$

(10)

3. Results

3.1. The Effect of Uniformity Index on Fan Performance and Dynamic Blade Loading

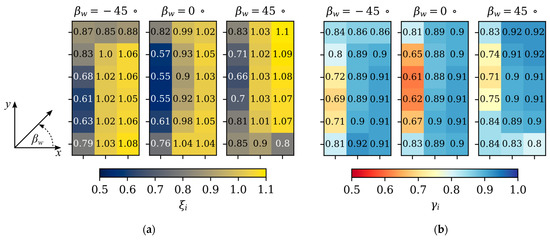

Figure 6 shows the numerically predicted individual fan cell volumetric effectiveness (ξ_i, Equation (5)) and uniformity index (γ_i, Equation (3)), for the 3 × 6 cell ACC at a wind speed of v_w = 7 m/s.

Figure 6 shows similar trends in both volumetric effectiveness (ξ_i) and uniformity index (γ_i). This is expected since, for a uniformity index close to unity, the fan is likely operating close to design or “ideal” conditions, and thus ξ_i → 1. A decreasing uniformity index implies that the fan is subjected to distorted inlet conditions, which are known to negatively impact the volume flow rate through the fan (ξ_i < 1). It is interesting to note that the results are not simply mirrored for β_w = −45° and β_w = 45°. This “asymmetry” is due to the fact that the fans were all rotating in the same direction (clockwise in Figure 6). As a result, the relative velocities experienced by the fan blades differed with wind direction, causing differences in fan performance and blade loading.

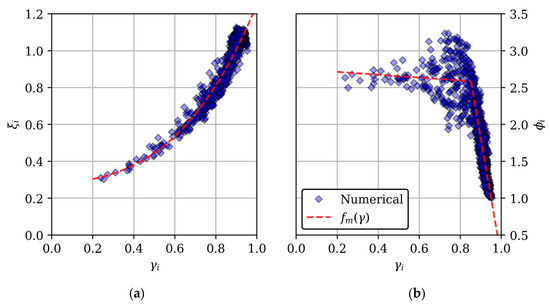

In Figure 7, the individual fan cell volumetric effectiveness and normalized peak bending moment (ϕ_i, Equation (8)) are plotted against the uniformity index. The figure shows results for all 18 fan cells across the full range of simulated wind speeds (1 ≤ v_w ≤ 11 m/s) and directions (−90° ≤ β_w ≤ 90°). A total of 972 fan cell operating points are included in Figure 7. Mean trend lines through the data (f_m(γ)) are also shown.

Figure 7 shows clear relationships between the fan uniformity index and both metrics of interest. A smooth, exponential trend is evident for volumetric effectiveness. The normalized peak bending moment increased rapidly with decreasing γ_i, reaching a maximum at γ_i ≈ 0.85. Thereafter (i.e., with further decreasing uniformity), the influence of γ_i decayed and eventually plateaued. The plateau was likely due to the fan inlet velocity vectors (specifically axial velocity) in the upwind half of the fan’s rotational plane reaching conditions that led to a loading scenario that could not necessarily have gotten much worse.

Figure 8 shows the corresponding experimental data as well as the trend lines (f_m(γ)) from Figure 7. It is clear that the numerical and experimental data correspond closely, and the numerical results are thus deemed valid.

3.2. Sensitivity of Uniformity Index to Sampling Resolution

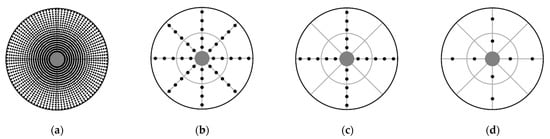

The experimental uniformity index is calculated using the measured axial velocities at discrete points within a polar coordinate grid. Changing the sampling resolution may thus influence the value of the uniformity index for a given scenario. This sensitivity was investigated by sampling the simulated fan inlet axial velocity distribution (originally (n_r = 20) × (n_θ = 120) = 2400 data points) using a coarser resolution and recalculating the uniformity index (Equation (3)) from the sampled numerical results. The sample location for the coarser uniformity index calculation within the fan rotor is shown in Figure 9. Figure 9c shows the minimum measurement resolution of the CTI-PTG-143 standard [12]:

The sampled uniformity index results are shown in Figure 10 for a wind speed of v_w = 7 m/s with β_w = 0°. The effect of sampling resolution clearly becomes significant at low resolutions (e.g., Figure 10c,d). The minimum resolution recommended by the CTI (Figure 9c) seems relatively robust in this case, where the wind was aligned with one of the sampling directions. It may be expected that such a sampling configuration, with fewer tangential divisions, may have a larger impact on the accuracy of the uniformity index for non-aligned wind directions (e.g., β_w = 45°).

Based on our results, we tentatively recommend a sampling resolution of n_r = 5 and n_θ = 8 in order to accurately determine the uniformity index in ACCs from on-site measurements; however, further investigation is needed to account for the impact of a wider variety of wind conditions.

4. Discussion

Ambient wind has a negative effect on ACC fan volumetric performance, and increases dynamic fan blade loading. Investigating these effects directly using on-site measurement or numerical analysis is complicated, and most previous work has focused on only one effect at the expense of the other. Fan axial velocity inflow uniformity was identified as offering the potential to holistically qualify ACC fan operation under windy conditions. Fan inflow uniformity was thus investigated for a range of wind conditions using CFD with validation against on-site measurements for a specific ACC.

The results indicate clear relationships between the inflow uniformity index (γ—Equation (3)) and both fan volumetric effectiveness and dynamic blade loading (see Figure 7). The fan inlet airflow uniformity index (γ) can therefore be used as a single metric to estimate the severity of both the reduction in fan volumetric performance and the increase in dynamic blade loading under windy conditions. The same proportional relationship was observed in both the numerical and experimental data, suggesting that the uniformity index can be used in both numerical and experimental work, to allow for qualitative investigation of wind effects (and their mitigation).

The potential utility of the uniformity index in numerical simulation is that the state of fan blade dynamic loading can be inferred without additional data processing or the need for blade element theory-based fan models. For continuous on-site experimental measurements, the uniformity index can indicate a fan cell’s volumetric performance and dynamic blade loading using significantly less measurement equipment (less than 40 anemometers, and no need for strain gauges, bridge amplifiers and wireless transmitters). Furthermore, the uniformity index (generated using simplified CFD models) can be used to specify the potential severity of the operating conditions expected at an axial fan installation, and to assist vendors and clients in designing and selecting more reliable fans (both in terms of performance and structural integrity).
