# Convergence of Coupling-Parameter Expansion-Based Solutions to Ornstein–Zernike Equation in Liquid State Theory

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Coupling-Parameter Expansion—General

#### 2.1. Method of Solution

^{th}order. Furthermore, the linear operator in Equation (9) (for all orders) is identical to that in Equation (8). Finally, the derivatives ${B}_{n}^{*}$ are expressed as follows.

#### 2.2. Thermodynamic Functions

## 3. Coupling Parameter Expansion—AHS Model

## 4. Coupling Parameter Expansion—MSA Model

## 5. Coupling Parameter Expansion—LJ Potential

#### 5.1. Phase Diagram of LJ Potential

#### 5.2. Phase Diagrams of Generalized LJ(n,m) Potentials

#### 5.3. Solution-Spaces and Bifurcations of Solutions

## 6. Summary

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Hansen, J.P.; McDonald, I.R. Theory of Simple Liquids, 4th ed.; Academic Press: Cambridge, UK, 2013. [Google Scholar]
- Martynov, G.A. The problem of phase transitions in statistical mechanics. Physics-Uspekhi
**1999**, 42, 517. [Google Scholar] [CrossRef] - Sarkisov, G.N. Approximate equations of the theory of liquids in the statistical thermodynamics of classical liquid systems. Physics-Uspekhi
**1999**, 42, 545. [Google Scholar] [CrossRef] - Caccamo, C. Integral equation theory description of phase equilibria in classical fluids. Phys. Rep.
**1996**, 274, 1–105. [Google Scholar] [CrossRef] - Kelley, C.T. Solving Nonlinear Equations with Newton’s Method; Fundamentals of Algorithms; SIAM: Philadelphia, PA, USA, 2003. [Google Scholar]
- Zerah, G. An efficient Newton’s method for numerical solution of fluid integral equations. J. Comp. Phys.
**1985**, 61, 280. [Google Scholar] [CrossRef] - Watts, R.O. Percus-Yevick equation applied to a Lennard-Jones fluid. J. Chem. Phys.
**1968**, 48, 50. [Google Scholar] [CrossRef] - Baxter, R.O. Percus-Yevick equation of hard spheres with surface adhesion. J. Chem. Phys.
**1968**, 49, 2770. [Google Scholar] [CrossRef] - Sarkisov, G.N.; Lomba, E. The gas-liquid phase transition singularities in the framework of the liquid-state integral equation formalism. J. Chem. Phys.
**2005**, 122, 214504. [Google Scholar] [CrossRef][Green Version] - Mier y Teran, L.; Falls, A.H.; Scriven, L.E.; Davis, H.T. Structure and thermodynamics of stable, metastable, and unstable fluid—Efficient numerical method for solving the equations of equilibrium fluid physics. Proc. Eighth Symp. Thermophys. Prop.
**1982**, 8, 45. [Google Scholar] - Cummings, P.T.; Smith, E.R. Liquid-gas transition for hard spheres with attractive Yukawa tail interactions. Chem. Phys.
**1979**, 42, 341. [Google Scholar] [CrossRef] - Charpentier, I.; Jakse, N. Phase diagram of complex fluids using an efficient integral equation method. J. Chem. Phys.
**2005**, 123, 204910. [Google Scholar] [CrossRef] [PubMed] - Solana, J.R. Perturbation Theories for Thermodynamic Properties of Fluids and Solids; CRC Press: New York, NY, USA, 2013. [Google Scholar]
- Zhou, S.; Solana, J.R. Progress in the perturbation approach in fluid and fluid-related theories. Chem. Rev.
**2009**, 109, 2829. [Google Scholar] [CrossRef] - Tang, Y.; Lu, B.C.Y. A new solution of the Ornstein-Zernike equation from perturbation theory. J. Chem. Phys.
**1993**, 99, 9828. [Google Scholar] [CrossRef] - Sai Venkata Ramana, A.; Menon, S.V.G. Coupling-parameter expansion in thermodynamic perturbation theory. Phys. Rev.
**2013**, E87, 022101. [Google Scholar] - Weeks, J.D.; Chandler, D.; Andersen, H.C. Role of Repulsive Forces in Determining the Equilibrium Structure of Simple Liquids. J. Chem. Phys.
**1971**, 54, 5237. [Google Scholar] [CrossRef] - Menon, S.V.G. Scaling of phase diagram and critical point parameters in liquid-vapor phase transition of metallic fluids. Condens. Matter
**2021**, 6, 6. [Google Scholar] [CrossRef] - Levashov, P.R.; Fortov, V.E.; Khishchenko, K.V.; Lomonosov, I.V. Equation of state for liquid metals. AIP Conf. Proc.
**2000**, 505, 89. [Google Scholar] - Levashov, P.R.; Fortov, V.E.; Khishchenko, K.V.; Lomonosov, I.V. Analysis of isobaric expansion data based on soft-sphere equation of state for liquid metals. AIP Conf. Proc.
**2002**, 620, 71. [Google Scholar] - Menon, S.V.G.; Nayak, B. An equation of state for metals at high temperature and pressure in compressed and expanded volume regions. Condens. Matter
**2019**, 4, 71. [Google Scholar] [CrossRef][Green Version] - Sarkisov, G.N. Structure of simple fluid in the vicinity of the critical point: Approximate integral equation theory of liquids. J. Chem. Phys.
**2003**, 119, 373. [Google Scholar] [CrossRef] - Kelley, C.T.; Pettitt, B.M. A fast solver for Ornstein-Zernike equations. J. Comp. Phys.
**2004**, 197, 491. [Google Scholar] [CrossRef][Green Version] - Lado, F. Perturbation correction for the free energy and structure of simple fluids. Phys. Rev.
**1973**, A8, 2548. [Google Scholar] [CrossRef][Green Version] - Barboy, B. On a representation of the equation of state of fluids in terms of the adhesive hard-sphere model. J. Chem. Phys.
**1974**, 61, 3194. [Google Scholar] [CrossRef] - Baxter, R.J. Ornstein-Zernike relation for a disordered fluid. Aust. J. Phys.
**1968**, 21, 563. [Google Scholar] [CrossRef][Green Version] - Menon, S.V.G.; Manohar, C.; Srinivasa Rao, K. A new interpretation of the sticky hard sphere model. J. Chem. Phys.
**1991**, 95, 9188. [Google Scholar] [CrossRef] - Waisman, E. The radial distribution function for a fluid of hard spheres at high densities Mean spherical integral equation approach. Mol. Phys.
**1973**, 25, 45. [Google Scholar] [CrossRef] - Peplow, A.T.; Beardmore, R.E.; Bresme, F. Algorithms for the computation of solutions of Ornstein-Zernike Equation. Phys. Rev.
**2006**, E74, 046705. [Google Scholar] [CrossRef] [PubMed] - Tikhonov, D.A.; Sarkisov, G.N. Singularities of solution of the Ornstein-Zernike Equation within the gas-liquid transition region. Russ. J. Phys. Chem.
**2000**, 74, 470. [Google Scholar] - Brey, J.J.; Santos, A. Absence of criticality in hypernetted chain equation for a truncated potential. Mol. Phys.
**1986**, 57, 149. [Google Scholar] [CrossRef] - Gubbins, K.E.; Smith, W.R.; Tham, M.K.; Tiepel, E.W. Perturbation theory for the radial distribution function. Mol. Phys.
**1971**, 22, 1089. [Google Scholar] [CrossRef] - Heyes, D.M.; Okumura, H. Equation of state and structural properties of Weeks-Chandler-Andersen fluid. J. Chem. Phys.
**2006**, 124, 164507. [Google Scholar] [CrossRef] - Johnson, J.K.; Zollweg, J.A.; Gubbins, K.E. The Lennard-Jones equation of state revisited. Mol. Phys.
**1993**, 78, 591. [Google Scholar] [CrossRef] - Okumura, H.; Yonezawa, F. Liquid–vapor coexistence curves of several inter-atomic model potentials. J. Chem. Phys.
**2000**, 113, 9162. [Google Scholar] [CrossRef] - Malescio, G.; Giaquinta, P.V.; Rosenfeld, Y. Iterative solutions of integral equations and structural stability of fluids. Phys. Rev.
**1998**, E57, R-3723. [Google Scholar] [CrossRef] - Monson, P.A.; Cummings, P.T. Solution of the Percus-Yevick equation in the coexistence region of a simple fluid. Int. J. Thermo. Phys.
**1985**, 6, 573. [Google Scholar] [CrossRef]

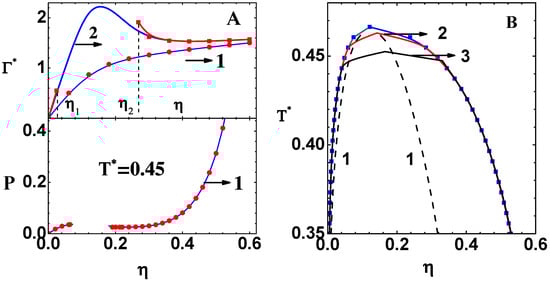

**Figure 1.**(

**A**) Upper part shows ${\Gamma}^{*}\left(1\right)$ versus $\eta $ from CPE of 20th order for ${T}^{*}=0.5$ (curve-1), ${T}^{*}=0.4$ (curve-2), and exact results (symbols). The range ${\eta}_{1}<\eta <{\eta}_{2}$ is the ‘no-real-solution-region’ for ${T}^{*}=0.4$. Lower part of the figure for ${T}^{*}=0.45$ shows compressibility pressure P versus $\eta $, from CPE of 20th order (curve-1), and exact results (symbols). The blank portion is the ‘no-real-solution-region’. (

**B**) The exact results for phase diagram of AHS model (blue line and symbols) are compared with those obtained using a CPE of 50th order (curve-2) and 20th order (curve-3). The ‘no-real-solution-region’, lying within the dashed lines (curve-1), is also shown.

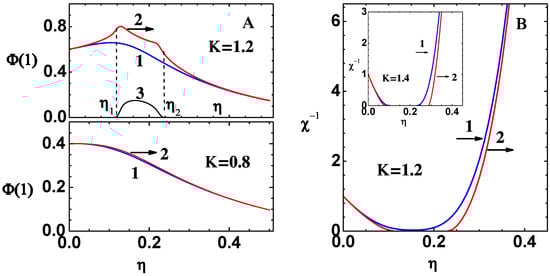

**Figure 2.**(

**A**) Lower part (for $K=0.8,\zeta =2)$ shows $\Phi \left(1\right)$ versus $\eta $ obtained from CPE of 20th order (curve-1) and the exact results (curve-2). In the upper part (for $K=1.2,\zeta =2)$, the range ${\eta}_{1}<\eta <{\eta}_{2}$ is ‘no-real-solution-region’, as ${K}^{*}=1.1354$. Graphs show $\Phi \left(1\right)$ versus $\eta $ obtained from CPE of 20th order (curve-1) and real (curve-2) and imaginary (curve-3) parts of the exact results. (

**B**) Graphs show (reduced) inverse compressibility ${\chi}^{-1}$ versus $\eta $ obtained from CPE (curve-1) and exact results [11] (curve-2) for $K=1.2$. The inset figure is similar, but it is for $K=1.4$.

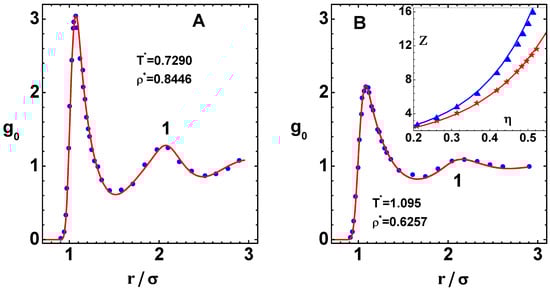

**Figure 3.**(

**A**) Pair distribution function ${g}_{0}(r/\sigma )$ versus scaled distance $(r/\sigma )$ (curve-1) for the reference system of LJ potential, as per the WCA prescription (see text), at reduced temperature ${T}^{*}=0.7290$ and density ${\rho}^{*}=0.8446$. Symbols are molecular dynamics simulation results [32]. (

**B**) Similar results for the parameters ${T}^{*}=1.095$ and density ${\rho}^{*}=0.6257$. The inset figure shows compressibility factor $Z=\beta P/\rho $ versus volume fraction $\eta =\pi {\rho}^{*}/6$ for reduced temperature ${T}^{*}=0.75$ (top curve) and ${T}^{*}=2.0$ (bottom curve). Symbols are simulation results [33].

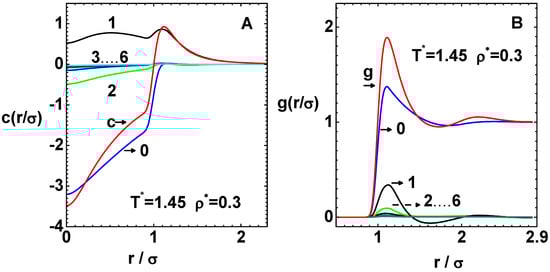

**Figure 4.**Convergence of direct correlation function $c(r/\sigma )$ and pair distribution function $g(r/\sigma )$ for the LJ system at the phase point ${\rho}^{*}=0.3$ and ${T}^{*}=1.45$, which is above the critical temperature. (

**A**) Graphs show $c(r/\sigma )$ (curve-c), reference function ${c}_{0}(r/\sigma )$ (curve-0), and successive derivative terms ${c}_{n}(r/\sigma )/n!$ (curve-1 to curve-6). (

**B**) Similarly, the graphs show $g\left(r\right)$ (curve-g), reference function ${g}_{0}(r/\sigma )$ (curve-0), and derivative terms ${g}_{n}(r/\sigma )/n!$ (curve-1 to curve-6) for the same phase point.

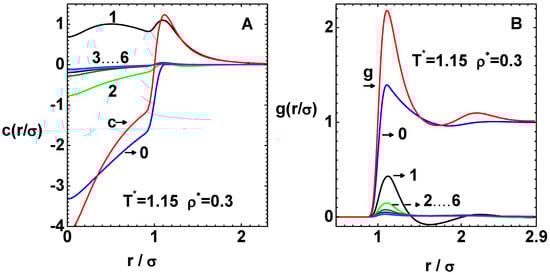

**Figure 5.**Convergence of direct correlation function $c(r/\sigma )$ and pair distribution function $g(r/\sigma )$ for the LJ system at the phase point ${\rho}^{*}=0.3$ and ${T}^{*}=1.15$, which is in the spinodal region. (

**A**) Graphs show $c(r/\sigma )$ (curve-c), reference function ${c}_{0}(r/\sigma )$ (curve-0), and successive derivative terms ${c}_{n}(r/\sigma )/n!$ (curve-1 to curve-6). (

**B**) Similarly, the graphs show $g(r/\sigma )$ (curve-g), reference function ${g}_{0}(r/\sigma )$ (curve-0), and derivative terms ${g}_{n}(r/\sigma )/n!$ (curve-1 to curve-6) for the same phase point.

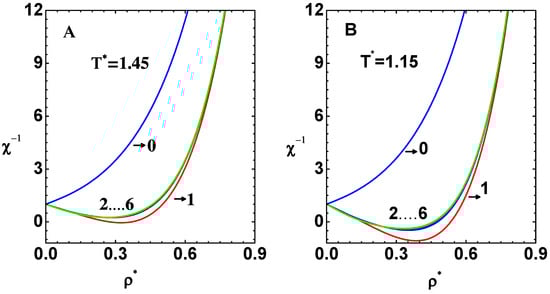

**Figure 6.**Graphs show inverse compressibility ${\chi}^{-1}$ versus reduced density ${\rho}^{*}$ obtained at successive orders of series expansion. Thus, ${\chi}^{-1}$ calculated with just ${c}_{0}(r/\sigma )$ (curve-0), ${c}_{0}(r/\sigma )+{c}_{1}(r/\sigma )$ (curve-1), ${c}_{0}(r/\sigma )+{c}_{1}(r/\sigma )+(1/2){c}_{2}(r/\sigma )$ (curve-2), etc., and finally $c(r/\sigma )$ (curve-6) is shown. (

**A**) Graphs for reduced temperature ${T}^{*}=1.45$ in one-phase region. (

**B**) Similarly, for ${T}^{*}=1.15$ when crossing the spinodal region.

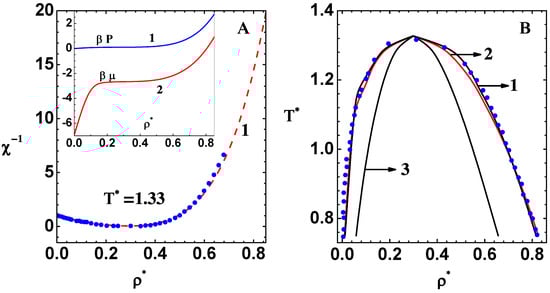

**Figure 7.**(

**A**) Comparison of ${\chi}^{-1}$ versus ${\rho}^{*}$ obtained by using CPE (curve-1) and independent computations (symbols) [12] on the isotherm for ${T}^{*}=1.33$, which is just above the critical temperature. The inset graphs show pressure $\beta P$ (curve-1) and chemical potential $\beta \mu $ (curve-2) (both obtained via compressibility route) on the same isotherm. (

**B**) Comparison of co-existence lines using thermodynamic conditions (curve-1) and Maxwell’s construction (curve-2) with the simulation results (symbols) [34], obtained with CPE. The spinodal lines (curve-3) on gaseous and liquid sides are also shown.

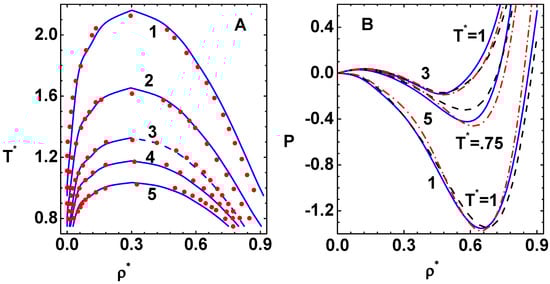

**Figure 8.**(

**A**) Comparison of co-existence lines, obtained with CPE, for potentials: LJ(7,6) (curve-1), LJ(9,6) (curve-2), LJ(12,6) (curve-3), LJ(15,6) (curve-4), and LJ(20,6) (curve-5), with simulation data (symbols) [35]. (

**B**) Reduced isotherms for LJ(7,6) (curve-1) using virial (solid line), compressibility (dashed line), and free energy (dash-dot line) routes corresponding to ${T}^{*}=1$. Other sets of graphs are for LJ(12,6) (curve-3) at ${T}^{*}=1$ and LJ(20,6) (curve-5) at ${T}^{*}=0.75$.

AHS Model | ${\mathsf{\Gamma}}_{\mathit{n}}^{*}/{\mathsf{\Gamma}}_{\mathit{n}-1}^{*}$ | ${\mathit{T}}^{*}$ = 0.45 | |
---|---|---|---|

n | $\mathbf{\eta}$= 0.05 | $\mathbf{\eta}$= 0.15 | $\mathbf{\eta}$= 0.25 |

1 | 2.11588 | 1.90467 | 1.69443 |

6 | 0.769139 | 1.93929 | 3.16261 |

11 | 0.823916 | 1.00009 | 0.764407 |

16 | 0.881579 | 0.948853 | 0.716068 |

21 | 0.90604 | 0.959392 | 0.842613 |

26 | 0.918982 | 0.971881 | 0.878875 |

31 | 0.927508 | 0.981006 | 0.880897 |

36 | 0.933696 | 0.987649 | 0.884413 |

41 | 0.938408 | 0.992688 | 0.889093 |

46 | 0.942117 | 0.996646 | 0.892829 |

51 | 0.945112 | 0.999839 | 0.895698 |

MSA-HCY Model | ${\mathit{\varphi}}_{\mathit{n}}/{\mathit{\varphi}}_{\mathit{n}-1}$ | K = 1.2 | |
---|---|---|---|

n | $\mathbf{\eta}=\mathbf{0.1}$ | $\mathbf{\eta}=\mathbf{0.2}$ | $\mathbf{\eta}=\mathbf{0.3}$ |

2 | 0.203451 | 0.233279 | 0.187291 |

6 | 0.568111 | 0.612217 | 0.454637 |

11 | 0.648161 | 0.689816 | 0.499086 |

16 | 0.678529 | 0.719187 | 0.51365 |

21 | 0.694581 | 0.734819 | 0.520534 |

26 | 0.704522 | 0.744575 | 0.524387 |

31 | 0.711287 | 0.751261 | 0.526771 |

36 | 0.71619 | 0.756136 | 0.528354 |

41 | 0.719906 | 0.75985 | 0.529465 |

46 | 0.722821 | 0.762777 | 0.53029 |

51 | 0.725169 | 0.765143 | 0.530938 |

Order | Inverse Compressibility | ${\mathit{T}}^{*}=1.15$ | Inverse Compressibility | ${\mathit{T}}^{*}=1.45$ | ||
---|---|---|---|---|---|---|

${\mathbf{\rho}}^{*}=\mathbf{0.091}$ | ${\mathbf{\rho}}^{*}=\mathbf{0.361}$ | ${\mathbf{\rho}}^{*}=\mathbf{0.631}$ | ${\mathbf{\rho}}^{*}=\mathbf{0.091}$ | ${\mathbf{\rho}}^{*}=\mathbf{0.361}$ | ${\mathbf{\rho}}^{*}=\mathbf{0.631}$ | |

1 | 1.47757 | 4.53543 | 13.6363 | 1.46285 | 4.35925 | 12.6832 |

2 | 0.434523 | −1.13238 | 2.19019 | 0.632217 | −0.091533 | 3.77993 |

3 | 0.396093 | −0.532527 | 2.79679 | 0.606776 | 0.283586 | 4.16096 |

4 | 0.369497 | −0.491079 | 2.85451 | 0.592575 | 0.304848 | 4.19282 |

5 | 0.352317 | −0.459612 | 2.88001 | 0.585209 | 0.318156 | 4.20459 |

6 | 0.342099 | −0.43545 | 2.89254 | 0.581667 | 0.326561 | 4.20943 |

7 | 0.335684 | −0.416063 | 2.89917 | 0.579865 | 0.332105 | 4.21159 |
