Mandatory Multidisciplinary Approach for the Evaluation of the Lymph Node Status in Rectal Cancer

Highlights

✓

Despite important progress made in the evaluation and prognostic interpretation of lymph nodes in rectal cancer, many controversial and unresolved aspects remain, requiring future clarification.

✓

An accurate interpretation requires better standardization than is now offered by current staging systems, as suggested in this review.

Abstract

Colorectal cancer is the third most frequently reported malignancy and also the third leading cancer-related cause of death worldwide. Lymph node evaluation, both preoperatively and postoperatively, represents an important aspect of the diagnosis and therapeutic strategy in colorectal cancer, such that an accurate preoperative staging is required for a correct therapeutic strategy. Treatment of rectal cancer with positive lymph nodes, a very important predictive prognostic parameter, is currently based on neoadjuvant chemoradiotherapy followed by total/ surgical mesorectal excision and adjuvant regimen. Preoperative evaluation of the lymph node status in rectal cancer is based on endoscopic ultrasound and magnetic resonance imaging, but their accuracy, specificity, and sensitivity still require improvement. Postoperative evaluation also presents points of debate, especially related to the role of sentinel lymph node mapping and their final implication, represented by detection of micrometastases and isolated tumor cells. The pathologic interpretation of tumor deposits represents other points in discussion. From a surgical perspective, extended lateral lymph node dissection vs. abstinence and (neo)adjuvant therapeutic approach represent another unresolved issue. This review presents the major controversies existing today in the treatment and pathologic interpretation of the lymph nodes in rectal cancer, the role/ indication and value of the lateral pelvic lymph node dissection, and the postoperative interpretation of the value of the micrometastatic disease and tumor deposits.

Introduction

Colorectal cancer is the third most common malignancy reported at all sites, for both sexes, and also the third leading cancer-related cause of death [1,2,3]. The incidence of rectal cancer in USA is about 12.3% per 100,000 people, with an estimated 39,610 new cases in 2015 [1,4]. Rectal topography represents between 17-41% of the colorectal cancer cases, depending on the patient’s age and sex (the proportion is higher in younger patients and in men). Almost 33% of the rectal cancers will have regional spread at the time of the diagnosis, associated with a 5-year relative survival rate of 69.5% [4]. The T stage and high-grade pathology represent the most important independent predictive factors for the risk of lymph node involvement [5].

Lymph node involvement represents one of the most important predictive parameters for survival: the 5-year overall survival rates varies significantly from 74% if nodal spread is absent (N0), to 64% if only 1-3 lymph nodes are invaded (N1), and drops to 48% if more than 4 lymph nodes are invaded (N2); at the same time the local recurrence rates will significantly increase from 9% if N0, to 11% if N1, and 13% if N2 [6].

The treatment of rectal cancer with positive lymph nodes is based in most centers on neoadjuvant chemoradiotherapy, followed by rectal resection with total mesorectal excision and adjuvant regimen. Some centers apply extended lateral lymph nodes dissection. Adequate treatment is based on the correct preoperative evaluation of the lymph nodes basin which can be influenced by many factors. The significance of an adequate evaluation of the lymph node status in rectal cancer is emphasized by the SEER analysis results that show important declines in the 5-year relative survival rates in cases with incorrect evaluation of the lymph nodes (Nx): 23.8-89.4%, almost similar with N2 stage, depending on the T stage of the tumor [7]. The evaluation of the lymph node involvement begins preoperatively, but continues intraoperatively and with postoperative histologic examination.

Discussion

Pretherapeutic evaluation of the lymph node status in rectal cancer

Preoperative evaluation of lymph node status in rectal cancer is based on imaging modalities, clinical examination having limited value. The main imaging modalities used for TNM staging in rectal cancer are endoscopic rectal ultrasound (ERUS), magnetic resonance imaging (MRI), computed tomography (CT), and Positron emission tomography-computed tomography (PET-CT). The accuracy of the abdominal CT in predicting the N stage is low, between 53%-73%, with an important percentage of cases overstaged (16%) or understaged (10%) and a sensitivity of 17%-33% and specificity of 81% [8,9]. In a randomized trial FoxTROT, 83% of the pN+ were radiologically classified as cN+, but with the same tendency of overstaging the N stage [10]. Nevertheless, the abdominal CT appears to be the most frequently used staging modality in rectal cancer centers (55% of centers use abdominal CT in all cases of rectal cancer for staging purposes) [11].

PET/CT manifests also a lower accuracy (60-66%), specificity (81-90%), and sensitivity (33%) in detecting lymph node invasion in colorectal cancer [8] and represents the least common imaging method used for preoperative staging of rectal cancer: only 1% of centers use PET/CT for preoperative staging of all rectal cancer cases [11]. ERUS probably represents the best preoperative staging modality for small rectal tumors (T1 and T2); the incidence of lymph node metastases in these cases varies from 14.3% to 18.4% [12]. However, the usage of ERUS as a staging method in all rectal cancer cases varies from 21% to 43% in colorectal cancer centers [11].

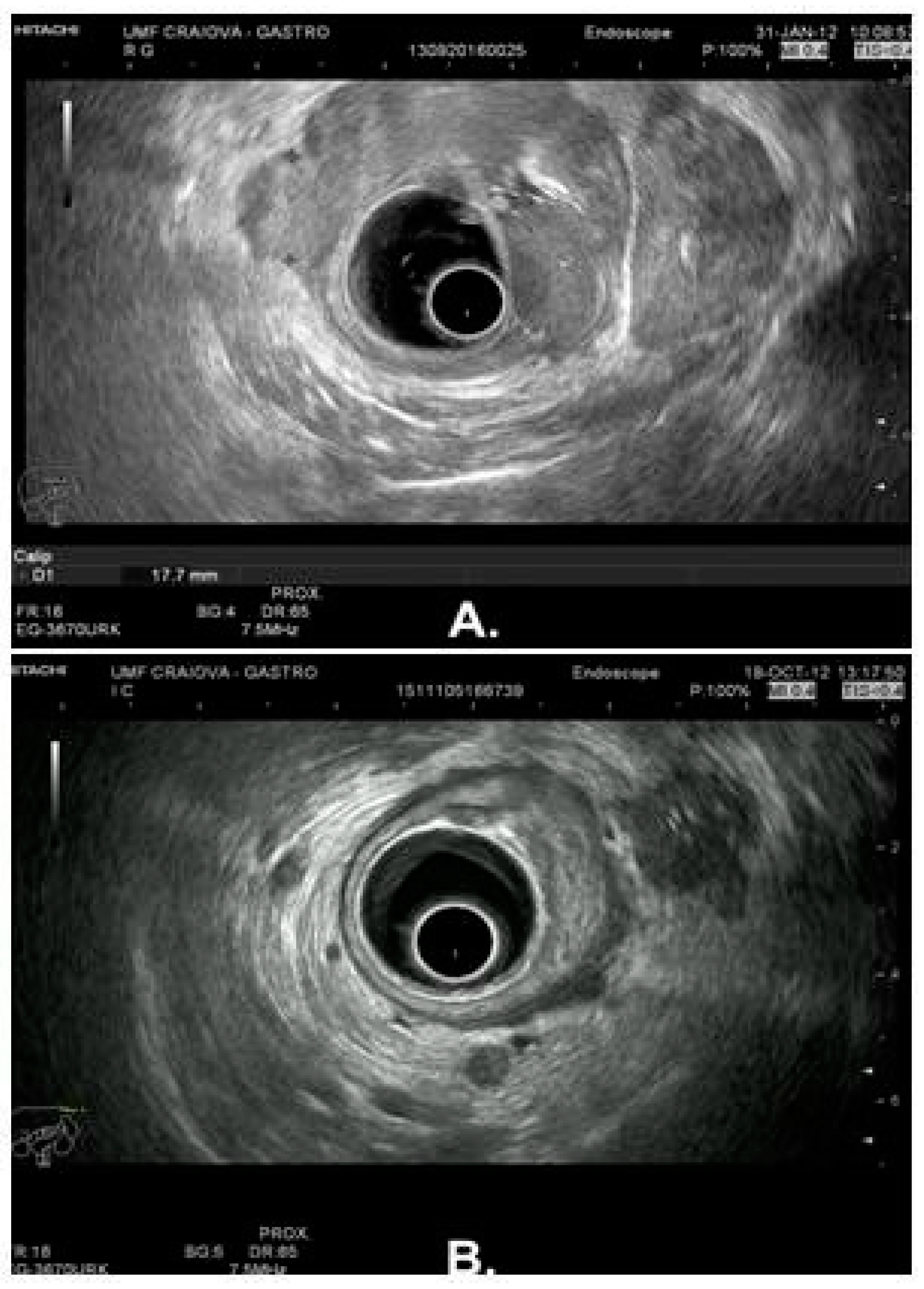

Figure 1. Endoscopic ultrasound in rectal cancer. A. A rectal adenocarcinoma invading all layers of the rectal wall (T3) with cleavage plane with the prostate and peritumoral lymphadenopathy B. Multiple suspected (round, hypoechogenic) lymph nodes in a patient with a rectal adenocarcinoma.

Figure 1. Endoscopic ultrasound in rectal cancer. A. A rectal adenocarcinoma invading all layers of the rectal wall (T3) with cleavage plane with the prostate and peritumoral lymphadenopathy B. Multiple suspected (round, hypoechogenic) lymph nodes in a patient with a rectal adenocarcinoma.

ERUS has a 73%-76.47% accuracy in detecting lymph node metastases in rectal cancer, with a sensitivity of 52.94%-77% and a specificity of 70%-84.31% [13,14]. The value of ERUS in the N staging of rectal cancer is influenced by the experience of the examiner and the tumor morphology (i.e., it is lower in large-stenosing tumors that do not allow the probe to pass through the lumen). Also, it may be difficult to differentiate malignant lymph nodes from benign ones, the malignant appearance being suggested by the lymph node morphology and size: round, hypoechogenic lymph nodes, larger than 3-5 mm present a higher probability of malignant colonization.

In order to improve the N staging, other modalities may be used in association, such as fine-needle aspiration cytology of the detected lymph nodes which may increase the accuracy of the ERUS in detecting colonized lymph nodes by up to 90%, with a sensitivity of 87%, and a specificity of 100% [15]. Also, using 3-D endoscopic ultrasound, the accuracy of the nodal detection may increase up to 87.3%, specificity up to 91.4%, and sensitivity up to 79.1% [16].

Endoscopic Ultrasound Elastography (EUS elastography) has proven to be a reliable method for differentiating rectal adenomas from adenocarcinomas [17], with an accuracy of 0.94, a sensitivity of 0.96, and a specificity of 0.86. Furthermore, in differentiating benign from malignant lymph nodes, elastography presented a sensitivity of 70.2-85% and a specificity of 91-100%, depending on the elastography score, with the lowest sensitivity (60%) and specificity (31.5%) for a score 2 [18,19]. However, the role of ERUS elastography in the evaluation of the lymph nodes in rectal cancer remains to be demonstrated.

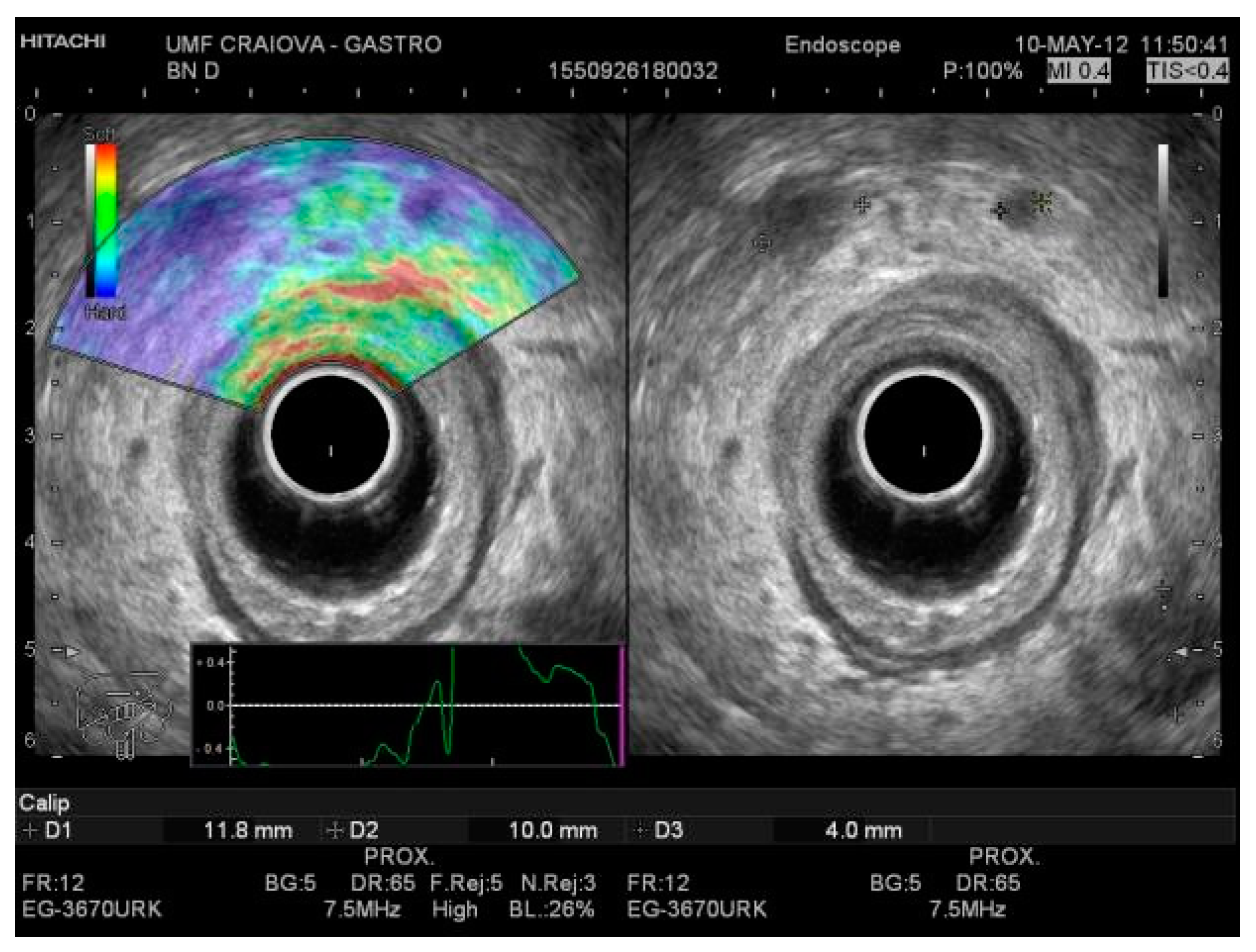

Figure 2. ERUS elastography: perirectal enlarged lymph nodes with elastography hard aspect (blue) in a patient with a rectal adenocarcinoma.

Figure 2. ERUS elastography: perirectal enlarged lymph nodes with elastography hard aspect (blue) in a patient with a rectal adenocarcinoma.

MRI is used for all cases of rectal cancer staging by 20-42% of the colorectal cancer centers [11]. The accuracy of MRI in detecting lymph node metastases in rectal cancer varies from 68.49%-74.5% to 92%, with 61.76%-85.71% sensitivity and 57.78%-80.88% specificity, similar to the ERUS [13,20,21]. However, the MRI presents the same problems of differentiating between benign enlarged lymph nodes and malignant lymph nodes, the diagnosis being based on the same criteria as for ERUS (lymph nodes morphology and size) [21].

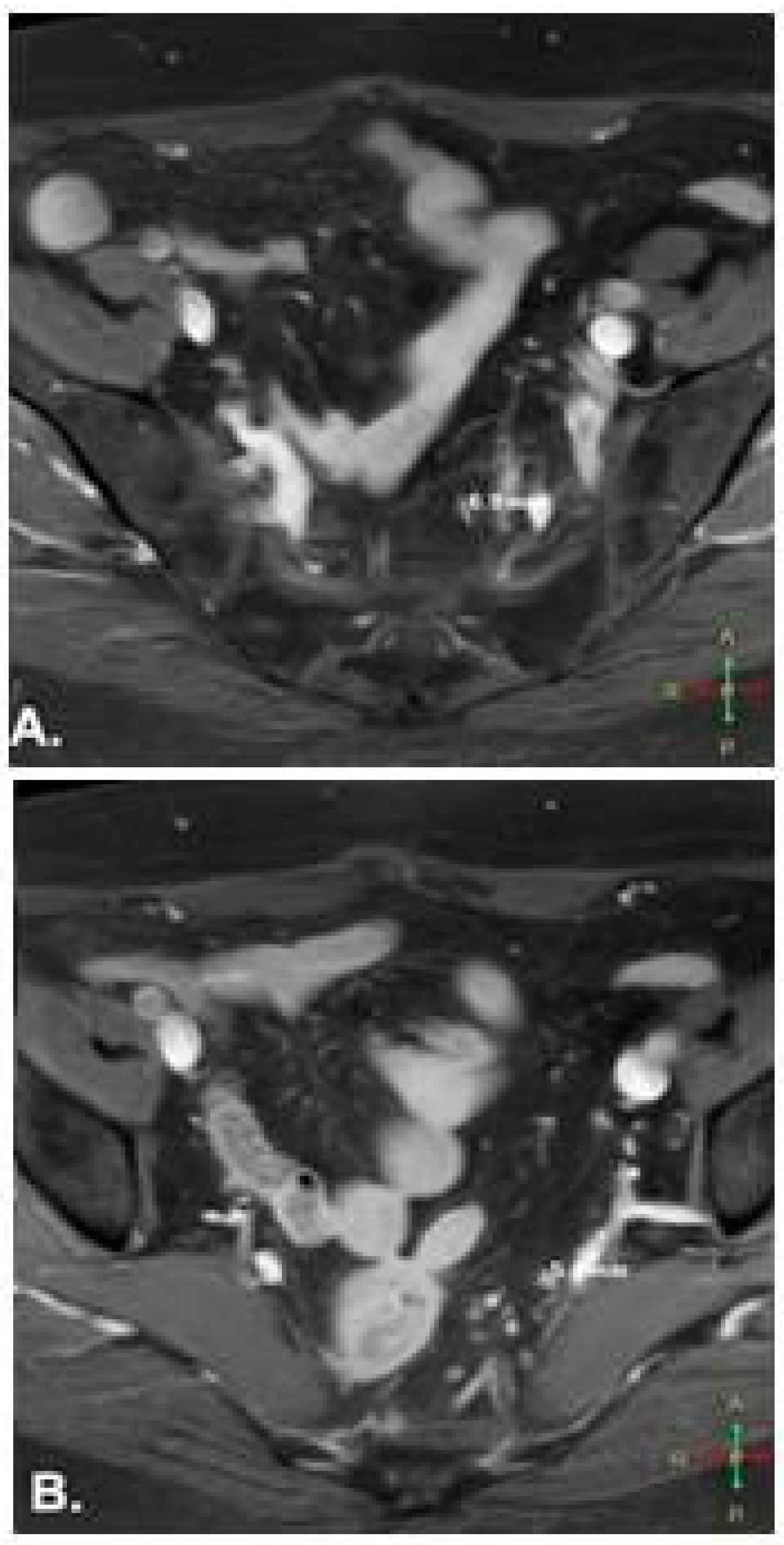

Figure 3. MRI in rectal cancer: multiple suspected lymph nodes in the presacral region (A) and on the left pelvic sidewall region (B).

Figure 3. MRI in rectal cancer: multiple suspected lymph nodes in the presacral region (A) and on the left pelvic sidewall region (B).

Pre and post-neoadjuvant treatment evaluation of the lymph nodes represents an important objective and may be realized using ERUS, MRI, or both as complementary methods. Neoadjuvant chemoradiotherapy decreases the tumoral volume and may also determine a downstaging, thus becoming very important in evaluating the treatment response; the lymph nodes post-neoadjuvant treatment downstaging may be as high as 72.2% [22]. The pre- neoadjuvant treatment accuracy of the lymph node detection using ERUS was 56% but increases in the post- neoadjuvant setting to 74%, while the MRI accuracy was the same in pre and post-neoadjuvant settings (74%), as reported by Swartling et al. These authors concluded that the staging accuracy was improved using the combination of the ERUS and MRI [23].

Intraoperative evaluation of the lymph nodes; extended lymphadenectomy in rectal cancer

Intraoperative evaluation of the lymph nodes in rectal cancer raises two major points of contention: the attitude over the potentially involved lymph nodes located at a distance from the rectum, and the importance of the lateral lymph nodes dissection.

Regarding the potential involvement of lymph nodes located outside the regular area of drainage of a rectal cancer, the recommendation is to follow the oncologic principle of biopsy and, if possible, removal of all the enlarged lymph nodes in order to reduce the tumoral volume and correctly stage the case.

A special consideration must be accorded to lymph nodes located at the origin of the inferior mesenteric vascular package: ligation and section of the inferior mesenteric artery and vein at their origin is not mandatory, many surgeons performing it below the left colic artery origin without any negative influence on the distant survival or recurrence rate. Obviously, the presence of an enlarged lymph node at this level requires ligation of the inferior mesenteric artery at its origin and removal of the lymph nodes.

Regarding perirectal (intra-mesorectal) lymph nodes, these may be palpated in some cases but intraoperative biopsy is not recommended, requiring sectioning of the mesorectal fascia which may compromise the oncologic results. Quirke et al. have demonstrated that the plane of surgery achieved during rectal resection for cancer has an important influence on the local recurrence rate and distant survival: a 3-year 4% local recurrence rate if the mesorectal plane was achieved, compared to 13% if the muscularis propria plane was entered during surgery, respectively a 79% 3-year disease-free survival rate, if the mesorectal plane was achieved, compared to 70%-75% if the mesorectal plane was compromised during surgery [24].

Probably the most debatable point relates to the extended lateral (pelvic) lymph node dissection. Western surgeons do not perform and do not routinely recommend lateral lymph node dissection in rectal cancer, considering metastases in these lymph nodes as systemic spread of the disease; consequently, they are treated with chemoradiotherapy. Moreover, the MERCURY study group has found through MRI an incidence of 11.7% suspicious lateral lymph nodes, but the 5-year disease free survival was influenced only in the cases receiving primary surgery (42% 5-year DFS) and not in the group receiving neoadjuvant treatment, which supports the above opinion [25].

Extended lateral lymph node dissection is more common among Eastern surgeons, especially in Japan. The incidence of lateral lymph node metastases varies from 10% to 25% of the cases [26,27,28] (11% in the study of Dong et al., 14.6% in Wu et al., and 17% in the series of reports by Ueno et al.) [26,27,29], but the presence of micrometastases was demonstrated in another 4% of the cases where the positivity of the lymph node was not suspected after initial histologic evaluation [30].

The risk of lateral lymph node involvement increases in low rectal cancers (below peritoneal reflection) with the T stage, circumferential rectal wall involvement, tumor size >5 cm, advanced tumor infiltration and poor differentiation [26,27], and also with the presence of the positive mesorectal lymph nodes [28], but this is not mandatory since Ueno et al. have found that 24% of the cases (10 out of 41 cases) with invasion in the lateral pelvic lymph nodes had no invasion in the mesorectal lymph nodes [29].

Extended lymph nodes resection, including the origin of the inferior mesenteric artery and pelvic sidewall dissection, has been associated with an improved 5-year survival for all stages (overall 68% 5- year survival rate for extended lymphadenectomy vs 42.9% for conventional resection) as reported in Dong et al. [26]. In a retrospective study, Shirouzu et al. found that TME associated with lateral lymph node dissection produced better results than conventional surgery, but only in Dukes C stage: 13.3%-16.7% local recurrence rate vs 25% for conventional surgery [31]. Wu et al. have also demonstrated that the presence of lateral lymph node metastasis is associated with a significantly increased risk of local recurrence (64.3%) compared with patients without lateral lymph node metastases (11%), and a significantly lower median survival rate (38 ± 6.7 months vs 80.9±2.1 months) [27]. Ueno et al. have also found a lower 5-year survival rate in cases with lateral lymph node involvement, only 32%-42%, and an increased risk of local recurrence (56.8%), in cases without distant metastases [28,29].

The main selection criteria for lateral pelvic dissection in rectal cancer are: advanced rectal cancers (T3 and resectable T4 and some advanced T2 cancers, stage III on the TME specimen), located below the peritoneal reflection, on a suitable patient, without distant or peritoneal metastases [26,32]. Wu et al. recommend lateral lymphadenectomy for tumors larger than 5 cm in diameter [27,32], although Ueno et al. found no significant correlation between tumor diameter and lateral lymph nodes invasion [29]. Ueno et al. also found that the increased number of invaded lymph nodes is associated with an increased risk of lateral lymph node metastases (2/3 of the cases with lateral lymph node involvement had 4 or more positive lymph nodes), and a lower long-distance survival (4% for 4 or more positive lymph nodes compared with 75% for less than 3 involved lymph nodes) [28,29].

In spite of the apparently better results of the extended lymph node dissection, the higher morbidity, especially in terms of genitourinary dysfunction, requires supplementary criteria for case-selection for lateral lymph nodes dissection.

However, with the lateral lymph node dissection and autonomic nerve preservation, better results were obtained in terms of perioperative results [31], but results appear to be better in terms of urinary function and not so good in terms of genital impairment [33].

The size of the pelvic lymph nodes appears to be an important criterion; on histopathologic analysis on a cut- off of 8.4 mm for the long axis and 5.4 mm for the short axis, Ishida et al. obtained an accuracy of 71.9% (for the long axis) and 72.8% (for the short axis, respectively) in predicting the risk of lateral lymph nodes metastases [34]. However, a more recent study demonstrated a lower positive predictive value of the lymph node size for lateral lymph nodes compared to perirectal (mesorectal) lymph nodes [35].

Using the same criteria, Matsuoka et al. consider that an ovoid shape with transverse axis larger than 5 mm of the lymph nodes identified on MRI represents an optimal criterion for lateral dissection in rectal cancer [36]. Ueno et al. have also found that in cases with lateral lymph node invasion, the diameter of the lymph nodes was statistically larger than the diameter of the non- invaded lateral lymph nodes (8.5±4.1 vs 6.0±2.8 mm); the incidence of lateral lymph nodes invasion increased progressively with the size of the lymph nodes from 3.6% in cases with lymph nodes < 5 mm, up to 34% in cases with lymph nodes larger than 10 mm [29]. Quadros et al. have used intraoperatively a radiotracer and a blue dye stain which allowed them to find with 100% accuracy and sensitivity in 37.1% of the cases metastatic lymph nodes in the retroperitoneal and lateral pelvic area, with an upstaging rate of 11.1% (out of which 5.5% were due to micrometastases identification) [32].

In conclusion, the debate over the necessity of lateral pelvic lymph node dissection remains open, even if the meta-analysis performed by Cheng et al. found no significant difference in terms of 5-year survival and recurrence rate, but the postoperative morbidity was higher in cases with lateral dissection performed [37]. Establishing clear preoperative criteria for indication of the lateral lymph nodes dissection remains, also, an open discussion.

Pathologic evaluation: sentinel lymph node mapping and micrometastases significance in rectal cancer

It is now well recognized that the number of the pathologically examined lymph nodes has a great influence on colorectal cancer staging, and ultimately on distant survival of the patients [38,39,40]. Starting with the sixth edition of the AJCC staging system it was established that a minimum of 12 lymph nodes must be histologically evaluated in order to ensure an adequate N staging, a recommendation that was maintained in the subsequent seventh edition and in the current guidelines for rectal cancer [39,41,42]. At this point, the histological examination of fewer than 12 lymph nodes is considered a risk for residual disease and incorrect downstaging and an adjuvant chemotherapy protocol must be employed [38,39,40,41]. In spite of the recommendations there are many situations in which the minimum number of 12 lymph nodes is not reached, even in the most developed care systems [38,43,44,45], negatively influencing the quality of the staging. Many factors influence the number of the lymph nodes examined on a resection specimen for rectal cancer [41,43,46], out of which the neoadjuvant therapy appears to be a specific one [47]. There are many modalities trying to improve the staging, including the injection of a blue dye in the inferior mesenteric artery [48] in order to identify more stained lymph nodes; NCCN guidelines for rectal cancer recommend, in case of fewer than 12 lymph nodes identified, for the pathologist to review the specimen in an attempt to identify more lymph nodes [41]. Probably the most debatable method trying to improve the pN staging in rectal cancer remains the sentinel lymph node mapping; however, current guidelines recommend caution in interpretation of the results [41].

Several methods have been used for identification of the SLN in rectal cancer: in vivo or ex vivo techniques, different staining dyers or radiotracers, even different techniques of pathologic evaluation (seriate sections, usual hematoxylin-eosine staining method, immune- histochemistry or polymerase-chain reaction) [49,50,51,52,53,54,55], all leading to a lack of uniformity and making finding a common and reproducible path difficult.

The detection rate of the SLN varies from 61.9% to 97.8%-100%, the sensitivity 50%-58.3% to-80%- 93.7%, with a false negative rate of 3.84%-10.7% to 18.18%- 20%, and an upstaging rate varying from 4.76%-12.5% to 29%-37.5%. The results were better when the study included the colon and the rectum cases together [49,50,51,52,53,54,55].

As a consequence, the different detection rate, sensitivity, and specificity of these methods represent other reasons for which SLN mapping is not a method sufficiently good to be recommended as a guideline, even though most studies have demonstrated some degree of upstaging. The main advantage, present in most of these studies, is represented by the identification of a higher number of lymph nodes submitted to pathologic evaluation than conventional, non-staining methods [49,50,51,52,53,54,55]. Making the decision even more difficult, the significance of the micrometastases and isolated tumor cells identified on the examined lymph nodes only by IHC or RT-PCR is still up for debate.

The incidence of micrometastases varies, depending on the examination technique, from 25.5-30% to 54-60% if IHC or RT-PCR technique, respectively, is used for detection [56,57,58].

Wang et al., have found a significant drop in the 5- year survival rate in patients diagnosed with micrometastases (lymph node metastases smaller than 2 mm, but larger than 0.2 mm) (50%-50.3% vs 92.3%), and the decrease of the survival rate was higher for micrometastases identified only by IHC; the same trend was noticed for the 5-year disease-free survival rate (47.5%-50% in the presence of micrometastases vs 92.4% if micrometastases were not present) [56]. On the other hand, Liefers et al., and Koyanagi et al., have found a large decrease in the observed 5-year survival rate from 75% in cases without micrometastases to 36% in cases with RT-PCR detected micrometastases, respectively in the mean disease-free survival rate (61 vs 37 month) [57,58]. On the other hand, Oh et al., have found no significant influence of the micrometastases or isolated tumor cells on disease-free survival rate and prognosis [59].

As a consequence, the importance of the micrometastases, IHC or RT-PCR detected, remains controversial. On the other hand, the 7th edition of the AJCC staging system included as prognostic factor, at least for the T1-T2 tumors, the peritumoral (mesorectal) satellite nodules (tumor deposits), which were included as N1c stage if they respect the contour and form of a lymph node [42,60]. Tumor deposits were found in 31.9-36.4% of the studied cases and led to an important stage migration between the AJCC staging systems since their introduction [60], with 40.2-44.2% of the cases becoming stage III with the TNM 7th edition. Thus, the role and especially the definition according to size, form and contour of these tumor deposits remain in debate, in spite of the proven negative prognostic value [60,61,62].

Conclusions

Despite important progress made in the evaluation and prognostic interpretation of lymph nodes in rectal cancer, many controversial and unresolved aspects remain, requiring future clarification. However, accurate interpretation requires better standardization than is now offered by current staging systems, as demonstrated by the present studies.
