Bionic Multi-Legged Robots with Flexible Bodies: Design, Motion, and Control

by
Xiang Li
1,†,
Zhe Suo
1,†,
Dan Liu
2,
Jianfeng Liu
1,
Wenqing Tian
3,
Jixin Wang
1,* and
Jianhua Wang
4,*
1
Key Laboratory of CNC Equipment Reliability, Ministry of Education, School of Mechanical and Aerospace Engineering, Jilin University, Changchun 130022, China
2
National Key Laboratory of Special Vehicle Design and Manufacturing Integration Technology, Inner Mongolia First Machinery Group Co., Ltd., Baotou 014030, China
3
FAW Tooling Die Manufacturing Corporation, China FAW Group Co., Ltd., Changchun 130013, China
4
College of Automotive Engineering, Jilin University, Changchun 130022, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Biomimetics 2024, 9(10), 628; https://doi.org/10.3390/biomimetics9100628
Submission received: 31 July 2024 / Revised: 12 October 2024 / Accepted: 14 October 2024 / Published: 15 October 2024
Browse Figures
Versions Notes

Abstract

:
Bionic multi-legged robots with flexible bodies embody human ingenuity in imitating, learning, and exploring the natural world. In contrast to rigid-body robots, these robots with flexible bodies exhibit superior locomotive capabilities. The flexible body of the robot not only boosts the moving speed and walking stability but also enhances adaptability across complex terrains. This article focuses on the innovative design of flexible bodies. Firstly, the structural designs, including artificial spines and single/multi-axis articulation mechanisms, are outlined systematically. Secondly, the enhancement of robotic motion by flexible bodies is reviewed, examining the impact that body degrees of freedom, stiffness, and coordinated control between the body and limbs have on robotic motion. Thirdly, existing robotic control methods, organized by control architectures, are comprehensively overviewed in this article. Finally, the application prospects of bionic multi-legged robots with flexible bodies are offered, and the challenges that may arise in their future development are listed. This article aims to serve as a reference for bionic robot research.

1. Introduction

The vast array of animals in nature has served as an inexhaustible source of inspiration for the design of robots. Cheetahs exhibit breathtaking speed, with their exceptional limb coordination and flexible spines, while reptiles, such as crocodiles, despite their relatively short limbs, achieve both rapid and stable movement through skillful lateral body movements, even possessing amphibious capabilities. Cockroaches, on the other hand, navigate effortlessly through complex environments, with their remarkable flexibility in the limbs and body. Creating robots that can mimic the flexible movements of these animals has long been a lofty aspiration of human technological exploration.
To better capture the essence of animal motion in nature, researchers have built upon traditional rigid-body robot technology, delving deeper into the design of flexible bodies, and recognizing the crucial role that body motion plays in the overall performance of robots. This shift has led to the emergence of remarkable creations, such as the cheetah robot Cheetah-I [1], the lizard robots ELIRO-I/II [2,3], and the cockroach robot AMOS-II [4], all of which possess highly flexible bodies capable of performing a range of biomimetic movements that traditional rigid-body robots struggle with. Additionally, animals such as salamanders and centipedes have also become sources of inspiration for bionic design, with scientists using these bionic robots to delve into the mysteries of biological motion. Figure 1 presents a list of documented bionic models of robots.
Beyond the inspiration drawn from nature, humans are also striving to develop robots with even more flexible movement mechanisms. For instance, the Origaker robot [5] achieved morphological transformations in its body through innovative metamorphic mechanisms, while the MELCRAB-2 robot [6] combined a double-support frame with a reciprocating mechanism to enhance its walking flexibility, as depicted in Figure 2.
The flexible body has a profound impact on the robot motion performance: it not only significantly improves the walking speed and stability but also greatly enhances the robot’s adaptability to complex terrains. This article focuses on multi-legged bionic robots with flexible bodies (excluding bipedal humanoid robots and fully soft robots), systematically reviewing the body structural forms of these robots (Section 2), summarizing the positive effects of flexible bodies on robot motion performance (Section 3), and outlining control methods for robots with flexible bodies (Section 4). Finally, the article looks ahead to the application prospects and remaining challenges for the development of bionic robots (Section 5).

2. Ways to Achieve Flexible Bodies

Compared with rigid-body robots, robots with flexible bodies have the most significant structural feature, which is the existence of multiple body segments, which are connected through various ways, realizing the flexibility of the robot body. This article summarizes the main connection methods for achieving body flexibility: artificial spine, single-axis or multi-axis articulation, soft structure, metamorphic structure, etc. To describe the DOFs (degrees of freedom) of the flexible body and the structural characteristics of the robot, this article defines the robot coordinate system and robot structural layout expression, as shown in Figure 3.

2.1. Artificial Spine

Artificial spines are mainly applied to quadruped robots that mimic mammals. The artificial spine is mainly composed of a support element, an elastic element, and a driving element (there are also compliant artificial spines that do not have driving elements, such as Cheetah-I [1], which mainly rely on hind legs to drive the spine). The support element, equivalent to a set of vertebrae, is used to connect the front and rear segments of the robot and forms the rotary joint for the curvature of the spine. The elastic element is set between support elements or in parallel with the entire support structure between the front and rear segments of the robot, serving to limit the range of spine motion and buffer, reset, and store energy. The driving element prompts the spine to bend, enabling the robot to acquire a flexible body and achieve more mobility. In this paper, artificial spines are classified into two categories: active spines and compliant spines. Active spines possess the four elements, enabling robots to independently control the bending of the spine through driving elements. In contrast, compliant spines lack these driving elements, and the bending of the spine is passively altered by the movement of the limbs and changes in terrain, with the robot unable to independently control the spine bending angle. In addition, compliant spines can only maintain morphology via the elasticity of the materials.

2.1.1. Active Spine

Both Kitty [10] and Transleg [11,12] employed rigid materials to serve as vertebrae, which are connected by ball joints. Silicon blocks are filled between the vertebrae to simulate the lumbar discs. The cables pass through the vertebrae and silicon blocks, arranged symmetrically on the upper, lower, left, and right sides of the artificial spine. These cables are pulled by motors located on the front and rear body segments to achieve the flexion of the spine. Canid [13,14] is a robot modified based on RHEX, with leaf springs connecting the front and rear body segments and supported by a set of vertebral brackets made of carbon fiber. Two sets of parallel cables, one above and one below, pass through vertebral brackets, and the cables can drive the spine to bend in the sagittal plane. Also, Inu [15] adopted a similar artificial spinal structure. The artificial spine of NeRmo [16] mimicked the physical structure of a biological spine, utilizing the tensile strength and flexibility of nylon to bear its weight. The spine consists of two parts: the front section is rigid and responsible for accommodating all electronic equipment, while the rear section imitates vertebrae by alternately stacking four lumbar vertebrae and lateral flexion joints. The robot in [17] used an inflatable rubber tube to fill the spine, and the spine was also driven by cables. QuaDRoPECS [18] utilized a continuous elastomer made of fiber-reinforced plastic (FRP) plates, which serve both as a support element and an elastic element. Two sets of elastomers are horizontally arranged between the front and rear body segments on the left and right sides, and they are driven by motors to deform the elastomers through pulling cables. Cheetah-Cub-S [19] utilized leaf springs made of polyoxymethylene (POM), serving both as a support element and an elastic element. The center of the spine is a servo motor that pulls cables to drive the bending of the leaf springs. The leaf springs connect the spine motor to the two body segments. To reduce externally induced torsion (Rx), two leaf springs are installed in parallel, one above the other. In subsequent improvements, the cable drive was replaced with a lever drive. The artificial spine of Laika [20] is composed of five tetrahedral vertebrae made of rubber. The vertebrae are connected through a tensegrity structure. The bending of the spine is achieved by pulling parallel cables arranged vertically and horizontally, enabling flexibility in three directions: Rz, Ry, and Rx. The robots in [21,22,23] all adopted an artificial spine structure consisting of vertebral bodies and intervertebral discs. They utilized pneumatic muscles to drive the spine, and at the same time, the pneumatic muscles can also adjust the stiffness of the spine. Lynx SV2 and Lynx SV3 [24] are composed of 3D-printed “vertebrae” that are connected in series through pins to link the front and rear segments, forming a multi-joint spine. The cables can be shortened to reduce the distance between the front and rear segments, thus achieving active flexion of the spine. Parallel glass fiber rods serve as elastic elements, allowing the spine to passively return from flexion to its original position. Compared to SV2, SV3 employed two glass fiber rods as flexible elements. The main differences lie in the stiffness of the spine and the connection position with the rear segment. Both SV2 and SV3 require pre-tensioning of their elastic elements to maintain tension in the cables when in a standing position.

2.1.2. Compliant Spine

The spine of Cheetah-I [1,25] is composed of polyurethane rubber rings sandwiched between hard plastic vertebrae. A differential spine drive in the hind legs couples the hind leg movement with the spinal motion, enabling the spine to store and release potential energy during movement. When both hind legs move forward simultaneously, the spine bends; when the legs move backward, it extends. The polyurethane rubber rings can store elastic energy and return it during the galloping. During walking or trotting, when the left and right legs are not synchronized, the spine moves very little, remaining mostly stationary. The design of Cheetah-I emphasizes bio-inspired structures, accurately mimicking the biomechanical characteristics of real cheetahs, and is primarily used for in-depth research in biomechanics and kinematics. However, the artificial spine was eliminated in the subsequent Cheetah-II [26]. The design philosophy of Cheetah-II has shifted, focusing more on practical applications. By eliminating the spinal structure, the control system of Cheetah-II becomes simpler and more efficient, while also significantly enhancing its loading capacity.
The compliant spine of LittleApe [27] used silicone rubber for the intervertebral discs. Bowden cables connect the artificial vertebrae and intervertebral discs, and the bending and twisting behavior of the spine is influenced by the stiffness of the intervertebral discs and the tension of cable. A similar approach was also employed in the robot mentioned in [28]. Both Tiger [29] and Fanari [30] featured compliant spines. Tiger used thin-metal sheets as waistlines to connect both segments. To limit the downward bending of the spine in the sagittal plane, Tiger installed some lightweight segments with very small horizontal gaps at the top of the sheet. The gaps between the lightweight segments control the range of bending. To create spine elasticity, a spring is connected in parallel to the artificial spine between the segments, making its stiffness adjustable. The spring is also used to store energy. Fanari is capable of bidirectional bending in the sagittal plane. It has 13 pieces of plexiglass arranged outside the metal sheet to limit the bending direction of the spine. The gaps between the plexiglass pieces are used to adjust the bending range. Four sets of springs are installed on the outer side of the spine to achieve elasticity, and three pairs of springs are added on the inner side of the spine.

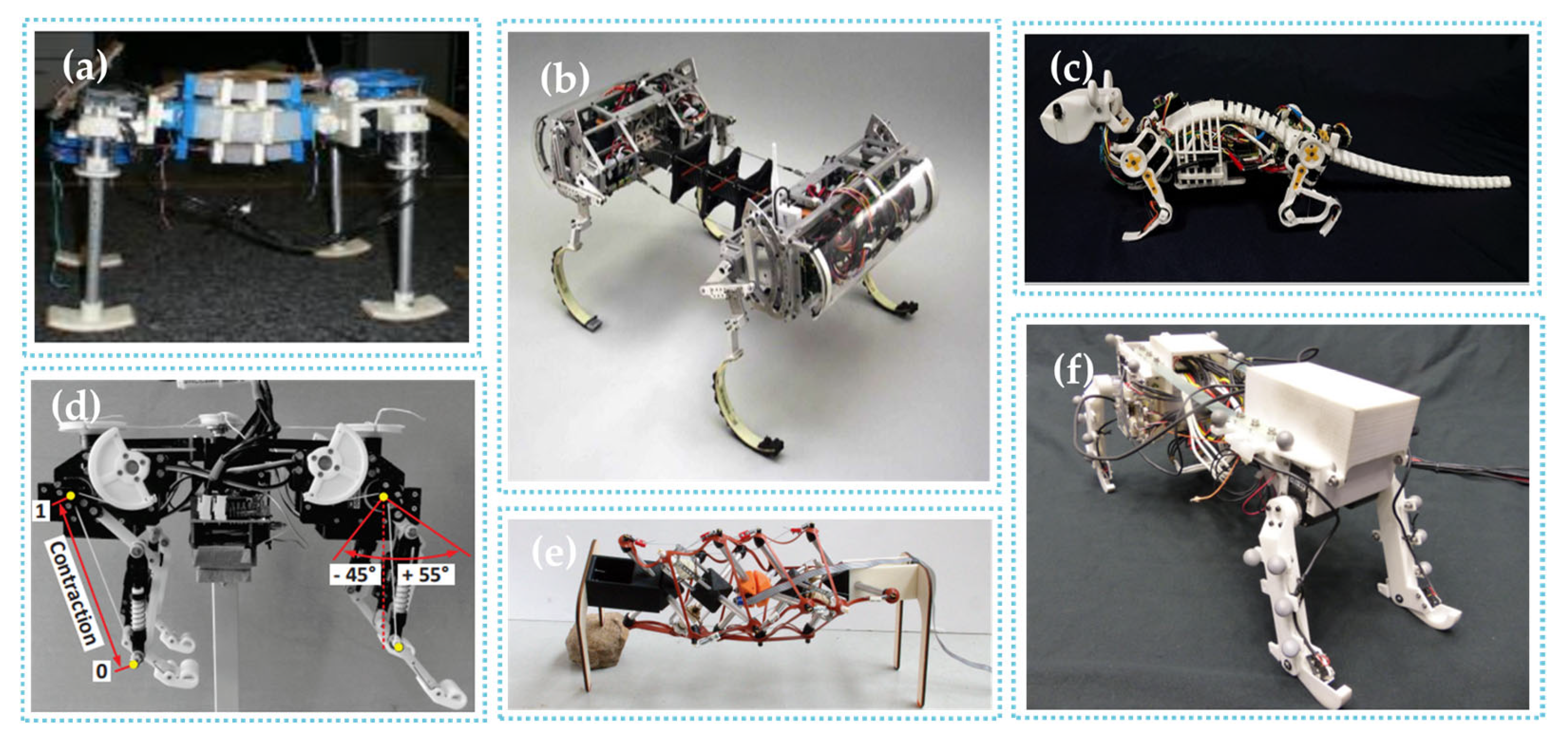

Figure 4 shows some typical robots with artificial spines.

2.2. Single-Axis or Multi-Axis Articulation

The robot connects each segment through articulation, thus obtaining the freedom of the body in one or more directions, and the body movement has a distinct axis of rotation. The segments of the robot can be articulated either rigidly or using series or parallel springs. Most of the robot articulated axes are active and directly driven by motors (the robots in [34,35] adopted linkage-driven mechanisms), but there are also a small number of compliant joints connected with springs to reset the body.

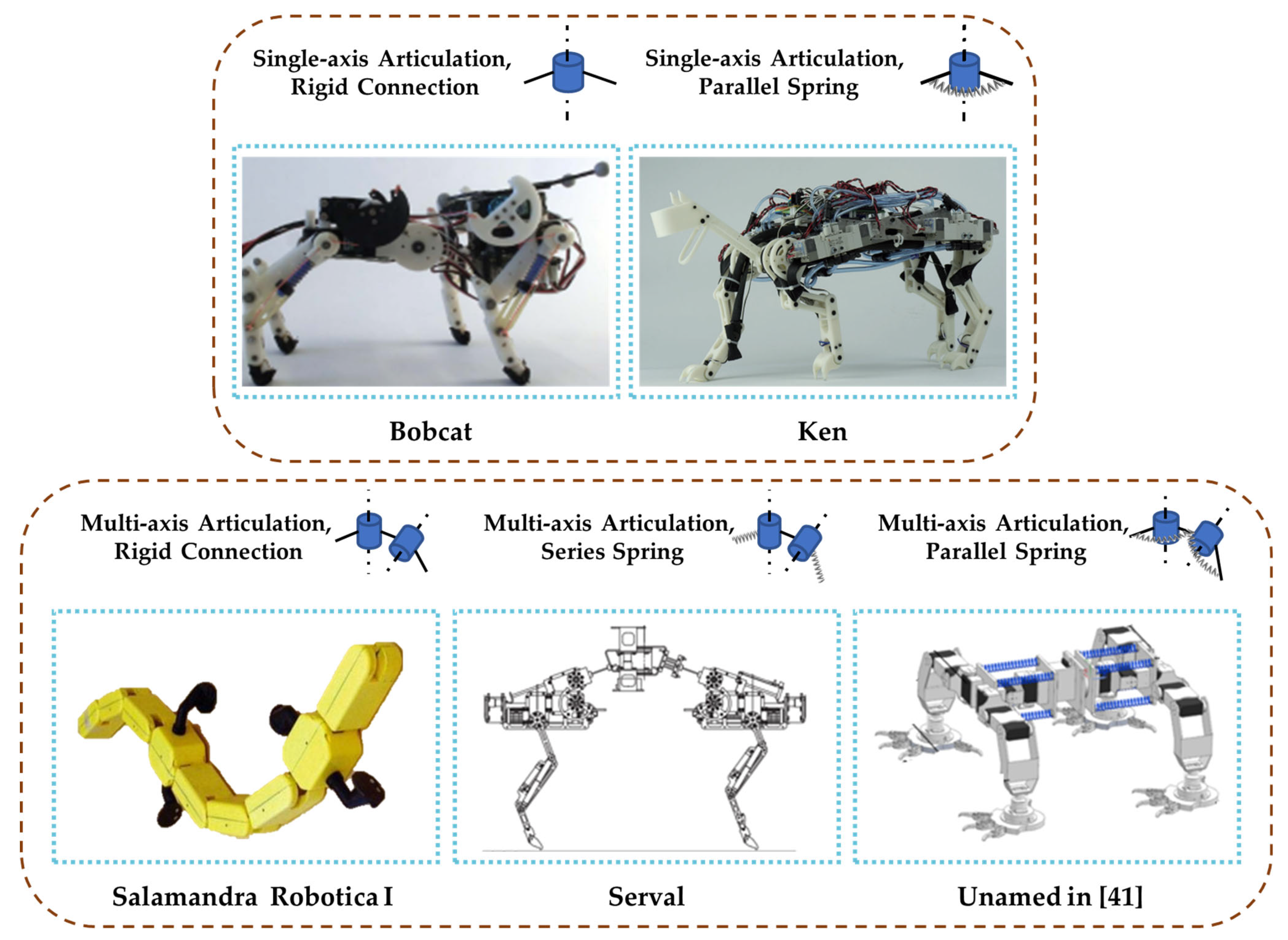

Figure 5 shows several types of robots with articulated joints. “Single-axis articulation” refers to only one articulated axis between two body segments of a robot, allowing the robot body to achieve freedom of movement in one direction, such as the Salamandra Robotica I [36]. “Multi-axis articulation” indicates that there are multiple articulated axes between two body segments of a robot, enabling the robot body to achieve multiple freedoms of movement in different directions, such as the Serval [37] and the WR series of bionic rat robots.
Table 1 summarizes the advantages and disadvantages of active spine, compliant spine, single-axis articulation, and multi-axis articulation.

2.3. Other Ways to Achieve Flexible Bodies

“Artificial spine” and “single-axis or multi-axis articulation” are the two most common approaches to achieving flexibility in a robot body. Besides these, some other ingenious designs can give the robot body additional DOFs.
Charlie [42] and ParaWalker [43] both utilized a 6-DOF Stewart Platform [44] to connect the two segments of the robot, enabling omnidirectional movement for the robot body. LightDog [45] employed an integrated elastic material design for the flexible passive spine. Similarly, the authors of [46] also used elastic material for the spine but incorporated McKibben actuators to make it active. The authors of [47] utilized a piezoelectric material as the robot spine, which bends and stretches under the influence of an electric field, enabling rapid movement of insect-sized robots. The Origaker series of robots [48,49] utilized the transformative capability of mechanisms through metamorphic mechanisms composed of multiple links [50,51]. This approach allows planning of the robot morphological changes [48], enabling transitions between the forms of reptiles, mammals, and arthropods. Renny [52] connected its two body segments through spherical joints and used pneumatic biomimetic muscles to drive the movement of the body. The inchworm-mimicking robot in [53] employed an inflatable and differentially actuated Octagon-origami structure as its body, enabling flexible movement. The authors of [54] proposed a soft actuator with a tunable bistable spine mechanism for rapid energy storage or release, allowing the robot to achieve fast movements. The Hector [8] biomimetic stick insect robot employed a 2-DOF Spindle Joint between its segments, enabling relative movement in the Rz, Ry, and X directions between body segments. The Octopod robot in [55] utilized a Bricard linkage (a spatial six-bar closed-chain mechanism) to connect the front and rear body segments, while the biomimetic centipede robot in [56] connected its segments using Sarrus linkages.
Danta-II [57], MELCRAB-2 [6], and robots in [58,59] are six-legged robots with a “double-support-frame” configuration. Each frame represents a stable three-legged support, and the robots achieve forward locomotion through alternating support frames via reciprocating mechanisms. Similarly, ParaWalker [43] is also a six-legged robot with a “double-support-frame” configuration, but it employed a Stewart Platform with more DOFs as its reciprocating mechanism.

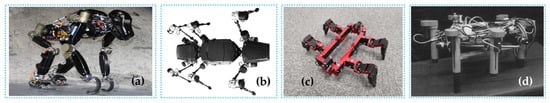

Figure 6 shows some of the robots with flexible bodies.
At the end of this section, this article reviews some of the body-flexible robots documented in the retrievable literature, summarizing their ways to achieve body flexibility, the additional DOF the robot body gained, the robot’s structural layout, and their bionic models, as shown in Table 2 and Table 3.
Table 2 mainly focuses on quadruped robots with flexible bodies, while Table 3 reviews robots with more than four legs. Both Table 2 and Table 3 are arranged in alphabetical order by the robots’ names.

3. Motions Generated by a Flexible Body

Through the above design approaches, the bionic robots have acquired flexible bodies, enabling them to achieve more rich and natural motions.

3.1. Motion Enhancement Due to the Flexible Body

3.1.1. Motions in the Sagittal Plane: Bounding and Galloping

Bounding and galloping gaits are the preferred rapid gaits for robots that mimic mammals, especially cheetah bionic robots (Figure 7a). The authors of [98,99,100,101,102,103,104,105,106,107,108,109,110,111] have all established sagittal plane motion models for robots with articulated flexible bodies (such as in Figure 7b), investigating the influence of the system-inherent dynamic characteristics on motion. They revealed how to utilize inherent properties to achieve continuous and stable bounding motion, providing a basis for the setting of mechanical structure parameters and the research of control algorithms for robots.
The authors of [107] provided theoretical evidence that suggested that compared to robots with rigid bodies, the active movement of the body helps to increase the bounding stride length, resulting in enhanced horizontal velocity.
By fitting empirical data, a reduced-order dynamic model was proposed to describe the robot center of mass trajectory during bounding motion. Experiments conducted on the Inu robot demonstrated that body movements can expand the robot workspace, enhance leg ground reaction forces, and improve motion stability [98].
In [99], the robot body was abstracted as parallel springs and dampers, leading to the development of a compliant simplified sagittal plane model. This model explored the relationship between optimal body stiffness, robot speed, and total mass, suggesting the existence of an optimal trunk stiffness at a given speed for optimal energy efficiency.

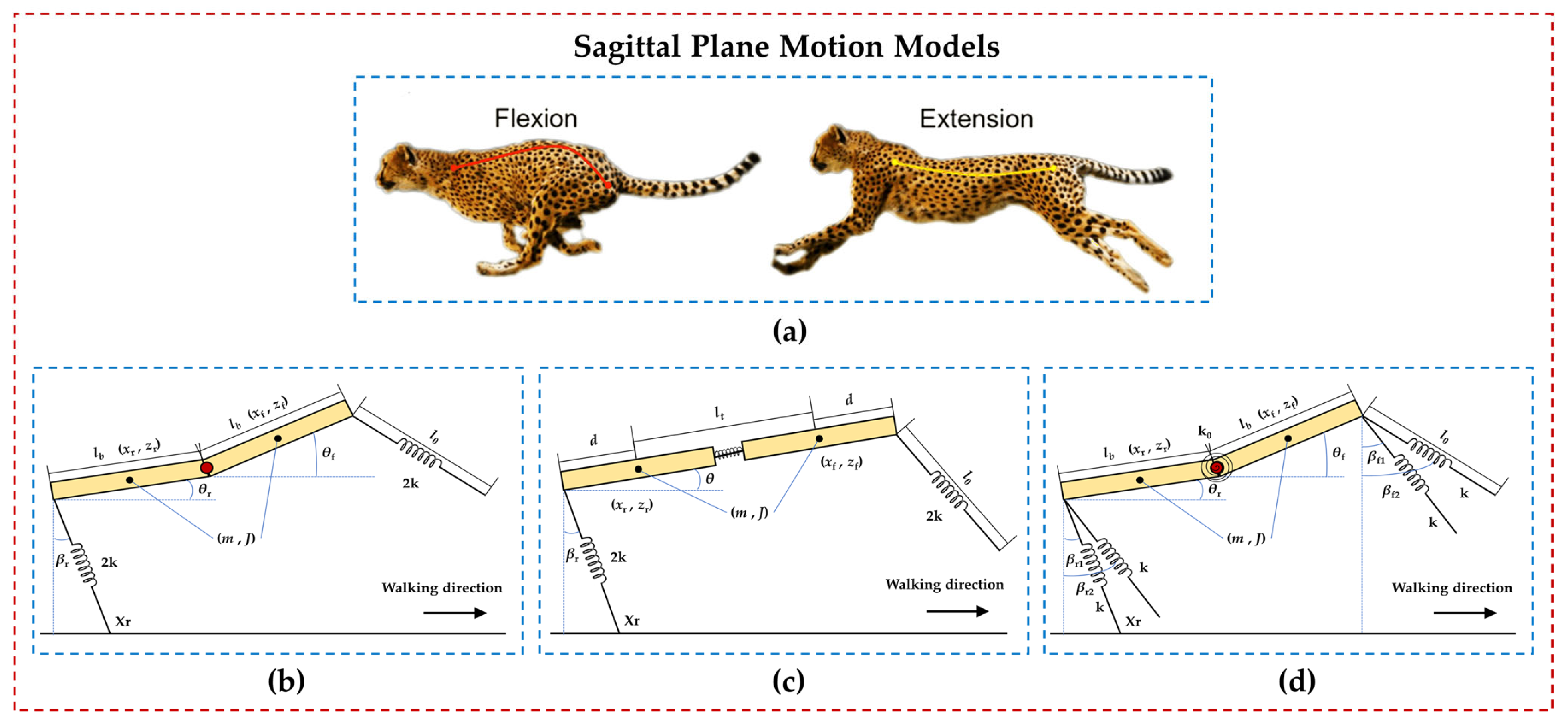

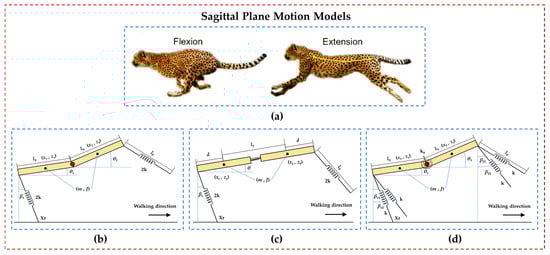

A reduced-order sagittal plane model with a flexible body was established, connecting front and rear body segments via massless pins and incorporating parallel springs at the hinge points [72,99,108]. The robot legs were simplified as massless springs. Analysis revealed that body movements reduced peak leg forces. When body stiffness was greater during extension than during flexion, the motion more closely resembled that of real quadrupeds. A specific combination of body and leg stiffness enabled stable and continuous jumping. The Kitty robot [31] validated these findings.
Quadruped models with varying numbers of body joints were developed to test the biological concept of the “spinal engine” [112]. The results indicated that a model with two active body rotary joints is enough to mimic the motion behaviors driven by biological spines [100,101].
The authors of [106,109] utilized linear springs to connect the front and rear segments of the robot, establishing a sagittal plane motion analysis model (Figure 7c). Analysis showed that elastic body translation enables the robot to achieve larger strides and initial acceleration.
Quadrupeds tend to adopt symmetric gaits at low speeds and asymmetric gaits at high speeds. The authors of [110,111] established a sagittal plane dynamic model (Figure 7d) capable of analyzing asymmetric gait motions (such as rotary galloping gait), investigating the energy benefits and dynamic stability of articulated flexible bodies during locomotion.
Experiments with robots such as Transleg [12], Kitty [31], Renny [52], Canid [13], and Sugoi-Neco [75] also demonstrated that bounding motions in the sagittal plane, facilitated by the flexible body, enhanced stride length, stability, and energy efficiency in robotic locomotion.

3.1.2. Motions in the Horizontal Plane: Crawling, Trotting, and Turning

The bodies of reptiles, such as geckos and salamanders, primarily undergo bending and undulation motions in the horizontal plane, with a limited motion range in the sagittal plane [113]. As a result, robots designed to mimic these reptiles typically have their bodies equipped with DOFs only in the Rz direction. The bending and undulation of the body in the horizontal plane, coupled with the robot leg extension and stepping, form a zigzag crawling locomotion [36,40,114]. When the wave motion of the body transitions from a stationary wave to a traveling wave, this enables amphibious crawling robots to switch from terrestrial locomotion mode to aquatic locomotion mode [115,116].
For robots mimicking mammals, lateral flexion of the body contributes to increasing the step length in the trotting gait and achieving higher speeds [117]. It also expands the leg workspace, enhancing the robot’s adaptability to complex environments [118]. The body torsion in the horizontal plane adjusts the robot’s center of mass, keeping it within a stable polygonal support area, improving stability margins during locomotion, and maintaining overall balance [119]. Therefore, many disabled quadrupedal animals can still stand or walk even with only three limbs.
Active body bending enhances the robot’s turning capabilities [19]. During in-place turning, body twisting avoids critical stability conditions, improving stability during turning [120]. Researchers utilized NeRmo [16] to validate three turning strategies: using only legs, using only the body, and a hybrid approach combining both the legs and body. The results showed that turning solely with the body was the fastest, while the hybrid method produced a smaller turning radius. Consequently, robots capable of body bending can navigate narrower right-angle bends and S-shaped turns more effectively.

3.1.3. Special Motions

  • Climbing
For robots that mimic insects, the bending of the body in the sagittal plane can enhance their ability to climb over obstacles.
Researchers observed cockroaches during climbing and embedded a sensor-driven neural control into the AMOS II robot [121], enabling it to achieve adaptive obstacle climbing capabilities. The Climbing Mini-WhegsTM B31 [95] (where B31 refers to the position of the hinge axis being 31% of the length from the middle leg to the front leg) is an improvement upon the cockroach-inspired Mini-Whegs robot [122]. It incorporated an additional articulated axis into the body, allowing it to bend in the sagittal plane. The influence of the axis position on the climbing ability was studied, and modifications were made to the axis position and range of rotation angles, resulting in the B00 design with enhanced climbing capabilities.
  • Animal Behavior
The WR series robots [82,83,84,123,124,125] and SQuRo [74,126] robots were designed concerning the body structure of rats, and their overall size closely resembles that of actual rats. Through the flexible articulated robot bodies, they can perform rat-like actions, such as rearing, mounting, rotating, and U-turns, enabling interactions between robots and rats, thus achieving repeatability in animal social behavior experiments. The research on this series of robots integrated a rat-like robot with actual rats to gain a deeper understanding of animal behavior and potentially find applications in the treatment of psychiatric disorders and the screening of psychotropic drugs in the fields of psychology and pharmacology.
  • Unnatural Motions
Robots with double-support-frame artificial configurations, such as Danta-II and MELCRAB-2 [6,43,58,59,127], achieved discontinuous walking motion through alternating advancement of two stably supported frames, as shown in Figure 8. Among them, the authors of [6] employed a gravitationally decoupled length-adjustable leg, enabling the robot to adapt to rugged terrains. MELCRAB-2 [43] further demonstrated a capability akin to “leg–arm coupling”, where one frame can stand and support while the other frame can grip tools for construction work. These non-bionic robots exhibit limited and monotonous locomotion gaits, leading to unnatural behaviors. However, robot turning and pivoting in place are relatively easy and convenient for manual control.

3.2. Factors That Influence the Robot’s Motion

  • DOF of the body
The DOF of the flexible body is the most important factor affecting the movement of robots. Table 4 summarizes the impact of each DOF on the robot’s motions.
Regardless of the methods of connection among robot segments, the yaw motion of the body can enable the robot to achieve greater speed, walking stability margin, and a smaller turning radius. The advantage of pitch motion in energy efficiency can only be observed in robots with artificial spines. The roll motion of the body enables the robots to have better terrain adaptability, especially the SQuRo-S [74], which can rotate its body segment by 90 degrees to pass through narrow gaps. On the other hand, Laika [20] and CkBot [87] do not have joint-driven legs, so they need to use roll motion to lift and lower their foot ends. Additionally, roll motion also allows robots to recover from falls and regain standing positions. For inchworm robots, body extension facilitates forward movement.
  • Stiffness of artificial spine (body-bending angle)
The stiffness of the body is crucial to a flexible-body robot. Excessive body stiffness turns the robot closer to a rigid-body robot, while insufficient stiffness destabilizes the robot motion:
  • If the stiffness of the spine lower side is lower than the upper side, the robot movement becomes more natural [31,52].
  • For a specific robot, there exists an optimal stiffness value that allows the robot to strike a balance between fast motion and energy efficiency.
In the case of robots with articulated bodies, the bending angle of the body influences the robot’s mobility. Similarly, there is an appropriate body-bending angle that enables a robot to achieve a balance between rapid movement and a high stability margin.
  • Coordinated actuation
The motion of a robot is a coupling of body movement and limb movement, and the coordinated actuation of the body and limbs exerts a significant influence on the robot’s motion. Whether it is a reptilian robot or a mammalian robot, the oscillation phase between the body-bending motion and the limb-swing motion affects the workspace. When the body is bent to its maximum, the limbs reach their maximum stride amplitude, enabling the maximum step length.
The oscillating phase between the body segments of the salamander robots [36,116] influences the form of body undulation. When there is no phase difference in the oscillation between body segments, the robot body exhibits standing-wave oscillation, suitable for terrestrial locomotion mode; whereas, when there is a phase difference in the oscillation between body segments, the robot body displays traveling-wave oscillation, which is conducive to aquatic swimming mode.
The traveling-wave oscillation of the body in the multi-legged centipede robot [87,93] is influenced by the oscillating phase difference between the robot segments, which in turn affects its walking speed and stability.

4. Control of Flexible-Body Robots

There have already been many different methods to control the robots, which can be categorized into three types, as presented in [90]. The first is the precise physical model-based control method, the second is the biologically inspired control method, and the third is the adaptive control method developed using learning algorithms. This article classifies and organizes the control methods for robots with flexible bodies based on their control architectures.

4.1. No Control

Fanari [30] is a completely unpowered and uncontrolled robot designed to study the impact of body stiffness on the stability of rapid walking. It is placed on a slope and relies solely on gravity to achieve galloping motion.

4.2. Routine Control Methods

4.2.1. Open-Loop Control

Some small robots are only used for qualitative research on the influence of flexible-body movement on robot motions (verify the biological “spinal engine” hypothesis; compared with rigid-body robots, identify the advantages of flexible-body robots), and there is no excessive requirement for control accuracy, so open-loop control is adopted. They usually generate stable rhythm drive by central pattern generators (CPGs) without any sensory feedback, thus forming several fixed patterns of gait. Early flexible-body robots mostly utilized open-loop control, which will not be elaborated further here.

4.2.2. Simple Closed-Loop Control

Based on open-loop control, some robots have introduced sensors and thus acquired sensory feedback, forming a simple closed-loop control. The WR-3 [84,128] achieved precise control over its motion position through closed-loop control of the rotational speed and current of its drive motors. The OSCILLEX [68] employed CPG control with foot-end force feedback, adjusting the oscillation phases of each actuator to coordinate the movements between the robot legs. For non-biomimetic robots, such as ParaWalker [43], precise physical models are used to control system parameters, and force-position feedback is utilized to achieve precise control over the landing position and force distribution during support.

4.2.3. Distributed Control

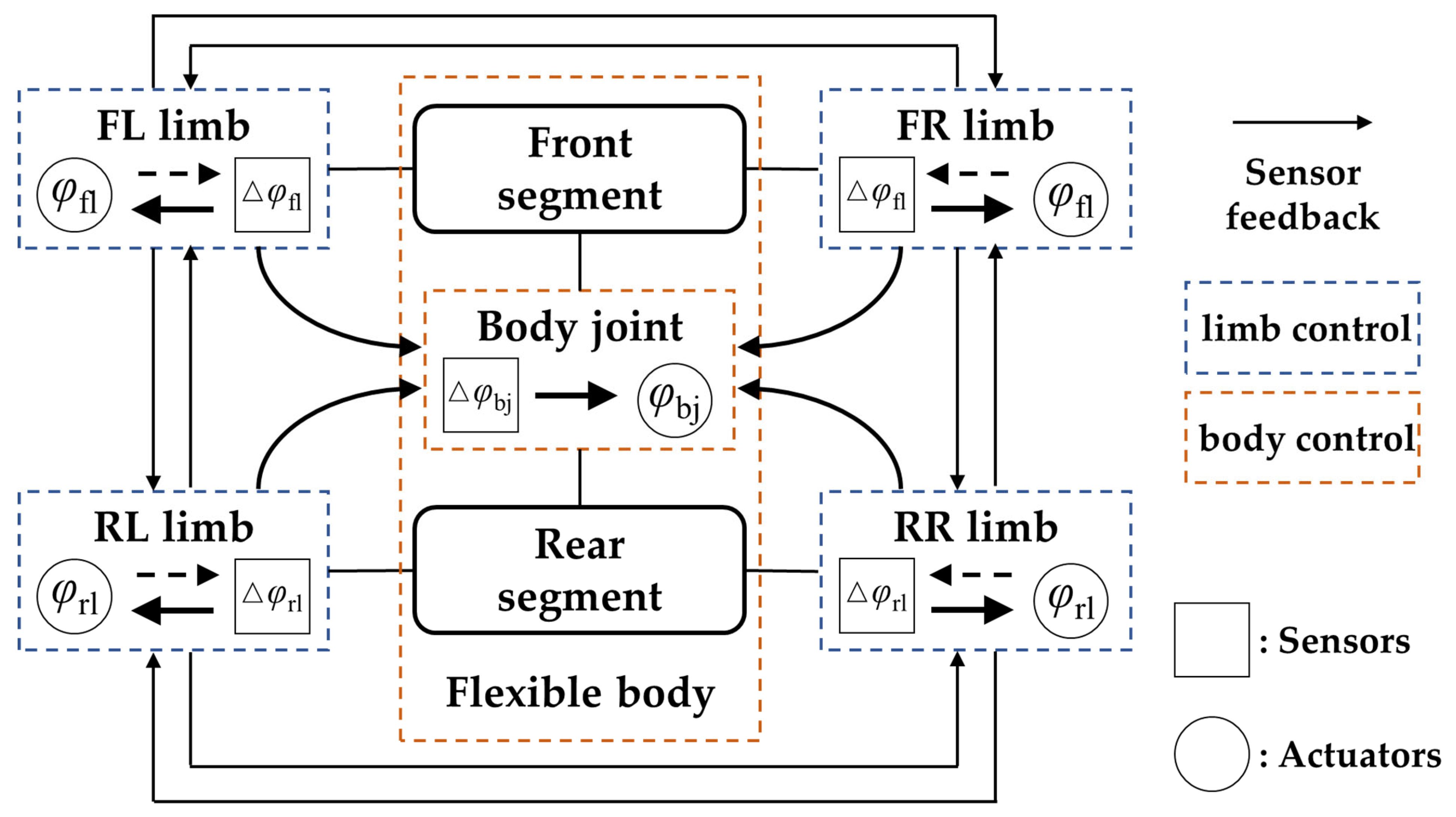

The distributed control of flexible-body robots comprises a body controller and limb controllers. The body controller governs the bending of the body and can sense the robot’s posture. For multi-segment robots that mimic reptiles and arthropods (such as Pleurobot [129] and the legged swarm system [130]), the body controller regulates the oscillation phases between segments, enabling the alteration of the body oscillation patterns (traveling waves or standing waves). The limb controllers generate the trajectories for the legs and feet. Equipped with joint position feedback and force feedback mechanisms, these controllers can precisely control and adjust the foot placement, detect whether the foot end has encountered an obstacle or missed a step, and enable the robot to perform simple adaptive reflex movements. Furthermore, the limb controllers also coordinate the movements among limbs, preventing interference between them and ensuring that the robot has enough limb support to maintain stability and prevent falling.
Pleurobot [129], based on distributed control, adjusted both the body and limbs’ oscillation phases to synchronize body rotation angles with limb movements, maximizing the motion space of the foot ends. Twister [76] incorporated cross-sensory feedback (as shown in Figure 9), establishing a bidirectional feedback loop between limbs and the body, thereby enhancing the robot’s environmental perception capabilities. The developers of NekoBot [65] asserted that bidirectional feedback between limbs and the body is essential for adaptive coordination and achieving faster speeds in robots. They proposed a minimal body–limb coordination mechanism, whereby robot parts assist each other through sensory feedback mechanisms. This mutual feedback allows each body part to adjust its movements based on the conditions of other parts.

4.2.4. Hierarchical Control

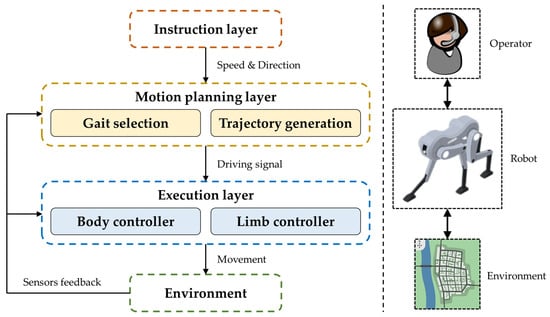

The hierarchical control of flexible-body robots primarily consists of an instruction layer, a motion-planning layer, and an execution layer, as shown in Figure 10. Although some literature expresses hierarchical control differently, the control framework and target functionalities are virtually identical.
The instruction layer primarily receives commands from the operator and conveys motion target parameters, such as speed, direction, and other requirements, to the motion-planning layer. The motion-planning layer is a high-level controller, selecting appropriate gait patterns and generating motion trajectories for the body and limbs based on instructions from the upper layer. These gaits and trajectories can either be selected from a predefined library of gait and trajectory patterns [16] or generated through learning and optimization under constraints based on prior data [126]. The execution layer is a low-level controller that controls each actuator of the robot according to the instructions from the motion-planning layer, realizing the movements of various robot parts. It also implements precise force-position closed-loop control based on sensor feedback. Sensor feedback can also be transmitted to the motion-planning layer, allowing for adjustments to the gait and trajectory, thereby enhancing the robot’s environmental adaptability. In this way, hierarchical control enables the interaction between the operator, the robot, and the environment.

4.3. Bionic Control Methods

The following are two typical bionic neural network control methods for robots.

4.3.1. CPG Oscillation Model Control

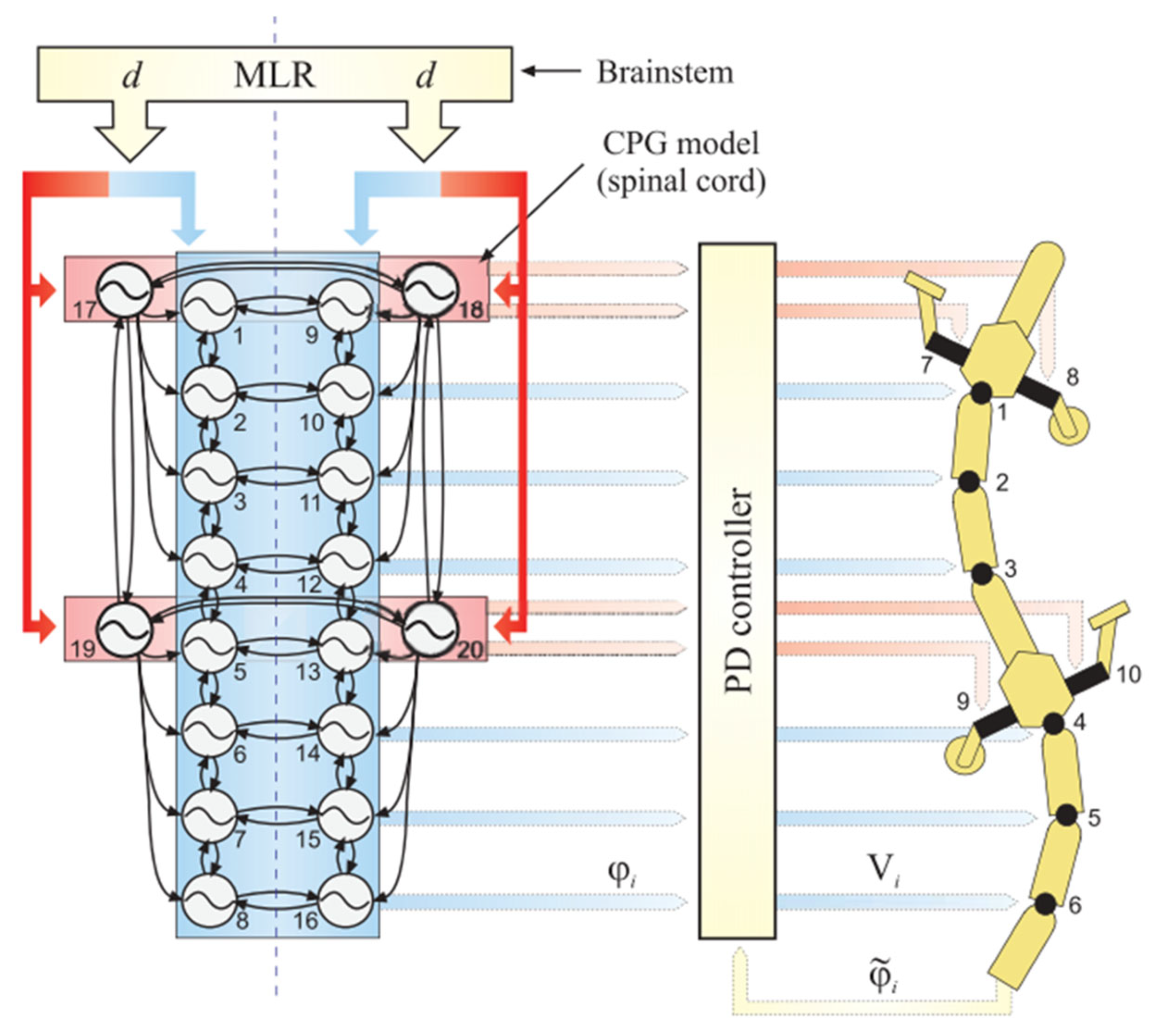

A model based on coupled oscillators was used to investigate the spinal mechanisms underlying the gait transition between walking on land and swimming in Salamandra Robotica I [40], as shown in Figure 11. Coupling between oscillators was achieved through phase differences and connection weights.
CPG oscillation model control combines the characteristics of distributed control and hierarchical control. It consists of a main-body CPG and limb CPGs. The main-body CPG is a double chain composed of 16 oscillators with nearest-neighbor coupling, which is used to drive the spinal motors. The limb CPGs, on the other hand, consist of four oscillators to drive the limb motors. The CPG oscillation model receives left and right drive signals from the MLR (mesencephalic locomotor region). By modifying these two signals, the speed, direction, and gait of the robot can be adjusted.
In subsequent research [131], the CPG oscillation circuit was expanded to achieve richer biomimetic motions, reproducing five behaviors of the salamander on the Salamandra Robotica II: swimming, struggling, underwater forward movement, terrestrial forward movement, and backward movement. The authors of [115] provided an overview of the development process and control of the Salamandra series robots.

4.3.2. Walknet

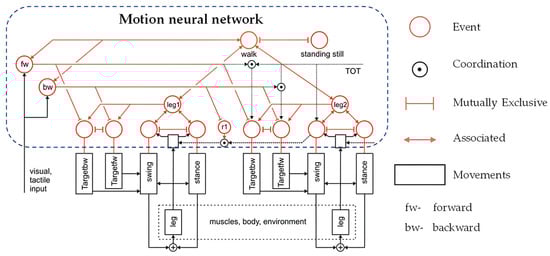

Walknet is a bio-inspired multi-legged robot controller that transforms every movement into an event, constructing the motion neural network through the associative or mutually exclusive relationships between these movement events, as shown in Figure 12. Walknet is capable of both controlling individual limbs and coordinating the movements of multiple limbs. Walknet has been successfully applied to Hector [132]. The authors of [133] provided a detailed introduction to the development history of Walknet, which will not be repeated here.

5. Summary and Future Challenges

Bionic multi-legged robots with flexible bodies exhibit extremely broad application potential, capable of venturing into the polar regions [127], volcanic craters [57], and even distant extraterrestrial planets [41,134,135,136], assisting humanity in exploring those realms filled with unknowns and challenges. Amid the current wave of interdisciplinary convergence, robotics is intertwining with biology, archaeology, neuroscience, medicine, physics, and other fields to an unprecedented depth, collectively unraveling the mysteries of nature and transforming these discoveries into innovative design principles that drive the continuous optimization of robot and control system designs. This is the core strategy of the emerging field of bionic robotics, which aims to create more efficient and intelligent robotic systems by emulating the wisdom of nature [137].
Bionic robots are not only symbols of technological advancement but also powerful tools for scientific exploration. They can validate biological theoretical models, recreate the morphological characteristics of ancient creatures, and even conduct tests that might be difficult or impossible to perform in traditional biological experiments. On the one hand, biology provides a rich foundation of biological system knowledge for the design of bionic robots; on the other hand, these robots offer controlled and efficient experimental platforms for scientists to verify their theories and hypotheses. Notably, many significant and profound scientific discoveries did not stem directly from observations of nature but were derived from studying phenomena within artificial devices. This is because, compared to the intricate and complex phenomena occurring in nature, artificially constructed systems tend to be more simplified and ordered, making them easier for humans to comprehend and analyze [138]. This unique advantage renders bionic robots an irreplaceable role in scientific exploration.
This article provided a comprehensive review of the structure design, motion, and control of robots with flexible bodies, and concluded that bionic robots continue to confront the following challenges:
  • Pursuing more natural patterns in biological morphology and motion
Biomimetic robotics is dedicated to precisely replicating the intricate constructs and motion patterns of animals. This pursuit not only tests design capabilities but also imposes stringent demands on material science, actuation systems, and other hardware components. Specifically, the actuation system, being the heart and soul of a robot’s mobility, often accounts for a significant portion of its overall weight. For instance, in the case of Hector, the actuation system comprised half of the total weight, reaching 55%. For larger bionic robots, the difficulty in designing their actuation systems increases accordingly. The authors of [139] explored the relationship between animal size and locomotor performance and elucidated why the cheetah is an optimal size for speed, providing valuable insights for robot design. Therefore, it is particularly crucial to select appropriate bionic models and determine suitable scaling ratios and parameters for the robots.
To endow robots with smoother and more natural movement, designers continuously integrate more DOFs and compliant elements into their structures, thereby enhancing the robot’s flexibility. However, this requires ensuring the coordinated movement between the limbs and the body.
  • Bridging the sensory gap: integrating massive sensors into robotic systems
One of the key challenges facing biomimetic robots is to narrow the sensory gap between machines and animals. While biological systems exhibit remarkable adaptability in complex and dynamic environments, thanks to their rich sensory information and efficient sensorimotor feedback mechanisms, robotic systems struggle to construct comprehensive external environment models and real-time kinematic models. Inspired by this, bionic robots are gradually integrating massive numbers of sensors into their systems to mimic the sensory prowess of living beings. Even without complex internal models, these sensors enable robots to navigate diverse and challenging environments, relying on accurate local environmental modeling and efficient environmental classification capabilities [90].
  • Exploring simpler and more efficient control algorithms
Considering the significant increase in control complexity for biomimetic robots, as outlined in the two aspects above, the optimization of control strategies and algorithms has become a sustained focus of attention in this field. The continuous updating and iteration of control algorithms are not only inevitable outcomes of technological progress but also critical driving forces propelling biomimetic robots toward higher levels of development. By continually simplifying algorithm structures and enhancing their efficiency and adaptability, it is hoped to endow biomimetic robots with more intelligent and flexible control capabilities, enabling them to play a significant role in an even broader range of applications.
Ultimately, it is hoped that this article can bring positive inspiration and substantial benefits to the research of bionic robots.

Author Contributions

Conceptualization, X.L., Z.S. and J.W. (Jixin Wang); methodology, X.L. and J.W. (Jianhua Wang); investigation, X.L., Z.S., J.L., D.L. and W.T.; resources, D.L. and W.T.; data curation, X.L. and D.L.; writing—original draft preparation, X.L., Z.S. and J.L.; writing—review and editing, J.W. (Jixin Wang) and J.W. (Jianhua Wang); visualization, X.L. and J.L.; supervision, J.W. (Jixin Wang) and J.W. (Jianhua Wang); project administration, J.W. (Jixin Wang); funding acquisition, J.W. (Jixin Wang) and J.W. (Jianhua Wang). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 52272434, the Scientific and Technological Developing Scheme of Jilin Province, grant number 20240304137SF, and the Graduate Innovation Fund of Jilin University, grant numbers 2022107 and 2024CX086.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

Author Dan Liu was employed by the company Inner Mongolia First Machinery Group Co., Ltd, and author Wenqing Tian was employed by the company China FAW Group Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Seok, S.; Wang, A.; Chuah, M.Y.; Otten, D.; Lang, J.; Kim, S. Design Principles for Highly Efficient Quadrupeds and Implementation on the MIT Cheetah Robot. In Proceedings of the 2013 IEEE International Conference on Robotics and Automation, Karlsruhe, Germany, 6–10 May 2013; pp. 3307–3312. [Google Scholar]
  2. Park, S.; Lee, Y.-J. Discontinuous Zigzag Gait Planning of a Quadruped Walking Robot with a Waist-Joint. Adv. Robot. 2007, 21, 143–164. [Google Scholar] [CrossRef]
  3. Park, S.H.; Kim, D.S.; Lee, Y.J. Discontinuous Spinning Gait of a Quadruped Walking Robot with Waist-Joint. In Proceedings of the 2005 IEEE/RSJ International Conference on Intelligent Robots and Systems, Edmonton, AB, Canada, 2–6 August 2005; pp. 2744–2749. [Google Scholar]
  4. Manoonpong, P.; Parlitz, U.; Wörgötter, F. Neural Control and Adaptive Neural Forward Models for Insect-like, Energy-Efficient, and Adaptable Locomotion of Walking Machines. Front. Neural Circuits 2013, 7, 12. [Google Scholar] [CrossRef] [PubMed]
  5. Tang, Z.; Qi, P.; Dai, J. Mechanism Design of a Biomimetic Quadruped Robot. Ind. Robot. 2017, 44, 512–520. [Google Scholar] [CrossRef]
  6. Koyachi, N.; Adachi, H.; Nakamura, T.; Nakano, E. Terrain Following Control of Self-Contained Semi-Fixed Gait Hexapod Walking Robot. In Proceedings of the IEEE International Workshop on Intelligent Robots and Systems, Towards a New Frontier of Applications, Ibaraki, Japan, 3–6 July 1990; pp. 309–314. [Google Scholar]
  7. Bhattacharya, S.; Singla, A.; Abhimanyu; Dholakiya, D.; Bhatnagar, S.; Amrutur, B.; Ghosal, A.; Kolathaya, S. Learning Active Spine Behaviors for Dynamic and Efficient Locomotion in Quadruped Robots. In Proceedings of the 2019 28th IEEE International Conference on Robot and Human Interactive Communication (RO-MAN), New Delhi, India, 14–18 October 2019; pp. 1–6. [Google Scholar]
  8. Dürr, V.; Arena, P.P.; Cruse, H.; Dallmann, C.J.; Drimus, A.; Hoinville, T.; Krause, T.; Mátéfi-Tempfli, S.; Paskarbeit, J.; Patanè, L.; et al. Integrative Biomimetics of Autonomous Hexapedal Locomotion. Front. Neurorobot. 2019, 13, 88. [Google Scholar] [CrossRef] [PubMed]
  9. Bartsch, S.; Birnschein, T.; Cordes, F.; Kã, D. SpaceClimber: Development of a Six-Legged Climbing Robot for Space Exploration. In Proceedings of the ISR 2010 (41st International Symposium on Robotics) and ROBOTIK 2010 (6th German Conference on Robotics), Munich, Germany, 7–9 June 2010; pp. 1–8. [Google Scholar]
  10. Zhao, Q.; Nakajima, K.; Sumioka, H.; Yu, X.; Pfeifer, R. Embodiment Enables the Spinal Engine in Quadruped Robot Locomotion. In Proceedings of the 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems, Vilamoura-Algarve, Portugal, 7–12 October 2012; pp. 2449–2456. [Google Scholar]
  11. Wei, Z.; Song, G.; Sun, H.; Qi, Q.; Gao, Y.; Qiao, G. Turning Strategies for the Bounding Quadruped Robot with an Active Spine. Ind. Robot. 2018, 45, 657–668. [Google Scholar] [CrossRef]
  12. Wei, Z.; Song, G.; Qiao, G.; Zhang, Y.; Sun, H. Design and Implementation of a Leg–Wheel Robot: Transleg. J. Mech. Robot. 2017, 9, 051001. [Google Scholar] [CrossRef]
  13. Pusey, J.L.; Duperret, J.M.; Haynes, G.C.; Knopf, R.; Koditschek, D.E. Free-Standing Leaping Experiments with a Power-Autonomous Elastic-Spined Quadruped. In Proceedings of the Conference on Unmanned Systems Technology XV, Baltimore, MD, USA, 17 May 2013; p. 87410W. [Google Scholar]
  14. Haynes, G.C.; Pusey, J.; Knopf, R.; Johnson, A.M.; Koditschek, D.E. Laboratory on Legs: An Architecture for Adjustable Morphology with Legged Robots. In Proceedings of the Conference on Unmanned Systems Technology XV, Baltimore, MD, USA, 1 May 2012; p. 83870W. [Google Scholar]
  15. Duperret, J.; Kramer, B.; Koditschek, D.E. Core Actuation Promotes Self-Manipulability on a Direct-Drive Quadrupedal Robot. In 2016 International Symposium on Experimental Robotics; Kulić, D., Nakamura, Y., Khatib, O., Venture, G., Eds.; Springer: Cham, Switzerland, 2017; Volume 1, pp. 147–159. [Google Scholar]
  16. Bing, Z.; Rohregger, A.; Walter, F.; Huang, Y.; Lucas, P.; Morin, F.O.; Huang, K.; Knoll, A. Lateral Flexion of a Compliant Spine Improves Motor Performance in a Bioinspired Mouse Robot. Sci. Robot. 2023, 8, eadg7165. [Google Scholar] [CrossRef]
  17. Li, Y.; Ren, T.; Li, Y.; Liu, Q.; Chen, Y. Untethered-Bioinspired Quadrupedal Robot Based on Double-Chamber Pre-Charged Pneumatic Soft Actuators with Highly Flexible Trunk. Soft Robot. 2021, 8, 97–108. [Google Scholar] [CrossRef]
  18. Haruki, C.; Satoshi, N.; Ryuma, N.; Yasuo, K. Dynamic Locomotion of Quadruped with Laterally Parallel Leaf Spring Spine. In Proceedings of the International Conference on Climbing and Walking Robots and the Support Technologies for Mobile Machines, Kuala Lumpur, Malaysia, 26–28 August 2019; pp. 91–98. [Google Scholar]
  19. Weinmeister, K.; Eckert, P.; Witte, H.; Ijspeert, A.-J. Cheetah-Cub-S: Steering of a Quadruped Robot Using Trunk Motion. In Proceedings of the 2015 IEEE International Symposium on Safety, Security, and Rescue Robotics (SSRR), West Lafayette, IN, USA, 18–20 October 2015; pp. 1–6. [Google Scholar]
  20. Sabelhaus, A.P.; van Vuuren, L.J.; Joshi, A.; Zhu, E.; Garnier, H.J.; Sover, K.A.; Navarro, J.; Agogino, A.K.; Agogino, A.M. Design, Simulation, and Testing of a Flexible Actuated Spine for Quadruped Robots. arXiv 2018, arXiv:1804.06527. [Google Scholar]
  21. Lei, J.; Yu, H.; Wang, T. Dynamic Bending of Bionic Flexible Body Driven by Pneumatic Artificial Muscles (PAMs) for Spinning Gait of Quadruped Robot. Chin. J. Mech. Eng. 2016, 29, 11–20. [Google Scholar] [CrossRef]
  22. Tsujita, K.; Miki, K. A Study on Trunk Stiffness and Gait Stability in Quadrupedal Locomotion Using Musculoskeletal Robot. In Proceedings of the 2011 15th International Conference on Advanced Robotics (ICAR), Tallinn, Estonia, 20–23 June 2011; pp. 316–321. [Google Scholar]
  23. Miki, K.; Tsujita, K. A Study of the Effect of Structural Damping on Gait Stability in Quadrupedal Locomotion Using a Musculoskeletal Robot. In Proceedings of the 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems, Vilamoura-Algarve, Portugal, 7–12 October 2012; pp. 1976–1981. [Google Scholar]
  24. Eckert, P.; Sprowitz, A.; Witte, H.; Ijspeert, A.J. Comparing the Effect of Different Spine and Leg Designs for a Small Bounding Quadruped Robot. In Proceedings of the 2015 IEEE International Conference on Robotics and Automation (ICRA), Seattle, WA, USA, 26–30 May 2015; pp. 3128–3133. [Google Scholar]
  25. Seok, S.; Wang, A.; Chuah, M.Y.; Hyun, D.J.; Lee, J.; Otten, D.M.; Lang, J.H.; Kim, S. Design Principles for Energy-Efficient Legged Locomotion and Implementation on the MIT Cheetah Robot. IEEE/ASME Trans. Mechatron. 2015, 20, 1117–1129. [Google Scholar] [CrossRef]
  26. Park, H.W.; Park, S.; Kim, S. Variable-Speed Quadrupedal Bounding Using Impulse Planning: Untethered High-Speed 3D Running of MIT Cheetah 2. In Proceedings of the 2015 IEEE International Conference on Robotics and Automation (ICRA), Seattle, WA, USA, 26–30 May 2015; pp. 5163–5170. [Google Scholar]
  27. Kühn, D.; Bernhard, F.; Grimminger, F.; Simon, S.; Kirchner, F. Development of Passive Spine and Actuated Rear Foot for an Ape-Like Robot. In Proceedings of the Emerging Trends in Mobile Robotics, Nagoya Institute of Technology, Aichi, Japan, 31 August–3 September 2010; pp. 237–244. [Google Scholar]
  28. Takuma, T.; Ikeda, M.; Masuda, T. Facilitating Multi-Modal Locomotion in a Quadruped Robot Utilizing Passive Oscillation of the Spine Structure. In Proceedings of the 2010 IEEE/RSJ International Conference on Intelligent Robots and Systems, Taipei, Taiwan, 18–22 October 2010; pp. 4940–4945. [Google Scholar]
  29. Bidgoly, H.J.; Vafaei, A.; Sadeghi, A.; Ahmadabadi, M.N. Learning Approach to Study Effect of Flexible Spine on Running Behavior of a Quadruped Robot. In Proceedings of the Emerging Trends in Mobile Robotics, Nagoya Institute of Technology, Nagoya Institute of Technology, Aichi, Japan, 31 August–3 September 2010; pp. 1195–1201. [Google Scholar]
  30. Kani, M.H.H.; Derafshian, M.; Bidgoly, H.J.; Ahmadabadi, M.N. Effect of Flexible Spine on Stability of a Passive Quadruped Robot: Experimental Results. In Proceedings of the 2011 IEEE International Conference on Robotics and Biomimetics, Karon Beach, Thailand, 7–11 December 2011; pp. 2793–2798. [Google Scholar]
  31. Zhao, Q.; Laboratory, A. The Effect of Robot Morphology on Locomotion from the Perspective of Spinal Engine in a Quadruped Robot. In Proceedings of the International Conference on Morphological Computation, Venice, Italy, 12–14 September 2012. [Google Scholar]
  32. Duperret, J.M.; Pusey, J.L.; Haynes, G.C.; Koditschek, D.E. Canid, Pronking XRL Preliminary Comparison Dataset. Available online: https://kodlab.seas.upenn.edu/uploads/Jeff/canid_13_tr.pdf (accessed on 13 October 2024).
  33. Lucas, P.; Oota, S.; Conradt, J.; Knoll, A. Development of the Neurorobotic Mouse. In Proceedings of the 2019 IEEE International Conference on Cyborg and Bionic Systems (CBS), Munich, Germany, 18–20 September 2019; pp. 299–304. [Google Scholar]
  34. Sun, H.; Wei, C.; Yao, Y.; Wu, J. Analysis and Experiment of a Bioinspired Multimode Octopod Robot. Chin. J. Mech. Eng. 2023, 36, 142. [Google Scholar] [CrossRef]
  35. Li, C.; Shi, Q.; Gao, Z.; Ma, M.; Ishii, H.; Takanishi, A.; Huang, Q.; Fukuda, T. Design and Optimization of a Lightweight and Compact Waist Mechanism for a Robotic Rat. Mech. Mach. Theory 2020, 146, 103723. [Google Scholar] [CrossRef]
  36. Ijspeert, A.J.; Crespi, A.; Ryczko, D.; Cabelguen, J.-M. From Swimming to Walking with a Salamander Robot Driven by a Spinal Cord Model. Science 2007, 315, 1416–1420. [Google Scholar] [CrossRef]
  37. Eckert, P.; Schmerbauch, A.E.; Horvat, T.; Söhnel, K.; Fischer, M.S.; Witte, H.; Ijspeert, A.J. Towards Rich Motion Skills with the Lightweight Quadruped Robot Serval. Adapt. Behav. 2020, 28, 129–150. [Google Scholar] [CrossRef]
  38. Khoramshahi, M.; Sprowitz, A.; Tuleu, A.; Ahmadabadi, M.N.; Ijspeert, A.J. Benefits of an Active Spine Supported Bounding Locomotion with a Small Compliant Quadruped Robot. In Proceedings of the 2013 IEEE International Conference on Robotics and Automation, Karlsruhe, Germany, 6–10 May 2013; pp. 3329–3334. [Google Scholar]
  39. Narioka, K.; Rosendo, A.; Sproewitz, A.; Hosoda, K. Development of a Minimalistic Pneumatic Quadruped Robot for Fast Locomotion. In Proceedings of the 2012 IEEE International Conference on Robotics and Biomimetics (ROBIO), Guangzhou, China, 11–14 December 2012; pp. 307–311. [Google Scholar]
  40. Ijspeert, A.J.; Cabelguen, J.M. Control of Aquatic and Terrestrial Gaits in Salamander. In Encyclopedia of Computational Neuroscience; Jaeger, D., Jung, R., Eds.; Springer: New York, NY, USA, 2014; pp. 1–9. [Google Scholar]
  41. Chen, G.; Qiao, L.; Wang, B.; Richter, L.; Ji, A. Bionic Design of Multi-Toe Quadruped Robot for Planetary Surface Exploration. Machines 2022, 10, 827. [Google Scholar] [CrossRef]
  42. Kuehn, D.; Grimminger, F.; Beinersdorf, F.; Bernhard, F.; Burchardt, A.; Schilling, M.; Simnofske, M.; Stark, T.; Zenzes, M.; Kirchner, F. Additional DOFs and Sensors for Bio-Inspired Locomotion: Towards Active Spine, Ankle Joints, and Feet for a Quadruped Robot. In Proceedings of the 2011 IEEE International Conference on Robotics and Biomimetics, Karon Beach, Thailand, 7–11 December 2011; pp. 2780–2786. [Google Scholar]
  43. Ota, Y.; Yoneda, K.; Ito, F.; Hirose, S.; Inagaki, Y. Design and Control of 6-DOF Mechanism for Twin-Frame Mobile Robot. Auton. Robot. 2001, 10, 297–316. [Google Scholar] [CrossRef]
  44. Stewart, D. A Platform with Six Degrees of Freedom. Aircr. Eng. 1965, 180, 371–386. [Google Scholar] [CrossRef]
  45. Zhang, X.; Yu, H.; Liu, B.; Gu, X. A Bio-Inspired Quadruped Robot with a Global Compliant Spine. In Proceedings of the 2013 IEEE International Conference on Robotics and Biomimetics (ROBIO), Shenzhen, China, 12–14 December 2013; pp. 1312–1316. [Google Scholar]
  46. Faudzi, A.A.M.; Razif, M.R.M.; Endo, G.; Nabae, H.; Suzumori, K. Soft-Amphibious Robot Using Thin and Soft McKibben Actuator. In Proceedings of the 2017 IEEE International Conference on Advanced Intelligent Mechatronics (AIM), Munich, Germany, 3–7 July 2017; pp. 981–986. [Google Scholar]
  47. Wu, Y.; Yim, J.; Liang, J.; Shao, Z.; Qi, M.; Zhong, J.; Luo, Z.; Yan, X.; Zhang, M.; Wang, X.; et al. Insect-Scale Fast Moving and Ultrarobust Soft Robot. Sci. Robot. 2019, 4, eaax1594. [Google Scholar] [CrossRef]
  48. Tang, Z.; Wang, K.; Spyrakos-Papastavridis, E.; Dai, J.S. Origaker: A Novel Multi-Mimicry Quadruped Robot Based on a Metamorphic Mechanism. J. Mech. Robot. 2022, 14, 060907. [Google Scholar] [CrossRef]
  49. Li, T.; Zhang, C.; Wang, S.; Dai, J.S. Jumping with Expandable Trunk of a Metamorphic Quadruped Robot—The Origaker II. Appl. Sci. 2019, 9, 1778. [Google Scholar] [CrossRef]
  50. Dai, J.S.; Rees Jones, J. Mobility in Metamorphic Mechanisms of Foldable/Erectable Kinds. J. Mech. Des. 1999, 121, 375–382. [Google Scholar] [CrossRef]
  51. Tang, Z.; Dai, J.S. Metamorphic Mechanism and Reconfiguration of a Biomimetic Quadruped Robot. In Proceedings of the Volume 1A: 38th Computers and Information in Engineering Conference; American Society of Mechanical Engineers, Quebec, QC, Canada, 26–29 August 2018; p. V01AT02A039. [Google Scholar]
  52. Zhao, Q.; Ellenberger, B.; Sumioka, H.; Sandy, T.; Pfeifer, R. The Effect of Spine Actuation and Stiffness on a Pneumatically-Driven Quadruped Robot for Cheetah-like Locomotion. In Proceedings of the 2013 IEEE International Conference on Robotics and Biomimetics (ROBIO), Shenzhen, China, 12–14 December 2013; pp. 1807–1812. [Google Scholar]
  53. Dong, H.; Yang, H.; Ding, S.; Li, T.; Yu, H. Bioinspired Amphibious Origami Robot with Body Sensing for Multimodal Locomotion. Soft Robot. 2022, 9, 1198–1209. [Google Scholar] [CrossRef] [PubMed]
  54. Tang, Y.; Chi, Y.; Sun, J.; Huang, T.H.; Maghsoudi, O.H.; Spence, A.; Zhao, J.; Su, H.; Yin, J. Leveraging Elastic Instabilities for Amplified Performance: Spine-Inspired High-Speed and High-Force Soft Robots. Sci. Adv. 2020, 6, eaaz6912. [Google Scholar] [CrossRef]
  55. Wu, J.; Yang, H.; Li, R.; Ruan, Q.; Yan, S.; Yao, Y. Design and Analysis of a Novel Octopod Platform with a Reconfigurable Trunk. Mech. Mach. Theory 2021, 156, 104134. [Google Scholar] [CrossRef]
  56. Hoffman, K.L.; Wood, R.J. Turning Gaits and Optimal Undulatory Gaits for a Modular Centipede-Inspired Millirobot. In Proceedings of the 2012 4th IEEE RAS & EMBS International Conference on Biomedical Robotics and Biomechatronics (BioRob), Rome, Italy, 24–27 June 2012; pp. 1052–1059. [Google Scholar]
  57. Bares, J.E.; Wettergreen, D.S. Dante II: Technical Description, Results, and Lessons Learned. Int. J. Robot. Res. 1999, 18, 621–649. [Google Scholar] [CrossRef]
  58. Fukuda, T.; Adachi, Y.; Hoshino, H.; Matsunaga, I.; Arai, F. An Omni-Directional Six-Legged Walking Robot. Adv. Robot. 1994, 9, 177–191. [Google Scholar] [CrossRef]
  59. Jung, K.S.; Baek, Y.S. Force Distribution of a Six-Legged Walking Robot with High Constant Speed. KSME Int. J. 2000, 14, 131–140. [Google Scholar] [CrossRef]
  60. Kuehn, D.; Schilling, M.; Stark, T.; Zenzes, M.; Kirchner, F. System Design and Testing of the Hominid Robot Charlie: System Design and Testing of the Hominid Robot Charlie. J. Field Robot. 2017, 34, 666–703. [Google Scholar] [CrossRef]
  61. Berns, K.; Ilg, W.; Deck, M.; Albiez, J.; Dillmann, R. Mechanical Construction and Computer Architecture of the Four-Legged Walking Machine BISAM. IEEE/ASME Trans. Mechatron. 1999, 4, 32–38. [Google Scholar] [CrossRef]
  62. Yin, X.; Wang, C.; Xie, G. A Salamander-like Amphibious Robot: System and Control Design. In Proceedings of the 2012 IEEE International Conference on Mechatronics and Automation, Chengdu, China, 5–8 August 2012; pp. 956–961. [Google Scholar]
  63. Lewis, M.A.; Bekey, G.A. Gait Adaptation in a Quadruped Robot. Auton. Robot. 2002, 12, 301–312. [Google Scholar] [CrossRef]
  64. Kuhn, D.; Rommermann, M.; Sauthoff, N.; Grimminger, F.; Kirchner, F. Concept Evaluation of a New Biologically Inspired Robot “LittleApe”. In Proceedings of the 2009 IEEE/RSJ International Conference on Intelligent Robots and Systems, St. Louis, MO, USA, 10–15 October 2009; pp. 589–594. [Google Scholar]
  65. Fukuhara, A.; Koizumi, Y.; Suzuki, S.; Kano, T.; Ishiguro, A. Decentralized Control Mechanism for Body–Limb Coordination in Quadruped Running. Adapt. Behav. 2020, 28, 151–164. [Google Scholar] [CrossRef]
  66. Nyakatura, J.A.; Melo, K.; Horvat, T.; Karakasiliotis, K.; Allen, V.R.; Andikfar, A.; Andrada, E.; Arnold, P.; Lauströer, J.; Hutchinson, J.R.; et al. Reverse-Engineering the Locomotion of a Stem Amniote. Nature 2019, 565, 351–355. [Google Scholar] [CrossRef] [PubMed]
  67. Owaki, D.; Morikawa, L.; Ishiguro, A. Listen to Body’s Message: Quadruped Robot That Fully Exploits Physical Interaction between Legs. In Proceedings of the 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems, Vilamoura-Algarve, Portugal, 7–12 October 2012; pp. 1950–1955. [Google Scholar]
  68. Owaki, D.; Kano, T.; Nagasawa, K.; Tero, A.; Ishiguro, A. Simple Robot Suggests Physical Interlimb Communication Is Essential for Quadruped Walking. J. R. Soc. Interface 2013, 10, 20120669. [Google Scholar] [CrossRef] [PubMed]
  69. Karakasiliotis, K.; Thandiackal, R.; Melo, K.; Horvat, T.; Mahabadi, N.K.; Tsitkov, S.; Cabelguen, J.M.; Ijspeert, A.J. From Cineradiography to Biorobots: An Approach for Designing Robots to Emulate and Study Animal Locomotion. J. R. Soc. Interface 2016, 13, 20151089. [Google Scholar] [CrossRef] [PubMed]
  70. Karakasiliotis, K.; Ijspeert, A.J. Analysis of the Terrestrial Locomotion of a Salamander Robot. In Proceedings of the 2009 IEEE/RSJ International Conference on Intelligent Robots and Systems, St. Louis, MO, USA, 10–15 October 2009; pp. 5015–5020. [Google Scholar]
  71. Haomachai, W.; Shao, D.; Wang, W.; Ji, A.; Dai, Z.; Manoonpong, P. Lateral Undulation of the Bendable Body of a Gecko-Inspired Robot for Energy-Efficient Inclined Surface Climbing. IEEE Robot. Autom. Lett. 2021, 6, 7917–7924. [Google Scholar] [CrossRef]
  72. Wang, C.; Zhang, T.; Wei, X.; Long, Y.; Wang, S. Bio-Inspired Control Strategy Study for the Quadruped Robot with a Segmented Spine. Ind. Robot. 2017, 44, 85–93. [Google Scholar] [CrossRef]
  73. Wang, S.; Shi, Q.; Gao, J.; Wang, Y.; Meng, F.; Li, C.; Huang, Q.; Fukuda, T. Design and Control of a Miniature Quadruped Rat-Inspired Robot. In Proceedings of the 2019 IEEE/ASME International Conference on Advanced Intelligent Mechatronics (AIM), Hong Kong, China, 8–12 July 2019; pp. 346–351. [Google Scholar]
  74. Wang, R.; Xiao, H.; Quan, X.; Gao, J.; Fukuda, T.; Shi, Q. Bioinspired Soft Spine Enables Small-Scale Robotic Rat to Conquer Challenging Environments. Soft Robot. 2024, 11, 70–84. [Google Scholar] [CrossRef]
  75. Kawasaki, R.; Sato, R.; Kazama, E.; Ming, A.; Shimojo, M. Development of a Flexible Coupled Spine Mechanism for a Small Quadruped Robot. In Proceedings of the 2016 IEEE International Conference on Robotics and Biomimetics (ROBIO), Qingdao, China, 3–7 December 2016; pp. 71–76. [Google Scholar]
  76. Suzuki, S.; Kano, T.; Ijspeert, A.J.; Ishiguro, A. Decentralized Control with Cross-Coupled Sensory Feedback between Body and Limbs in Sprawling Locomotion. Bioinspir. Biomim. 2019, 14, 066010. [Google Scholar] [CrossRef]
  77. Wang, W.; Wu, S.; Zhu, P.; Liu, R. Analysis on the Dynamic Climbing Forces of a Gecko Inspired Climbing Robot Based on GPL Model. In Proceedings of the 2015 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Hamburg, Germany, 28 September–2 October 2015; pp. 3314–3319. [Google Scholar]
  78. Chong, B.; Ozkan Aydin, Y.; Gong, C.; Sartoretti, G.; Wu, Y.; Rieser, J.; Xing, H.; Rankin, J.; Michel, K.; Nicieza, A.; et al. Coordination of Back Bending and Leg Movements for Quadrupedal Locomotion. In Proceedings of the Robotics: Science and Systems XIV, Robotics: Science and Systems Foundation, Pittsburgh, PA, USA, 26 June 2018. [Google Scholar]
  79. Chong, B.; Aydin, Y.O.; Gong, C.; Sartoretti, G.; Wu, Y.; Rieser, J.M.; Xing, H.; Schiebel, P.E.; Rankin, J.W.; Michel, K.B.; et al. Coordination of Lateral Body Bending and Leg Movements for Sprawled Posture Quadrupedal Locomotion. Int. J. Robot. Res. 2021, 40, 747–763. [Google Scholar] [CrossRef]
  80. Shi, Q.; Li, C.; Li, K.; Huang, Q.; Ishii, H.; Takanishi, A.; Fukuda, T. A Modified Robotic Rat to Study Rat-Like Pitch and Yaw Movements. IEEE/ASME Trans. Mechatron. 2018, 23, 2448–2458. [Google Scholar] [CrossRef]
  81. Shi, Q.; Ishii, H.; Sugita, H.; Kinoshita, S.; Lin, Z.; Takanishi, A.; Okabayashi, S.; Iida, N.; Kimura, H. A Rat-like Robot WR-5 for Animal Behavior Research. In Proceedings of the 2012 IEEE International Conference on Robotics and Biomimetics (ROBIO), Guangzhou, China, 11–14 December 2012; pp. 784–789. [Google Scholar]
  82. Ishii, H.; Komura, A.; Masuda, Y.; Miyagishima, S.; Takanishi, A.; Okabayashi, S.; Iida, N.; Kimura, H. Development of Quadruped Animaroid for Social Interaction Test with Rats and Mice. In Proceedings of the 2009 IEEE/ASME International Conference on Advanced Intelligent Mechatronics, Singapore, 14–17 July 2009; pp. 1724–1729. [Google Scholar]
  83. Ishii, H.; Masuda, Y.; Miyagishima, S.; Fumino, S.; Takanishi, A.; Laschi, C.; Mazzolai, B.; Mattoli, V.; Dario, P. Design and Development of Biomimetic Quadruped Robot for Behavior Studies of Rats and Mice. In Proceedings of the 2009 Annual International Conference of the IEEE Engineering in Medicine and Biology Society, Minneapolis, MN, USA, 3–6 September 2009; pp. 7192–7195. [Google Scholar]
  84. Shi, Q.; Miyagishima, S.; Konno, S.; Fumino, S.; Ishii, H.; Takanishii, A.; Laschi, C.; Mazzolai, B.; Mattoli, V.; Dario, P. Development of the Hybrid Wheel-Legged Mobile Robot WR-3 Designed to Interact with Rats. In Proceedings of the 2010 3rd IEEE RAS & EMBS International Conference on Biomedical Robotics and Biomechatronics, Tokyo, Japan, 26–29 September 2010; pp. 887–892. [Google Scholar]
  85. Li, W.; Zhou, Z.; Cheng, H. Dynamic Locomotion of a Quadruped Robot with Active Spine via Model Predictive Control. In Proceedings of the 2023 IEEE International Conference on Robotics and Automation (ICRA), London, UK, 29 May–2 June 2023; pp. 1185–1191. [Google Scholar]
  86. Steingrube, S.; Timme, M.; Wörgötter, F.; Manoonpong, P. Self-Organized Adaptation of a Simple Neural Circuit Enables Complex Robot Behaviour. Nat. Phys 2010, 6, 224–230. [Google Scholar] [CrossRef]
  87. Sastra, J.; Bernal Heredia, W.G.; Clark, J.; Yim, M. A Biologically-Inspired Dynamic Legged Locomotion with a Modular Reconfigurable Robot. In Proceedings of the ASME 2008 Dynamic Systems and Control Conference, Parts A and B, Ann Arbor, MI, USA, 20–22 October 2008; ASMEDC: Ann Arbor, MI, USA, 2008; pp. 1467–1474. [Google Scholar]
  88. Doroftei, I.; Preumont, A. Development of an Autonomous Micro Walking Robot with Articulated Body. In Proceedings of the 2nd International Conference on Climbing and Walking Robots, Westminster, UK, 13 September 1999; pp. 497–507. [Google Scholar]
  89. Rasakatla, S.; Krishna, K.M.; Indurkhya, B. Design, Construction and a Compliant Gait of “ModPod”: A Modular Hexpod Robot. In Proceedings of the 2010 IEEE International Conference on Robotics and Biomimetics, Tianjin, China, 14–18 December 2010; pp. 1341–1345. [Google Scholar]
  90. Dirk, S.; Frank, K. The Bio-Inspired SCORPION Robot: Design, Control & Lessons Learned. In Climbing and Walking Robots: Towards New Applications; Zhang, H., Ed.; I-Tech Education and Publishing: Rijeka, Croatia, 2007; pp. 197–221. [Google Scholar]
  91. Aoi, S.; Egi, Y.; Tsuchiya, K. Instability-Based Mechanism for Body Undulations in Centipede Locomotion. Phys. Rev. E 2013, 87, 012717. [Google Scholar] [CrossRef] [PubMed]
  92. Hoffman, K.L.; Wood, R.J. Passive Undulatory Gaits Enhance Walking in a Myriapod Millirobot. In Proceedings of the 2011 IEEE/RSJ International Conference on Intelligent Robots and Systems, San Francisco, CA, USA, 25–30 September 2011; pp. 1479–1486. [Google Scholar]
  93. Dooyeol, K.; Jaemin, Y.; Soohyun, K. Centipede Robot for Uneven Terrain Exploration: Design and Experiment of the Flexible Biomimetic Robot Mechanism. In Proceedings of the 2010 3rd IEEE RAS & EMBS International Conference on Biomedical Robotics and Biomechatronics, Tokyo, Japan, 26–29 September 2010; pp. 877–881. [Google Scholar]
  94. Kano, T.; Ikeshita, Y.; Fukuhara, A.; Ishiguro, A. Body-Limb Coordination Mechanism Underlying Speed-Dependent Gait Transitions in Sea Roaches. Sci. Rep. 2019, 9, 2848. [Google Scholar] [CrossRef] [PubMed]
  95. Daltorio, K.A.; Witushynsky, T.C.; Wile, G.D.; Palmer, L.R.; Ab Malek, A.; Ahmad, M.R.; Southard, L.; Gorb, S.N.; Ritzmann, R.E.; Quinn, R.D. A Body Joint Improves Vertical to Horizontal Transitions of a Wall-Climbing Robot. In Proceedings of the 2008 IEEE International Conference on Robotics and Automation, Pasadena, CA, USA, 19–23 May 2008; pp. 3046–3051. [Google Scholar]
  96. Allen, T.J.; Quinn, R.D.; Bachmann, R.J.; Ritzmann, R.E. Abstracted Biological Principles Applied with Reduced Actuation Improve Mobility of Legged Vehicles. In Proceedings of the 2003 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS 2003) (Cat. No.03CH37453), Las Vegas, NV, USA, 27–31 October 2003; pp. 1370–1375. [Google Scholar]
  97. Boxerbaum, A.S.; Werk, P.; Quinn, R.D.; Vaidyanathan, R. Design of an Autonomous Amphibious Robot for Surf Zone Operation: Part I Mechanical Design for Multi-Mode Mobility. In Proceedings of the 2005 IEEE/ASME International Conference on Advanced Intelligent Mechatronics, Monterey, CA, USA, 24–28 July 2005; pp. 1459–1464. [Google Scholar]
  98. Duperret, J.; Koditschek, D.E. Empirical Validation of a Spined Sagittal-Plane Quadrupedal Model. In Proceedings of the 2017 IEEE International Conference on Robotics and Automation (ICRA), Singapore, 29 May–3 June 2017; pp. 1058–1064. [Google Scholar]
  99. Chen, D.; Li, N.; Wang, H.; Chen, L. Effect of Flexible Spine Motion on Energy Efficiency in Quadruped Running. J. Bionic Eng. 2017, 14, 716–725. [Google Scholar] [CrossRef]
  100. Zhao, Q.; Sumioka, H.; Nakajima, K.; Yu, X.; Pfeifer, R. Spine as an Engine: Effect of Spine Morphology on Spine-Driven Quadruped Locomotion. Adv. Robot. 2014, 28, 367–378. [Google Scholar] [CrossRef]
  101. Zhao, Q.; Sumioka, H.; Yu, X.; Nakajima, K.; Wang, Z.; Pfeifer, R. The Function of the Spine and Its Morphological Effect in Quadruped Robot Locomotion. In Proceedings of the 2012 IEEE International Conference on Robotics and Biomimetics (ROBIO), Guangzhou, China, 11–14 December 2012; pp. 66–71. [Google Scholar]
  102. Kani, M.H.H.; Nili Ahmadabadi, M. Comparing Effects of Rigid, Flexible, and Actuated Series-Elastic Spines on Bounding Gait of Quadruped Robots. In Proceedings of the 2013 First RSI/ISM International Conference on Robotics and Mechatronics (ICRoM), Tehran, Iran, 13–15 February 2013; pp. 282–287. [Google Scholar]
  103. Deng, Q.; Wang, S.; Xu, W.; Mo, J.; Liang, Q. Quasi Passive Bounding of a Quadruped Model with Articulated Spine. Mech. Mach. Theory 2012, 52, 232–242. [Google Scholar] [CrossRef]
  104. Cao, Q.; Poulakakis, I. Quadrupedal Bounding with a Segmented Flexible Torso: Passive Stability and Feedback Control. Bioinspir. Biomim. 2013, 8, 046007. [Google Scholar] [CrossRef]
  105. Cao, Q.; Poulakakis, I. Passive Quadrupedal Bounding with a Segmented Flexible Torso. In Proceedings of the 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems, Vilamoura-Algarve, Portugal, 7–12 October 2012; pp. 2484–2489. [Google Scholar]
  106. Koutsoukis, K.; Papadopoulos, E. On Passive Quadrupedal Bounding with Translational Spinal Joint. In Proceedings of the 2016 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Daejeon, Republic of Korea, 9–14 October 2016; pp. 3406–3411. [Google Scholar]
  107. Culha, U.; Saranli, U. Quadrupedal Bounding with an Actuated Spinal Joint. In Proceedings of the 2011 IEEE International Conference on Robotics and Automation, Shanghai, China, 9–13 May 2011; pp. 1392–1397. [Google Scholar]
  108. Liu, Q.; Bao, Y.; Yu, W.; Zhang, J.; Li, C.; Xie, X. Mechanism of Spine Motion About Contact Time in Quadruped Running. Chin. J. Mech. Eng. 2019, 32, 18. [Google Scholar] [CrossRef]
  109. Fisher, C.; Shield, S.; Patel, A. The Effect of Spine Morphology on Rapid Acceleration in Quadruped Robots. In Proceedings of the 2017 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Vancouver, BC, Canada, 24–28 September 2017; pp. 2121–2127. [Google Scholar]
  110. Yesilevskiy, Y.; Yang, W.; Remy, C.D. Spine Morphology and Energetics: How Principles from Nature Apply to Robotics. Bioinspir. Biomim. 2018, 13, 036002. [Google Scholar] [CrossRef]
  111. Wang, C.; Zhang, T.; Wei, X.; Long, Y.; Wang, S. Dynamic Characteristics and Stability Criterion of Rotary Galloping Gait with an Articulated Passive Spine Joint. Adv. Robot. 2017, 31, 168–183. [Google Scholar] [CrossRef]
  112. Gracovetsky, S. An Hypothesis for the Role of the Spine in Human Locomotion: A Challenge to Current Thinking. J. Biomed. Eng. 1985, 7, 205–216. [Google Scholar] [CrossRef] [PubMed]
  113. Autumn, K.; Hsieh, S.T.; Dudek, D.M.; Chen, J.; Chitaphan, C.; Full, R.J. Dynamics of Geckos Running Vertically. J. Exp. Biol. 2006, 209, 260–272. [Google Scholar] [CrossRef] [PubMed]
  114. Suzuki, S.; Kano, T.; Ijspeert, A.J.; Ishiguro, A. Sprawling Quadruped Robot Driven by Decentralized Control With Cross-Coupled Sensory Feedback Between Legs and Trunk. Front. Neurorobot. 2021, 14, 607455. [Google Scholar] [CrossRef] [PubMed]
  115. Ijspeert, A.J. Amphibious and Sprawling Locomotion: From Biology to Robotics and Back. Annu. Rev. Control Robot. Auton. Syst. 2020, 3, 173–193. [Google Scholar] [CrossRef]
  116. Karakasiliotis, K.; Schilling, N.; Cabelguen, J.-M.; Ijspeert, A.J. Where Are We in Understanding Salamander Locomotion: Biological and Robotic Perspectives on Kinematics. Biol. Cybern. 2013, 107, 529–544. [Google Scholar] [CrossRef]
  117. Zhang, C.; Dai, J.S. Continuous Static Gait with Twisting Trunk of a Metamorphic Quadruped Robot. Mech. Sci. 2018, 9, 1–14. [Google Scholar] [CrossRef]
  118. Zhen, W. Gait Planning of a Novel Metamorphic Quadruped Robot. J. Mech. Eng. 2016, 52, 26. [Google Scholar] [CrossRef]
  119. Zhang, C.; Zhang, C.; Dai, J.S.; Qi, P. Stability Margin of a Metamorphic Quadruped Robot with a Twisting Trunk. J. Mech. Robot. 2019, 11, 064501. [Google Scholar] [CrossRef]
  120. Zhang, C.; Wang, X.; Wang, X.; Dai, J.S. Modeling for a Metamorphic Quadruped Robot with a Twisting Trunk: Kinematic and Workspace. In Proceedings of the IECON 2017—43rd Annual Conference of the IEEE Industrial Electronics Society, Beijing, China, 29 October–1 November 2017; pp. 6886–6892. [Google Scholar]
  121. Goldschmidt, D.; Hesse, F.; Worgotter, F.; Manoonpong, P. Biologically Inspired Reactive Climbing Behavior of Hexapod Robots. In Proceedings of the 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems, Vilamoura-Algarve, Portugal, 7–12 October 2012; pp. 4632–4637. [Google Scholar]
  122. Daltorio, K.A.; Wei, T.E.; Horchler, A.D.; Southard, L.; Wile, G.D.; Quinn, R.D.; Gorb, S.N.; Ritzmann, R.E. Mini-Whegs TM Climbs Steep Surfaces Using Insect-Inspired Attachment Mechanisms. Int. J. Robot. Res. 2009, 28, 285–302. [Google Scholar] [CrossRef]
  123. Shi, Q.; Ishii, H.; Kinoshita, S.; Konno, S.; Takanishi, A.; Okabayashi, S.; Iida, N.; Kimura, H. A Rat-like Robot for Interacting with Real Rats. Robotica 2013, 31, 1337–1350. [Google Scholar] [CrossRef]
  124. Shi, Q.; Ishii, H.; Sugahara, Y.; Takanishi, A.; Huang, Q.; Fukuda, T. Design and Control of a Biomimetic Robotic Rat for Interaction with Laboratory Rats. IEEE/ASME Trans. Mechatron. 2015, 20, 1832–1842. [Google Scholar] [CrossRef]
  125. Shi, Q.; Gao, Z.; Jia, G.; Li, C.; Huang, Q.; Ishii, H.; Takanishi, A.; Fukuda, T. Implementing Rat-Like Motion for a Small-Sized Biomimetic Robot Based on Extraction of Key Movement Joints. IEEE Trans. Robot. 2021, 37, 747–762. [Google Scholar] [CrossRef]
  126. Shi, Q.; Gao, J.; Wang, S.; Quan, X.; Jia, G.; Huang, Q.; Fukuda, T. Development of a Small-Sized Quadruped Robotic Rat Capable of Multimodal Motions. IEEE Trans. Robot. 2022, 38, 3027–3043. [Google Scholar] [CrossRef]
  127. Wettergreen, D.; Thorpe, C.; Whittaker, R. Exploring Mount Erebus by Walking Robot. Robot. Auton. Syst. 1993, 11, 171–185. [Google Scholar] [CrossRef]
  128. Shi, Q.; Ishii, H.; Miyagishima, S.; Konno, S.; Fumino, S.; Takanishi, A.; Okabayashi, S.; Iida, N.; Kimura, H. Development of a Hybrid Wheel-Legged Mobile Robot WR-3 Designed for the Behavior Analysis of Rats. Adv. Robot. 2011, 25, 2255–2272. [Google Scholar] [CrossRef]
  129. Horvat, T.; Melo, K.; Ijspeert, A.J. Spine Controller for a Sprawling Posture Robot. IEEE Robot. Autom. Lett. 2017, 2, 1195–1202. [Google Scholar] [CrossRef]
  130. Ozkan-Aydin, Y.; Goldman, D.I. Self-Reconfigurable Multilegged Robot Swarms Collectively Accomplish Challenging Terradynamic Tasks. Sci. Robot. 2021, 6, eabf1628. [Google Scholar] [CrossRef]
  131. Knüsel, J.; Crespi, A.; Cabelguen, J.M.; Ijspeert, A.J.; Ryczko, D. Reproducing Five Motor Behaviors in a Salamander Robot with Virtual Muscles and a Distributed CPG Controller Regulated by Drive Signals and Proprioceptive Feedback. Front. Neurorobot. 2020, 14, 604426. [Google Scholar] [CrossRef]
  132. Schilling, M.; Paskarbeit, J.; Hoinville, T.; Hüffmeier, A.; Schneider, A.; Schmitz, J.; Cruse, H. A Hexapod Walker Using a Heterarchical Architecture for Action Selection. Front. Comput. Neurosci. 2013, 7, 126. [Google Scholar] [CrossRef]
  133. Schilling, M.; Hoinville, T.; Schmitz, J.; Cruse, H. Walknet, a Bio-Inspired Controller for Hexapod Walking. Biol. Cybern. 2013, 107, 397–419. [Google Scholar] [CrossRef] [PubMed]
  134. Chen, G.; Qiao, L.; Zhou, Z.; Lei, X.; Zou, M.; Richter, L.; Ji, A. Biomimetic Lizard Robot for Adapting to Martian Surface Terrain. Bioinspir. Biomim. 2024, 19, 036005. [Google Scholar] [CrossRef] [PubMed]
  135. Chen, G.; Qiao, L.; Zhou, Z.; Richter, L.; Ji, A. Development of a Lizard-Inspired Robot for Mars Surface Exploration. Biomimetics 2023, 8, 44. [Google Scholar] [CrossRef] [PubMed]
  136. Bartsch, S. Development, Control, and Empirical Evaluation of the Six-Legged Robot SpaceClimber Designed for Extraterrestrial Crater Exploration. Künstl. Intell. 2014, 28, 127–131. [Google Scholar] [CrossRef]
  137. Vitiello, N.; Ijspeert, A.J.; Schaal, S. Bioinspired Motor Control for Articulated Robots [From the Guest Editors]. IEEE Robot. Automat. Mag. 2016, 23, 20–21. [Google Scholar] [CrossRef]
  138. Aydin, Y.O.; Rieser, J.M.; Hubicki, C.M.; Savoie, W.; Goldman, D.I. Physics Approaches to Natural Locomotion: Every Robot Is an Experiment. In Robotic Systems and Autonomous Platforms; Shawn, M., Walsh, M.S., Strano, Eds.; Elsevier: Amsterdam, The Netherlands, 2019; pp. 109–127. [Google Scholar]
  139. Labonte, D.; Bishop, P.J.; Dick, T.J.M.; Clemente, C.J. Dynamic Similarity and the Peculiar Allometry of Maximum Running Speed. Nat. Commun. 2024, 15, 2181. [Google Scholar] [CrossRef]
Biomimetics 09 00628 g001

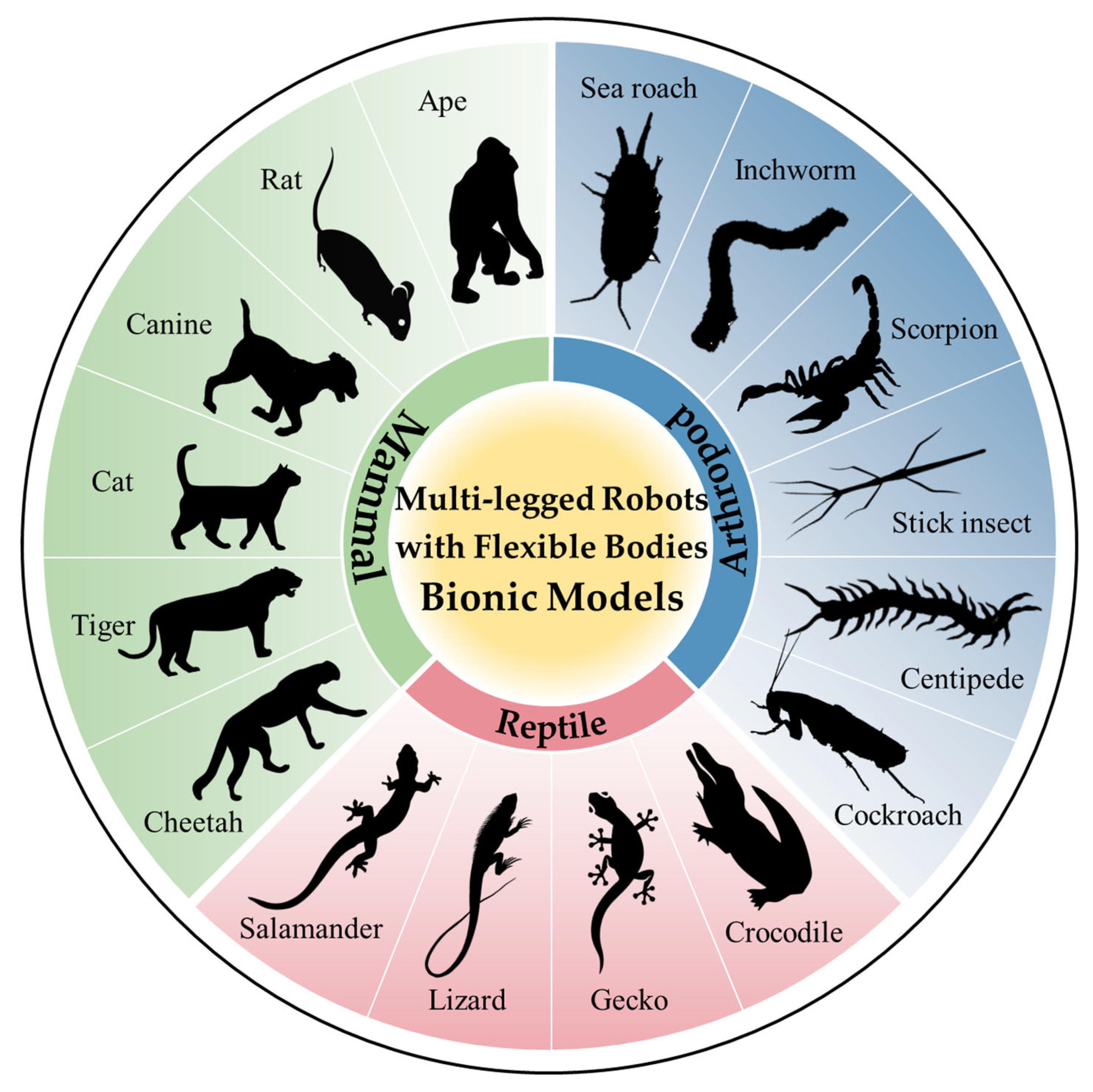

Figure 1. Bionic models of multi-legged robots with flexible bodies.
Figure 1. Bionic models of multi-legged robots with flexible bodies.
Biomimetics 09 00628 g001
Biomimetics 09 00628 g002

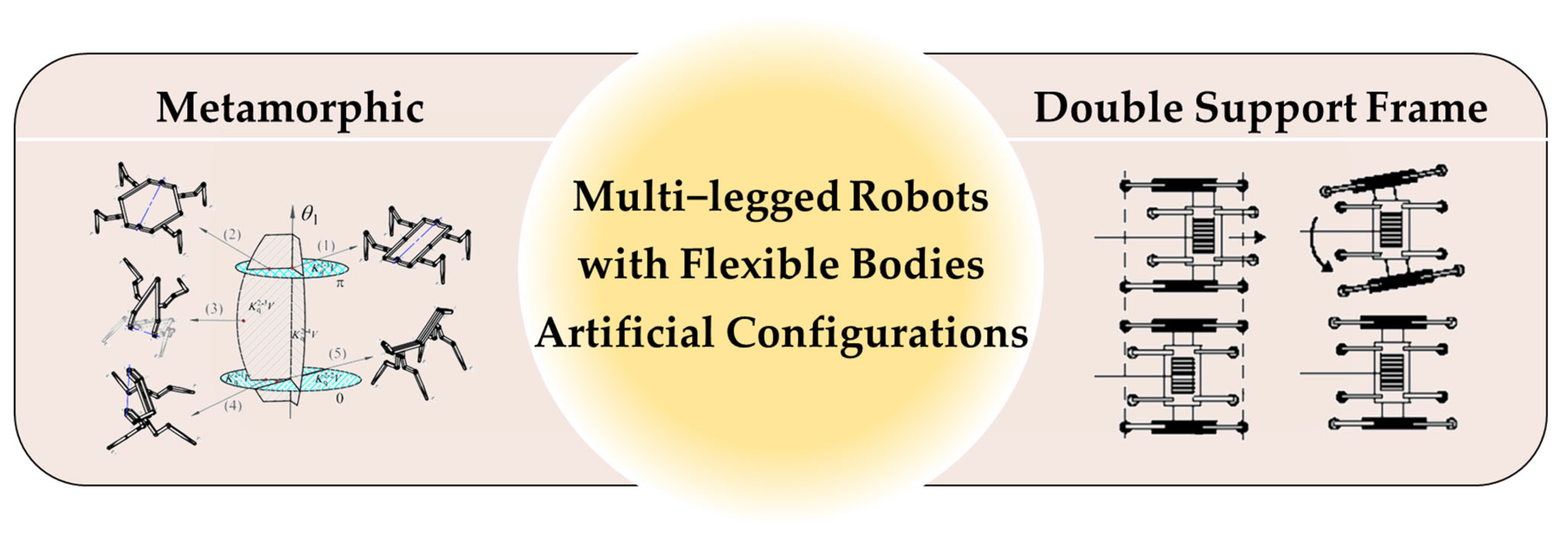

Figure 2. Artificial configurations of robots with flexible bodies.
Figure 2. Artificial configurations of robots with flexible bodies.
Biomimetics 09 00628 g002
Biomimetics 09 00628 g003

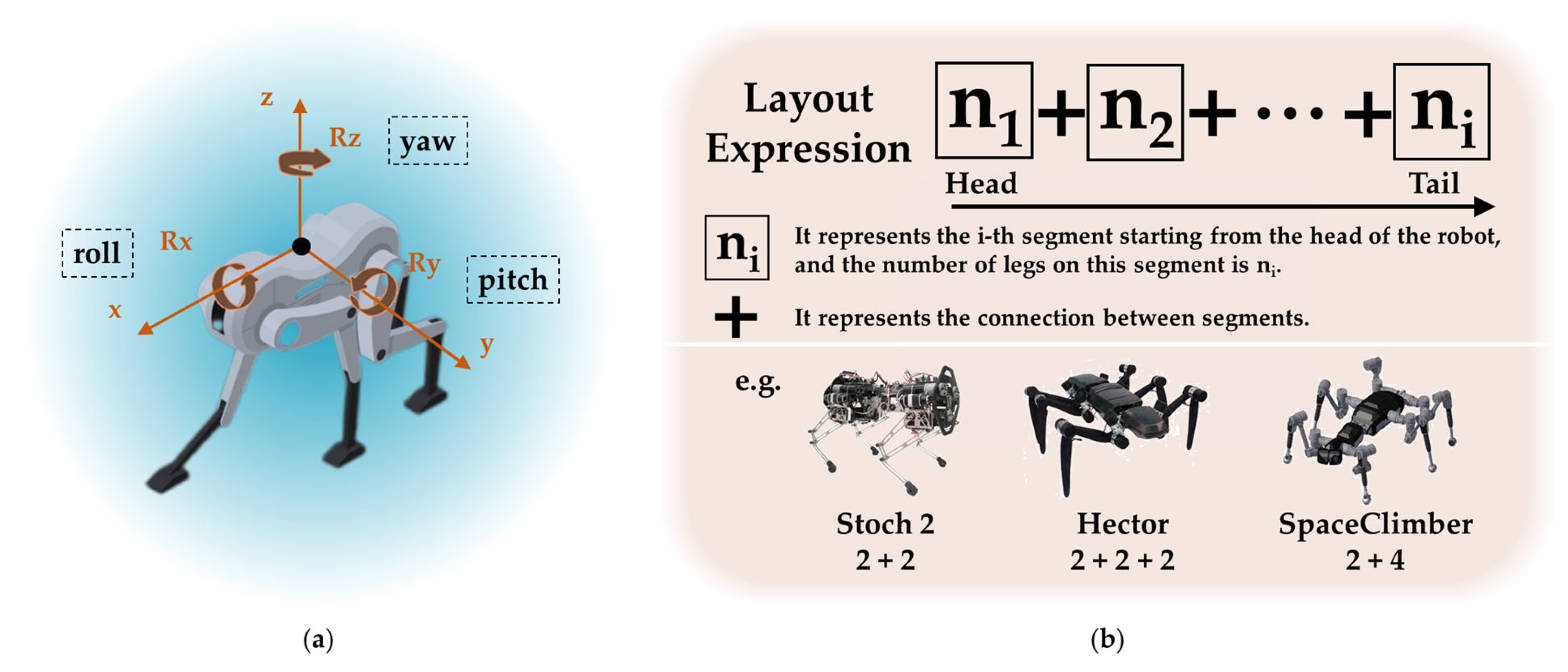

Figure 3. (a) The coordinate system of the robot. (b) The robot structural layout expression, and examples: Stoch 2 consists of two segments, with two legs on each segment [7]. Hector is composed of three segments, with two legs on each segment [8]. SpaceClimber is comprised of two segments, with two legs on the head segment and four legs on the tail segment [9].
Figure 3. (a) The coordinate system of the robot. (b) The robot structural layout expression, and examples: Stoch 2 consists of two segments, with two legs on each segment [7]. Hector is composed of three segments, with two legs on each segment [8]. SpaceClimber is comprised of two segments, with two legs on the head segment and four legs on the tail segment [9].
Biomimetics 09 00628 g003
Biomimetics 09 00628 g004
Figure 4. Some typical robots with artificial spines. (a) Kitty [31], (b) Canid [32], (c) NeRmo [33], (d) Cheetah-Cub-S [19], (e) Laika [20], and (f) QuaDRoPECS [18].
Figure 4. Some typical robots with artificial spines. (a) Kitty [31], (b) Canid [32], (c) NeRmo [33], (d) Cheetah-Cub-S [19], (e) Laika [20], and (f) QuaDRoPECS [18].
Biomimetics 09 00628 g004
Biomimetics 09 00628 g005
Figure 5. Five articulation types for robot segments: Bobcat [38], Ken [39], and Salamandra Robotica I [40], with permission from AAAS, Serval [37], and unnamed robot in [41].
Figure 5. Five articulation types for robot segments: Bobcat [38], Ken [39], and Salamandra Robotica I [40], with permission from AAAS, Serval [37], and unnamed robot in [41].
Biomimetics 09 00628 g005
Biomimetics 09 00628 g006
Figure 6. Other designs for robots with flexible bodies: (a) Charlie [60], (b) Hector [8], (c) Origaker [48], and (d) unnamed robot in [58].
Figure 6. Other designs for robots with flexible bodies: (a) Charlie [60], (b) Hector [8], (c) Origaker [48], and (d) unnamed robot in [58].
Biomimetics 09 00628 g006
Biomimetics 09 00628 g007
Figure 7. Sagittal plan motion models for bounding and galloping. (a) The spinal motion of a cheetah while it is galloping (figure captured from [54]). (b) Motion model with single-axis articulation. (c) Motion model with linear spring. (d) Motion model for asymmetric gait.
Figure 7. Sagittal plan motion models for bounding and galloping. (a) The spinal motion of a cheetah while it is galloping (figure captured from [54]). (b) Motion model with single-axis articulation. (c) Motion model with linear spring. (d) Motion model for asymmetric gait.
Biomimetics 09 00628 g007
Biomimetics 09 00628 g008

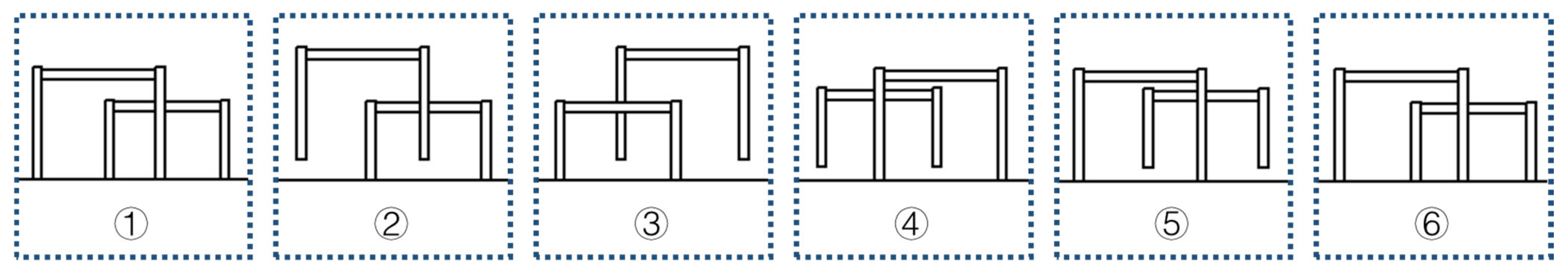

Figure 8. Discontinuous walking motion sequence. The numbers 1−6 in the figure indicate the sequence of discontinuous walking motion.
Figure 8. Discontinuous walking motion sequence. The numbers 1−6 in the figure indicate the sequence of discontinuous walking motion.
Biomimetics 09 00628 g008
Biomimetics 09 00628 g009
Figure 9. Distributed control with cross-coupled sensory feedback.
Figure 9. Distributed control with cross-coupled sensory feedback.
Biomimetics 09 00628 g009
Biomimetics 09 00628 g010
Figure 10. Hierarchical control architecture.
Figure 10. Hierarchical control architecture.
Biomimetics 09 00628 g010
Biomimetics 09 00628 g011
Figure 11. CPG oscillation model control. Figure captured from [40] with permission from AAAS. The meanings of the various parts in the figure can be found in reference [40].
Figure 11. CPG oscillation model control. Figure captured from [40] with permission from AAAS. The meanings of the various parts in the figure can be found in reference [40].
Biomimetics 09 00628 g011
Biomimetics 09 00628 g012

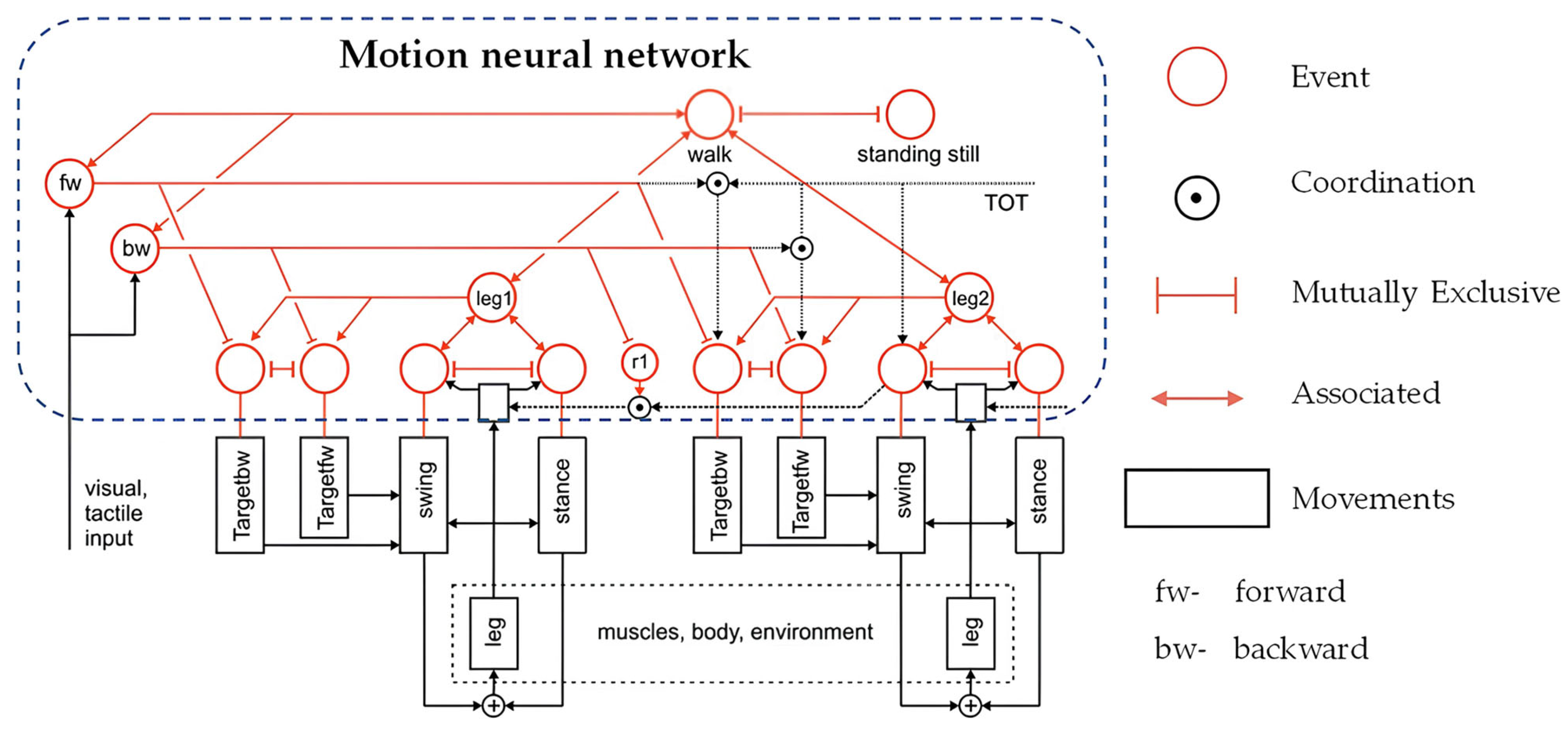

Figure 12. A section of Walknet showing two leg controllers. Figure modified from [133].
Figure 12. A section of Walknet showing two leg controllers. Figure modified from [133].
Biomimetics 09 00628 g012
Table 1. The characteristics of active spine, compliant spine, single-axis articulation, and multi-axis articulation.
Table 1. The characteristics of active spine, compliant spine, single-axis articulation, and multi-axis articulation.
Ways to Achieve Flexible BodiesAdvantagesDisadvantages
Active spineHigh flexibility: An active spine can dynamically adjust according to the environment and tasks, providing higher flexibility and adaptability.
Better motion performance: It can simulate the movements of animals, enhancing the robot motion ability in complex environments.
High control precision: Through a precise control system, an active spine can achieve higher motion precision and coordination, aiding in the completion of complex operational tasks.		More complexity: The design and control system of an active spine are relatively complex, requiring more sensors and control algorithms, which increases the complexity of the robot and the risk of failure.
High-energy consumption: Due to the need for continuous energy to drive motors and the control system, an active spine typically consumes more energy.
High cost: The manufacturing and maintenance costs of an active spine are higher.
Compliant spineSimplicity: The design of a compliant spine is relatively simple, reducing the driving element and control systems.
Low-energy consumption: Since it does not require driving elements, a compliant spine consumes less energy.		Movement limitations: Due to the lack of active control, a passive spine may perform poorly in certain movement modes, limiting the robot’s motion ability.
Poor stability: During rapid movement or on uneven ground, a compliant spine may not provide enough stability, increasing the risk of tipping over.
Single-axis articulationSimple structure: It is relatively simple, reducing the number of mechanical components.
Easy control: Due to the limited range of motion, the control system is relatively straightforward, making it easier to implement basic tasks.		Limited flexibility: Single-axis articulation restricts the robot’s ability to move in multiple directions, resulting in lower adaptability and difficulty in handling complex environments. Movement is limited to a single plane.
Multi-axis articulationHigh flexibility: The multi-axis design allows for movement in multiple directions, adapting to complex environments and diverse tasks.
Wide range of motion: It can perform more complex motions, such as large-angle turning and bending.		Complex structure: The multi-axis articulated design increases the number of mechanical components.
Greater control difficulty: Due to the broad range of motion, the control system becomes more complex, requiring advanced algorithms and sensors to achieve precise movement control.
Table 2. Quadruped robots with flexible bodies.
Table 2. Quadruped robots with flexible bodies.
RobotRefWays to Achieve Flexible Body Gained DOFLayoutActive/
Compliant		Bionic Model
BISAM[61]Single-axis articulation,
Rigid connection		Ry2 + 2ActiveApe
Bobcat[38]Single-axis articulation,
Rigid connection		Ry2 + 2ActiveNot Given
Canid[14]Artificial spineRy2 + 2ActiveNot Given
Charlie[42]Stewart platformOmnidirectional2 + 2ActiveApe
Cheetah-Cub-S[19]Artificial spineRz2 + 2ActiveCheetah
Cheetah-I[1]Artificial spineRz2 + 2CompliantCheetah
Chigon[62]Multi-axis articulation,
Rigid connection		Rz, Ry2 + 2ActiveSalamander
ELIRO-I/II[2,3]Single-axis articulation,
Rigid connection		Rz2 + 2ActiveLizard
Fanari[30]Artificial spineRy2 + 2CompliantTiger
GEO-II[63]Multi-axis articulation,
Rigid connection		Rz, Rx2 + 2ActiveNot Given
Inu[15]Artificial spineRy2 + 2ActiveNot Given
Ken[39]Single-axis articulation,
Rigid connection		Ry2 + 2CompliantNot Given
Kitty[10]Artificial spineRz, Ry2 + 2ActiveNot Given
Laika[20]Artificial spineRz, Ry, Rx2 + 2ActiveNot Given
LightDog[45]Integrated
Elastic material		Rz2 + 2CompliantDog
LittleApe[64]Artificial spineRz, Ry2 + 2CompliantApe
Lynx SV1[24]Single-axis articulation,
Rigid connection		Ry2 + 2ActiveNot Given
Lynx SV2 and SV3[24]Artificial spineRy2 + 2ActiveNot Given
NekoBot[65]Single-axis articulation,
Rigid connection		Ry2 + 2ActiveNot Given
NeRmo[33]Artificial spineRz, Ry2 + 2ActiveRat
Origaker[5]Metamorphic 2 + 2Active
OroBOT[66]Multi-axis articulation,
Rigid connection		Rz2 + 2ActiveOrobates 1
OSCILLEX 2/3[67,68]Single-axis articulation,
Spring connection		Ry, Rx2 + 2CompliantNot Given
Pleurobot[69]Multi-axis articulation,
Rigid connection		Rz2 + 2ActiveSalamander
QuaDRoPECS[18]Artificial spineRz, Ry2 + 2ActiveNot Given
Renny[52]Spheric jointRz, Ry, Rx2 + 2ActiveCheetah
Salamandra
Robotica I 2		[36]Multi-axis articulation,
Rigid connection		Rz2 + 0 + 0 + 2 + 0 + 0 + 0ActiveSalamander
Salamandra
Robotica II 3		[70]Multi-axis articulation,
Rigid connection		Rz0 + 2 + 0 + 0 + 0 + 2 + 0 + 0 + 0ActiveSalamander
Serval[37]Multi-axis articulation,
Spring connection		Rz, Ry2 + 2ActiveDog
Slalom[71]Multi-axis articulation,
Rigid connection		Rz2 + 2CompliantGecko
SQBot[72]Single-axis articulation,
Spring connection		Ry2 + 2CompliantCheetah
SQuRo[73]Multi-axis articulation,
Rigid connection		Rz2 + 2ActiveRat
SQuRo-S[74]Artificial spineRz, Ry, Rx2 + 2ActiveRat
Stoch 2[7]Multi-axis articulation,
Rigid connection		Ry2 + 2ActiveCheetah
Sugoi-Neco[75]Single-axis articulation,
Spring connection		Ry2 + 2CompliantCat
Tiger[29]Artificial spineRy2 + 2CompliantTiger
Transleg[12]Artificial spineRz, Ry2 + 2ActiveNot Given
Twister[76]Single-axis articulation,
Rigid connection		Rz2 + 2ActiveNot Given
Unnamed[46]Integrated
Elastic material		Rz2 + 2ActiveLizard
Unnamed[53]Octagon-origamiRz, X2 + 2ActiveInchworm
Unnamed[47]Piezoelectric materialRy2 + 2ActiveCockroach
Unnamed[28]Artificial spineRz2 + 2CompliantNot Given
Unnamed[54]Soft structureRy2 + 2CompliantCheetah
Unnamed[17]Artificial spineRz2 + 2ActiveDog
Unnamed[22]Artificial spineRz, Ry, Rx2 + 2ActiveCat
Unnamed[21]Artificial spineRz, Ry2 + 2ActiveNot Given
Unnamed[77]Single-axis articulation,
Rigid connection		Rz2 + 2CompliantGecko
Unnamed[78]Single-axis articulation,
Rigid connection		Rz2 + 2ActiveGecko
Unnamed[79]Single-axis articulation,
Rigid connection		Rz2 + 2ActiveSalamander
Unnamed[41]Multi-axis articulation,
Spring connection		Rz, Ry, Rx2 + 2ActiveChameleon
WR Series Robots (1–5 and 5M)[80,81,82,83,84]Multi-axis articulation,
Rigid connection		Rz, Ry2 + 2ActiveRat
Yat-sen Lion[85]Multi-axis articulation,
Rigid connection		Rz, Ry2 + 2ActiveNot Given
1 Orobates is an extinct animal. 2 Salamandra Robotica I, as shown in Figure 5. It is composed of seven segments, with two legs on each of the first and fourth segments, the second and third segments serving as the flexible body and multi-axis articulation connected, while the fifth to seventh segments function as the tail of the robot. 3 Salamandra Robotica II is composed of nine segments, with two legs on each of the second and sixth segments. The first segment serves as the head of the robot, the third to fifth segments serve as the body, and the seventh to ninth segments serve as the tail.
Table 3. Multi-legged robots 1 with flexible bodies.
Table 3. Multi-legged robots 1 with flexible bodies.
RobotRefWays to Achieve Body FlexibleGained DOFLayoutActive/
Compliant		Bionic Model
AMOS Series
Robots
(II and WD06)		[4,86]Single-axis articulation,
Rigid connection		Ry2 + 4ActiveCockroach
CkBot[87]Multi-axis articulation,
Rigid connection		Rz, Rx2 + 2 + 2 +
……		ActiveCentipede
Dante II[57]Reciprocating
Mechanism		Rz, X3 + 3Active
Hector[8]2 DOFs Spindle JointRz, Ry, X2 + 2 + 2 Stick insects
IOAN[88]Multi-axis articulation,
Rigid connection		Ry, Rx2 + 2 + 2ActiveNot Given
MELCRAB-2[6]Reciprocating
Mechanism		Rz, X3 + 3Active
ModPod[89]Multi-axis articulation,
Rigid connection		Rz, Ry2 + 2 + 2ActiveCockroach
Octopod Robot[34]Single-axis articulation,
Rigid connection		Ry4 + 4Active
Octopod Robot[55]Bricard linkagesRz, Ry4 + 4Active
ParaWalker[43]Stewart PlatformOmnidirectional3 + 3Active
SCORPION-III/IV[90]Soft structure
(rubber)		Rz, Ry, Rx2 + 4 + 2CompliantScorpion
SpaceClimber[9]Single-axis articulation,
Rigid connection		Ry2 + 4ActiveNot Given
Unnamed[58]Reciprocating
Mechanism		Rz, Y, X3 + 3Active
Unnamed[91]Single-axis articulation,
Rigid connection		Rz2 + 2 + 2 + 2 + 2 + 2ActiveCentipede
Unnamed[92]Sarrus linkagesRz, X2 + 2 + 2 +
……		CompliantCentipede
Unnamed[93]Spheric jointRz, Ry, Rx2 + 2 + 2 +
……		CompliantCentipede
Unnamed[94]Single-axis articulation,
Rigid connection		Ry2 + 2 + 2 + 2 + 2 + 2 + 2ActiveSea roaches
WhegsTM Series Robots
(II, IV, and Climbing Mini-WhegsTM)		[95,96,97]Single-axis articulation,
Rigid connection		Ry2 + 4ActiveCockroach
1 Multi-legged robots refer to robots with more than four legs in Table 3.
Table 4. The impact of each DOF on the robot’s motions.
Table 4. The impact of each DOF on the robot’s motions.
DOFMotion of Flexible BodyBenefits to the Robot’s Motions
RzYaw: Bending in the horizontal planeCrawling and trotting, larger step length, higher speed, and wider workspace
Smaller turning radius
Better stability
RyPitch: Bending in the sagittal planeBounding and galloping, larger step length, higher speed, and wider workspace
Better obstacle-crossing capability
Higher energy efficiency (for robots with artificial spines)
RxRoll: Bending in the frontal planeBetter terrain adaptability and traversability
Swing leg
XBody extensionMoving forward (for inchworm-inspired robots and double-support-frame robots)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, X.; Suo, Z.; Liu, D.; Liu, J.; Tian, W.; Wang, J.; Wang, J. Bionic Multi-Legged Robots with Flexible Bodies: Design, Motion, and Control. Biomimetics 2024, 9, 628. https://doi.org/10.3390/biomimetics9100628

AMA Style

Li X, Suo Z, Liu D, Liu J, Tian W, Wang J, Wang J. Bionic Multi-Legged Robots with Flexible Bodies: Design, Motion, and Control. Biomimetics. 2024; 9(10):628. https://doi.org/10.3390/biomimetics9100628

Chicago/Turabian Style

Li, Xiang, Zhe Suo, Dan Liu, Jianfeng Liu, Wenqing Tian, Jixin Wang, and Jianhua Wang. 2024. "Bionic Multi-Legged Robots with Flexible Bodies: Design, Motion, and Control" Biomimetics 9, no. 10: 628. https://doi.org/10.3390/biomimetics9100628

APA Style

Li, X., Suo, Z., Liu, D., Liu, J., Tian, W., Wang, J., & Wang, J. (2024). Bionic Multi-Legged Robots with Flexible Bodies: Design, Motion, and Control. Biomimetics, 9(10), 628. https://doi.org/10.3390/biomimetics9100628

Article Metrics

Back to TopTop
