Investigating the Effect of Processing and Material Parameters of Alginate Dialdehyde-Gelatin (ADA-GEL)-Based Hydrogels on Stiffness by XGB Machine Learning Model

by
Duygu Ege
1,2,* and
Aldo R. Boccaccini
1
1
Institute of Biomaterials, Department of Materials Science and Engineering, University of Erlangen-Nuremberg, 91058 Erlangen, Germany
2
Institute of Biomedical Engineering, Bogazici University, Rasathane St., Kandilli, 34684 İstanbul, Turkey
*
Author to whom correspondence should be addressed.
Bioengineering 2024, 11(5), 415; https://doi.org/10.3390/bioengineering11050415
Submission received: 5 March 2024 / Revised: 26 March 2024 / Accepted: 18 April 2024 / Published: 24 April 2024
(This article belongs to the Section Regenerative Engineering)
Browse Figures
Versions Notes

Abstract

:
To address the limitations of alginate and gelatin as separate hydrogels, partially oxidized alginate, alginate dialdehyde (ADA), is usually combined with gelatin to prepare ADA-GEL hydrogels. These hydrogels offer tunable properties, controllable degradation, and suitable stiffness for 3D bioprinting and tissue engineering applications. Several processing variables affect the final properties of the hydrogel, including degree of oxidation, gelatin content and type of crosslinking agent. In addition, in 3D-printed structures, pore size and the possible addition of a filler to make a hydrogel composite also affect the final physical and biological properties. This study utilized datasets from 13 research papers, encompassing 33 unique combinations of ADA concentration, gelatin concentration, CaCl2 and microbial transglutaminase (mTG) concentrations (as crosslinkers), pore size, bioactive glass (BG) filler content, and one identified target property of the hydrogels, stiffness, utilizing the Extreme Boost (XGB) machine learning algorithm to create a predictive model for understanding the combined influence of these parameters on hydrogel stiffness. The stiffness of ADA-GEL hydrogels is notably affected by the ADA to GEL ratio, and higher gelatin content for different ADA gel concentrations weakens the scaffold, likely due to the presence of unbound gelatin. Pore size and the inclusion of a BG particulate filler also have a significant impact on stiffness; smaller pore sizes and higher BG content lead to increased stiffness. The optimization of ADA-GEL composition and the inclusion of BG fillers are key determinants to tailor the stiffness of these 3D printed hydrogels, as found by the analysis of the available data.

Graphical Abstract

1. Introduction

Natural polymeric hydrogels such as gelatin and alginate are commonly studied for tissue engineering applications and are being increasingly considered in 3D bioprinting approaches [1,2,3,4,5]. Alginate is an FDA-approved biopolymer exhibiting biocompatibility, hydrophilicity and high water absorption capacity [1,6]. Due to its remarkable properties, alginate (sodium salt of alginic acid) is a widely studied component of bioinks [7,8]. However, alginate-based hydrogels have some disadvantages for 3D bioprinting [9,10,11]. For example, alginate has relatively low viscosity which leads to a low printing accuracy [12,13]. Additionally, alginate hydrogels have uncontrolled degradation kinetics [7,8]. Moreover, as alginate does not contain any adhesive molecular ligand to enable cell attachment, other biopolymers, ideally protein-based, can be combined with it to enable a more effective cell–material interaction [2,7,14]. An alginate derivative produced by controlled chemical oxidation of sodium alginate from brown algae is oxidized alginate (alginate dialdehyde, ADA) [15,16,17]. Dialdehyde groups form in the alginate backbone by the oxidative transformation of the hydroxyl groups at positions C-2 and C-3 [18,19]. ADA-based hydrogels have been shown to be attractive matrices for vascular, bone, cartilage, and wound healing applications [20,21,22,23,24].
Gelatin is produced by breaking the triple helix of collagen fibrils by basic or acidic hydrolysis [7,25,26]. Gelatin incorporates cell adhesion peptides through the RGD (Arg-Gly-Asp) collagen sequence, which improves cell–material interactions and enhances cell adhesion and proliferation [2,8]. However, gelatin has poor mechanical properties [1,2,27]. To address the drawbacks of alginate and gelatin taken separately, the combination of partially oxidized alginate and gelatin (ADA-GEL) hydrogels is being increasingly investigated for 3D bioprinting [15,28,29]. Gelatin contains ε-amino groups of lysine and hydroxylysine, which are covalently bonded to the generated aldehyde groups of ADA through Schiff’s base formation [7,8,30]. The ADA-GEL system offers a wide range of tunable properties such as controlled degradation and hydrogel stiffness [31,32]. Moreover, ADA-GEL hydrogels have been shown to support cellular (e.g., osteoblasts and fibroblast cells) activities [1,33].
Transglutaminases are a class of enzymes, present both inside the human body and externally, responsible for catalyzing the formation of ε(γ-glutamyl) lysine isopeptide bonds among protein side chains [34,35,36]. Microbial transglutaminase (mTG) is a specific type of transglutaminase produced by bacteria, notably Streptoverticillium mobaraense and Streptoverticillium ladakanum [37,38,39]. Unlike some other transglutaminases, mTG functions independently of calcium and has been utilized in various applications, including the fabrication of gelatin scaffolds [40,41]. One of the remarkable characteristics of mTG is its ability to crosslink ADA-GEL hydrogels [15]. This crosslinking process allows for the fine-tuning of hydrogel properties, such as degradation rate, stiffness, and promotion of cell attachment. Notably, this method has proven effective for improving the stability and mechanical properties of gelatin-based materials, addressing the issue of rapid degradation often associated with a high gelatin content [7,15]. Importantly, the crosslinking approach facilitates a precise control over hydrogel stiffness within a broad range, from less than 5 kPa to as high as 120 kPa [15]. To enhance the mechanical properties and biological activity of hydrogels, often rigid inorganic particles, such as calcium phosphate and bioactive glass (BG) particles, are added to the hydrogel forming composites. Such composites can be also applied in 3D (bio)printing [42,43,44].
Since the application of ADA-GEL hydrogels in 3D bioprinting involves numerous variables, it is challenging to fully understand how each parameter taken independently impacts the resulting properties of the printed structure. The Extreme Gradient Boosting (XGB) machine learning technique is an easy-to-use technique with fast performance and high accuracy. Generally, it prevents overfitting and works well with small datasets [45,46]. However, it is prone to overfitting if not well tuned, and hypertuning may be time consuming [45,47]. This study aims to enhance the prediction of mechanical properties, in particular the stiffness of ADA-GEL 3D printed constructs reducing the need for extensive trial and error when preparing such ADA-GEL hydrogel structures. The research examined the importance of BG filler content, ADA to GEL concentration ratio, mTG and CaCl2 concentration (as cross-linkers), pore size, and the established correlation of such parameter through a heatmap to assess their relationship with stiffness. Then, in detail, the effect of ADA concentration, CaCl2 concentration, pore size, and filler (BG) content on stiffness was examined.

2. Methodology

2.1. Data Collection

A search from 2000 to 2024 was performed with the search engines Web of Science, Scopus, and Google Scholar. The search terms were as follows: ADA-GEL, oxidized alginate, gelatin, mTG, CaCl2, stiffness, modulus, and mechanical properties. ADA, gelatin, CaCl2, mTG, scaffold pore size, BG filler content, and whether biomaterials were printed or not were used as independent variables while the measured stiffness was used as the dependent variable from 13 research papers, which were finally used by the XGB algorithm [1,2,3,4,5,6,7,8,9,10,11,12,13]. Overall, this dataset covered 33 possible combinations of the independent variables in set ranges of ADA concentration (2.5–7.5 w/v), gelatin concentration (2.5–7.5 w/v), CaCl2 concentration (0.1–0.6 w/v), (mTG) concentration (0–10 w/v), pore size (0–4000 µm), filler content (0–5 wt%), and stiffness (0–417 kPa). Table 1 shows the printing parameters and Table S1 (presented in the supplementary file) shows all processing conditions and resultant stiffness values.
In other studies, ADA-GEL scaffolds were not printed but their stiffness was evaluated [31,43,51].

2.2. Computational Modeling

Python programming language is utilized for data analysis and machine learning [52]. Phyton has Pandas, Numpy, and Scipy libraries have tools for data manipulation, numerical computing, and scientific computing, respectively. Additionally, Matplotlib and Seaborn libraries were used for data visualization. Finally, Scikit-learn was used for utilizing XGB algorithm for data analysis [53,54]. The Python codes which are utilized in the study are given at https://github.com/duyguege/machine-learning.git (accessed on 30 November 2023).

2.2.1. XGB Regressor

XGB regressor is an ensemble gradient boosting algorithm which was developed by Guestrin and Chen in 2016 [55,56]. In this model, after evaluation of previous trees, sequential trees are added [57]. This way, a strong learner is developed by training weak learners [45]. The predictions are made by adding up the score of each leaf node [58]. XGB is a scalable tree boosting system with great efficiency and prediction accuracy, that is often employed in the field of regression. To avoid over-fitting to outliers, XGB applies second-order Taylor expansion to the loss function, and normalisation to the objective function [45,55,56,59,60,61,62].

2.2.2. Training, Hyper Tuning and Validation Processes

The dataset was divided into training (80%) and test (20%) divisions for this investigation. The training dataset was used to develop the model, and the test dataset was used to evaluate it. The Python Scikit-learn library was used to apply the models. After determining the optimal parameters for the XGB model, hyperparameter tuning was performed for the subsample ratio of columns, number of estimators, maximum depth, and learning rate (shrinkage factor), as shown in Table 2. To avoid underfitting and overfitting, the optimum parameter for both training and test sets was chosen [60]. For performance evaluation, 10-fold cross-validation was utilized, which randomly divides the dataset into ten equal folds [63]. The model was then used again in the final stage to get the expected stiffness values [64].

2.2.3. Correlation Heatmap

A correlation heatmap visually represents the correlations between multiple variables in a dataset. This graphical tool demonstrates patterns and relationships within complex datasets. It uses colors to indicate the strength and direction of these correlations, with warmer colors (orange) indicating stronger positive correlations and cooler colors (purple) indicating weaker or negative correlations [65]. The Seaborn module of Phyton generated a correlation heatmap to identify the strength of the association between the seven independent factors (ADA and GEL concentration, CaCl2 and mTG concentrations, pore size, whether the biomaterial is printed, filler (BG) content), and the dependent variable (stiffness). Additionally, a greater correlation coefficient (r) for different variables suggests that the independent variables are multicollinear [66].

2.2.4. Feature Importance

Feature importance analysis ranks the influential factors within a dataset for gaining insights into the key variables [67]. The significance of the features was calculated using an integrated function in the Scikit-learn implementation of the XGB model. The features were then ranked in order of importance [68,69].

2.2.5. Determination of the Model Performance

Higher R2 values with lower mean absolute error (MAE) values show that the models are more likely to succeed [70,71]. To assess model performance, the coefficient of determination (R2), MAE calculation, and RMSE were utilised [72].

2.2.6. Shapley Additive Explanation

In 2017, Lundberg and Lee [73] introduced the Shapley additive explanation (SHAP) technique, which allows for the study of complex relationships in machine learning models. SHAP, a model interpretation tool in Phyton, is used in this work to further understand the marginal link between predicted stiffness value and each feature. SHAP value is calculated as the average forecast produced with each feature value’s contribution minus the prediction made without a feature value. A negative or positive SHAP value implies that the feature value has a negative or positive contribution to the prediction of stiffness, respectively. The SHAP summary plot is used to show the impact of each parameter on stiffness. The primary y-axis displays the SHAP value, while the secondary y-axis shows a color bar displaying the high feature values.

3. Results and Discussion

In this study, factors affecting the stiffness of ADA-GEL composites are evaluated and then predictions are made by using XGB modeling. This approach is useful to evaluate the complex relationships between processing parameters and stiffness in a snapshot. Therefore, the study may support the design of future experimental investigations using ADA-GEL-based hydrogels. Figure 1 shows the average concentration of each independent variable used in the reviewed papers. For the independent variables, constraints would occur due to different factors, such as high viscosity or fluidity of the hydrogels, which influence the 3D printing process. In the study, the parameters used were constrained within the range found in the literature.
Figure 2 shows the correlation heatmap for all of the considered variables.
A correlation coefficient exceeding 0.8 signifies a very strong correlation, while a coefficient between 0.6 and 0.8 suggests a good correlation. Within the range of 0.4 to 0.6, a moderate correlation is observed, whereas a coefficient between 0.2 and 0.4 demonstrates a comparatively weak correlation. Values below 0.2 indicate an extremely weak correlation [66]. Additionally, negative coefficients indicate an inverse correlation, with the same interpretation applying to the strength of these correlations [74]. As shown in the correlation heatmap, there is a negative but weak correlation between printing and stiffness. This indicates that printing leads to reduced stiffness compared to hydrogel scaffolds which are produced by casting. Firstly, layer-by-layer deposition is prone to weakened interlayer adhesion [75]. The data available thus indicate that 3D printing conditions should be improved to produce scaffolds with enhanced mechanical performance. Pore size also has a negative correlation with mechanical stiffness; when pore size increases, the mechanical properties, in this case stiffness, deteriorate. BG fillers have a high and positive correlation of (0.82), which shows a positive effect of the presence of BG filler on stiffness. The relative effect of gelatin, ADA and CaCl2 concentrations, which show relatively weak correlation with stiffness, will be analyzed in detail in this paper. On the other hand, mTG has a very small correlation coefficient of −0.031 and this could be indicated as an extremely weak correlation with stiffness.
Another important aspect to consider is multicollinearity between different variables. Lack of identification of multicollinearity may lead to misinterpretation of data [76,77]. If there is a high correlation coefficient for different independent variables, this may indicate multicollinearity [76]. In this study, independent variables have low correlation coefficients between themselves. The highest correlation coefficients were between mTG and gelatin concentration (0.52) and CaCl2 concentration and printing (0.51), respectively, however, it is still relatively a low value and these parameters can be considered relatively independent [76]. Therefore, it can be stated that multicollinearity was not found in the dataset considered for this study. Figure 3 shows the feature importance of the independent variables.
Feature importance analysis illustrates the most influential factors in predictive modeling, providing valuable insights into key variables impacting model outcomes. It is known that understanding these influential parameters enhances model interpretability and guides decision-making processes [68,69]. According to Figure 3, the addition of BG filler has a very high impact on the stiffness of ADA-GEL composites, following with the concentration of gelatin and the pore size. The printing, ADA content, CaCl2 and mTG concentrations have a much weaker effect on stiffness. In Figure 4, the success rate of the XGB model for predicting stiffness from the provided data is shown.
The R2 value is an important indicator of the success of the prediction [70,71]. A value of 0.6 or below indicates an unsatisfactory prediction. A value between 0.6 and 0.75 proves a satisfactory prediction. A value between 0.75 and 0.95 shows a good prediction and a value above 0.95 means an excellent prediction [78]. According to Figure 4, XGB can predict the test values well, which is confirmed by R2 value of 1, which indicates an excellent prediction. However, according to Figure 4b,c, there is overfitting of the data for test values. In Figure 4b, the fitting of the predicted values to the test values is illustrated for different test values, which is indicated by their index values from the dataset. According to the figure, the fitting demonstrated a superior fitting for some of the test values, while others (index between 25 and 27) showed inferior fitting. Figure 4c,d supports this observation from Figure 4b. This is apparent from the low train values for both RMSE and MAE, however, much higher RMSE and MAE values were found for the test data. This probably occurs due to the relatively small sample size. The discrepancy between the R2 value and RMSE/MAE may also arise if the range of observed values in the dataset is limited. In such cases, the model may appear to fit the data perfectly, but the absolute errors between the predicted and observed values are still relatively high, leading to a high RMSE/MAE [79]. This problem could be solved if a larger sample size could be obtained.
A SHAP summary plot illustrates the contribution of each feature to the model’s output [80]. According to Figure 4e, it is clearly observed that lower concentrations of BG filler component reduced stiffness values and higher BG content improved the stiffness. According to Figure 4e, high SHAP values lead to higher predictions of SHAP value, whereas low SHAP values reduce the predicted value. Blue colour is used for small values and red colour is used for high values of the variables. According to Figure 4e), low concentrations of ADA supported the model to make high predictions of stiffness. On the other hand, usually high ADA values lead to negative SHAP values which indicate that it had a negative impact on stiffness. Low pore size values also led to higher predicted values as expected, and higher values led to decrease of stiffness. Due to reduced resistance to deformation, as pore size decreases, fewer voids form and less variability occurs in the microstructure. This leads to less scattering of the material properties and higher mechanical properties can be achieved [81,82,83]. Lower BG content led to lower stiffness predictions and higher BG content led to higher stiffness predictions. For mTG, CaCl2 and gelatin content, no such distinct relationship could be observed from the SHAP values, as high values and low values of the dataset are distributed more randomly. After analyzing the data with SHAP summary, predictions were made for different variables to analyze their influence on stiffness. In Figure 5, the predictions made are shown for different concentrations of ADA and gelatin.

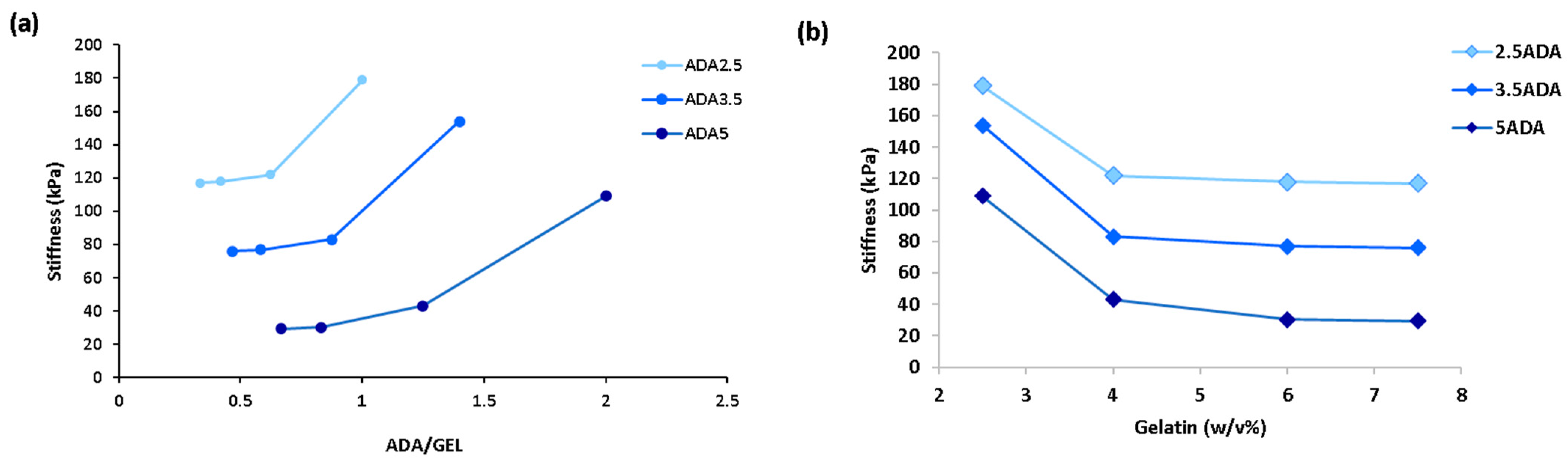

As can be seen from Figure 5a, as the ADA/GEL content increases, the stiffness increases. When the concentration of ADA is higher than that of gelatin, usually a higher stiffness is achieved. Figure 5b shows that when the w/v% of gelatin increases, the stiffness decreases, which is likely because some of the present gelatin cannot covalently crosslink with aldehyde groups of ADA. Unbound gelatin in the hydrogel leads to a weaker scaffold. A similar explanation has been previously made in the studies of Distler et al. [15] and Sarker et al. [43] for the effect of ADA/GEL content ratios on stiffness. For instance, when gelatin content increases from 2.6 to 7.5% w/v% for 5 w/v% ADA, the stiffness reduces from 60 kPa to 20 kPa. This reduction is quite abrupt, and this result proves clearly that high gelatin content reduces the mechanical performance. ADA content also significantly affects stiffness. Lower ADA content systematically led to higher stiffness values in the predictions in Figure 5. This aligns well with the SHAP summary plot for ADA dataset which indicated that lower ADA values led to higher stiffness (higher SHAP values). According to Figure 5, 2.5 w/v% ADA with 2.5 w/v% GEL leads to the highest stiffness of 200 kPa among study groups. However, some of these ADA/GEL concentration ratios are not experimentally practiced and therefore require experimentation to determine their applicability. Figure 6 shows the effect of pore size and CaCl2 concentration on stiffness.

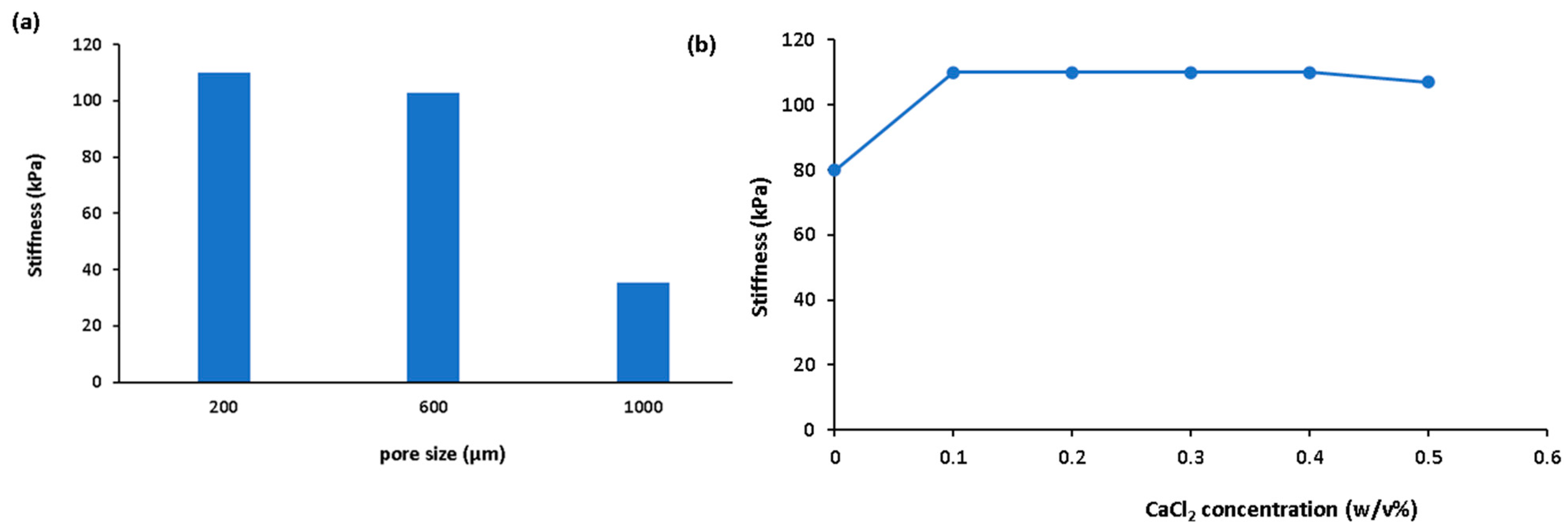

Pore diameters of 3D scaffolds ranging from 20 to 500 µm are critical in tissue engineering because they allow for cell ingrowth, bone regeneration, and vascularization [48]. The optimal pore size for collagen fibre production was reported to be in the nanometric range (100 nm), whereas the pore size required for cell seeding, migration, and distribution is in the range of 100 µm to mm depending on the cell type. A size of 100 µm is appropriate for chondrocytes [7]. The literature shows that addition of gelatin to ADA can reduce the pore size and the addition of BG can also further reduce pore size [43]. A balance of pore size and mechanical properties is required to achieve tissue regeneration. It has been reported that an ideal pore size of 300 µm may enable both suitable mechanical performance and tissue regeneration [43]. In principle, according to Figure 6, a pore size in the range 200–400 µm appears appropriate to maintain suitable mechanical properties. The elastic modulus of mammalian chondral tissue (matrix surrounding chondrocytes) (25 ± 5 kPa) is much lower than that of bone (cortical bone 15 ± 5 GPa). Brain tissue has a stiffness of approximately ~1 kPa. For example, for cartilage regeneration, 200 µm pore size would enable suitable mechanical performance [31,48]. It is possible to modulate the mechanical performance of the ADA-GEL hydrogels by varying the relative ADA and gelatin concentrations. Crosslinker concentration is also important for obtaining desired mechanical properties. For alginate, CaCl2 is the most commonly used crosslinking agent [84]. In Figure 6b, CaCl2 concentration was found to lead to an optimum stiffness with a concentration of 0.1 w/v%. With further increase of CaCl2, no apparent change of stiffness was obtained.

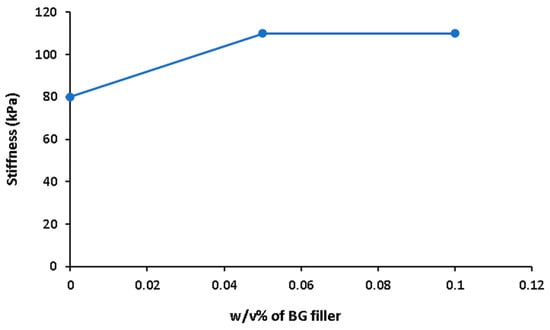

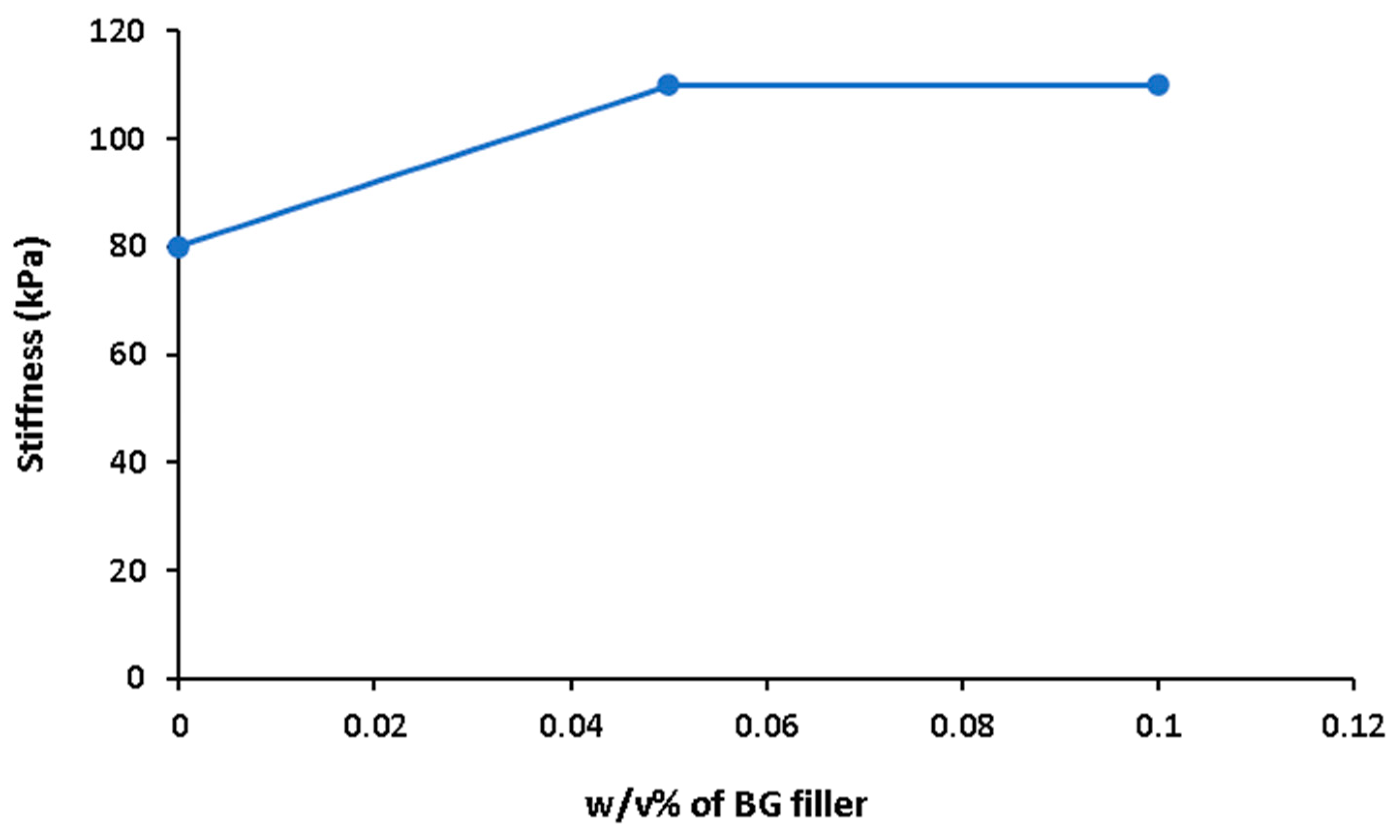

Figure 7 shows the effect of BG filler on stiffness. In some studies, BG fillers are blended in ADA-GEL not only to enhance hydrogel bioactivity, but also to increase the mechanical properties and the stability of the hydrogel in physiological conditions [43]. BG fillers support gelation and increase the crosslinking degree of ADA-GEL [42]. In a previous study, Sarker et al. [43] showed that the gelation time of ADA-GEL decreased in the presence of BG. According to XGB model, there is an increase of stiffness with the increase of w/v% of BG in the hydrogels. However, higher w/v% of BG leads to hydrogels that cannot be printed due to the increase of viscosity, which limits the w/v% of BG to 0.1. Moreover, in this study, mTG concentration effects were not considered. mTG was usually used as 1 w/v% in the literature and high concentrations of mTG may be toxic, therefore in the predictions mTG was kept as 1 w/w% [85].
A limitation of this study arises from the diverse range of techniques employed to assess the stiffness of the hydrogels. The methods of measurement include nanoindentation, compression test, and dynamic mechanical analysis [20]. This may lead to differences of measured values of stiffness due to wide variation of conditions used in the different tests. Additionally, in some studies, gelatin has been heat-treated previously to its use in making the ADA-GEL, however, this could not be taken in consideration as it could drastically reduce the dataset’s sample size [48]. Moreover, 3D printed scaffolds had varying numbers of layers, which may also affect the measured stiffness as well as different printing speed and printing pressure applied for printing the scaffolds. Another important parameter determining the stiffness of ADA-GEL is the degree of oxidation of alginate, which may ultimately affect the mechanical properties. However, as can be seen from Table 1, this parameter is not provided in some of the research papers, therefore we could not incorporate it into the model. Finally, in some studies, 3D printed scaffolds were cell laden while in others, they were not. It is reported in the literature that cell seeding density significantly impacts the mechanical properties of alginate hydrogels [86]. As can be seen from Table S1, in the study by Kara et al. [40], 3D printed MC3T3-E1 cell laden ADA-GEL (3.75–7.5%) scaffolds were produced and the stiffness values were found to be relatively lower (10 kPa) than the 3D printed ADA-GEL scaffolds without cells. Furthermore, Schwarz et al. [7] 3D printed chondrocyte laden ADA-GEL (3.75–3.75%) scaffolds and a stiffness value of 27 kPa was achieved, which was also found to be relatively low. In the the future, it would be beneficial to concentrate on these parameters in order to more precisely control the mechanical properties of printed scaffolds. Furthermore, changes of molecular weight among different studies would also lead to inaccurate predictions and need to be taken into consideration, however, this information is not provided in all the papers [47].
In the studies, the used bioactive glass also showed variation. It was not possible to find enough datasets for the same type of bioactive glass to be incorporated to the algorithm. However, in all studies, bioactive glasses were observed to positively impact stiffness. Therefore, this parameter was incorporated to the study. In the future, it would be beneficial to study the effect of only a single type of bioactive glass on the mechanical properties of ADA-GEL, to have a more precise outcome. If these limitations could be addressed, and a larger sample size could be obtained, the model might not exhibit overfitting which was illustrated in Figure 4b,c.
The data analysis for stiffness of ADA-GEL is not sufficient to fully comprehend the hydrogel mechanical performance. Unfortunately, in the literature there is not sufficient data on compressive strength, % strain at break, and toughness of these hydrogels to build models for these features. These are also important parameters to be considered while evaluating the appropriateness of these hydrogel-based scaffolds for tissue engineering applications. Nevertheless, this preliminary study can guide the identification of additional study groups. This could facilitate the inclusion of a larger sample size in future machine learning models to re-analyze ADA-GEL hydrogels for tissue engineering applications. Finally, another important and heavily investigated class of hydrogels for biofabrication and tissue engineering is gelatin methacrylate (GelMA) [87,88,89]. We anticipate that a much larger dataset exists for GelMA-based hydrogels than for ADA/GEL. In the future, a similar model can be also applied to GelMA (or other heavily exploited biomaterials) yo analyze their mechanical properties as a result of combination of determined processing variables.

4. Conclusions

In this study, the XGB model was used to study the effects of various preparation parameters, including BG filler content, ADA/GEL concentration ratio, pore size, mTG and CaCl2 concentration (as cross-linkers) on the stiffness of ADA/GEL hydrogel composites. This research emphasized the impact of the ADA/GEL concentration ratio, indicating the critical role of the ADA component in modulating hydrogel stiffness. Additionally, the gelatin component showed an inverse correlation with stiffness as higher gelatin concentrations led consistently to decreased stiffness. SHAP analysis further indicated that lower ADA concentrations increased the predicted value of stiffness. Additionally, it was identified that the pore size of the printed scaffolds (with 200–400 µm pore diameters) led to an ideal balance for mechanical performance and suitable pore size for applications in tissue engineering. The incorporation of BG fillers demonstrated a significant increase in ADA/GEL composite stiffness, providing a potential option for enhancing hydrogel stability and mechanical properties. In conclusion, this study provides insight into the effects of key processing and material parameters on ADA-GEL hydrogel composite stiffness in a snapshot. This knowledge is useful for researchers to fine-tune these parameters for specific tissue engineering applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/bioengineering11050415/s1, Table S1: Composition, crosslinker concentrations and physical properties of the prepared hydrogels [1,2,7,8,15,31,40,42,43,48,49,50,51].

Author Contributions

Writing—original draft, D.E.; Writing—review & editing, A.R.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Monavari, M.; Homaeigohar, S.; Medhekar, R.; Nawaz, Q.; Monavari, M.; Zheng, K.; Boccaccini, A.R. A 3D-Printed Wound-Healing Material Composed of Alginate Dialdehyde-Gelatin Incorporating Astaxanthin and Borate Bioactive Glass Microparticles. ACS Appl. Mater. Interfaces 2023, 15, 50626–50637. [Google Scholar] [CrossRef] [PubMed]
  2. Monavari, M.; Medhekar, R.; Nawaz, Q.; Monavari, M.; Fuentes-Chandía, M.; Homaeigohar, S.; Boccaccini, A.R. A 3D Printed Bone Tissue Engineering Scaffold Composed of Alginate Dialdehyde-Gelatine Reinforced by Lysozyme Loaded Cerium Doped Mesoporous Silica-Calcia Nanoparticles. Macromol. Biosci. 2022, 22, 2200113. [Google Scholar] [CrossRef] [PubMed]
  3. Venkatesan, J.; Bhatnagar, I.; Manivasagan, P.; Kang, K.-H.; Kim, S.-K. Alginate Composites for Bone Tissue Engineering: A Review. Int. J. Biol. Macromol. 2015, 72, 269–281. [Google Scholar] [CrossRef]
  4. Yang, J.-S.; Xie, Y.-J.; He, W. Research Progress on Chemical Modification of Alginate: A Review. Carbohydr. Polym. 2011, 84, 33–39. [Google Scholar] [CrossRef]
  5. Varaprasad, K.; Jayaramudu, T.; Kanikireddy, V.; Toro, C.; Sadiku, E.R. Alginate-Based Composite Materials for Wound Dressing Application:A Mini Review. Carbohydr. Polym. 2020, 236, 116025. [Google Scholar] [CrossRef] [PubMed]
  6. Al-Hatamleh, M.A.I.; Alshaer, W.; Hatmal, M.M.; Lambuk, L.; Ahmed, N.; Mustafa, M.Z.; Low, S.C.; Jaafar, J.; Ferji, K.; Six, J.L.; et al. Applications of Alginate-Based Nanomaterials in Enhancing the Therapeutic Effects of Bee Products. Front. Mol. Biosci. 2022, 9, 1–33. [Google Scholar] [CrossRef] [PubMed]
  7. Schwarz, S.; Kuth, S.; Distler, T.; Gögele, C.; Stölzel, K.; Detsch, R.; Boccaccini, A.R.; Schulze-Tanzil, G. 3D Printing and Characterization of Human Nasoseptal Chondrocytes Laden Dual Crosslinked Oxidized Alginate-Gelatin Hydrogels for Cartilage Repair Approaches. Mater. Sci. Eng. C 2020, 116, 111189. [Google Scholar] [CrossRef] [PubMed]
  8. Cai, F.F.; Heid, S.; Boccaccini, A.R. Potential of Laponite® Incorporated Oxidized Alginate–Gelatin (ADA-GEL) Composite Hydrogels for Extrusion-Based 3D Printing. J. Biomed. Mater. Res. Part B Appl. Biomater. 2021, 109, 1090–1104. [Google Scholar] [CrossRef] [PubMed]
  9. Choe, G.; Lee, M.; Oh, S.; Seok, J.M.; Kim, J.; Im, S.; Park, S.A.; Lee, J.Y. Three-Dimensional Bioprinting of Mesenchymal Stem Cells Using an Osteoinductive Bioink Containing Alginate and BMP-2-Loaded PLGA Nanoparticles for Bone Tissue Engineering. Biomater. Adv. 2022, 136, 212789. [Google Scholar] [CrossRef]
  10. Piras, C.C.; Smith, D.K. Multicomponent Polysaccharide Alginate-Based Bioinks. J. Mater. Chem. B 2020, 8, 8171–8188. [Google Scholar] [CrossRef]
  11. Datta, S.; Barua, R.; Das, J. Importance of Alginate Bioink for 3D Bioprinting in Tissue Engineering and Regenerative Medicine. In Alginates—Recent Uses of This Natural Polymer; IntechOpen: London, UK, 2020. [Google Scholar] [CrossRef]
  12. Devina, N.; Eriwati, Y.K.; Santosa, A.S. The Purity and Viscosity of Sodium Alginate Extracted from Sargassum Brown Seaweed Species as a Basic Ingredient in Dental Alginate Impression Material. J. Phys. Conf. Ser. 2018, 1073, 052012. [Google Scholar] [CrossRef]
  13. Jia, J.; Richards, D.J.; Pollard, S.; Tan, Y.; Rodriguez, J.; Visconti, R.P.; Trusk, T.C.; Yost, M.J.; Yao, H.; Markwald, R.R.; et al. Engineering Alginate as Bioink for Bioprinting. Acta Biomater. 2014, 10, 4323–4331. [Google Scholar] [CrossRef]
  14. Sahoo, D.R.; Biswal, T. Alginate and Its Application to Tissue Engineering. SN Appl. Sci. 2021, 3, 30. [Google Scholar] [CrossRef]
  15. Distler, T.; McDonald, K.; Heid, S.; Karakaya, E.; Detsch, R.; Boccaccini, A.R. Ionically and Enzymatically Dual Cross-Linked Oxidized Alginate Gelatin Hydrogels with Tunable Stiffness and Degradation Behavior for Tissue Engineering. ACS Biomater. Sci. Eng. 2020, 6, 3899–3914. [Google Scholar] [CrossRef]
  16. Kong, X.; Chen, L.; Li, B.; Quan, C.; Wu, J. Applications of Oxidized Alginate in Regenerative Medicine. J. Mater. Chem. B 2021, 9, 2785–2801. [Google Scholar] [CrossRef]
  17. Salem, D.M.S.A.; Sallam, M.A.E.; Youssef, T.N.M.A. Synthesis of Compounds Having Antimicrobial Activity from Alginate. Bioorg. Chem. 2019, 87, 103–111. [Google Scholar] [CrossRef] [PubMed]
  18. Smidsrød, O.; Painter, T. Effect of Periodate Oxidation upon the Stiffness of the Alginate Molecule in Solution. Carbohydr. Res. 1973, 26, 125–132. [Google Scholar] [CrossRef]
  19. Kim, N.-G.; Kim, S.-C.; Kim, T.-H.; Je, J.-Y.; Lee, B.; Lee, S.G.; Kim, Y.-M.; Kang, H.W.; Qian, Z.-J.; Kim, N.; et al. Ishophloroglucin A-Based Multifunctional Oxidized Alginate/Gelatin Hydrogel for Accelerating Wound Healing. Int. J. Biol. Macromol. 2023, 245, 125484. [Google Scholar] [CrossRef] [PubMed]
  20. Distler, T.; Solisito, A.A.; Schneidereit, D.; Friedrich, O.; Detsch, R.; Boccaccini, A.R. 3D Printed Oxidized Alginate-Gelatin Bioink Provides Guidance for C2C12 Muscle Precursor Cell Orientation and Differentiation via Shear Stress during Bioprinting. Biofabrication 2020, 12, 045005. [Google Scholar] [CrossRef]
  21. Ansari, M.; Darvishi, A.; Sabzevari, A. A Review of Advanced Hydrogels for Cartilage Tissue Engineering. Front. Bioeng. Biotechnol. 2024, 12. [Google Scholar] [CrossRef]
  22. Khalighi, S.; Saadatmand, M. Bioprinting a Thick and Cell-Laden Partially Oxidized Alginate-Gelatin Scaffold with Embedded Micro-Channels as Future Soft Tissue Platform. Int. J. Biol. Macromol. 2021, 193, 2153–2164. [Google Scholar] [CrossRef] [PubMed]
  23. Linh, N.T.; Paul, K.; Kim, B.; Lee, B.-T. Augmenting in Vitro Osteogenesis of a Glycine–Arginine–Glycine–Aspartic-Conjugated Oxidized Alginate–Gelatin–Biphasic Calcium Phosphate Hydrogel Composite and in Vivo Bone Biogenesis through Stem Cell Delivery. J. Biomater. Appl. 2016, 31, 661–673. [Google Scholar] [CrossRef] [PubMed]
  24. Oh, G.-W.; Kim, S.-C.; Kim, T.-H.; Jung, W.-K. Characterization of an Oxidized Alginate-Gelatin Hydrogel Incorporating a COS-Salicylic Acid Conjugate for Wound Healing. Carbohydr. Polym. 2021, 252, 117145. [Google Scholar] [CrossRef] [PubMed]
  25. Valcarcel, J.; Fraguas, J.; Hermida-Merino, C.; Hermida-Merino, D.; Piñeiro, M.M.; Vázquez, J.A. Production and Physicochemical Characterization of Gelatin and Collagen Hydrolysates from Turbot Skin Waste Generated by Aquaculture Activities. Mar. Drugs 2021, 19, 491. [Google Scholar] [CrossRef] [PubMed]
  26. Hidayati, D.; Sabiyla, G.R.; Prasetyo, E.N.; Sa’adah, N.N.; Kurniawan, F. The Characteristic of Gelatin Extracted from The Skin of Adult and Sub-Adult Striped Catfish (Pangasius Hypophthalmus) Using Acid-Base Pretreatment: PH and FTIR. IOP Conf. Ser. Earth Environ. Sci. 2021, 755, 012018. [Google Scholar] [CrossRef]
  27. Xing, Q.; Yates, K.; Vogt, C.; Qian, Z.; Frost, M.C.; Zhao, F. Increasing Mechanical Strength of Gelatin Hydrogels by Divalent Metal Ion Removal. Sci. Rep. 2014, 4, 4706. [Google Scholar] [CrossRef]
  28. Łabowska, M.B.; Cierluk, K.; Jankowska, A.M.; Kulbacka, J.; Detyna, J.; Michalak, I. A Review on the Adaption of Alginate-Gelatin Hydrogels for 3D Cultures and Bioprinting. Materials 2021, 14, 858. [Google Scholar] [CrossRef] [PubMed]
  29. Boanini, E.; Rubini, K.; Panzavolta, S.; Bigi, A. Chemico-Physical Characterization of Gelatin Films Modified with Oxidized Alginate. Acta Biomater. 2010, 6, 383–388. [Google Scholar] [CrossRef] [PubMed]
  30. Putri, A.P.; Bose, R.K.; Chalid, M.; Picchioni, F. Rheological and Self-Healing Behavior of Hydrogels Synthesized from l-Lysine-Functionalized Alginate Dialdehyde. Polymers 2023, 15, 1010. [Google Scholar] [CrossRef]
  31. Distler, T.; Lauria, I.; Detsch, R.; Sauter, C.M.; Bendt, F.; Kapr, J.; Rütten, S.; Boccaccini, A.R.; Fritsche, E. Neuronal Differentiation from Induced Pluripotent Stem Cell-Derived Neurospheres by the Application of Oxidized Alginate-Gelatin-Laminin Hydrogels. Biomedicines 2021, 9, 261. [Google Scholar] [CrossRef]
  32. Pan, T.; Song, W.; Cao, X.; Wang, Y. 3D Bioplotting of Gelatin/Alginate Scaffolds for Tissue Engineering: Influence of Crosslinking Degree and Pore Architecture on Physicochemical Properties. J. Mater. Sci. Technol. 2016, 32, 889–900. [Google Scholar] [CrossRef]
  33. Somasekharan, L.T.; Kasoju, N.; Raju, R.; Bhatt, A. Formulation and Characterization of Alginate Dialdehyde, Gelatin, and Platelet-Rich Plasma-Based Bioink for Bioprinting Applications. Bioengineering 2020, 7, 108. [Google Scholar] [CrossRef] [PubMed]
  34. GRIFFIN, M.; CASADIO, R.; BERGAMINI, C.M. Transglutaminases: Nature’s Biological Glues. Biochem. J. 2002, 368, 377–396. [Google Scholar] [CrossRef] [PubMed]
  35. Giosafatto, C.V.L.; Fusco, A.; Al-Asmar, A.; Mariniello, L. Microbial Transglutaminase as a Tool to Improve the Features of Hydrocolloid-Based Bioplastics. Int. J. Mol. Sci. 2020, 21, 3656. [Google Scholar] [CrossRef]
  36. Beninati, S.; Bergamini, C.M.; Piacentini, M. An Overview of the First 50 Years of Transglutaminase Research. Amino Acids 2009, 36, 591–598. [Google Scholar] [CrossRef] [PubMed]
  37. Kieliszek, M.; Misiewicz, A. Microbial Transglutaminase and Its Application in the Food Industry. A Review. Folia Microbiol. 2014, 59, 241–250. [Google Scholar] [CrossRef] [PubMed]
  38. Kolotylo, V.; Piwowarek, K.; Kieliszek, M. Microbiological Transglutaminase: Biotechnological Application in the Food Industry. Open Life Sci. 2023, 18. [Google Scholar] [CrossRef] [PubMed]
  39. Vasić, K.; Knez, Ž.; Leitgeb, M. Transglutaminase in Foods and Biotechnology. Int. J. Mol. Sci. 2023, 24, 12402. [Google Scholar] [CrossRef]
  40. Kara Özenler, A.; Distler, T.; Tihminlioglu, F.; Boccaccini, A.R. Fish Scale Containing Alginate Dialdehyde-Gelatin Bioink for Bone Tissue Engineering. Biofabrication 2023, 15. [Google Scholar] [CrossRef]
  41. Yang, G.; Xiao, Z.; Ren, X.; Long, H.; Qian, H.; Ma, K.; Guo, Y. Enzymatically Crosslinked Gelatin Hydrogel Promotes the Proliferation of Adipose Tissue-Derived Stromal Cells. PeerJ 2016, 4, e2497. [Google Scholar] [CrossRef]
  42. Monavari, M.; Homaeigohar, S.; Fuentes-Chandía, M.; Nawaz, Q.; Monavari, M.; Venkatraman, A.; Boccaccini, A.R. 3D Printing of Alginate Dialdehyde-Gelatin (ADA-GEL) Hydrogels Incorporating Phytotherapeutic Icariin Loaded Mesoporous SiO2-CaO Nanoparticles for Bone Tissue Engineering. Mater. Sci. Eng. C 2021, 131, 112470. [Google Scholar] [CrossRef] [PubMed]
  43. Sarker, B.; Li, W.; Zheng, K.; Detsch, R.; Boccaccini, A.R. Designing Porous Bone Tissue Engineering Scaffolds with Enhanced Mechanical Properties from Composite Hydrogels Composed of Modified Alginate, Gelatin, and Bioactive Glass. ACS Biomater. Sci. Eng. 2016, 2, 2240–2254. [Google Scholar] [CrossRef] [PubMed]
  44. Zhao, F.; Yang, Z.; Xiong, H.; Yan, Y.; Chen, X.; Shao, L. A Bioactive Glass Functional Hydrogel Enhances Bone Augmentation via Synergistic Angiogenesis, Self-Swelling and Osteogenesis. Bioact. Mater. 2023, 22, 201–210. [Google Scholar] [CrossRef] [PubMed]
  45. Liang, M.; Chang, Z.; Wan, Z.; Gan, Y.; Schlangen, E.; Šavija, B. Interpretable Ensemble-Machine-Learning Models for Predicting Creep Behavior of Concrete. Cem. Concr. Compos. 2022, 125, 104295. [Google Scholar] [CrossRef]
  46. Almufti, S.M. EXtreme Gradient Boosting Algorithm with Machine Learning: A Review. Acad. J. Nawroz Univ. 2023, 12, 320–334. [Google Scholar] [CrossRef]
  47. Ege, D.; Sertturk, S.; Acarkan, B.; Ademoglu, A. Machine Learning Models to Predict the Relationship between Printing Parameters and Tensile Strength of 3D Poly (Lactic Acid) Scaffolds for Tissue Engineering Applications. Biomed. Phys. Eng. Express 2023, 9, 065014. [Google Scholar] [CrossRef] [PubMed]
  48. Kreller, T.; Distler, T.; Heid, S.; Gerth, S.; Detsch, R.; Boccaccini, A.R. Physico-Chemical Modification of Gelatine for the Improvement of 3D Printability of Oxidized Alginate-Gelatine Hydrogels towards Cartilage Tissue Engineering. Mater. Des. 2021, 208, 109877. [Google Scholar] [CrossRef]
  49. Distler, T.; Polley, C.; Shi, F.; Schneidereit, D.; Ashton, M.D.; Friedrich, O.; Kolb, J.F.; Hardy, J.G.; Detsch, R.; Seitz, H.; et al. Electrically Conductive and 3D-Printable Oxidized Alginate-Gelatin Polypyrrole:PSS Hydrogels for Tissue Engineering. Adv. Healthc. Mater. 2021, 10. [Google Scholar] [CrossRef] [PubMed]
  50. Ghorbani, F.; Kim, M.; Monavari, M.; Ghalandari, B.; Boccaccini, A.R. Mussel-Inspired Polydopamine Decorated Alginate Dialdehyde-Gelatin 3D Printed Scaffolds for Bone Tissue Engineering Application. Front. Bioeng. Biotechnol. 2022, 10, 1–16. [Google Scholar] [CrossRef]
  51. Chayanun, S.; Soufivand, A.A.; Faber, J.; Budday, S.; Lohwongwatana, B.; Boccaccini, A.R. Reinforcing Tissue-Engineered Cartilage: Nanofibrillated Cellulose Enhances Mechanical Properties of Alginate Dialdehyde–Gelatin Hydrogel. Adv. Eng. Mater. 2023, 26, 2300641. [Google Scholar] [CrossRef]
  52. Hao, J.; Ho, T.K. Machine Learning Made Easy: A Review of Scikit-Learn Package in Python Programming Language. J. Educ. Behav. Stat. 2019, 44, 348–361. [Google Scholar] [CrossRef]
  53. Johansson, R. Numerical Python: Scientific Computing and Data Science Applications with Numpy, SciPy and Matplotlib; Apress: Berkeley, CA, USA, 2019. [Google Scholar] [CrossRef]
  54. Rickert, C.A.; Hayta, E.N.; Selle, D.M.; Kouroudis, I.; Harth, M.; Gagliardi, A.; Lieleg, O. Machine Learning Approach to Analyze the Surface Properties of Biological Materials. ACS Biomater. Sci. Eng. 2021, 7, 4614–4625. [Google Scholar] [CrossRef] [PubMed]
  55. Chen, T.; Guestrin, C. XGBoost. In Proceedings of the 22nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, San Francisco, CA, USA, 13–17 August 2016; ACM: New York, NY, USA, 2016; pp. 785–794. [Google Scholar] [CrossRef]
  56. De-Prado-gil, J.; Palencia, C.; Jagadesh, P.; Martínez-García, R. A Comparison of Machine Learning Tools That Model the Splitting Tensile Strength of Self-Compacting Recycled Aggregate Concrete. Materials 2022, 15, 4164. [Google Scholar] [CrossRef] [PubMed]
  57. Zhang, Z.; Shi, J.; Yu, T.; Santomauro, A.; Gordon, A.; Gou, J.; Wu, D. Predicting Flexural Strength of Additively Manufactured Continuous Carbon Fiber- Reinforced Polymer Composites Using Machine Learning. J. Comput. Inf. Sci. Eng. 2020, 20, 1–9. [Google Scholar] [CrossRef]
  58. Guo, L.; Li, Z.; Tian, Q.; Guo, L.; Wang, Q. Prediction of CSG Splitting Tensile Strength Based on XGBoost-RF Model. Mater. Today Commun. 2023, 34, 105350. [Google Scholar] [CrossRef]
  59. Song, K.; Yan, F.; Ding, T.; Gao, L.; Lu, S. A Steel Property Optimization Model Based on the XGBoost Algorithm and Improved PSO. Comput. Mater. Sci. 2020, 174, 109472. [Google Scholar] [CrossRef]
  60. Sri Chandrahas, N.; Choudhary, B.S.; Vishnu Teja, M.; Venkataramayya, M.S.; Krishna Prasad, N.S.R. XG Boost Algorithm to Simultaneous Prediction of Rock Fragmentation and Induced Ground Vibration Using Unique Blast Data. Appl. Sci. 2022, 12, 5269. [Google Scholar] [CrossRef]
  61. Wang, Q.; Hussain, A.; Farooqi, M.U.; Deifalla, A.F. Artificial Intelligence-Based Estimation of Ultra-High-Strength Concrete’s Flexural Property. Case Stud. Constr. Mater. 2022, 17, e01243. [Google Scholar] [CrossRef]
  62. Pervaiz, M.; Shorfuzzaman, M.; Alsufyani, A.; Jalal, A.; Alsuhibany, S.A.; Park, J. Tracking and Analysis of Pedestrian’s Behavior in Public Places. Comput. Mater. Contin. 2023, 74, 841–853. [Google Scholar] [CrossRef]
  63. Han, T.; Stone-Weiss, N.; Huang, J.; Goel, A.; Kumar, A. Machine Learning as a Tool to Design Glasses with Controlled Dissolution for Healthcare Applications. Acta Biomater. 2020, 107, 286–298. [Google Scholar] [CrossRef]
  64. Khokhar, S.A.; Ahmed, T.; Khushnood, R.A.; Ali, S.M.; Shahnawaz. A Predictive Mimicker of Fracture Behavior in Fiber Reinforced Concrete Using Machine Learning. Materials 2021, 14, 7669. [Google Scholar] [CrossRef] [PubMed]
  65. Zhu, C.; Jin, L.; Li, W.; Han, S.; Yan, J. The Prediction of Wear Depth Based on Machine Learning Algorithms. Lubricants 2024, 12, 34. [Google Scholar] [CrossRef]
  66. De-Prado-Gil, J.; Palencia, C.; Silva-Monteiro, N.; Martínez-García, R. To Predict the Compressive Strength of Self Compacting Concrete with Recycled Aggregates Utilizing Ensemble Machine Learning Models. Case Stud. Constr. Mater. 2022, 16, e01046. [Google Scholar] [CrossRef]
  67. Salminen, J.; Corporan, J.; Marttila, R.; Salenius, T.; Jansen, B.J. Using Machine Learning to Predict Ranking of Webpages in the Gift Industry. In Proceedings of the 9th International Conference on Information Systems and Technologies, Cairo, Egypt, 24–26 March 2019; ACM: New York, NY, USA, 2019; pp. 1–8. [Google Scholar] [CrossRef]
  68. Conev, A.; Litsa, E.E.; Perez, M.R.; Diba, M.; Mikos, A.G.; Kavraki, L.E. Machine Learning-Guided Three-Dimensional Printing of Tissue Engineering Scaffolds. Tissue Eng. Part A 2020, 26, 1359–1368. [Google Scholar] [CrossRef] [PubMed]
  69. Cai, R.; Wang, K.; Wen, W.; Peng, Y.; Baniassadi, M.; Ahzi, S. Application of Machine Learning Methods on Dynamic Strength Analysis for Additive Manufactured Polypropylene-Based Composites. Polym. Test. 2022, 110, 107580. [Google Scholar] [CrossRef]
  70. Jin, S.; Goh, G. Bayesian Selection of Best Subsets via Hybrid Search. Comput. Stat. 2021, 36, 1991–2007. [Google Scholar] [CrossRef]
  71. Anjum, M.; Khan, K.; Ahmad, W.; Ahmad, A.; Amin, M.N.; Nafees, A. New SHapley Additive ExPlanations (SHAP) Approach to Evaluate the Raw Materials Interactions of Steel-Fiber-Reinforced Concrete. Materials 2022, 15, 6261. [Google Scholar] [CrossRef] [PubMed]
  72. Shen, Y.; Sun, J.; Liang, S. Interpretable Machine Learning Models for Punching Shear Strength Estimation of FRP Reinforced Concrete Slabs. Crystals 2022, 12, 259. [Google Scholar] [CrossRef]
  73. Lundberg, S.M.; Lee, S.I. A Unified Approach to Interpreting Model Predictions. Adv. Neural Inf. Process. Syst. 2017, 2017, 4766–4775. [Google Scholar]
  74. Meghanathan, N. Assortativity Analysis of Real-World Network Graphs Based on Centrality Metrics. Comput. Inf. Sci. 2016, 9, 7. [Google Scholar] [CrossRef]
  75. Shim, J.S.; Kim, J.E.; Jeong, S.H.; Choi, Y.J.; Ryu, J.J. Printing Accuracy, Mechanical Properties, Surface Characteristics, and Microbial Adhesion of 3D-Printed Resins with Various Printing Orientations. J. Prosthet. Dent. 2020, 124, 468–475. [Google Scholar] [CrossRef]
  76. Vatcheva, K.P.; Lee, M. Multicollinearity in Regression Analyses Conducted in Epidemiologic Studies. Epidemiology 2016, 06, 1–20. [Google Scholar] [CrossRef]
  77. Kalnins, A. Multicollinearity: How Common Factors Cause Type 1 Errors in Multivariate Regression. Strateg. Manag. J. 2018, 39, 2362–2385. [Google Scholar] [CrossRef]
  78. Li, L.; Lu, J.; Wang, S.; Ma, Y.; Wei, Q.; Li, X.; Cong, R.; Ren, T. Methods for Estimating Leaf Nitrogen Concentration of Winter Oilseed Rape (Brassica Napus L.) Using in Situ Leaf Spectroscopy. Ind. Crops Prod. 2016, 91, 194–204. [Google Scholar] [CrossRef]
  79. Chicco, D.; Warrens, M.J.; Jurman, G. The Coefficient of Determination R-Squared Is More Informative than SMAPE, MAE, MAPE, MSE and RMSE in Regression Analysis Evaluation. PeerJ Comput. Sci. 2021, 7, e623. [Google Scholar] [CrossRef]
  80. Nohara, Y.; Matsumoto, K.; Soejima, H.; Nakashima, N. Explanation of Machine Learning Models Using Shapley Additive Explanation and Application for Real Data in Hospital. Comput. Methods Programs Biomed. 2022, 214, 106584. [Google Scholar] [CrossRef]
  81. Zhang, Z.; Ghasemi, A.; Koutná, N.; Xu, Z.; Grünstäudl, T.; Song, K.; Holec, D.; He, Y.; Mayrhofer, P.H.; Bartosik, M. Correlating Point Defects with Mechanical Properties in Nanocrystalline TiN Thin Films. Mater. Des. 2021, 207, 109844. [Google Scholar] [CrossRef]
  82. Su, Y.; Zhu, J.; Long, X.; Zhao, L.; Chen, C.; Liu, C. Statistical Effects of Pore Features on Mechanical Properties and Fracture Behaviors of Heterogeneous Random Porous Materials by Phase-Field Modeling. Int. J. Solids Struct. 2023, 264, 112098. [Google Scholar] [CrossRef]
  83. Jiang, W.; Huang, Z.; Wang, Y.; Zheng, B.; Zhou, H. Voids Formation and Their Effects on Mechanical Properties in Thermoformed Carbon Fiber Fabric-reinforced Composites. Polym. Compos. 2019, 40, E1094–E1102. [Google Scholar] [CrossRef]
  84. Lee, K.Y.; Mooney, D.J. Alginate: Properties and Biomedical Applications. Prog. Polym. Sci. 2012, 37, 106–126. [Google Scholar] [CrossRef] [PubMed]
  85. Lerner, A.; Benzvi, C. Microbial Transglutaminase Is a Very Frequently Used Food Additive and Is a Potential Inducer of Autoimmune/ Neurodegenerative Diseases. Toxics 2021, 9, 233. [Google Scholar] [CrossRef]
  86. Tian, X.Y.; Chen, X.B. Effects of Cell Density on Mechanical Properties of Alginate Hydrogel Tissue Scaffolds. J. Biomim. Biomater. Tissue Eng. 2014, 19, 77–85. [Google Scholar] [CrossRef]
  87. Yang, L.; Fan, L.; Lin, X.; Yu, Y.; Zhao, Y. Pearl Powder Hybrid Bioactive Scaffolds from Microfluidic 3D Printing for Bone Regeneration. Adv. Sci. 2023, 10, 2304190. [Google Scholar] [CrossRef]
  88. Yang, P.; Ju, Y.; Hu, Y.; Xie, X.; Fang, B.; Lei, L. Emerging 3D Bioprinting Applications in Plastic Surgery. Biomater. Res. 2023, 27, 1. [Google Scholar] [CrossRef]
  89. Yue, K.; Trujillo-de Santiago, G.; Alvarez, M.M.; Tamayol, A.; Annabi, N.; Khademhosseini, A. Synthesis, Properties, and Biomedical Applications of Gelatin Methacryloyl (GelMA) Hydrogels. Biomaterials 2015, 73, 254–271. [Google Scholar] [CrossRef]
Bioengineering 11 00415 g001

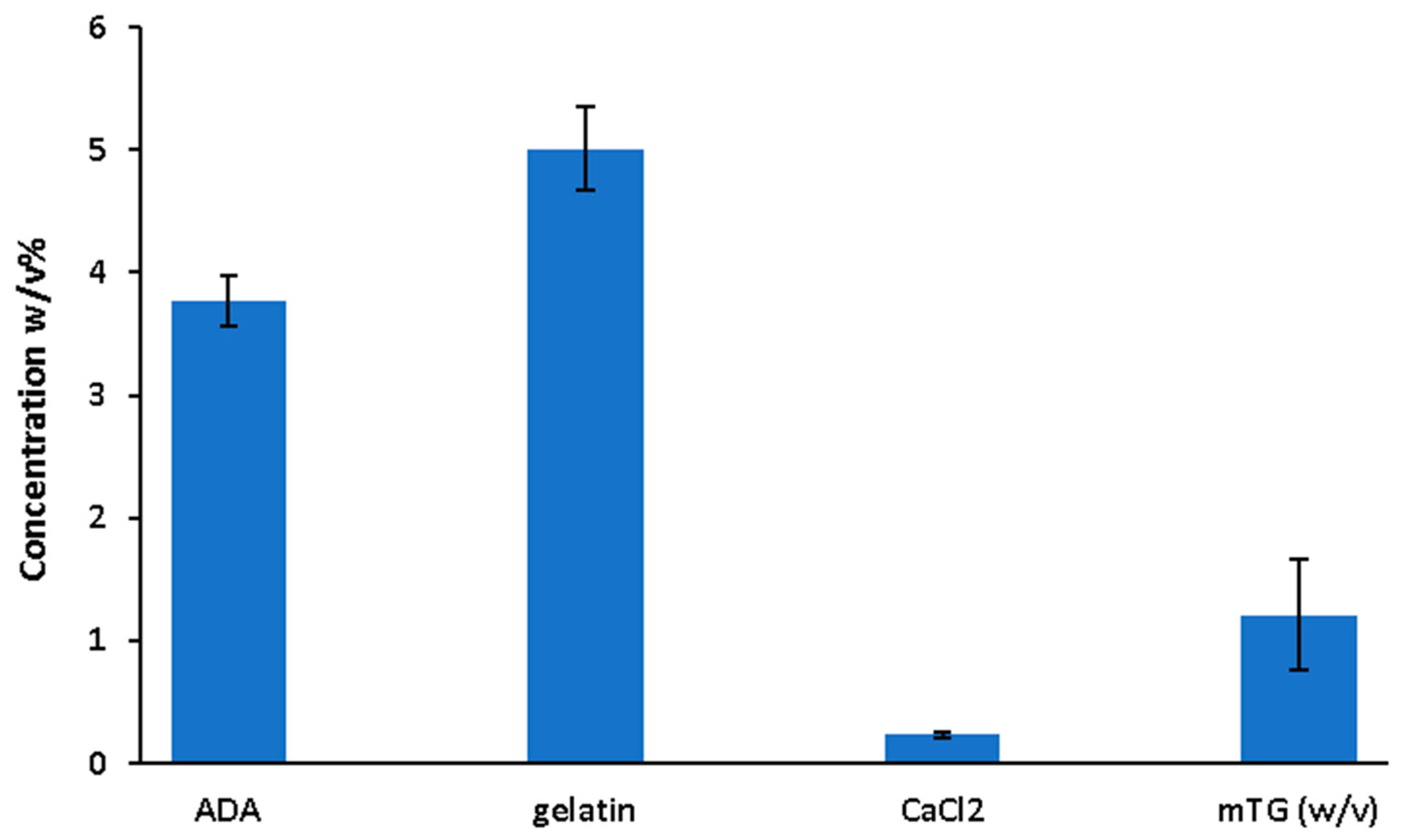

Figure 1. Average of used parameters used in the model.
Figure 1. Average of used parameters used in the model.
Bioengineering 11 00415 g001
Bioengineering 11 00415 g002

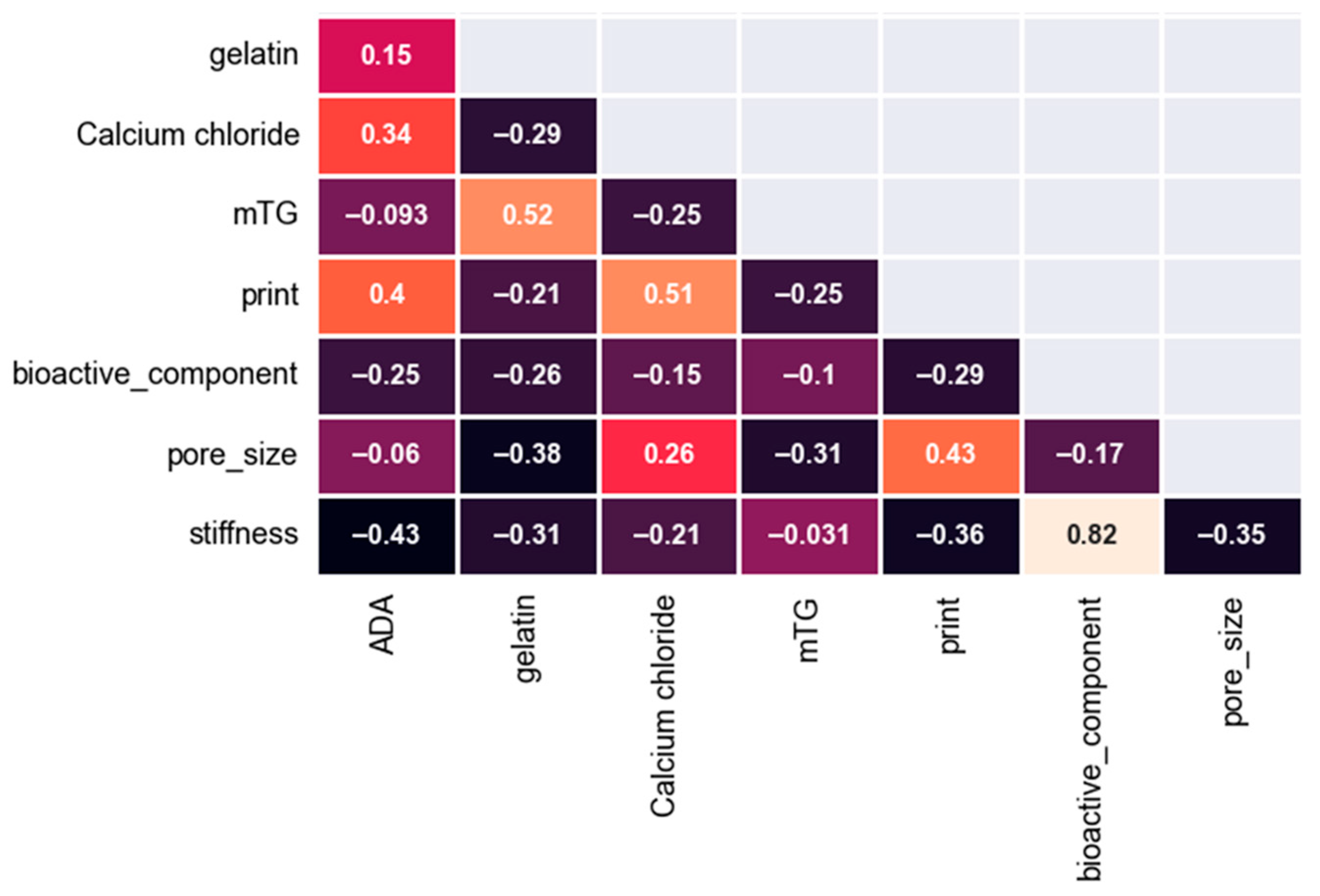

Figure 2. Correlation heatmap for the independent and dependent variables.
Figure 2. Correlation heatmap for the independent and dependent variables.
Bioengineering 11 00415 g002
Bioengineering 11 00415 g003

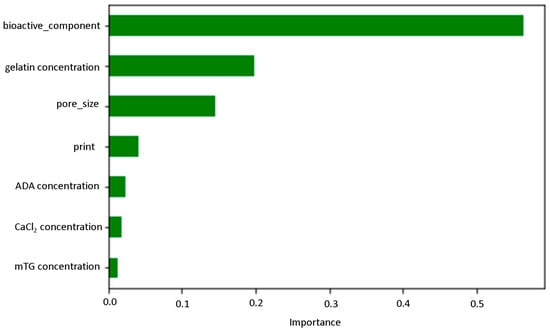

Figure 3. Feature importance score of the studied parameters.
Figure 3. Feature importance score of the studied parameters.
Bioengineering 11 00415 g003
Bioengineering 11 00415 g004

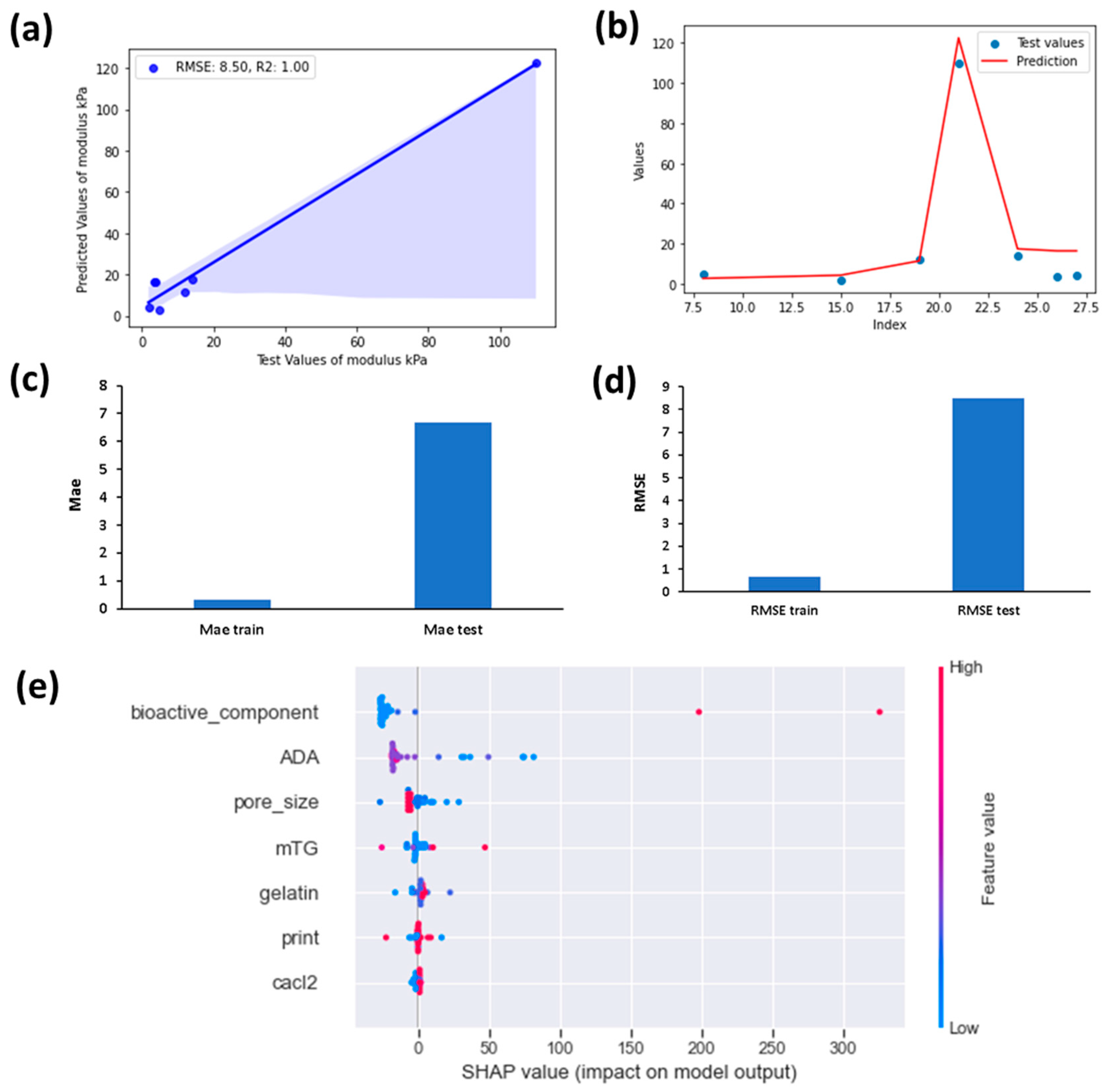

Figure 4. Determination of the success of the model. (a) Predicted and observed stiffness values for XGB, (b) distribution of experimental (test) and predicted values with XGB, (c) MAE train and test values, (d) RMSE train and test values, (e) SHAP summary plot based on XGB model for feature values.
Figure 4. Determination of the success of the model. (a) Predicted and observed stiffness values for XGB, (b) distribution of experimental (test) and predicted values with XGB, (c) MAE train and test values, (d) RMSE train and test values, (e) SHAP summary plot based on XGB model for feature values.
Bioengineering 11 00415 g004
Bioengineering 11 00415 g005
Figure 5. Predicted stiffness of ADA-GEL hydrogels for different compositions: (a) predicted stiffness vs. ADA/GEL content, (b) predicted stiffness vs. gelatin concentration for various ADA concentrations (CaCl2 = 0.1 w/v, mTG = 1 w/v%, filler content = 1 wt% and pore size = 200 µm).
Figure 5. Predicted stiffness of ADA-GEL hydrogels for different compositions: (a) predicted stiffness vs. ADA/GEL content, (b) predicted stiffness vs. gelatin concentration for various ADA concentrations (CaCl2 = 0.1 w/v, mTG = 1 w/v%, filler content = 1 wt% and pore size = 200 µm).
Bioengineering 11 00415 g005
Bioengineering 11 00415 g006
Figure 6. Change of predicted stiffness with (a) pore size (ADA %w/v is kept as 3.75, gelatin = 2.5, CaCl2 = 0.1 w/v, mTG = 1 w/v%, filler content = 1 wt%) and (b) CaCl2 concentration (ADA %w/v is kept as 3.75, gelatin = 2.5, mTG = 1 w/v%, filler content = 1 wt%, pore size = 400 µm).
Figure 6. Change of predicted stiffness with (a) pore size (ADA %w/v is kept as 3.75, gelatin = 2.5, CaCl2 = 0.1 w/v, mTG = 1 w/v%, filler content = 1 wt%) and (b) CaCl2 concentration (ADA %w/v is kept as 3.75, gelatin = 2.5, mTG = 1 w/v%, filler content = 1 wt%, pore size = 400 µm).
Bioengineering 11 00415 g006
Bioengineering 11 00415 g007
Figure 7. Effect of w/v% of BG filler on predicted stiffness of ADA-GEL composite hydrogels (ADA = 3.75 wt/v%, gelatin = 2.5 wt/v%, CaCl2 = 0.1 w/v%, mTG = 1 w/v%, pore size = 400 µm).
Figure 7. Effect of w/v% of BG filler on predicted stiffness of ADA-GEL composite hydrogels (ADA = 3.75 wt/v%, gelatin = 2.5 wt/v%, CaCl2 = 0.1 w/v%, mTG = 1 w/v%, pore size = 400 µm).
Bioengineering 11 00415 g007
Table 1. Printing parameters used in the relevant papers [1,2,7,8,40,42,48,49,50].
Table 1. Printing parameters used in the relevant papers [1,2,7,8,40,42,48,49,50].
Printing Temperature (°C)Printing Speed
(mm/s)		Pressure
(kPa)		Ref.
30N/AN/A[42]
302160[48]
305165[2]
30N/A8[1]
3010250[49]
30N/AN/A[50]
301435[8]
3010100[40]
Table 2. Hyperparameters and their best parameters for tuning by XGB model.
Table 2. Hyperparameters and their best parameters for tuning by XGB model.
HyperparametersSubsample Ratio of ColumnsNumber of EstimatorsMaximum DepthLearning Rate
Parameters0.5, 0.6, 0.8, 0.91000, 20004, 6, 100.01, 0.05, 0.1, 0.3
Best parameters0.8100040.3
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ege, D.; Boccaccini, A.R. Investigating the Effect of Processing and Material Parameters of Alginate Dialdehyde-Gelatin (ADA-GEL)-Based Hydrogels on Stiffness by XGB Machine Learning Model. Bioengineering 2024, 11, 415. https://doi.org/10.3390/bioengineering11050415

AMA Style

Ege D, Boccaccini AR. Investigating the Effect of Processing and Material Parameters of Alginate Dialdehyde-Gelatin (ADA-GEL)-Based Hydrogels on Stiffness by XGB Machine Learning Model. Bioengineering. 2024; 11(5):415. https://doi.org/10.3390/bioengineering11050415

Chicago/Turabian Style

Ege, Duygu, and Aldo R. Boccaccini. 2024. "Investigating the Effect of Processing and Material Parameters of Alginate Dialdehyde-Gelatin (ADA-GEL)-Based Hydrogels on Stiffness by XGB Machine Learning Model" Bioengineering 11, no. 5: 415. https://doi.org/10.3390/bioengineering11050415

APA Style

Ege, D., & Boccaccini, A. R. (2024). Investigating the Effect of Processing and Material Parameters of Alginate Dialdehyde-Gelatin (ADA-GEL)-Based Hydrogels on Stiffness by XGB Machine Learning Model. Bioengineering, 11(5), 415. https://doi.org/10.3390/bioengineering11050415

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
