Decontamination of Dental Implant Surfaces by the Er:YAG Laser Beam: A Comparative in Vitro Study of Various Protocols

by
Rima Nejem Wakim
1,
Melanie Namour
2,
Hoang Viet Nguyen
2,
Andre Peremans
3,
Toni Zeinoun
1,
Alain Vanheusden
2,
Eric Rompen
2 and
Samir Nammour
2,*
1
Department of Oral and Maxillofacial Surgery, School of Dentistry, Lebanese University, Beirut 27798, Lebanon
2
Department of Dental Science, Faculty of Medicine, University of Liege, 4020 Liege, Belgium
3
Centre de Recherche en Physique de la Matière et des Rayonnements, Facultés Universitaires Notre Dame de la Paix, 5000 Namur, Belgium
*
Author to whom correspondence should be addressed.
Dent. J. 2018, 6(4), 66; https://doi.org/10.3390/dj6040066
Submission received: 23 September 2018 / Revised: 16 November 2018 / Accepted: 19 November 2018 / Published: 1 December 2018
(This article belongs to the Collection Light and Laser Dentistry)
Browse Figures
Versions Notes

Abstract

:
Oral rehabilitation with dental implants has revolutionized the field of dentistry and has been proven to be an effective procedure. However, the incidence of peri-implantitis has become an emerging concern. The efficacy of the decontamination of the implant surface, by means of lasers, is still controversial. Previous studies have revealed a reduction in osteoblast adhesion to carbon-contaminated implant surfaces. This in-vitro study aimed to evaluate the decontamination of failed implants by assessing the carbon proportion, after irradiation by low-energy erbium yttrium-aluminum-garnet laser (Er:YAG) (Fotona; 2940 nm, Ljubljana, Slovenia) for a single and for multiple passages, until getting a surface, free of organic matters; to find the appropriate procedure for dental-implant surface-decontamination. Ninety implants were used. Thirty sterile implants were kept as a negative control. Thirty failed implants were irradiated by the Er:YAG laser, for a single passage, and the other thirty, for multiple passages. The parameters used in our experiments were an irradiation energy of 50 mJ, frequency of 30 Hz, and an energy density of 3.76 J/cm2. A sapphire tip, with a length of 8 mm, was used with concomitant water spray irrigation, under air 6 and water spray 4. Super short pulse mode (SSP) was of 50 μs; irradiation speed being 2 mm/s. We used energy-dispersive X-ray spectroscopy (EDX) to evaluate the carbon proportion on the surfaces of the sterile implants, the contaminated, and the lased implants, with one (LX1) and with three passages (LX3). Statistical analysis was performed by ANOVA. Results showed mean difference between the three groups (contaminated, LX1, and LX3) with p < 0.0001, as between LX1 and Group A (p < 0.0001), while the difference between LX3 and the control group was not statistically significant. The decontamination of the implant surfaces with a low-energy Er:YAG laser with three passages, appeared to be an encouraging approach.

1. Introduction

Peri-implantitis is an inflammatory process that takes place in the soft tissue, with a bone loss around an osseointegrated implant in function [1,2]. Diagnosis is based on the bleeding and the probing depth of the peri-implant pockets, along with the suppuration and gradual loss of bone height around the implant [3,4,5]. The etiology of the implant infection includes many factors, such as implant design, degree of roughness, and the status of the tissue surrounding the implant [5]. However, bacterial infection plays the most important role in the failure of dental implants [6]. Many acidogenic bacteria collaborate to produce acidic conditions [7,8] which could promote bacterial survival from organic matters present at the implant surface [9]. Lausma et al. [10] concluded in their study that the presence of large variations in carbon loads (20–60%) on the contaminated implant surface. Shibli et al. [11] showed that there are varying degrees of foreign carbon on the surface of the failed titanium dental implants. Subsequently, bone-to-titanium contact is affected by the accumulation of organic molecules on the implant surfaces [12,13]. As carbon is the most prominent contaminant on titanium surfaces, Hayashi [14] in his study, focused on the effect of carbon adsorption on the bioactivity of titanium; he concluded that the elimination of hydrocarbons seems to be an important step in promoting the bioactivity and osseointegration of titanium. Thereafter, to increase the surface energy and wettability, implant surface must be treated to reduce the degree of hydrocarbon [15]. A general rule has been set that, cleaner is better [16].
Many treatments have been proposed in the literature [17,18,19,20,21,22,23,24,25,26], but until now no methodology has been proven to be a gold standard approach. The decontamination of such surfaces can be problematic, especially as the complex modern surface topography of implants offers an outstanding haven for bacterial adhesion and colonization. The main objective of the treatment is to eliminate soft and hard deposits, without changing the topography, because a surface damage induces changes in the oxide layer and this may impair the osseointegration of the implant [27,28,29,30,31]. Therapeutic strategies comprise surgical and nonsurgical protocols. They include debridement by different means—air-powder abrasive technique, chlorhexidine, tetracycline, metronidazole, citric acid application, and photodynamic therapy [5]. Finally, laser which is a non-invasive method could be used to reduce microorganisms in the peri-implantitis [6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32]. Data related to the effects of laser on the biological and surface properties of titanium, are conflicting [33,34,35,36,37]. Many studies have shown alteration in the implant surface resulting from a laser treatment [38], which may be a result of beam absorption by the titanium, with different settings used during studies [37,39,40].
Erbium yttrium-aluminum-garnet laser (Er:YAG) lasers with a wavelength of 2940 nm has been often evaluated as a treatment option for the removal of biofilms from contaminated dental implants [41]. Its laser light is well-absorbed by biofilms and it does not affect the implant surface at a low-energy level [15]. The question still exists regarding what would be an efficient protocol to use, without damaging the implant surface.
Most studies estimated the efficacy of laser decontamination, either by assessing the removal of subgingival calculus or cytotoxic bacterial components from the implant surfaces. There are yet no publications that have evaluated the efficiency of implant cleaning through the detection of carbon atoms. Carbon is the witness to the persistence of any non-biocompatible matter (organic and calcic) that may alter the new osseointegration of the decontaminated implant surfaces.
Since the presence of contamination on the implant surfaces affects the osteoblast adhesion, in this study we aim to assess the efficiency of the Er:YAG laser in removing carbon traces (witnesses to the contamination), through an energy-dispersive X-ray spectroscopy (EDX). The SEM is used to check the elimination of the contaminants and to detect any implant surface alteration. For this purpose, we used a low-energy level of the Er:YAG laser (50 mJ), since at this level there are no morphological changes of the irradiated implant and the elevation of the surface temperature is negligible, with the use of water-cooling [38]. To evaluate the efficiency of the cleaning, we used a single and multiple passages of laser irradiation. The null hypothesis was that the cleanliness of the implants irradiated by the Er:YAG laser was comparable to that of the control group of sterile implants. Thus, there was no significant difference between the irradiated and the control group concerning the count of carbon.

2. Materials and Methods

Ninety implants, with a surface that was treated by sandblasting, with titanium oxide, and etched with nitric and hydrofluoric acids (Titanium grade IV-EuroTechnica group, Sallanches, France), were used in our study. They were divided into two groups: Group A (the control group) and Group B (the test group). Group B was then subdivided into two subgroups, based on the decontamination method. This distribution is shown in Table 1.
  • Group A: Thirty sterile implants served as the control group. The implants of this group were kept in their own sterile packages, until their examination through EDX and SEM.
  • Group B: Sixty contaminated implants were collected from failed cases of implants. The implants were retrieved from patients previously diagnosed with peri-implantitis. Their removal was not, in any of the cases, related to our study (severe peri-implantitis and bone resorbtion, loss of osteointegration, etc.). Before experimentation and for the purpose of standardization, all contaminated implants were preserved in sterile saline liquid of 0.9% NaCl, at a temperature of 37 °C, for the simulation of the intra-oral in vivo conditions; the solution was changed every 24 h, until experimentation. To assess the efficacy of the laser irradiation, in our study we compared the carbon percentage of the contaminated implant surfaces, before and after the laser irradiation. At the baseline, the sixty implants of Group B were all evaluated (eight points were randomly analyzed per sample), using energy dispersive X-ray analysis (SEM–EDX). After that, the implants were randomly assigned into two equal samples—LX1 and LX3—for the laser irradiation. Sample LX1 was irradiated by one passage and sample LX3, by three passages. Afterward, a second analysis of the carbon content of both samples was done.

2.1. Decontamination

Laser surface preparation: The contaminated implants of Group B were irradiated using a custom-designed device (Figure 1). The custom made machine was driven by a stepper motor, controlled by a software, and was connected to a computer through a USB. Such a device was used for the fixation of the laser handpiece, in a standard manner, for the irradiation of the implant, at a constant speed and time. The machine allowed for the standardization of all laser irradiations, thus, allowing an accurate comparison between the different treatment protocols. It should have been able to:
(1)
Standardize the angulation of the laser beam.
(2)
Standardize the distance between the tip of the handpiece and the implant surface.
(3)
Standardize the exposure time.
(4)
Have a semi-adjustable base on which an implant, connected to an abutment, is attached to a Plexiglass® plate.
An Er:YAG laser (Fotona; 2940 nm, Ljubljana, Slovenia) was used in our experiments, with an irradiation energy of 50 mJ, frequency of 30 Hz, output power of 1.5 W, and an energy density of 3.76 J/cm2. The energy was chosen, based on the literature review; higher energy was shown to damage the titanium implant surface [38]. A sapphire tip with a length of 8 mm was used in the respective handpiece (H14) and not in contact with the surface of the titanium, with concomitant water spray irrigation, under air 6 and water spray 4, the irradiation angle was 90 degrees, at a focal distance of 2 mm, the spot size diameter was 1.3 mm; Super short pulse mode (SSP) was of 50 μs; the contaminated implants of Group B were irradiated as:
  • Thirty contaminated implants received one passage of laser (LX1).
  • Thirty contaminated implants received three passages of laser (LX3).
As the irradiation speed was 2 mm per second, the time of irradiation for each implant, depended on its dimension, with an average of 40 s in the LX1 group, for an implant of 4 mm diameter and length of 10 mm, while the irradiation took three times longer for the LX3 group. After the laser irradiation, all fixtures were returned to sterile packages, for testing.

2.2. Scanning Electron Microscopy

Through SEM (Seron technologies AIS2100, Uiwang, South Korea) or EDX (EDAX Apollo detector) we analyzed the effects produced by the Er:YAG laser in one and in three passages, by evaluating the proportion of the carbon on the implant surfaces, for the sterile (control–Group A) (Figure 2), and the contaminated implant surfaces, before (Figure 3) and after the irradiation (Figure 4 and Figure 5). EDX, which is the standard technique for the local determination of the chemical composition, was used to measure the presence of carbon on the implant surfaces. The area of an EDX peak, of an element in a sample, is directly proportional to the abundance of the elements in the sample.
The implants were carefully removed from their container, using sterile tweezers, in order to prevent any contamination. Then, they were placed on a sample holder and fixed by a double-faced conductive tape on one side, while the other sides were freely facing the electron beam of the SEM. No special sample preparation was used, since the implants were already metallic and conductive, which canceled the need for any sputtering or metallization. A high-vacuum SEM was used with an acceleration voltage of 20 kV and a working distance of 25 mm, the take-off angle for the EDX was 23 degrees. The alterations on the implant surface were evaluated by inspecting the SEM images

3. Statistical Analysis

Statistical analyses were performed by a blind statistician, using the GraphPad Prism program (GraphPad Software, Inc., San Diego, CA, USA). Means and standard deviations (SD) of the carbon mass (%) on the implant surfaces, were reported for each group. Data showed normal and homogeneous distributions and were submitted to one-way ANOVA, followed by post-hoc Newman-Keuls test, for pairwise comparisons. A p-value of less than 0.05 was considered to be statistically significant.

4. Results

4.1. Analytical Results

At baseline, the contaminated Group B had a mean carbon mass (%) of 37.18 ± 15.31. This value decreased to 6.17 ± 1.45 after one laser passage and to 1.43 ± 0.41 after three laser passages (Table 2). The mean difference between the three groups (contaminated, LX1, and LX3) was statistically significant (p < 0.0001), as shown in Table 2. For the comparison between LX1, LX3, and the control Group A (sterile); the mean carbon mass (1.86 ± 0.68) analysis showed a significant difference between LX1 and Group A (p < 0.0001), while the difference between LX3 and the control group was not statistically significant (Table 3). Results are further illustrated in Figure 6. Thus, the null hypothesis was accepted, when comparing the group irradiated by three passages versus the control group of the sterile implants (p value > 0.05).

4.2. SEM Observations

The SEM examination of the implant surface after laser irradiation, in comparison with a sterile and not-treated surface, showed what has been presented in Figure 7 and Figure 8. There was no presence of any cracks or melted surface in all figures. When we used 50 mJ by three passages, the implant surface did not get affected and the rough surface was similar to the one of the sterile implant.

5. Discussion

Numerous procedures have been proposed for the clinical use of Er:YAG laser, in dentistry, ranging from the removal of tooth decay and cavity preparation, to many soft and hard tissue surgical procedures [35,42,43,44,45,46,47,48]. Along with these, there are other benefits, such as ablation of the target tissues and the ability to reduce bacterial contamination. Many studies have already validated the bactericidal effect of laser irradiation on the surface of the contaminated dental implants. Due to its unidirectional light and the side-firing tips, the laser beam allowed access to all threads of the implant surface, compared to the mechanical debridement by curettes which are not able to reach all parts of the surface [38].
Kreisler et al. [36] evaluated the use of Nd:YAG, Ho:YAG, Er:YAG, CO2, and GaAlAs lasers for the decontamination of implant surfaces; they concluded that Er:YAG and CO2 lasers may be used at limited powers. Several researches have studied the cleaning efficacy of the Erbium laser beam on a titanium surface, but to date there is no consensus on the appropriate parameters of lasers that are to be used during decontamination [49]. Er:YAG pulses of 300 mJ/10 Hz produce alterations to the SLA (sandblasted and acid-etched) surfaces and 500 mJ/10 Hz pulses alter the polished surfaces [36]. Galli et al. investigated the Er:YAG irradiation at two levels: 150 and 200 mJ/pulse at 10 Hz; the results of the study indicated that Er:YAG laser at these energy levels, could alter the surface profile of titanium implants and subsequently, may negatively affect the viability and the activity of the osteoblastic cells [50]. Several in vitro and in vivo studies had investigated the use of Er:YAG laser at a pulse energy of 100 mJ, with a frequency of 10 Hz, and had found it effective for the decontamination of implant surfaces [51,52]. However, it decreases the surface roughness and increases the wettability of the SLA and hydroxyapatite titanium surfaces, after one minute of irradiation [44]. Nevertheless, another study concluded that no surface alteration was detected after irradiation at an intensity of 100 mJ/pulse, at 10 Hz, for 1 min, while the titanium’s roughness was affected after 1.5 min of Er:YAG irradiation [41]. This result was already concluded by Kim et al., who recommended the application settings of 100 mJ/pulse, at 10 Hz and for less than two minutes, to detoxify the implant surface without causing any surface modifications [53]. The energy level of 50 mJ has shown efficiency in removing plaque and calculus on the implant abutments, without injuring their surfaces [38]. When the pulse energy and irradiation time increased, greater surface alterations, including surface flattening and microfractures were observed [41]. In the present study we used the same low-level energy of Er:YAG (50 mJ) on a rough implant surface, to test it by a single and multiple passages. The results were promising as Group LX3 (3 passages) was almost perfectly cleaned, in comparison to the negative control group, in which no contamination technique was used. The value of carbon mass decreased after one laser passage but analysis showed a significant difference between LX1 and the control group (p < 0.05), while the difference between LX3 and the control group was not statistically significant (Table 3). Therefore, irradiation by one passage, with the mentioned parameters (50 mJ), did not show efficiency in the implant surface decontamination. A great difference was noted between LX1 (one passage) and LX3. Reduction in the presence of carbon in LX3, in comparison to LX1, was probably caused by the multiple passages of laser beam. Thus, multiple irradiations with Er:YAG laser produced the removal of all particles.
The control of the energy density is a key factor of success for any treatment by laser irradiation [54]. Taniguchi et al. used a pulse energy of 30–50 mJ/pulse at a repetitive rate of 30 Hz. They had concluded that Er laser irradiation at pulse energies below 30 mJ/pulse and 30 Hz, is effective for debriding microstructure surfaces and the fluency being 10.6 J/cm2 [55], which was greater than the value used in our study. These findings suggest that in our experiment, the reduction of carbon presence on the implant surface was rather due to the multiple passages of laser.
No surface change was seen in the irradiated groups (Figure 6); this result was in agreement with a previous study that revealed no distinct morphological alterations under 50 mJ. Due to a serious concern regarding implant overheating, the laser beam was used with concomitant water spray irrigation under air 6 and water 4, to minimize thermal damage, by keeping the irradiated area moist [56]. We cannot completely rule out the effect of water irrigation on removing some contaminants, but it is impossible to get a surface as clean as a sterile implant’s surface. Although, Park et al. concluded in their study that the use of a dental water jet didn’t show any efficacy in the dental implant decontamination [57]. The impact of the laser tip on heat generation, during implant decontamination, has received little attention. The tip used in our study was a sapphire tip. Romanos et al. have studied the influence of two laser tips (sapphire chisel and radial firing perio) on temperature change after laser irradiation; they concluded that sapphire may be preferable for implant debridement [8].
In addition, one of the key factors that regulate the regime and efficacy of laser decontamination is the laser pulse duration. The VSP (very short pulse) Er:YAG laser can be operated at adjustable pulse duration, from super short pulses (SSP) that are ideal for the precise ablation of hard tissue, to very long pulses (VLP) for more coagulative soft tissue procedures. This technological solution provides nearly square-shaped power pulses, the duration of which can be conveniently controlled over a wide range of pulse durations [58]. In our experiment, the beneficial effect of the Er:YAG laser in implant decontamination was particularly pronounced when the laser was set to operate at super-short pulses (SSP, 50 µs) and a low-pulse energy, which provided an extremely precise laser ablation with minimal thermal effect, since there was a very short duration to escape the ablated volume [59].
Folwaczny et al. concluded that the efficiency was maximal at an angle of 90 degrees, during the removal of a root substance [60]. In this study, for maximum energy application, the irradiation angle was 90 degrees at a focal distance of 2 mm, however, the implant design was not a smooth titanium plate but a dental implant thread surface, and the laser illumination angle limitation caused by the threads could make the clinical application different from in vitro experiments. Our study has shown that the decontamination of implants is possible with Er:YAG, under certain conditions, particularly, the condition of angulation of 90 degrees. Having a 90° angle may not always be respected, in situ, therefore, there is probably a risk of reduced effectiveness in cleaning the implant. Accordingly, it is interesting to use the adapted Er:YAG tips allowing the delivery of a beam at 90° into the pitch of the threads, for effective decontamination.
The previous studies focused on the activity of the Er:YAG laser, against planktonic bacteria [15,35,61]. Our in-vitro study has evaluated the efficiency of Er:YAG laser to remove carbon and to get a surface composition comparable to the uncontaminated implant surface with decreased amounts of carbon.
The percentage mass of carbon present on the implant’s surface is a measure of its contamination. The lower the percentage, the cleaner was the implant. The results of our study showed similarity in the count of carbon between the sterile and laser-irradiated implants (by three passages), in comparison with contaminated ones and one passage lasing. Er:YAG was efficient to clean the implant surfaces without altering the titanium surface, by an irradiation of 50 mJ/pulse at 30 Hz, for three passages. In addition, this procedure was very fast since an implant may be cleaned in about one minute, depending on the exposed area.
Further studies should be directed to evaluate the biocompatibility and the cellular adhesion of the titanium surfaces, after their cleaning using similar Er:YAG irradiation conditions.

6. Conclusions

Our results suggest that the Er:YAG laser could be considered an effective tool for the decontamination of implant surfaces when used with an energy of 50 mJ, frequency of 30 Hz, in the super short pulse mode (SSP), and a fluency of 3.76 J/cm2. When the irradiation speed was 2 mm/s, the laser irradiation by three passages was very efficient.

Author Contributions

Conceptualization, S.N. and E.R.; methodology, A.V. and T.Z.; software, M.N.; validation, S.N., A.P.; formal analysis, S.N.; investigation, M.N. and H.V.N. and R.N.W.; resources, A.P.; data curation, M.N.; writing—original draft preparation, R.N.W.; writing—review and editing, S.N.; visualization, M.N.; supervision, S.N.; project administration, S.N. and T.Z.; funding acquisition, A.P. and S.N.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare that there is no conflict of interest regarding the publication of this paper.

References

  1. Huynh-Ba, G. Thematic abstract review: Peri-implantitis: “Tsunami” or Marginal Problem? Int. J. Oral Maxillofac. Implants 2013, 28, 333–337. [Google Scholar]
  2. Mombelli, A.; Lang, N.P. The diagnosis and treatment of peri-implantitis. Periodontology 2000 1998, 17, 63–76. [Google Scholar] [CrossRef] [PubMed]
  3. Albrektsson, T.; Isidor, F. Consensus report of session IV. In Proceedings of the 1st European Workshop on Periodontology; Lang, N.P., Karring, T., Eds.; Quintessence Publishing: London, UK, 1994; pp. 365–369. [Google Scholar]
  4. Berglundh, T.; Persson, L.; Klinge, B. A systematic review of the incidence of biological and technical complications in implant dentistry reported in prospective longitudinal studies of at least 5 years. J. Clin. Periodontol. 2002, 29, 197–212. [Google Scholar] [CrossRef] [PubMed]
  5. Jayachandran Prathapachandran, N.S. Management of peri-implantitis. Dent. Res. J. (Isfahan) 2012, 9, 516–521. [Google Scholar] [CrossRef]
  6. Sheikh, Z.; Alshahrani, A.M.; Thaventhirarajah, K. Peri-Implantitis: Etiology and Management. EC Dent. Sci. ECO 2016, 1, 12–14. [Google Scholar]
  7. Kalesinskas, P.; Kačerguis, T.; Ambrozaitis, A.; Peciulienė, V.; Ericson, D. Reducing dental plaque formation and caries development. A review of current methods and implications for novel pharmaceuticals. Stomatol. Balt. Dent. Maxillofac. J. 2014, 16, 44–52. [Google Scholar]
  8. Romanos, G.E.; Montanaro, N.J.; Sacks, D.; Miller, R.J.; Javed, F.; Calvo-Guirado, J.L.; Delgado-Ruiz, R.A. Various Tip Applications and Temperature Changes of Er,Cr:YSGG-Laser Irradiated Implants In Vitro. Int. J. Periodont. Restor. Dent. 2017, 37, 387–392. [Google Scholar] [CrossRef] [PubMed]
  9. Petersen, R.C. Titanium Implant Osseointegration Problems with Alternate Solutions Using Epoxy/Carbon-Fiber-Reinforced Composite. Metals (Basel) 2014, 4, 549–569. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Lausmaa, J.; Kasemo, B.; Mattson, H. Surface spectroscopic chracterization of titanium implant materials. Appl. Surf. Sci. 1990, 44, 133–146. [Google Scholar] [CrossRef]
  11. Shibli, J.A.; Vitussi, T.R.; Garcia, R.V.; Zenóbio, E.G.; Ota-Tsuzuki, C.; Cassoni, A.; Piattelli, A.; d’Avila, S. Implant surface analysis and microbiologic evaluation of failed implants retrieved from smokers. J. Oral Implantol. 2007, 33, 232–238. [Google Scholar] [CrossRef]
  12. Berglundh, T.; Abrahamsson, I.; Albouy, J.P.; Lindhe, J. Bone healing at implants with a fluoride-modified surface: An experimental study in dogs. Clin. Oral Implants Res. 2007, 18, 147–152. [Google Scholar] [CrossRef] [PubMed]
  13. Bolhari, B.; Ehsani, S.; Etemadi, A.; Shafaq, M.; Nosrat, A. Efficacy of Er,Cr:YSGG laser in removing smear layer and debris with two different output powers. Photomed. Laser Surg. 2014, 32, 527–532. [Google Scholar] [CrossRef] [PubMed]
  14. Hayashi, R.; Ueno, T.; Migita, S.; Tsutsumi, Y.; Doi, H.; Ogawa, T.; Hanawa, T.; Wakabayashi, N. Hydrocarbon Deposition Attenuates Osteoblast Activity on Titanium. J. Dent. Res. 2014, 93, 698–703. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Eick, S.; Meier, I.; Spoerlé, F.; Bender, P.; Aoki, A.; Izumi, Y.; Salvi, G.E.; Sculean, A. In Vitro-Activity of Er:YAG Laser in Comparison with other Treatment Modalities on Biofilm Ablation from Implant and Tooth Surfaces. PLoS ONE 2017, 12, e0171086. [Google Scholar] [CrossRef] [PubMed]
  16. Mish, C.E. Dental Implant Prosthetics, 2nd ed.; Churchill Livingstone; Elsevier: Amsterdam, The Netherlands, 2014. [Google Scholar]
  17. Heitz-Mayeld, L.J.A.; Salvi, G.E.; Mombelli, A.; Faddy, M.; Lang, N.P. Anti-infective surgical therapy of peri-implantitis. A 12-month prospective clinical study. Clin. Oral Implants Res. 2012, 23, 205–210. [Google Scholar] [CrossRef] [PubMed]
  18. Lang, N.P.; Wilson, T.G.; Corbet, E.F. Biological complications with dental implants: Their prevention, diagnosis and treatment Note. Clin. Oral Implants Res. 2000, 11 (Suppl. 1), 146–155. [Google Scholar] [CrossRef] [PubMed]
  19. Meffert, R.M. How to treat ailing and failing implants. Implant Dent. 1992, 1, 25–26. [Google Scholar] [CrossRef] [PubMed]
  20. Mombelli, A.; Feloutzis, A.; Bragger, U.; Lang, N.P. Treatment of peri-implantitis by local delivery of tetracycline. Clinical, microbiological and radiological results. Clin. Oral Implants Res. 2001, 12, 287–294. [Google Scholar] [CrossRef] [PubMed]
  21. Renvert, S.; Roos-Jansaker, A.M.; Claffey, N. Non-surgical treatment of peri-implant mucositis and peri-implantitis: A literature review. J. Clin. Periodontol. 2008, 35 (Suppl. 8), 305–315. [Google Scholar] [CrossRef] [PubMed]
  22. Schenk, G.; Flemmig, T.F.; Betz, T.; Reuther, J.; Klaiber, B. Controlled local delivery of tetracycline HCl in the treatment of periimplant mucosal hyperplasia and mucositis. A controlled case series. Clin. Oral Implants Res. 1997, 8, 427–433. [Google Scholar] [CrossRef] [PubMed]
  23. Talreja, P.S.; Gayathri, G.V.; Mehta, D.S. Treatment of an early failing implant by guided bone regeneration using resorbable collagen membrane and bioactive glass. J. Indian Soc. Periodontol. 2013, 17, 131–136. [Google Scholar] [CrossRef] [PubMed]
  24. Weinlaender, M.; Kenney, E.B.; Lekovic, V.; Beumer, J., 3rd; Moy, P.K.; Lewis, S. Histomorphometry of bone apposition around three types of endosseous dental implants. Int. J. Oral Maxillofac. Implants 1992, 7, 491–496. [Google Scholar] [PubMed]
  25. Yamamoto, A.; Tanabe, T. Treatment of peri-implantitis around TiUnite-surface implants using Er:YAG laser microexplosions. Int. J. Periodont. Restor. Dent. 2013, 33, 21–30. [Google Scholar] [CrossRef]
  26. Zablotsky, M.H. Chemotherapeutics in implant dentistry. Implant Dent. 1993, 2, 19–26. [Google Scholar] [CrossRef] [PubMed]
  27. Dmytiyk, J.J.; Fox, S.C.; Moriarty, J.D. The Effects of Scaling Titanium Implant Surfaces With Metal and Plastic Instruments on Cell Attachment. J. Periodontol. 1990, 61, 491–496. [Google Scholar] [CrossRef] [PubMed]
  28. Fox, S.C.; Moriarty, J.D.; Kusy, R.P. The effects of scaling a titanium implant surface with metal and plastic instruments: An in vitro study. J. Periodontol. 1990, 61, 485–490. [Google Scholar] [CrossRef] [PubMed]
  29. Größner-Schreiber, B.; Herzog, M.; Hedderich, J.; Dück, A.; Hannig, M.; Griepentrog, M. Focal adhesion contact formation by fibroblasts cultured on surface-modified dental implants: An in vitro study. Clin. Oral Implants Res. 2006, 17, 736–745. [Google Scholar] [CrossRef] [PubMed]
  30. London, R.M.; Roberts, F.A.; Baker, D.A.; Rohrer, M.D.; O’Neal, R.B. Histologic comparison of a thermal dual-etched implant surface to machined, TPS, and HA surfaces: Bone contact in vivo in rabbits. Int. J. Oral Maxillofac. Implants 2002, 17, 369–376. [Google Scholar] [PubMed]
  31. Park, J.Y.; Davies, J.E. Red blood cell and platelet interactions with titanium implant surfaces. Clin. Oral Implants Res. 2000, 11, 530–539. [Google Scholar] [CrossRef] [PubMed]
  32. Zabtotsky, M.H.; Diedrich, D.L.P.; Meffert, R.M. Detoxification of endotoxin-contaminated titanium and hydroxyapatite-coated surfaces utilizing various chemotherapeutic and mechanical modalities. Implant Dent. 1992, 1, 154–158. [Google Scholar] [CrossRef]
  33. Alshehri, F.A. The role of lasers in the treatment of peri-implant diseases: A review. Saudi Dent. J. 2016, 28, 103–108. [Google Scholar] [CrossRef] [PubMed]
  34. Romanos, G.E. Current concepts in the use of lasers in periodontal and implant dentistry. J. Indian Soc. Periodontol. 2015, 19, 490–494. [Google Scholar] [CrossRef] [PubMed]
  35. Kamel, M.S.; Khosa, A.; Tawse-Smith, A.; Leichter, J. The use of laser therapy for dental implant surface decontamination: A narrative review of in vitro studies. Lasers Med. Sci. 2014, 29, 1977–1985. [Google Scholar] [CrossRef] [PubMed]
  36. Kreisler, M.; Gatz, H.; Duschner, H.; Dâhoedt, B. Effect of Nd:YAG, Ho:YAG, Er:YAG, CO2, and GaAlAs irradiation on surface properties of endosseous dental implants. Int. J. Oral Maxillofac. Implants 2002, 17, 202–211. [Google Scholar] [PubMed]
  37. Romanos, G.E.; Weitz, D. Therapy of peri-implant diseases. Where is the evidence? J. Evid. Based Dent. Pract. 2012, 12, 204–208. [Google Scholar] [CrossRef]
  38. Matsuyama, T.; Aoki, A.; Oda, S.; Yoneyama, T.; Ishikawa, I. Effects of the Er:YAG laser irradiation on titanium implant materials and contaminated implant abutment surfaces. J. Clin. Laser Med. Surg. 2003, 21, 7–17. [Google Scholar] [CrossRef] [PubMed]
  39. Valderrama, P.; Blansett, J.; Gonzalez, M.; Cantu, M.; Wilson, T. Detoxification of Implant Surfaces Affected by Peri-Implant Disease: An Overview of Non-surgical Methods. Open Dent. J. 2014, 8, 77–84. [Google Scholar] [CrossRef] [PubMed]
  40. Stubinger, S.; Etter, C.; Miskiewicz, M.; Homann, F.; Saldamli, B.; Wieland, M. Surface alterations of polished and sandblasted and acid-etched titanium implants after Er:YAG, carbon dioxide, and diode laser irradiation. Int. J. Oral Maxillofac. ImplantsS 2010, 25, 104–111. [Google Scholar]
  41. Shin, S.I.; Lee, E.K.; Kim, J.H.; Lee, J.H.; Kim, S.H.; Kwon, Y.H.; Herr, Y.; Chung, J.H. The effect of Er:YAG laser irradiation on hydroxyapatite-coated implants and fluoride-modified TiO2-blasted implant surfaces: A microstructural analysis. Lasers Med. Sci. 2013, 28, 823–831. [Google Scholar] [CrossRef] [PubMed]
  42. Quaranta, A.; Maida, C.; Scrascia, A.; Campus, G.; Quaranta, M. Er:YAG Laser application on titanium implant surfaces contaminated by Porphyromonas gingivalis: An histomorphometric evaluation. Minerva Stomatol. 2009, 58, 317–330. [Google Scholar] [PubMed]
  43. Romanos, G.E. Treatment of peri-implant lesions using different laser systems. J. Oral Laser 2002, 2, 75–81. [Google Scholar]
  44. Ayobian-Markazi, N.; KFarimi, M.; Safar-Hajhosseini, A. Effects of Er: YAG laser irradiation on wettability, surface roughness, and biocompatibility of SLA titanium surfaces: An in vitro study. Lasers Med. Sci. 2015, 30, 561–566. [Google Scholar] [CrossRef] [PubMed]
  45. Dostalova, T.; Jelinkova, H. Lasers in dentistry: Overview and perspectives. Photomed. Laser Surg. 2013, 31, 147–149. [Google Scholar] [CrossRef] [PubMed]
  46. Hibst, R. Lasers for Caries Removal and Cavity Preparation: State of the Art and Future Directions. J. Oral Laser Appl. 2002, 2, 203–211. [Google Scholar]
  47. Licata, M.E.; Albanese, A.; Campisi, G.; Geraci, D.M.; Russo, R.; Gallina, G. Effectiveness of a new method of disinfecting the root canal, using Er, Cr:YSGG laser to kill Enterococcus faecalis in an infected tooth model. Lasers Med. Sci. 2015, 30, 707–712. [Google Scholar] [CrossRef] [PubMed]
  48. Luong, E.; Shayegan, A. Assessment of microleakage of class V restored by resin composite and resin-modified glass ionomer and pit and fissure resin-based sealants following Er:YAG laser conditioning and acid etching: In vitro study. Clin. Cosmet. Investig. Dent. 2018, 10, 83–92. [Google Scholar] [CrossRef] [PubMed]
  49. Kotsakis, G.A.; Konstantinidis, I.; Karoussis, I.K.; Ma, X.; Chu, H. Systematic review and meta-analysis of the effect of various laser wavelengths in the treatment of peri-implantitis. J. Periodontol. 2014, 85, 1203–1213. [Google Scholar] [CrossRef] [PubMed]
  50. Galli, C.; Macaluso, G.M.; Elezi, E.; Ravanetti, F.; Cacchioli, A.; Gualini, G.; Passeri, G. The effects of Er:YAG laser treatment on titanium surface profile and osteoblastic cell activity: An in vitro study. J. Periodontol. 2011, 82, 1169–1177. [Google Scholar] [CrossRef] [PubMed]
  51. Schwarz, F.; Rothamel, D.; Becker, J.; Schwarz Monatsschr, Z. Influence of an Er:YAG laser on the surface structure of titanium implants. Schweiz Monatsschr. Zahnmed. 2003, 113, 660–671. [Google Scholar] [PubMed]
  52. Sennhenn-Kirchner, S.; Schwarz, P.; Schliephake, H.; Konietschke, F.; Brunner, E.; Borg-von Zepelin, M. Decontamination efficacy of erbium:yttrium-aluminium-garnet and diode laser light on oral Candida albicans isolates of a 5-day in vitro biofilm model. Lasers Med. Sci. 2009, 24, 313–320. [Google Scholar] [CrossRef] [PubMed]
  53. Kim, J.H.; Herr, Y.; Chung, J.H.; Shin, S.I.; Kwon, Y.H. The effect of erbium-doped: Yttrium, aluminium and garnet laser irradiation on the surface microstructure and roughness of double acid-etched implants. J. Periodont. Implant Sci. 2011, 41, 234–241. [Google Scholar] [CrossRef] [PubMed]
  54. Matys, J.; Dominiak, M.; Flieger, R. Energy and Power Density: A Key Factor in Lasers Studies. J. Clin. Diagn. Res. 2015, 9, ZL01–ZL02. [Google Scholar] [CrossRef] [PubMed]
  55. Taniguchi, Y.; Aoki, A.; Mizutani, K.; Takeuchi, Y.; Ichinose, S.; Takasaki, A.A.; Schwarz, F.; Izumi, Y. Optimal Er:YAG laser irradiation parameters for debridement of microstructured fixture surfaces of titanium dental implants. Lasers Med. Sci. 2013, 28, 1057–1068. [Google Scholar] [CrossRef] [PubMed]
  56. Visuri, S.R.; Walsh, J.T., Jr.; Wigdor, H.A. Erbium laser ablation of dental hard tissue: Effect of water cooling. Lasers Surg. Med. 1996, 18, 294–300. [Google Scholar] [CrossRef]
  57. Park, S.Y.; Kim, K.H.; Shin, S.Y.; Koo, K.T.; Lee, Y.M.; Chung, C.P.; Seol, Y.J. Decontamination methods using a dental water jet and dental floss for microthreaded implant fixtures in regenerative periimplantitis treatment. Implant Dent. 2015, 24, 307–316. [Google Scholar] [CrossRef] [PubMed]
  58. Lukac, M.; Marincek, M.; Grad, L. Super VSP Er:YAG Pulses for Fast and Precise Cavity Preparation. J. Oral Laser Appl. 2004, 4, 171–173. [Google Scholar]
  59. Perhavec, T.; Diaci, J. Comparison of Er:YAG and Er,Cr:YSGG dental lasers. J. Oral Laser Appl. 2008, 8, 87–94. [Google Scholar]
  60. Folwaczny, M.; Thiele, L.; Mehl, A.; Hickel, R. The effect of working tip angulation on root substance removal using Er:YAG laser radiation: An in vitro study. J. Clin. Periodontol. 2001, 28, 220–226. [Google Scholar] [CrossRef] [PubMed]
  61. Hauser-Gerspach, I.; Mauth, C.; Waltimo, T.; Meyer, J.; Stübinger, S. Effects of Er:YAG laser on bacteria associated with titanium surfaces and cellular response in vitro. Lasers Med. Sci. 2014, 29, 1329–1337. [Google Scholar] [CrossRef] [PubMed]
Dentistry 06 00066 g001 550

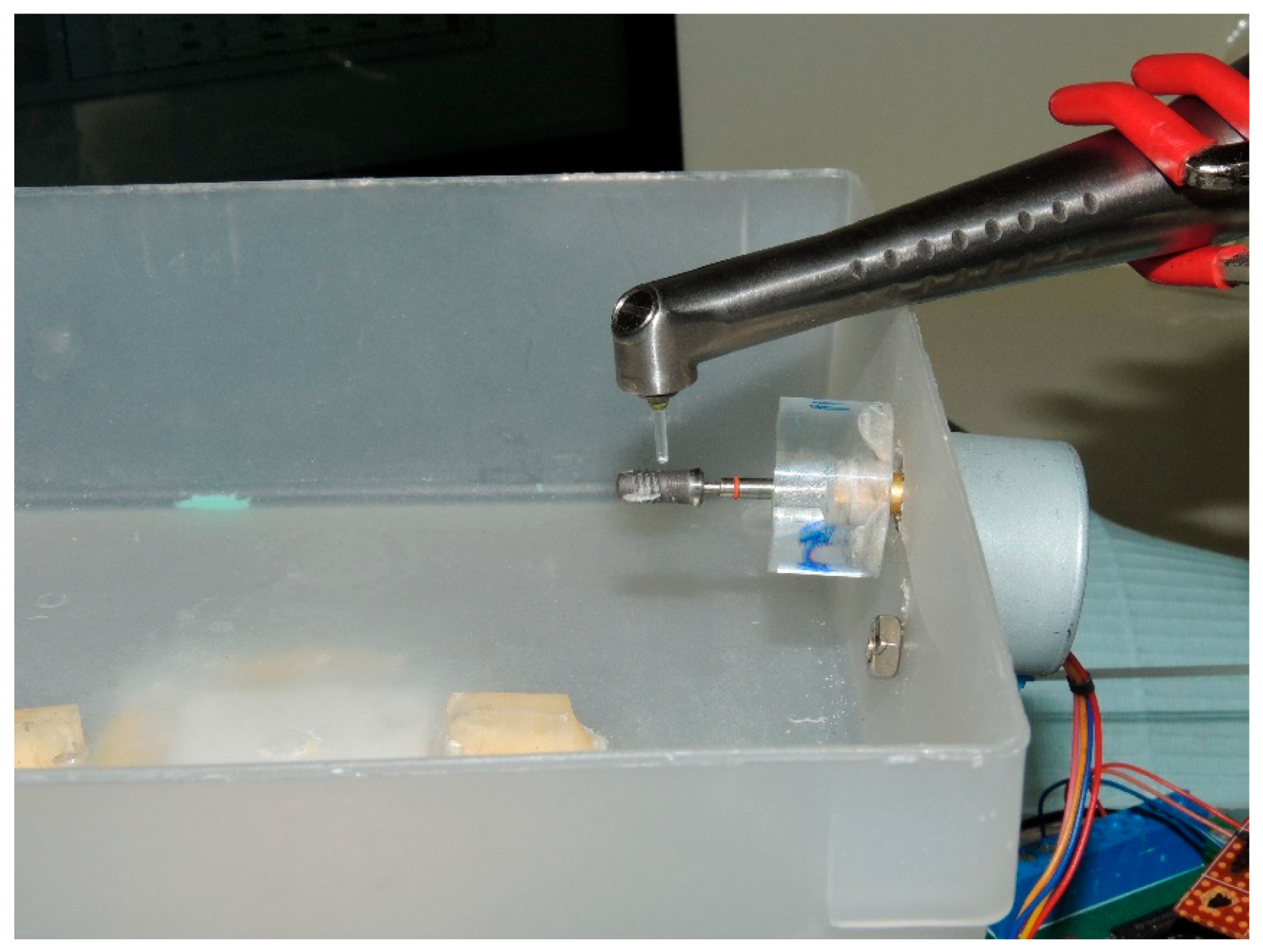

Figure 1. The custom-designed device.
Figure 1. The custom-designed device.
Dentistry 06 00066 g001
Dentistry 06 00066 g002 550

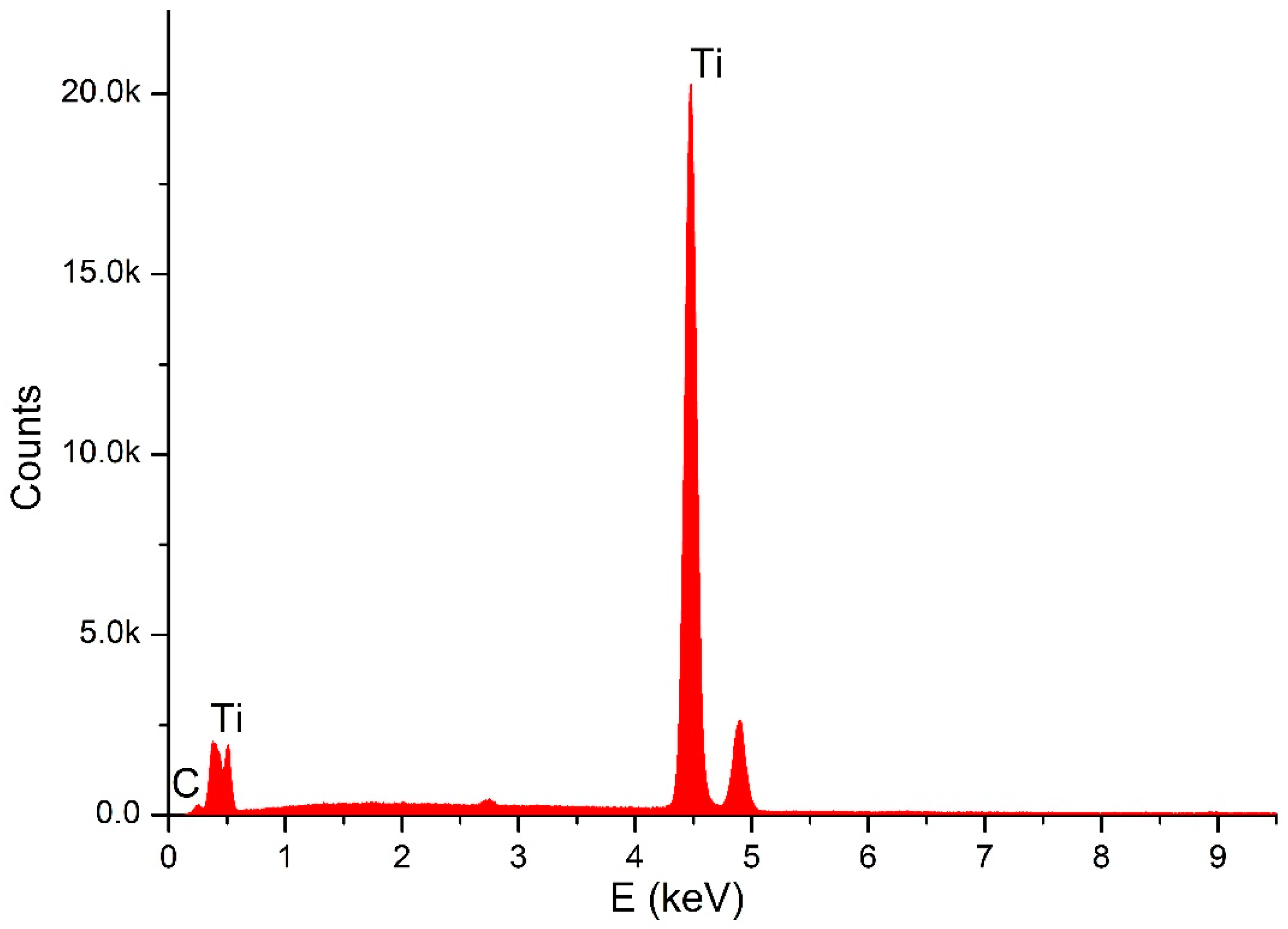

Figure 2. EDX for sterile implant.
Figure 2. EDX for sterile implant.
Dentistry 06 00066 g002
Dentistry 06 00066 g003 550

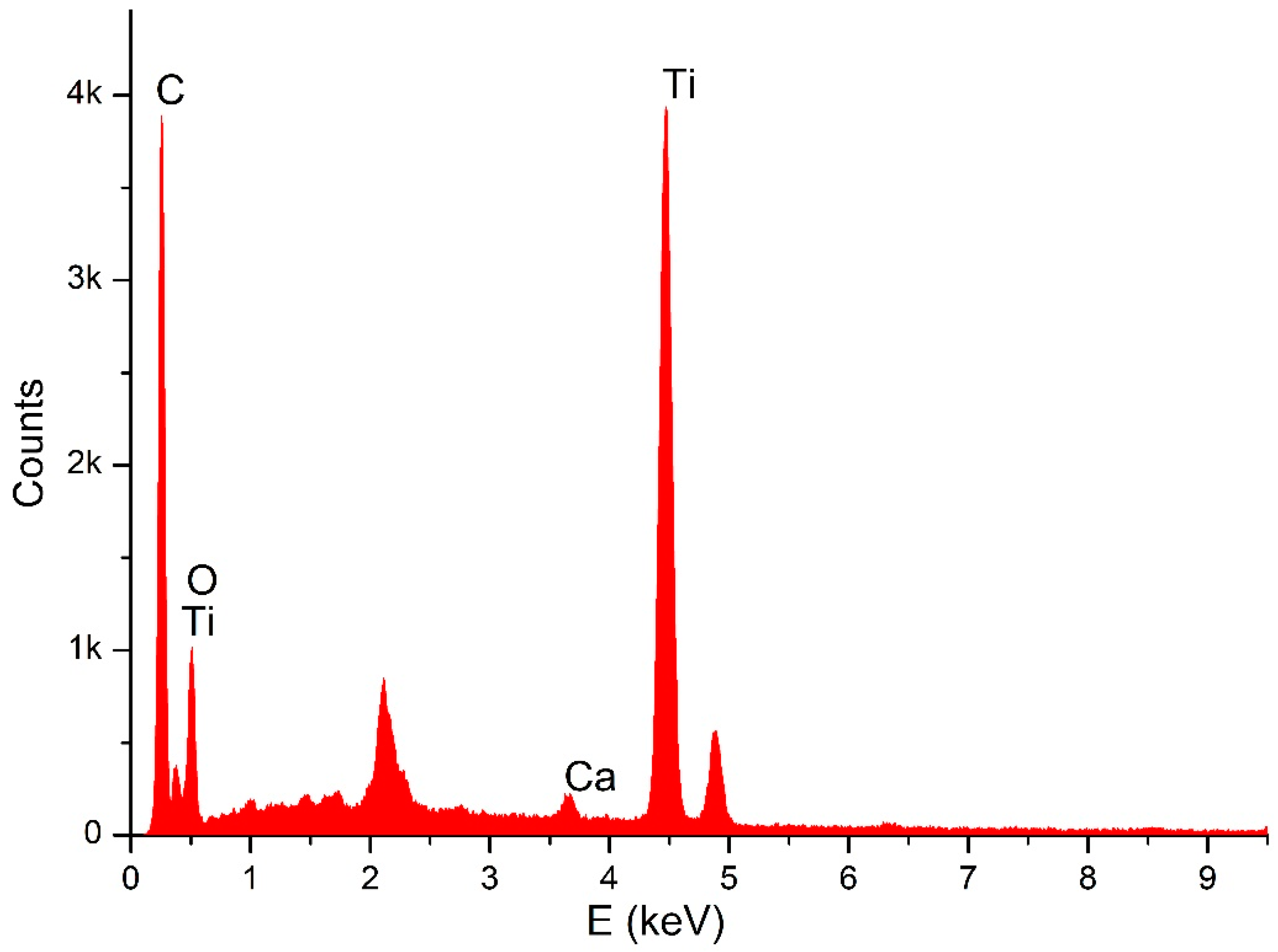

Figure 3. EDX for contaminated implant.
Figure 3. EDX for contaminated implant.
Dentistry 06 00066 g003
Dentistry 06 00066 g004 550

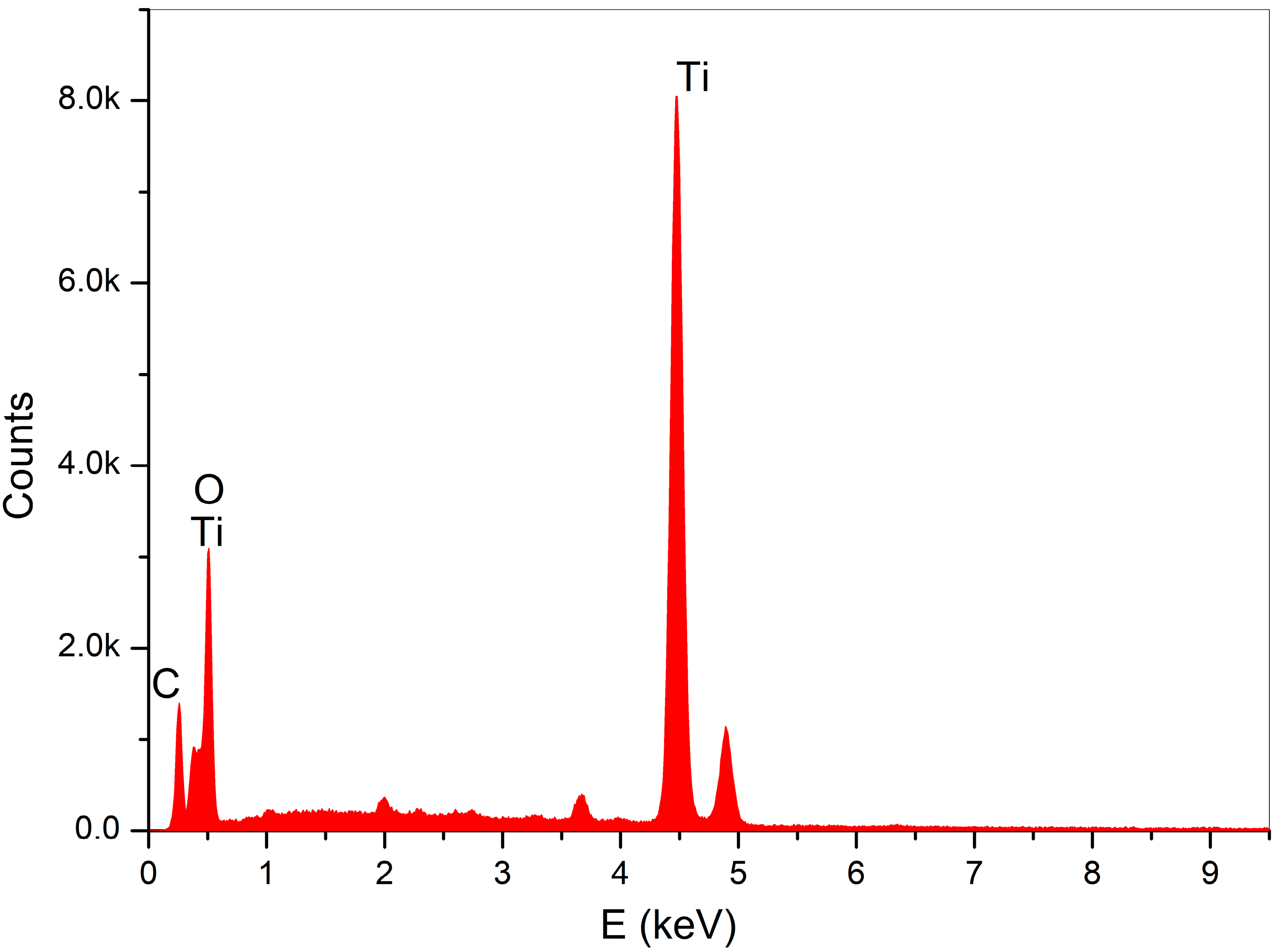

Figure 4. EDX for 1 passage of laser.
Figure 4. EDX for 1 passage of laser.
Dentistry 06 00066 g004
Dentistry 06 00066 g005 550

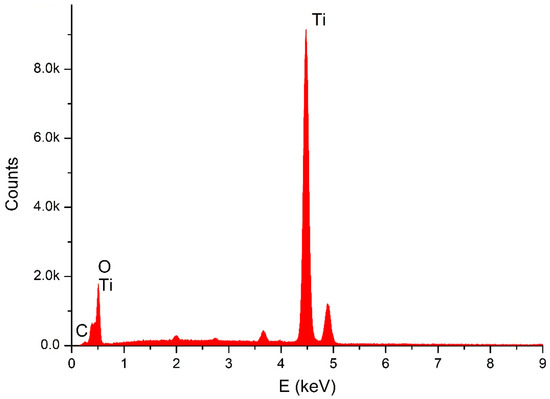

Figure 5. Energy-dispersive X-ray spectroscopy (EDX) for the three passages of laser.
Figure 5. Energy-dispersive X-ray spectroscopy (EDX) for the three passages of laser.
Dentistry 06 00066 g005
Dentistry 06 00066 g006 550

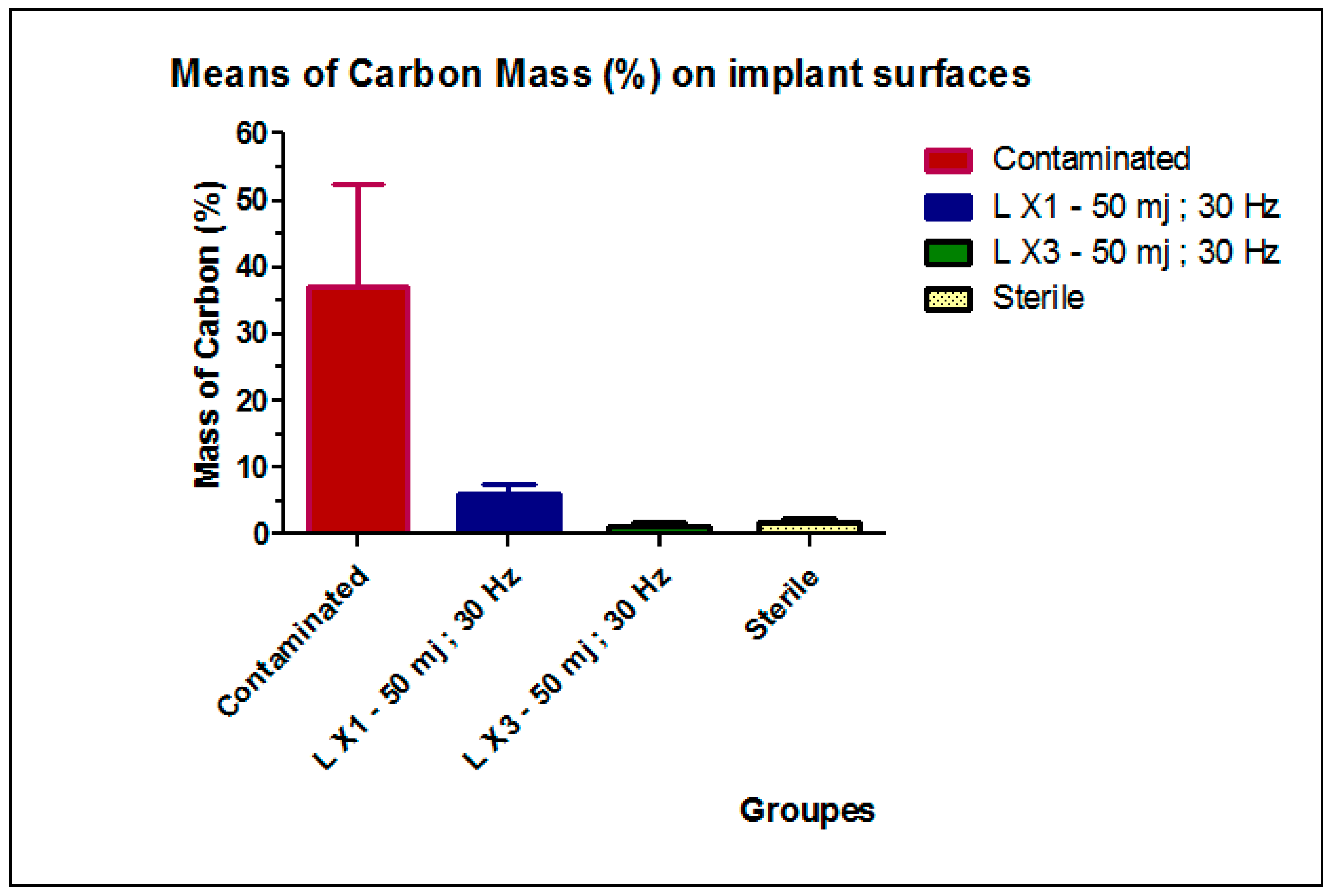

Figure 6. Means of the Carbon mass (%) on the implant surfaces in the sterile, contaminated, LX1, and LX3 groups.
Figure 6. Means of the Carbon mass (%) on the implant surfaces in the sterile, contaminated, LX1, and LX3 groups.
Dentistry 06 00066 g006
Dentistry 06 00066 g007a 550Dentistry 06 00066 g007b 550

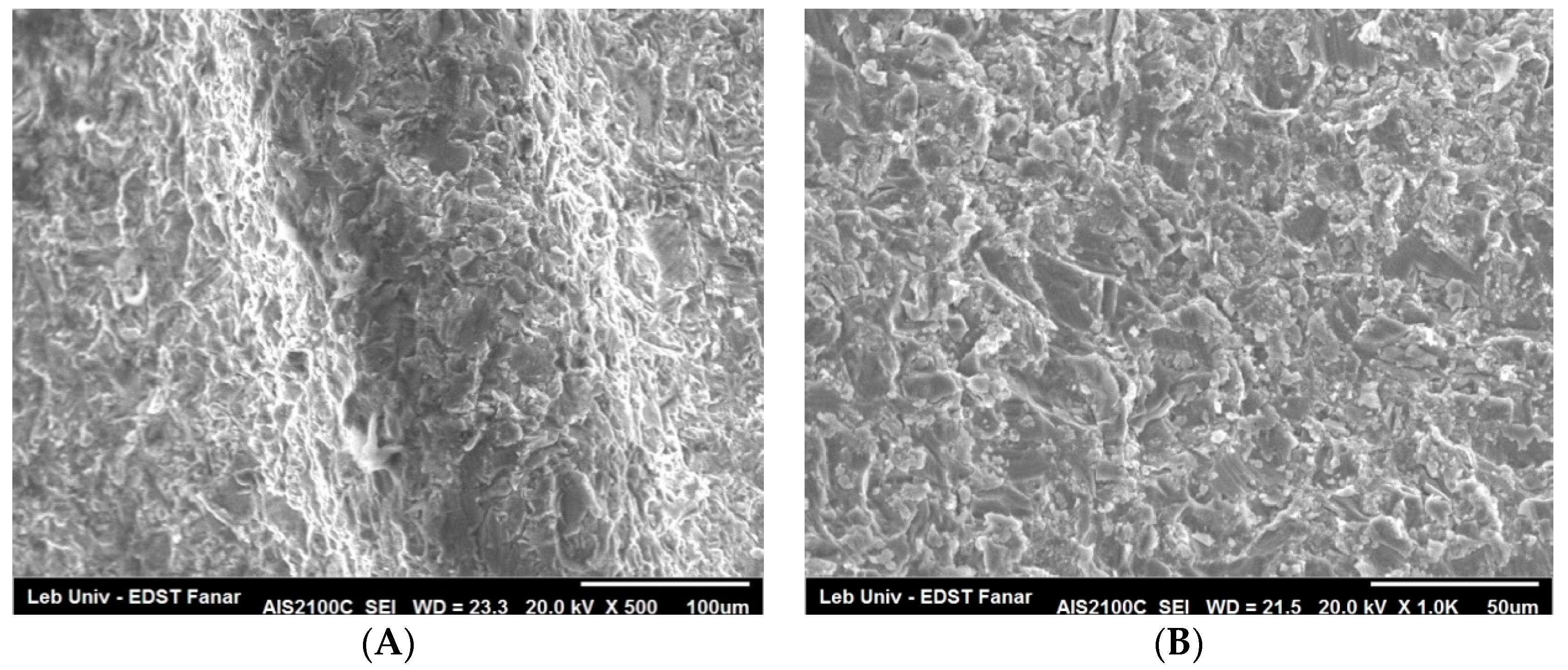

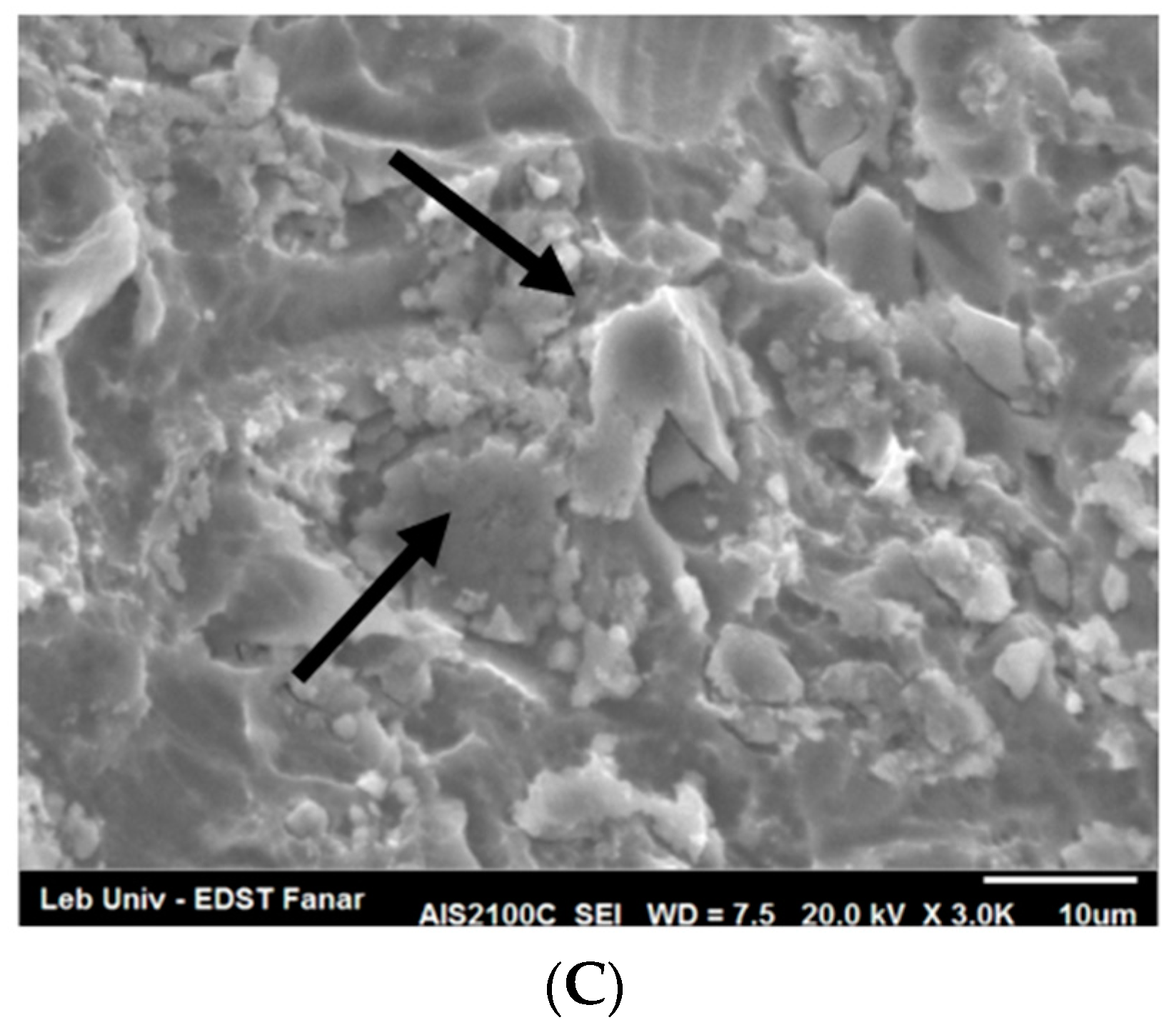

Figure 7. Images illustrating the characteristics of the morphology of the implant surface. Control sterile implant surface, without any conditioning, shows irregular rough surface (A) (×500), (B) (×1000), and (C) (×3000). High-magnification image (C) shows ridges and grooves on the implant surface.
Figure 7. Images illustrating the characteristics of the morphology of the implant surface. Control sterile implant surface, without any conditioning, shows irregular rough surface (A) (×500), (B) (×1000), and (C) (×3000). High-magnification image (C) shows ridges and grooves on the implant surface.
Dentistry 06 00066 g007aDentistry 06 00066 g007b
Dentistry 06 00066 g008 550
Figure 8. The implant surface irradiated by the Er:YAG laser, under 50 mJ/pulse, for three passages, at the magnification (A) (×500), (B) (×1000), and (C) (×3000).The implant surface did not get affected and the rough surface was similar to the one of the sterile implant.
Figure 8. The implant surface irradiated by the Er:YAG laser, under 50 mJ/pulse, for three passages, at the magnification (A) (×500), (B) (×1000), and (C) (×3000).The implant surface did not get affected and the rough surface was similar to the one of the sterile implant.
Dentistry 06 00066 g008
Table
Table 1. Distribution of the experimental and the control groups.
Table 1. Distribution of the experimental and the control groups.
GroupsSurface
A (sterile)
(n = 30)		Control: No contamination/No irradiation
B
(n = 60)		Contaminated implants
LX1
(n = 30)		Decontamination by irradiation: one passage
LX3
(n = 30)		Decontamination by irradiation: multiple passages
Table
Table 2. Mean values (SD) of the Carbon mass (%) analysis according to the groups.
Table 2. Mean values (SD) of the Carbon mass (%) analysis according to the groups.
GroupsContaminatedL X1
50 mJ; 30 Hz		L X3
50 mJ; 30 Hz		Sterile
Number of values230235235235
Mean (SD)37.18 (15.31) a6.17 (1.45) b1.43 (0.41) c1.86 (0.68) c
95% CI34.24–40.115.06–7.280.92–1.931.64–2.08
Lowercase superscript letters indicate statistically significant differences (Newman-Keuls; p < 0.05) between groups. SD: Standard deviation; CI: Confidence interval.
Table
Table 3. Table showing the mean differences and p-values of each of the two tested-group. The difference is significant between all types of groups, except between LX3 and the sterile group. *** means the difference is highly significant (0.1 %).
Table 3. Table showing the mean differences and p-values of each of the two tested-group. The difference is significant between all types of groups, except between LX3 and the sterile group. *** means the difference is highly significant (0.1 %).
p Value Summary***
Do the variances differ signif. (p < 0.05)Yes
ANOVA TableSSDfMS
Treatment (between columns)65,790321,930
Residual (within columns)312911626.97
Total68,920119
Newman-Keuls Multiple Comparison TestMean Diff.QSignificant? p < 0.05?Summary
L X3-50 mj; 30 Hz vs. Contaminated−55.8258.87Yes***
L X3-50 mj; 30 Hz vs. L X1-50 mj; 30 Hz−5.2135.498Yes***
L X3-50 mj; 30 Hz vs. Sterile−0.62830.6627Nons
Sterile vs. Contaminated−55.1958.21Yes***
L X1-50 mj; 30 Hz vs. Sterile−4.5854.836Yes***
L X1-50 mj; 30 Hz vs. Contaminated−50.6153.37Yes***

Share and Cite

MDPI and ACS Style

Nejem Wakim, R.; Namour, M.; Nguyen, H.V.; Peremans, A.; Zeinoun, T.; Vanheusden, A.; Rompen, E.; Nammour, S. Decontamination of Dental Implant Surfaces by the Er:YAG Laser Beam: A Comparative in Vitro Study of Various Protocols. Dent. J. 2018, 6, 66. https://doi.org/10.3390/dj6040066

AMA Style

Nejem Wakim R, Namour M, Nguyen HV, Peremans A, Zeinoun T, Vanheusden A, Rompen E, Nammour S. Decontamination of Dental Implant Surfaces by the Er:YAG Laser Beam: A Comparative in Vitro Study of Various Protocols. Dentistry Journal. 2018; 6(4):66. https://doi.org/10.3390/dj6040066

Chicago/Turabian Style

Nejem Wakim, Rima, Melanie Namour, Hoang Viet Nguyen, Andre Peremans, Toni Zeinoun, Alain Vanheusden, Eric Rompen, and Samir Nammour. 2018. "Decontamination of Dental Implant Surfaces by the Er:YAG Laser Beam: A Comparative in Vitro Study of Various Protocols" Dentistry Journal 6, no. 4: 66. https://doi.org/10.3390/dj6040066

APA Style

Nejem Wakim, R., Namour, M., Nguyen, H. V., Peremans, A., Zeinoun, T., Vanheusden, A., Rompen, E., & Nammour, S. (2018). Decontamination of Dental Implant Surfaces by the Er:YAG Laser Beam: A Comparative in Vitro Study of Various Protocols. Dentistry Journal, 6(4), 66. https://doi.org/10.3390/dj6040066

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
