Effects of Vapor Pressure of Desiccant Solution on Mass Transfer Performance for a Spray-Bed Absorber
Abstract
:1. Introduction
2. Experimental Section
2.1. Experimental Procedure
2.2. Measuring System for Vapor Pressure
- (1)
- The desiccant solution is placed in STIR.
- (2)
- Liquid nitrogen in the Dewar bottle was used to freeze or solidify the desiccant solution for about 10 min.
- (3)
- The valvesV2 and V4 are closed. The vacuum pump was activated firstly and then the valves V1, V3, V5, and V6 are opened for degassing. (solid state still for the desiccant solution)
- (4)
- After activating the vacuum pump, the system through V1, V3, V5, and V6 is degassed by the vacuum pump.
- (5)
- While reaching the vacuum state, V1 could be closed to maintain the vacuum state of the system through V1, V3, V5, and V6 and vacuum pump could be close to save energy.
- (6)
- The temperature of heating stirrer is increased to defrost the desiccant solution.
- (7)
- Steps 2–6 are repeated three times to remove impurities in the system.
- (8)
- The temperatures of the desiccant solution, 20, 25, 30, and 35 °C, controlled by heating stirrer were used to meet experimental demand. The vapor pressure of the desiccant solution was obtained by a pressure gauge after reaching the equilibrium state between gas and liquid phases.
2.3. Spray-Bed Absorber and Operating Procedure
3. Results and Discussion
3.1. Vapor Pressure of the Desiccant Solution

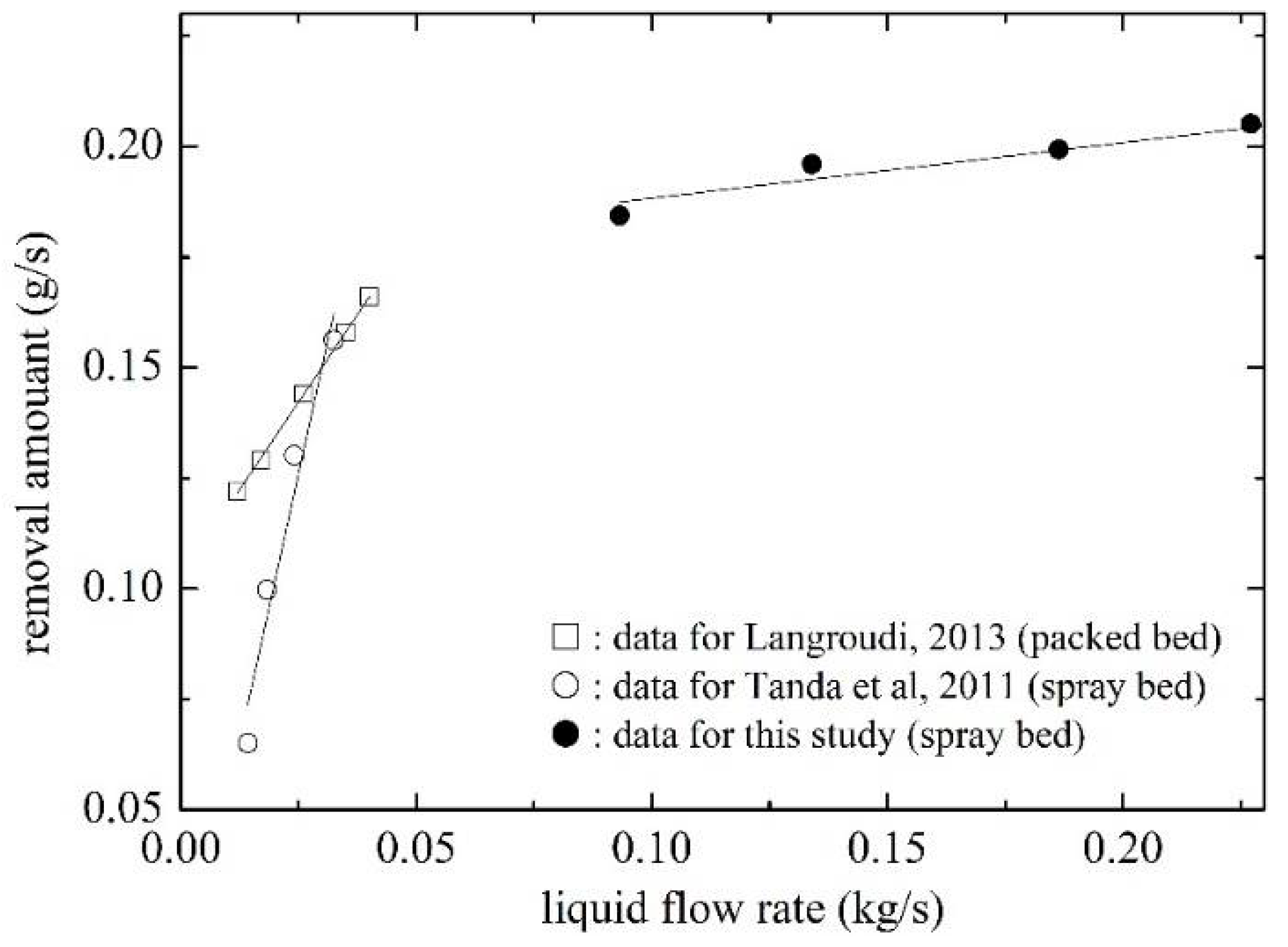

3.2. Mass Transfer Performance Compared with Literature Data

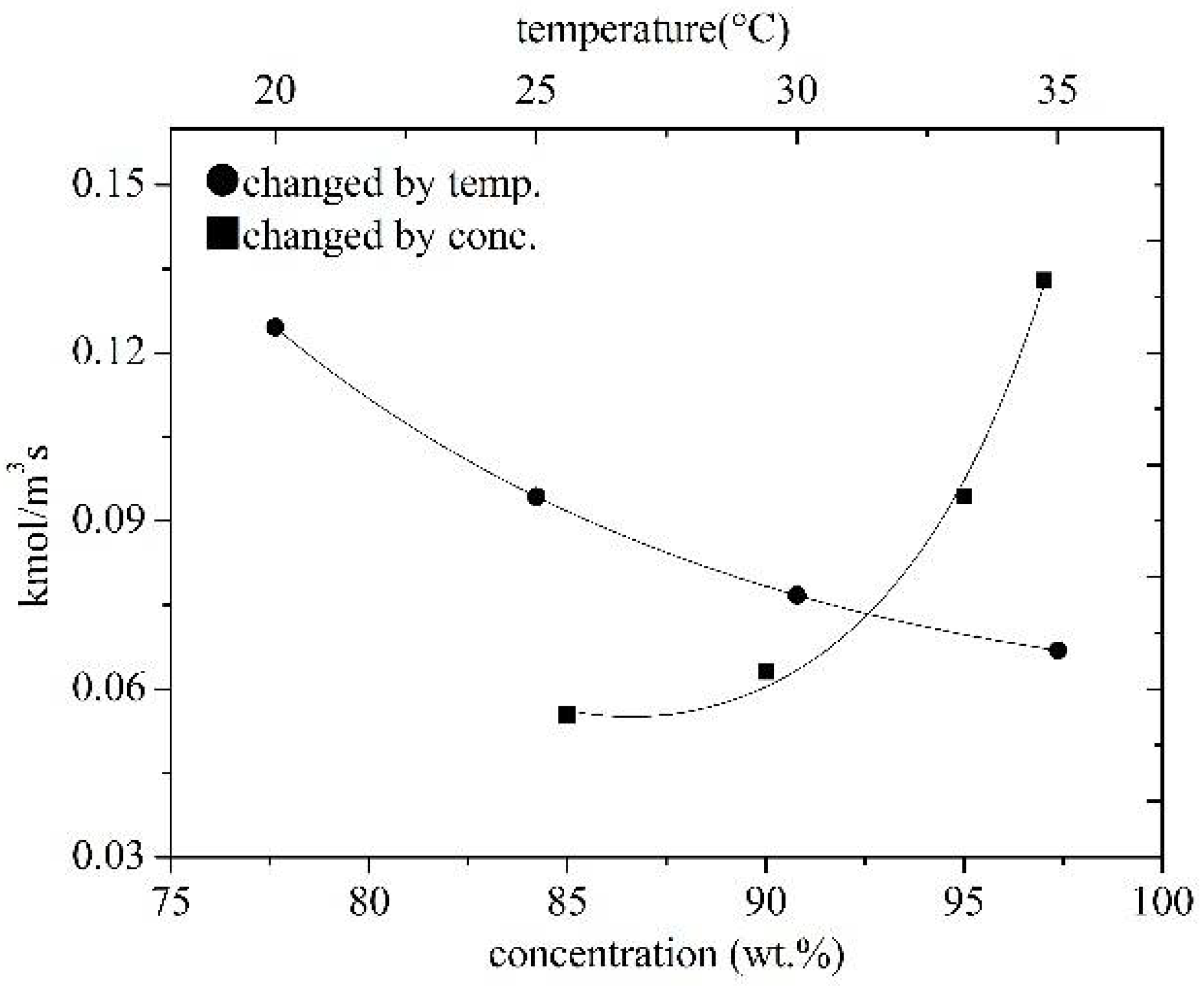

3.3. Effects of Operating Variables on Mass Transfer Coefficient
3.4. Mass Transfer Correlation
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Nomenclature
Symbols |
At: surface area of the packing per unit volume of the bed, 1/m |
c: molar concentration (mol/m3) |
Cv: mass-transfer factor, Dimensionless |
D: diffusion coefficient, m2/s |
dc = column diameter, m |
de: equivalent diameter, 4ε/ad, m |
dn: nozzle diameter, m |
G: gas flow rate, L/min |
Gr: Grashof number, dimensionless |
hk: local mass transfer coefficient, kg/m2s |
HkA: overall mass transfer coefficient, kg/m3s |
hL: Liquid holdup, Dimensionless |
hm: mass transfer coefficient, g/m2s |
HmA: overall mass transfer coefficient, g/m3s |
kk: local mass transfer coefficient, kgmole/m2s |
km: local mass transfer coefficient, mole/m2s |
KmA: overall mass transfer coefficient, mole/m3s |
KW: wall factor, dimensionless |
L: liquid flow rate, L/min |
Ls: superficial liquid mass velocity, kg/m2s |
M: molecular weight of water, kg/mol |
m: mass flow rate, kg/s |
P: pressure, atm |
PH2O: partial pressure of water pressure, mmHg |
PTEG: vapor pressure of TEG solution, mmHg |
R: ideal gas constant, m3atm/kmol·K |
Re: Reynolds number, ρvdc/μ |
S: superficial mass velocity, kg/m2s |
Sc: Schmidt number, μ/Dρ |
Sh: Sherwood number, dimensionless |
T: Temperature, ºC |
Ts: solution temperature, °C |
v: fluid flow velocity, m/s |
V: gas molar flow rate, kmole/m2s |
X: concentration in mole fraction |
yAin: molar ratio of component A in inlet gas |
yAout: molar ratio of component A in outlet gas |
: molar ratio of component A at equilibrium state |
Z: height of the absorber |
Greek Symbols |
ɛ: packing porosity or void fraction, dimensionless |
α: regressed parameter for the correlation |
β: regressed parameter for the correlation |
γ: regressed parameter for the correlation |
δ: regressed parameter for the correlation |
η: regressed parameter for the correlation |
μ: fluid viscosity, kg/ms |
ρ: fluid density, kg/m3 |
σ: surface tension, kg·m/s2 |
Subscript |
a: air |
G: gas phase |
L: liquid phase |
s: solution |
w: water |
References
- Kinsara, A.A.; Elsayed, M.M.; AI-Rabghi, O.M. Proposed energy-efficient air-conditioning system using liquid desiccant. Appl. Therm. Eng. 1996, 16, 791–806. [Google Scholar] [CrossRef]
- Gandhidasan, P. Quick performance prediction of liquid desiccant regeneration in a packed bed. Sol. Energy 2005, 79, 47–55. [Google Scholar] [CrossRef]
- Longo, G.A.; Gasparella, A. Experimental and theoretical analysis of heat and mass transfer in a packed column dehumidifier/regenerator. Int. J. Heat Mass Transf. 2005, 48, 5240–5254. [Google Scholar] [CrossRef]
- Koronaki, I.P.; Christodoulaki, R.I.; Papaefthimiou, V.D.; Rogdakis, E.D. Thermodynamic analysis of a counter flow adiabatic dehumidifier with different liquid desiccant materials with liquid desiccant. Appl. Therm. Eng. 2013, 50, 361–373. [Google Scholar] [CrossRef]
- Park, K.; Øi, L.E. Optimization of gas velocity and pressure drop in CO2 absorption column. In Proceedings of the 58th SIMS, Reykjavik, Iceland, 25–27 September 2017. [Google Scholar]
- Valeh-e-Sheyda, P.; Barati, J. Mass transfer performance of carbon dioxide absorption in a packed column using monoethanoleamine-glycerol as a hybrid. Process. Saf. Environ. Prot. 2021, 146, 54–68. [Google Scholar] [CrossRef]
- Abdul-Wahab, S.A.; Abu-Arabi, M.K.; Zurigat, Y.H. Effect of structured packing density on performance of air dehumidifier. Energy Convers. Manag. 2004, 45, 2539–2552. [Google Scholar] [CrossRef]
- Elsarrag, E. Performance study on a structured packed liquid desiccant regenerator. Sol. Energy 2006, 80, 1624–1631. [Google Scholar] [CrossRef]
- Tang, C.; Vafai, K.; Zhang, D. Mass transfer performance of the LiCl solution dehumidification process. Int. Commun. Heat Mass Transf. 2017, 85, 139–146. [Google Scholar] [CrossRef]
- Huang, S.; Lv, Z.; Zhang, X.; Liang, C. Experimental investigation on heat and mass transfer in heating tower solution regeneration using packing tower. Energy Build. 2018, 164, 77–86. [Google Scholar] [CrossRef]
- Gu, Y.; Zhang, X. Performance investigation on the liquid desiccant regeneration using rotating packed bed. Int. J. Refrig. 2020, 109, 45–54. [Google Scholar] [CrossRef]
- Liu, Y.Z.; Wu, W.; Liu, Y.; Li, B.B.; Luo, Y.; Chu, G.W.; Zou, H.K.; Chen, J.F. Desulfurization intensification by ionic liquid in a rotating packed bed. Chem. Eng. Process. Process Intensif. 2020, 148, 107793. [Google Scholar] [CrossRef]
- Tanda, T.; Shirai, K.; Matsumura, Y.; Kitahara, H. New correlation for mass transfer characteristics of spray column. Ind. Eng. Chem. Res. 2011, 50, 13554–13560. [Google Scholar] [CrossRef]
- Huang, S.; Xie, L.; Lu, L.; Zhang, X. Design method for heating towers used in vapor-compression heat pump systems. Build. Environ. 2021, 189, 107532. [Google Scholar] [CrossRef]
- Chen, W.H.; Chen, S.M.; Hung, C.I. Carbon dioxide capture by single droplet using Selexol, Rectisol and water as absorbents: A theoretical approach. Appl. Energy 2013, 111, 731–741. [Google Scholar] [CrossRef]
- Gandhidasan, P.; Ullah, M.R.; Kettleborough, C.F. Analysis of heat and mass transfer between a desiccant-air system in a packed tower. J. Sol. Engery Eng. 1987, 109, 89–93. [Google Scholar] [CrossRef]
- Song, P.; Xiao, H.; Wang, B.; Shi, W.; Li, X.; Zhang, G. Experimental investigation of the regeneration performance of an internally heated regenerator used for heating tower solution regeneration. Energy Convers. Manag. 2019, 189, 184–194. [Google Scholar] [CrossRef]
- Kumar, R.; Dhar, P.L.; Jain, S.; Asati, A.K. Multi absorber stand alone liquid desiccant air-conditioning systems for higher performance. Sol. Energy 2009, 83, 761–772. [Google Scholar] [CrossRef]
- Zhou, C.; Zhang, Q. Study on SO2 absorption characteristics in two-stage wet desulfurization process. In Proceedings of the IOP Conference Series: Earth and Environmental Science, Shanghai, China, 7–9 August 2020. [Google Scholar]
- Yin, Y.; Zhang, X.; Peng, D.; Li, X. Model validation and case study on internally cooled/heated dehumidifier/regenerator of liquid desiccant systems. Int. J. Therm. Sci. 2009, 48, 1664–1671. [Google Scholar] [CrossRef]
- Das, R.S.; Jain, S. Experimental performance of indirect air-liquid membrane contactors for liquid desiccant cooling systems. Energy 2013, 57, 319–325. [Google Scholar] [CrossRef]
- Das, R.S.; Jain, S. Experimental investigations on a solar assisted liquid desiccant cooling system with indirect contact dehumidifier. Sol. Energy 2017, 153, 289–300. [Google Scholar] [CrossRef]
- Keshavarz, P.; Fathikalajahi, J.; Ayatollahi, S. Mathematical modeling of the simultaneous absorption of carbon dioxide and hydrogen sulfide in a hollow fiber membrane contactor. Sep. Purif. Technol. 2008, 63, 145–155. [Google Scholar] [CrossRef]
- Hanley, B.; Chen, C.C. New mass-transfer correlations for packed towers. AIChE 2012, 58, 132–152. [Google Scholar] [CrossRef]
- Sánchez, A.P.; Sánchez, J.P.R.E.; Silva, S. Design of a packed bed absorption column considering four packing types and applying MATLAB. Nexo Rev. Cient. 2016, 29, 83–104. [Google Scholar] [CrossRef] [Green Version]
- Dow Chemical Company, Triethylene Glycol. Available online: https://pdf4pro.com/view/triethylene-glycol-dow-57b1b2.html (accessed on 21 June 2021).
- Langroudi, L.O.; Pahlavanzadeh, H.; Mousavi, S.M. Statistical evaluation of a liquid desiccant dehumidification system using RSM and theoretical study based on the effectiveness NTU model. J. Ind. Eng. Chem. 2014, 20, 2975–2983. [Google Scholar] [CrossRef]
- Hines, A.L.; Maddox, R.N. Mass Transfer Fundamentals and Applications; Prentice-Hall: Englewood Cliffs, NJ, USA, 1985. [Google Scholar]
- Geankoplis, C.J. Transport Processes and Separation Process Principles, 4th Edition; Prentice-Hall International Inc.: Englewood Cliffs, NJ, USA, 2014. [Google Scholar]
Device Type | Absorbent | Absorbate | Variable | Response | Reference |
---|---|---|---|---|---|
packed bed | CaCl2 | H2O | TG | COP air mass ratio | [1] |
packed bed | LiCl | H2O | G, L, Q, ε | evaporation rate | [2] |
packed bed | LiCl LiBr KCOOH | H2O | TG, TL, Gs, Ls, H, CL | removal rate regeneration rate pressure drop | [3] |
packed bed | LiCl LiBr CaCl2 | H2O | TG, TL, H, G, L | removal rate and efficiency | [4] |
packed bed | MEA | CO2 | packing type | pressure drop operating cost | [5] |
packed bed | MEA-glycerol | CO2 | TL, G, CL | K ε | [6] |
structured packed bed | TEG | H2O | G, L, TG, TL, H, CL | removal rate ε | [7] |
structured packed bed | TEG | H2O | G, L, H, TL, CL | evaporation rate ε | [8] |
structured packed bed | LiCl | H2O | G, L | K | [9] |
structured packed bed (heating tower) | glycol solution | H2O | Gs, Ls, TG, TL, H, CL | removal rate ε thermal efficiency | [10] |
rotating packed bed | LiCl | H2O | g, Gs, Ls, inlet parameters of air and liquid | removal rate H, K, ε | [11] |
rotating packed bed | ([CPL][TBAB])IL | SO2 | r, TL, G, L | ε | [12] |
spray bed | polyethylene glycol | H2O | Gs, Ls, CL, TL, dn | K | [13] |
spray bed | CaCl2 aqueous | H2O | G, L, TG, H, TL, CL | E | [14] |
spray/single droplet | selexol, rectisol, water | CO2 | TL, P, ab | absorption rate concentration | [15] |
spray bed (regenerator) | glycerol solution | H2O | LH, Tw, G | removal rate latent heat ratio ε | [17] |
falling film absorber | TEG | H2O | G, L, Tw, TL | COP | [18] |
falling film absorber | limestone slurry | SO2 | pH, CL | ε | [19] |
falling film absorber | LiCl | H2O | G, H, W | humidity ratio concentration | [20] |
membrane contactor | LiCl | H2O | me | ε | [21] |
membrane contactor | LiCl | H2O | H, CL, G/L | ε, removal rate cooling capacity COP | [22] |
hollow fiber membrane contactor | diethanolamine solution | CO2 H2S | G, Cf, Fw, hM | recovery selectivity | [23] |
Type (Absorber Type) | Correlation | Dimensionless Group for Fluid Property | Reference |
---|---|---|---|
dimensionless correlation (falling film) | Sh = 4.513 × 10−3·α·Re1.56Sc0.33 | Re, Sc | [20] |
dimensionless correlation (spray bed) | Re, Sc | [13] | |
dimensionless correlation (spray bed) | Re, Sc | this study | |
dimensionless correlation (packed bed) | , α = 0.00104 for metal pall rings, α = 0.00473 for metal IMTP, α = 0.0084 for sheet metal structured packing | Re, Sc | [24] |
dimensionless correlation (packed bed) | Re, Sc | [25] | |
dimensionless correlation (rotating packed bed) | Re, Gr | [11] | |
dimensionless correlation (spray bed) | (winter) | none | [14] |
(summer) | none | ||
without considering dimension (structured packed bed) | none | [10] | |
without considering dimension (spray bed) | none | [17] |
