Load State Identification Method for Ball Mills Based on Improved EWT, Multiscale Fuzzy Entropy and AEPSO_PNN Classification

School of Mechanical and Electrical Engineering, Jiangxi University of Science and Technology, Ganzhou 341000, China
*
Author to whom correspondence should be addressed.
Processes 2019, 7(10), 725; https://doi.org/10.3390/pr7100725
Received: 3 September 2019 / Revised: 8 October 2019 / Accepted: 8 October 2019 / Published: 11 October 2019

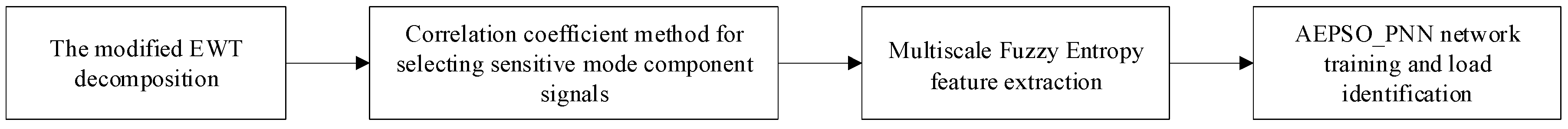

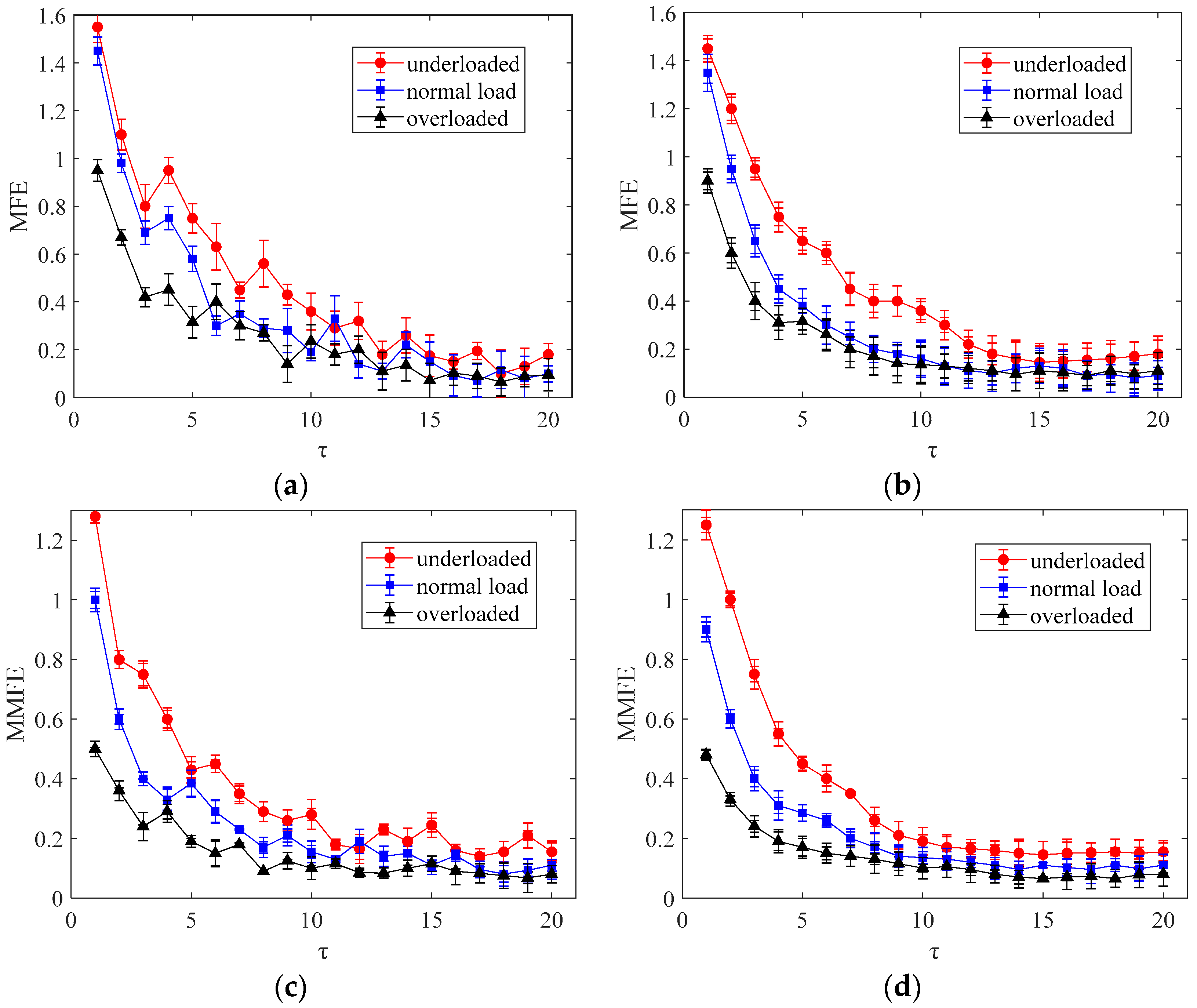

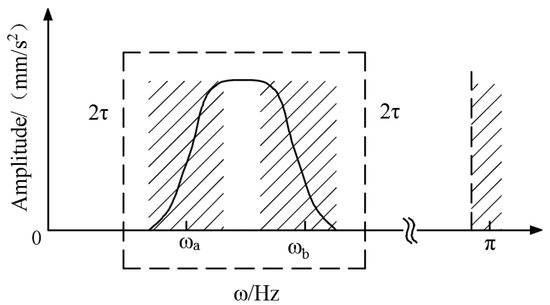

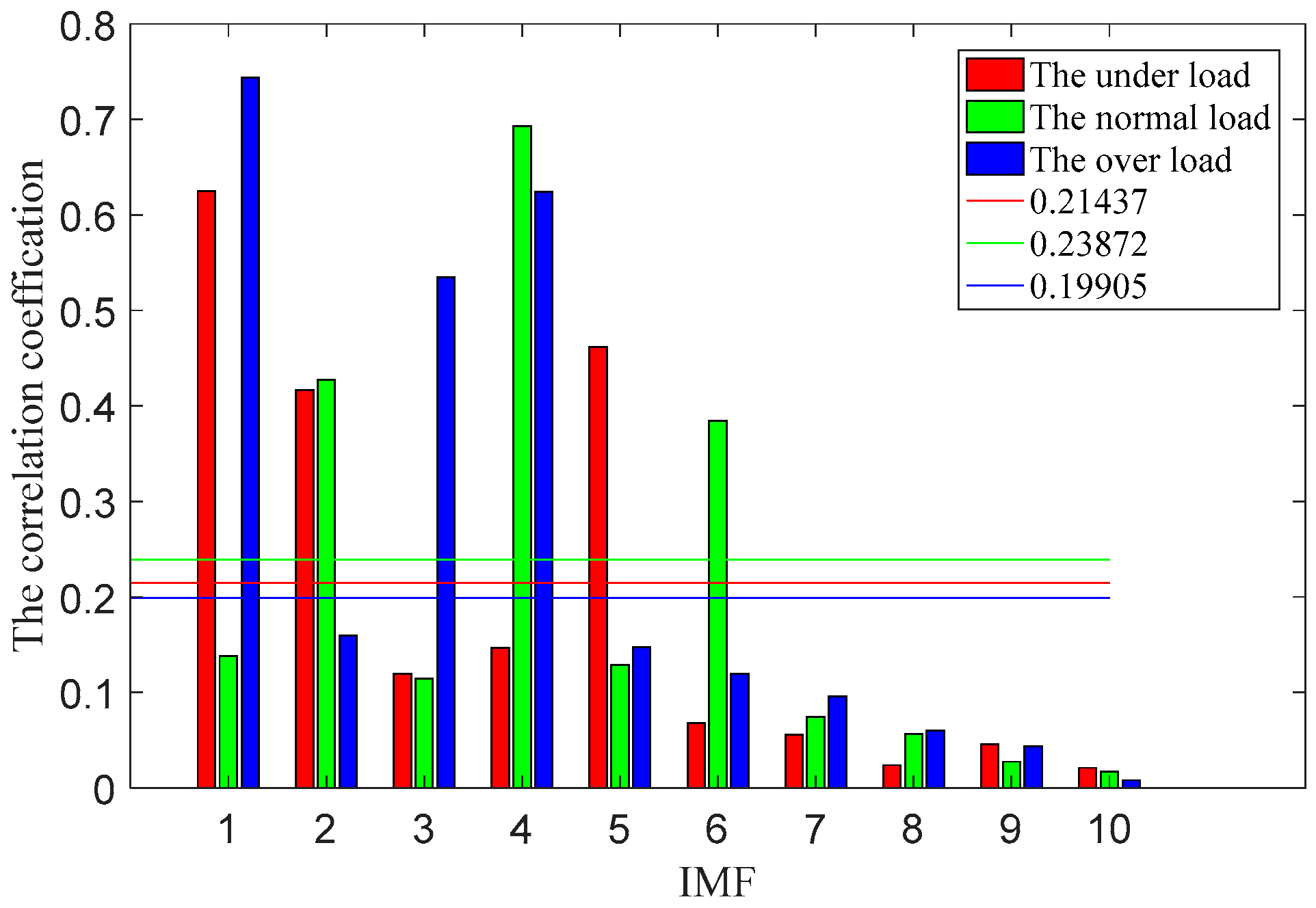

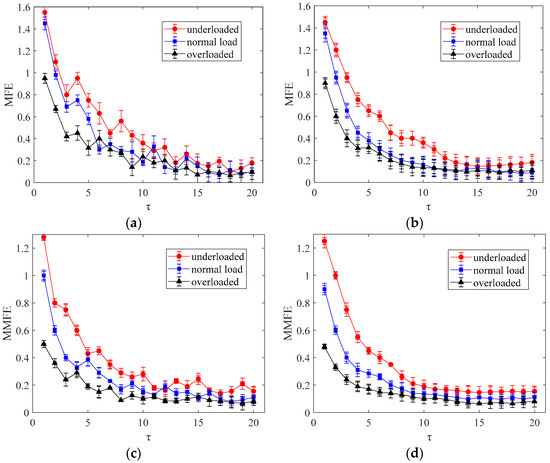

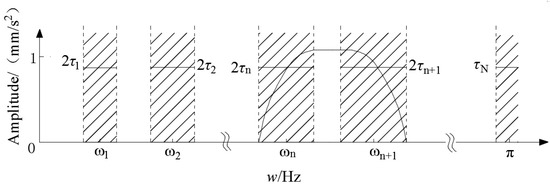

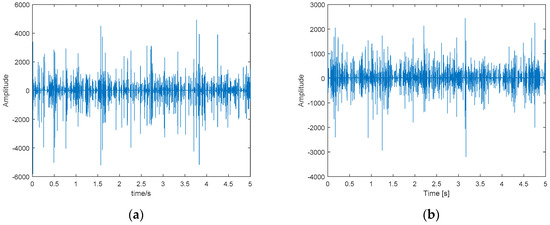

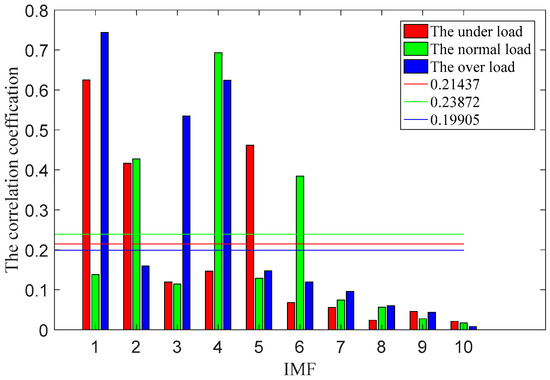

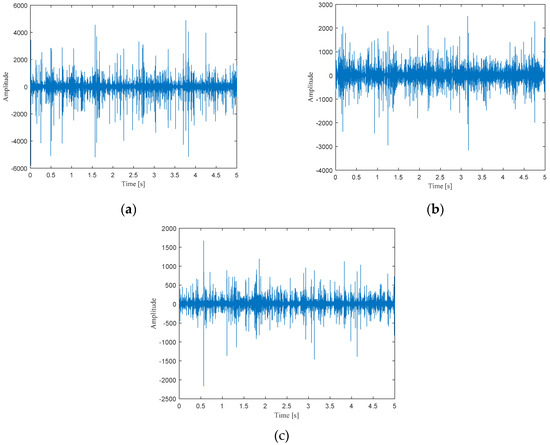

To overcome the difficulty of accurately determining the load state of a wet ball mill during the grinding process, a method of mill load identification based on improved empirical wavelet transform (EWT), multiscale fuzzy entropy (MFE), and adaptive evolution particle swarm optimization probabilistic neural network (AEPSO_PNN) classification is proposed. First, the concept of a sliding frequency window is introduced based on EWT, and the adaptive frequency window EWT algorithm, which is used to decompose the vibration signals recorded under different load states to obtain the intrinsic mode components, is proposed. Second, a correlation coefficient threshold is used to select the sensitive mode components that characterize the state of the original signal for signal reconstruction. Finally, the MFE of the reconstructed signal is used as the characteristic vector to characterize the load state of the mill, and the partial mean value of MFE is calculated. The results show that the mean value of MFE under different load states varies. To further identify the load state, a characteristic mill load vector is constructed from the MFE values of the reconstructed signal under different load conditions and is used as the input of the AEPSO_PNN model, which then outputs the predicted ball mill load state. Thus, a load state identification model is established. The feasibility of the method is verified based on grinding experiments. The results show that the overall recognition rate of the proposed method is as high as 97.3%. Compared with the back propagation (BP) neural network, Bayes discriminant method, and PNN classification, AEPSO_PNN classification increases the overall recognition rate by 8%, 5.3%, and 3.3%, respectively, which indicates that this method can be used to accurately identify the different load states of a ball mill. View Full-Text
Keywords: load identification; EWT; multiscale fuzzy entropy; PNN load identification; EWT; multiscale fuzzy entropy; PNN
Show Figures

Figure 1

MDPI and ACS Style

Cai, G.; Liu, X.; Dai, C.; Luo, X. Load State Identification Method for Ball Mills Based on Improved EWT, Multiscale Fuzzy Entropy and AEPSO_PNN Classification. Processes 2019, 7, 725.
